Haier XQSB60-JN User manual

This manual is for

Please read this manual

carefully before using.

Retain it for future reference.

XQSB60-JN

User's manual

Environment-friendly double-driver

automatic washing machine

Special number:0030806318

Names of the parts..........................................1

Safety precautions ................................................2

Installation and adjustment ..............................4

Install the water inlet hose............6

Preparation before washing........................8

The musts in washing ...........................................8

Usage of the detergent ....................................9

Put in laundries..............................................9

Close the top lid..................................9

Use the operation buttons .................................10

Finish washing ...................................16

Disposal after washing .........................17

Trouble shooting *Answer to question..............................18

Packing list ...............................................19

Specification..............................................................19

Contents

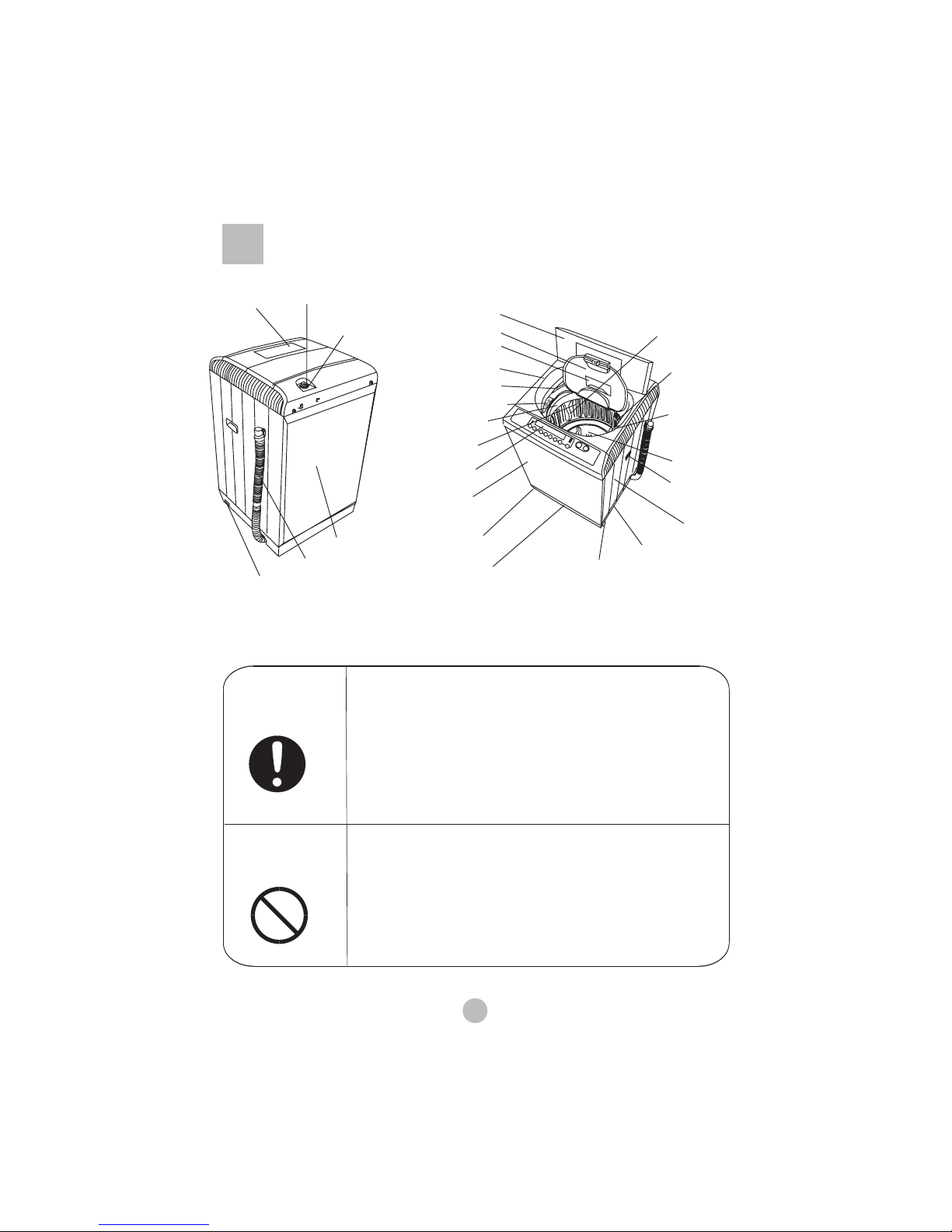

Names of the parts

Top lid handle

Adjustable leg film

Water absorption

cushion

Drain hose

Back cover

Water inlet valve

Inner cover component

Detergent box

Control panel

Outer tub cover

Balance ring

Inner tub

Lint filter(2 pieces)

Front control board

Cabinet

Cabinet base

Fixed leg (3 pieces)

Adjustable leg

Softener inlet

Front door

Pulsator

Handle(2 pieces)

Top lid component

Decorative board

Attachment block

(2 pieces)

Liquid bleacher

inlet

Meaning and description of the symbols

Warning sign

Forbidden sign

Contents marked with that symbol are related to the

safety of the product and the personal safety of the

users. Please operate in strict conformity to the contents,

otherwise it may cause damage of the machine or

injure the personal safety of the user.

Contents marked with that symbol are actions forbidden

to perform. Performing of those actions may result

in damage of the machine or injure the personal

safety of the user.

Do not wash water-proof laundry like the raincoat,

bike covers etc. To avoid abnormal vibrations in

spinning and damages to the laundries.

In normal usage of the washing machine, the power

plug shall be ready to be pulled or plugged with hand.

Be sure to pull the plug off and close the water faucet

when occurring power failure, delivering the machine,

setting the machine idle or cleaning the machine. Do

not plug or pull the power plug with wet hand.

Do not use water with temperature higher than 50

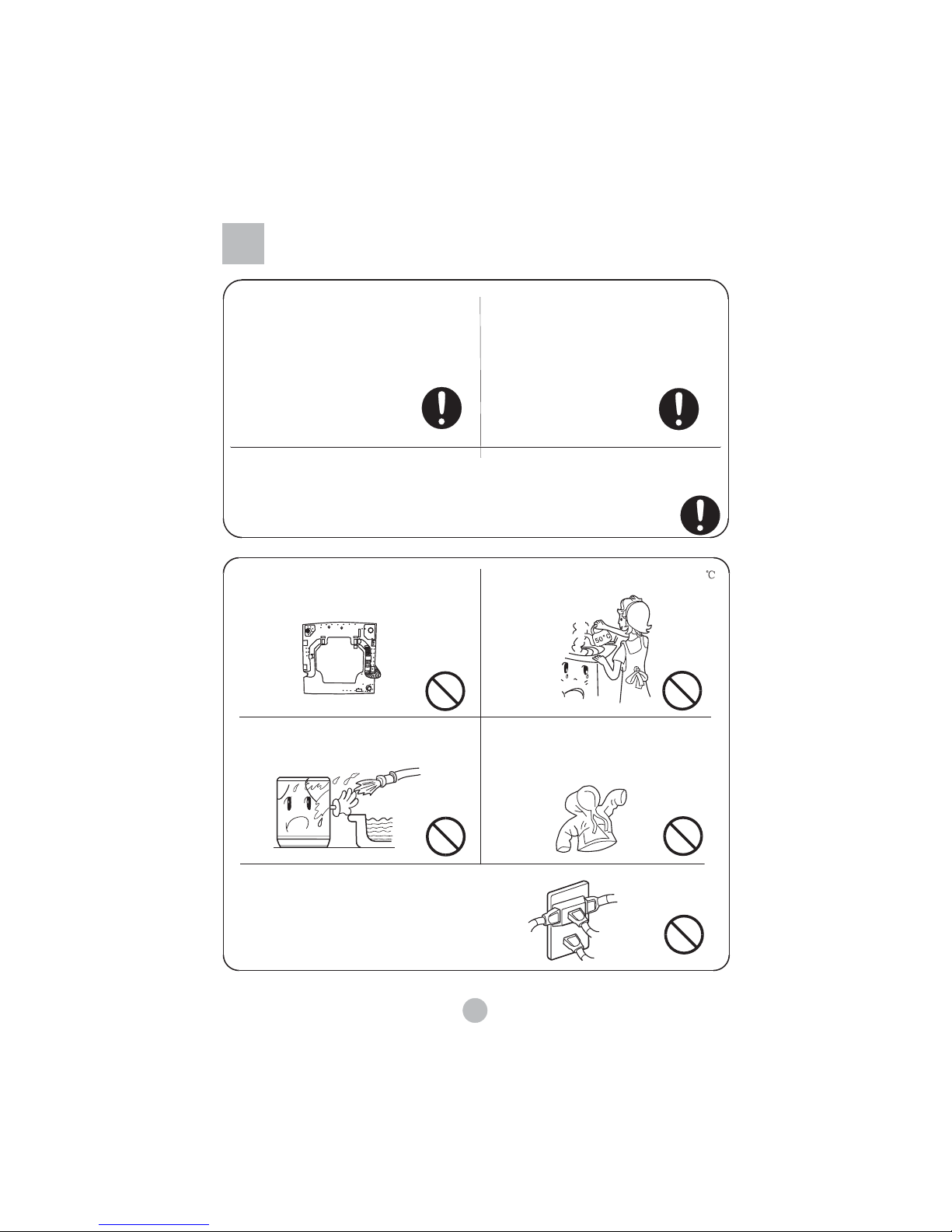

Safety precautions

In case the washing machine is installed on ground

with carpet, be careful not to block the ventilation hole

with carpet.

Do not put the machine at damp place like the

bathroom. Never wash it with water. Do not

put wet laundries on the control panel coating.

Do not let the machine share one receptacle with other

electric appliances. If the power plug is damaged, or

the plugging into the receptacle is loose, do not use

the plug any more.

Do not bend,stretch, twist, bind the power cord by force, or reform it.

Do not pressor clamp it with heavy items. If the power cord and power

plug are bad,or the receptacle is loose, be sure to have it replaced by

the technicians ofour special shopor our agent,or the after-salesservice

department to avoid any risk. Keep the prong of the power plugclean. If

dust is foundon the powerplug, please wipeit off withdry cloth.

Please insert the power cord into special receptacle

with rated voltage. Be sure to use single-phase three

pins receptacle. Ensure the earthing prong of the

power receptacle is earthed reliably. Use leakage

protector if possible.

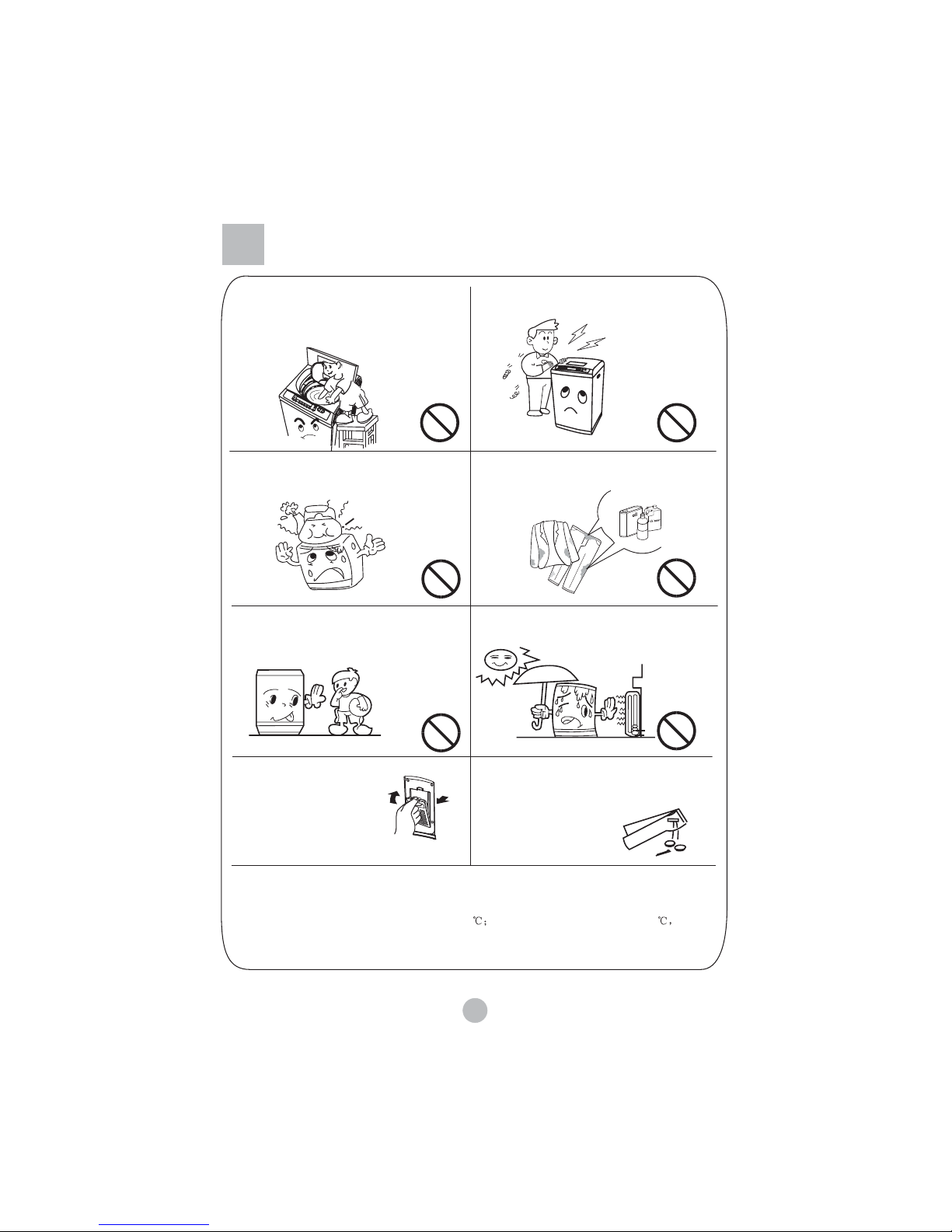

Safety precautions

Do not put hand into the rotating tub. It is dangerous

even if the rotation speed is slow. Take special care of

the children. Keep children away from the washing

machine to avoid them climbing on.

Do not decompose, repair or alter the machine by

yourself.

Do not put any hot or heavy items (such as the

kettle with hot water) on the washing machine.

Do not wash laundry with volatile materials

(such as thinner, petrol etc.).

Keep the machine away from direct sunlight and

heat source like the heater.

The handicapped or Childrenwithout care shall not

use the machine.

Please keep the lint filter in good

condition, and install it to proper

position during washing. If

the lint filter is lost or damaged,

please contact the local after-sales

service department of our company.

Benzene

To protect your laundries and washing machine,

please take out all of the coins, buttons, sand, hairpin

and other foreign materials before washing.

Please check if the water faucet is open, and if the connection of the water inlet pipe is proper before washing.

Please put down the drain hose before washing.

It is suggested to use foamless washing powder.

Please don't use the washer in the environment below 0 if the washer has been stored below 0 please

be sure to ensure the washer is placed under the room temperature for 24 hours and then use otherwise the

washing effects may be lowered or the washer may be damaged.

Dismantle

Install

Please install and adjust the machine according to the requirement of the manual.

It is very important to your security and correct operating the machine.

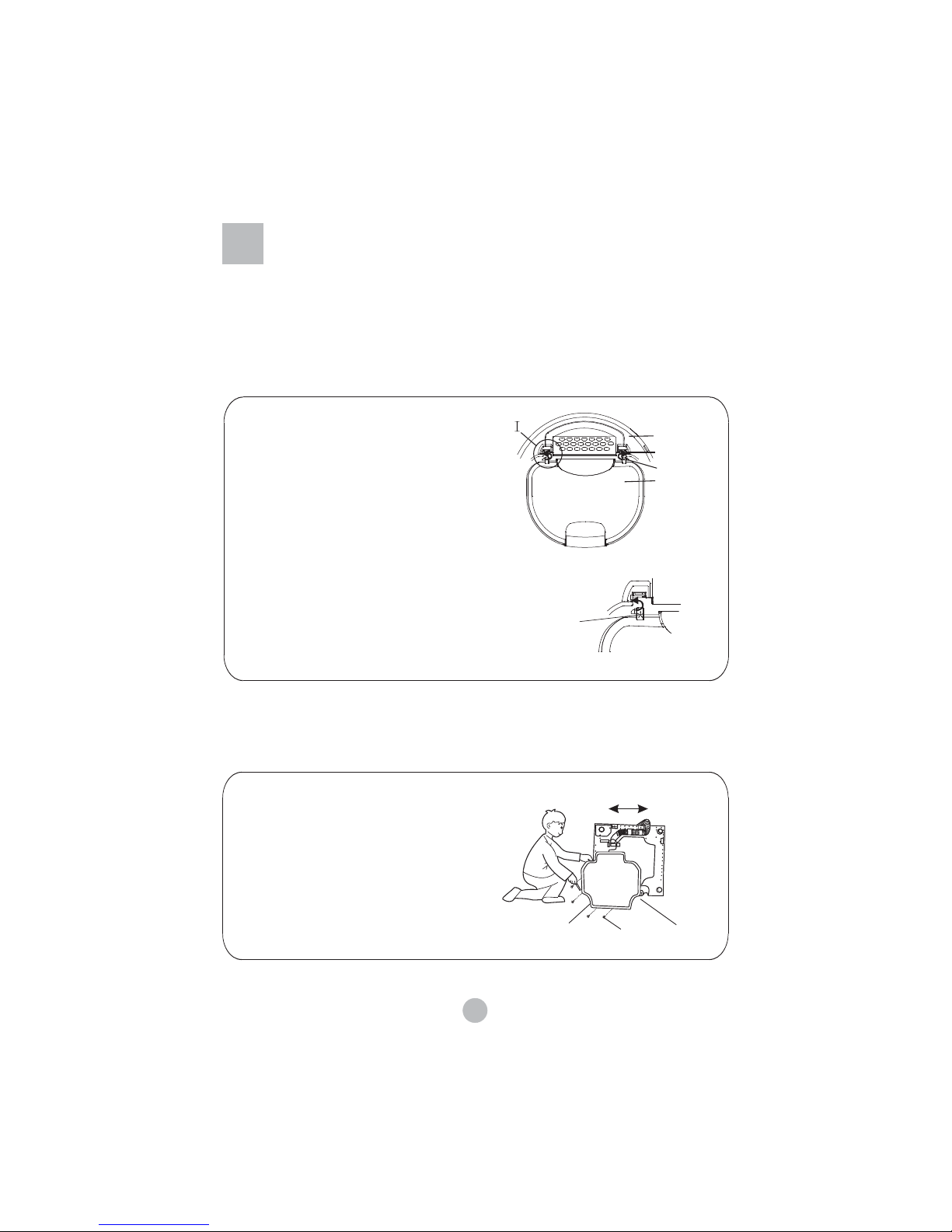

Installation and adjustment

Section Ienlarging

Push

After opening the package, please lean the washing

machine gently down on soft items (like towel cloth,

blanket, etc.). Install the bottom plate to the bottom

of the machine with four screws by a cross screwdriver,

then lift the machine up gently.

See to the figure:

Install the inner cover component

Install the bottom plate

Inner cover

Inner cover shaft

Outer tub cover

shaft groove

1.Open the top lid of the washing machine.

2.Put the inner cover component on the outer tub cover,

aiming the inner cover shaft to the installation hole of the

corresponding outer tub cover shaft groove.

3.Firstly insert the inner cover shaft of one side into the

corresponding outer tub cover shaft groove, then push

the another inner cover shaft into the corresponding

outer tub cover shaft groove. Please install to designated

position to guarantee there are no dropping or abnormal

sound in opening and closing of the inner cover, and the

operation shall be smooth. Do not dismount the inner

cover component after washing.

Soft object

Bottom plate

Back

Screw

Front

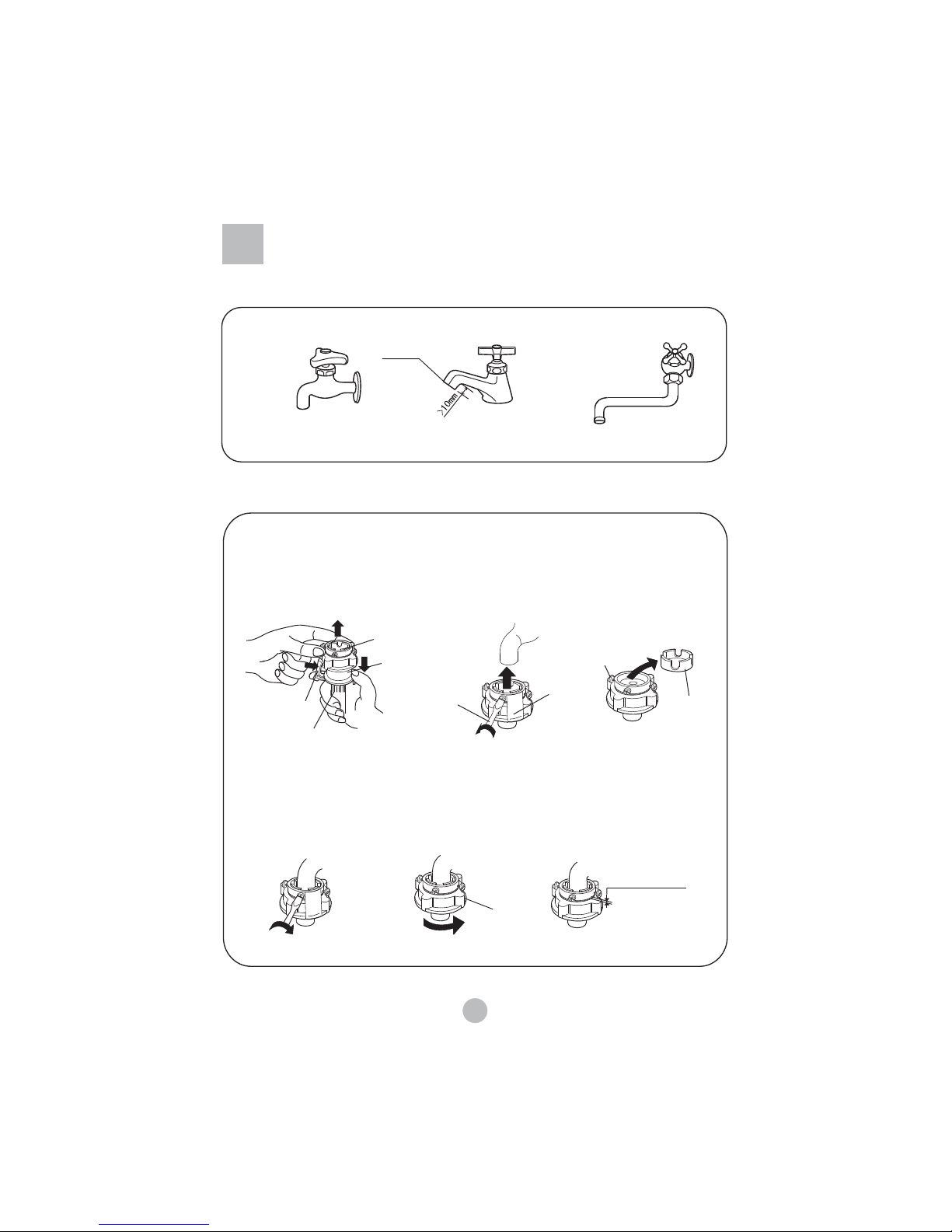

Install the water inlet hose

The exit end face of the faucet

Confirm the water faucet

Connection between the water inlet hose jointer and the water faucet

water faucet, suitable water faucet, not suitable

It is required that the front end shall be longer than 10mm.

The exit end face of the faucet shall be flat and smooth. If not please file it to avoid leakage.

2 Loosen the screw till the water faucet can be accessed. Put the jointer of the water inlet hose on the faucet.

See to Figure 2. (If the faucet is too large and the jointer can not be set on the water faucet, please loosen

the four screws and take out the bushing in the jointer. The front end of the faucet must be smooth,

otherwise it may leak water. See to Figure 3.)

1.Press the lower end of the lock lever and push down the slider. Take off the water inlet hose jointer from the

water inlet hose component. See to Figure 1.

3.Fasten the four screws evenly. See to Figure 4.

remark: Before installation, the threading is 4mm above the upper surface of the nut.

After installation, the threading is 2mm above the upper surface of the nut..

water inlet hose jointer

Screw knife

water inlet hose

Figure 1

Figure 4 Figure 5

Slider

Lock lever

4 Take off the nameplate. Twist the fastening nut as per the indication of the figure

to seal up the exit end face of the faucet. See to Figure 5.

About 4mm before twisting

About less than 2mm after twisting

Screw

Bushing

Sign plate

Screw nut

Figure 2 Figure 3

Figure 6

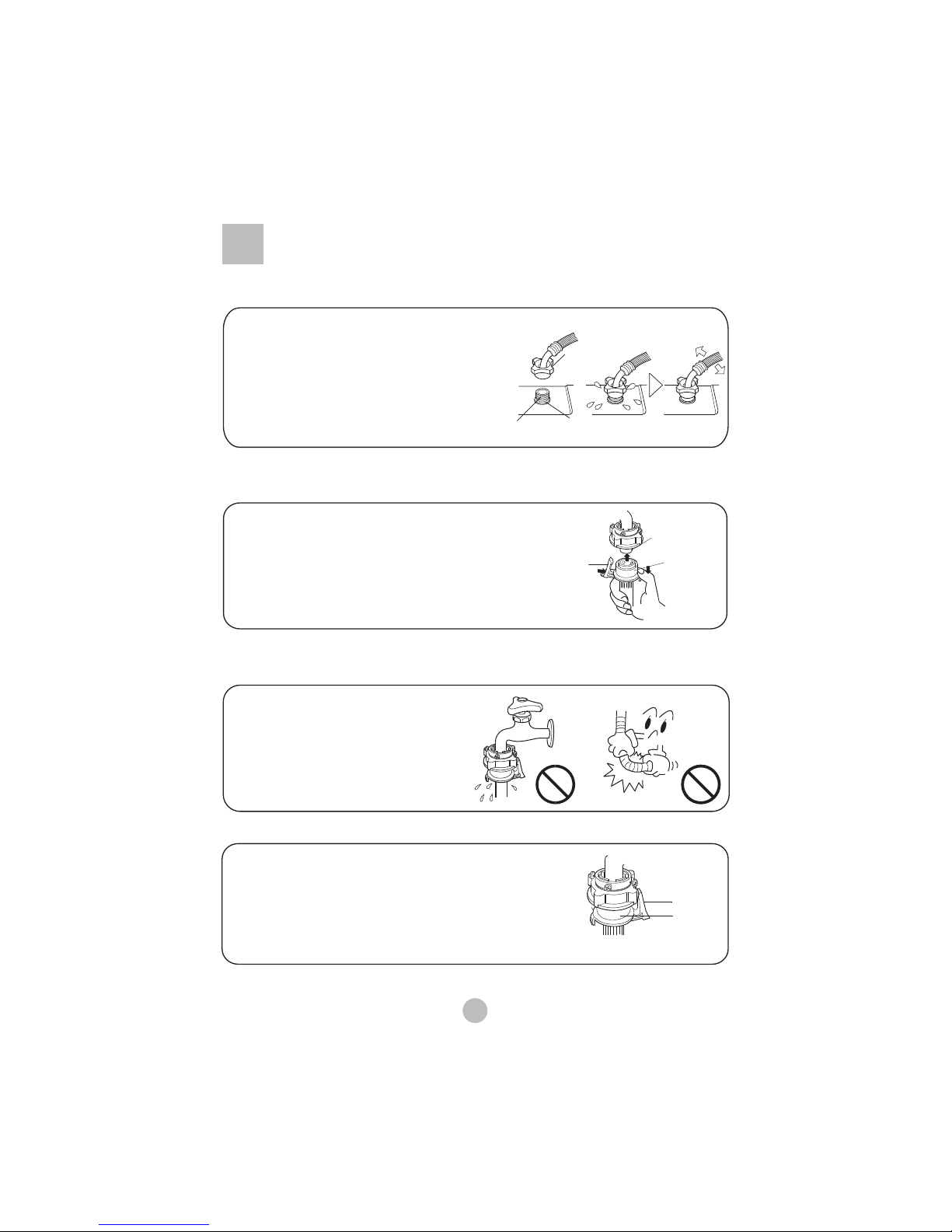

Connection between the water inlet hose and the washer

Dismantle the water inlet hose

Connection between the jointer of the water inlet hose

and the water inlet hose

Check the connection between the jointer of the water inlet hose

and the water faucet

1.Do not take off the water absorption cushion. Please check if the

cushion is dropped or damaged before each usage. If it happens

please contact our after-sale department immediately.

1.Swing the hose gently to confirm if it is fastened stable.

2.After installation, open the faucet to check if it leaks.

3.Do not bend the hose with overstrain.

1.Push down the slider. Insert the water inlet hose into the jointer.

2 Hang the lock lever to the jointer. Release the slider till a click

sound is heard.

Locking lever

Slider

water absorption

cushion.

nut of the water

inlet hose

jointer of the

water inlet valve

the jointer of the

water inlet hose

Slider

Locking lever

1. Close the water faucet.

2. Press the locking lever. Push down the slider. Then pull of the water inlet

hose.

If the machine is used frequently, the jointer of the water inlet hose can be

kept

on the faucet to prevent damaging the fixing screw.

2 Put the nut of the water inlet hose on the valve jointer.

3 Fasten the nut. Swing it gently to confirm if it's suitable.

4.Before each usage please check if the connection

between the jointer of the water inlet hose and the

water faucet, and the installation of the water inlet

hose are firm, so as to prevent dropping from

improper installation position.

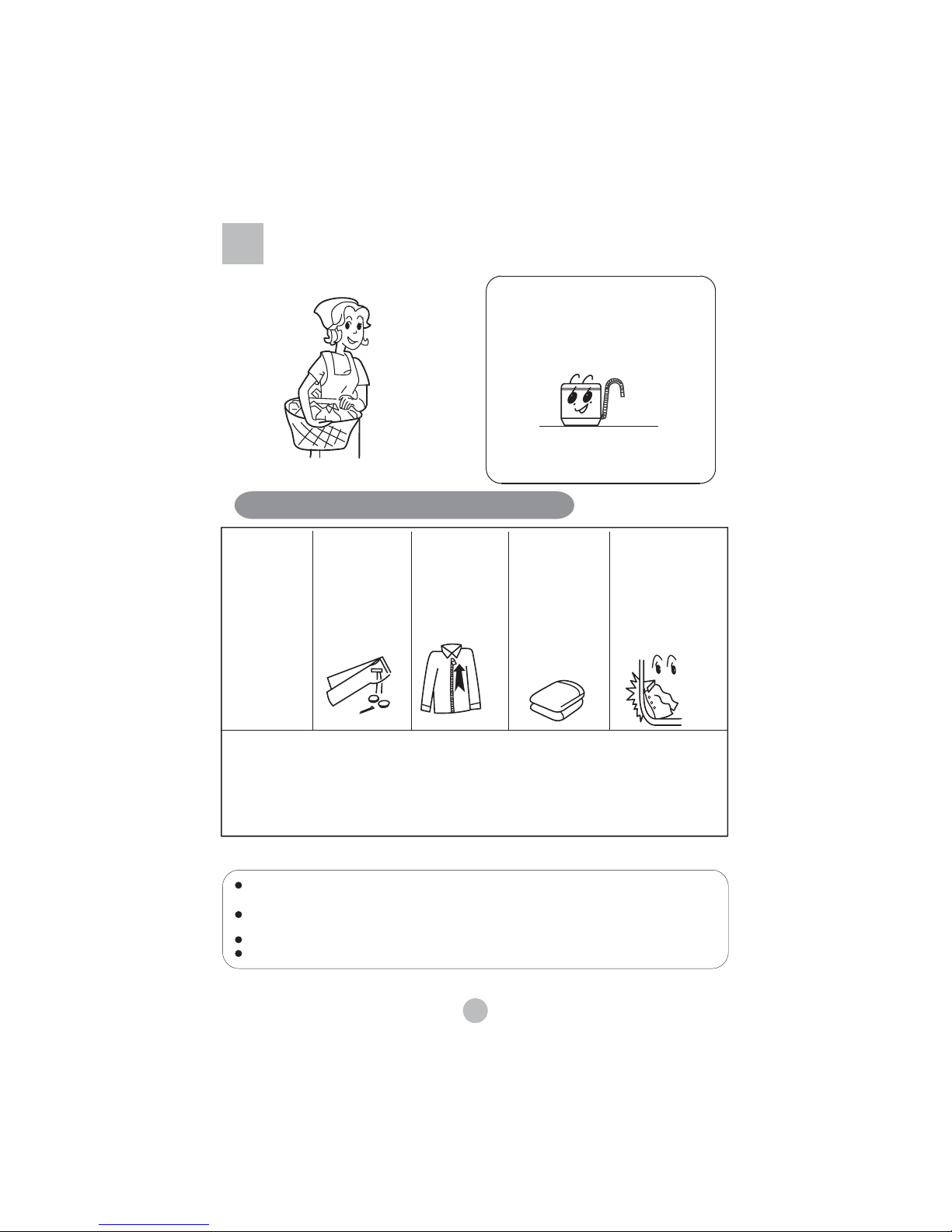

1 Preparation before washing

Confirm if there's

special requirement

for the laundries.

Clear the pocket.

Take out the coins ,

sand, hairpins etc.

Fasten the buttons

and zippers.

When the pulsator is

running ,the buttons of

the laundries may cause

noise. For the sake of

discretion ,please put

the laundries with

buttons into other

laundries.

Preparation before washing

The quantity of the

laundries shall not

exceed the rated

value. The big

laundries like the

jeans shall be put

in loosely.

Pay attention to followings before washing the laundries

1.Connect the water inlet hose.

2.Confirm that the washing machine is earthed

reliably . Then insert the power plug into the

receptacle. Do not connect the earth terminal

to the gas pipe and tap water pipe.

a. Check if the laundries are applicable for washing with machine.

B. Divide the laundries that are not colorfast from other laundries.

c. Put those laundries difficult to absorb water into water with hand.

d. For those laundries with heavy soil, please first remove the dirt like mud or dust. For the parts with heavy soil,

please apply detergent in advance, which can make it easier to remove the soil.

e. For those laundries that may get lint ball and those with long fur, turn it over before putting in.

f. Do not put those laundries polluted by chemicals directly into the washing machine.

The capacity of washing of the machine refer to the largest weight of the standard laundries under dry

condition that can be washed in one time.

The thickness ,size , type of the cloth will influence the actual washing capacity. It is suitable to put in

reasonable amount of laundries and the laundries can be turned round in washing for one time washing.

Do not select high water level for small quantity of laundries ,so as to avoid splashing of water.

2 The musts in washing

4.The ground inclination or unevenness may cause

the washer operating not steadily or cause noise,

please set level the washer.

It is suggested to use foamless washing powder.

Other manuals for XQSB60-JN

Table of contents

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide
