Haier XQB50-10A User manual

Automatic Washing Machine

XQB50-10A

User's manual

This manual is for

Please read this manual

carefully before using.

Retain it for future reference.

Names of the parts.............the 2nd cover

Safety precautions .......................1

Installation and adjustment ..................3

Install the water inlet hose............5

Preparation before washing .............6

Put in the laundries .........................7

Put in the detergent .......................8

Use the operation buttons ................9

Close the top lid ........................13

Finish washing ............................14

Disposal after washing ....................14

Trouble shooting Answer to questions....15

Packing list ..................................16

Specifications................................17

Contents

Using process

Meaning and description of the symbols

Before Using

Names of the parts

Warning sign

Forbidden sign

Contents marked with that symbol

are related to the safety of the

product and the personal safety

of the users. Please operate in

strict conformity to the contents,

otherwise it may cause damage

of the machine or injure the

personal safety of the user.

Contents marked with that symbol

are actions forbidden to perform.

Performing of those actions may

result in damage of the machine

or injure the personal safety of

the user.

Accessories

Bottom plate

(one)

water inlet hose

(one)

ST4X16

tapping screws

(eight)

Lint filter

(two)

Adjustable foot

fixed foot (3)

back cover

Cabinet

base frame

Drain hose

Control panel

film

Control panel

Filter cover

Power line

Pulsator

Inner tub

Detergent box

Lint filter

Top lid B

Cabinet handle

water valve

Top lid A Sop mat

(Installed by user)

Drain hose

support

Drain hose

Before Using

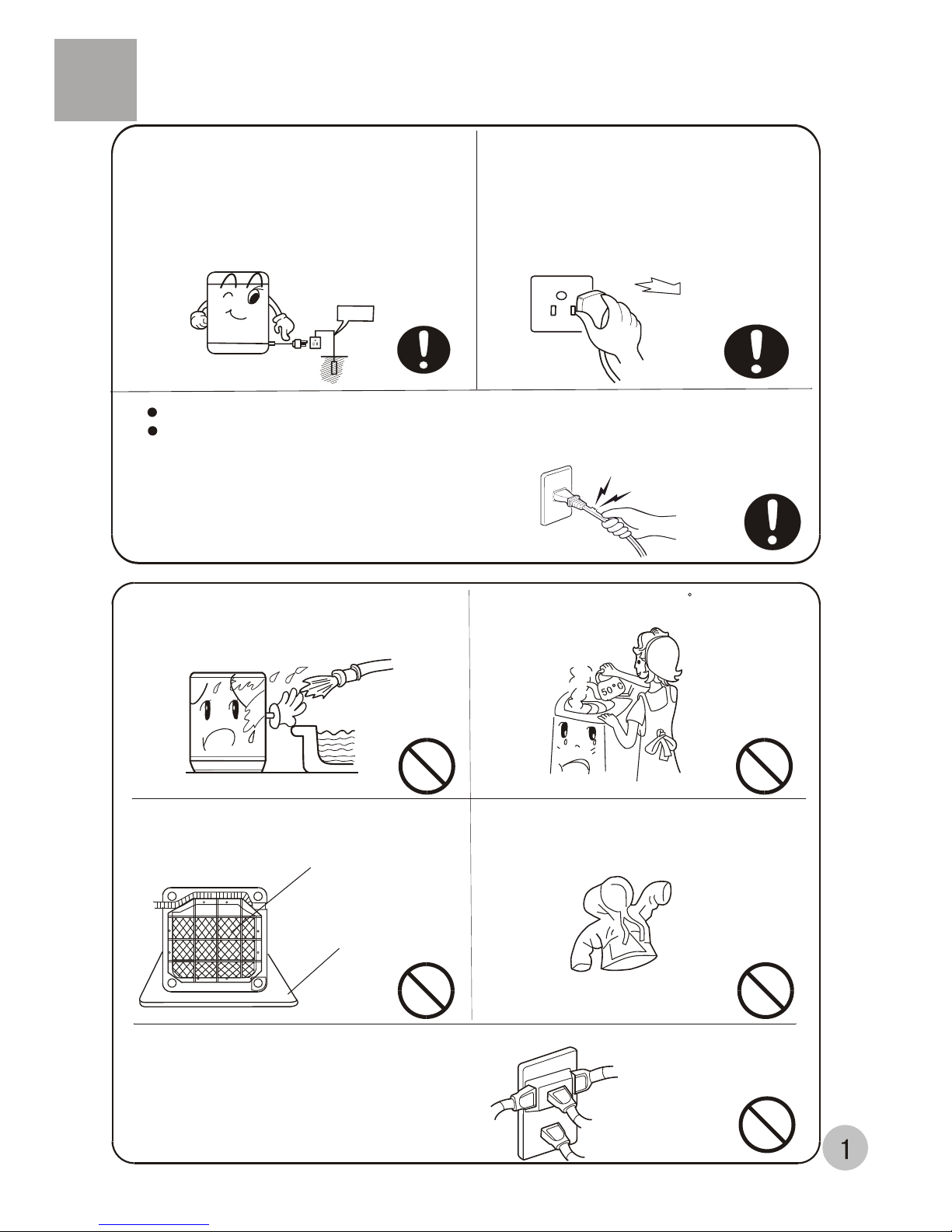

Safety precautions

Please plug the plug on special 120V AC

receptacle.Please guarantee that the

earthing wire is ear-thed reliably.

The power cord plug should be convenient

to be pluged in or pluged out with hand

while the washing machine runs normally.

Be sure to pull the plug out and close the

water tap when the machine is idle,when

moving the machine,or when cleaning

the machine.Do not use wet hand to ins-

ert or pull out the power plug.

In case the washing machine is installed on ground with

carpet, do not block the ventilation hole with carpet.

Do not let the machine share one receptacle with other electric appliances. If the power plug is damaged, or the

plugging into the receptacle is loose, do not use the plug any more.

Do not wash water-proof laundries like the raincoat,

bike covers etc. to avoid abnormal vibrations in spinning.

Do not use water hotter above 50 C .

Do not put the machine at damp place like

the bathroom. Never wash it with water.

Do Not put wet laundries on the control panel.

soft items

The ventilation holes

at the bottom

Do not bend ,extend,twist,bind by force.Do not press or nip it with weight.

Keep the pin of the power plug clean,if the power plug is polluted with dust,

please wipe with dry cloth carefully.

A tierra

Do not decompose, repair or alter the

machine by yourself.

Do not put any hot or heavy items (such

as the kettle with hot water ) on the

washing machine.

Do not wash laundries with volatile

materials (such as thinner, petrol etc.)

The handicapped or children without

care shall not use the machine.

Keep the machine away from direct

sunlight and heat source like the heater.

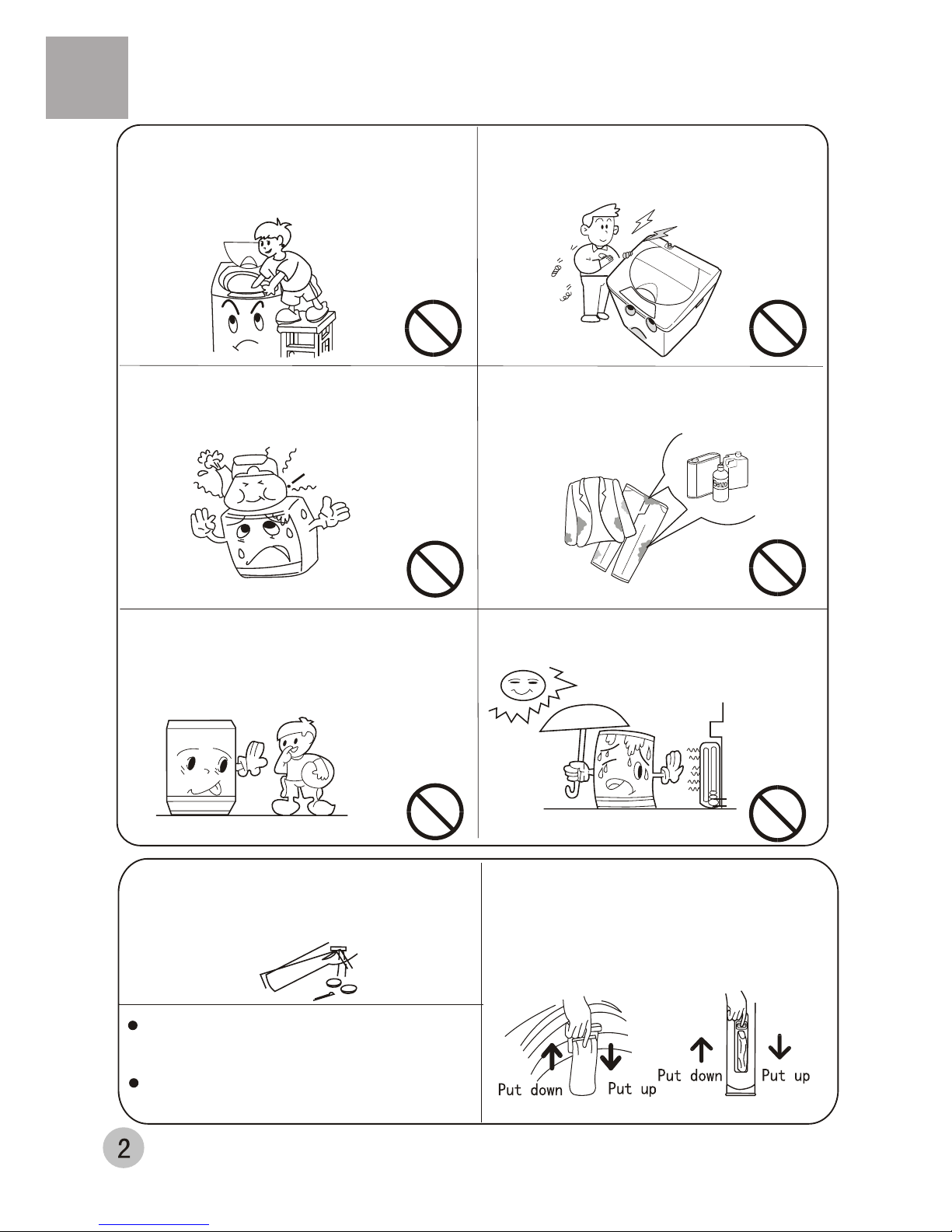

Before Using

Do not stretch hands into the working

machine. It is dangerous even if the

rotation is slow. Take special care of

the children.Do not let the children

climb the washing machine.

Petrol

Thinner

To prevent your laundries and washing

machine from damage,be sure to take

out all of the foreign materials from your

pocket,such as coins,buttons,sand or

hairpins etc.

Before washing,please check if the water

tap is open ,and if the water inlet pipe is

connected properly.

It is suggested to use low-foaming was-

hing powder

To prevent the lint in the tub from blocking

the cascade outlet and influencing the

cascade effect, please keep the lint filter

in good condition, and install it to proper

position during washing.

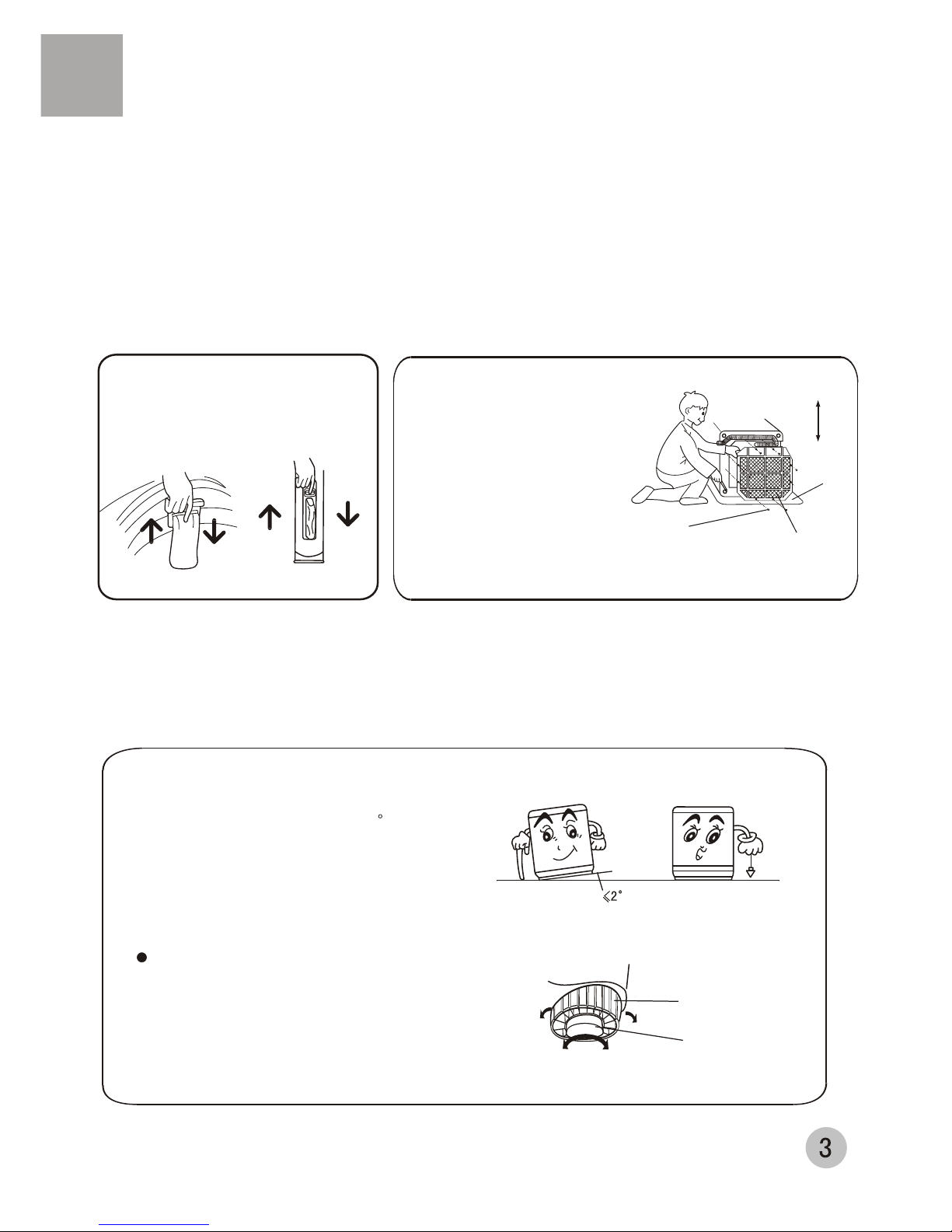

The largest allowed slope of the

shank base of the machine is 2 .

The slanting or rough ground will

result in unstable running or

stoppage of the machine. Please

adjust it with following methods:

Adjust the adjustable foot:

Adjust the installation position

Before Using

Installation and adjustment

Please install and adjust the machine according to the requirement of the manual. It is

very important to your security and correct operating the machine.

1.Press downward to assmble.

2.Pull upward to detach.

1.To twist the adjustable foot, please

first lift up the side of the foot slightly,

loosen the adjustable nut, and twist

the foot.

2.Fasten the nut after adjustment.

Loosen Fasten

High Low

adjustable nut

adjustable foot

Install the bottom plate

After you open the package,

please lean the washing

machine gently down on soft

items ( like the towel cloth,

blanket, etc. ). Install the

bottom plate to the bottom of

the machine with the eight

screws by a cross screwdriver,

then lift the machine up gently.

See to the figure:

Back

Front

Bottom plate

Screw

Soft items

Pull down Put up

Install the lint filter

Before Using

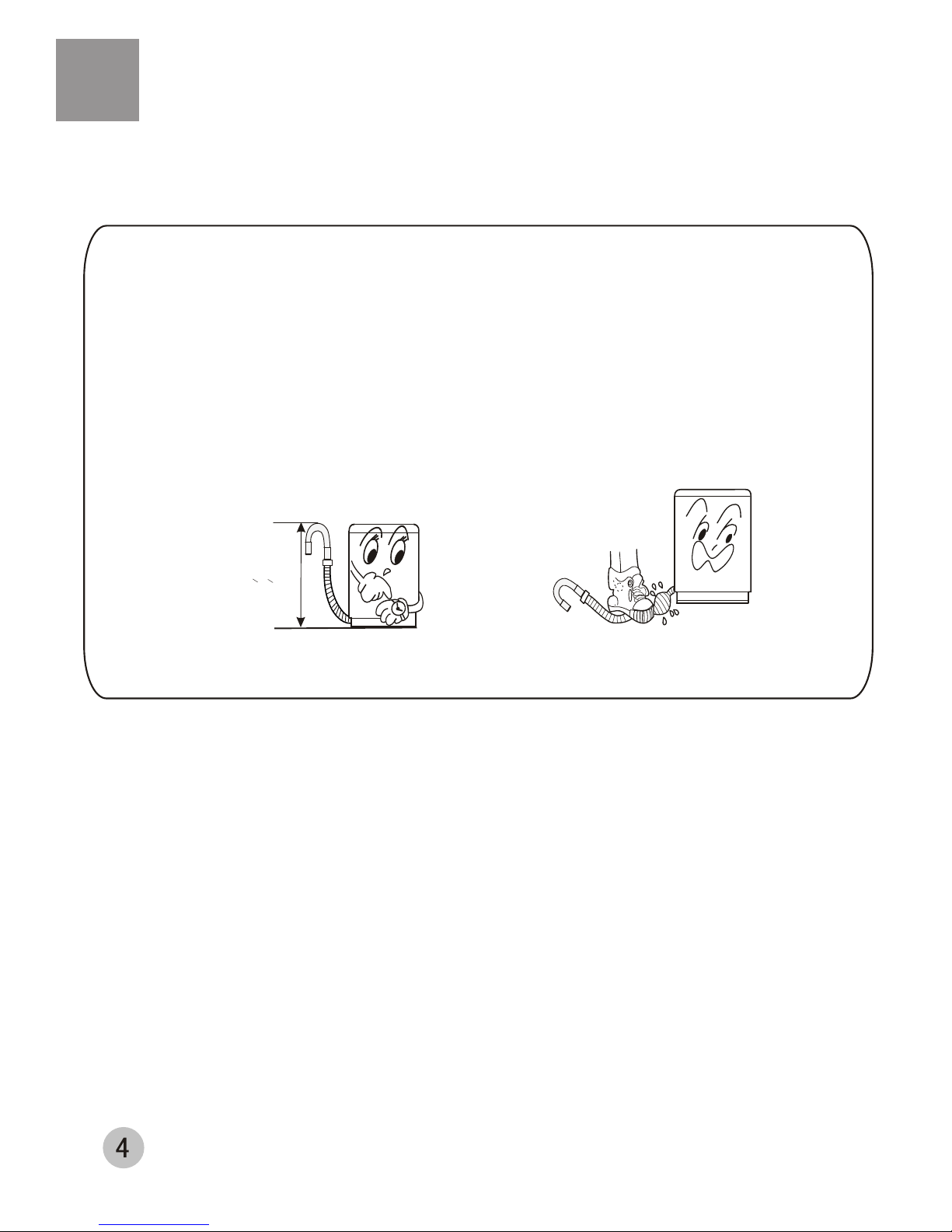

Usage of the drain hose

The drainage shall be smooth with the drain hose.

1.put the drain hose up to suitable position. Do not put it

on ground

2.Do not step on or press the drain hose.

Notes: the highest point of drain pipe should be higher than

the water level of washing tub for avoiding to siphon

phenomenon during drain.

The highest point

0.8m<H<1.2m

Water absorption cushion

Nut of the water inlet hose

Jointer of the water inlet valve

Install the water inlet hose

1. Insert a new flat washer into each end of the inlet hoses. Firmly put the

washers in the coupling.

2. Connect the water inlet hoses to the water faucet.

Use the new hose sets supplied with the washer.

Any other old hose sets should not be used.

You may have to use pliers to tighten the coupling.

Do not over tighten because you may cause

damage to the valve.

Note:

3. Connect the other ends to their respective cold and hot water inlet valve

located at the rear of the washer

Check the connection between the water inlet

hose and the water tap

1.Swaying the hose gently to confirm if it is fastened

stable.

2.After installation, open the tap to check if it leaks.

3.Do not bend the hose with overstrain.

4.Before each usage please check if the connection

between the water inlet hose and the water tap,

and the connection between the water inlet hose and

washer are firm, so as to prevent dropping from

improve Installation position.

1.Close the water tap.

2. Pull off the water inlet hose from the water tap

and washer

Take down the water inlet hose

Before using

Install the water inlet hose

4.Fasten the nut. Swing it gently to confirm if it's suitable.

Confirm if

there's special

requirment for

the laundries.

Clear the pocket.

Take out the

coins , sand,

hairpins etc.

Fasten the

buttons and

zippers.

When the pulsator

is running , the

buttons of the

laundries may

cause noise. For

the sake of

discretion,please

put the laundries

with buttons into

other laundries.

The quantity of

the laundries

shall not exceed

the rated value.

The big laundries

like the jeans

shall be put in

loosely.

Using process

1 Preparation before washing

Pay attention to followings before washing the laundries

A. Check if the laundries are applicable for washing with machine.

b. Divide the laundries that are not colorfast from other laundries.

c. Put those laundries difficult to absorb water into water with hand.

d. For those laundries with heavy soil, please first remove the dirt like mud or dust.

For the parts with heavy soil, please apply detergent on them in advance, which

can make it easier to remove the soil.

e. For those laundries that may get lint ball and those with long fur, turn it over before

putting in.

f. Do not put those laundries polluted by chemicals into the washing machine directly.

Preparation before washing

1. Connect the water inlet hose.

2. Confirm that the washing machine is earthed

reliably. Then insert the power plug into the

receptacle. Do not connect the earth terminal

to the gas pipe and tap water pipe.

3. Hang up the drain hose.

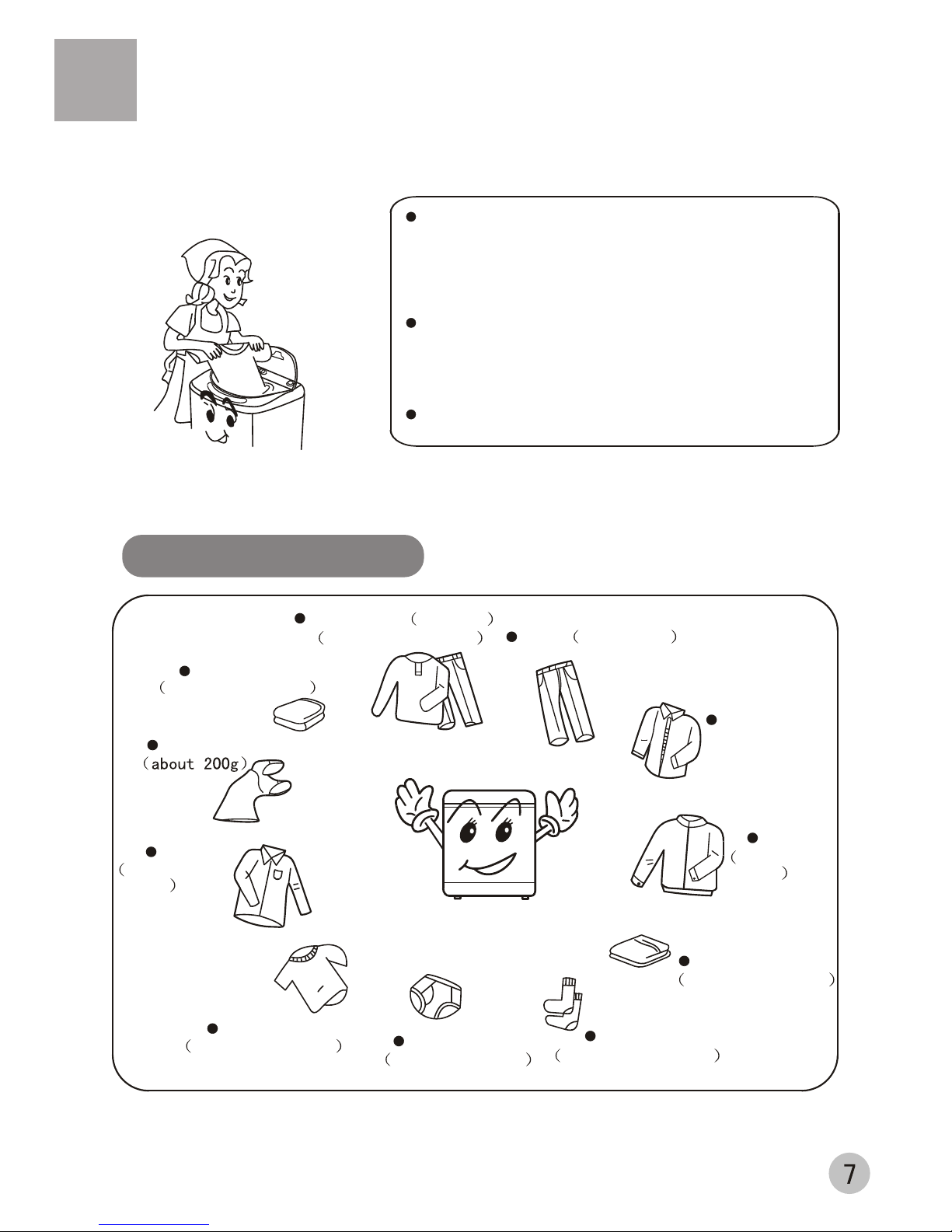

Reference weight of the laundries:

working suit up,down

jeans about 800g

shirt jacket

single bed sheet

Socks

underpants

undershirt

pajamas

blanket

cotton,about 900g

cotton,about

300g

cotton,about

800g

cotton,about 600g

blending,about 50g

cotton,about 70g

cotton,about 180g

The capacity of washing and spinning of the

machine refer to the largest weight of the standard

laundries under dry condition that can be washed

or spinned in one time. One time washing quantity

shall be lower than the rated capacity. The largest

capacity of this machine is 5.0kg.

The thickness, size, type of the cloth will influence

the actual washing capacity. It is suitable for one

time washing to put in reasonable amount of

laundries and the laundries can be turned round in

washing.

Do not select "High" water level for laundries small

than 0.5kg, so as to avoid splashing of water.

Using process

2 Put in the laundries

cotton,about 1120g

blending coat

(about 800g)
