Haier HWM6815 User manual

Fully Automatic Washing Machine

User's manual

This manual is for

Please read this manual

carefully before using.

Retain it for future reference.

HWM6815

User's manual

Names of the parts...............................................................................................1

Safety precautions .............................................................................................2

Installation and adjustment ...................................................................................4

Install the water inlet hose....................................................................................6

Preparation before washing .................................................................................8

Put in the laundries ..............................................................................................9

Usage of the detergent ........................................................................................9

Use the operation buttons ..................................................................................10

Close the top lid .................................................................................................13

Finish washing ....................................................................................................13

Disposal after washing .......................................................................................14

Trouble shooting Answer to question.............................................................15

Packing list Specification...................................................................................16

Contents

Meaning and description of the symbols

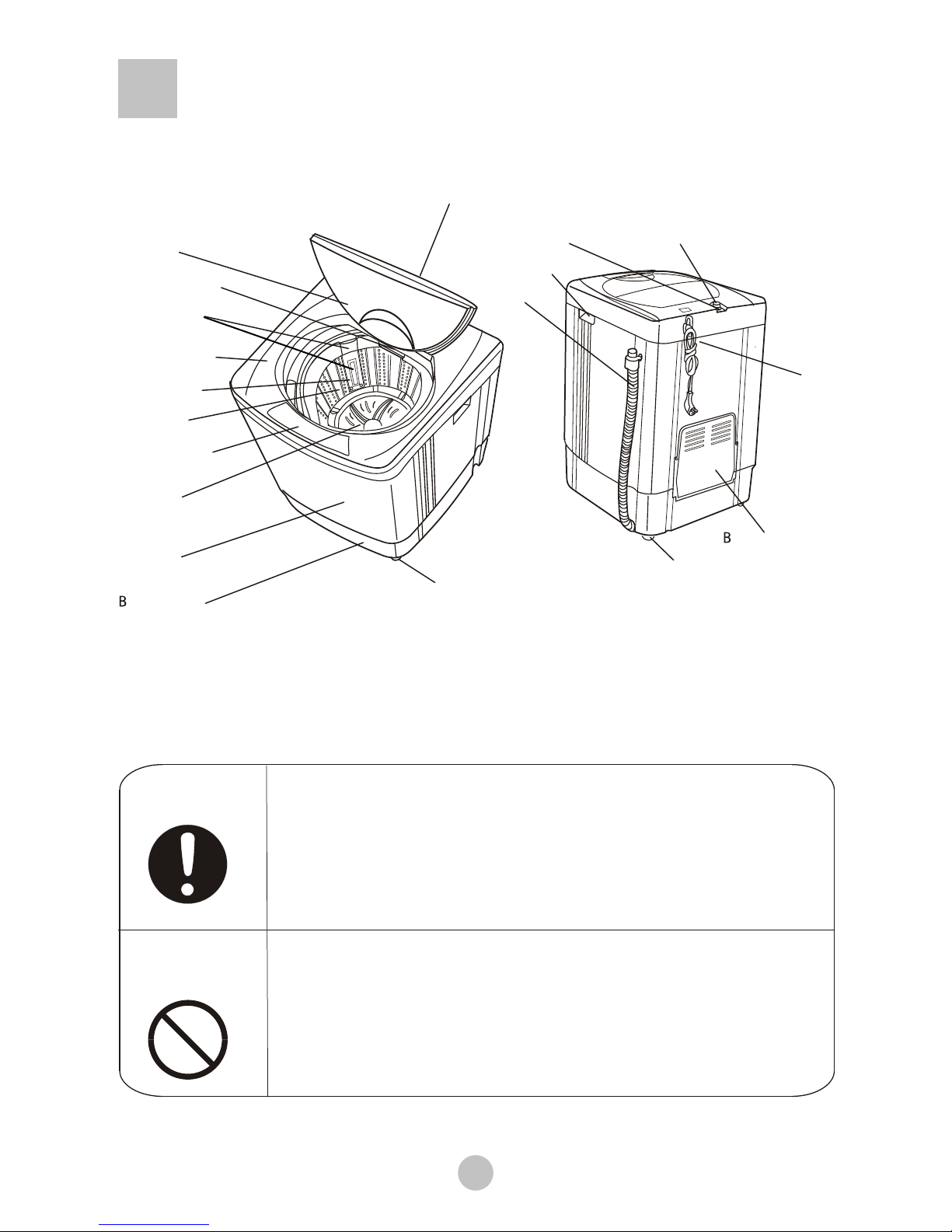

Names of the parts

Warning sign

Forbidden sign

Contents marked with that symbol are related to the safety

of the product and the personal safety of the users. Please

operate in strict conformity to the contents, otherwise it may

cause damage of the machine or injure the personal safety

of the user.

Contents marked with that symbol are actions forbidden to

perform. Performing of those actions may result in damage

of the machine or injure the personal safety of the user.

Adjustable foot

fixed foot (3)

ack cover

Cabinet

ase frame

Drain hose

Control panel

film

Control panel

Filter cover Power cord

Pulsator

Inner tub

Detergent box

Lint filter

Top lid II Cabinet handle

Water valve

Top lidI

Sop mat

(two)

Safety precautions

Do not damage the power cord, bend ,extend, twist, bind or alter it by force. Do not press or

nip it with weight. If the power cord or the power plug is bad, or the power plug becomes

flexible, to avoid risk it is required to have it replaced by

the technicians of our special shop or the after-sale

service department. Keep the pin of the power plug

clean, if the power plug is polluted with dust, please

wipe with dry cloth carefully.

The power cord plug should be convenient

to be pluged in or pluged out with hand

while the washing machine runs normally.

Be sure to pull the plug out and close the

water tap when the machine is idle, when

moving the machine, or when cleaning

the machine. Do not use wet hand to insert

or pull out the power plug.

In case the washing machine is installed

on ground with carpet, do not block the

ventilation hole with carpet.

Do not let the machine share one receptacle with other

electric appliances. If the power plug is damaged, or

the plugging into the receptacle is loose,

do not use the plug any more.

Do not wash water-proof laundries like

the raincoat, bike covers etc. to avoid

abnormal vibrations in spinning.

Do not use water hotter above 50 C .

Do not put the machine at damp place like

the bathroom. Never wash it with water.

Not put wet laundries on the control panel.

Please plug the plug on special receptacle

with rated voltage. Be sure to use single-

phase three pins receptacle. Ensure the

earthing prong of the power receptacle is

earthed reliably. Use leakage protector if

possible.

soft items

The ventilation holes

at the bottom

Safety precautions

Do not decompose, repair or alter the

machine by yourself.

Do not put any hot or heavy items (such

as the kettle with hot water ) on the

washing machine.

Do not wash laundries with volatile

materials (such as thinner, petrol etc.)

The handicapped or children without

care shall not use the machine.

Keep the machine away from direct

sunlight and heat source like the heater.

Do not stretch hands into the working

machine. It is dangerous even if the

rotation is slow. Take special care of

the children. Do not let the children

climb the washing machine.

Petrol

Thinner

Toprotect your laundries and wash-

ing machine, please take out all of the

coins, buttons, sand, hairpin and

other foreign materials before washing.

Please check if the water faucet is open,

and if the connection of the water inlet

pipe is proper.

Dismantle Install

To prevent the lint inside the tub from blocking

the cascade outlet during washing, please

keep the lint filter in good condition, and

install it to proper position. If the lint filter

is lost or damaged, please contact the local

after-sales service department of our company.

Install

Dismantle

Caution

: :Do not connect to the hot water supply

It is suggested to use foamless washing

powder.

Installation and adjustment

The largest allowed slope of the

shank base of the machine is 2 .

The slanting or rough ground will

result in unstable running or

stoppage of the machine. Please

adjust it with following methods:

Adjust the adjustable foot:

Install the bottom plate

Adjust the installation position

Please install and adjust the machine according to the requirement of the manual. It is

very important to your security and correct operating the machine.

1.To twist the adjustable foot, please

first lift up the side of the foot slightly,

loosen the adjustable nut, and twist

the foot.

2.Fasten the nut after adjustment.

Loosen Fasten

High Low

adjustable nut

adjustable foot

Install the lint filter

After you open the package, please lean the

washing machine gently down on soft items

( like the towel cloth, blanket, etc. ). Install the

bottom plate to the bottom of the machine with

the five screws by a cross screwdriver, then

lift the machine up gently. See to the figure:

Back

Front

Bottom plate

Screw

Soft items

Push the lint filter

downward to location

for lint filter.

How to change the direction of the drain hose

1.The height of the drain hose shall be

less than 10cm, or the drainage will not

be smooth, and cost such long time that

the machine may stop at mid way.

2.Do not trample or press the drain hose.

If the drain hose is too long, cut it at mid

point. To make smooth drainage, cut the

front end of the hose slantingly.

4.If extra drain hose is needed, please

make separate purchase. The inner

diameter of the extra hose shall not

less than 30mm, and the length shall

not exceed 1.5m.

5.If the extrahose is toolong, cut it

either atA or at B point.

<10cm

Usage of the drain hose

The drain hoseshall drain smoothly

1.Loosen the fastening screw of the

back cover to take off the back cover.

Be careful not to do it by force to

prevent breaking the claw of the back

cover.(as indicated in Figure 1)

3.Extend the drain hose from the installation

hole at the right side of the base frame. Fix

the drain hose onto the base frame with the

drain hose frame and fasten the screw. Then

set the drain hose hook on the drain hose and

hang the drain hose on the hanging hole of

the cabinet. (As

indicated in Figure 3)

4.To install the back cover, first hang the lower

beard of the back cover on the cabinet, then

push the claws at the two side and the upper

end from bottom to top to resume the original

setting. Be careful not to do

it by force. Then fasten

the screw (two points)

(as indicated in Figure 4).

2.Take off the drain hose from the cabinet.

Nip the drain hose outlet slightly.

Dismantle the drain hose hook. Loosen

the fixing screw of the drain hose frame

to dismantle the drain hose frame. Pull

the drain hose into the cabinet from the

left side of the base frame.

Drain hose frame

Nip the drain hose outlet

and take off the drain hose hook

Screw

Figure 3

Back cover

Figure 1

Screw

Top claw

Claws at the

two sides

Lower bread

Figure 4

Figure 2

Water tap,suitable Water tap,not suitable

It is requiredthat the front end shall be longer than 10mm.

The outlet endsurface of the tap shall be flat and smooth.If not please file it to

avoid leakage.

2.Loosen the screw till the water tap can be accessed. Put the jointer of the water

inlet hose on the tap. See to Figure 2. (If the tap diameter is too large and the jointer

can not be set on the water tap, please loosen the four screws and take out the

bushing in the jointer. See to the figure3.)

1.Press the lower end of the lock lever and push down the slider. Take off the water

inlet hose jointer from the water inlet hose component. See to Figure 1.

Remarks: Before twistingthe fastening nut, the thread is4mm above the

upper surface ofthe nut. After twisting the fastening nut, thethread is 2mm

above the uppersurface of the nut. See to Figure 6.

4.Take off the nameplate. Twist the fastening nut as per the indication of the figure.

See to Figure 5.

3.Fasten the four screws evenly. See to Figure 4.

>10mm

Outlet end surface

Nut

About 4mm before twisting

About below 2mm after twisting

Screw

Screwdriver Mark label bushing

Figure 2

Figure 5

Figure 1

Figure 4

Figure 3

Figure 6

Slider

Water inlet pipe jointer

Water inlet pipe

Locking lever

Install the water inlet hose

Confirm the water tap

Connection between the water inlet hose jointer and

the water tap

1.Do not takeoff the water absorption

cushion. Please check if the cushion

is dropped or damaged before each

usage. If it happens please contact

our after-sale department immediately.

2.Put the nutof the water inlet hose on

the valve jointer.

3.Fasten the nut.Swaying it gentlyto

confirm if it's suitable.

1.Close the watertap.

2.Press the lockinglever. Pushdown the slider. Then

pull off the water inlet hose. If the machine is used

more than onceevery week, thejointer of thewater

inlet hose canbe kept onthe tap toprevent

damaging the fixingscrew.

1.Push down theslider. Insert the

water inlet hoseinto the jointer.

2.Hang the locklever to the jointer.

Release the slidertill a click

sound is heard.

Locking lever

Slider

Water absorption cushion

Nut of the water inlet hose

Jointer of thewater inlet valve

Slider

Jointer of thewater

inlet hose

Locking lever

Connection between the water inlet hose and the

washing machine

Connection between the jointer of the water inlet

hose and the water inlet hose

Check the connection between the jointer of the

water inlet hose and the water tap

Take down the water inlet hose

1.Swaying the hosegently to confirmif it isfastened stable.

2.After installation, openthe tap tocheck if itleaks.

3.Do not bendthe hose withoverstrain.

4.Before each usageplease check if

the connection between the jointer

of the water inlet hose and the water

tap, and the installation of the

water inlet hose are firm, so as to

prevent dropping from improper

Installation position.

Note : The new hose- set supplied with appliance are to be used and the old hose-sets should not be reuse.

Preparation before washing

Confirm if

there's special

requirement for

the laundries.

Clear the pocket.

Take out the

coins , sand,

hairpins etc.

Fasten the

buttons and

zippers.

When the pulsator

is running , the

buttons of the

laundries may

cause noise. For

the sake of

discretion, please

put the laundries

with buttons into

other laundries.

Preparation before washing

1.Connect the water inlet hose and open the

water tap .

2.Confirm that the washing machine is earthed

reliably . Then insert the power plug into the

receptacle. Do not connect the earth ter-

minal to the gas pipe and tap water pipe.

3.Put down the drain hose.

The quantity of

the laundries

shall not exceed

the rated value.

The big laundries

like the jeans

shall be put in

loosely.

Pay attention to followings before washing the laundries

a. Please check if the laundries are applicable for washing.

b. Separate those not colorfast from other laundries.

c. For laundries not water absorbing, please put them into water with hands.

d. For laundries with much soil, please remove the soil first. You can add detergent on the

part with serious soil directly. It is much easier to remove the soil by that mean.

e. For laundries likely to get lint ball or with long fibre, please first turn the inside out before

putting them into the water.

f. Do not put the laundries polluted with chemicals directly into the washing machine.

For those small laundries ,laundries likely to be twisted or worn, and woolen laundries,

please put them into mesh bag before washing.

4.Slanting or uneven ground may result in

unstable working or abnormal noise. Please

make the machine stand horizontally.

Table of contents

Other Haier Washer manuals

Haier

Haier HDM7.0-1 User manual

Haier

Haier JW-PK60A User manual

Haier

Haier JW-G42A User manual

Haier

Haier HW-C1260TVE-F User manual

Haier

Haier HMS1060TVE User manual

Haier

Haier XQG50-RC1000TXB Quick start guide

Haier

Haier XPB68-27S User manual

Haier

Haier HNS1000B User manual

Haier

Haier HLP23E - Electronic Touch Pulsator Ing Portable Washing... Assembly instructions

Haier

Haier HW100-BP14959S6 User manual

Haier

Haier HW50-1010 Guide

Haier

Haier XPB70-113S User manual

Haier

Haier HT1206TXVE User manual

Haier

Haier HW90-BP14636 User manual

Haier

Haier LMA2120WPAB0 User manual

Haier

Haier HWM90-0713P User manual

Haier

Haier HBF1055TVE Assembly instructions

Haier

Haier HW70-B1239 User manual

Haier

Haier HA1000TE User manual

Haier

Haier HLP21N User manual

Haier

Haier HW-D1270TVE ME User manual

Haier

Haier HWM110-9188DD User manual

Haier

Haier HLP24E User manual

Haier

Haier HWM110-0626S User manual

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide
