Haier HWM1480KFL User manual

HWM1480KFL

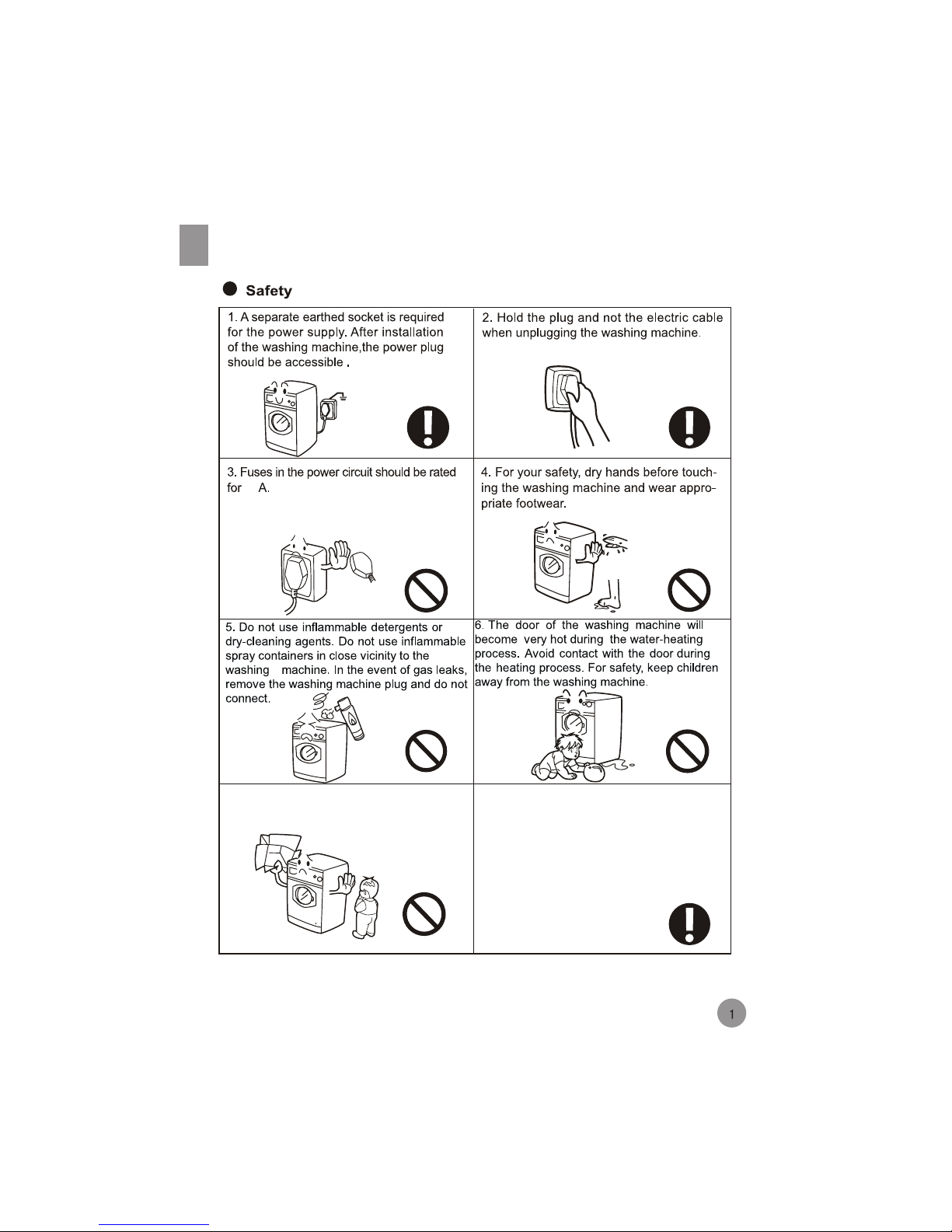

Precautions

Please read this manual carefully before use

Keep this manual in a safe place

Identification of parts

1.The appliance is to be connected to the water mains using new hose-sets and that old hose-sets should

not be reused.

This appliance is not intended for use by persons (including children)

with reduced physical,sensory or mental capcabilities, or lack of

experience and knowledge,unless they have been given supervision or

instruction concerning use of the appliance by a person responsible for

their safety. Children should be supervised to ensure that they to not play

with the appliance.

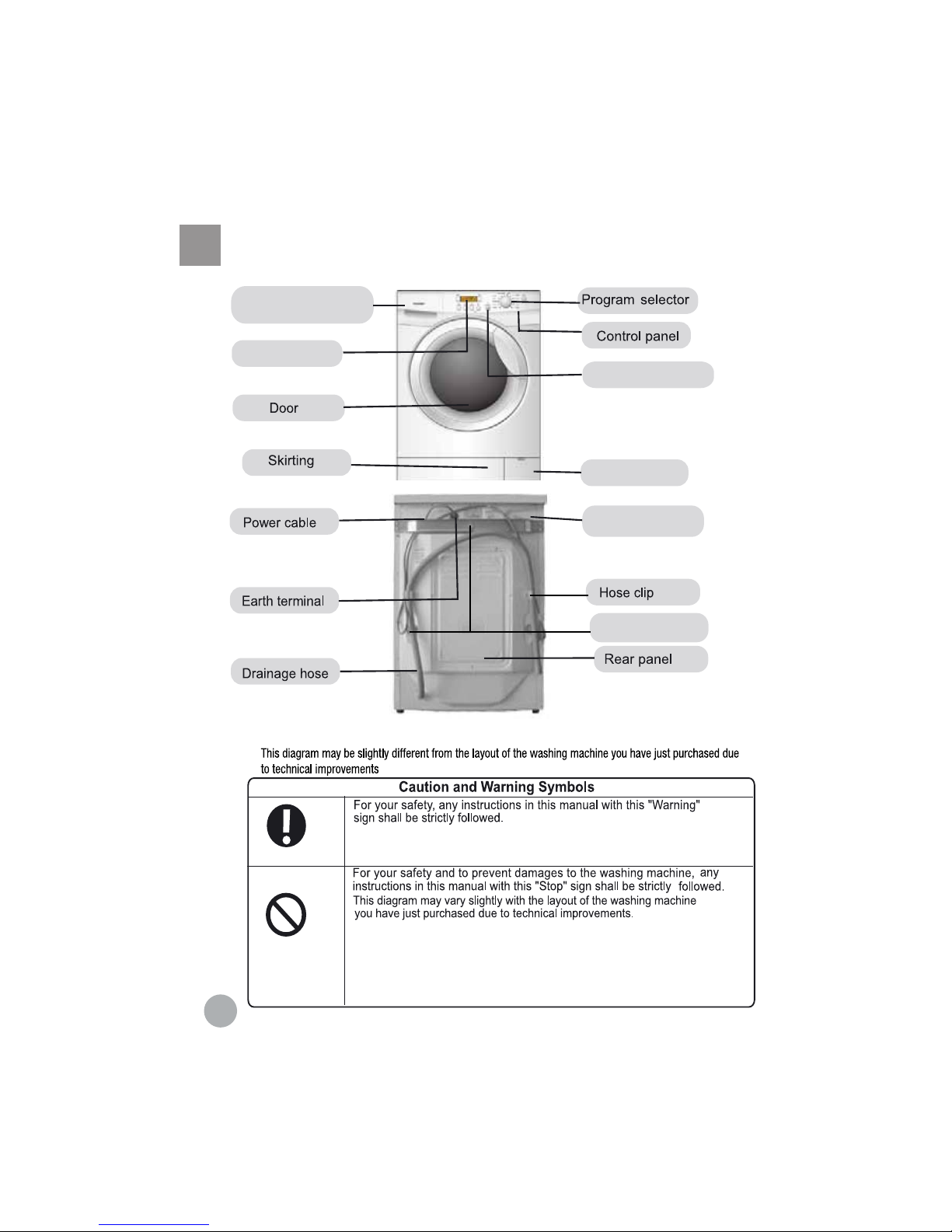

Identification of parts

Detergent dispenser

drawer

Start/Pause button

Transporting bolts

HWM1480KFL

If this appliance is supplied from a cord extension set or electrical portable

outlet device, the cord extension set or electrical portable outlet device must

be positioned so that it is not subject to splashing or ingress of moisture.

LCD display

Water inlet valve

connector

Filter cover

8.Machine door will lock suddenly when there is

loss of electricity or power failure. In order to

open the door in this event, open the filter cover

at the bottom. You will find a rope connected to

the machine. Grip the rope and pull lightly.

You will hear a slight sound. This means the

door is unlocked. Open the door and take the

laundry out.

(CAUTION: Ensure that the power

cable is unplugged, any remaining

water is not hot and should be

drained.).

7. Do not allow children to play with the

packaging materials after unpacking.

Precautions

Ensure

all surface and parts are dry before using

the washing machine

ing

Precautions

7. The door is fitted with a self-lock device

and will not open for approximately 1-2

minutes after the washing machine has

stopped. Do not force open the door. Do

not open the door when water level reaches

above the port hole.

.This is

The washing machine should not be

placed on any carpeted surface.

drawer

As shown in figure 1 (Fig. 1), remove all the packaging

material before installing. Drops of water could be

found on the packaging and/or door. This is a result

from QC test run in the factory before shipment.

Removing transporting

transporting

Caution:

should aboard

on it back,

reducing

The transporting bolt are designed for clamping anti-vibration

components inside of the washing machine during the

transportation process.

Do not do the following procedure by yourself. Please ensure you have

appropriate help carrying out this procedure.

Installation

Connect and tighten the water intel hose to the water

inlet valve connector.On the washing machine check

that the connection is correct and secure.

Conncet the cther end of the water inlet hose and

tighten to the tap facet.Check that it is correct and

secure.

Ensure that

the drain hose is not blocked on kinked

open end of the hose

more 10

Installation

When you press this button, the washing machine performs extra rinses. When the button is

pressed one time, the screen displays"-",andonetime of extra rinse is selected, if go on

pressing the button, the screen will display " - "or" - ", with meaning of two or three times of

performs extra rinses . When the button is pressed, the "Extra rinse" light goes on, when the

extra rinse is performed, the light flashes, and "-/ / " is displayed at times. When the extra

rinse ends, the light turns off, and "-/ / " disappers.

ECO

you can press "start/pause”button 2 second to unlocked and open the door if status allow door open

(water level lower than the bottom of the door level,water temperature lower than 50℃,motor stop).

Turn the program knob clockwise/anti-clockwise to select your desired

wash program.

(Refer to "Guide to Operation Program Selection")

This button is used to start or pause a

wash cycle.

This option will allow you to delay your start operation. The range in delay times is 30 minutes - 24

hours; each touch of this button will increase in increments of 30 minutes. After you have selected

you desired delay time, press the Start/Pause button to start the countdown of the set time (the time is

displayed on the LCD display until the delay program ends).

This option can not be selected in the Rinse, Spin and Drain programs.

Select this option after you have selected your desired wash program. This option allows

you to wash using your desired wash program, but dependant on your wash load. There are

three level. Level one being a light load. Level 3 being a full complete load. Select this

option depending on your load.

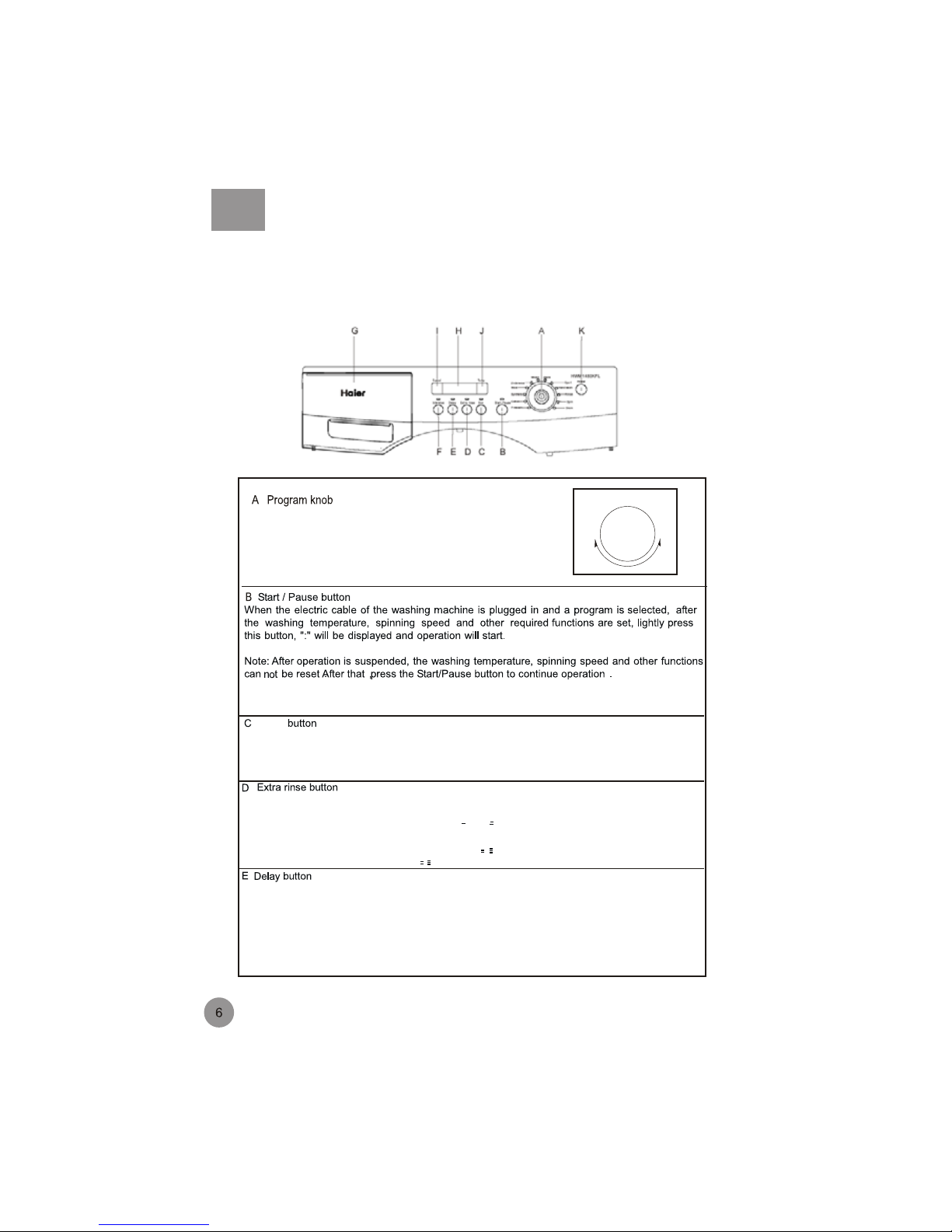

Control Panel

Control Panel Operating Functions

I Speed button

K Power button

Press this button to switch on the washing machine. Press it again to switch it off.

The machine will power off if no operate between five minutes.You can press this button 2 second

and power off the machine when machine is power on.

This option should be selected for laundry which are heavily soiled.

LCD display

This LCD display screen will display the remaining wash time, temperature selection, speed

selection, option selection and any alarm warning. (For details, please see "Description of option"

on page 14)

After having started the program, enable the child lock by pressing and holding the "Delay" and

"Start/Pause" buttons for 3 seconds. The screen will display "lock". To cancel child lock, repeat

this process and the "lock" logo will disappear. This function can prevent outside interference

during the washing cycle.

Note: Child lock will remain on and valid with the next session if it is not cancelled.

This option allows you to custom select the spin speed of the wash program selected.Each

program has varies spin speed options. Please refer to the "Program Guide".Spin speed options

are between 0-1400rpm.

This option allows you to custom select the temperature of the wash program selected.Each

program has varies temperature options. Please refer to the "Program Guide".

Note: When selecting cold water wash "-" is displayed on the LCD display screen.

Child lock (Combined hold of Delay and Start/Pause option buttons)

mixed

Jeans

Sport

Hand wash

Rinse

Spin

Dif

ferent material

Underwear Underwear

cold-90

cold-60

cold-40

cold-90

cold-40

cold-90

cold-40

Wool Wool

cold-40

cold

800

This wash is suitable for

laundry which has been

used after gym,exercise,

light sports.

Program Selection
