Haier HWM15-0501 User manual

Mini Washing Machine User's manual

This manual is for

HWM15-0501

Please read this manual

carefully before using.

Retain it for future reference.

Names of the parts................................................................................................1

Safety precautions .............................................................................................2

Installation and adjustment ...................................................................................4

Preparation before washing .................................................................................5

Put in the laundries ..............................................................................................6

Usage of the detergent.........................................................................................6

Process washing...................................................................................................7

Disposal after washing .......................................................................................8

Trouble shooting .............................................................9

Packing list *Specification.....................................................................................10

Contents

Meaning and description of the symbols

Names of the parts

Warning sign

Forbidden sign

Contents marked with that symbol are related to the safety

of the product and the personal safety of the users. Please

operate in strict conformity to the contents, otherwise it may

cause damage of the machine or injure the personal safety

of the user.

Contents marked with that symbol are actions forbidden to

perform. Performing of those actions may result in damage

of the machine or injure the personal safety of the user.

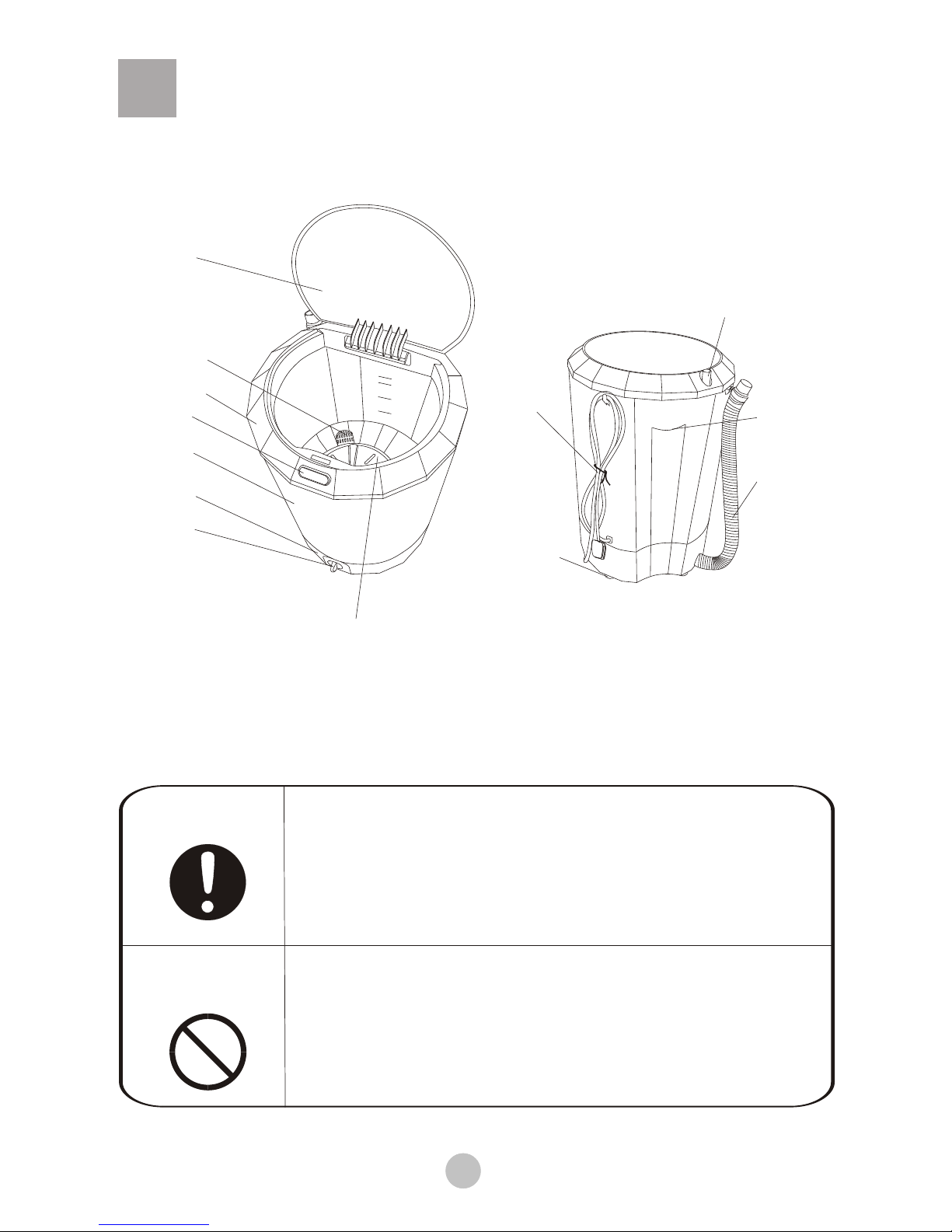

Cabinet

Base frame

Knob

Control panel

Filter cover

Pulsator

Button

MAX

Top lid

fixed foot

Drain hose

Power line Handle

Water-filling

entrance

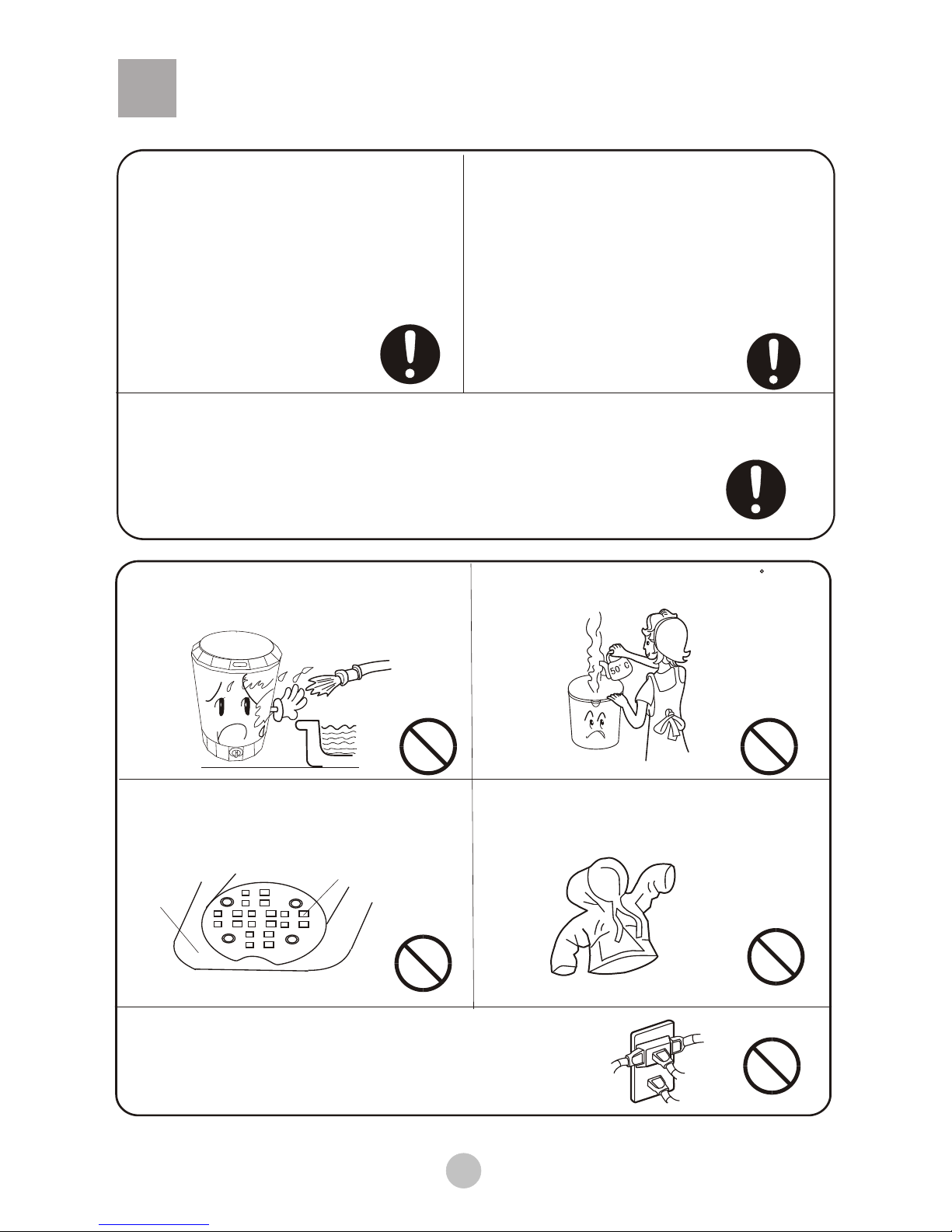

Safety precautions

Do not damage the power cord, bend , extend, twist, bind or alter it by force. Do not

press or nip it with weight. If the supply cord is damaged, it must be replaced by the

manufacturer or its service agent or a similarly qualified

person in order to avoid a hazard. Keep the pin of the

power plug clean, if the power plug is polluted with

dust, please wipe with dry cloth carefully.

The power cord plug should be convenient

to be pluged in or pluged out with hand

while the washing machine runs normally.

Be sure to pull the plug out and close the

water tap when the machine is idle, when

moving the machine, or when cleaning

the machine. Do not use wet hand to ins-

ert or pull out the power plug.

For washing machinewith ventilation

openings in thebase, that acarpet

must not obstructthe openings.

Do not let the machine share one receptacle with other

electric appliances. If the power plug is damaged, or

the plugging into the receptacle is loose,

do not use the plug any more.

Do not wash water-proof laundries like

the raincoat, bike covers etc.

Do not use water hotter above 50 C .

Do not put the machine at damp place like

the bathroom. Never wash it with water.

Not put wet laundries on the control panel.

soft items

The ventilation holes

at the bottom

Please insert the power cord into

special receptacle with rated vol-

tage. Be sure to use single-phase

three pins receptacle.The earthing

terminal of the receptacle must be

earthed reliably. If possible, please

adopt electric leakage protector.

Safety precautions

To protect your laundries and wash-

ing machine, please take out all of the

coins, buttons, sand, hairpin and

other foreign materials before washing.

Please check if the water faucet is open,

and if the connection of the water inlet

pipe is proper.

It is suggested to use foamless washing

powder.

Do not decompose, repair or alter the

machine by yourself.

Do not put any hot or heavy items (such

as the kettle with hot water ) on the

washing machine.

Do not wash laundries with volatile

materials (such as thinner, petrol etc.)

The handicapped or children without

care shall not use the machine.

Keep the machine away from direct

sunlight and heat source like the heater.

Do not stretch hands into the working

machine. It is dangerous even if the

rotation is slow. Take special care of

the children. Do not let the children

climb the washing machine.

Petrol

Thinner

Installation and adjustment

The largest allowed slope of the

shank base of the machine is 2 .

The slanting or rough ground will

result in unstable running or

stoppage of the machine, Please

adjust it .

Adjust the installation position

Please install and adjust the machine according to the requirement of the manual. It is

very important to your security and correct operating the machine.

1.The height of the drain hose shall be

less than 10cm, or the drainage will not

be smooth, and cost such long time that

the machine may stop at mid way.

2.Do not trample or press the drain hose.

Usage of the drain hose

The drain hose shall drain smoothly

<10cm

3. Do not lengthen or cut down the drain hose.

Preparation before washing

Confirm if

there's special

requirement for

the laundries.

Clear the pocket.

Take out the

coins , sand,

hairpins etc.

Fasten the

buttons and

zippers.

When the pulsator

is running , the

buttons of the

laundries may

cause noise. For

the sake of

discretion,please

put the laundries

with buttons into

other laundries.

The quantity of

the laundries

shall not exceed

the rated value.

The big laundries

like the jeans

shall be put in

loosely.

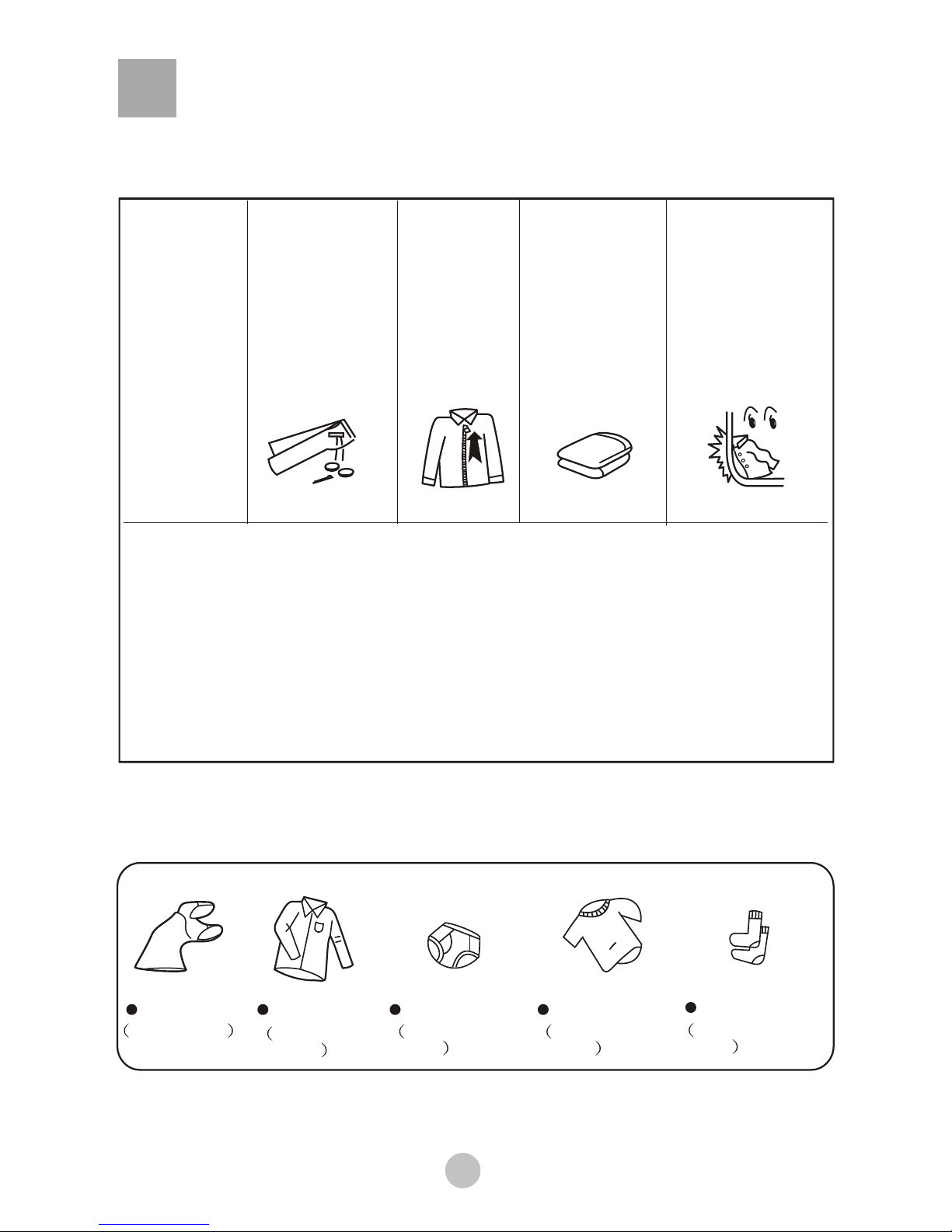

Pay attention to followings before washing the laundries

a.Please check if the laundries are applicable for washing.

b.Separate those not colorfast from other laundries.

c.For laundries not water absorbing, please put them into water with hands.

d.For laundries with much soil, lease remove the soil first. You can add detergent on the

part with serious soil directly. It is much easier to remove the soil by that mean.

e.For laundries likely to get lint ball or with long fiber, please first turn the inside out before

putting them into the water.

f.Do not put the laundries polluted with chemicals directly into the washing machine.

g.For those small laundries ,laundries likely to be twisted or worn, and woolen laundries,

please put them into mesh bag before washing.

Reference weight of the laundries:

shirt Socks

underpants undershirt

pajamas

cotton, about

300g

blending, about

50g

cotton, about

70g cotton, about

180g

about 200g

The capacity ofwashing of themachine refer to

the largest weightof the standard laundries under

dry condition that can be washedin one time. One

time washing quantityshall be lower than the rated

capacity.

The thickness, size,type of the cloth will influence

the actual washingcapacity. It is suitable forone

time washing toput in reasonable amount of

laundries and thelaundries can be turned round in

washing.

Do not select"3" water level for a littlelaundries,

so as toavoid splashing of water.

Put in the laundries

How to usethe whitener

Fill water todecided level. Dilute the whitener with container. Pour it slowly into

the washing tub.

Avoid using whitener on laundrieswith color or pattern as they are prone to

lose color.

The whitener shallnot touch thelaundries directly.

Refer to theuser's manual forthe usage and quantity of the whitener.

For powder whitener, please dissolve it before use.

How to use the washing powder

Direct dissolved in the machine

1.Fill water to "1" water level.

2.Add the power. Runfor 30 seconds to dissolve it completely.

3.Put in the laundries. Select suitable water level.

The instant dissolvingof the washingpowder:

1.Prepare warm water of 30 and a container.

2.Add the powderwhile stirring tofully dissolve it.

Put in the proper quantities detergent according to the water level and the

laundries quantities .

It is suggestednot to usehigh sudsing detergent.

Washing powder with poor quality or long time storage maybe caked.

Usage of the detergent

Process washing

1.Put into thelaundry and detergent, then fill the

water needed.

Install the water inlet hose

Insert the water inlet hose into the water-filling

entrance on the control panel.

The appliance is to be connected to the water

mains using new hose-set and old hose-set

should not be reused.

Water inlet hose

Water-filling

entrance

2.Close the toplid

3.Connect the power line

Confirm that the washing machine is

earthed reliably. Then insert the power

plug into the receptacle. Do not connect

the earth terminal to the gas pipe and

tap water pipe.

1.Confirm that the drain hose is properly

hanged before fill water, or the water will

flow through the drain hose.

2.Inside the washing machine tubbiness, It be

marker reference water line"1" "2" "3"and

the top water line"MAX".Not to a certainty

over the mark"MAX".

NOTE

About ~36

About7~8

About8~10

About2 4~

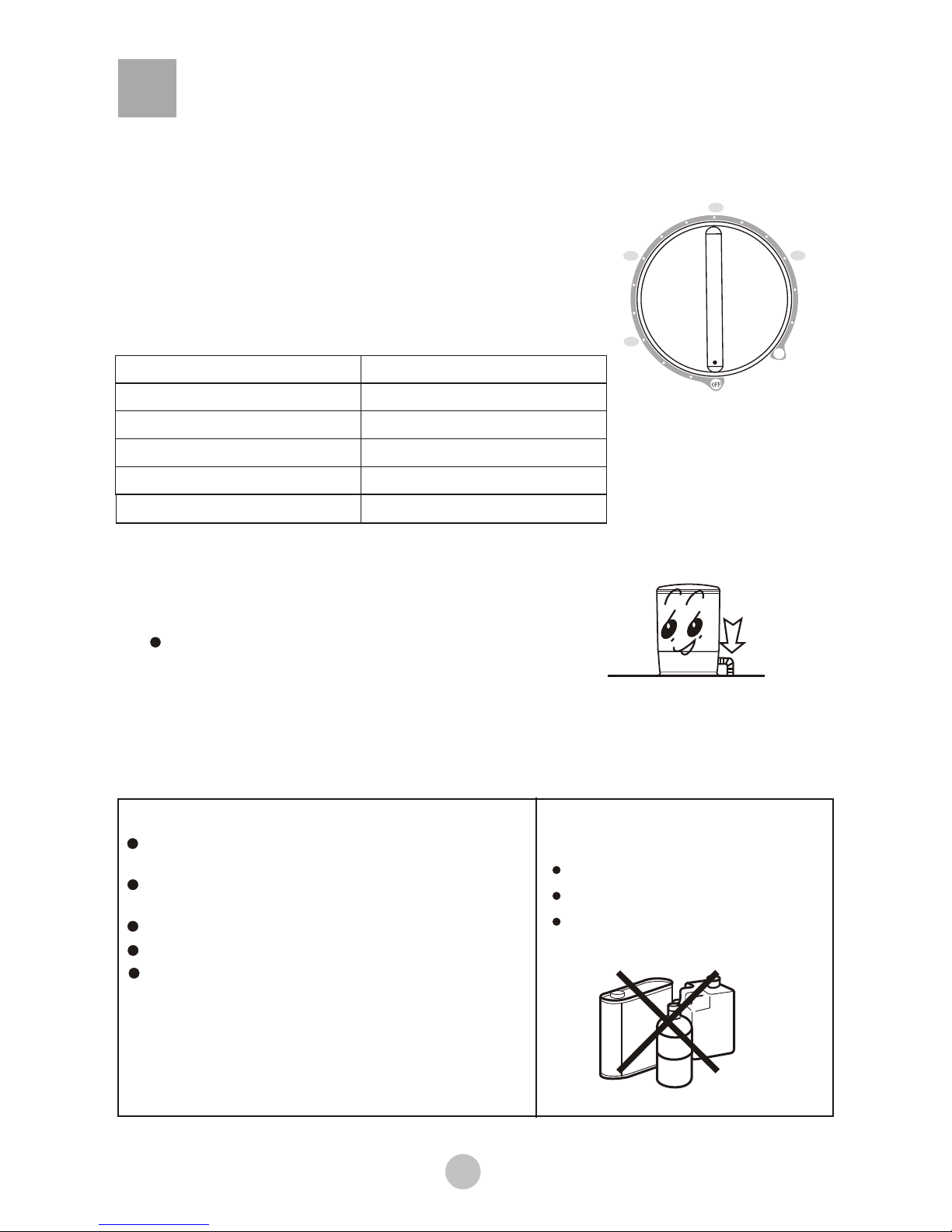

Washing Timer

4.Washing duration reference

Select washing duration depending on the laundry

Laundry Washing Duration(min)

Silk fabric(thin laundry)

Knitted fabric/chemical fabric

Bed sheet

Cotton, blending or linen fabrics

Very dirty or heavy laundry About10~15

5.Finish washing

The tumbler stops revolving. Level the draining hose

down to let the waste water out.

If the cabinetis dirty, wipe itwith

wet cloth

Do not flushit directly withwater.

Wipe it withneutral detergent.

Do not wipeit with thinner, petrol,

alcohol etc.

Disposal after washing

After washing, close the water faucet. ( If needed,

you can dismantle the water inlet hose).

Hang up the power cord and drain hose.

Be sure to pull off the power plug before maintenance.

Do not store water in the washing machine for a long

period. Drain the water completely after each using.

Wipe off the water drops on the surface of the

machine and inside the tub. Open the top lid for

some time (about 1 hour), then close the top lid.

Thinner

Alcohol

Petrol

(To set to below 2 minute,

first set to 6 minute then

turn it back. it can increase

the service life of the timer).
