Haier HWM105-0626S User manual

Safety precautions

Installation and adjustment

Preparation before washing

Usage of the detergent

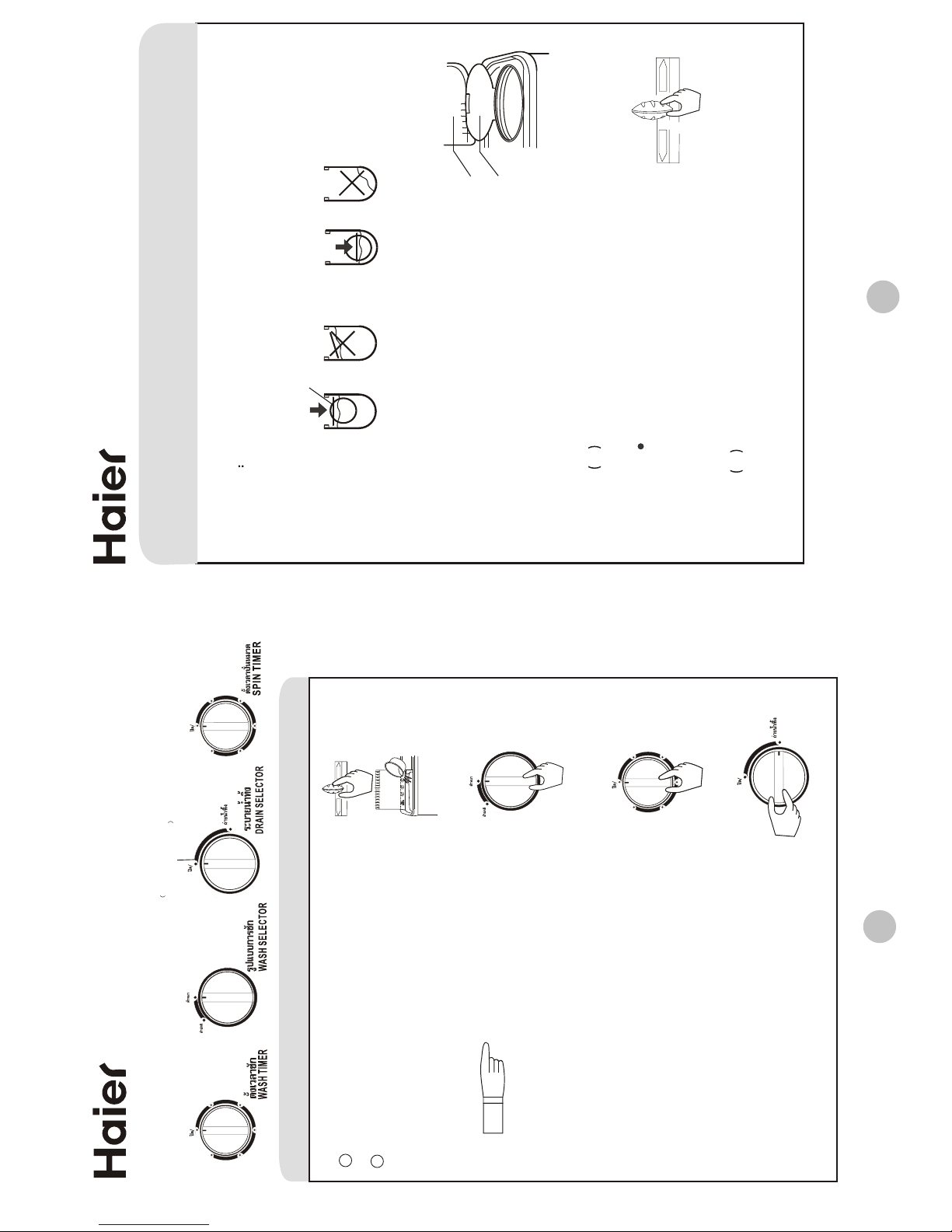

Washing sequence

Names of the parts

Packing list

Trouble-Shooting

Specification

TWIN TUB WASHING MACHINE

HWM105-0626S

USER Manual

WASHING MACHINE CONTENTS

Maintenance

Do s and don ts

Specification

Water level Water quantity estimated (L)

Maximum/71 Medium/60 Minimum/49

10.5

Injection pressure(MPa) 0.02~0.2

Spinning capacity(kg) 6.0

Washing capacity(kg)

Rated voltage frenquency 220V 50Hz

Specifications may be subject to change

without prior notice

Water inlet hose

Gland

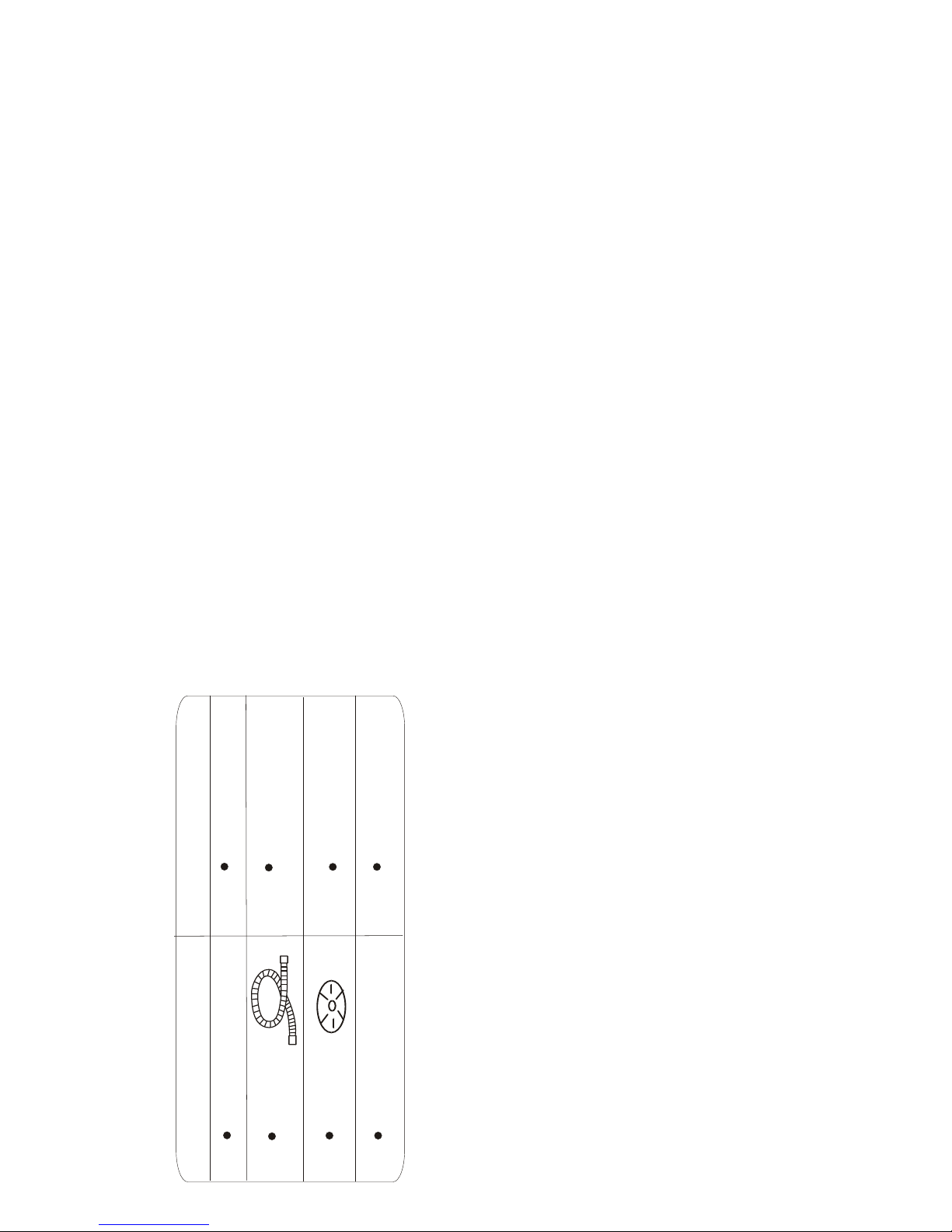

Packing list

Twin tub washing machine

Name Quantity

User's manual One piece

One piece

One set

Meaning and description of the symbols

Warning sign

Forbidding sign

Contents marked with that symbol are related

to the safety of the product and the personal

safety of the users. Please operate in strict

conformity to the contents, otherwise it may

cause damage of the machine or injure the

personal safety of the user.

Contents marked with that symbol are actions

forbidden to perform. Performing of those

actions may result in damage of the machine

or injure the personal safety of the user.

Please check if the power receptacle has good earthing

condition before using to guarantee your safety.

Names of the parts

Control panel seat

Outer cover of the spin tub

Inner cover of the spin tub

Spin timer

Spin tub frame

Spin tub

Front door

Control panel

Bypass channel

Overflow filter

Water level adjust lever

Water filling control handle

Drain hose

Cabinet handle

Wash tub

Base frame

Lint filter

Cabinet

Plate support(right)

Wash timer

Water-filling entrance

Plate support (left)

Drain selector

Wash tub cover

Pulsator

Wash selector

(If there's breakdown, please pull off the power plug before checking) The following

phenomena are not breakdowns sometimes. Please confirm again before sending

it to repair. If there are real breakdowns, please come to the special maintenance

department or after-sale service department of our company. Do not repair it by yourself.

Trouble-shooting

Phenomena

Use it when the power is on.

Insert the power plug tightly.

Remove the foreign materials?

Put down the drain hose?

Remove the foreign material?

Please contact the after-sales

service department.

Level the machine properly.

Pressed the gland evenly

Remove the laundries

Remove a little laundries

The reason How to settle

The machine does

not function.

Is there power failure?

Is the power plug loose?

Is the pulsator twisted by

foreign materials?

Has the drain hose being

laid down?

Is the drain hose blocked

by foreign material?

Are there any laundries

trapped at the outer side

of the spin tub?

There's abnormal

sound during

washing

Remove the hair pin, coins or

metal items

Are there hair pin, coins

or meta items brought

inside the tub?

Is the machine slanting?

Is the gland pressed evenly?

Are there any laundries trapped

at the outer side of the spin tub?

Are the laundries in spin tub over

loaded?

There's abnormal

sound and violent

vibration during

spinning

The draining does

not function

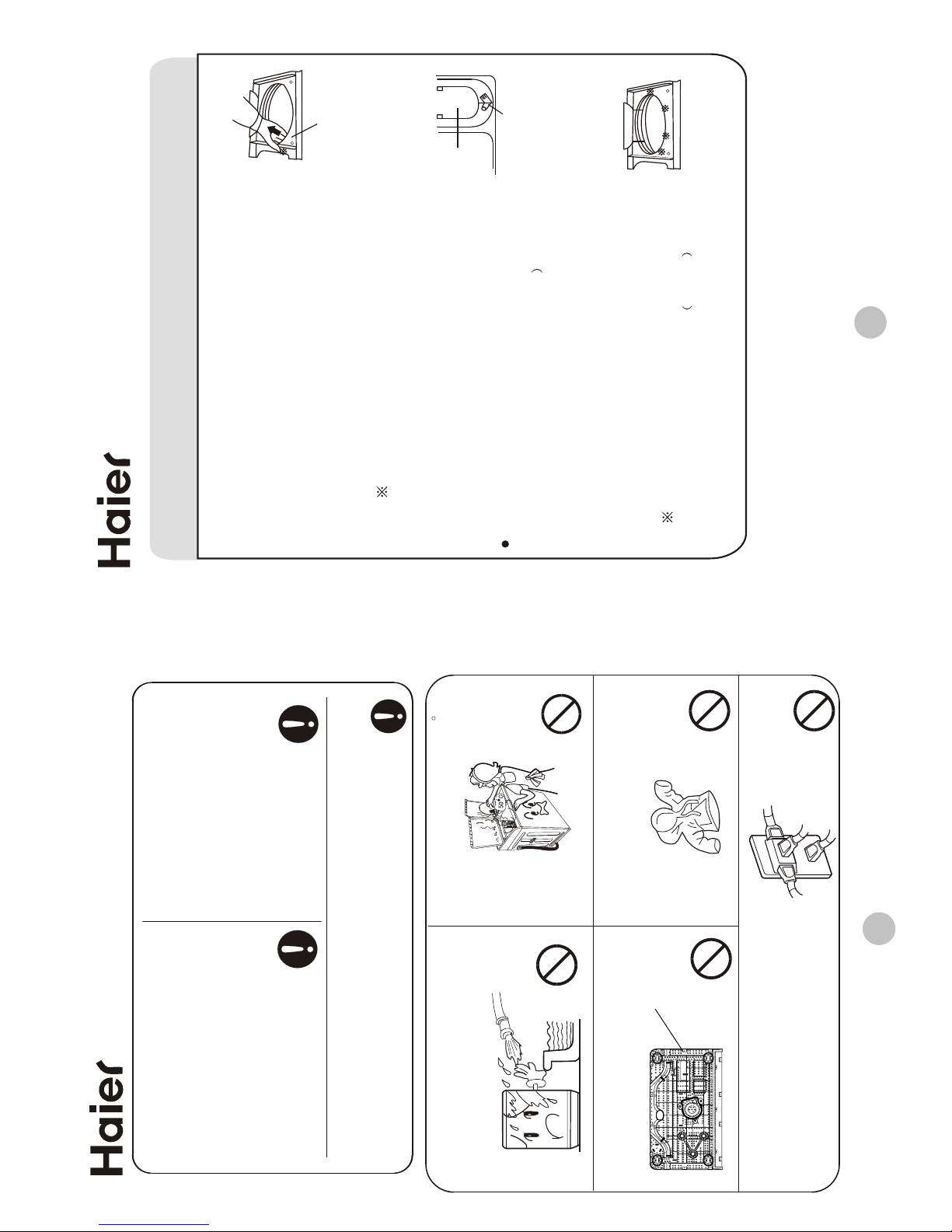

Safety precautions

Please insert the power cord into

special receptacle with rated vol-

tage.Be sure to use single-phase

three pins receptacle.The earthing

terminal of the receptacle must be

earthed reliably.If possible,please

adopt electric leakage protector.

When the machine is normally

using, please put the power plug

at the location easily to be insert-

ed and extracted by hand. Be sure

to pull the plug off when there's

power failure, or the machine is

being moved, cleaned or when it

is idle.

Do not put the machine at damp

place like the bathroom . Never

wash it with water. Do not place

wet laundries on the control panel.

Do not wash water-proof laundries like

the raincoat, bike covers etc. to avoid

abnormal vibrations.

Do not let the machine share one receptacle

with other electric appliances. If the power

plug is damaged, or the plugging into the

receptacle is loose, do not use the plug any

more.

Ventilation hole at

the bottom of the

washing machine

If the supply cord is damaged,it must be replaced

by the manufacturer or its service

agent or a similarly qualified person

in order to avoid a hazard.

Do not use water hotter than 50 C .

For washing machine with ventilation

openings in the base, that a carpet

must not obstruct the openings.

If the laundries fall to the outer side of the spin tub

Trouble-shooting

Please check carefully. The laundries may fall to the

lower part of the outer side of the spin tub ( Figure 2).

If the laundries fall to the outer side of the spin tub,

during spinning the draining will get blocked and the

rotation speed of the spin tub is reduced.

If the laundries fall to the outer side of the spin tub, Please

take it out quickly.

Spin tub frame

Figure 1

Figure 2

Laundries

Spin tub

Figure 3

1.Dismantle

First take two plugs out, then dismantle the two

screws which fixed the Spin tub frame. As

indicated in the figure, push the point marked

with " " to pull the spin tub frame to oblique

upwards to dismantle it.

2.Install

After install the back edge of the spin tub frame to

proper position, push the four points marked with

" " by force to reset it, fix it with screws, then

fixed the two plugs at the position.

Figure 3

Do not stretch hands into the working

machine. It is dangerous even if the

rotation is slow. Take special care of

the children.

Safety precautions

Do not put any hot or heavy items

( such as the kettle with hot water )

on the washing machine.

Do not decompose, repair or alter the

machine by yourself.

Handicapped or children without care

shall not use the machine.

Keep the machine away from direct

sunlight and heat source like the

heater.

Do not wash laundries with volatile

materials (such as thinner, petrol etc.).

Petrol

Thinner

To protect your laundries and wash-

ing machine, please take out all of the

coins, buttons, sand, hairpin and

other foreign materials before washing.

Please check if the connection of the

water inlet pipe is proper.

It is suggested to use foamless washing

powder.

After washing, dismount the water inlet hose.

Do not store water in the tub for long period. Discharge the water

immediately after each using.

Pull off the power plug and hang up thepower cord.

Hang up the drain hose.

Wipe off the water drops on the surface and inside the tub with clean

soft cloth. Open the cover of the wash tub and the inner/outer cover

of the spin tub for some time (about one hour), then close them.

Wipe the complete unit with soft cloth twisted dry.

Wipe with neutral detergent if too dirty.

Do not wash it directly by water.

Thinner

Alcohol

Petrol

Disposal of the complete unit

Installation and adjustment

Please install and adjust the machine according to the requirement of

the manual. It is very important to your security and correct operating

the machine.

Usage of the drain hose

If the extra hose is too long, cut it either

at point A or B.

<10cm

> 30mm

<1.5m

The drainage shall be smooth with the drain hose.

1.The height of the drain hose shall be

less than 10cm , or the drainage will

not be smooth enough and cause

incomplete drainage.

2.Do not tramp or press the drain hose.

3.If the drain hose is too long, cut it at mid point.

To make smooth drainage, cut the front end of

the hose slantingly.

4.If extra drain hose is needed , please make

separate purchase. The inner diameter of the

extra hose shall not less than 30mm, and the

length shall not exceed 1.5m.

Figure 2

Hook

Figure 3

2. Take off the corrugation pipe.

Dismantle the upper part of the

corrugation pipe inside the

overflow filter ( as indicated in

Figure 2).

3. Cleaning the overflow filter

Clean the lint around the filter

and flush with tap water.

4. Install the overflow filter.

(1).Install the corrugation pipe.

(2).Insert the mounting plate at

the bottom of the filter into

the valve cover.

(3).Hang up the hook at the left

upper side.

(4).Push the upper part in (as

indicated in Figure 3).

Elastic fixing

claw

Too much lint on the overflow filter will influence

the normal usage of the machine. Please

clean it every two months.

1 Take off the overflow filter.

As indicated in the figure, nip the elastic fixing

claw and pull it to the direction of the arrow to

take it off.

Cleaning the overflow filter

Figure 1

(Figure 1)

Water level

adjusting lever

Corrugation

pipe

Install the water inlet hose; Select the water level

How to change the direction of the drain hoses

Figure 1 indicates the ex factory installation

position of the drain hose.

Put soft items on the ground. Lean the machine

down gently with the front surface facing the

ground. Take off the drain hose from the cabinet.

Dismantle the drain hose fixing clamp and take

the hose out of the fixing groove.

(See to Figure 2).

Extend the drain hose from the side of spin tub

Figure 1

Back

Front

Soft item

Figure 2

Extend to the

spin tub side

Fig ure 3

Embed the drain hose into the groove along the side

of the spin tub in the order of 1 ~ 3 , heading for the

side of the spin tub. (See to Figure 3).

Embed the drain hose into the groove with

hands. Take care not to damage the drain

hose in fastening the fixing clamp.

Insert the water inlet hose into the water-filling

entrance on the control panel To

dismantle the water inlet pipe, just push the

control handle as indicated in the figure and

pull it out

Select water level according to the

quantity of the laundries.

Set the water level adjusting lever

to needed line.

Water inlet

hose

Water-filling

entrance

Water level

indicator

Maximum

Medium

Minimum

Max

Med

Min

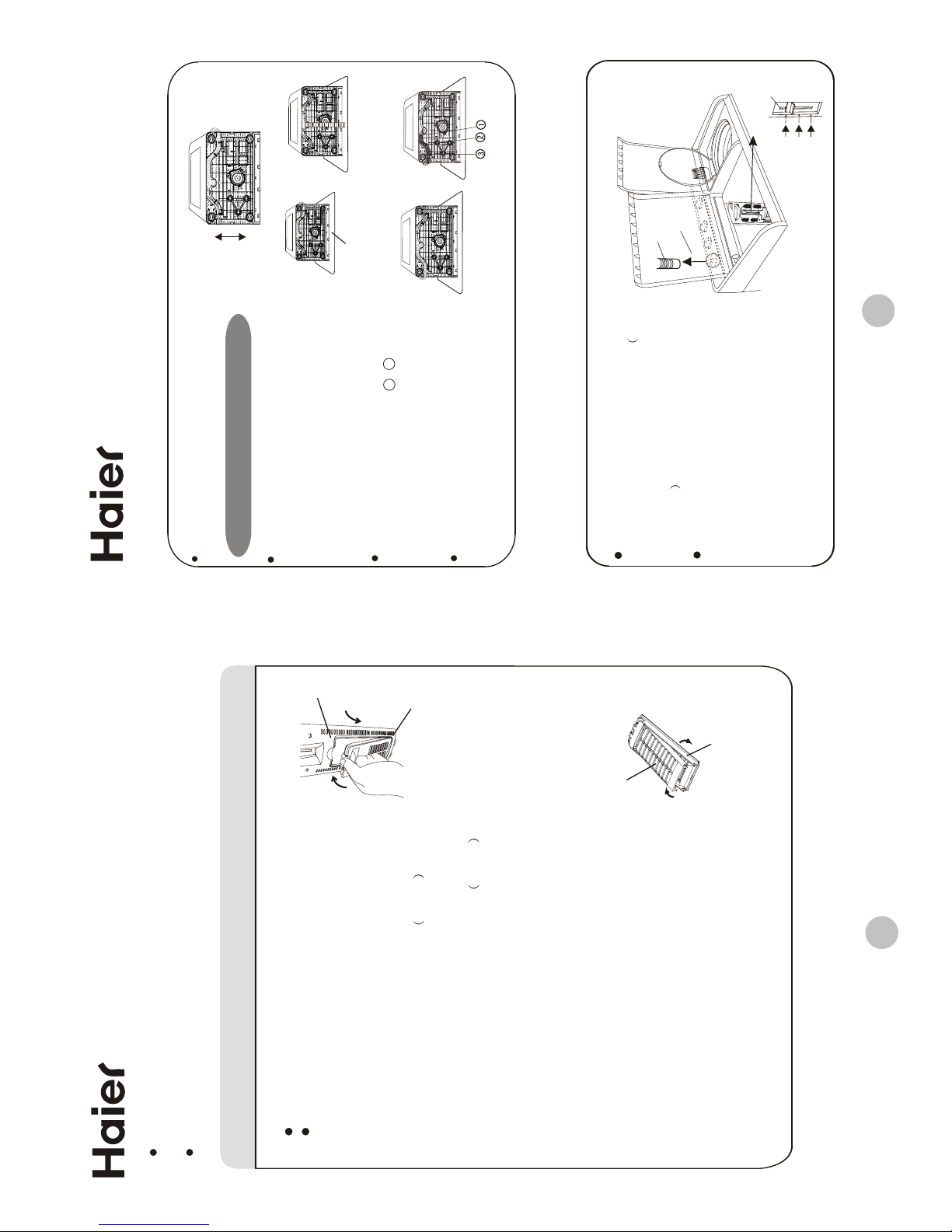

Maintenance

After using, please clean the lint and foreign materials of the lint filter and

overflow filter in time. Otherwise it may influence your using the machine.

Please first pull off the power plug from the receptacle before cleaning.

The lint filter must be used during washing.

It must be cleaned in time after each using.

Cleaning the lint filter

Figure 1

Lint filter rear cover

Lint filter frontcover

Disassemble

Install

Figure 2 Use the new water inlet hose provided

with the machine to connect to the

water faucet.Old hose sets should

not be reused.

Down

Dismantle

Install

Lint filter:

1.Push down the spring piece of the top lint filter to

make the claws out of the filter cover, and then

pull out the lint filter to get it down. figure1

2.Pull the back of the lint filter, and then you can get

down it off the front cover of the lint filter. figure2

3.Sweep the rubbish in the lint filter.

4.Put the back of the lint filter into the front cover .

5.Put the lint filter into filter cover, and make it tight .

6.Make sure the lint filter well installed, or it can

influence your use.

Preparation before washing

1.Connect the water inlet hose.

2.Confirm that the washing machine is earthed

reliably . Then insert the power plug into the

receptacle. Do not connect the earth terminal

to the gas pipe and tap water pipe.

3.Put down the drain hose .

4.Slanting or uneven ground may result in

unstable working or abnormal noise. Please

make the machine stand horizontally.

Preparation before washing

Pay attention to following before washing the laundries

Check if

the laundries

has special

requirement

on washing

Clear the

pocket. Take

out the coins,

sand, hairpins

etc.

Tie the long

strips; fasten

the buttons;

close zippers.

When the pulsator

is running , the

buttons of the

laundries may

cause noise. For

the sake of

discretion, please

put the laundries

with buttons into

other laundries.

The quantity of

the laundries

shall not be too

large. Stretch

and loosen the

laundries before

putting them in

the tub.

a. Check if the laundries are applicable for washing with machine.

b. Divide the laundries that are not colorfast from other laundries.

c. Put those laundries difficult to absorb water into water with hand.

d. For those laundries with heavy soil, please first remove the dirt like

mud or dust. For the parts with heavy soil, please apply detergent on

them in advance, which can make it easier to remove the soil.

e. For those laundries that may get lint ball and those with long fur, turn

it over before putting in.

f. Do not put those laundries polluted by chemicals into the washing

machine directly.

611

Spinning

1.Put the laundries into the spin tub evenly and smoothly.

2.Press the gland in the tub properly. Close the inner and

outer cover of the spin tub.

3.Spin

Select suitable spin time according to the laundries, and do spinning.

During spinning, if there is abnormal sound, it is generally owing to

slanting placement of the laundries. Please stop the machine and

reorder the laundries.

In spinning, it will pause the work if you open the outer cover of the

spin tub. Close it to resume the spinning.

To do spinning and draining and rinse

with water-filling together, please first

do spinning for around 1 minute, then

do draining or rinse with water-filling .

Otherwise the spinning will stop owing

to too much water stored in the spin tub.

The capacity of washing and spinning of the

machine refer to the weight of the

standard laundries under dry condition that can

be washed or spinned in one time. Laundries

quantity in one washing cycle shall be lower

than the standard capacity.

The thickness ,size , type of the cloth will influ-

ence the actual washing capacity. It is suit-

able to put in reasonable amount of laundries

and the laundries can be turned round in wash-

ing for one time washing.

Do not select " Maximum " water level for

laundries less than 1.5kg, so as to avoid

splashing of water.

Do s and Don ts

How to use the whitener

Fill water to decided level. Dilute

the whitener with container.

Pour it slowly into the washing tub.

Avoid using whitener on laun-

dries with color or pattern as they

are prone to lose color.

The whitener shall not touch

the laundries directly.

Direct dissolved in the machine:

1.Fill small quantity of water.

2.Add the powder . Run for 30

seconds to dissolve it completely.

3.Put in laundries. Select suitable

water level.

The instant dissolving of the washing

powder:

1.Prepare warm water of 30 C and a

container.

2.Add the powder while stirring to fully

dissolve it.

The powder is more prone to pollute the

laundries than the detergent. Therefore

please use it with proper quantity.

Dosage of different washing powder is

different. Please refer to the instruction

of the washing powder for the detail

dosage.

Refer to the user's manual for

the usage and quantity of the

whitener.

For powder whitener, please

dissolve it before using.

It is suggested not to use high sudsing detergent.

How to use the washing powder

Usage of the detergent

Rinse with stored water

1. Put the laundries into the wash tub. Select suitable current according to

the laundries.

2. Fill water to preset water level.

3. Rinse

Adjust the wash timer to 2-3 minutes to do rinsing.

When the laundries quantity is few, please use "Standard" current.

If you use "Strong" current, it may splash.

Rinsing

(Repeat the midway spinning and rinsing with stored water

for 2-3 times)

Rinse with water-filling

1.Put the laundries

Put the laundries into the wash tub. Select suitable current according

to the laundries.

2.Adjust the water level

Set the water level with water level adjusting lever according to the

laundries quantity. Then fill suitable water continuously.

3.Rinse

Adjust the wash timer to 5-7 minutes to do rinsing.

Midway spinning

Push

Proper Proper

Outer cover of

the spin tub

Inner cover of

the spin tub

The laundries

are slanting

Gland

No gland

1.Put the laundries into the spin tub evenly and smoothly.

2.Spin

(1) Put the gland in properly.

Please put in the gland properly even if the laundries quantity is small.

(2) Close the inner and outer cover of the spin tub.

(3) Spin for 1-2 minutes.

3.Run the foam-removing spinning.

Set the inlet selector handle on spin side and

fill water for about 1 min.

Close the spin tub outer cover and spin

for about 1 - 2 min.

In case water flows out from wash tub side

due to too much inflow, please turn down

the water tap a bit.

WATER INLET SELECTOR

WASH SPIN

Not set the switch to

DRAIN during washing

Wash timer

(To set to below 2 minutes,

first set to 6 minutes then

turn it back.).

Wash selector

(Strong current,

Standard current)

Drain selector Spin timer

(To set to below 1 minute,

first set to 2 minutes then

turn it back. it can increase

the service life of the timer).

WATER INLET SELECTOR

Page7

WASH SPIN

1.Water-filling selector

1 Set the water inlet selector at the "WASH" side.

(Figure 1)

2 Set the water level adjusting lever to needed line.

2. Fill the water and add the dissolved washing

powder to make the water level reach the preset

position. (Figure 2)

Run washing program for some time to stir and

dissolve the powder completely.

3.Put in the laundries. If the water quantity is

insufficient, please add water.

4.Select the current.

Select the strength of the current according to

the laundries. (Figure 3)

5.Select the washing time

Select the washing time according to the laundries.

(Figure 4)

6.After washing, set the "WASH SELECTOR"

at "DRAIN". (Figure 5).

Wash

Figure 1

Figure 2

Figure 3

Figure 5

Figure 4

Washing sequence

OFF

STRONG

STANDARD

OFF

DRAIN

OFF

DRAIN

STRONG

STANDARD

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide
