Haier HW100-BDV14979S8U1 User manual

User manual

●

ashing machine

HW100-BDV14979S8U1

●

Scan the instruction page QR code with your mobile phone to download and install Haier

●

Smart APP client.

Registration is required only the first time you use the APP, for further use, you only

●

have to enter the user name and passward to use the APP when successfully regi-

stered.

Download and Install Haier Smart APP

Connect to the home Wi-Fi, open the Haier Smart APP, register an account and log in,

click the "+" symbol in the upper right corner, select the washing machine, select the

corresponding model, and press and hold the power button until C5 appears on the

washing machine interface, and then connect the phone to Wi-Fi hotspots starting wit-

h "u-wmt", the washing machine automatically associates with the mobile phone to co-

mplete the binding, then reconnect the phone to your home Wi-Fi, Finally select the

Remoto program to operate remotely.

Registration and Login

Function of APP

Equipment control: Select program mode, set program parameters, start program mode,

●

pause, shutdown, etc.

Status View: View the running status of the device in real time.

Information reception: Receiving various prompts such as fault alarm, etc.

●

The APP function will be updated continuously with the upgrade of the version,

which is subject to the actual function of the corresponding version.

●

App Instructions

Thank You

●

egend

Warning – Important Safety information

General information and tips

Envi

●

ronmental information

Disposal

●

elp protect the environment and human health. Put

the packaging in applicable containers to recycle it.

Help to recycle waste of electrical and electronic ap-

pliances. Do not dispose appliances marked with this

●

symbol with the household waste. Return the product

to your local recycling facility or contact your munici-

pal office.

●

Thank you for purchasing a Haier Product.

Please read these instructions carefully before using this appliance. The instructions

contain important information which will help you get the best out of the appliance and

ensure safe and proper installation, use and maintenance.

Keep this manual in a convenient place so you can always refer to it for the safe and

proper use of the appliance.

If you sell the appliance, give it away, or leave it behind when you move house, make

sure you also pass this manual so that the new owner can become familiar with the

appliance and safety warnings.

Disconnect the appliance from the mains supply. Cut off the mains cable and dispose

f it. Remove the door catch to prevent children and pets to get closed in the appliance.

Risk of injury or suffocation!

WARNING!

Content

●

1-Safety information................................................................................................ 4

2-Product description

●

.............................................................................................. 7

3-Operation and function ..................................................... ..... ................. ............ 8

4-Programmes.......................................................................................................17

5-Daily use.............................................................................................................18

6-Eco-friendly washing..........................................................................................21

7-Care and cleaning..............................................................................................22

8-Troubleshooting..................................................................................................25

9-Installation

●

..........................................................................................................28

10-Technical data

●

11-After-sale service

................................................................................................. 32

............................................................................................ 33

1-Safety information

●

WARNING!

●

Make sure these is not transport damage.

Make sure all transport bolts are removed.

Remove all packing and keep out of children’s reach.

Handle the appliance always with at least two persons because it is hea-

vy.

Daily use

Before first use

This appliance can be used by children aged from 8 years and above a-

nd persons with reduced physical, sensory or mental capabilities or lack

of experience and konwledge if they have been given supervision or in-

struction concerning use of the applia

●

nce in a safe way and understand

the hazards involved.

Before switching on the appliance for the first time read the following safety

hints!

Keep away children under 3 years of

●

age from the appliance unless they

are constantly supersised.

Children shall not play with the appliance.

Pull up zips, fix loose threads and take care for small items to prevent l-

aundry from being entangled. If necessary, use an appropriate bag or n-

et.

Do not let children or pets come close to the appliance when the door is

open. Store washing agents out of reach of children.

Do not press or use the appliance when barefoot or with wet or damp h-

ands or feet.

Do not cover or encase the appliance during operation or afterwards to

allow any moisture or dampness to evaporate.

Do not place heavy objects or sources of heat or damp on top of the ap-

pliance.

Do not use or store flammable detergent or dry cleaning agent in close

vicinity to the appliance.

Do not use any lammable sprays in close vicinity to appliance.

Do not wash any garments treated with solvents in the appliance without

having dried them previously in the air.

1-Safety information

●

WARNING!

Daily use

●

Do not remove or inset the plug in the presence of flammable gas.

Do not hot wash foam rubber or sponge-like materials.

Do not wash any laundry which is polluted with flour.

Do not open detergent drawer during any wash cycle.

Do not press the door during the washing precess, it gets hot.

Do not open the door if the water level is visibly over the port hole.

Do not force the door to open. The door is fitted with a self-lock device and

will open shortly after the washing procedure is ended.

Switch off the appliance after each wash programme and before under tak-

ing any routine maintenance and disconnect the appliance from the electri-

cal supply to save electriaity and for safety.

Hold the plug, not the cable, when unplugging the appliance.

Maintenance/cleaning

●

Make sure children are supervised if they carry out cleaning and maintena-

nce.

●

Disconnect the appliance from the electrical supply before undertaking any

routine maintenance.

Keep the lower part of the porthole clean and open door and detergent dr-

awer if appliance is not in use to prevent odours.

Do not use water spray or steam to clean the appliance.

Replace a damaged supply cord only be the manufacturer, its service age-

nt or simiarly qualified persons in order to avoid a hazard.

Do not try to repair the appliance by yourself. In case of repair please cont-

act our customer service.

Installation

The appliance should be placed in a well-ventilated place. Ensure a locati-

on which allows opening the door fully.

Never install the appliance out doors in a damp place, or in an area which

may be prone to water leaks such as under or near a sink unit. In the event

of a water leak cut power supply and allow the machine to dry naturally.

1-Safety information

●

Intended use

●

This appliance is intended for washing machine-washable laundry only. Any-

time follow the instructions given on the label of each garment label. It is not

intended for commercial or industrial use.

Changes or modifications to the device are not allowed. Unintended use may

cause hazards and loss of all warranty and liability claims.

WARNING!

Installation

Installor use the appliance only where the temperature is above 5 °C.

Do not place the appliance directly on a carpet, or close to a wall or furn-

iture.

Do not install the appliance in direct sunlightor in the near of heat sourc-

es (e.g. stoves, heaters).

Make sure that the electrical information on the rating plate agrees with

the power supply. If it does not, contact an electrician.

Do not ude multi-plug adapters and extension cables.

Make sure only the delivered electric cableand hose set are used.

Make sure not to damage the electric cable and the plug. If damaged ha-

ve it replaced by an electrician.

Use a separate earthed socket for the power supply which is easy acce-

ssible after installation. The appliance must be earthed.

Make sure the hose joints and connections are firm and there is no leak-

age.

●

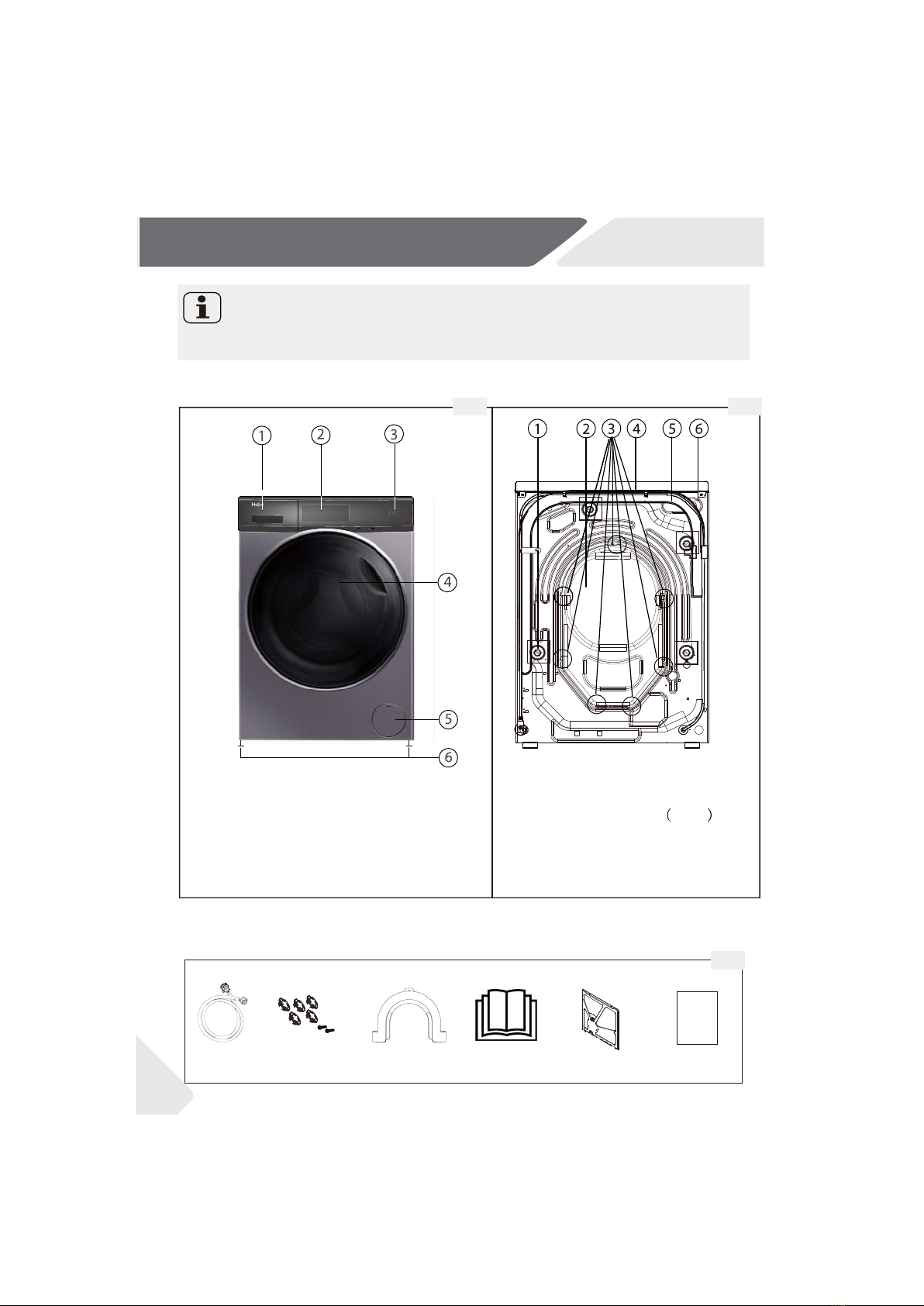

2.1 Pict

●

ure of appliance

Front (Fig. 2-1): Rear side (Fig. 2-2):

2.2 Accessories

●

Check the accessories and literature in accordance with this list (Fig.2-3):

Note:

1 Detergent delivery module

Control panel

Touch panel

4 Power button

5 Filter cover

6 Adjustable feet

1 Transportation bolts (T1-T4)

2 Backcover

Backcover screws 7 EA

4 Power cord

5 Water inlet valve

6 Drain hose

2-1 2-2

2-3

2-Product description

Inlet hose

●

assemb

●

5 Blanking

plugs+2 Screws Drain hose

bracket

User manual Bottom plate Warranty card

Warranty

card

Due to technical changes and different models,the illustrations in the following ch-

apters may differ from your model.

3-1

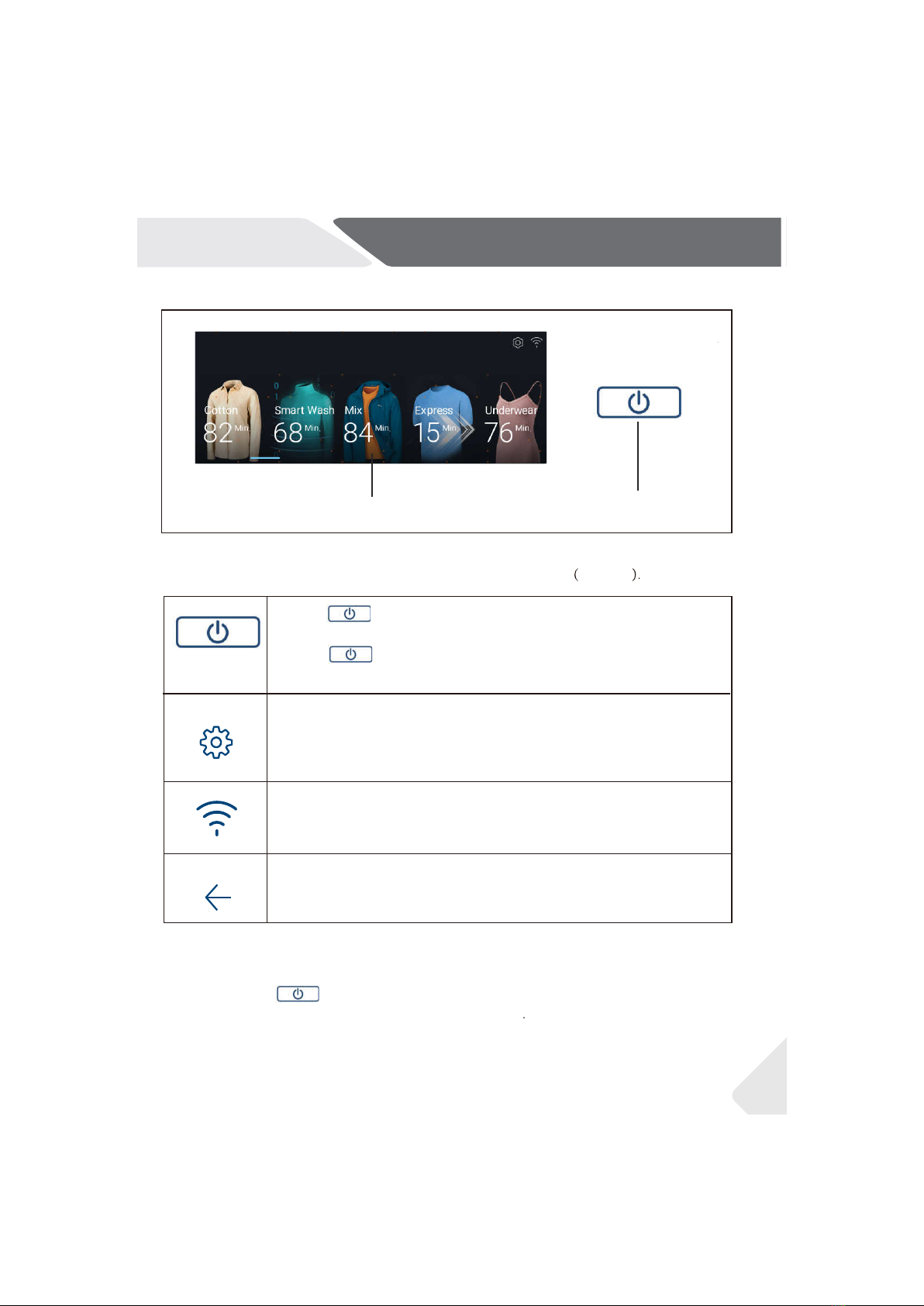

3.1 Main interface

●

3-Operation and function

This product adopts full touch screen control. The selection and setting of laundry

procedures can be completed by tapping the display screen Fig. 3-1

The touch screen “Power” button

Tap the button on the panel for about 2 seconds to turn on

the power of the washing machine.

Tap the button on the panel for about 2 seconds to power

off the washing machine.

Tap this icon to enter the setting page, you can set the child lock,

sound, language, brightness, Internet of things configuration,

system update, and restore factory Settings.

This icon is displayed when the washing machine is connected to

the network.

Tap this icon to return to the upper-level menu.

3.2 Program selection

After you tap the button for 2 seconds to start the device, the screen plays the

startup logo and displays the program selection page

3-Operation and function

●

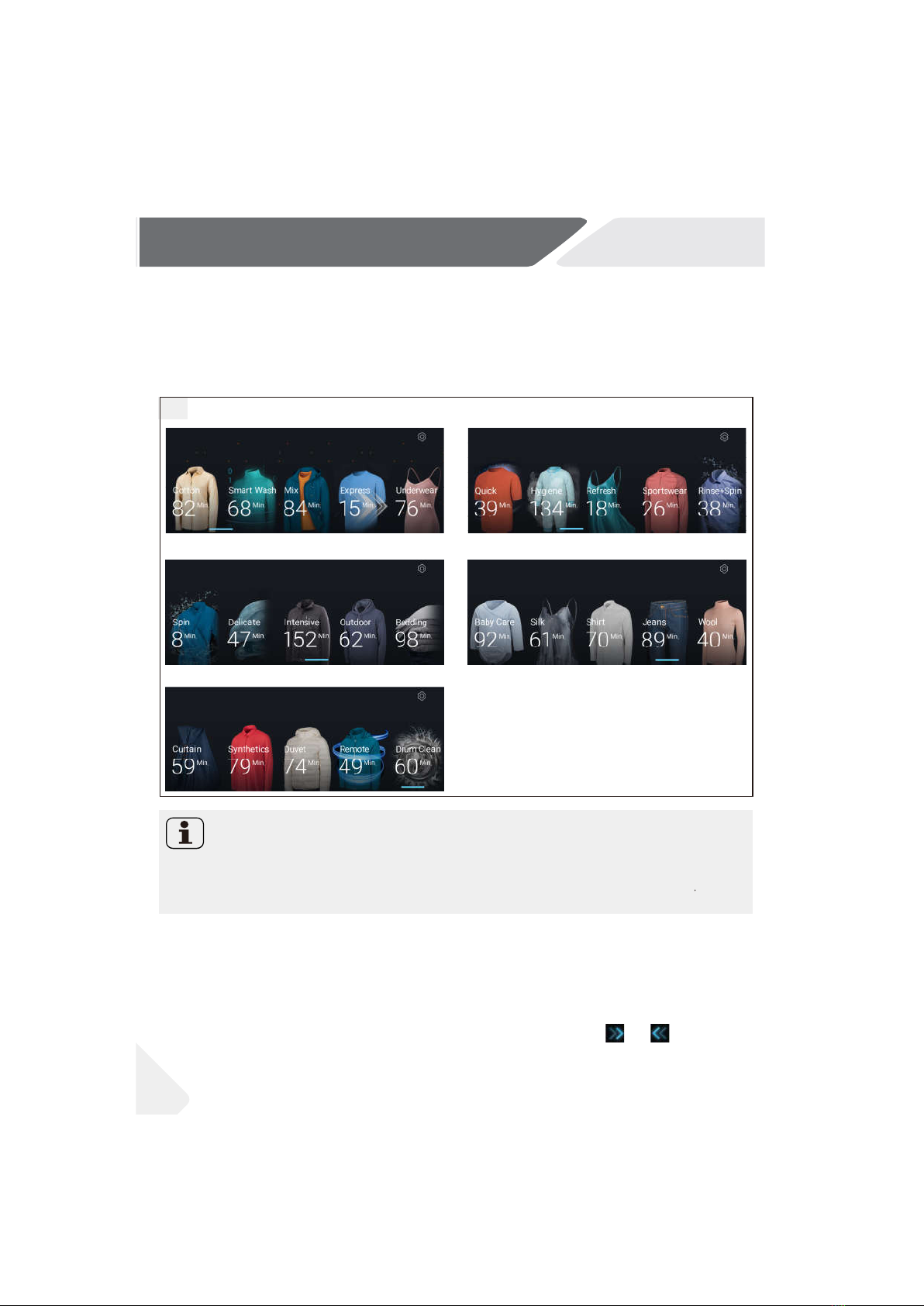

3.2.1 Select washing program

3.2.2 Adjustment of washing parameters

The user can select the corresponding program according to the laundry, so as to accu-

rately meet the user's various washing needs.Select the corresponding program from

the program selection page. There are 25 programs to choose from. The washing pro-

gram is shown in the following figure 3-2:

3-2

This model has memory function, after each boot, washing program sequencing will

be the last use of the program to the first, other programs postponed position

Note:

Users can set the washing parameters, detergents, softeners, UV sterilization, reser-

vation, special stains and additional functions in detail according to their needs. The

washing time will be automatically adjusted after the washing parameters are adjusted.

If the washing parameters are not adjusted, the default parameters are used directly.

Different programs have different adjustable parameters. Touch or to turn the

page of the program's function options and set different parameters.
