Haier HWM100-0626S User manual

HWM100-0626S

Twin-tub Washing Machine

User's manual

This manual is for

Please read this manual

carefully before using.

Retain it for future reference.

Contents

Safety precautions

Installation and adjustment

Preparation before washing

The musts in washing

Usage of the detergent

Washing sequence

Disposal after washing

Packing list *Specification

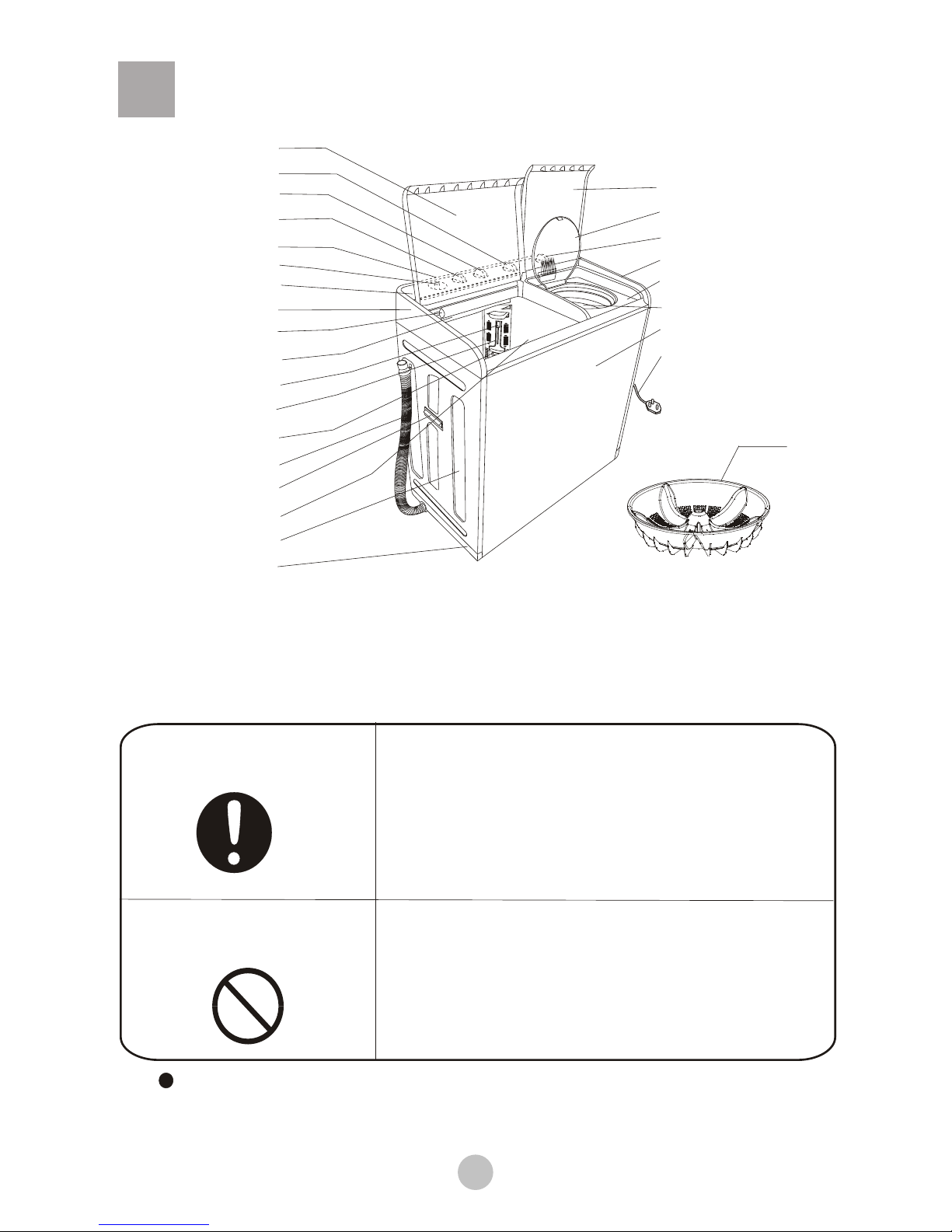

Names of the parts

Trouble-Shooting *Answer to question

Control panel seat

Outer cover of the spin tub

Inner cover of the spin tub

Spin timer

Spin tub frame

Spin tub

Front door

Power cord

Control panel

Bypass channel

Overflow filter

Water level adjust lever

Water filling control handle

Drain hose

Cabinet handle

Wash tub

Base frame

Lint filter

Cabinet

Plate support(right)

Wash timer

Water-filling entrance

Plate support (left)

Drain selector

Wash tub cover

Pulsator

Names of the parts

Wash selector

Notes: All illustrations in this Manual are given for reference only. Your products and

accessories may show differences from these illustrations due to our

continuous improvement.

Meaning and description of the symbols

Warning sign

Forbidding sign

Contents marked with that symbol are related

to the safety of the product and the personal

safety of the users. Please operate in strict

conformity to the contents, otherwise it may

cause damage of the machine or injure the

personal safety of the user.

Contents marked with that symbol are actions

forbidden to perform. Performing of those

actions may result in damage of the machine

or injure the personal safety of he user.

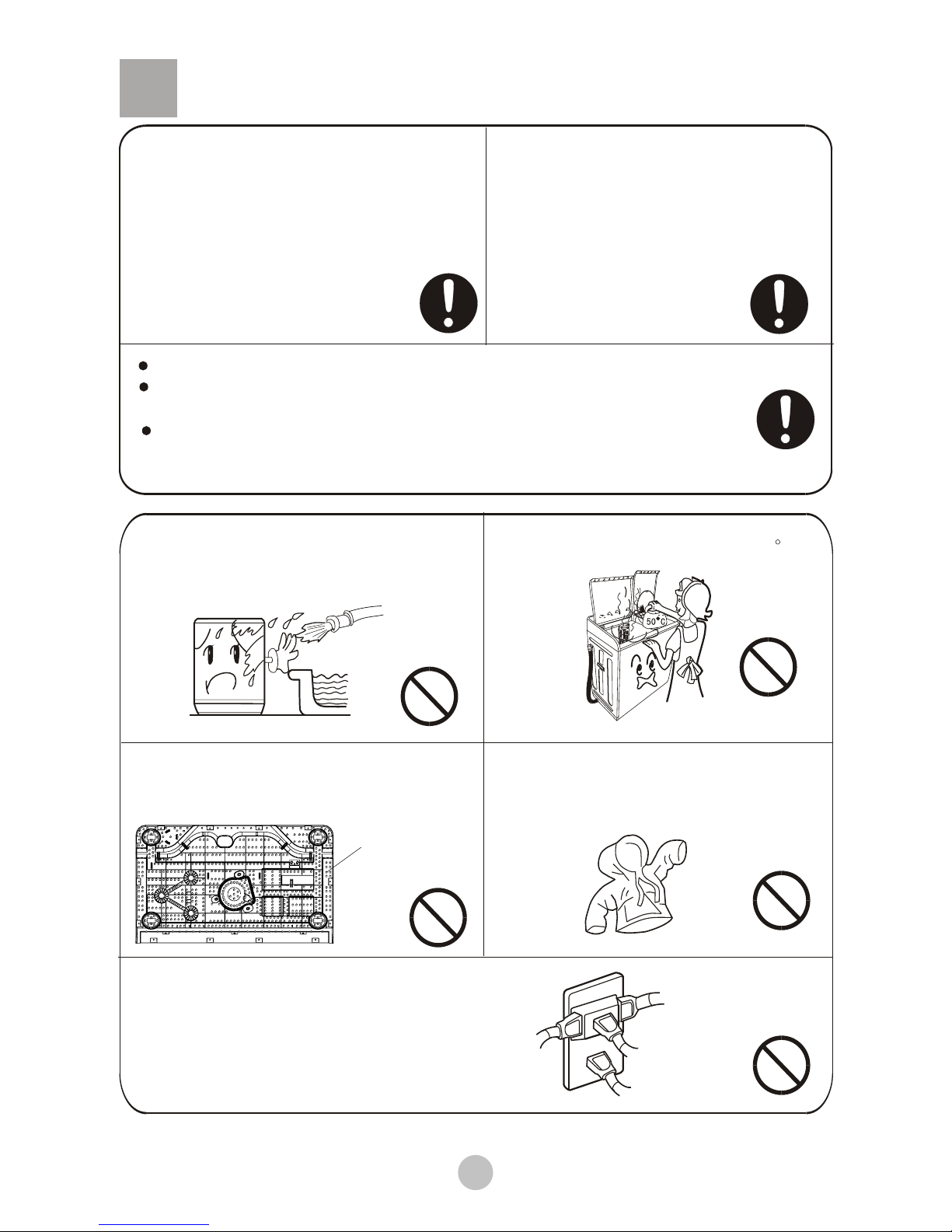

Please check if the power receptacle has good earthing condition

before using to guarantee your safety.

Safety precautions

Please insert the power cord into special

receptacle with rated voltage. Be sure to

use single-phase three pins receptacle.

The earthing terminal of the receptacle

must be earthed reliably. If possible,

please adopt electric leakage protector.

When the machine is normally using,

please put the power plug at the

location easily to be inserted and

extracted by hand. Be sure to pull the

plug off when there's power failure, or

the machine is being moved, cleaned

or when it is idle.

Do not bend ,extend, twist, bind by force. Do not press or nip it with weight.

Keep the pin of the power plug clean, if the power plug is polluted with dust,

please wipe with dry cloth carefully.

If the power cord or the power plug is bad, to avoid risk it is required to have

it replaced by the technicians of our special shop or the after-sale service

department.

Do not put the machine at damp

place like the bathroom . Never wash

it with water. Do not place wet laundries

on the control panel.

Do not use water hotter than 50 C .

In case the washing machine is installed

on ground with carpet , do not block the

ventilation hole with carpet.

Ventilation hole at

the bottom of the

washing machine

Do not wash water-proof laundries like

the raincoat, bike covers etc, to avoid

abnormal vibrations in spinning.

Do not let the machine share one receptacle

with other electric appliances. If the power

plug is damaged, or the plugging into the

receptacle is loose, do not use the plug any

more.

Petrol

Thinner

Safety precautions

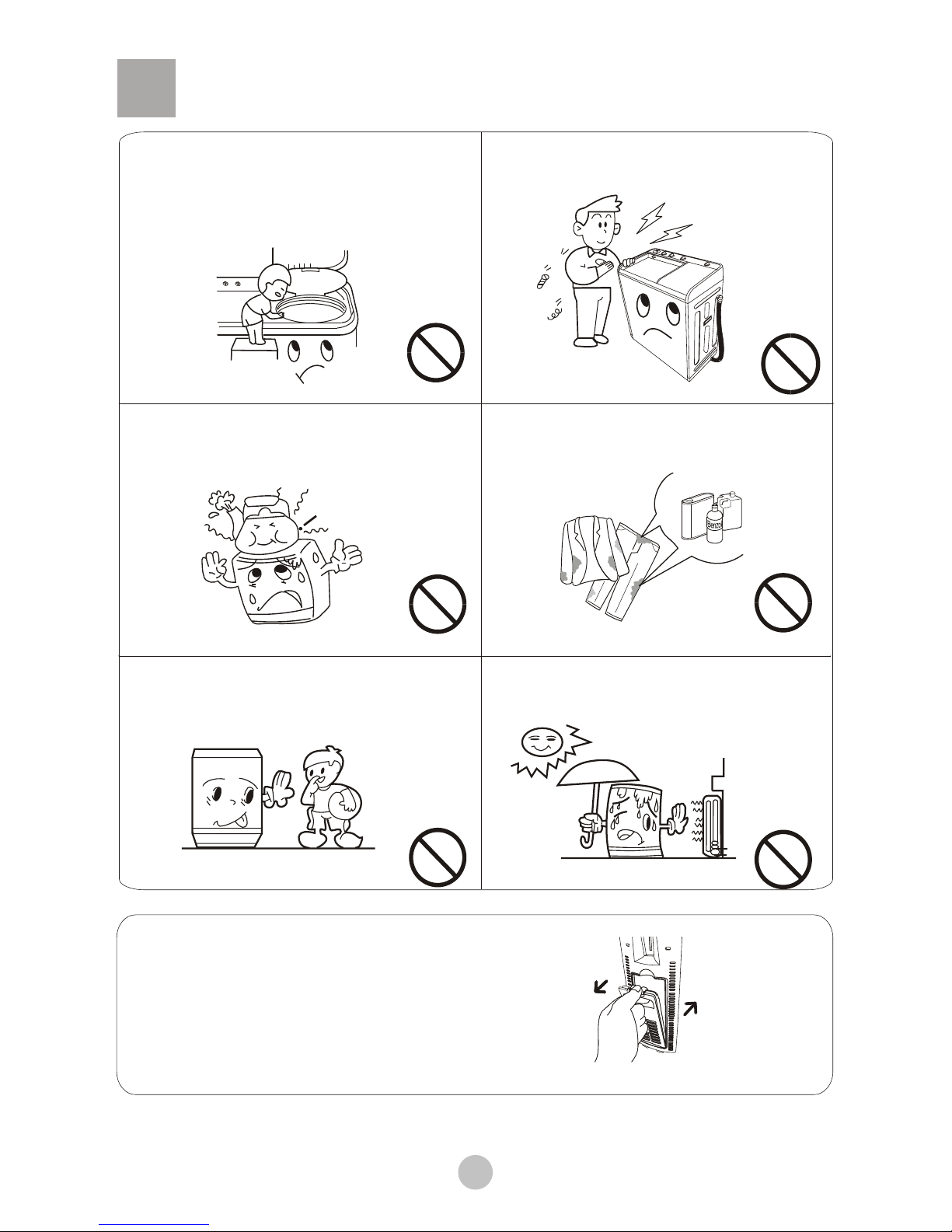

Do not stretch hands into the working

machine. It is dangerous even if the

rotation is slow. Take special care of

the children.

Do not decompose, repair or alter the

machine by yourself.

Do not put any hot or heavy items

( such as the kettle with hot water )

on the washing machine.

Do not wash laundries with volatile

materials (such as thinner, petrol etc.).

Handicapped or children without care

shall not use the machine.

Keep the machine away from direct

sunlight and heat source like the

heater.

Please keep the lint filter in good condition, and

install it to proper position during washing. If the

lint filter is lost or damaged, please contact the local

after-sale service department of our company.

Dismantle

Install

> 30mm

<1.5m

<10cm

Installation and adjustment

Please install and adjust the machine according to the requirement of the manual. It is

very important to your security and correct operating the machine.

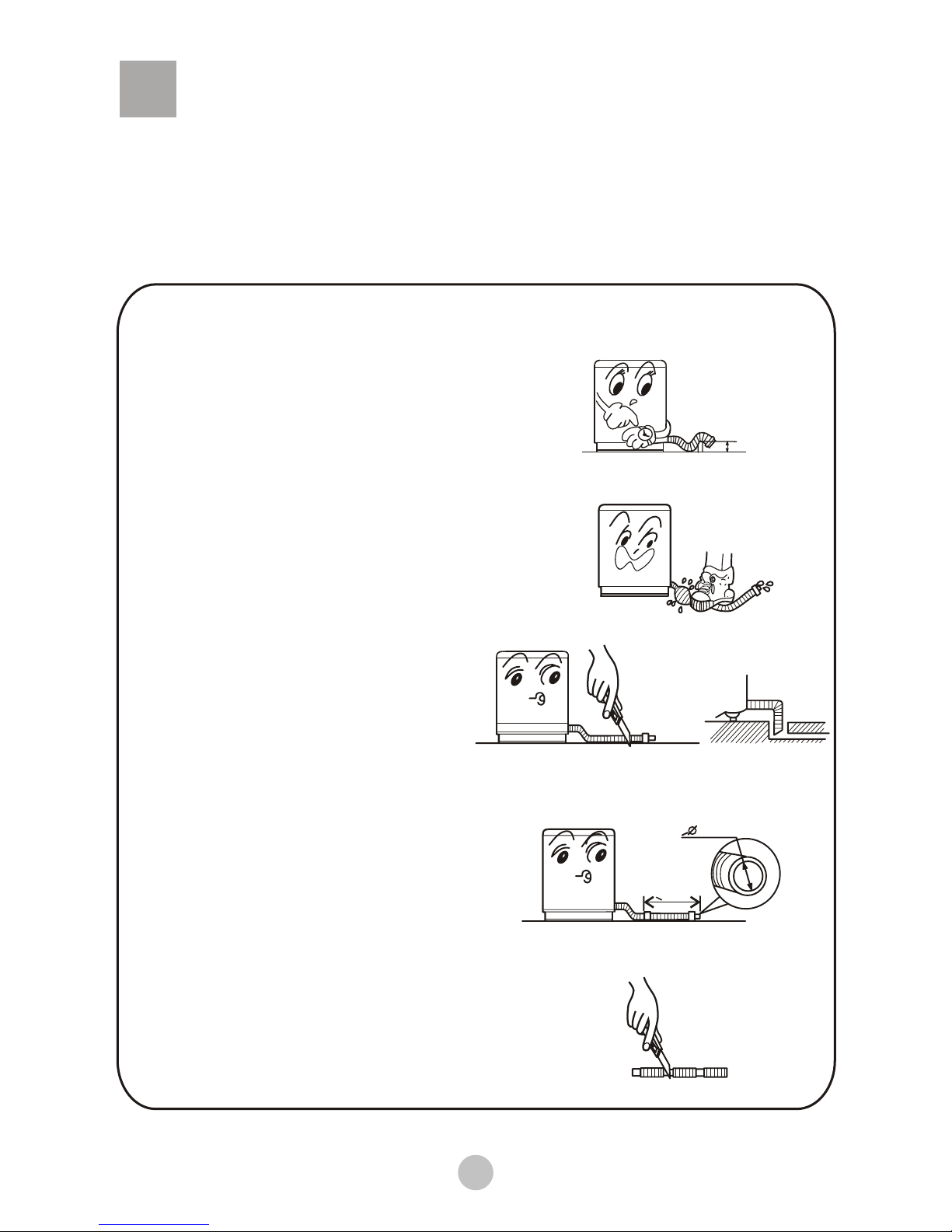

Usage of the drain hose

The drain hose shall drain smoothly

1.The height of the drain hose shall be

less than 10cm, or the drainage will not

be smooth, and cost such long time that

the machine may stop at mid way.

2.Do not ramp or press the drain hose.

3.If the drain hose is too long, cut it at mid

point. To make smooth drainage, cut the

front end of the hose slantingly.

4.If extra drain hose is needed, please

make separate purchase. The inner

diameter of the extra hose shall not

less than 40mm, and the length shall

not exceed 1.5m.

If the extra hose is too long, cut it

either at A or at B point.

How to change the direction of the drain hoses

Figure 1 indicates the ex factory installation

position of the drain hose.

Put soft items on the ground. Lean the machine

down gently with the front surface facing the

ground. Take off the drain hose from the cabinet.

Dismantle the drain hose fixing clamp and take

the hose out of the fixing groove.

(See to Figure 2).

Extend the drain hose from the side of spin tub

Figure 1

Back

Front

Soft item

Figure 2

Extend to the

spin tub side

Fig ure 3

Embed the drain hose into the groove along the side

of the spin tub in the order of 1 ~ 3 , heading for the

side of the spin tub. (See to Figure 3).

Embed the drain hose into the groove with

hands. Take care not to damage the drain

hose in fastening the fixing clamp.

Install the water inlet hose; Select the water level

Insert the water inlet hose into the water-filling

entrance on the control panel To

dismantle the water inlet pipe, just push the

control handle as indicated in the figure and

pull it out

Select water level according to the

quantity of the laundries.

Set the water level adjusting lever

to needed line.

Water inlet

hose

Water-filling

entrance

Water level

indicator

Maximum

Medium

Minimum

Max

Med

Min

Preparation before washing

1.Connect the water inlet hose.

2.Confirm that the washing machine is earthed

reliably . Then insert the power plug into the

receptacle. Do not connect the earth terminal

to the gas pipe and tap water pipe.

3.Put down the drain hose .

4.Slanting or uneven ground may result in

unstable working or abnormal noise. Please

make the machine stand horizontally.

Preparation before washing

Pay attention to followings before washing the laundries

Check if

the laundries

has special

requirement

on washing

Clear the

pocket. Take

out the coins,

sand, hairpins

etc.

Tie the long

strips; fasten

the buttons;

close zippers.

When the pulsator

is running , the

buttons of the

laundries may

cause noise. For

the sake of

discretion, please

put the laundries

with buttons into

other laundries.

The quantity of

the laundries

shall not be too

large. Stretch

and loosen the

laundries before

putting them in

the tub.

a. Check if the laundries are applicable for washing with machine.

b. Divide the laundries that are not colorfast from other laundries.

c. Put those laundries difficult to absorb water into water with hand.

d. For those laundries with heavy soil, please first remove the dirt like

mud or dust. For the parts with heavy soil, please apply detergent on

them in advance, which can make it easier to remove the soil.

e. For those laundries that may get lint ball and those with long fur, turn

it over before putting in.

f. Do not put those laundries polluted by chemicals into the washing

machine directly.

The musts in washing

The capacity of washing and spinning of the

machine refer to the largest weight of the

standard laundries under dry condition that can

be washed or spinned in one time.

The thickness ,size , type of the cloth will influ-

ence the actual washing capacity. It is suit-

able to put in reasonable amount of laundries

and the laundries can be turned round in wash-

ing for one time washing.

Do not select " Max " water level for

laundries less 1.5kg , so as to avoid splashing

of water.

It is suggested to use foamless washing

powder.

Usage of the detergent

How to use the whitener

How to use the washing powder

Fill water to decided level. Dilute

the whitener with container. Pour

it slowly into the washing tub.

Avoid using whitener on laun-

dries with color or pattern as they

are prone to lose color.

The whitener shall not touch

the laundries directly.

Refer to the user's manual for

the usage and quantity of the

whitener.

For powder whitener, please

dissolve it before using.

Direct dissolved in the machine:

1.Fill small quantity of water.

2.Add the powder . Run for 30

seconds to dissolve it completely.

3.Put it in the laundries. Select suitable

water level.

The instant dissolving of the washing

powder:

1.Prepare warm water of 30 C and a

container.

2.Add the powder while stirring to fully

dissolve it.

The powder is more prone to pollute the

laundries than the detergent. Therefore

please use it with proper quantity.

Dosage of different washing powder is

different. Please refer to the instruction

of the washing powder for the detail

dosage.

WATER INLET SELECTOR

Page7

WASH SPIN

Not set the switch to

DRAIN during washing

WASH TIMER

DRAIN SELECTOR

1.Water-filling selector

1 Set the water inlet selector at the "WASH" side.

(Figure 1)

2 Set the water level adjusting lever to needed line.

2. Fill the water and add the dissolved washing

powder to make the water level reach the preset

position. (Figure 2)

Run washing program for some time to stir and

dissolve the powder completely.

3.Put in the laundries. If the water quantity is

insufficient, please add water.

4.Select the current.

Select the strength of the current according to

the laundries. (Figure 3)

5.Select the washing time

Select the washing time according to the laundries.

(Figure 4)

6.After washing, t

set the "DRAIN SELECTOR"

at "DRAIN". (Figure 5).

Washing sequence

Wash selector

)

Drain selector

DRAIN SELECTOR

Spin timer

(To set to below 1 minute,

first set to 2 minutes then

turn it back. it can increase

the service life of the timer).

SPIN TIMER

Wash

Figure 1

Figure 2

Figure 5

WASH SELECTOR

WASH TIMER

Figure 4

(HWM100-0626S)

Wash timer

(To set to below 2 minute,

first set to 5 minute then

turn it back. it can increase

the service life of the timer).

Figure 3

Table of contents

Popular Washer manuals by other brands

Tricity Bendix

Tricity Bendix AW 1000 W Operating & installation instructions

Panasonic

Panasonic NA-F60L5WRB operating instructions

GE WSLP1500 Dimensions and installation information

Electrolux

Electrolux EWF1284EDW Service manual

Bosch

Bosch WAN2829BSN User manual and installation instructions

LG TV2516DV3B owner's manual

LG TH2517DSAV owner's manual

VESTEL

VESTEL CMH-XL 7510 TE user manual

AEG

AEG 74335 User information

Johnson

Johnson JWF721A user manual

Beko

Beko WTE7604XLW0 owner's manual

Danby

Danby DTT100A1WDB Owner's use and care guide

Amica

Amica WA 14 Ex operating instructions

Daewoo

Daewoo DWD-F1222 instruction manual

Bosch

Bosch WAS28461AU instruction manual

Miele

Miele PW 6080 Vario manual

Finlux

Finlux FLX108CF220 user manual

Whirlpool

Whirlpool 3LBR5132AN0 Use and care guide
