Haier HAVG9WL38WPB Technical manual
•HAVG9WL38WPB
CANDY HOOVER GROUP S.R.L. • Via Comolli 16 • 20861 Brugherio (MB) Italy
BUILT-IN GAS ON GLASS COOKING HOBS
INSTALLATION ADVICES - INSTRUCTIONS FOR THE USE GB
PIANI COTTURA DA INCASSO A GAS IN VETRO
CONSIGLI PER L’INSTALLAZIONE - ISTRUZIONI PER L’USO IT
TABLES DE CUISSON A GAZ EN VERRE
CONSEILS POUR L’INSTALLATION - MODE D’EMPLOI FR
PLACAS DE COCCIÓN DE VITROGAS ENCASTRADA
CONSEJOS DE INSTALACIÓN - INSTRUCCIONES DE USO ES
PLACAS DE GÁS EM VIDRO DE ENCASTRAR
CONSELHOS DE INSTALAÇÃO - INSTRUÇÕES DE UTILIZAÇÃO PT
GAZ WBUDOWANY NA SZKLANEJ PŁYCIE DO GOTOWANIA
WSKAZÓWKI DOTYCZĄCE INSTALACJI - INSTRUKCJA UŻYTKOWANIA
PL
22
Dear Customer,
Thank you for having purchased and given your preference to
our product.
The safety precautions and recommendations reported below
are for your own safety and that of others. They will also provide
a means by which to make full use of the features oered by your
appliance.
Please preserve this booklet carefully. It may be useful in future,
either to yourself or to others in the event that doubts should
arise relating to its operation.
This appliance must be used only for the task it has
explicitly been designed for, that is for cooking foodstus.
Any other form of usage is to be considered as inappropriate
and therefore dangerous.
The manufacturer declines all responsibility in the event
of damage caused by improper, incorrect or illogical use of
the appliance.
DECLARATION OF CE CONFORMITY
•This appliance has been designed to be used only for cooking. Any other use (such as
heating a room) is improper and dangerous.
•This appliance has been designed, constructed, and marketed in compliance with:
-Safety requirements of the “Gas” Regulation (EU) 2016/426;
-Safety requirements of the “Low voltage” Directive 2014/35/EU;
-Safety requirements of the “EMC” Directive 2014/30/EU;
-Requirements of EU Directive 93/68/EEC;
-Requirements of EU Directive 2011/65/EU.
IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT
IN ACCORDANCE WITH EC DIRECTIVE 2012/19/EC.
At the end of its working life, the product must not be disposed of as
urban waste. It must be taken to a special local authority dierentiated
waste collection centre or to a dealer providing this service.
Disposing of a household appliance separately avoids possible
negative consequences for the environment and health deriving from
inappropriate disposal and enables the constituent materials to be
recovered to obtain signicant savings in energy and resources. As a
reminder of the need to dispose of household appliances separately,
the product is marked with a crossed-out wheeled dustbin.
33
IMPORTANT SAFETY PRECAUTIONS AND RECOMMENDATIONS
IMPORTANT: This appliance is designed and manufactured
solely for the cooking of domestic (household) food and is
not suitable for any non domestic application and therefore
should not be used in a commercial environment.
The appliance guarantee will be void if the appliance is used
within a non domestic environment i.e. a semi commercial,
commercial or communal environment.
Read the instructions carefully before installing and using
the appliance.
•This appliance has been designed and manufactured in
compliance with the applicable standards for the household
cooking products, including those for surface temperatures.
Some people with sensitive skin may have a more pronounced
temperature perception with some components although these
parts are within the limits allowed by the norms.
The complete safety of the appliance also depends on the correct
use, we therefore recommend to always pay a extreme attention
while using the product, especially in the presence of children.
•After having unpacked the appliance, check to ensure that it is
not damaged.
In case of doubt, do not use it and consult your supplier or a
professionally qualied technician.
•Packing elements (i.e. plastic bags, polystyrene foam, nails,
packing straps, etc.) should not be left around within easy reach
of children, as these may cause serious injuries.
•Some appliances are supplied with a protective lm on steel and
aluminium parts. This film must be removed before using the
appliance.
•IMPORTANT: The use of suitable protective clothing/gloves is
recommended when handling or cleaning this appliance.
•Do not attempt to modify the technical characteristics of
the appliance as this may become dangerous to use. The
manufacturer declines all responsibility for any inconvenience
resulting from the inobservance of this condition.
44
•CAUTION: this appIiance must only be installed in a permanently
ventilated room in compliance with the applicable regulations.
•Do not operate your appliance by means of an external timer or
separate remote-control system.
•Do not carry out cleaning or maintenance operations on the
appliance without having previously disconnected it from the
electric power supply.
•Do not use a steam cleaner because the moisture can get into
the appliance therefore making it unsafe.
•Do not cover the hob with aluminium foils.
•Do not touch the appliance with wet or damp hands (or feet).
•Do not use the appliance whilst in bare feet.
•If you should decide not to use this appliance any longer (or
decide to substitute another model), before disposing of it, it
is recommended that it be made inoperative in an appropriate
manner in accordance to health and environmental protection
regulations, ensuring in particular that all potentially hazardous
parts be made harmless, especially in relation to children who
could play with unused appliances.
•The various components of the appliance are recyclable. Dispose
of them in accordance with the regulations in force in your country.
If the appliance is to be scrapped, remove the power cord.
•After use, ensure that the knobs are in the o position.
•Children less than 8 years of age shall be kept away unless
continuously supervised.
•This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
55
• The manufacturer declines all liability for injury to persons or
damage to property caused by incorrect or improper use of the
appliance.
• WARNING: During use the appliance and its accessible parts
become hot; they remain hot for some time after use.
– Care should be taken to avoid touching heating elements on
the hob.
– To avoid burns and scalds, young children should be kept
away.
• Make sure that electrical cables connecting other appliances in
the proximity of the cooktop cannot come into contact with the
hob.
• WARNING: Unattended cooking on a hob with fat or oil can be
dangerous and may result in re. NEVER try to extinguish a re
with water, but switch o the appliance and then cover ame e.g.
with a lid or a re blanket.
• WARNING: Danger of re: do not store items on the cooking
surfaces.
• Do not place or leave empty pans on the glass ceramic hob.
• Do not allow heavy or sharp objects to drop on the glass ceramic
hob.
• Do not scratch the hob with sharp objects. Don’t use the hob as
a work surface.
• WARNING: If the hob is cracked or otherwise damaged by falling
objects etc., disconnect the appliance from the electrical power
supply to avoid the possibility of electric shock and call Customer
Service.
• WARNING: When correctly installed, your product meets all
safety requirements laid down for this type of product category.
However special care should be taken around the underneath
of the appliance as this area is not designed or intended to be
touched and may contain sharp or rough edges, that may cause
injury.
• CAUTION: The cooking process has to be supervised. A short
term cooking process has to be supervised continuously.
66
•If the power supply cable is damaged, it must be replaced only
by an authorized service agent in order to avoid a hazard.
•If the appliance is not tted with a supply cord and a plug, or with
other means for disconnection from the supply mains having a
contact separation in all poles that provide full disconnection under
overvoltage category III conditions, means for disconnection
must be incorporated in the xed wiring in accordance with the
wiring rules.
•WARNING: The appliance and its accessible parts become hot
during use.
Care should be taken to avoid touching heating elements.
Children less than 8 years of age shall be kept away unless
continuously supervised.
•WARNING: Use only hob guards designed by the manufacturer
of the cooking appliance or indicated by the manufacturer of the
appliance in the instructions for use as suitable or hob guards
incorporated in the appliance. The use of inappropriate guards
can cause accidents.
ENERGY LABELLING/ECODESIGN
•Commission regulation (EU) No 66/2014 (implementing Directive 2009/125/EC of the
European Parliament and of the Council).
Reference to the measurement and calculation methods used to establish compliance with
the above requirements:
•Standard EN30-2-1 (hobs: gas red burners).
USE OF THE APPLIANCE, ENERGY SAVING TIPS
HOB
GAS FIRED BURNERS
•It is important that the diameter of the pot be suitable to the size of the burner so as
not to compromise the high output of the burners and therefore energy waste. A small
pot on a large burner does not give you a boiling point in a shorter amount of time
since the capacity of heat absorption of a liquid mass depends on the volume and the
surface of the pot.
• Avoid keeping a burner on without something on it (without pot).
77
ADVICEADVICE
for thefor the
INSTALLERINSTALLER
88
IMPORTANT:
•The appliance is designed and approved for domestic use only and should not be
installed in a commercial, semi commercial or communal environment.
Your product will not be guaranteed if installed in any of the above environments
and could affect any third party or public liability insurances you may have.
•This appliance is to be installed, regulated and adapted to function only by an authorised
person in compliance with the current local regulations in force and in observation of the
instructions supplied by the manufacturer.
Failure to comply with this condition will render the guarantee invalid.
•The appliance must be installed in compliance with regulations in force in your country
and in observation of the manufacturer’s instructions.
•Installation technicians must comply to current laws in force concerning ventilation and
the evacuation of exhaust gases.
•Incorrect installation, for which the manufacturer accepts no responsibility, may cause
personal injury or damage.
• This appliance shall only be serviced by authorised personnel.
•Always disconnect the appliance from mains power supply before carrying out any
maintenance operations or repairs.
•Important: The use of suitable protective clothing/gloves is recommended when
handling or installing this appliance.

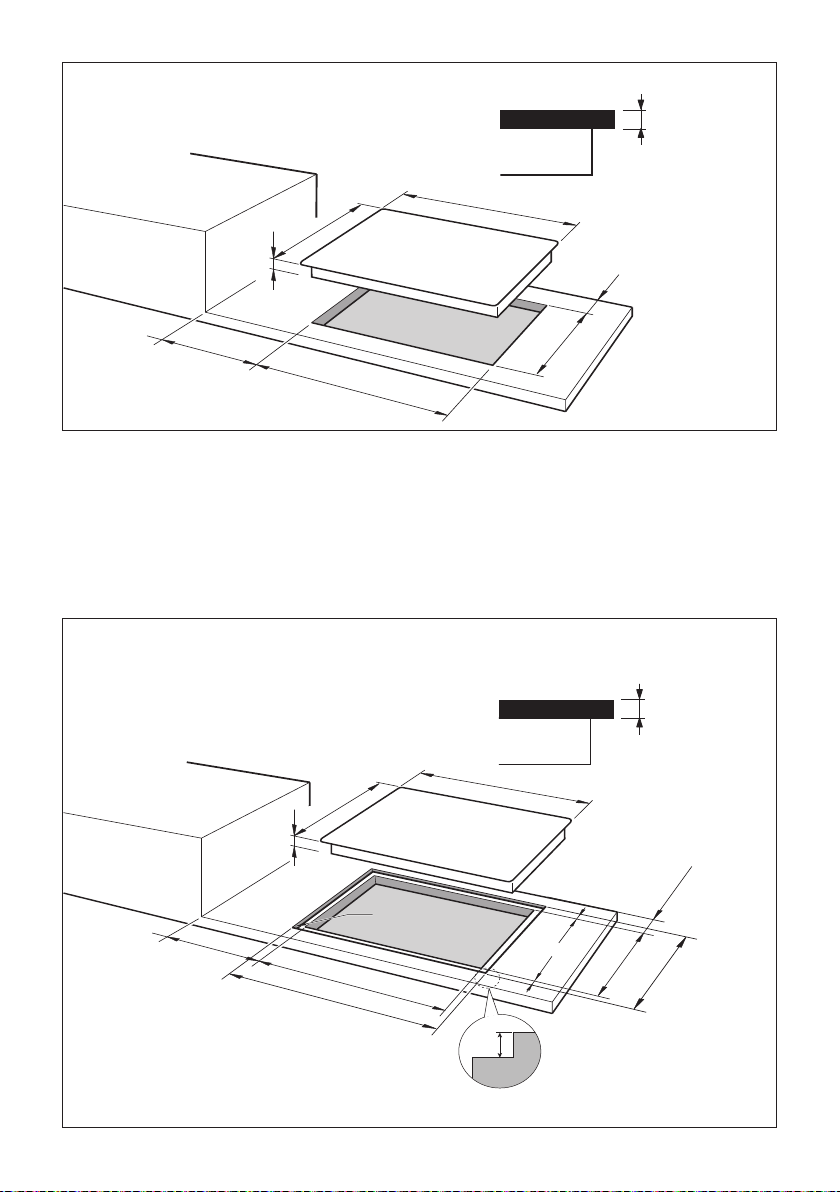

•These tops are designed to be embedded into kitchen fixtures measuring 600
mm in depth, working surface 30 to 40 mm thick.
•The appliance must be housed in heat-resistant units.
•The walls of the units must not be higher than work top and must be capable of
resisting temperatures of 70°C above room temperature.
•We would point out that the adhesive which bonds the plastic laminate to the
furniture must withstand temperatures not less than 150°C to avoid delamination.
•Standard installation (not flush): Do not seal the cooktop into the benchtop with
silicone or glue; this makes future servicing difficult. The manufacturer will not
cover the costs of removing the cooktop, or of damage caused by this removal.
•Do not install the appliance near inflammable materials (eg. curtains).
WARNING!
When correctly installed, your product meets all safety requirements laid down for
this type of product category. However special care should be taken around the
underneath of the appliance as this area is not designed or intended to be touched
and may contain sharp or rough edges, that may cause injury.
99
INSTALLATION
1
TECHNICAL INFORMATION FOR THE INSTALLER
In order to install the cooker top into the kitchen xture, a hole with the dimensions shown
in g. 1.1a or 1.1b has to be made, bearing in mind the following:
•A 40mm ventilation gap must be provided between the bottom of the appliance and
any cabinetry, draw unit, thermal protection barrier.
•If the base of the cooktop is accessible through a cupboard or drawer space after
installation, a thermal protection barrier must be installed below the base of the
cooktop as indicated in g. 1.1d.
•The cooker top must be kept no less than 200 mm away from any side wall (from side
edge of cutout - gs. 1.1a, 1.1b, 1.1c).
•The hob must be installed at least 60 mm from the wall (from rear edge of cutout - g.
1.1a, 1.1b).
•There must be a distance of at least 650 mm between the hob and any wall cupboard
or extractor hood positioned immediately above (see g. 1.1c).
1010
STANDARD INSTALLATION
E
60 mm
D
E
60 mm
D
200 mm
B
A
C
B
A
C
E1
D1
R7
6
200 mm
Fig. 1.1a
Fig. 1.1b
XX=8 mm
X=4 mm
X
X=4 mm
FLUSH INSTALLATION (MODELS WITHOUT METAL TRIM/S AND X=4 ONLY)
If you wish to install the hob ush with the work surface, it is neccessary to execute/carry
out a miling in the hole of the cut-out as indicated in gs. 1.1b.
E
60 mm
D
E
60 mm
D
200 mm
B
A
C
B
A
C
E1
D1
R7
6
200 mm
E1A
E1B
Table of contents
Languages:
Other Haier Hob manuals
Haier
Haier Candy HA2MTSJ68MC User manual
Haier
Haier JZY/T-QB330 Guide
Haier
Haier HAVG6 User manual
Haier
Haier HA2MTSJ58MB1 User manual
Haier
Haier HAISJ64MC User manual
Haier
Haier HAHG6BR4XH User manual
Haier
Haier HAIDSJ53MB1 User manual
Haier
Haier HAIPSJ64MC User manual
Haier
Haier HAH 64 EXCP User manual
Haier
Haier JZT-QHA9331P User manual
Haier
Haier HIC-654CF-S User manual
Haier
Haier ZY/T-QHA736 Guide
Haier
Haier HC-XG72D User manual
Haier
Haier HAMTSJ54MB1 User manual
Haier
Haier HAMTSJ54MB1F User manual
Haier
Haier JZY/T-QHA736 Guide
Haier
Haier HAMTSJP86MC/1 User manual
Haier
Haier HAMTP64MC User manual
Haier
Haier HC-XG230NE Guide
Haier
Haier JZT/Y-QB230 Guide
