Haier HW-18CH2N User manual

HW-18CH3CNA

HW-18CT3CNA

USER MANUAL

P/No. HA 0500025

Please read this operation manual

before using the air conditioner.

Please keep it attentively.

WINDOW TYPE ROOM AIR CONDITIONER

HW-18CH2N

HW-18CH3N

HW-18CH2CNA

HW-18CT3N

Dear Friend,

At the outset, we at Haier thank you for your interest in our range of products. A

unique and international range of appliances designed solely with the purpose of

making modern life simpler. But how! The entire Haier range of appliances,

ranging from refrigerators, televisions, washing machines, airconditioners,

microwave ovens, dishwashers and wine-coolers, combines the best of

technology, features, performance and styling. All, a result of our perfect

understanding of your lifestyle and your needs.

But what is a great product without great service? Leaving no stone unturned in

giving you the best of service, we have also established an extensive network of

authorised dealers and authorised service centres, so that you get a lifetime of

great and timely service for your Haier appliance.

It has been an honour and a pleasure bringing these hi-tech products to you and

we hope that you get as much happiness using them as we have got, creating

them for you.

Happy Inspired Living!

Thanking you,

......................................................................................................................4

Parts Names

Parts & Functions ..............................................................................................................5

Operation Guide .............................................................................................................6-9

....................................................................................................................10

Usage Musts

.............................................................................................................. 11-12

Maintenance

..........................................................................................................................13

Cautions

.............................................................................................................14

Trouble Shooting

....................................................................................................15

Installation Instructions

.............................................................................................................16

Installation Guide

Contents

Machine body

Operation Panel

Remote Controller

Parts Names

Front panel

Air inlet (indoor side)

Air outlet (indoor side)

Air inlet (outdoor side)

Operation panel

Cabinet

POWER

SLEEP

TIMER

COOL

DRY

FAN

SWING

ENERGY

SAVER

SPEED

TEMP.

MODE

POWER

SLEEP

TIMER

COOL

DRY

FAN

SWING

ENERGY

SAVER

SPEED

TEMP

MODE

TEMP

T.ON T.OFF

MIN

LCD

Parts and Functions

TEMP

T.ON T.OFF

MIN

LCD

1. Down(-)

2. Up(+)

3. Power

4. Fan Speed

5. Turbo

6. Mode

7. Swing

8. Hr/Min

9. Sleep

10. Timer On

11. Timer Off

12. Set

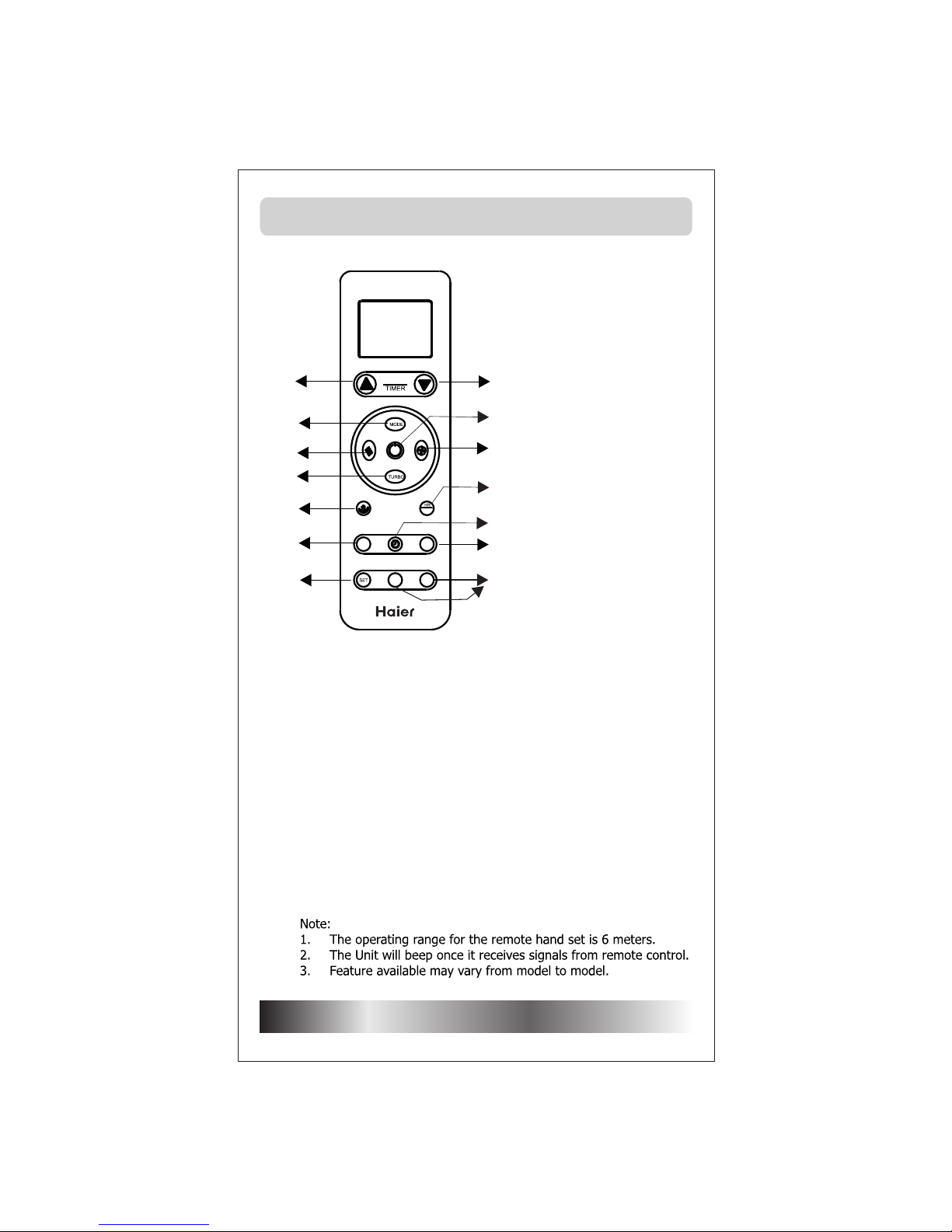

13. Clock Button

Operation Guide

POWER

Press the ON/OFF key on the Control Panel or Remote Control to turn the unit

On/Off. The A/C starts with the previous setting.

MODE

The unit can be operated in any one of the following modes :

1) Cool : The temperature setting is adjustable between 16°C and 30°C.

The temperature setting can be changed using Up and Down keys

on your remote control or control panel.

2) Dry : This mode removes excess humidity from the room. The Fan

speed is automatically set to Low speed to allow condensation of

moisture.

3) Fan : Compressor will be OFF in this mode and only Fan will operate.

Fan speed can be changed by using “Fan”key on the remote control.

FAN SPEED

Pressing the Fan key will change Fan speed with the sequence below

·Low-Medium-High-Auto

·Auto Speed is only activated in Cool Mode

SWEEP / SWING

Press the SWEEP / SWING key on remote control or Control Panel to activate

automatic swing of the vertical louvers. The louvers will oscillate left and right

automatically. Pressing the sweep key again will stop the louver swing.

SLEEP

This feature ensures your sound sleep at night. Pressing this key changes set

temperature automatically by 1°C per hour for 2 hours..

Pressing this key will activate preset setting for the A/C which will operate the unit on

Energy Efficient setting. “ES”will be displayed on the Control panel. This function is

active only in cool mode. (THIS FEATURES IS AVAILABLE IN SELECTED MODEL)

TEMP.& UP/DOWN KEY

Press Temp. key to set the desired temp. in Room and UP/Down Key used to

increase and decrease temp.

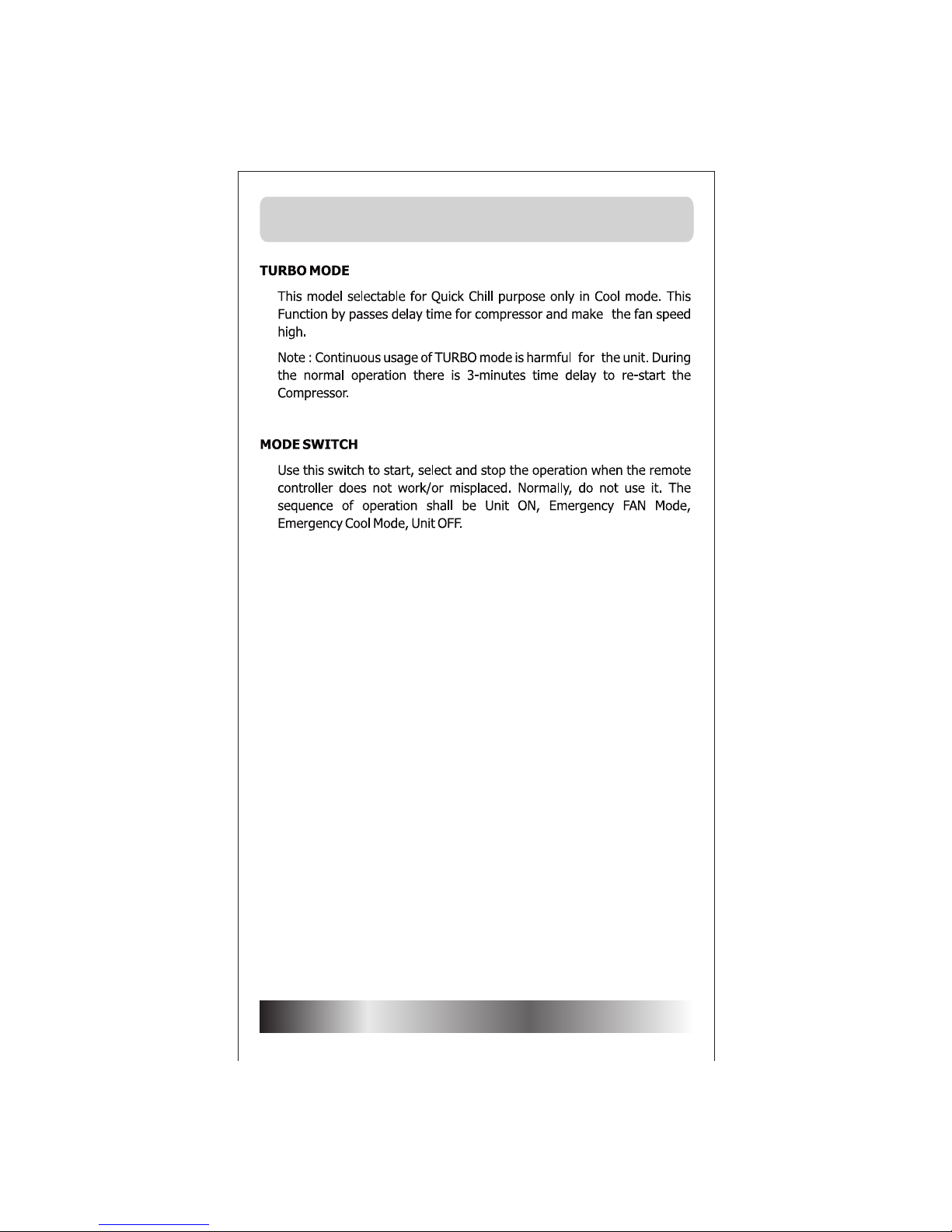

Operation Guide

(THIS FEATURES IS AVAILABLE IN SELECTED MODEL)

Operation Guide

Usage musts

Suitable indoor temperature. Cleaning of the air filter.

Close the doors and windows during

running. Use the timer reasonably.

Do remember the following:

No obstructions allowed at the air inlet

Do not use it in other fields:storage of

foods,feeding animals,plantings,etc.

Do not spray water on the machine. and outlet.

Do not pull the power line with hands.

This manual suits for next models
