Haier HW-07LN03 User manual

HW-09LN03

HW-12LN03

HW-07LN03

No.0010515219

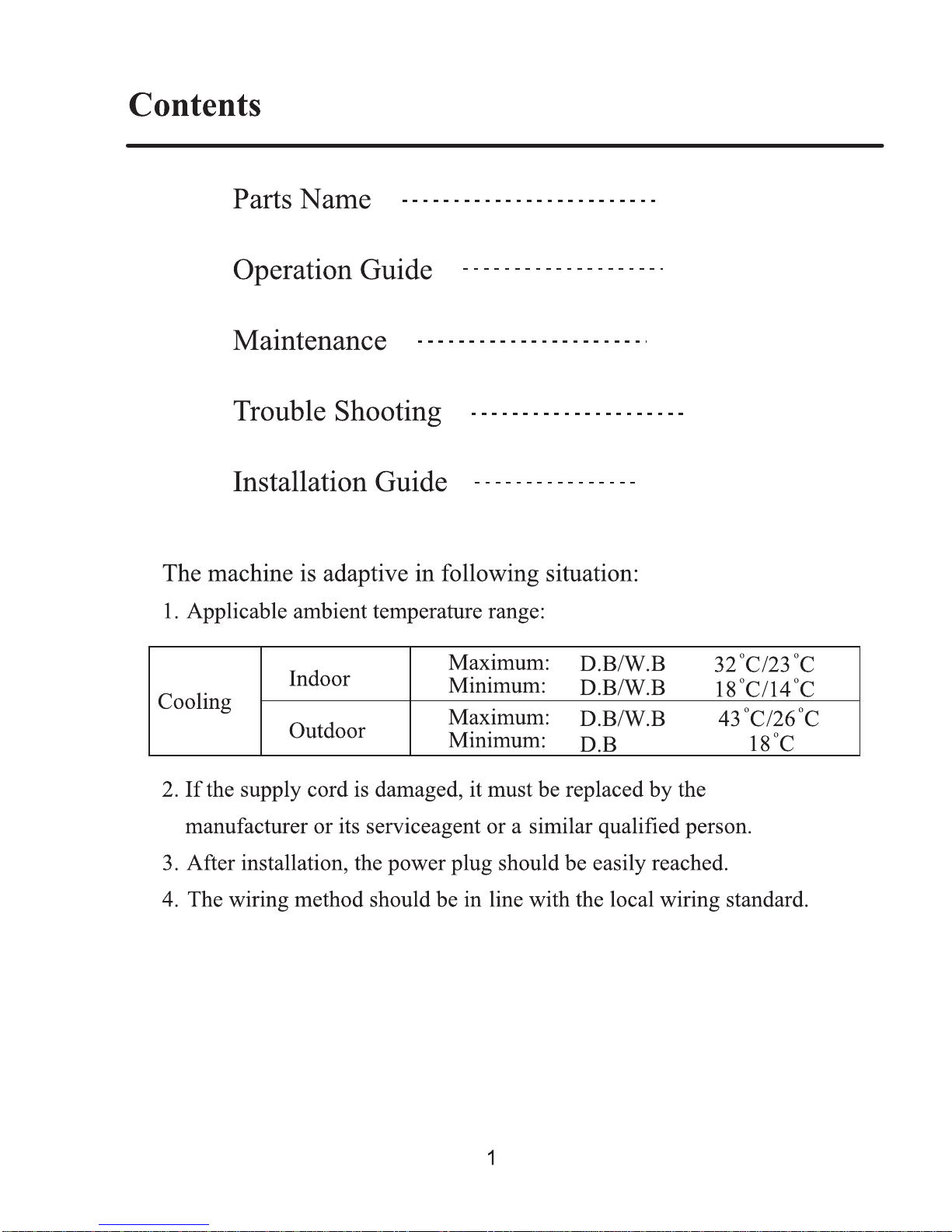

2-9

POWER

MODE

SWING

ENERGY SAVER

FAN,COOL,DEHUM.

:HIGH or LOW.

FANSPEED

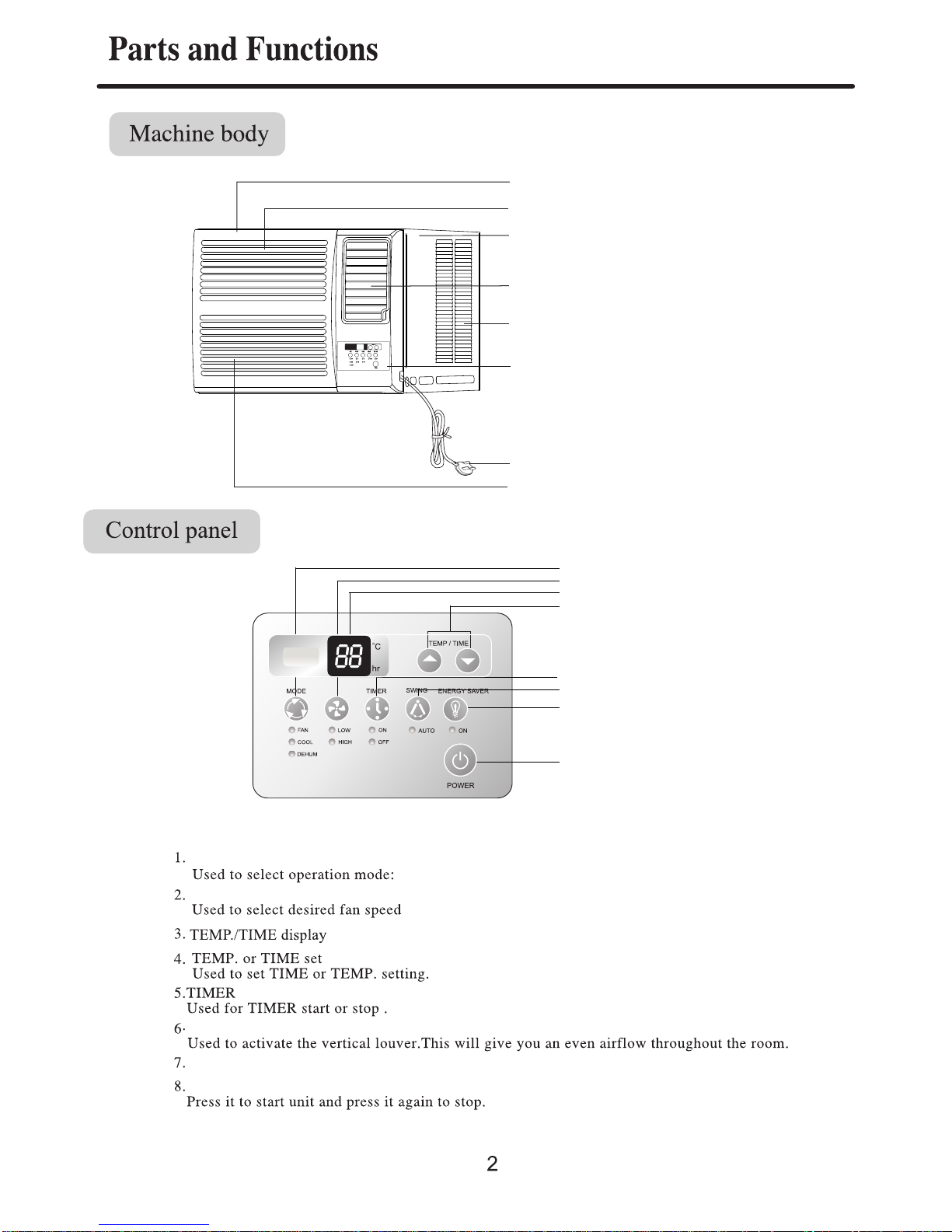

Front panel

Air inlet (indoor side)

Air outlet (indoor side)

Air inlet (outdoor side)

Display

panel

Air filter (inside)

Machine body

Power plug

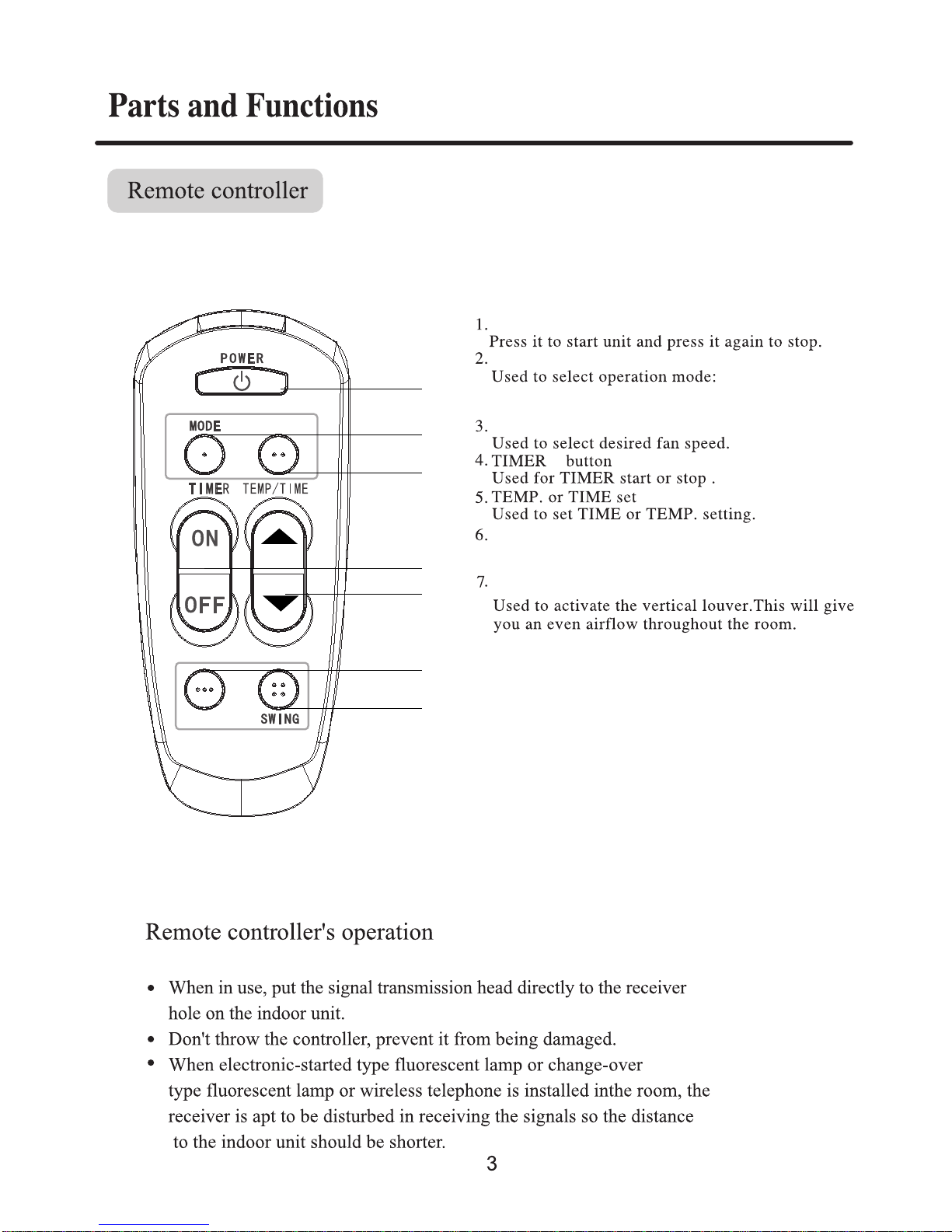

MODE

FAN SPEED

E-S

SWING

POWER

FAN,COOL,DEHNM.

FANSPEED

ENERGY SAVER

E-S

POWER

FAN SPEED

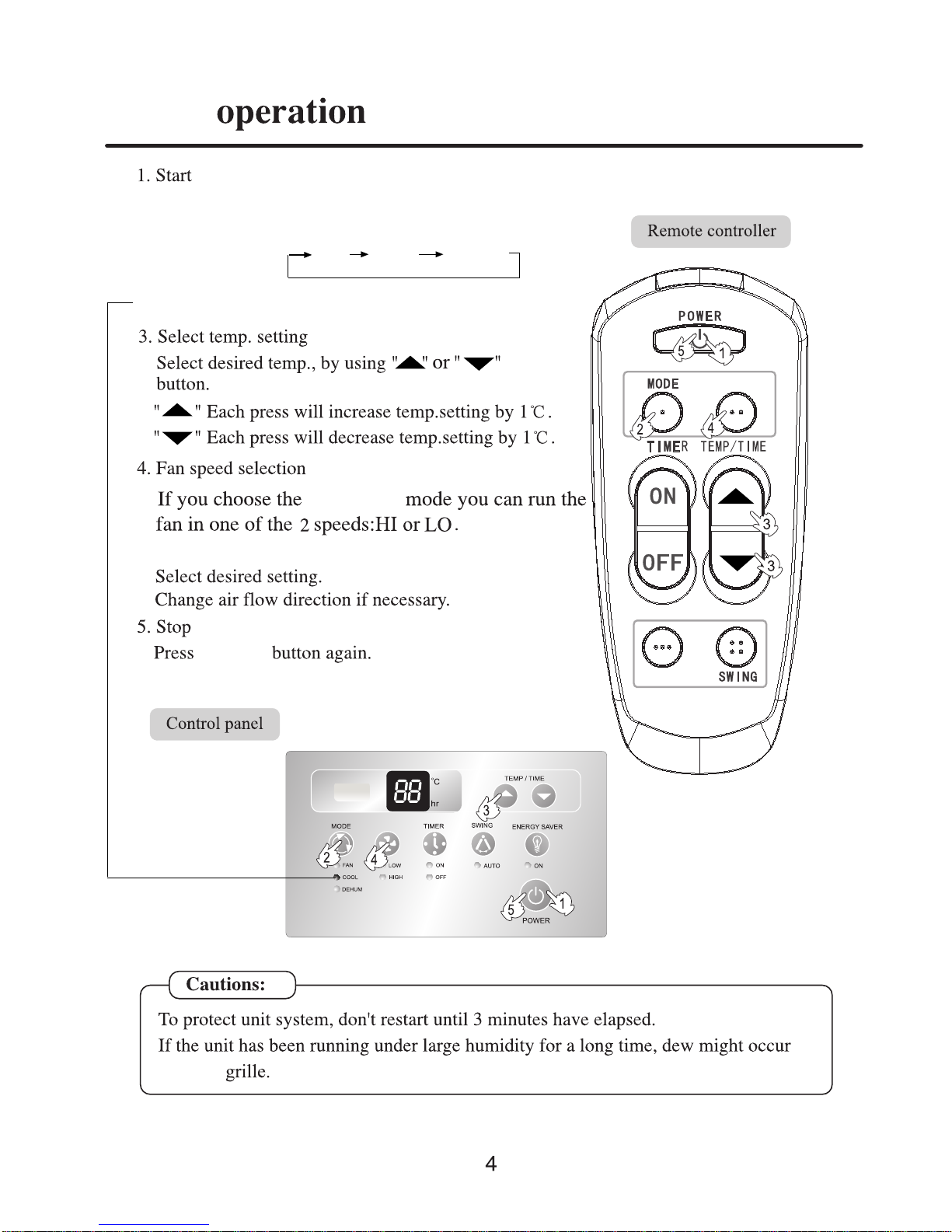

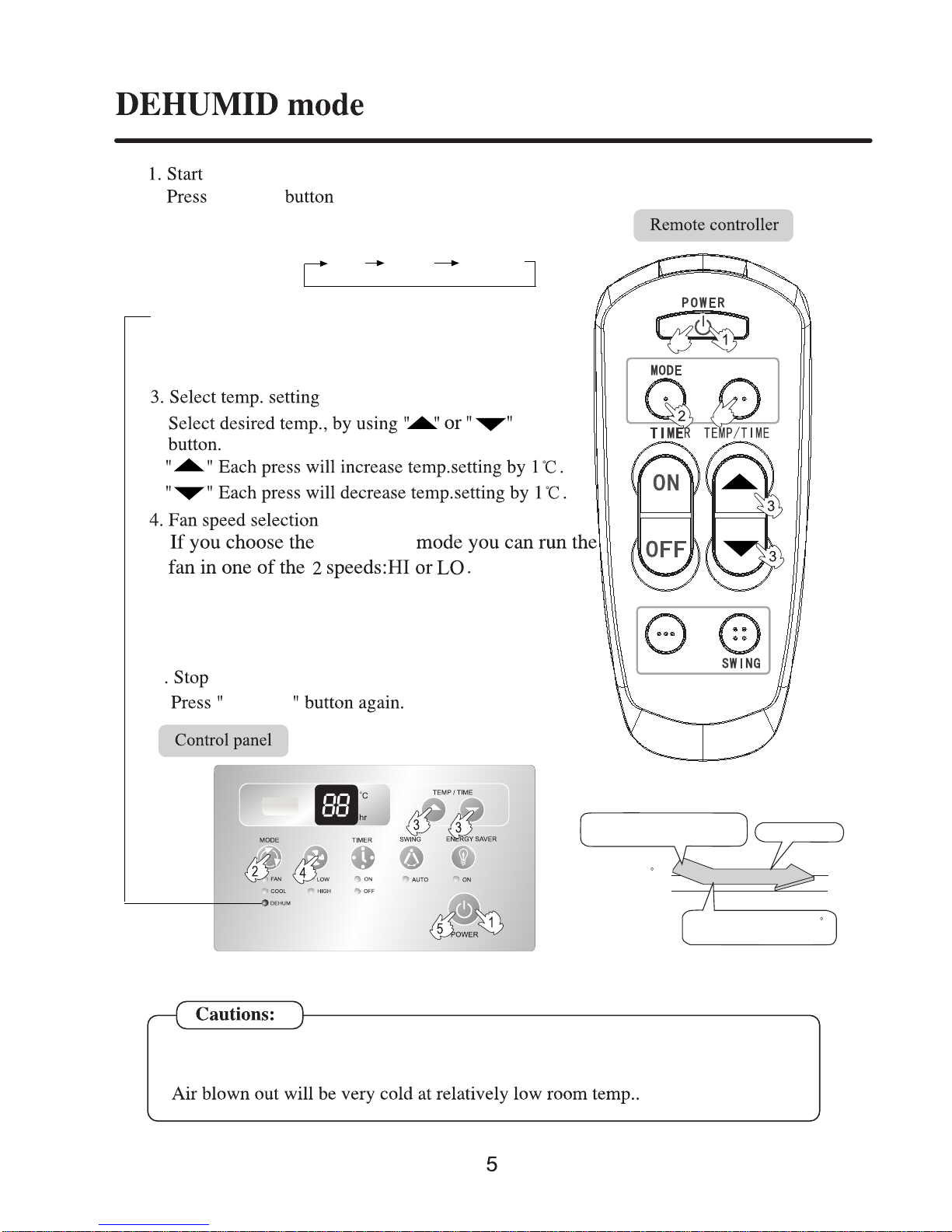

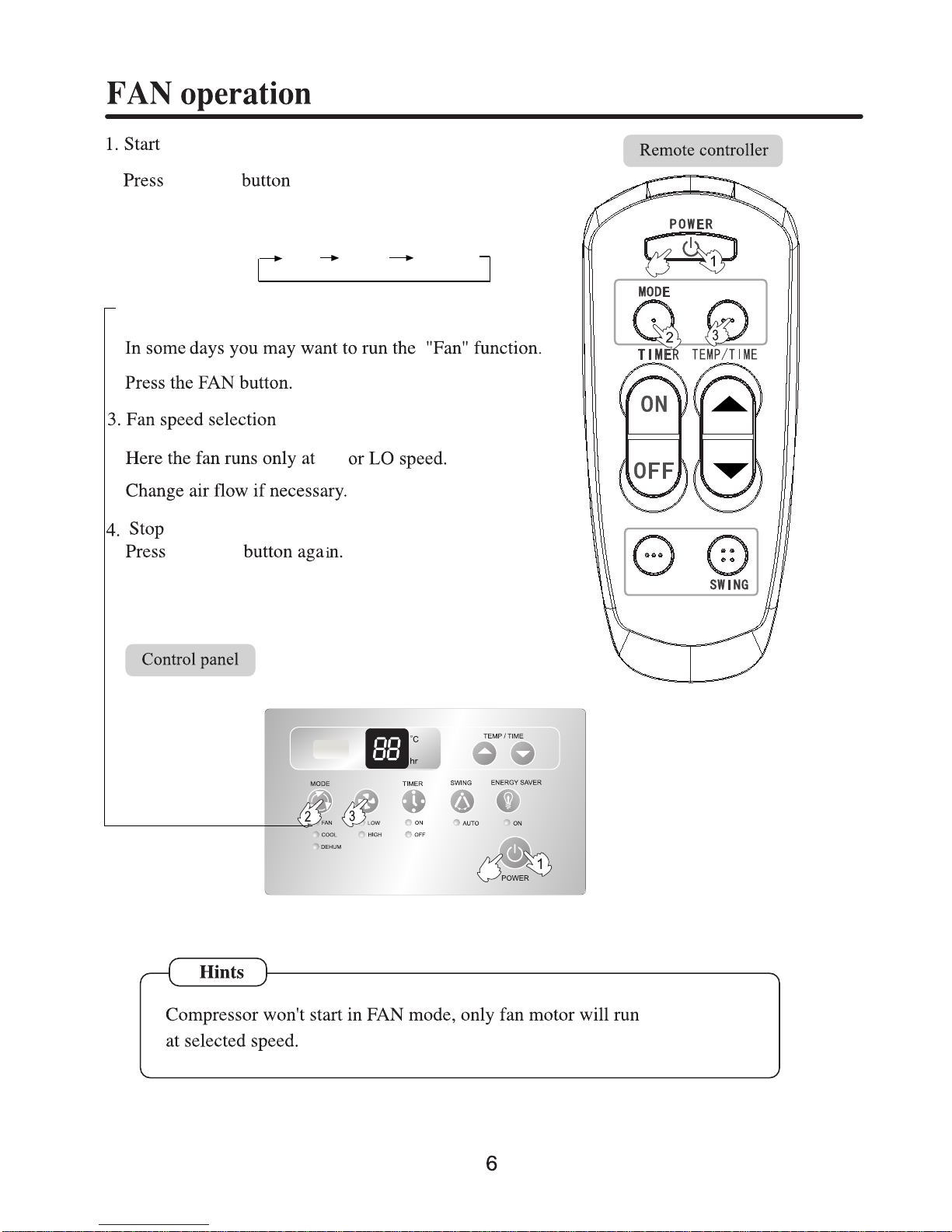

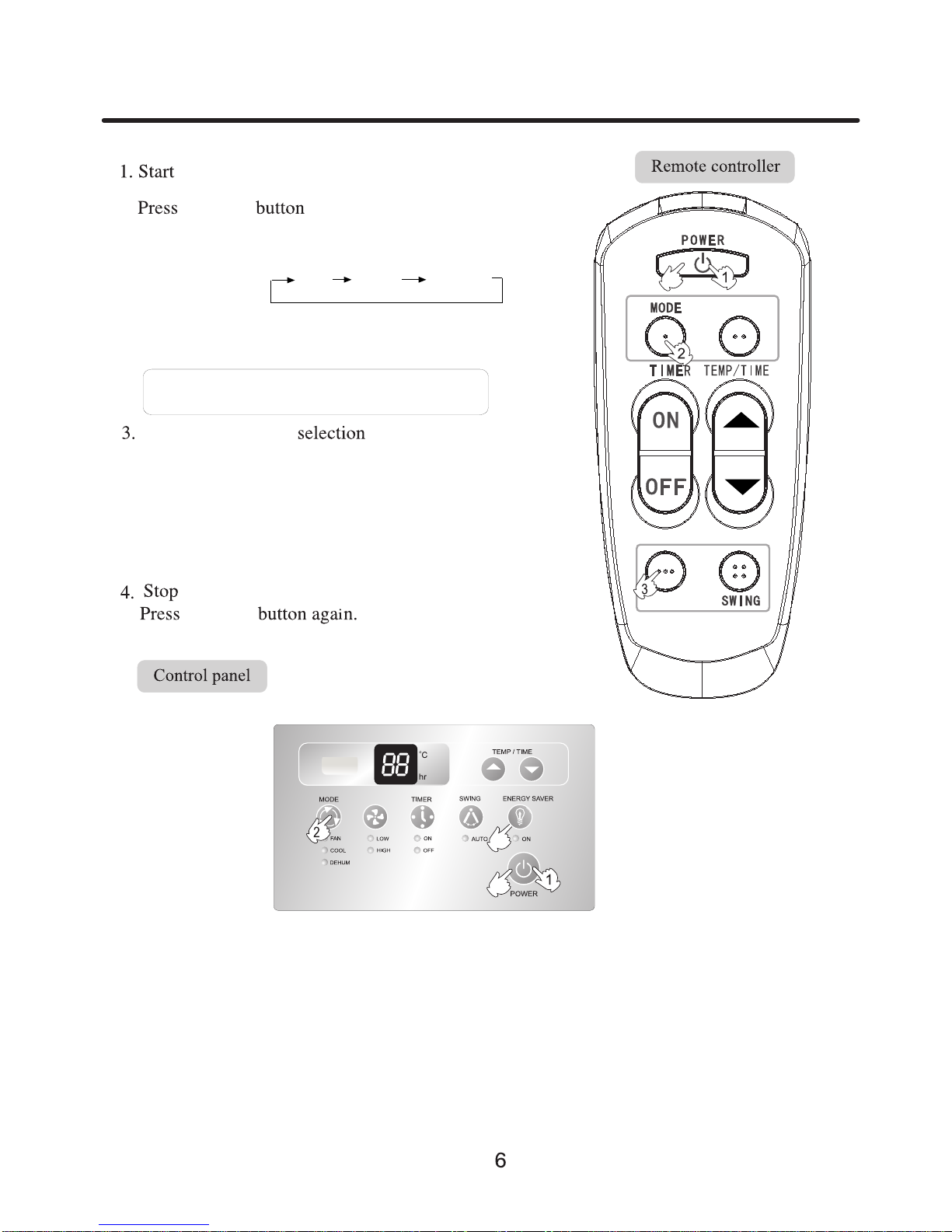

Press MODE button. For each press, operation mode

changes as follows: FAN COOL DEHUM

Press POWER button

2. Select operation mode

FANSPEED

When the COOL display light bright, A/C will

be working under the cooling function.

COOL

at outlet

E-S

FANSPEED

Air conditioner is running under displayed fan speed.

In DRY mode, when room temperature becomes

lower than temp.setting+2oC,unit will run intermittently

at LOW speed regardless of FAN setting.

COOL operation starts when room

temp.is higher than temp.setting.

On reaching temp.setting +2 C

unit will run in mild DRY mode.

Ultra-low air flow

Temp.setting+2 C

Temp.setting

POWER

Press MODE button. For each press, operation mode

changes as follows: FAN COOL DEHUM

2. Select operation mode

If you need to only remove the moisture

press the Dehnmid button.

Change air flow direction if necessary,

FAN SPEED

When the DEHUM display light bright,A/C will

be working under the dehumidify function.

FANSPEED

The compressor may cycle for 10 minutes on and 6 minuters off in

Dehumid mode.

E-S

FANSPEED

POWER

Press MODE button. For each press, operation mode

changes as follows: FAN COOL DEHUM

2. Select operation mode

When the FAN display light bright,A/C will

be working under the fan function. FANSPEED

E-S

FANSPEED

POWER

Press MODE button. For each press, operation mode

changes as follows: FAN COOL DEHUM

2. Select operation mode

Then select COOL operation

When the FAN display light bright,A/C will

be working under the fan function.

Saving energy function only can be used

when A/C working on cooling condition.

FANSPEED

When this feature is "On" , the fan will

shut off three minutes after the compressor

cycles off. This will reduce energy consumption

and noise. When the compressor turns back on,

the fan will turn on at the same time. In the "Off"

position, the fan will not shut off when the compressor

cycles off.

ENERGY SAVER operation

ENERGY SAVER

E-S

FANSPEED

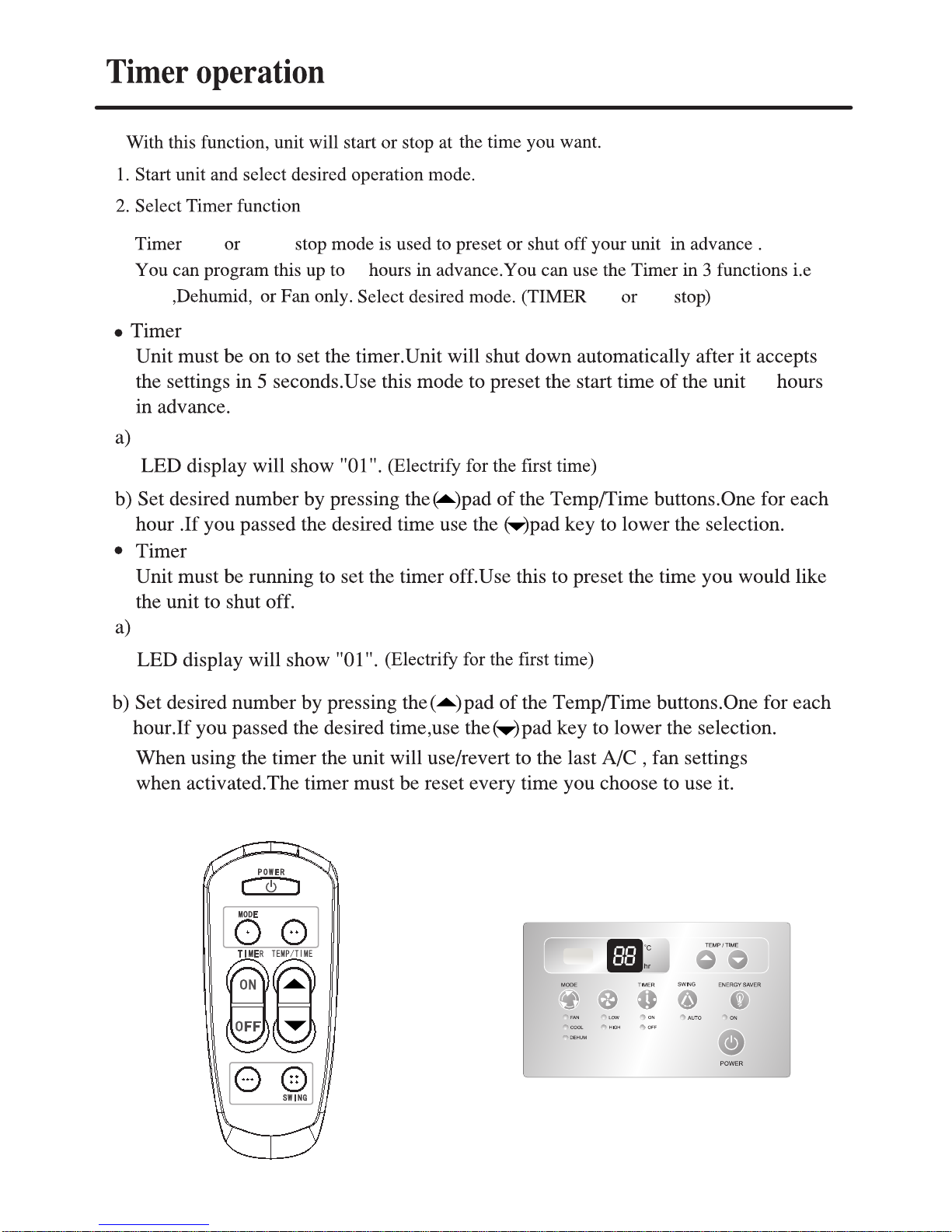

On Off

cool

Press "On"of remote controller or "TIMER" of control panel,

Off

Press "Off"of remote controller or "TIMER"of control panel,

E-S

FANSPEED

Power failure resume(please set and apply as necessary)

If sudden power failure occurs, the unit will resume original operation when power is supplied again.

Note:

When sudden power failure happens during unit operation in power failure resume mode, if the air

conditioner is not desired for use in a long period, please shut off the power supply in case that the

unit automatically resume operation when power is re-supplied, or press POWER to turn off the unit

when power resumes.

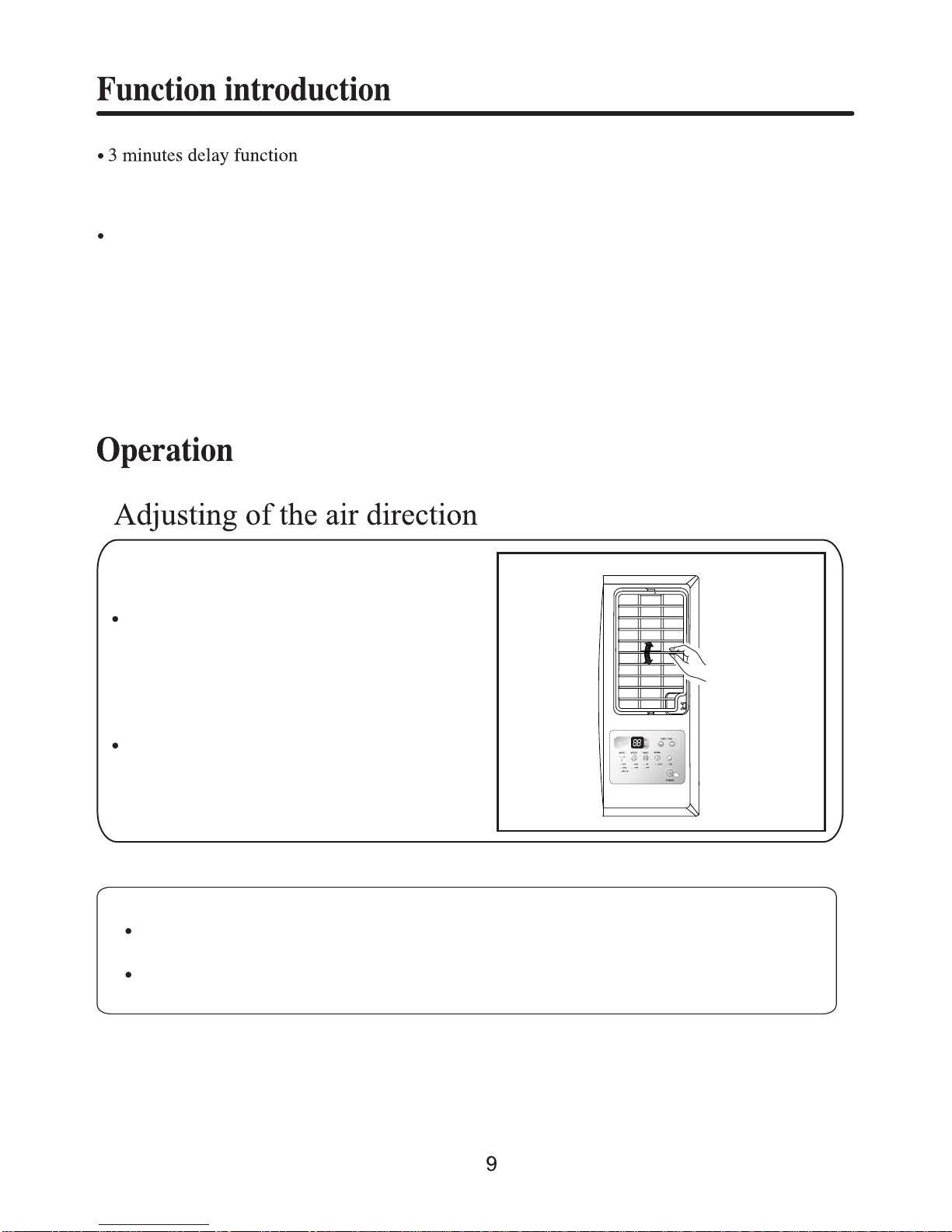

The horizontal air direction is adjusted

by setting the AUTO SWING ON .

Airflow Direction Vane

The Vertical Airflow Direction Vane is

manually controlled by positioning the

vane todischarge the air upward,

downward or straight out.

Note:

It is advisable not to keep vertical flap at downward position for a long time

in COOL or FAN mode, otherwise , condensate water might occur.

Don't move the horizontal flap with hand in order to avoid the vertical flap

abnormal, using the remote controller to adjust the move of vertical flap.

Vertical airflow direction

The compressor must stands by for 3 minutes before it is restareed after shut

down,There is no 3-minute protection with power on for the first time.
