Haier HSU-10HA03 User manual

SPLIT AIR CONDITIONER

OPERATION

MANUAL

AS102AMARA

AU102ACARA

(HSU-10HA03(DB))

AS102ALARA

AU102ACARA

(HSU-10H03(DB))

AS122AYARA

AU122ACARA

(HSU-12HA03(DB))

AS122AVARA

AU122ACARA

(HSU-12H03(DB))

Digital DC Variable Frequency

Healthy Split Air Conditioner

No.0010540438

Please read this manual carefully before use.

Please keep this manual carefully and safely.

Contents

Cautions........................................................................................................1-2

Name of Parts...............................................................................................3-4

Operation Hints............................................................................................5-6

Operation.....................................................................................................7-13

Notes for Safety.........................................................................................14-15

Maintenance............................................................................................. 16-18

Trouble Shooting.......................................................................................19-21

Installation.................................................................................................22-30

Installation Check and Trial Operation...........................................................31

Disposal of the old air conditioner

Before disposing an old air conditioner that

goes out of use. please make sure it's

inoperative and safe. Unplug the air

conditioner in order to avoid the risk of child

entrapment.

It must be noticed that air conditioner system

contains refrigerants, which require

specialized waste disposal. The valuable

materials contained in a air conditioner can

be recycled. Contact your local waste

disposal center for proper disposal of an old

air conditioner and contact your local

authority or your dealer if you have any

question. Please ensure that the pipework of

your air conditioner does not get damaged

prior to being picked up by the relevant

waste disposal center, and contribute to

environmental awareness by insisting on an

appropriate, anti-pollution method of

disposal.

Disposal of the packaging of your

new air conditioner

All the packaging materials employed in the

package of your new conditioner may be

disposed without any danger to the

environment.

The cardboard box may be broken or cut into

smaller pieces and given to a waste paper

diposal service. The wrapping bag made of

polyethylene and the polyethylene foam

pads contain no fluorochloric hydrocarbon.

All these valuable materials may be taken to

a waste collecting center and used again

after adequate recycling.

Consult your local authorities for the name

and address of the waste materials

collecting centers and waste paper diposal

services nearest to your house.

Safety Instructions and Warnings

Before starting the air conditioner,read the

information given in the User's Guide

carefully. The user's Guide contains very

important observations relating to the

assembly, operation and maintenance of

the air conditioner.

The manufacturer does not accept

responsibility for any damages that may

airse due to non-observation of the

following instruction.

Damaged air conditioners are not to be

put into operation.In case of doubt,consult

your supplier.

Use of the air conditioner is to be carried

out in strict compliance with the relavtive

instructions set forth in the User's Guide.

Installation shall be done by professional

people,don't install unit by yourself.

Caut

ons

For the purpose of safety, the air

conditioner must be properly grounded in

accordance with specifications.

Specifications

The refrigerating circuit is leak-proof.

Always remember to unplug air

conditioner before opening inlet grill. Never

unplug your air conditioner by pulling on the

power cord.Always grip plug firmly and pull

straight out from the outlet.

All electrical repairs must be carried out

by qualified electricians. Inadequate repairs

may result in a major source of danger for

the user of the air conditioner.

Do not damage any parts of the air

conditioner that carry refrigerant by piercing

or perforating the air conditioner's tubes with

sharp or pointed items, crushing or twisting

any tubes, or scraping the coatings off the

surfaces. If the refrigerant spurts out and

gets into eyes, it may result in serious eye

injuries.

Do not obstruct or cover the ventilation

grille of the air conditioner.Do not put fingers

or any other things into the inlet/outlet and

swing louver.

Do not allow children to play with the air

conditioner. In no case should children be

allowed to sit on the outdoor unit.

The machine is adaptive in following situation

1.Applicable ambient temperature range:

2.If the supply cord is damaged, it must be replaced

by the manufacturer or its service agent or a similar

qualified person. The type of connecting wire is

H05RN-F or H07RN-F:3G1.5mm +1X0.75mm ..

3.If the fuse on PC board is broken please change it

with the type of T.3.15A/250V. If the fuse of outdoor

uit is broken please change it with the type

of T.25A.AC250V.

4.The distance between the indoor unit and the floor

should be more than 2m.

5.The wiring method should be in line with the local

wiring standard.

6.After installation ,the power plug should be easily

reached.

7.The waste battery should be disposed properly.

8.The appliance is not intended for use by young

children or infirm persons without supervision.

9.Young children should be supervised to ensure

that they do not play with the appliance.

10. The requirement of power supply cord.

Cooling

Heating

Indoor

Outdoor

32 /23

Maximum: D.B/W.B

24 /18

18 /14

Minimum: D.B/W.B

-7 /-8

Minimum: D.B

Maximum: D.B

Minimum: D.B

Maximum: D.B

Caut

ons

Series

European

region

10 12

H05VV-F

3G 1.5mm2

H05VV-F

3G 1.5mm2

Installat

on Check and Tr

al Operat

Please operate the air conditioner in accordance with this Operation Manual

Check items for the Trial Operation(Tick in )

Is the connector leaked?

How is the connector insulated?

Is the electric connection between the indoor and outdoor units firmly inserted into the

terminal plate?

Are the electric wires on the indoor and outdoor units fixed firmly?

Is the drain pipe placed correctly?

Is the earth line connected firmly?

Does the power supply voltage conform to the electric regulations?

Is there any noise?

Is the cooling operation normal?

Is the indoor temperature adjuster working normally?

Power Supply:

L should be connected with the live wire;

N should be connected with the zero wire;

should be connected with the earth wire.

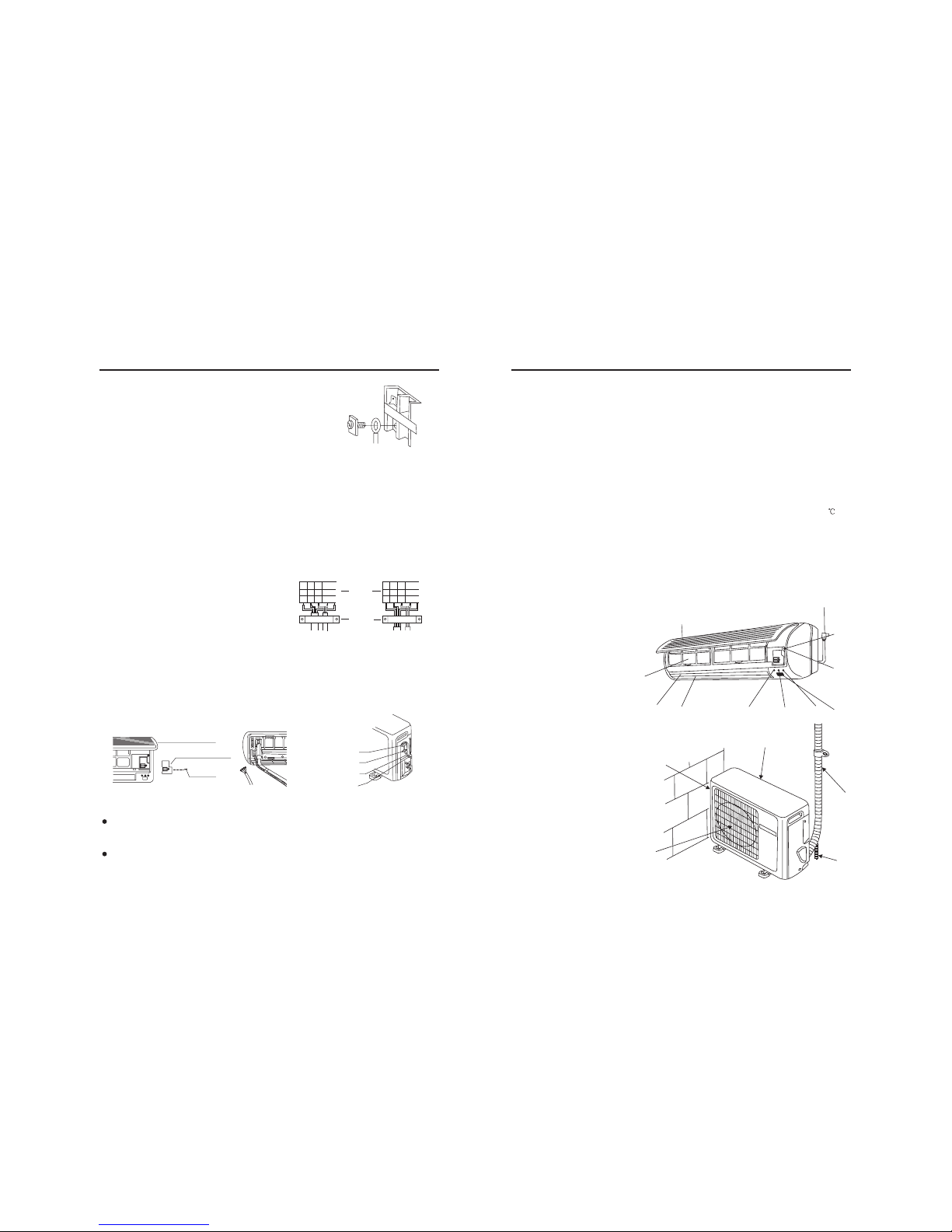

Wiring for Indoor and Outdoor Units

1. Wiring Method for Ring Terminal

The wiring method is as the drawing below for the ring terminal:

Remove the connection screw and put the screw through the ring on

the connection wire terminal, then connect it to the terminal blocks,

then screw it tightly.

2.Wiring Method for Line Terminal

The wiring method is as follows for the non-ring terminal:

Loosen the connection screw and insert the connection wire end into the

terminal block completely, screw it tightly, then slightly pull out the

connection wire to ensure it be clamped tightly.

3. Method for Pressing the Connection Wire

After wiring, the connection wire must be pressed tightly with a wire-

pressing clip, which should press the outer sleeves of the wire as the

right drawing:

Wiring for Indoor Unit and Outdoor Unit

Lay out the connection wires as the connection drawing (Notes: The two ends of the connection

wires are different, never connect reversely)

1) Open the wire cover, unscrew the pressing clamp(outdoor unit).

2) Connect the connection wires as per the wiring method and the wiring drawing (the wires on

the indoor unit shall be inserted from behind as the attached drawing).

3) Ensure that the terminals are clamped tightly, and press the connection wires(outdoor unit) as

per the pressing method, then install the wire-pressing cover.

Notes:

When connecting the wires of indoor and outdoor units, check the numbers on the terminals

of the indoor and outdoor units,the same wire shall connect the same number and color

terminal

Wrong connection would damage the air conditioner,s controller,or the unit cannot work.

Air Inlet Grille

Pressing Cover

Screw

Terminals

Pressing Clamp

Power Supply Wire

Indoor and Outdoor

Connec ion Wirest

Correct Pressing Wrong Pressing

Terminal

block

Pressing

Clamps

Wiring Method for

Ring Terminal Block

Installat

on Name of Parts

Indoor Unit:

Outdoor Unit:

1. Inlet Grill

2. Anion Generator (inside)

3. Air Filter

4. Swing louver

It can be adjusted to upward or downward with the remote controller only (Do not adjust it manually)

5. Power or Healthy Operation Indicator

After the air conditioner is started, this indicator lights up; when the healthy operation is started,this

indicator turns green.

6. Timer Set Indicator

When the air conditioner is at the state of time-set, this indicator lights up.

7. Test

This button is only used for test refrigerating operation when the room temperature is below 16 , so it

should not be used in normal situation.

8. Emergency Manual Button

When the remote controller is lost or cannot be used, this button can make the air conditioner continue

to operate for the time being.

9. Remote Signal Receiving Window

It receives the remote signal from the remote controller.

10. Working Method Indicator

When the compressor is working, the indicator lights up .

11. Power Plug

Manual Button

1. Inlet

2. Outlet

Send out hot air when cooling,

and send out cold air when heating .

3. Inlet

4. Connection pipe and electric wiring.

5. Drain Hose

Name of Parts

Introduction to Display and Function:

1. Mode

Mode selected is displayed

2. Air Volume

Indicating the air speed, when automatic is set, the air speed changes according to the temperature

difference between the indoor temperature and set temperature.

3. Healthy Operation

Indicating healthy operation

4. Timing Mode Display

Indicating time set mode:

Normal for non-time-set;

Timed off for timed turning off;

Timed on for timed turning on;

5. Indicating the Time set

Indicating the time set on and off

6. Mode Selection

Selecting the modes below:

cooling, dehumidifying, and heating

7. Timer

Used to select TIMER ON, TIMER OFF

8. Time Set

To set the time on and off

9. Signal Sending Head

To send signal into the signal receiver on the indoor unit

10. Signal Display

It blinks when the signal is being sent

11. Temperature Display

To display the temperature set

12. Temperature Set

To set the desired room temperature

13. On/Off Button

To turn on and turn off the air conditioner

14. Air Volume

To select the desired air speed

15. Air flow Direction

To adjust the air flow direction

16. Healthy Button

To set the healthy operation

17. Power Button

To set super or soft operation

18. Indication for Power Operation

19. Reset

When the remote controller appears abnormal,

use a sharp pointed item to press this button to

reset the remote controller to normal condition.

Notes: After replacing the batteries in the remote controller, press on/off button, the mode is resumed

as below:

Mode: Refrigerating; Temperature:26

Timer: Normal; Fan Speed: Automatic

Remote Controller:

AUTO

ON OFF

ion

FAN

HEALTH

POWER

TIMER

TEMP

ON/OFF

MODE

RESET

SWING

Two-way Valve

9.52mm(3/8")

12.7mm(1/2")

Liquid Side

6.35mm(1/4")

Gas Side

Mouth Nut

Three-way Valve

Open

Piping Connection for Outdoor Unit

Connect the Piping and Inlet and Outlet Liquid Tubes

Gas Drainage Method:

Drain the air in the indoor unit and the pipes as per the drawing:

(1) Remove the valve cap on the two-way valve of the indoor unit with a spanner.

(2) Unscrew by 1/2 cycle the nut on the mouth of the thick pipe connected with the three-way valve

with a spanner.

(3) Unscrew the spool of the two-way valve by 90 with an inner hexagon spanner, and after about 10

seconds,close the two-way valve,then air will be drained out from the mouth of the thick pipe. When

the air is drained out, screw tightly the nut on the mouth according to there quired torque.

(4) Open the two-way valve and three-way valve with an inner hexagon spanner.

(5) Check the leakage with soap liquid or a leakage checker.

(6) Screw tightly the two valve caps according to the required torque.

Notes: When the pipe is extended, the air in the connection pipe shall be drained out with the

refrigerant(R22) from outside the system, then the excess refrigerant shall be drained out as per the air

drainage method.

Check the Layout of the Drain Pipe and Connection Wires

The drain pipe should be placed underneath, and the connection

wires should be plac upside; and the drain pipe especially the

section inside the machine and indoors must be wound up with

insulating material to preserve heat

The drain pipe shall be sloped and no concave and convex shall

occur along the whole pipe. And the cases as the right drawing

indicates shall not occur.

Specif.

Valve Spool

Valve Cap

Pipe Length

Refrigerant filled

none

32g

10m

80g

15m

160g

7-9

20-25

Torque Tight screw N. M

Required Torque

When the connection pipe is more than 5 cm, it shall be filled with refrigerant as per the following

form:

Correct Up-bent End in the Water Ripple Bad Smell in the Pool

Prohibited Prohibited Prohibited Prohibited

Installat

Installation of Outdoor Unit

4.Piping Connection for Indoor Unit:

Insert the auxiliary hoses(liquid hose and gas hose)and the unit connection wires through the wall

hole from outdoor side,and connect the pipes and wires as per the method of piping connection, or

insert the auxiliary hoses(liquid hose and gas hose) and the connection wires as a whole through

the wall hole from indoor side for connecting the outdoor unit after connection of the auxiliary

hoses and unit connection wires.

5.Install and Fix:

Hang the indoor wall unit on the fastener of the mounting plate,

and move the unit left and right to check the firmness.

Hold the two sides of the unit with two hands to press the unit

to the mounting plate until a sound kacha is heard.

1.Install and Fix:

Fix the outdoor support on the wall with M10 expansion screws, then screw tightly the outdoor

unit on the support with M10 bolts and nuts, and leveled. If it is installed on wall or roof, the stand

shall be firmly fixed to resist the earthquake or strong wind. A vibration reduction rubber ring

shall be used.

105 500 105

267

Drain Elbow Drain Hose

Piping Protective Cover

Installat

2.Install the Drain Elbow

The elbow is only used for the thermal pump type air conditioner.And the cold air type air

conditioner does not need it.The elbow shall be installed as per the drawing.The drain elbow is not

used in a very cold weather(the air temperature is below 0 for long).

Air Conditioner Operation:

3 Minutes Protection:

Air Speed Change:

Air Direction Adjustment

Healthy Operation

When the ambient humidity is too high,

the anion effect would be reduced, so during

the cooling and dehumidifying, water

would drop from the outlet mouth

When the air conditioner is turned on immediately

after being turned off, the compressor will not start

until 3 minutes later to protect the machine.

At the state of cooling, when air is set to automatic ,

the air speed would decrease automatically when the room

temperature is close to the set temperature. In heating

mode, when the room temperature is the set temperature,

compressor will stop and fan will be low speed or stop;

In dehumidifying mode, air speed will change automatically.

At the state of cooling or dehumidifying,

it would be better not to let the outlet guide plate

be downward for long, otherwise the outlet mouth

would be dew.

Only when the air conditioner is at the state of operation

(normal state), can the healthy operation be started.

When the button Health is pressed, the healthy operation

will be indicated.

ion

Healthy Operation

Indication

Healthy Button

Operat

on H

nts

Cold Air Prevention

Defrost

Notes

When heating is started, the fan in the indoor unit will

not be started immediately to prevent cold air being blew

out.

During the heating, when the heat exchanger in the

outdoor unit is frosted, the air conditioner will defrost

automatically for a few minutes. During the defrost, the

fan in the outdoor unit does not run until the defrost is

completed.

When heating, the air conditioner takes a lot of heat

from outdoor and release the heat into the room , therefore

the outdoor temperature will affect the heating effect.

Adjust the air flow direction

Set a proper room temperature

Too cold and too hot are not only harmful for

health but also will consume too much electricity.

Notes: After installation, please confirm that the refrigerant is not leaked.

Use of Timer

Time set can make your room in a comfortable

temperature when you wake up or come back.

Avoid the direct sunlight and hot air flow

Instructions Operation

Wait a moment

Best

temperature

Operat

on H

nts

Installation of Indoor Unit

The indoor unit shall be installed as per the indoor unit

installation drawing:

1.Fix the Mounting Plate and Localize the Wall-through Hole

Fix the mounting plate as per the selected position and the piping layout (see the installation

drawing).

Fix the mounting plate on a smooth wall surface under the beam or beside a column. First fix the

mounting plate with a steel nail,then level it with a level meter or a drop line, then fix it with A4

50 cement nails.If the expansion screws are used,first drill holes into the wall( 4.8mm), then

put the plastic sleeve into the holes,then fix the mounting plate with 4 25 screws. Measure the

position the wall hole with a measuring tape.

2.Drill a Hole through the Wall and Install the Piping Protective Sleeve

Drill a hole 60mm through the wall with the outer side slightly downward,then install the

piping sleeve,then seal it with gypsum powder.

Installation of the Connection Pipe Clips(Left or Left-Back Connection):

Insert the pipe clip into the fixing position of the pipe with the upper part inserted first.

Press the bottom of the clip until a sound Ka Ta is heard.

3.Piping Layout for Indoor Unit

Lay out the connection pipe,drain pipe, and the connection wires according to the installation

position of the indoor and outdoor units. During the layout, the drain pipe shall be placed

underneath,and the connection wires shall be placed on the top; the drain pipe(especially indoor

or inside the unit)shall be wound up with the insulating material.

Pipe Clamp

Electrical Connection

between Indoor and

Outdoor Units

Drain Pipe

Insulating Material Pipe

Pipe Clamp

Left Connection

Tape

Low Connect oni

Right Connection

(Section plan of wall hole)

Thickness of wall

Wall hole

60mm

Inter side Outer side

Hanging Wire

Holes for Fixing

Dropping Weight

Wire

A145mm

A=185mm 60mm

Find out the Level Position

Drop Wire Here

Mounting Plate

Installat

Localize the Installation:

Install the indoor unit where the weight of the unit can be supported.

Install the indoor unit where the head source and steam source are not close and the unit inlet and

outlet are not blocked.

Install the indoor unit where the drainage is easy and the outdoor unit can easily connected.

Install the indoor unit where its cold air and hot air can be easily sent to all the corners of the room.

Install the indoor unit where the power socket is near and there is sufficient space around the indoor

unit.

Install the indoor unit where there is no T.V set, radio set, and wireless appliance underneath, and the

sunlight lamp is over one meter away.

If the remote controller is installed on the wall, the indoor unit shall be ensured to receive the signal

while the sunlight lamp is on.

The location shall bear the weight of the unit and will not produce a big vibration and noise.

The location shall be in good ventilation,and the airflow blew out and noise produced shall not affect

the neighbors.

The location shall not be directly drenched in rain,sun,or blew by sea wind.

The location shall not be near anywhere the corrosive gas(SO ),flammable gas(thinner or gasoline),oil

mist,or steam are probably produced(for example in kitchen).

Sufficient space shall be left for air inlet and outlet.

The location shall be easily maintained and repaired.

It cannot be installed on a non-professional metal structure(like anti-burglary net).

Indoor Unit

Outdoor Unit

Method for Cutting and Expanding Pipes:

Piping Connection

When the pipe is too long or its mouth is damaged,the pipe needs to cut or expand.

1. Connecting Method

To ensure the efficiency,the pipe should be as short as

possible.

Apply refrigerant oil at half union and flare nut.

To bend a pipe,five the roundness as large as possible

not to crash the pipe.

When connecting pipe,hold the pipe center to center

then screw nut on by hand,refer to the Drawing.

Be careful not to let foreign matters,such as sands enter

the pipe.

Liquid hose

Gas hose

Expansion Size

Hose dia.

6.35 mm(1/4")

9.52 mm(3/8")

12.7 mm(1/2")

Size(mm)

0.8-1.5

1.0-1.8

1.2-2.0

Pipe dia. Recommended

Fastening Torque

18 N.m

42 N.m

50 N.m

Liquid pipe 6.35mm(1/4")

Gas Pipe 9.52mm(3/8")

Gas Pipe 12.7mm(1/2")

Correct

Not Correct

Tilting burr incomplete too long

cracks on

expanded

mouth

Spanner

Refrigeration Oil

Connector Nut

Hose Expander

1.Cutting hose

3.Put on nut

2.Removing burr

4.Expand Hose

Installat

Remote Controller,s Operation

Loading of Batteries

Remove Battery Cover:

When in use, point the signal sending head directly to the receiver window on the indoor unit.

The distance between the signal sending head and the receiver window should be within 7 m

without any obstacle as well.

Don't throw the controller, prevent it from being damaged.

When electronic-started type fluorescent lamp or change-over type fluorescent lamp or

wireless telephone is installed in the room, the receiver is apt to be disturbed in receiving the

signals so the distance to the indoor unit should be shorter.

Load the batteries as illustrated in the drawing below:

Slightly press and push down the cover. Then , as the drawing, hold the upper end of

the remote controller with left hand, and slightly hold the cover with right hand, push slightly in

the arrow direction to remove the battery cover .

Be sure that the loading is in line with the + / - as illustrated.

Put back the cover in the reverse procedure.

If there is no display after pressing the on/off button, reload the batteries.

Notes: Use two same-typed batteries when loading.

If the remote controller cannot run normally or doesn't work at all, use a sharp pointed

item to press the reset button (with the mark ).

Load Batteries:

Put back Cover:

Confirmation Indicator:

Operat

Small Hints:

Remove the batteries in case the unit won't be in use for a long period.

The remote controller will be self-checked after loading the new batteries by displaying

all the symbols and resume working very soon.

Operat

Health Operation

1. After turning on the air conditioner, set to the desired mode:

2. Set Healthy Operation:

3. Cancel Healthy Operation:

Notes:

Brief Introduction to Health Operation

The remote controller displays the mode selected, the power

light on the indoor unit lights up.

Press the Health button once is displayed and

the power or healthy operation indicator turns from orange

color to green.

Now the air conditioner is operating the healthy function,

meanwhile the anion generator in the indoor unit begins to

release anion to clean the air and eliminate dust.

Press the button Health again to stop the health

display, then the healthy operation stops.

When the fan in the indoor unit does not work, the health

lamp lights up, but the anion generator does not release

anion.

The anion generator in the air conditioner can generate a lot of

anion to effectively balance the quantity of posion and anion in

the air and also to kill bacteria and speed up the dust sediment

in the room and finally clean the air in the room.

POWER

ion

FAN

HEALTH

TIMER

TEMP

ON/OFF

MODE

RESET

SWING

ion

1. Installation Localization 2. Indo r Unit Mounting Plate Localization 3. Drill through Wallo

4. Connect Indoor Unit 5. Install Indo r Unit 6. Install Outdoor Unito

7. Connect Outdoo Unit 8. Drain Out 9. Check Drainager

10. Check Installation 11. Trial Operation 12. Wind up Pipes

The step 4 and step 5 above can be adjusted according to the practical situation.

This procedure is a reference to the installation person and customer, it can be adjusted according

to the practical situation.

Installat

This manual suits for next models

Table of contents

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual
