Haier HSU-09CW03 User manual

AS182ATNDA

AU182AFNBA

(HSU-18CW03/R1)

AS162ATNCA

AU162AFNAA

(HSU-16CW03/R1)

AS072AZBDA

AU072ABBAA

(HSU-07HW03/R1)

AS072AZNDA

AU072ABNAA

(HSU-07CW03/R1)

Contents

Cautions

Parts and functions

Operation

Maintenance

Trouble shooting

1-2

3-6

7-14

15-17

Cautions

Disposal of the old air conditioner

Before disposing an old air conditioner

that goes out of use, please make sure

it's inoperative and safe. Unplug the air

conditioner in order to avoid the risk of

child entrapment.

It must be noticed that air conditioner

system contains refrigerants, which

require specialized waste disposal. The

valuable materials contained in a air

conditioner can be recycled. Contact your

local waste disposal center for proper

disposal of an old air conditioner and

contact your local authority or your dealer

if you have any question. Please ensure

that the pipework of your air conditioner

does not get damaged prior to being

picked up by the relevant waste disposal

center, and contribute to environmental

awareness by insisting on an appropriate,

antipollution method of disposal.

Disposal of the packaging of your

new air conditioner

All the packaging materials employed in

the package of your new air conditioner

may be disposed without any danger to

the environment.

The cardboard box may be broken or

cut into smaller pieces and given to a

waste paper disposal service. The

wrapping bag made of polyethylene and

the polyethylene foam pads contain no

fluorochloric hydrocarbon.

All these valuable materials may be taken

to a waste collecting center and used

again after adequate recycling.

Consult your local authorities for the name

and address of the waste materials

collecting centers and waste paper

disposal services nearest to your house.

Safety Instructions and Warnings

Before starting the air conditioner, read

the information given in the User's Guide

carefully. The User's Guide contains very

important observations relating to the

assembly, operation and maintenance of

the air conditioner.

The manufacturer does not accept

responsibility for any damages that may

arise due to non-observation of the

following instruction.

Damaged air conditioners are not to be

put into operation. In case of doubt, consult

your supplier.

Use of the air conditioner is to be carried

out in strict compliance with the relative

instructions set forth in the User's Guide.

Installation shall be done by professional

people, don't install unit by yourself.

For the purpose of safety, the air

conditioner must be properly grounded in

accordance with specifications.

Cautions

Always remember to unplug the air

conditioner before opening inlet grill.

Never unplug your air conditioner by

pulling on the power cord. Always grip

plug firmly and pull straight out from the

outlet.

All electrical repairs must be carried

out by qualified electricians. Inadequate

repairs may result in a major source of

danger for the user of the air conditioner.

Do not damage any parts of the air

conditioner that carry refrigerant by

piercing or perforating the air

conditioner's tubes with sharp or pointed

items, crushing or twistings off the

surfaces. If the refrigerant spurts out and

gets into eyes, it may result in serious

eye injuries.

Do not obstruct or cover the ventilation

grille of the air conditioner. Do not put

fingers or any other things into the

inlet/outlet and swing louver.

Do not allow children to play with the

air conditioner. In no case should children

be allowed to sit on the outdoor unit.

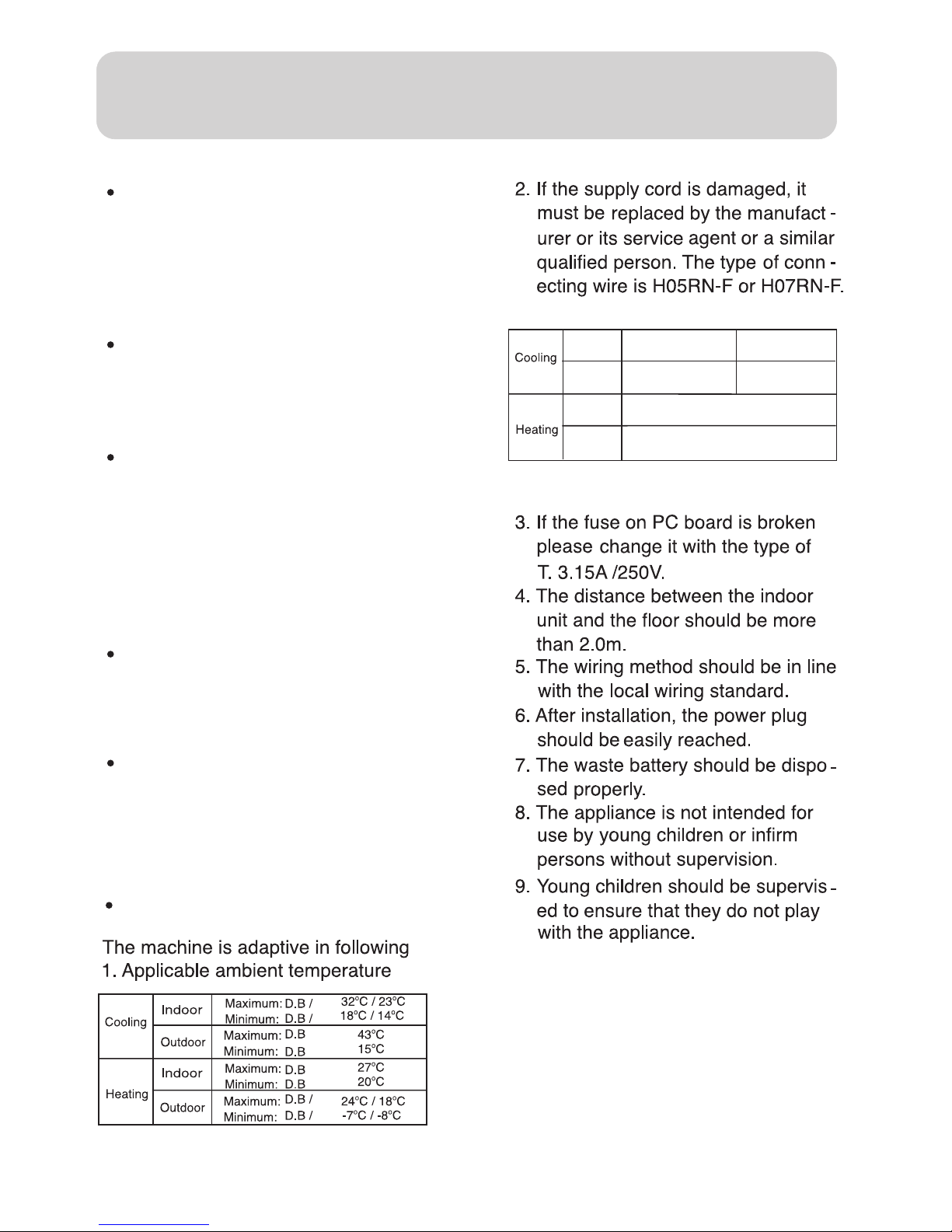

Specifications

The refrigerating circuit is leak-proof.

10. The wiring diagram is attached in-

side the machine.

11. The appliance must be installed on

strong enough supporter.

Series

type

Series

type

3G1.5MM

16,18

3G2.0MM

3G1.5MM +2G0.75MM

2 2

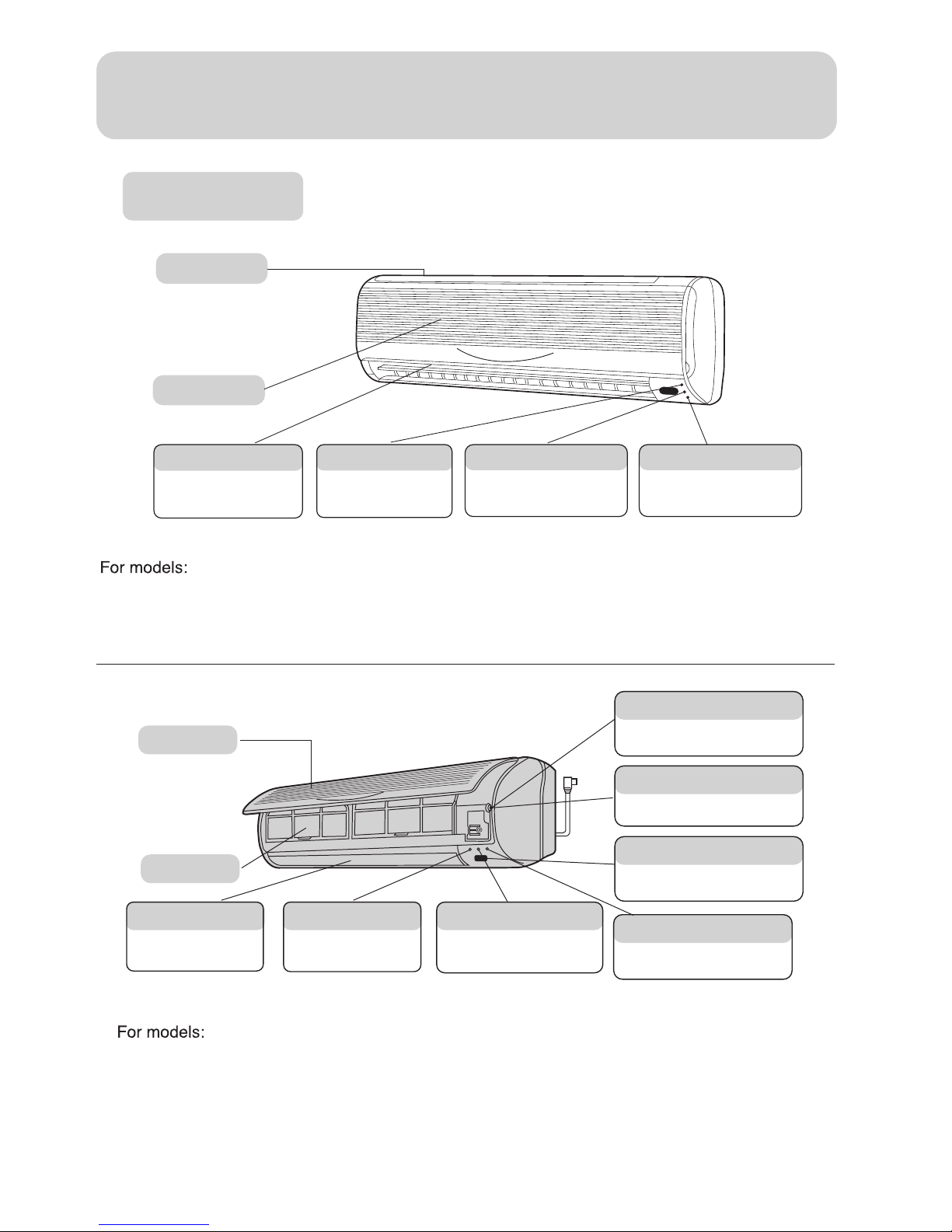

Parts and Functions

Indoor Unit

AS182ATNDA

AU182AFNBA

(HSU-18CW03/R1)

AS162ATNCA

AU162AFNAA

(HSU-16CW03/R1)

AS072AZBDA

AU072ABBAA

(HSU-07HW03/R1)

AS072AZNDA

AU072ABNAA

(HSU-07CW03/R1)

Power

Operation mode indicator

Lights up when Timer

operation is selected. Lights up during compressor

running.

Inlet grill

Air filter

Vertical flap

Use remote controller to 

adjust up and down air flow.

(Don't adjust it manually.)

Lights up when unit starts.

Timer mode indicator

Test running

Emergency

Operation mode

Use remote controller to 

adjust up and down air

flow.

Power

Lights up when Timer

operation

Remote signal

A beeping sound is generated when 

a signal from remote controller is 

received.

Inlet grill

Air filter

Vertical flap

Lights up when unit starts.

Timer mode indicator

Used only for test running in cooling 

when room temp. is below 16 .

Don't use it in normal operation.

Used when remote controller is lost or

defective. Unit will run temporarily.

Lights up during compressor 

running.

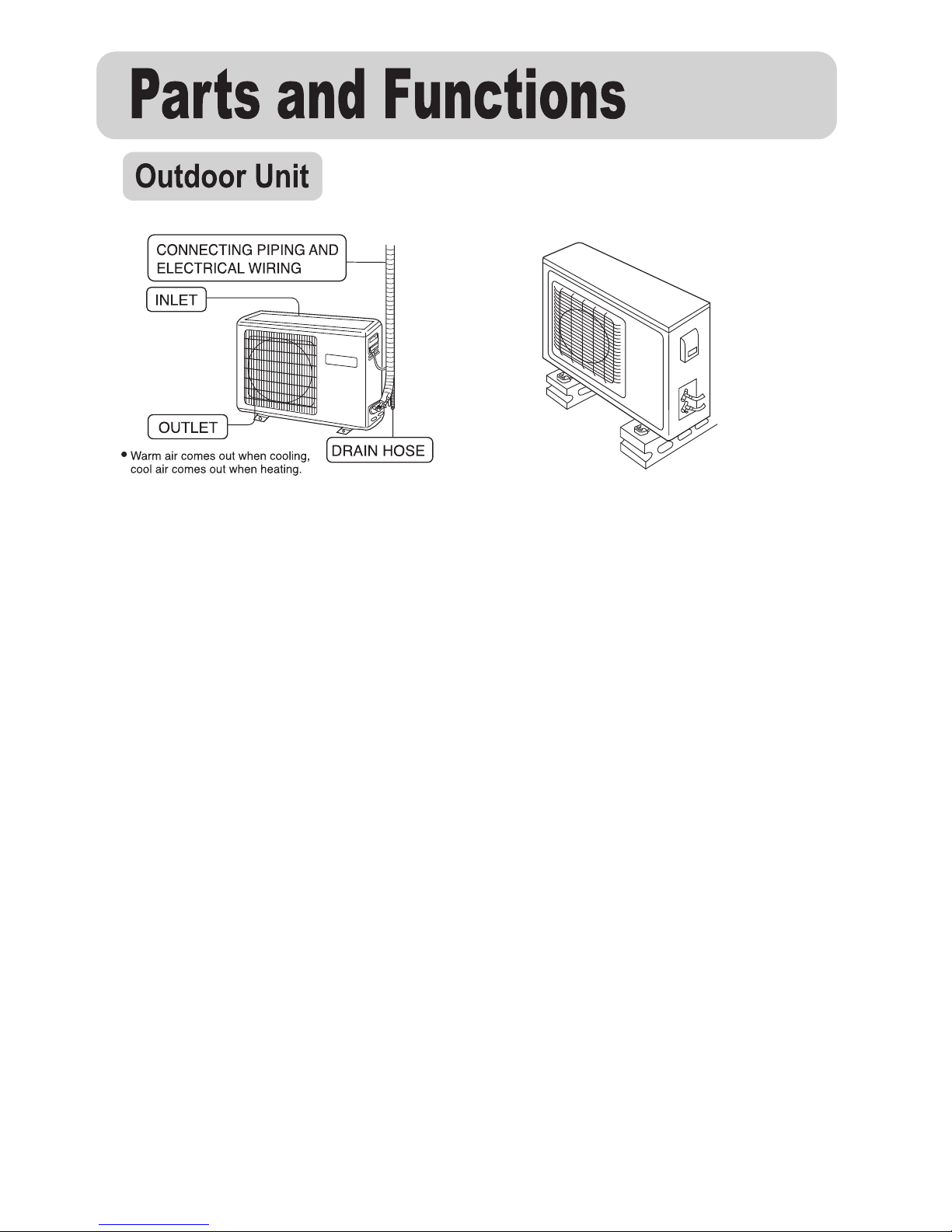

AU182AFNBA

(HSU-18CW03/R1) AU162AFNAA

(HSU-16CW03/R1)

AU072ABBAA

(HSU-07HW03/R1) AU072ABNAA

(HSU-07CW03/R1)

For models: For models:

Power Failure Resume (to be applied for a necessary situation):

Setting Method: When the remote controller is on (excluding timer mode and fan mode),

press the " SLEEP " button on the remote controller 10 times within 5

seconds, and after the buzzer rings 4 times, the air conditioner will enter

the state of power failure resume.

Cancel Method: Press the " SLEEP " button on the remote controller 10 times within 5

seconds, and after the buzzer rings 2 timer, the power failure compensation

mode will be cancelled.

Notes: When a power failure suddenly occurs during the air conditioner is working after

the power failure resume is set, if the air conditioner will not be used for a long time, please

cut off the power supply to prevent its operation from being resumed after the power is

supplied again, or press the " " button after the power comes again.

After the power failure compensation is set, if power failure suddenly occurs while the air

conditioner is working, it will resume the previous working state when the power is

again.

ON/OFF

ON OFF

TEMP

SWING

MODE

CLOCK

SLEEP

SET

LOCK RESET

TIMER

FAN

OFF

AUTO

PM AM

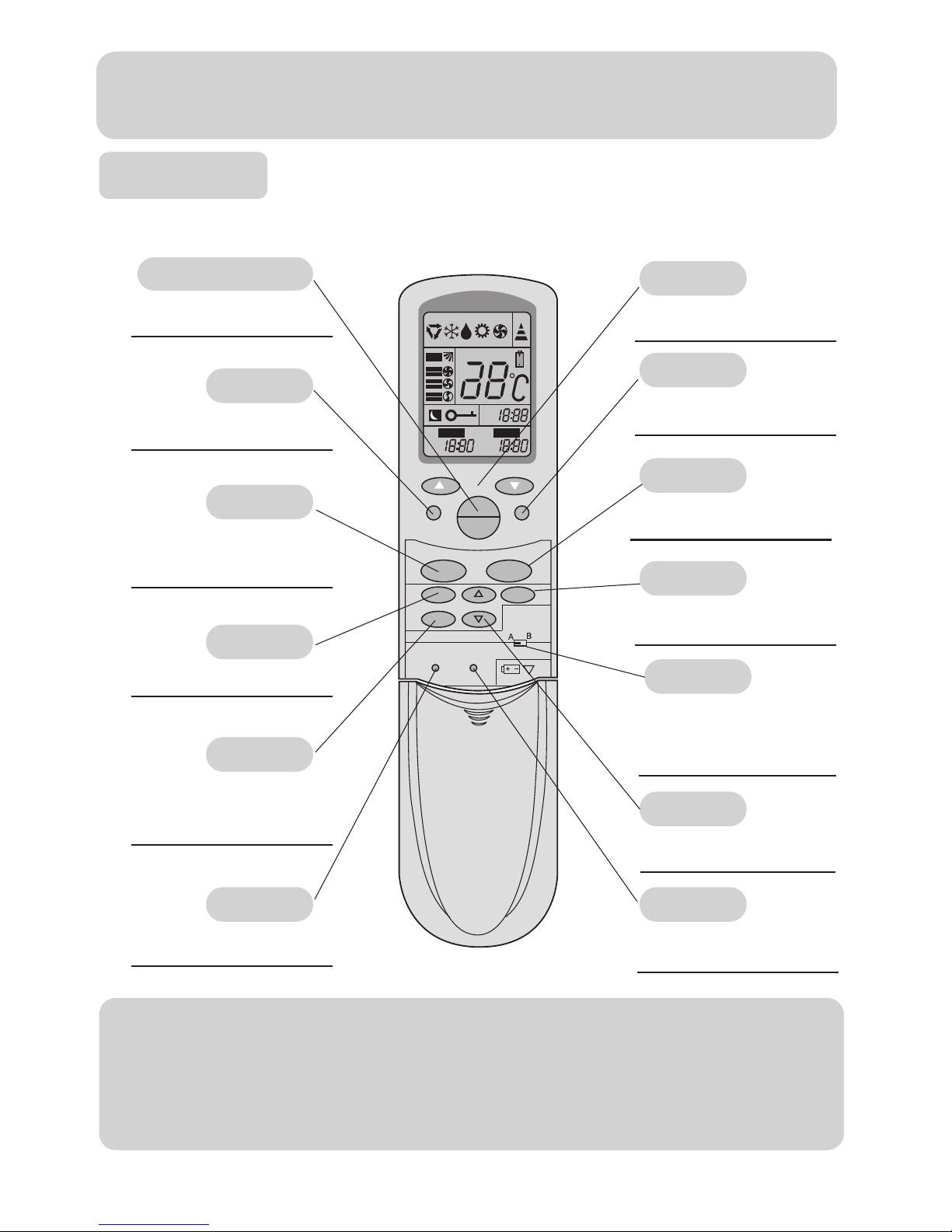

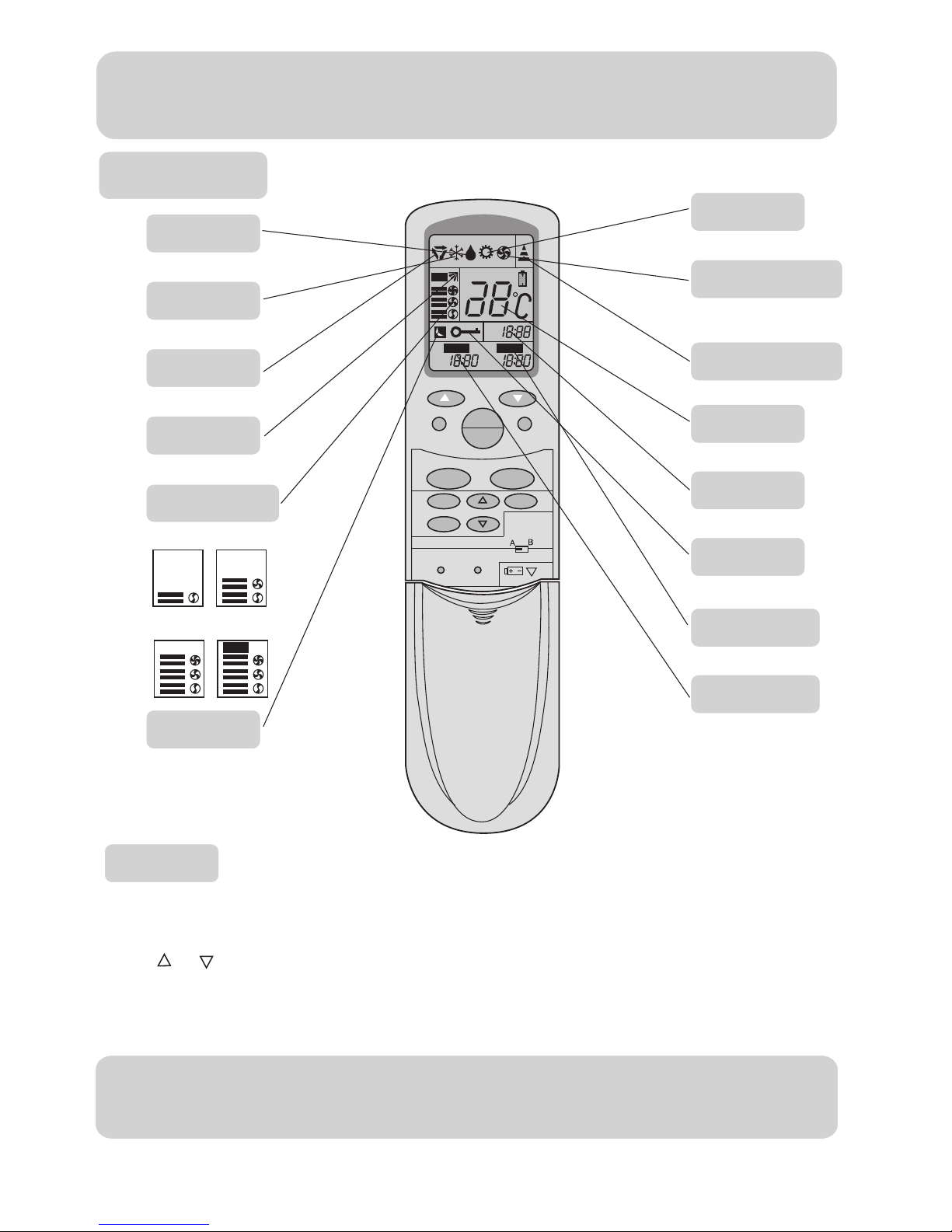

Parts and Functions

Buttons and display of the remote

Power TEMP.

Used to set auto

fan

Used to set correctUsed to set correct time

Used to select 

TIMER ON, TIMER

OFF,

Used to lock

buttons

Used to set clock

and

Used to select fan

speed:

Used to select

your

Operation

Used for unit start and

stop.

SWING

MODE

Used to select AUTO run,

COOL,DRY,HEAT and

FAN operation.

CLOCK

TIMER

LOCK RESET

Used to reset the controller

back to normal condition.

HOUR

SET

Used to confirm Timer

and Clock settings.

SLEEP

Used to select sleep 

mode.

Cautions:

On cooling only unit, heating mode is not available.

After replacing batteries, press ON/OFF, and display 

becomes as follows:

Operation mode: AUTO, Temp. :No

Timer mode: No, Fan speed: AUTO

Note:

The above information is the 

explanation of the displayed 

information, therefore varies 

with those displayed in actual 

operation.

CODE

Used to select code A or

B ,A or B will be displayed

on LCD. Please select A

without special explanation.

ON OFF

TEMP

SWING

MODE

CLOCK

SLEEP

SET

LOCK RESET

TIMER

FAN

OFF

AUTO

PM AM

Parts and Functions

Buttons and display of the remote

Operation

Hints

AUT

FAN

Clock

TEMP

FAN

HEA

When unit is started for the first time and after replacing batteries in remote controller,

clock should be adjusted as follows:

Press CLOCK button, "AM" or "PM" flashes.

Press or to set correct time. Each press will increase or decrease 1min. If the 

button is kept depressed, time will change quickly.

After time setting is confirmed, press SET, "AM " and "PM" stop flashing, while clock

starts working.

COOL

SWING

MED

SLEEP

TIMER ON

TIMER OFF

LOCK

CLOCK

SIGNAL SENDING

After replacing with new batteries, remote controller will conduct self-check, displaying

all information on LCD. Then, it will become normal.

Unit will run in selected mode.

Stop display at " " AUTO or " " FAN.

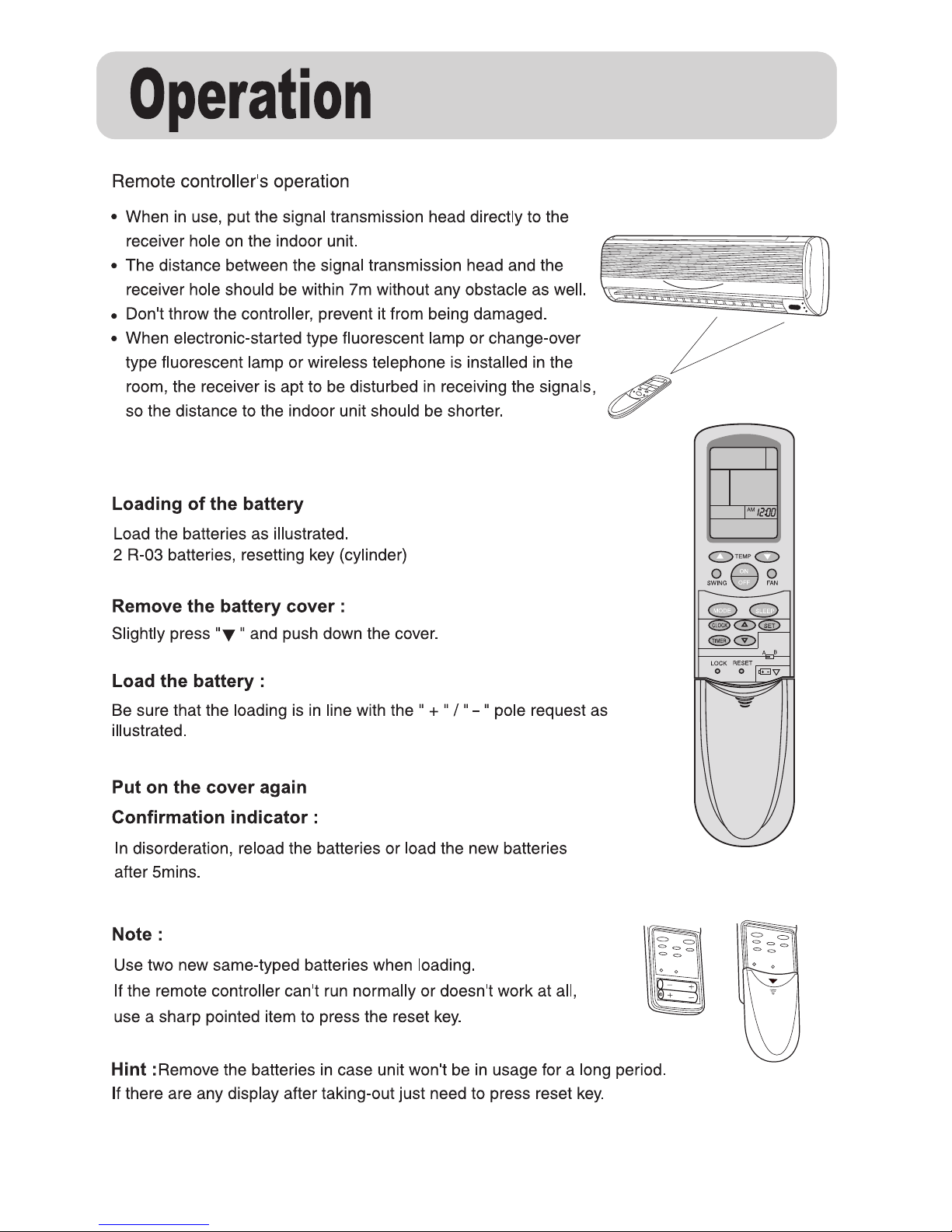

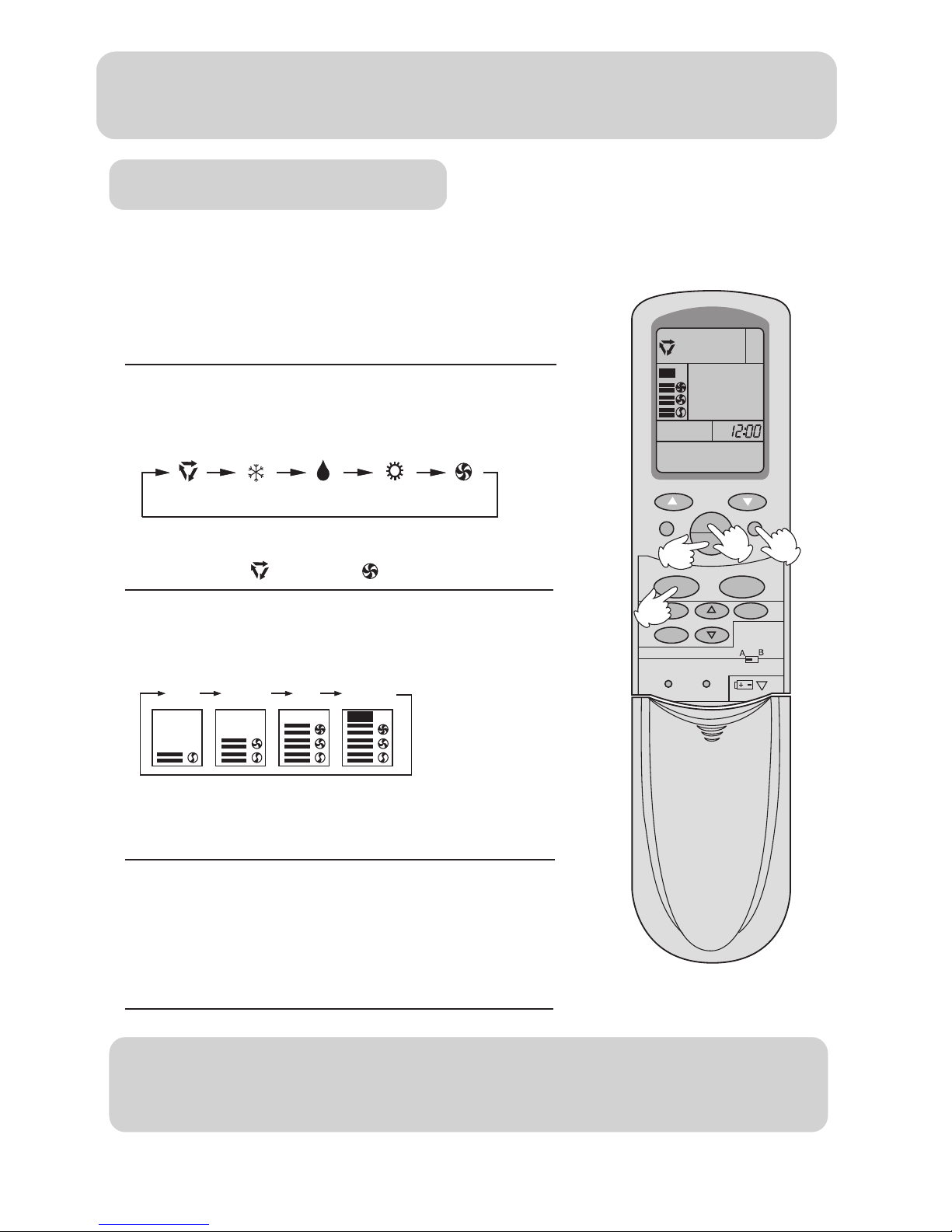

Operation

Enjoy yourself by just a gentle press.

(1) Unit start

(2) Select operation mode

(3) FAN

(4) Unit stop

AUT

AUT DR HEA FA

Press ON/OFF button, unit starts.

Previous operation status appears on

display.

(Not Timer setting)

Press MODE button. For each press,

operation

Press FAN button. For each press, fan speed

changes

Remote controller can memorize settings in each operation mode. To run it

time just select the operation mode and it will start with the previous setting.

Hints

Auto run, Fan operation

COOL

Unit will run at selected fan speed.

Note:AUTO is not available in FAN mode.

Adjust air flow direction if necessary, referring to page10.

LO MED HI

Press ON/OFF button.

Only time remains on LCD.

All indicators on indoor unit go out.

Vertical flap closed automatically.

TEMP

SWING

MODE

CLOCK

SLEEP

SET

LOCK RESET

TIMER

FAN

OFF

AUTO

This manual suits for next models

Table of contents

Other Haier Air Conditioner manuals

Haier

Haier 1U25S2SM1FA User manual

Haier

Haier ESA3183 User manual

Haier

Haier HSU-07HRA03 User manual

Haier

Haier 1U25YESFRA-3 User manual

Haier

Haier AD90S2SM3FA Installation and operating instructions

Haier

Haier AS072AZBAA User manual

Haier

Haier HWR05XC9 User manual

Haier

Haier HSU-18CI03 User manual

Haier

Haier HSU-09HJ03 User manual

Haier

Haier HSU-18LEA03-T User manual

Haier

Haier AD242ALEAA Installation and operating instructions

Haier

Haier HSU-09LEA13-F User manual

Haier

Haier AE182FCAHA User manual

Haier

Haier Novel Series User manual

Haier

Haier HSU-09HVD03/R2 - annexe 2 User manual

Haier

Haier HSU-09CRA03-HK User manual

Haier

Haier HSU-09CG13-B User manual

Haier

Haier HSU09XHK User manual

Haier

Haier HWS05XCA User manual

Haier

Haier HPM09XC5 - Portable Air Conditioner User manual

Haier

Haier HSU-18HEK03-R2 User manual

Haier

Haier HSU-18LEK03-Y2 User manual

Haier

Haier QPCA09 Operating instructions

Haier

Haier AD142AMBEA Guide

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual
