Please read this operation manual before using the air conditioner.

No.0150500334

Operation & Installation Manual

CABINET TYPE AIR CONDITIONER

Please keep this manual carefully and safely.

HPU-42CV03

HPU-42HV03

HPU-48CV03

HPU-48HV03

Content

Operation

Cautions

Parts

Operation

Operation hints

Energy saving

Maintenance

Trouble shooting

When problems occur

Indoor & outdoor unit connection

Tools necessary

Installation procedures

5-12

1-2

3-4

15-16

18-19

22-27

Others 28

Cautions

Disposal of the old air conditioner

Before disposing an old air conditioner

that goes out of use, please make sure

it's inoperative and safe. Unplug the air

conditioner in order to avoid the risk of

child entrapment.

It must be noticed that air conditioner

system contains refrigerants, which

require specialized waste disposal. The

valuable materials contained in a air

conditioner can be recycled. Contact

your local waste disposal center for

proper disposal of an old air conditioner

and contact your local authority or your

dealer if you have any question. Please

ensure that the pipework of your air

conditioner does not get damaged prior

to being picked up by the relevant

waste disposal center, and contribute

to environmental awareness by

insisting on an appropriate, anti-

pollution method of disposal.

Disposal of the packaging of your

new air conditioner

All the packaging materials employed

in the package of your new air

conditioner may be disposed without

any danger to the environment.

The cardboard box may be broken or

cut into smaller pieces and given to a

waste paper disposal service. The

wrapping bag made of polyethylene

and the polyethylene foam pads

contain no fluorochloric hydrocarbon.

All these valuable materials may be taken

to a waste collecting center and used again

after adequate recycling.

Consult your local authorities for the name

and address of the waste materials

collecting centers and waste paper

disposal services nearest to your house.

Safety Instructions and Warnings

Before starting the air conditioner, read

the information given in the User's Guide

carefully. The User's Guide contains very

important observations relating to the

assembly, operation and maintenance of

the air conditioner.

The manufacturer does not accept

responsibility for any damages that may

arise due to non-observation of the

following instruction.

Damaged air conditioners are not to

be put into operation. In case of doubt,

consult your supplier.

Use of the air conditioner is to be

carried out in strict compliance with the

relative instructions set forth in the User's

Guide.

Installation shall be done by professional

people, don't install unit by yourself.

The machine is adaptive in following

situation

Applicable ambient temperature range:

Cautions

Cooling

Heating

Indoor

outdoor

Rated Maximum Minimum

27 32 18

19 23 14

35 43 10

24 26 6

20 27 15

14.5 -- --

7 24 -7

6 18 --

DB C

WB C

DB C

WB C

Indoor

outdoor DB C

WB C

DB C

WB C

For the purpose of safety, the air

conditioner must be properly grounded

in accordance with specifications.

Always remember to unplug the air

conditioner before opening inlet grill.

Never unplug your air conditioner by

pulling on the power cord. Always grip

plug firmly and pull straight out from

the outlet.

All electrical repairs must be carried

out by qualified electricians.

Inadequate repairs may result in a

major source of danger for the user of

the air conditoiner.

Do not damage any parts of the air

conditioner that carry refrigerant by

piercing or perforating the air

conditioner's tubes with sharp or

pointed items, crushing or twisting any

tubes, or scraping the coatings off the

surfaces. If the refrigerant spurts out

and gets into eyes, it may result in

serious eye injuries.

Do not obstruct or cover the

ventilation grille of the air conditioner.

Do not put fingers or any other things

into the inlet/outlet and swing louver.

Do not allow children to play with the

air conditioner. In no case should

children be allowed to sit on the

outdoor unit.

Specifications

The refrigerating circuit is leak-proof.

**+ **

**-

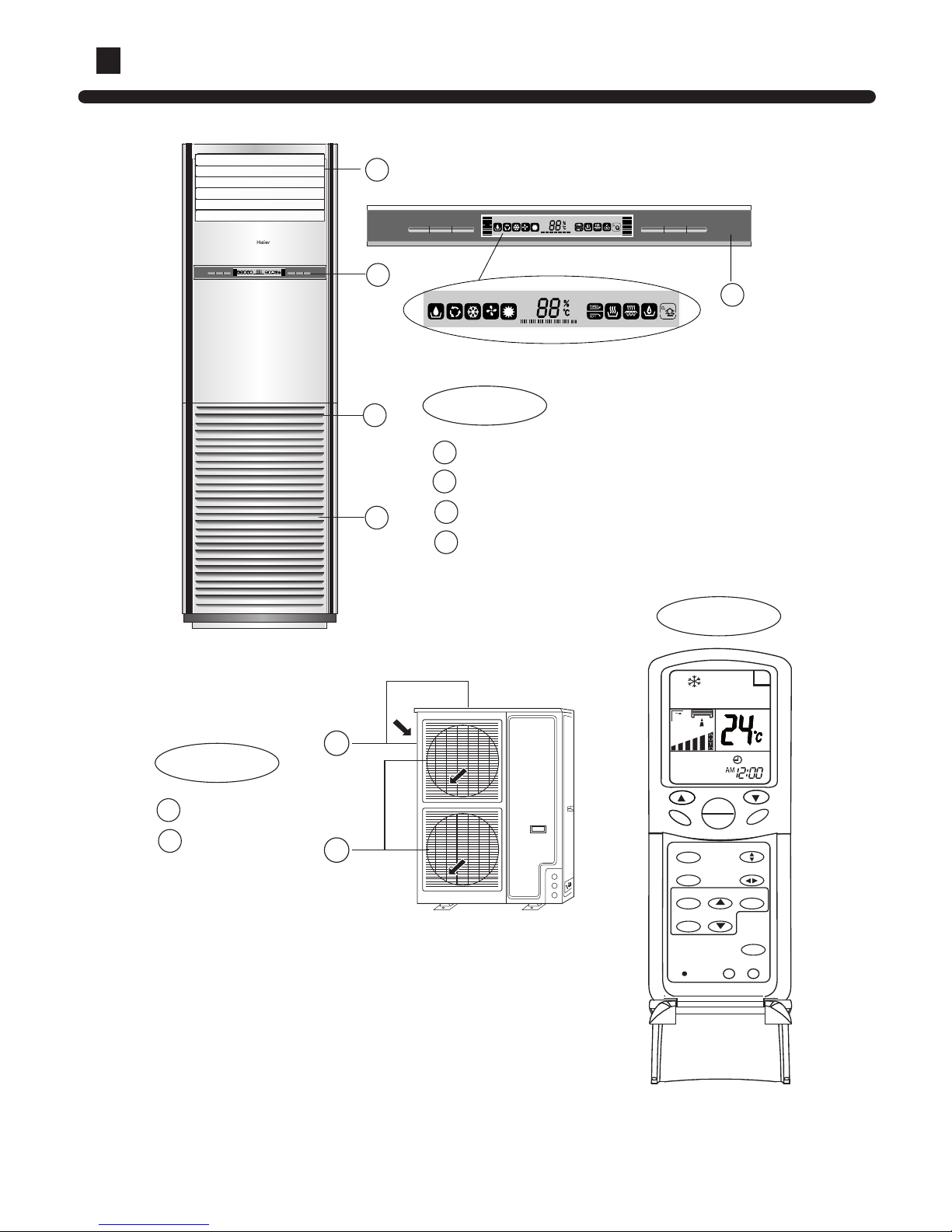

Parts

Indoor unit

Remote controller

Outlet grill

Operationpanel

Inlet grill

Air filter [inside the unit]

Outdoor unit

Inlet grill

Outlet grill

OFF

TEMP

HEALTH FAN

MODE

SLEEP SWING

CLOCK

TIMER

SET

LOCKLIGHT

RESET

HEAT

SLEEP

ON/OFF MODE FAN TEMP + TEMP - HEALTH

SET

HUMI

TEMP

HEALTH

TIMER

SLEEP

TEMP

HUMI

SET

SLEEP

TIMER

HEALTH

ON/OFF MODE FAN SET

TEMP

HUMI

HEALTH

TIMER

Parts

Manual Operation

MODE

CLOCK

Used to set correct time.

TIMER

LIGHT

Used to set temp.,temp.

range:16 C~30 C

SLEEP

Used to select sleep

mode

HOUR

Used to set clock and

timer setting.

RESET

Used to reset the

controller back to

normal condition.

LOCK

Used to select

TIMER ON, TIMER

OFF, TIMER

ON/OFF.

Used to lock buttons

and LCD display.

Note: These models don't have the following related display and function

For some air conditioners , the function is not availed.

OFF

TEMP

HEALTH FAN

MODE

SLEEP SWING

CLOCK

TIMER

SET

LOCK

LIGHT

RESET

Power ON/OFF

Used for unit start and stop.

Used to selectAUTO run,

COOL, DRY,HEAT and

FAN operation.

SET

Used to confirm

Timer and Clock

setting.

TEMP

HEALTH

Control the light up and go out

of the control panel's

background light source and

control the switch of the buzzer.

Used to set Health operation

function

FAN

Used to select fan speed: AUTO,

LOW FAN, MID FAN, HIGH

FAN.

Used to set UP/DOWN air

sending and RIGHT/LEFT air

sending direction.

Health display

Display when set Health

operation function.

Battery Capacity display

Display when the electric power

of the battery is insufficient.

Timer ON/OFF display

Fan speed and air sending

direction display

Swing direction display

Room temperature display

Power/Soft operation display

Humidifying display

Clock display

Temperature display

Used to display the set

temperature and room

temperature.

Lock state display

Sleep state display

Electric Heating display

SWING

HEAT

Fresh Air state display

Select Auxiliary

electric heater

LOW MID HIGH AUTO

16 17

22 28

11 29

For cooling only unit, there is no functions related to HEAT.

Operation

Clock set

When unit is started for the first time

and after replacing batteries in remote

controller, clock should be adjusted as follows:

Press CLOCK button, "AM"or "PM" flashes.

Press or to set correct time. Each press will increase

or decrease 1 min . If the button is kept pressed, time will

change quickly.

After time setting is confirmed, press SET, "AM" and "PM"

stop flashing, while clock starts working.

Remote controller's operation

When in use, put the signal transmission

head directly to the receiver hole on the

indoor unit

The distance between the signal transmission

head and the receiver hole should be within

7m without any obsacles as well.

Don't throw the controller, prevent it from

being damaged.

When electronic-started type fluorescent

lamp or change-over type fluorescent lamp

or wireless telephone is installed in the room,

the receiver is apt to be disturbed in receiving

the signal so the distance to the indoor unit

should be shorter.

MODE

SLEEP SWING

CLOCK

TIMER

SET

LOCK

LIGHT

RESET

2R-03 dry batteries

MINUTES

HEAT

123

Confirmation indicator:

In disorderation, reload the batteries or load the new batteries

after 5 mins.

Note:The waster batteries should be disposed properly,use two

new same-type batteries when loading.

If the remote controller can’t function normally or doesn’t work at

all,use a sharp-pointed item to press the reset key.

Hint:Remove the batteries in case unit won’t be in usage for a long period.

If there are any displays after taking-out just need to press reset key.

When throw away the waste batteries, please perform in accordance with the local regulation.

Loading of the battery

Slightly press " " and push down the cover.

Load the batteries as illustrated.

2 R-03 dry batteries, (cylinder)

Be sure that the loading is in line with the "+"/"-" pole

request as illustrated.

Put on the cover again.

Remote

controller LOW MID HIGH AUTO

Operation

1Press ON/OFF button

Unit starts running.

The previous status appears on the display

(except. TIMER, SLEEP mode)

Press MODE button. For each press,

operation mode changes as follows:

Remote

controller AUTO COOL DRY FAN HEAT

Press FAN,For each press, operation mode

changes as follows:

Unit runs at the speed displayed on LCD.

When fan speed is AUTO,it is changed automatically

according to the indoor temperature.

Note:

During Auto run operation, temp. setting will be shown in LCD display, unit will select heating, cooling

or fan operation according to the room temp.

Select temp. button

Press TEMP button

Every time the button is pressed, temp.

setting increases 1 C

Every time the button is pressed, temp.

setting decreases 1 C

If the button is kept pressed, setting will

increase or decrease quickly.

In DRY mode, when room temp.becomes 2 C higher than temp.

setting,unit will run intermittently at LOW speed regardless of FAN

setting. Ultra-low air flow

Temp.setting+2 C

Temp.setting

COOL operation starts when room

temp. is higher than temp. setting.

On reaching 2 C higher than temp.

setting,unitwill run in mild DRY mode.

OFF

TEMP

HEALTH FAN

MODE

SLEEP SWING

CLOCK

TIMER

SET

LOCK

LIGHT

RESET

HEAT

Then select AUTO run or select COOL operation or

select DRY operation or select HEAT operation

AUTO COOL DRY FAN

Control panel HEAT

TEMP+

TEMP-

The fan speed change of the control panel see page 12.

Press ON/OFF button Unit stops running.

ON/OFF MODE FAN HEALTH

TEMPTEMP

TEMP

Operation

Fan Operation

3. Adjust fan speed

Press FAN button. At each press, fan speed changes as

follows:

Air conditioner will run at the selected fan speed.

4. Unit stop

Press ON/OFF button to stop unit.

Then select FAN

About FAN mode

When the air conditioner runs in FAN mode,

it is not possible to select AUTO FAN or to

set temperature.

Manual Operation

Remote-control unit

OFF

TEMP

HEALTH FAN

MODE

SLEEP SWING

CLOCK

TIMER

SET

LOCK

LIGHT

RESET

HEAT

AUTO COOL DRY FAN HEAT

Control panel

LOW MID HIGH

1.Unit start

Press ON/OFF button to start your air conditioner.

Previous operation status appears on LCD (except for

TIMER, SLEEP, setting).

2.Select operating mode

Press MODE button. At each press, operation mode

changes as follows:

AUTO FAN HEAT

COOL DRY

ON/OFF MODE FAN TEMP TEMP HEALTH

TEMP

Up & down air direction

Press the up & down button once, the LCD aiflow direction will display as follows:

Cooling/Dehumification/airflow:

Remote controller: Position 1 2 3 4 6

Heating: Position 5 4 3 2 1 6

Remote controller

Auto:

Remote controller:Position 1 2 3 4 5 6

The up & down flade will move according to the above conditions.

Note: Pay more attention to not cut down the power supply because the flade can't back to the

colse position at this circumstance;

Left & right air direction

Press the Left & right button once , the LCD aiflow direction will display as follows:

Remote controller: Position 1 2 3 4 5 6 7 8

The left & right flade will move according to the above conditions

Note: 1. duringAUTO mode, pls. don't touch the flade to avoid damaging the inner part of the unit;

2. If the difference between real position & the chart position, press ON/OFF(control panel) button

or ON/OFF( remote controller) button to close the flade and re-open the unit, then it will be normal condition.

(not availble in these nuits)

Up and down Side from side

Position 1

Position 2

Position 3

Position 4

Position 5

Position 6

Position 7

Position 8

[COOL/DRY/FA

N/AUTO(COOL)

HAVE NOT]

(AUTO SWING)

Position 1

Position 2

Position 3

Position 4

Position 5

Position 6

OFF

TEMP

HEALTH FAN

MODE

SLEEP SWING

CLOCK

TIMER

SET

LOCK

LIGHT

RESET

HEAT

Operation Air flow adjustment

Swing louvers

(Vertical louvers)

(Horizontal louvers)

This manual suits for next models

Table of contents

Other Haier Air Conditioner manuals

Haier

Haier HSU-09R04, HSU-12R04, HSU-18R04, HSU-24R04 User manual

Haier

Haier AC282ACBCA User manual

Haier

Haier AB242XCAAA Specification sheet

Haier

Haier AS122AKAAA User manual

Haier

Haier IKI-09 User manual

Haier

Haier HW-24LM03 User manual

Haier

Haier HSU-09HB03/R1 User manual

Haier

Haier 3HUM18HB03 User manual

Haier

Haier HWF05XCL Assembly instructions

Haier

Haier HUM18HB03 User manual

Haier

Haier HWF05XC7 User manual

Haier

Haier HW-07LM03 User manual

Haier

Haier HSU-09LEA13-F User manual

Haier

Haier HTWR10XCK Assembly instructions

Haier

Haier HSM09HS03/R2(DB) User manual

Haier

Haier AB35S2SC1FA Installation and operating instructions

Haier

Haier H2SM- User manual

Haier

Haier Commercial Cool CPRB07XC7 User manual

Haier

Haier HSU-09HX03 User manual

Haier

Haier AD282AHEAA Administrator Guide

Haier

Haier HSU-09HJ03 User manual

Haier

Haier AC282AFEAA User manual

Haier

Haier AB242ACBCA User manual

Haier

Haier AS07GS2ERA - User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual
