Haier HPR10XC6 User manual

PORTABLE AIR CONDITIONER

CLIMATISEUR PORTATIF

ACONDICIONADOR DE AIRE PORTATIL

Before operating this oven, please read these instructions completely.

Quality nInnovation nStyle

User Manual

Model # HPR10XC6

Guide de l’Utilisateur

Modéle # HPR10XC6

Manual del Usuario

Para Modelo de # HPR10XC6

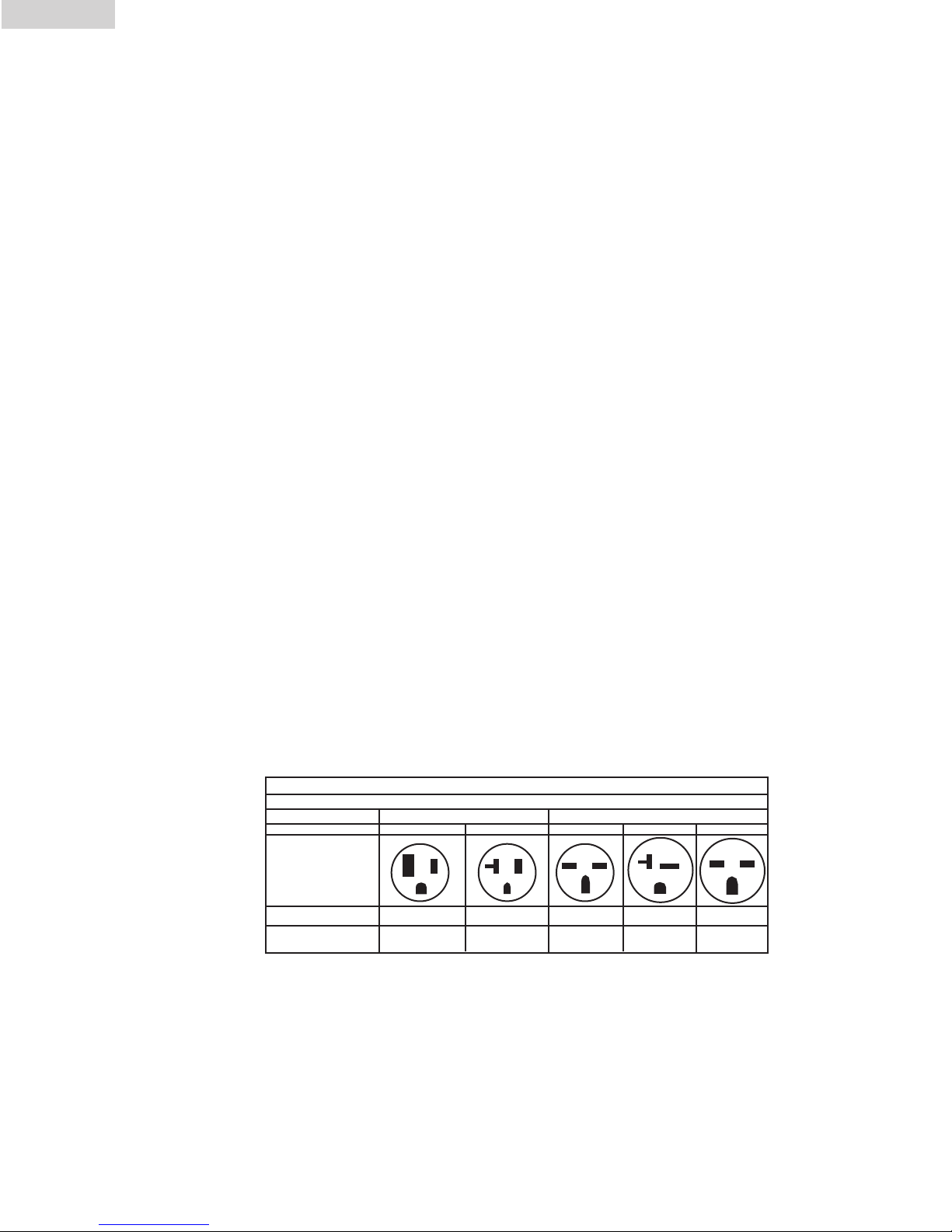

TABLE

RECEPTACLE AND FUSE TYPES

RATED VOLTS 125/60 250/60

AMPS 15 20 15 20 30

WALL OUTLET

FUSE SIZE 15 20 * 15

TIME DELAY FUSE Plug Plug Plug

(or circuit braker)

English

A Word From Haier

Thank You for buying a dependable, energy saving and easy to operate HAIER air conditioner. This

manual contains useful information for you to maintain, operate, install and safely use your air condi-

tioner. Your air conditioner cleans, cools and dehumidifies the air in your room to provide you with

the ultimate level of comfort.

Please read instructions carefully before using the product. Also, do not forget to fill out and mail the

Product Registration Card.

Product Registration

Record Your Model and Serial Number.

Attach the sales receipt to this guide and keep for future reference. Model and serial number can be

obtained from the serial label, which is on your air conditioner. For all your service calls during the

warranty period the following information will be needed:

Model Number:....................................................................................................................

Serial Number: ....................................................................................................................

Date of Purchase: ................................................................................................................

Dealer’s Name:....................................................................................................................

Dealer’s Address: ................................................................................................................

Dealer’s Phone Number: ......................................................................................................

20 30

SAFETY PRECAUTIONS

WARNING: Following these basic precautions will reduce the risk of fire, electrical

shock, injury or death when using your air conditioner.

1) Air conditioner must be connected to proper electrical outlet with the correct electrical

supply. (see table previous page)

2) Proper grounding must be ensured to reduce the risk of shock and fire. DO NOT CUT

OR REMOVE THE GROUNDING PRONG. If you do not have a three-prong electric

receptacle outlet in the wall, have a certified electrician install the proper receptacle.

The wall receptacle MUST be properly grounded.

3) Do not operate air conditioner if power cord is frayed or otherwise damaged. Also

avoid using it if there are cracks or abrasion damage along the length, plug connector

or if the unit malfunctions or is damaged in any manner. Contact an authorized service

for examination, repairs or

adjustments.

4) DO NOT USE AN ADAPTER OR AN EXTENSION CORD.

5) Do not block airflow around the air conditioner. Also the exhaust hose should be free of

any obstructions.

6) Always unplug the air conditioner before servicing it or moving it.

7) Do not install or use the air conditioner in any area where the atmosphere contains

combustible gases or where the atmosphere is oily or sulphurous. Avoid any chemicals

coming in contact with your air conditioner.

8) Do not place any object on the top of the unit.

9) Never operate the air conditioner without the filters in place.

10) Do not use the air conditioners near a bathtub, shower or wash basin.

SAVE THESE INSTRUCTIONS

English

Table Of Contents

PAGE

A Word From Haier ....................................................................................................................1

Product Registration ....................................................................................................................1

Safety Precautions ......................................................................................................................2

Advantages ................................................................................................................................4

Parts and Features ......................................................................................................................5

Assembly and Installation............................................................................................................7

Operation ..................................................................................................................................8

Product Specification ..................................................................................................................9

Care and Cleaning ....................................................................................................................9

Storage ......................................................................................................................................9

Trouble Shooting ......................................................................................................................10

Warranty Information................................................................................................................11

Advantages of this Model

1. This model is easy to operate. The electronic control panel has a timer, thermostat, three cooling

speeds, three fan speeds and one speed dehumidification function (dry).

2. The unit has a unique design which evaporates the water. Therefore no condensation tank is

necessary, thus avoiding you to have to wake up in the middle of the night to empty the bucket and

turn on the unit.

3. Easy to install window kit is included, which consists of the exhaust hose, 2 hose adapters, the

window panel kit and window panel adapter.

4. Full directional casters are included to help the unit to be moved in almost any area.

5. The filter screen is designed for easy accessibility of the filter.

6. Portable air conditioners are easy to store when not in use.

English

Parts and Features

CONTROL PANEL

FRONT

HANDLE AIR OUTLET

CASTERS

FILTER SCREEN

REAR

AIR INTAKE

EXHAUST DUCT

AIR INTAKE FOR

CONDENSOR

POWER CORD

WATER DRAIN PIPE

English

Assembly and Installation

1. Push the round Window Panel Adapter through the rear of the Plastic Panel.

Line up the holes and tighten the Adapter with 4 screws that are included in

the kit. (Tighten screws from the front).

2. Adjust the Plastic Panel to the width or height of your window and tighten

the 2 screws that are attached to the panel.

3. Install the Window Plastic Panel into the window. If necessary use duct tape

to better secure the panel.

4. Connect exhaust hose to the unit by inserting the hose connector that is

attached to the hose into the exhaust. (See Illustration A)

5. Move the unit to the window, extend the hose and attach the other end of

the hose to the window. Align the tabs on the hose and window panel

adapters and fasten them together.

6. Plug into wall outlet to get ready for operation.

* NOTE: Use on Single Outlet Circuit Only.

Accessories Include

1. Plastic panel - 2 pieces

2. Window Panel adapter - 1 piece

3. Screws - 4 pieces

4. Heat Exhaust hose connector-2

pieces

5. Heat Exhaust hose-1 piece

Exhaust Hose

Hose Connector Hose Connector

English

NOTE: Wait for 24 hours to turn on air conditioner if the unit has been tilted for any

reason. This is for the oils and the coolants to settle and level off.

1. Wait for 3 minutes before restarting the unit after a normal shut down so as to complete the

compressor cycle.

2. Use an 115v 15 amp outlet for the air conditioner. Do not use any other electrical appliances

on this line or you may trip the fuse. Use a dedicated line for this air conditioner.

3. Do not place the air conditioner in direct sunlight or close to any heating appliances.

ex. baseboard heaters, stoves, etc.

4. Operate on a flat surface only.

5. Keep the unit free of any obstructures such as drapes, curtains, blinds, etc.

6. Keep unit at least 1 foot away from the wall.

7. Check and clean the filter once every week to get the highest efficiency.

NOTE: Do not use unit without filter.

8. If the unit is not being used for a long period of time remove the plug from the water drain

pipe and drain out any condensed water.

When turning on the unit first time after plugging it into an electrical outlet the unit will start in a

low fan cool mode. The temperature read out on the LED will be the room temperature. When

turning on the unit in regular usage it will remember the last shut off setting. If you want to

operate the air conditioner as a dehumidifier then adjust to dry mode.

Setting The Temperature

To set the temperature press the + or the - key to raise or lower the temperature. The temperature

can be raised or lowered in the cool or dry mode. The temperature cannot be adjusted in the fan

mode.

Fan Speeds

There are 3 adjustable speeds in the cool and fan mode: Low, Medium & High. In the dry or

dehumidification mode the fan will only operate at low speed.

On/Off Time Set

The air conditioner has a 1-12 hour on/off built-in timer. To delay start the unit from 1-12 hours

at a 1 hour interval, simply press the time/set key and then press the + or - key to adjust the start

time. Note that the unit has to be plugged in to an electrical outlet for the timer to operate.

To auto shut-off the unit press the time/set key while the unit is running and then press the + or -

key to adjust the off time. The auto shut-off switch operates in all 3 modes: Cool, Dry & Fan.

NOTE: The temperature can be set between 60˚F to 89˚F.

Operation

English

Product Specification

Care and Cleaning Guide

• Always unplug your air conditioner before cleaning.

• Air filter needs to be cleaned at least once a week for your unit to operate at optimum

efficiency. Slide out the filter from the back by pulling on the tab. The filter may be washed

or vacuumed. Remove the excess water from the filter by gently shaking the filter. This will

remove dust and particles trapped in the filter. After cleaning, reinstall the filter. DO NOT

use your air conditioner without the air filter in place.

• To clean the cabinet, DO NOT use harsh chemicals, abrasives, ammonia, chlorine, bleach,

concentrated detergents, solvents or metal scouring pads. Some of these chemicals may

dissolve, damage and/or discolor your air conditioner.

• Always use a soft cloth dampened with water or a mild soap and water solution to wipe the

front of the cabinet. Wipe dry with a soft cloth.

Storage

• To store your air conditioner when not being used for a long period of time, drain con-

densed water using the drain pipe. Remove exhaust hose, clean the filters, cover with plastic

bag and store away.

Voltage and Frequency 115V / 60Hz

Input Power 950 W

Cooling Capacity 10000 BTU

Moisture Removal (pints/day) 81

Coolant R-22

Timer 12 Hours

Operating Temperature Range 64˚F - 100˚F

Unit Dimensions (WxDxH) (inches) 18 9/16 x 14 1/16 x 34 3/16

471 mm x 357 mm x 868 mm

Net Weight lbs. approximate 79.3 lbs.

Exhaust Hose 5 Feet
