Häfele DL7600 User manual
www.hafele.com
Model DL7600
Digital door lock
* The contents of this user manual are subject to change without prior notice
to the user in order to enhance performance of the products.
DL7600
Installation guide
Contents
1
Product specification…………………………………………………………………………………...2
Components………….…………………………………………………………………………………3
Prepare for installation………….………………………………………………………………………4
Installation…………………………….…………………………………………………………………6

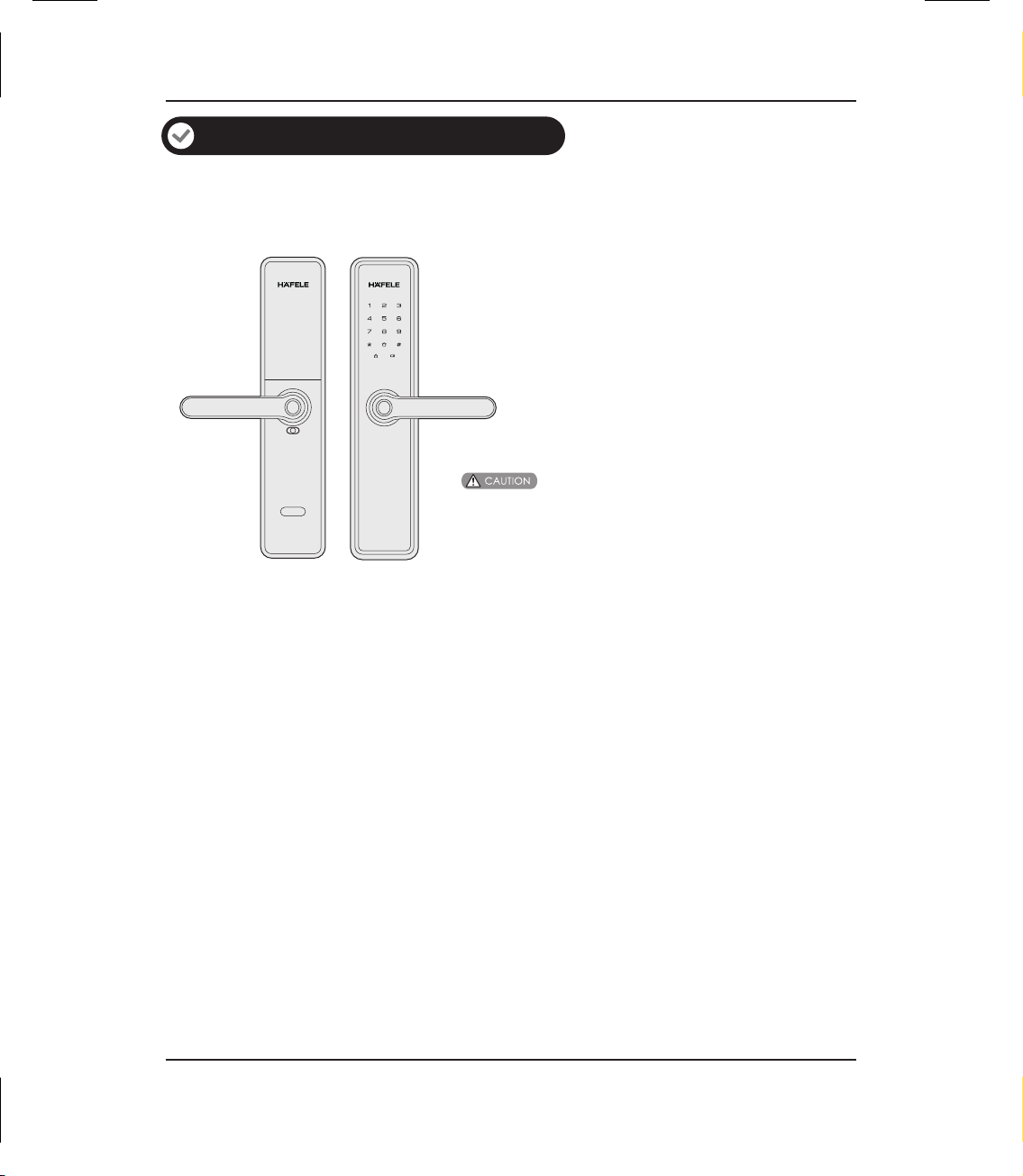

Product specifications
Inside panelOutside panel
Mortise lock
Key cylinder
Emergency
power port
Reboot button
Deadbolt
Shaft socket
Sensor latch
Latch bolt
Touch keypad
CLOSE/OPEN
button
Safe handle
switch
Reset button
Battery cover
Bottom cover
Card reader area
Fingerprint sensor
2
Key cylinder
Emergency power port
Reboot button
Door handle
Components
1. Battery cover (1 pc)
2. M6 mounting screw (2 pcs)
3. Inside panel assembly (1 pc)
4. Pressure spring (2 pcs)
5. Square shaft (2 pcs)
6. Mortise mounting screw (2 pcs)
7. M6 Connecting screw bolt (2 pcs)
8. Bottom cover (1 pc)
9. M6 mounting screw (1 pc)
10. M5 mounting screw (3 pcs)
11. Mounting plate (1 pc)
12. Mortise lock (1 pc)
13. M5 Connecting screw bolt (3 pcs)
14. Outside panel assembly (1 pc)
15. Strike assembly
- Left strike plate (1 pc)
- Right strike plate (1 pc)
- Strike box (1 pc)
16. Mechanical key (2 pcs)
15
1
8 9 10 11 12
2 3 4 5 6 7
16
1413
3
4
Switcher for
the Bolt
Directional screws
Latch
bolt
1. Push the "bolt switcher" to the top side.
2. Press in the latch bolt.
3. Please follow arrow direction
to turn round the latch bolt 180°.
4. Pull out the latch bolt.
Please make sure two directional screws
are xed on lock case from interior side of
the door. It makes panic open by handle
from inside of the door.
5. Push the "bolt switcher" to the end.
6.Change side of the directional screws.
1. Change latch direction and directional screw
Check door open direction
Preparing for installation
This product ts for all door open directions Left-in/Left-out/Right-in/Right-out
Indoor
Outdoor Outdoor
Indoor
Outdoor
Indoor
Outdoor
Indoor
When your door is Left-out or Right-in, please do the following two things
Please fix the screws in proper locations according to below diagram in the desired open direction.
2. Change handle direction (For inside and outside panel)
Positioning disc
Shield
sleeve
Screws
1. Take out the 2 screws,
the positioning disc
and the shield sleeve.
2. Rotating the handle
to the other end.
Mechanical
key pick
5
Preparing for installation
Check door thickness
1. Please choose correct screw pack according to your door
thickness.
2. Default screw pack is for door thickness 38-60mm.
3. Reposition the sensor cable, so it is below arrow “ ”
sign on the positioning disc. Fasten the screws.
According to door thickness, cut the mechanical key pick
into proper length. The proper length of key pick is required
to be more than half of the door thickness, but should not pass
through the door.
Shield
sleeve
Screws
Mechanical
key pick
Positioning disc
Cut the mechanical key pick
Installation
1. Mark and drill bores by using the installation
template first, then fix the mortise into the
door frame and tighten the 2 screws to fix the
mortise on the door.
2. Fix 5 screw bolts on the front panel, place
square shaft and pressure spring into the
bore.
M6 Connecting
screw bolt *2
Square shaft
Pressure
spring
M5 Connecting
screw bolt *3
Do not make the
mortise deadbolt
come out.
Spring: the big end is downward.
6
3. Pass the connection wire through the buttom bore.
Then align and insert square shaft into mortise holes
to make the front panel fit against the door closely.
4. Install the mounting plate with fixing screws
tightly against the door surface.
According to door
thickness, cut the
mechanical key pick
to proper length.
Installation
6. Insert the connecting wires of front panel into the
related sockets of the back panel. Then align and
insert the square shaft into mortise hole, make the
back panel fit against the door closely.
5. Place pressure spring and square shaft in the
back panel in proper order.
Square
shaft
Pressure
spring
Pressure
spring
7
8. Install the batteries and the battery cover. Then
install the striker assembly to finish the installation.
7. Tighten the 3 fixing screws.
After installing the striker
assembly, please check
if the lock works smoothly
by opening/closing door.
Installation
9. Please check handle, safe handle switch and
mechanical key if they are working properly.
Test if mechanical key works smoothly
after installation.
CLOSE
8
