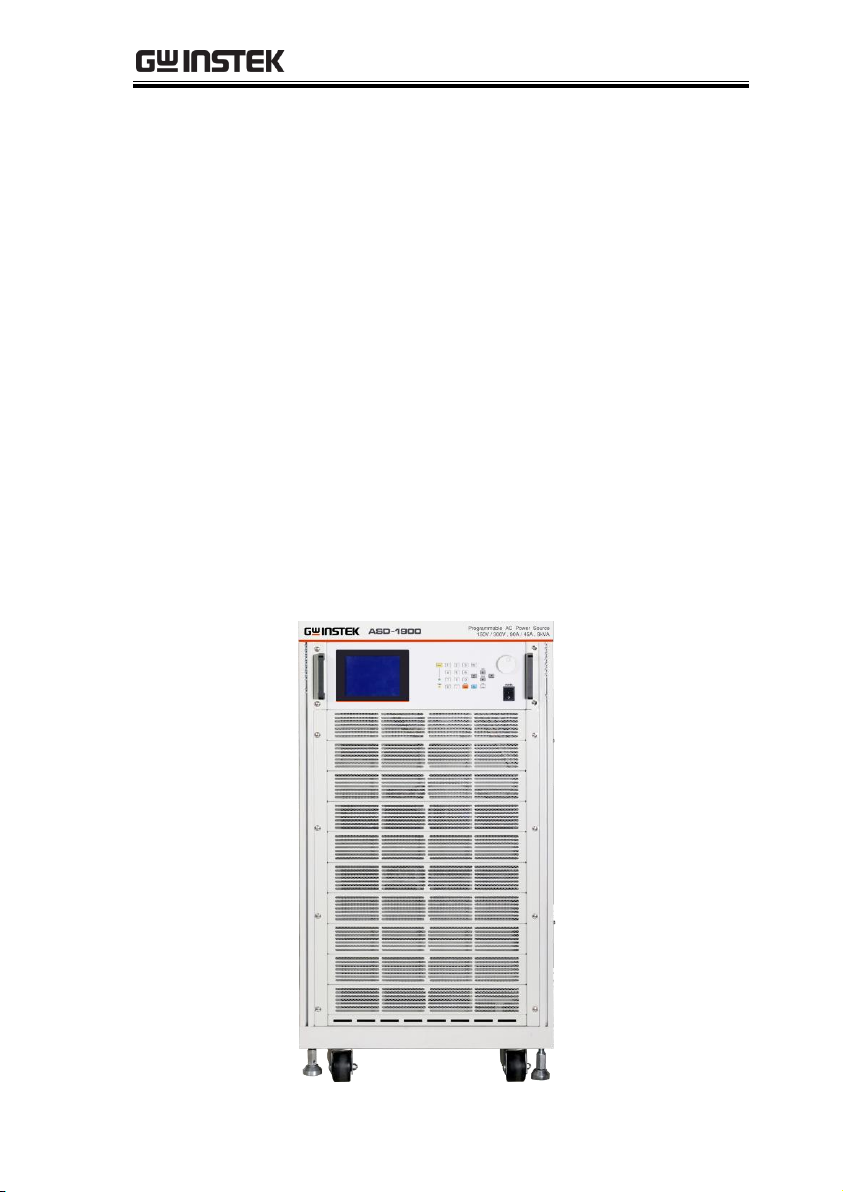

GW Instek ASD Series User manual

Programmable AC Power Supply

ASD-1900

USER MANUAL

ISO-9001 CERTIFIED MANUFACTURER

This manual contains proprietary information, which is protected by

photocopied, reproduced or translated to another language without

prior written consent of Good Will company.

The information in this manual was correct at the time of printing.

However, Good Will continues to improve products and reserves the

rights to change specification, equipment, and maintenance

procedures at any time without notice.

Good Will Instrument Co., Ltd.

No. 7-1, Jhongsing Rd., Tucheng Dist., New Taipei City 236, Taiwan.

SAFETY INSTRUCTIONS

Table of Contents

SAFETY INSTRUCTIONS .................................................. 5

GETTING STARTED.......................................................... 9

Main Features.......................................................... 11

Appearance.............................................................. 13

INSTALLATION .............................................................. 18

Preparation for Use ................................................. 19

Requirements of Input Power .................................. 19

Input Connection ..................................................... 20

Output Connection .................................................. 22

Remote Sense Connection........................................ 23

Power on ................................................................. 25

LOCAL OERATION ......................................................... 27

Operation through Keypad and Knob ....................... 29

Menu Tree ............................................................... 31

Main Menu Setting .................................................. 32

Advanced Parameter Setting Menu .......................... 38

SETUP Function....................................................... 39

CONFIG Function .................................................... 58

APPLICAION.................................................................. 69

LIST Mode ............................................................... 70

PULSE Mode............................................................ 75

STEP Mode .............................................................. 78

SYNTHESIS Self-Deﬁned Waveform Mode ............... 81

SAVE AND RECALL......................................................... 84

System parameter Save and Recall........................... 85

ASD-1900 User Manual

REMOTE OPERAION.......................................................87

Set GPIB address and RS-232 Parameters ................ 88

Programming........................................................... 90

Command List ......................................................... 93

Command for Remote Control ................................. 96

APPENDIX ....................................................................128

Protection .............................................................. 130

Specifications ........................................................ 132

Certificate Of Compliance ...................................... 136

TTL Pin Assignment............................................... 137

Built In Waveforms ................................................ 138

SAFETY INSTRUCTIONS

This chapter contains important safety

instructions that you must follow during

operation and storage. Read the following before

any operation to insure your safety and to keep

the instrument in the best possible condition.

Safety Symbols

These safety symbols may appear in this manual or on the

instrument.

WARNING

Warning: Identifies conditions or practices that

could result in injury or loss of life.

CAUTION

Caution: Identifies conditions or practices that

could result in damage to the ASD-1900 or to other

properties.

DANGER High Voltage

Attention Refer to the Manual

Protective Conductor Terminal

Earth (ground) Terminal

Do not dispose electronic equipment as unsorted

municipal waste. Please use a separate collection

facility or contact the supplier from which this

instrument was purchased.

ASD-1900 User Manual

Safety Guidelines

General

Guideline

CAUTION

Do not place any heavy object on the ASD-1900.

Avoid severe impact or rough handling that

leads to damaging the ASD-1900.

Do not discharge static electricity to the ASD-

1900.

Use only mating connectors, not bare wires, for

the terminals.

Do not block the cooling fan opening.

Do not disassemble the ASD-1900 unless you

are qualified.

(Measurement categories) EN61010-1:2010 and EN61010-2-030

specifies the measurement categories and their requirements as

follows. The ASD-1900 falls under category II.

Measurement category IV is for measurement performed at the

source of low-voltage installation.

Measurement category III is for measurement performed in the

building installation.

Measurement category II is for measurement performed on the

circuits directly connected to the low voltage installation.

0 is for measurements performed on circuits not directly

connected to Mains.

Power Supply

WARNING

AC Input voltage range: 85Vac~265Vac

Frequency: 47Hz to 63Hz

To avoid electrical shock connect the protective

grounding conductor of the AC power cord to

an earth ground.

Cleaning the

ASD-1900

Disconnect the power cord before cleaning.

Use a soft cloth dampened in a solution of mild

detergent and water. Do not spray any liquid.

Do not use chemicals containing harsh material

such as benzene, toluene, xylene, and acetone.

SAFETY INSTRUCTIONS

Operation

Environment

Location: Indoor, no direct sunlight, dust free,

almost non-conductive pollution (Note below)

Relative Humidity: 20%~ 85% (no

condensation)

Altitude: < 2000m

Temperature: 0°C to 50°C

(Pollution Degree) EN61010-1:2010 and EN61010-2-030 specifies

the pollution degrees and their requirements as follows. The ASD-

1900 falls under degree 2.

Pollution refers to “addition of foreign matter, solid, liquid, or

gaseous (ionized gases), that may produce a reduction of dielectric

strength or surface resistivity”.

Pollution degree 1: No pollution or only dry, non-conductive

pollution occurs. The pollution has no influence.

Pollution degree 2: Normally only non-conductive pollution

occurs. Occasionally, however, a temporary conductivity caused

by condensation must be expected.

Pollution degree 3: Conductive pollution occurs, or dry, non-

conductive pollution occurs which becomes conductive due to

condensation which is expected. In such conditions, equipment

is normally protected against exposure to direct sunlight,

precipitation, and full wind pressure, but neither temperature

nor humidity is controlled.

Storage

environment

Location: Indoor

Temperature: -25°C to 70°C

Relative Humidity: ≤90%(no condensation)

Disposal

Do not dispose this instrument as unsorted

municipal waste. Please use a separate collection

facility or contact the supplier from which this

instrument was purchased. Please make sure

discarded electrical waste is properly recycled to

reduce environmental impact.

ASD-1900 User Manual

Power cord for the United Kingdom

When using the power supply in the United Kingdom, make sure

the power cord meets the following safety instructions.

NOTE: This lead/appliance must only be wired by competent persons

WARNING: THIS APPLIANCE MUST BE EARTHED

IMPORTANT: The wires in this lead are coloured in accordance with the

following code:

Green/ Yellow:

Earth

Blue:

Neutral

Brown:

Live (Phase)

As the colours of the wires in main leads may not correspond with

the coloured marking identified in your plug/appliance, proceed

as follows:

The wire which is coloured Green & Yellow must be connected to

the Earth terminal marked with either the letter E, the earth symbol

or coloured Green/Green & Yellow.

The wire which is coloured Blue must be connected to the terminal

which is marked with the letter N or coloured Blue or Black.

The wire which is coloured Brown must be connected to the

terminal marked with the letter L or P or coloured Brown or Red.

If in doubt, consult the instructions provided with the equipment

or contact the supplier.

This cable/appliance should be protected by a suitably rated and

approved HBC mains fuse: refer to the rating information on the

equipment and/or user instructions for details. As a guide, a cable

of 0.75mm2should be protected by a 3A or 5A fuse. Larger

conductors would normally require 13A types, depending on the

connection method used.

Any exposed wiring from a cable, plug or connection that is

engaged in a live socket is extremely hazardous. If a cable or plug is

deemed hazardous, turn off the mains power and remove the cable,

any fuses and fuse assemblies. All hazardous wiring must be

immediately destroyed and replaced in accordance to the above

standard.

GETTING STARTED

This manual describes the speciﬁcations,

installation and operation instructions of GW

ASD-1900 Programmable AC Power Source. In

this manual the term, AC Source, stands for GW

ASD-1900 Programmable AC Source.

The series of AC source is a high efficiency

programmable ac power source, which provides

low distortion sinusoid AC voltage output and

measurement. Stable voltage and frequency are

obtained through accurate digital calculation

provided by DSP IC. Remote programming is

accomplished either by the GPIB bus or the RS-

232C serial port.

ASD-1900 User Manual

Main Features .......................................................... 11

Accessories ........................................................................................12

Appearance.............................................................. 13

Front Panel........................................................................................13

Rear Panel..........................................................................................16
