Grizzly G5350 User manual

Introduction

Just a squeeze of the trigger provides 50 ft/lbs.

of torque! Ergonomically designed for maximum

comfort, these professional quality ratchets deliv-

er up to 160 RPM to your sockets, making them

the perfect choice for home or high volume com-

mercial work. Weighs 3 lbs.

Inventory

A. Air Ratchet .................................................. 1

Operation

Tool requires 90 PSI to operate correctly.

To improve tool lifespan, use a filter/lubricator/

regulator as shown in Figure 2. Otherwise, lubri-

cate daily with a couple drops of pneumatic tool oil

directly into the air fitting as shown in Figure 3.

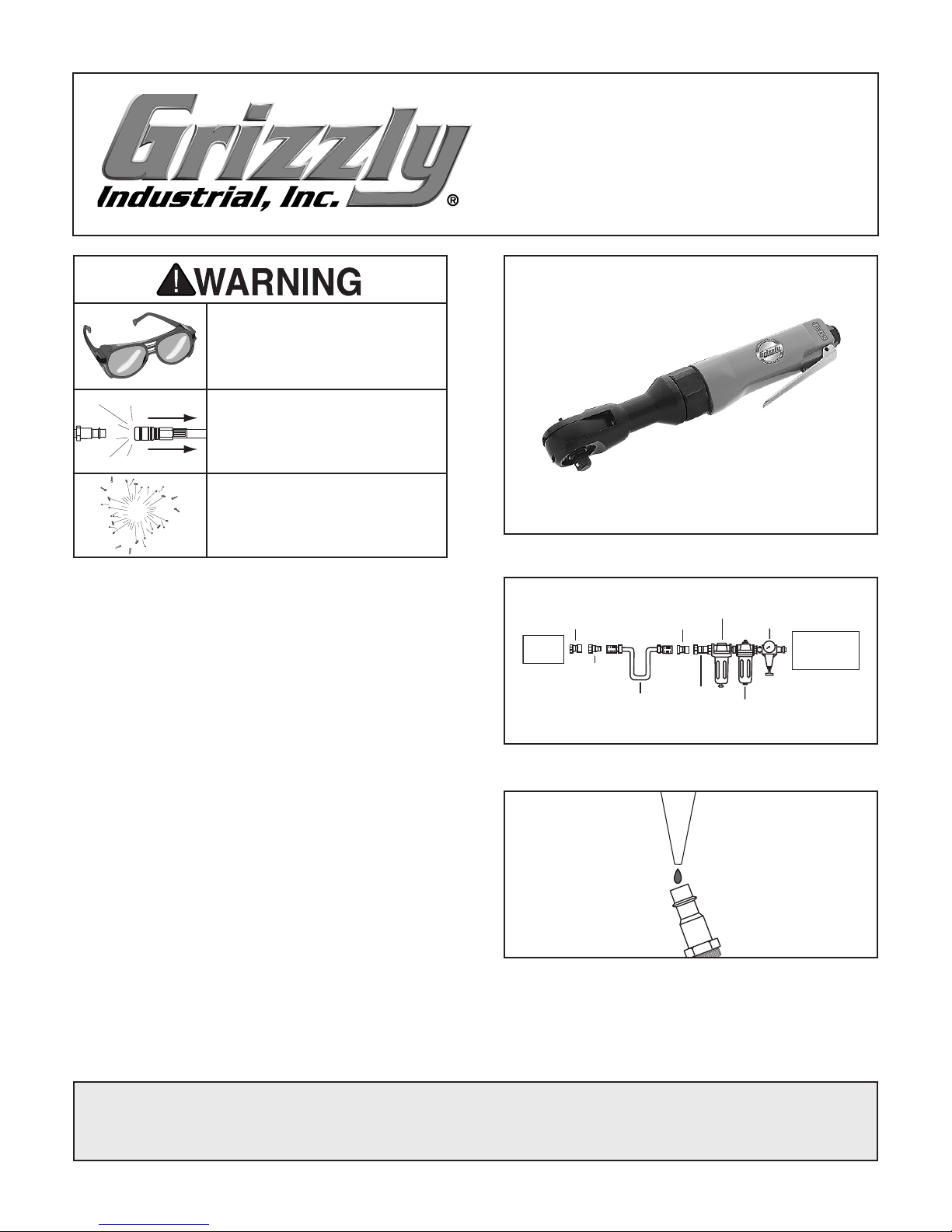

MODEL G5350

1⁄2" AIR RATCHET

INSTRUCTION SHEET

Figure 1. Model G5350.

Figure 3. Lubricating directly into air fitting.

If you need help with your new pneumatic tool,

call our Tech Support at: (570) 546-9663.

WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE

OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.

#PC8048 PRINTED IN TAIWAN

EYE INJURY HAZARD!

Always wear safety glasses

during use to prevent

serious personal injury!

INJURY HAZARD!

Always disconnect tool from

air to prevent unexpected

operation during service!

EXPLOSION HAZARD!

Never exceed 120 PSI!

Quick

Connector

Quick

Coupler

Air Hose Quick

Coupler

Quick

Connector

Lubricator

Filter

Regulator

Air

Compressor

Your

Tool

Figure 2. Installing your tool.

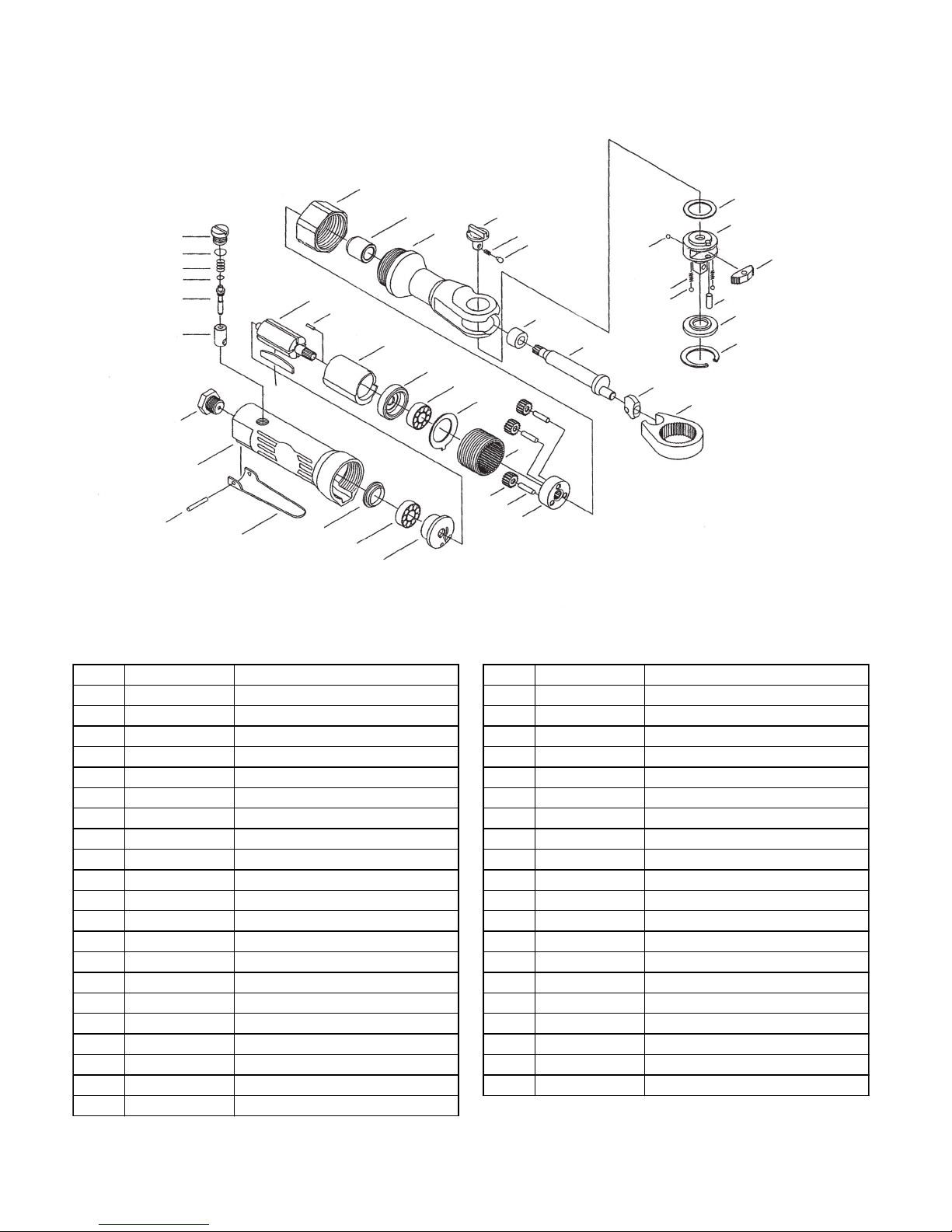

G5350 Parts Breakdown and List

























 



































 





















REF PART # DESCRIPTION REF PART # DESCRIPTION

1 P5350001 HOUSING 23 P5350023 IDLER GEAR

2 P5350002 AIR INLET 24 P5350024 IDLER GEAR PIN

3 P5350003 THROTTLE LEVER 25 P5350025 IDLER GEAR PLATE

4 P5350004 ROLL PIN 26 P5350026 CLAMP NUT

5 P5350005 VALVE BUSHING 27 P5350027 BUSHING

6 P5350006 VALVE STEM 28 P5350028 BEARING

7 P5350007 O-RING 29 P5350029 CRANK SHAFT

8 P5350008 SPRING 30 P5350030 DRIVE BUSHING

9 P5350009 O-RING 31 P5350031 RATCHET YOKE

10 P5350010 VALVE PLUG 32 P5350032 RATCHET ANVIL

11 P5350011 END PLATE CAP 33 P5350033 SPRING

12 P5350012 REAR BEARING 34 P5350034 STEEL BALL

13 P5350013 REAR PLATE 35 P5350035 PAWL

14 P5350014 ROTOR 36 P5350036 PIN

15 P5350015 ROTOR BLADE 37 P5350037 WASHER

16 P5350016 CYLINDER 38 P5350038 THRUST WASHER

17 P5350017 CYLINDER PIN 39 P5350039 RETAINER RING

18 P5350018 FRONT PLATE 40 P5350040 REVERSE BUTTON

19 P5350019 FRONT BEARING 41 P5350041 SPRING

20 P5350020 WASHER 42 P5350042 LOCK PIN

21 P5350021 THREAD RING GEAR 43 P5350043 STEEL BALL

22 P5350022 RATCHET HOUSING
