Gree KY-26 User manual

USER MANUAL

KY-26 KYD-26

KY-32 KYD-32

KY-44 KYD-44

PORTABLE AIR-CONDITIONER

Thank you for selecting super quality air conditioner. Please be sure to read

this manual carefully before using it. Any question, please contact the

professional service for help.

CONTENTS

CONTENTS ................................................................................................................... 1

IMPORTANT SAFEGUARDS................................................................................. 2

FEATURES AND PARTS LIST .............................................................................. 4

PANEL CONTROL...................................................................................................... 5

REMOTE CONTROL ................................................................................................. 6

OPERATION METHODS.......................................................................................... 7

INSTALLATION............................................................................................................ 8

WATER DRAINGE METHODS ............................................................................10

MAINTENANCE.........................................................................................................11

TROUBLE SHOOTING ...........................................................................................12

INSTALLATION ACCESSORIES ........................................................................13

APPENDIX...................................................................................................................14

IMPORTANT SAFEGUARDS

Important Safeguards.

•Read all instructions.

•Disconnect the power plug before dismantling, assembling or before

cleaning.

•Avoid touching mobile parts of the appliance.

•Never insert fingers, pencils or any other objects though the guards whenever

the power plug is connected, especially while running.

•The appliance is not intended for use by young children or infirm persons

unless they have been adequately supervised by a responsible person to

ensure that they can use the unit safely.

•Young children should be supervised to ensure that they do not play with the

appliance.

•Do not use the appliance for any other purpose than its intended use.

•The appliance must not be used if the guards are not fastened according to

instructions.

•When the power cord is damaged, it must be replaced by the manufacturer or

its service agent or a similarly qualified person in order to avoid a hazard.

•Do not use your appliance with an extension cord unless it has been checked

and tested by a qualified electrician or electrical supplier.

•Return to Hagemeyer or authorised service agent.

•The air conditioning unit must always be stored and transported upright,

otherwise you may cause irreparable damage to the compressor; in

case of doubt we suggest to wait for at least 24 hours before you start

the air-conditioning unit.

•Avoid restarting the air conditioning unit unless 4 minutes have passed since

being turned off, or the compressor may get damaged.

•Never use the mains plug as a switch to start and turn off the air conditioning

unit. Use the provided ON/OFF switch located on the control panel.

•Always place the portable air conditioner on a dry stable surface.

Energy Saving Tips.

•Do not cover or restrict the airflow from the Outlet or Inlet grills.

•The minimum distance from furniture and wall should be 50cm.

•Keep blinds and /or draperies, on any windows, closed during the sunniest

part of the day.

•Keep the filters clean. Under normal conditions, the filters should be

cleaned approximately every 30 days. Since the filters remove airborne

particles, more frequent cleaning maybe necessary, depending on the

indoor air quality.

•Set the fan speed switch to high cool and the thermostat to the coolest

position for the initial start-up, then set the Fan switch to Low cool and

lower the thermostat to a comfortable setting.

FEATURES AND PARTS LIST

Features:

·No installation is required.

·Easily moved . The handle makes moving more convenient.

·Streamline colorful screen display .

·LED colorful screen display.

·Water-cooled mode is most energy saving and environment protect.

·Low noise and strong wind .

·Unique economic function.

·Auto swing makes wind blow from left to right automatically.

·Three-minute restart delay to protect compressor.

Parts list:

1. control panel

2. horizontal louver

3. vertical louver

4. air inlet grille

5. castor

6. exhaust duct

7. handle

8. air outlet grille

9. power cord and plug

10.water injection port

11.power and hook

12.air filter

PANEL CONTROL

CAUTIONS:

If the unit is turned off in cool /dry/ heat mode and restarted

immediately , then it will wait at least 3minutes before running again.

1. Buttons

Timer: press this button to set the timer

Swing: press this button to make the vertical louver swing automatically.

Press once again, the swing will stop.

Speed: press this button for 5 seconds to select high, middle or low fan

Speed.

Up/down: press up or down button to set temperature or adjust the time in

Timer mode. Press both buttons to vary from Celsius to Fahrenheit.

Mode: press this button to select cool, heat, dry or fan mode (heat mode

only in YPC-H models).

Econ: press this button to a set energy saving mode (only in heat and cool

mode). This set temperature is 27℃in cool mode and 23℃in heat

mode . The fan speed is low. These data can’t be changed. The LED

display will flash or accordingly. Press again to cancel it when

or is flashing.

Power: press this button to turn on/off the unit.

2. LED display

Timer indicator

Dry, cool, fan and heat mode indicator (no in YPC-C models)

High, middle and low fan speed indicator

Water Full indicator

Water Injection indicator

IR receiver window

Indicate the time and temperature. Display EX (X=2,3,5) when

there is something wrong (refer to Self diagnosis function).

Display E4 when coil is defrosted.

Celsius degree and Fahrenheit degree indicator.

REMOTE CONTROL

Power Press this button to turn/off the unit.

Timer Press this button to set the timer.

Swing Press this button to make the vertical

louver swing automatically

Vary from Celsius degree to Fahrenheit

degree.

Cool Press this button to choose Cool mode.

Heat Press this button to choose Heat mode.

Dry Press this button to choose Dry mode.

Fan Press this button to choose Fan mode.

Up Press Up or Down button to set temperature

Down or adjust the time in Timer mode.

High Press this button to select high fan speed.

Med Press this button to select middle fan speed.

Low Press this button to select low fan speed.

Econ Press this button to a set energy saving mode only in Cool and

Heat mode. The set temperature is 27℃in cool mode and 23

℃heat mode The fan speed is low. These data can’t be

changed.

NOTE:

To vary from Celsius to Fahrenheit by control panel, press both Up

and Down button at least 2 seconds.

OPERATION METHODS

Timer set

1.Set timer-off

Press the Timer button when the unit is on. The LED will flash_ _five

Times. During this period press Up or Down button to adjust set time from

0.5h to 24h. It will vary 0.5h each time in 3h and 1h each time hereafter. The

set time will flash 5 times after adjusting. When it will display temperature

again. Once the set time end, the unit will turn off automatically.

2. Change the set time

When Timer is on, you can check remnant time by pressing Timer button. It

will flash 5 times. Press Up or Down button to adjust set time. The set time

can also be cancelled if you press the Timer button once again during the

flashing time

3.Set timer-on

Press the Timer button when the unit is off. Same as timer-off set. Once the

set time end, the unit will turn on automatically.

Cooling/Heating and Dehumidifying operation

1.Cooling/Heating operation

Press Mode button or / to choose Cool/heat mode.

Press Up or Down button or to set a proper room temperature.

The range is 18~30℃(64-84°F). The temperature will increase or decrease

1℃or 1°F each time.

Press Speed button or to choose a proper fan speed.

Press Swing button or to adjust the direction of vertical louver.

Adjust horizontal louver by hand.

2.Dehumidifying operation

Press Mode button or to choose Dry mode. The fan speed is Low,

LED displays room temperature. These cannot be adjusted.

NOTE:

1. In cool mode, when the water Injection indicates lights, you can inject

some water through the injection port before cooling operation (no

longer than High level).

2. You should drain water with the drainpipe in heat and dehumidifying

mode. The unit will stop work when water level exceeds the high level.

3. Do not use air exhaust duct when in Dry or Fan modes

4. If your room is directly exposed to the sun, draw the curtains please.

INSTALLATION

1.Selection of Installation Place

Install the unit on a flat and dry place.

Leave at least 50cm space around the

unit(when the hose is not connected).

(Fig.5)

2.AIR Exhaust Duct Mounting Method

1) Fix the square end of the exhaust dust to

the exhaust terminal of the unit.

2) Put the other end (discharge) to the

nearest window. Leave at least 50cm

place around it.

NOTE:

The length of the air exhaust duct is between

600cm to 1700cm or 1800cm (adapters included).

We suggest using the minimum length of the air

exhaust dust. That can save energy for you.

This length has been designed especially according to the

specifications of the air conditioner .Do not use an extension or

exchange of a different hose as that may lead to malfunction.

3. Window Kit Installation

The window kit has been designed to fit most standard vertical and horizontal

windows. However, it may be necessary for you to modify some aspects of the

installation procedures for certain types of windows. Please refer to the

illustrations. (Fig.7 and Fig.8)

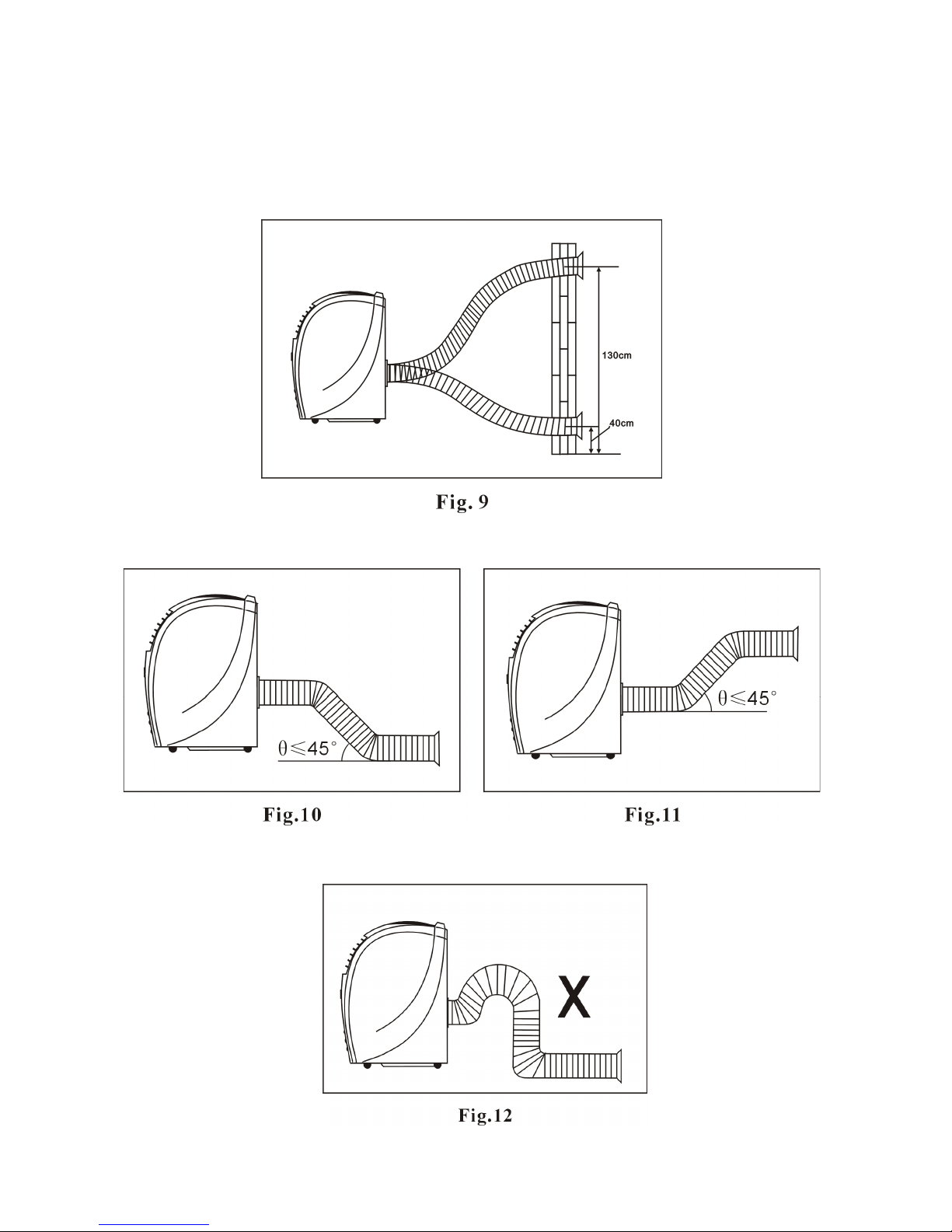

4.Mounting illustrations

1.mounting in the wall

2.correct bending

3.wrong bending

This manual suits for next models
