Gree GPC07AJ-A3NNA1A User manual

Change for life

AIR CONDITIONER

Owner's Manual

Original Instructions

Model: GPC07AJ-A3NNA1A

GPH07AJ-A3NNA1A

Thank you for choosing our product.

Please read this Owner’s Manual carefully before operation and

retain it for future reference.

If you have lost the Owner's Manual, please contact the local agent

or visit www.gree.com or send an email to global@gree.com.cn for

the electronic version.

Portable room air conditioner

SUMMARY ..........................................................................................3

WORKING PRINCIPLE.......................................................................3

STRUCTURE..........................................................................................4

OPERATING METHODS................................................................5--7

NAMES AND FUNCTIONS OF THE REMOTE CONTROLLER

...8--9

OPERATION OF THE REMOTE CONTROLLER .....................10--12

ACCESSORIES AND INSTALLATION OF HEAT EXHAUST HOSE

....................................................................................................16--17

ELECTRIC SCHEMATIC DIAGRAM............................................... 29

CARE AND MAINTENANCE ................................................... 28--29

TROUBLESHOOTING .................................................................... 30

USER NOTICES.............................................................................. 31

AFTER SALES SERVICE................................................................ 32

INSTALLATION INSTRUCTIONS .......................................... 18--26

INSTALLATION OF DRAINAGE HOSE .......................................... 27

OPERATION ENVIRONMENT............................................................1

SAFETY WARNING ............................................................................2

MALFUNCTION ANALYSIS .......................................................13

--15

Content

Explanation of Symbols

Indicates a hazardous situation that, if not avoided, will

result in death or serious injury.

Indicates a hazardous situation that, if not avoided, could

result in death or serious injury.

Indicates a hazardous situation that, if not avoided, may

result in minor or moderate injury.

Indicates important but not hazard-related information,

used to indicate risk of property damage.

Indicates a hazard that would be assigned a signal word

WARNING or CAUTION.

WARNING

CAUTION

DANGER

N OTIC E

Operation Environment

● This air conditioner can only be used for family, not for

commercial industry.

● The appliance is for indoor use only.

● The appliance must be positioned so that the plug is accessible.

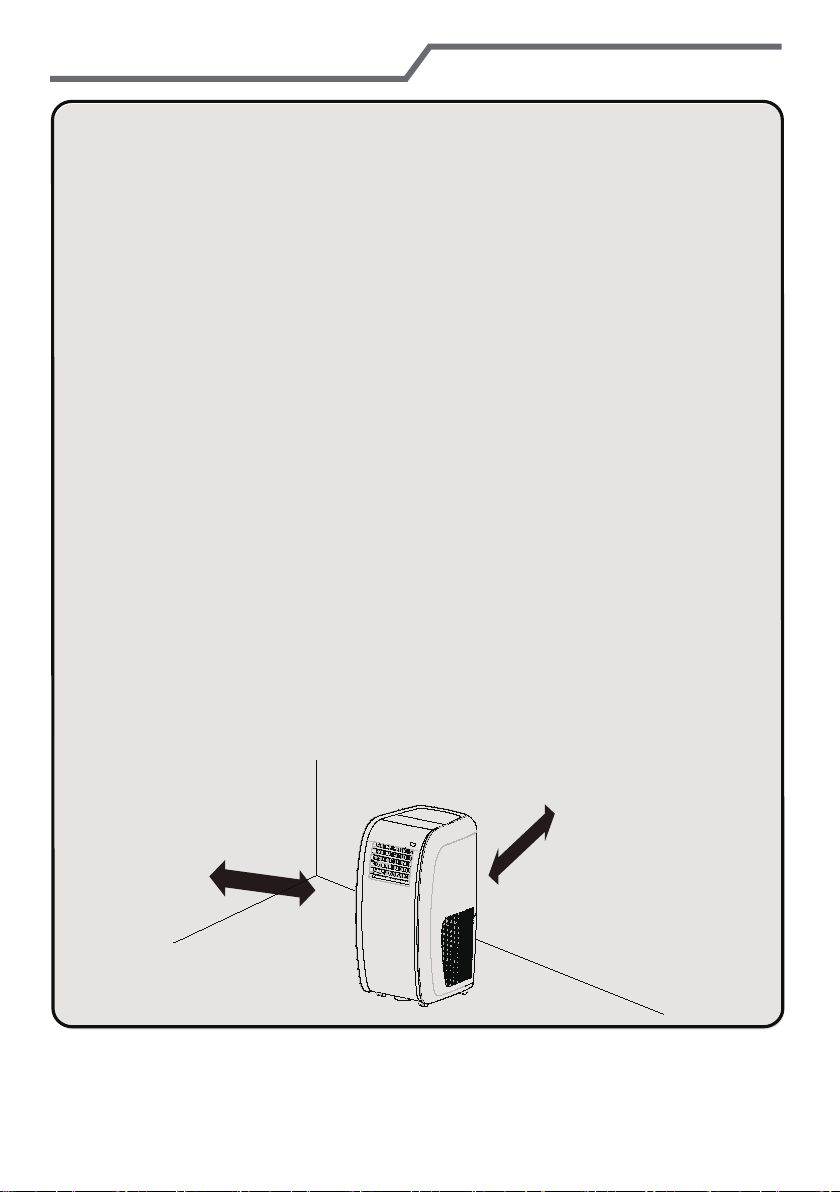

● Reserved space around the air conditioner should be 12″(30cm)

at least.

● Do not operate the air conditioner at humid environment.

● During operation, close doors and windows to improve cooling effect.

● Please keep air inlet and air outlet clean, no obstacles.

to avoid noise and vibration.

● Please put the air conditioner at smooth and flat ground for operation

● This air conditioner is equipped with castors. Castors should slide

at smooth and flat ground.

● Prohibit inclining or turning over the air conditioner. If there’s abnor-

mity,please disconnect power immediately and contact dealer.

● Avoid direct sunshine.

-1-

12″(30cm)

min.

12″(30cm)

min.

●

The working range of COOL mode and DRY mode: 16 ℃ (61°F)-35℃

(95°F).

●

The Max Heating operation temperature for the air conditioner is:

DB/WB 27℃

(80.6°F)/ --.

●

The Max Cooling operation temperature for the air conditioner is:

DB/WB 35℃ (95°F)/24℃ (75.2°F).

●

The working range of HEAT mode: 10℃ (50°F)-27℃ (80.6°F).

Safety Warning

● Before operation, please confirm whether power specification

● Before cleaning or maintaining the air conditioner, please turn off

air conditioner and pull out the power plug.

in order to avoid a hazard.

manufacturer or professional person.

complies with that on nameplate.

● Please use the grounded power. Make sure the gounding is reliable.

● If the supply cord is damaged, it must be replaced by the

manufacturer or its service agent or a similarly qualified person

● Do not insert or pull out the power plug with wet hands.

disconnect power at once and then contact local dealer.

● If abnormal condition occurs (e.g. burned smell), please

● If the power cord is damaged, it must be replaced by

● When nobody is taking care of the unit, please turn it off and

remove the power plug or disconnect power.

● Do not splash or pour water on air conditioner. Otherwise, it may

cause short circuit or damage to air conditioner.

portable room air conditioner without supervision.

●

If drainage hose is used, ambient temperature can't be lower than

0.Otherwise, it will cause water leakage to air conditioner.

● Prohibit inserting any objects into the air conditioner.

● Do not use an extension cord.

● Do not repair or disassemble the air conditioner by yourself.

● Do not put or hang dripping objects above the air conditioner.

● Keep children from playing or climbing on the air conditioner.

● Children and disabled people are not allowed to use the

● Far away from fire source, inflammable and explosive objects.

● Prohibit operating heating equipment around the air conditioner.

● Make sure the power cord hasn’t been pressed by hard objects.

● Do not pull or drag the power cord to pull out the power plug or

move the air conditioner.

● This appliance can be used by children aged from 8 years and

above and persons with reduced physical,sensory or mental

capabilities or lack of experience and knowledge if they have

been given supervision or instruction concerning use of the

appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.Cleaning and user

maintenance shall not be made by children without supervision.

-2-

-3-

This PORTABLE AIR CONDITIONER is a small, movable air conditioner. It possessed the functions

of COOL, HEAT,DRY and the Separate Ventilation, and depends on different places, it can be moved

convenient for moving, energy saving, and with low noise.

Note: Please read this manual carefully before operating the unit, the manual is used for reference,

and the technical parameters are subject to change without notice.

as will.It is fit for home and office use, especially fit for the house with many rooms. With the compact

configuration, excellent workmanship, elegant appearance, it looks like a standing Benz car. It is

Summary

Working principle

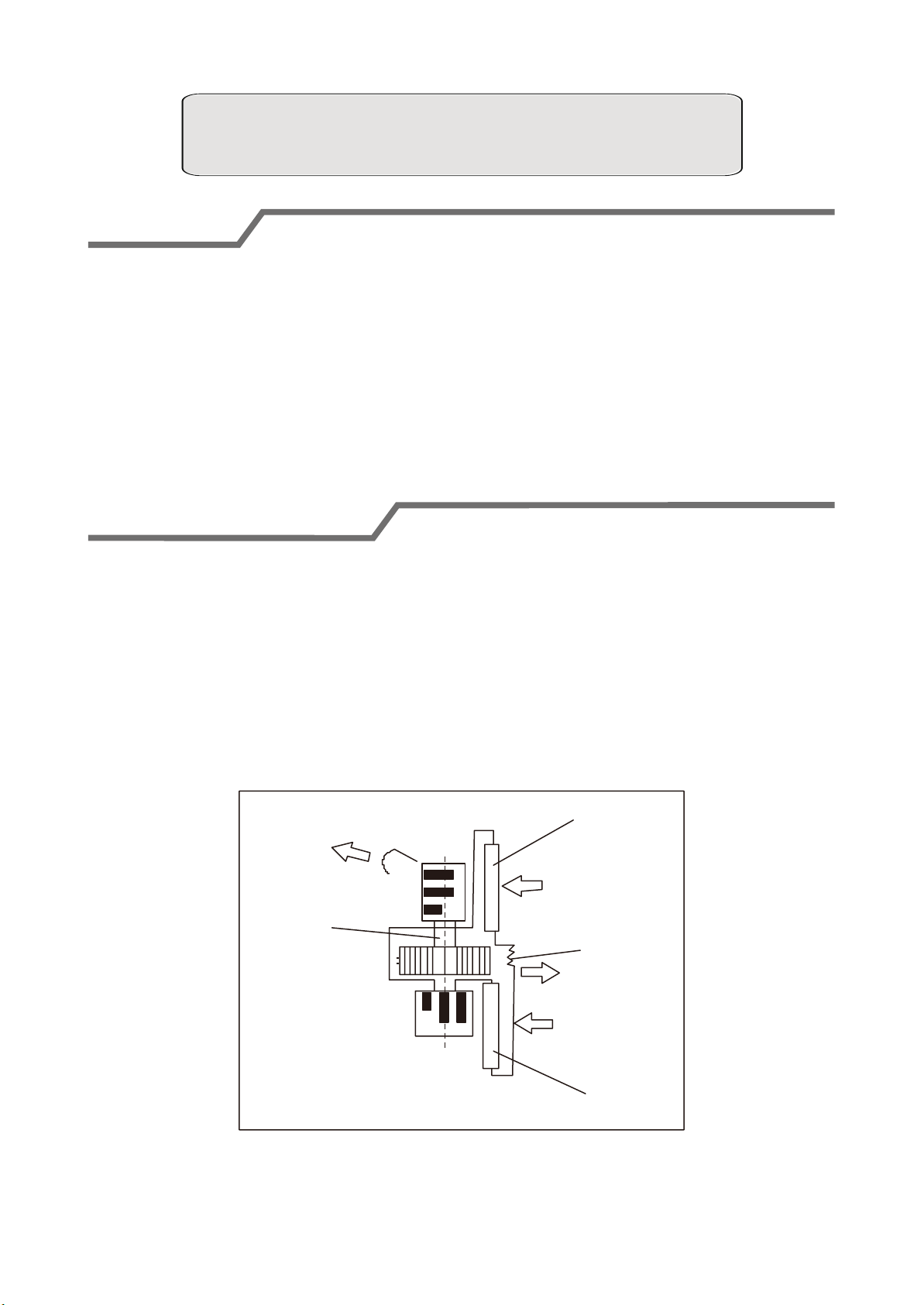

With the help of upper motor, the airflow of indoor pass through the evaporator becomes the

cooled wind, but with the help of lower motor, the airflow of indoor pass through the condenser

becomes the heated wind. There is two duct systems designed in its structure. The heated wind is

discharged by the rear outlet, the cooled wind is discharged by the front outlet, flow-guided by the

louver, and it brings the gentle cooling airflow, and the low temperature environment is maintained.

evaporator

fluel

capillary

flue2

condenser

cool air

fan motor

heat air

The Working Principle

● The fuse style:T3.15AH250V;Allowed maximal current pass

throught the fuse can not above 3.15A.

-4-

Front

Rear

Remote control

receptor

Air outlet

Handle

Upper air inlet grille

Heat air exhaust vent

Power cord

Lower air inlet grille

Display Board

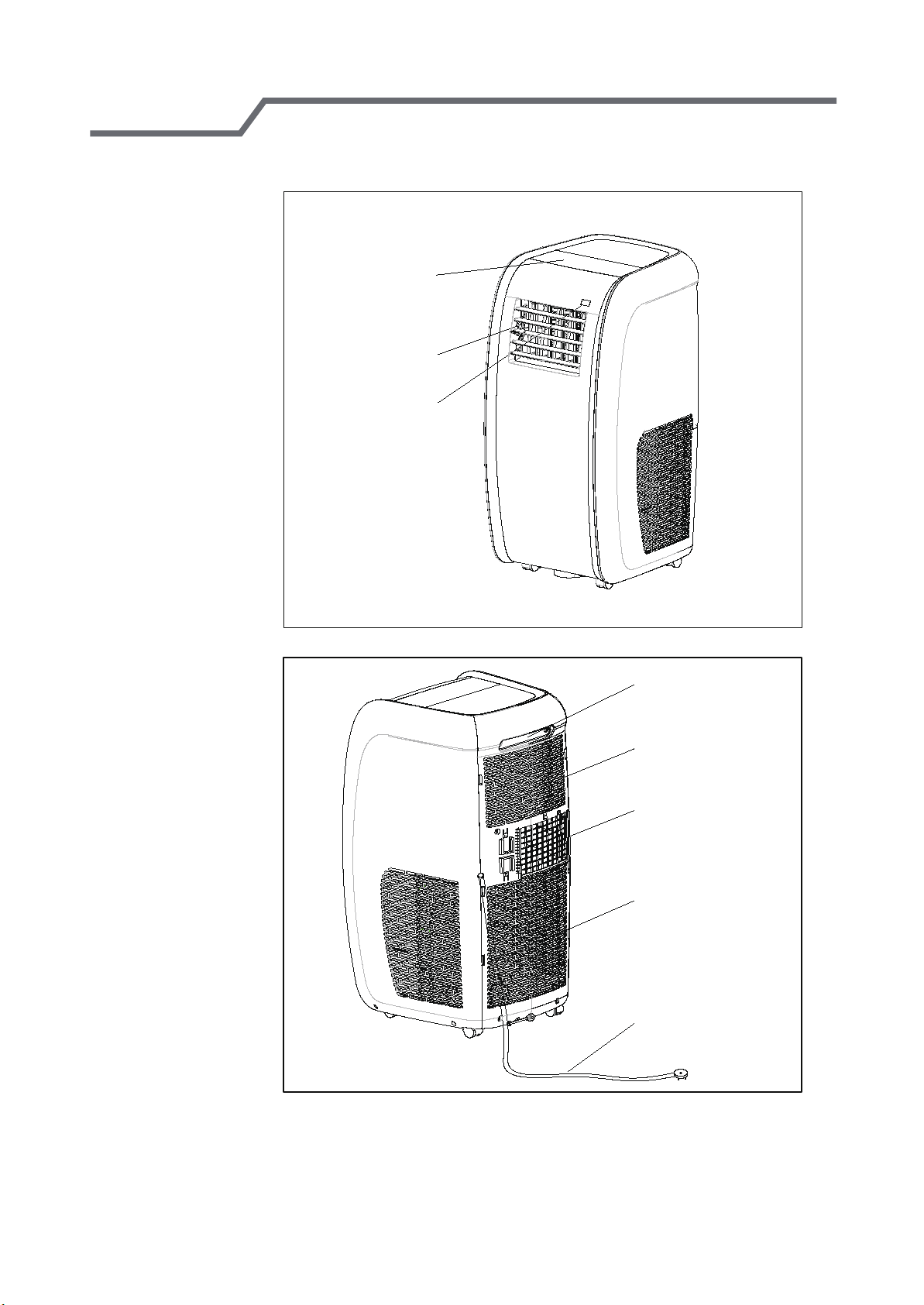

Structure

Power must adopt the rated voltage and special circuit for AC. And diameter of power cord should

-5-

Electrical Requirements

death, fire, or electrical shock.

WARNING

Electrical Shock Hazard

Plug into a grounded 3-prong outlet.

Failure to follow these instructions can result in

Do not use an extension cord.

Do not use an adapter.

Do not remove ground prong.

Time-delay fuse or time-delay circuit breaker is recommended to be used.

All wiring must comply with local and national electrical codes and should be installed by a qualified

electrician. If you have any questions, contact a qualified electrician.

※. USAGE NOTICE

The wiring must be operated by the professional personnel by following the national regulation.

enough capacity in fixed circuit. Don't connect earth wire to water pipe or gas pipe. When the air

conditioner is not used, please pull out the power plug or cut off power supply.

There must be electric leakage protect switch and magnetic and heat drop-off air switch that with

Including an air switch with suitable capacity, please note the following table. Air switch should be

15A

Air switch capacityAir-conditioner (W)

included magnet buckle and heating buckle function, it can protect the circuit-short and overload.

(Caution: please do not use the fuse only for protect the circuit)

be big enough.

GPC07AJ-A3NNA1A

GPH07AJ-A3NNA1A

Operating methods

-6-

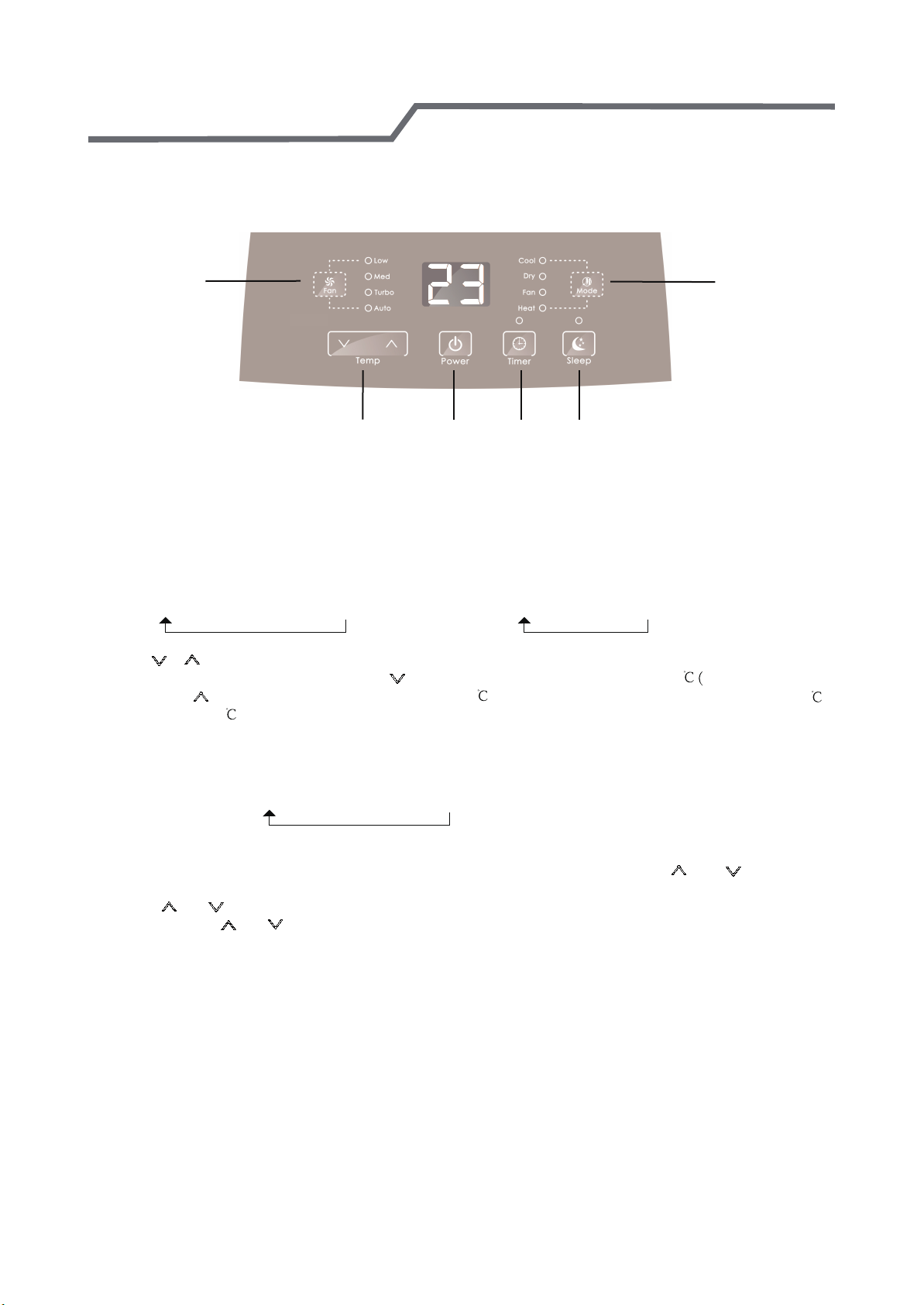

Names and Functions Remote Controller

1.Power:

Press once to start and press once more to stop the unit.

2.Mode:

Press this button to change the operation mode in order of:

COOL → DRY → FAN →HEAT

GPC07AJ-A3NNA1A:

COOL → DRY → FAN

3." " " " :

Press" " once, the temperature will increase 1 (°F). The temperature can be selected from 16

(61°F) ~ 30 (86°F)

4.Fan:

Press this button to change the operation fan in order of:

5. Timer:

button to adjust the timer setting. Timer setting will increase or decrease 0.5 hour by pressing

temperature if there’s no operation for 5s. If timer function is started up, the upper indicator will

keep the display status. Others, it won’t be displayed. Under timer mode, press timer button again

to cancel timer mode.

6. Sleep:

Press sleep button to enter into sleep mode. If the controller operates at cooling mode,

after sleep mode is started up, preset temperature will increase by 2℃within 2 hours and then

the unit will operate at this temperature all the time; While, if the controller operates at heating mode,

after sleep mode is started up, preset temperature will decrease by 2℃within 2 hours and then the

unit will operates at this temperature all the time. Sleep function is nor available for fan mode, drying

mode and auto mode. If sleep function is started up, the upper indicator will keep the display status.

Others, it won’t be displayed.

Control panel and the function

In "COOL" or "HEAT" mode, press" " once, the temperature will decrease 1 °F).

Press timer button to enter into timer setting mode. Under this mode, press " " or " "

" "or" " button within 10 hours, while timer setting will increase or decrease 1 hour by

pressing " "or" " button beyond 10 hours. After timer setting is finished, the unit will display

Operating methods

GPH07AJ-A3NNA1A:

LOW→MED→TURBO→AUTO

1). To select a place near the door and window, install the exhaust duct.

2). Press "MODE" key to select "COOL" mode.

Please close the door and window, in order to obtain the better dehumidifying effect:

Press "MODE" key, select the "DRY" mode, the unit will run in the "DRY" mode, at

the same time, the upper motor is running at the low speed, it is not adjustable.

COOL mode

1). Press “MODE” key to select “HEAT” mode.

HEAT mode

(not for only

cooling unit )

DRY mode

When the unit runs in FAN mode, it can select 3 speeds.

FAN mode

-7-

2). Press" "or " " key to set the suitable temp.16 ( 61°F ) 30 (86°F).

3). Press" "or " " key to set the suitable temp.16 ( 61°F ) 30 (86°F).

Operating methods

This manual suits for next models

Table of contents

Other Gree Air Conditioner manuals

Gree

Gree GWH07AAA-K3NNA1A User manual

Gree

Gree GWH12RB-K3DNA5G User manual

Gree

Gree GSY09BXAE User manual

Gree

Gree SAP18HP230V1AH Manual

Gree

Gree GWH09UB-D3DNA1A User manual

Gree

Gree GMV-ND Series User manual

Gree

Gree GWC09QB-K3DNB2B User manual

Gree

Gree GMV-ND72PH/A-T(U) User manual

Gree

Gree GSAF209XAE User manual

Gree

Gree GEH09AA-K6DNA1F User manual

Gree

Gree Sapphire SAP18HP230V1A User manual

Gree

Gree NEO09HP230V1AH User manual

Gree

Gree GWC18KG-K3DNA5A User manual

Gree

Gree Cozy User manual

Gree

Gree GMV-ND28TD/A-T User manual

Gree

Gree GWH12KF-A3DNB1A Manual

Gree

Gree GEH09AA-K6DNA1F/I User manual

Gree

Gree VIREO+ VIR12HP230V1B User manual

Gree

Gree GWH18AAD-K6DNA1A/I User manual

Gree

Gree GPC08AI-K3NNC6A User manual

Gree

Gree GUD50T/B-S User manual

Gree

Gree NEO09HP115V1A User manual

Gree

Gree VIREO+ VIR18HP230V1B User manual

Gree

Gree GMV-VDR5PH/SA-S User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual
