Gree FP-34WM-D User manual

Change for life

Floor Ceiling Tpye Fan Coil Unit

Commercial or Household Air Conditioners

Owner's Manual(Original lnstructions)

Models:

FP-34WM-D

FP-51WM-D

FP-68WM-D

FP-85WM-D

FP-102WM-D

FP-136WM-D

FP-170WM-D

FP-204WM-D

FP-102WM-K(BMS)

FP-34ZD-K

FP-51ZD-K

FP-68ZD-K

FP-85ZD-K

FP-102ZD-K

FP-136ZD-K

FP-170ZD-K

FP-204ZD-K

FP-136WM-K(BMS)

Thank you for choosing commercial air conditioners.

Please read this Owner’s Manual carefully before operation and retain it for future reference.

If you have lost the Owner's Manual, please contact the local agent or visit www.gree.com

or send an email to [email protected] for the electronic version.

User Notice

This appliance is intended to be used by expert or trained users in shops, in light industry and on

farms, or for commercial or household use by lay persons.

Installing the unit in the following places may cause malfunction. If it is unavoidable,please consult

the local dealer:

①

The place with strong heat sources,vapors, ammable or explosive gas,or volatile objects spread

in the air.

②

The place with high-frequency devices (such as welding machine,medical equipment).

③

The place near coast area.

④

The place with oil or fumes in the air.

⑤

The place with sulfureted gas.

⑥

Other places with special circumstances.

⑦

Do not use the unit in the immediate surroundings of a laundry, a bath, a shower or a swimming

pool.

DISPOSAL: This marking indicates that this product should not be disposed with

other household wastes throughout the EU. To prevent possible harm to the environment

or human health from uncontrolled waste disposal, recycle it responsibly to promote

the sustainable reuse of material resources. To return your used device, please use the

return and collection systems or contact the retailer where the product was purchased.

They can take this product for environmental safe recycling.

This appliance can be used by children aged from 8 years and above and

persons with reduced physical, sensory or mental capabilities or lack of

experience and knowledge if they have been given supervision or instruction

concerning use of the appliance in a safe way and understand the hazards

involved.Children shall not play with the appliance. Cleaning and user

maintenance shall not be made by children without supervision.

Contents

1 Operation Range .....................................................................................1

2 Notices for operation .............................................................................1

3 Operating Guide ......................................................................................1

4 Trouble Shooting .....................................................................................4

5 Installation ...............................................................................................4

5.1 Dimension ................................................................................................... 4

5.2 Selection of Installation location.................................................................. 5

5.3 There are two types of installation .............................................................. 5

5.4 Electrical wiring ........................................................................................... 7

6 Drain Piping Work....................................................................................8

7 Motorized valve .......................................................................................9

7.1 Installation................................................................................................... 9

7.2 Electric wiring .......................................................................................... 10

8 Evaluation of the Performance ..............................................................10

9 Check after Installation.......................................................................... 11

Floor Ceiling Tpye Fan Coil Unit

1 Operation Range

(1) The operation pressure of the unit is no more than 1.6MPa. The entering water temperature

for cooling shall be lower than 5°C, otherwise condensate would be caused on the unit. The

entering water temperature for heating shall be not more than 70°C (normally 60°C), otherwise

the cupper tube of the heat exchanger would be corroded.

(2) The ambient temperature range for cooling is 16-40°C and 10-35°C for heating. The relative

humidity is equal or less than 95%.

(3) It is a kind of comfort air conditioning unit, not applicable to be used under the locations with

special requirements on corrosive, inammable gas or heavy smog (like, kitchen), otherwise,

the unit would fail to run properly or its service life would be shortened.

2 Notices for operation

(1) This appliance is not intended for use by persons (including children) with reduced physical,

sensory or mental capabilities, or lack of experience and knowledge, unless they have been

given supervision or instruction concerning use of the appliance by a person responsible for

their safety.

(2) Children should be supervised to ensure that they do not play with the appliance.

(3) If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a

similarly qualied person in order to avoid a hazard.

(4) An all-pole disconnection switch having a contact separation of at least 3mm in all poles should

be connected in xed wiring.

(5) The appliance shall be installed in accordance with national wiring regulations.

3 Operating Guide

Only professional personnel could clean or replace the lter.

Before cleaning lter, the power must be cut off and wait until fan motor stops.

●Remove the air filter, clean it by a vacumm

cleaner or if it is very dirty,wash it soap water,

then wipe off unit it is completely dry before

reinstalltion.

●Clean the air conditioner and the remote

control with dry cloth or a vacuum cleaner. If

damp cloth is used, remove moisture by using

cloth afterward.

Floor Ceiling Tpye Fan Coil Unit

●The expected temperature should be set at a

moderate level to avoid of unnecessary energy

consumption.

●Air ow direction will be changed by adjusting

the louvers and flaps as shown, accordingly

the air should be able to blow all over the

room.

●Clean the air filter every week for higher

efciency by professional.

●Close the window and door while operating

the unit for saving energy.

●Cover windows with a blind or a curtain to

prevent heat source from sunlight when the

unit is cooling, which helps to reduce energy

consumption.

●In case of ineffective ventilation, open the

window to ventilate room air occasionally,

meanwhile, close the window timely for saving

energy.

Floor Ceiling Tpye Fan Coil Unit

Precautions

●If electric shock suddenly happens, turn off

the unit. If the unit is not to be used for a long

period, cut off the main power supply.

●Check electrical system (voltage and

frequency). Use proper power supply indicated

on the unit to operate the air conditioner and

only fuses wuth specied capacity, Do not use

pieces of wire instead of fuse.

●Do not insert objects into the air inlet or outlet

when the air conditioner is running as it may

cause damage or personal injury. Also pay

special attention when children are around.

●Do not place any obstacles around the

indoor and outdoor unit to avoid of inefficient

performance or malfunction.

●Never expose infants, aged persons or

patients directly to the air ow.

●Do not locate a heater or any other heat

source close to the unit. The heat may deform

plastic parts.

Floor Ceiling Tpye Fan Coil Unit

4 Trouble Shooting

(1) Check the following before contacting the service man. You may find the solution to your

problems.

(2) After checking, if it still does not operate, please contact your local dealer.

Problem Causes

No operation

Check if electrical wire is damaged & check if break or switch is still on.

Check if the power supply is in order.

Check if the timer switch is on or not.

The air conditioner runs but

does not cool enough.

Check if the preset temperature is too high.

Check if the sunlight shiner directly into the room.

Check if the door and window are operates.

Check if the there is anything obstructing the air discharge.

Check if the exhaust fan still operates.

Check if the air lter is dirty or clogged.

Vapor or mist fume coming out

of the unit while running. Hot air in the room mixes with cool air. This causes smoke fume.

Inoperative remote control.

Loosened or disconnected wire between the unit and the display.

Check if the batteries are inserted in correct directions.

Check if the batteries are exhausted or not.

5 Installation

5.1 Dimension

4- Ø16

G(water inlet pipe G3/4")

H(water outlet pipeG3/4")

(160)

Mounting Hole

Unit: mm.

TYPE TYPE A B C D E F G H

FP-34WM-D FP-34ZD-K 840 238 740 695 260 203 (130) (215)

FP-51WM-D FP-51ZD-K 840 238 740 695 260 203 (130) (215)

FP-68WM-D FP-68ZD-K 840 238 740 695 260 203 (130) (215)

FP-85WM-D FP-85ZD-K 840 238 740 695 260 203 (130) (215)

FP-102WM-D

FP-102WM-K(BMS) FP-102ZD-K 1300 188 1202 600 260 160 (106) (172)

FP-136WM-D

FP-136WM-K(BMS) FP-136ZD-K 1300 188 1202 600 260 160 (106) (172)

FP-170WM-D FP-170ZD-K 1590 238 1491 695 260 203 (97.5) (178.5)

FP-204WM-D FP-204ZD-K 1590 238 1491 695 260 203 (97.5) (178.5)

Note: sizes in the brackets are just for reference.

Floor Ceiling Tpye Fan Coil Unit

5.2 Selection of Installation location

(1) Such a place where cool air can be distributed throughout room.

(2) Such a place where condensation water is easily drained out.

(3) Such a place that can handle the weight of the unit.

(4) Such a place which has easy access for maintenance.

(5) Such a place where is permitting easy connection with the chilling water pipe.

(6) Such a place where is 1m or more away from other electric appliances such as television,

audio device, etc.

(7) Avoid a location where there is heat source, high humidity or inammable gas.

(8) Be sure that the installation conforms to the installation dimension diagram.

(9) The space around the unit is adequate for ventilation(Refer to Fig.2).

(10) The height of the installed location should be 2.3m or more from the oor.

INSTALLATION

PAPER PLANK

150cm or more

60cm or more

100cm or more

30cm or more

60cm or more

Fig.1 Fig.2

5.3 There are two types of installation

♦Ceiling type

♦Floor type

Fig.3

Each type is similar to the other as follows:

(1) Determine the mounting position on ceiling or wall.

(2) Remove the return grill, the side panel, and suspender from

the unit as per procedure below. Press the xing knob of the

return grilles, the grilles will be opened wider and then pull it

out from the unit.

1) Remove the side panel fixing screw and pull to the front

direction(arrow direction) to remove(Refer to Fig.3).

2) Loosen two hanger bracket setting bolts(M8) on each side

for less than 10mm. Remove two hanger bracket fixing

bolts(M6) on the rear side. Detach the hanger bracker by

pulling backward (Refer to Fig.5).

(3) set the suspension bolt (Use W3/8 or M10 size suspension bolts).

Adjust the distance from the unit to the ceiling slab beforehand (Refer to Fig.4).

(4) Fix the hanger bracket to the suspension bolt.

Make sure that extended suspension bolt from the ceiling stays inside the arrowed position.

Readjust the hanger bracket when it is outside the arrowed position (Refer to Fig.6) .

Floor Ceiling Tpye Fan Coil Unit

Suspension bolt stays inside the cap of the unit. Never remove the cap.

(5) Lift the unit and slide forward unit the dent (Refer it Fig.7).

(6) Screw tightly both hanger bracket setting bolts(M8) (Refer to Fig.5).

(7) Screw tightly both hanger bracket xing bolts (M6) to prevent the movement of the unit (Refer

to Fig.5).

(8) Adjust the unit height so that rear side of the drain pipe slightly inclines to improve drainage.

Adjust the height by turning the nut with a spanner.

Insert the spanner from the hanger bracket opening (Refer to Fig.8).

Hanging installation

It is possible to install using inward facing hanger brackets by not removing the brackets from the

indoor init (Refer to.9).

Be sure to use only the specied accessories and parts for installation work.

Ceiling

Suspension bolt

Hanger bracket

setting bolt (M8)

Hanger bracket

Fig.4 Fig.5

Ceiling slab

Hanger bracket

Bolt position

inward

Fig.6 Fig.7

Fig.8 Fig.9

Floor Ceiling Tpye Fan Coil Unit

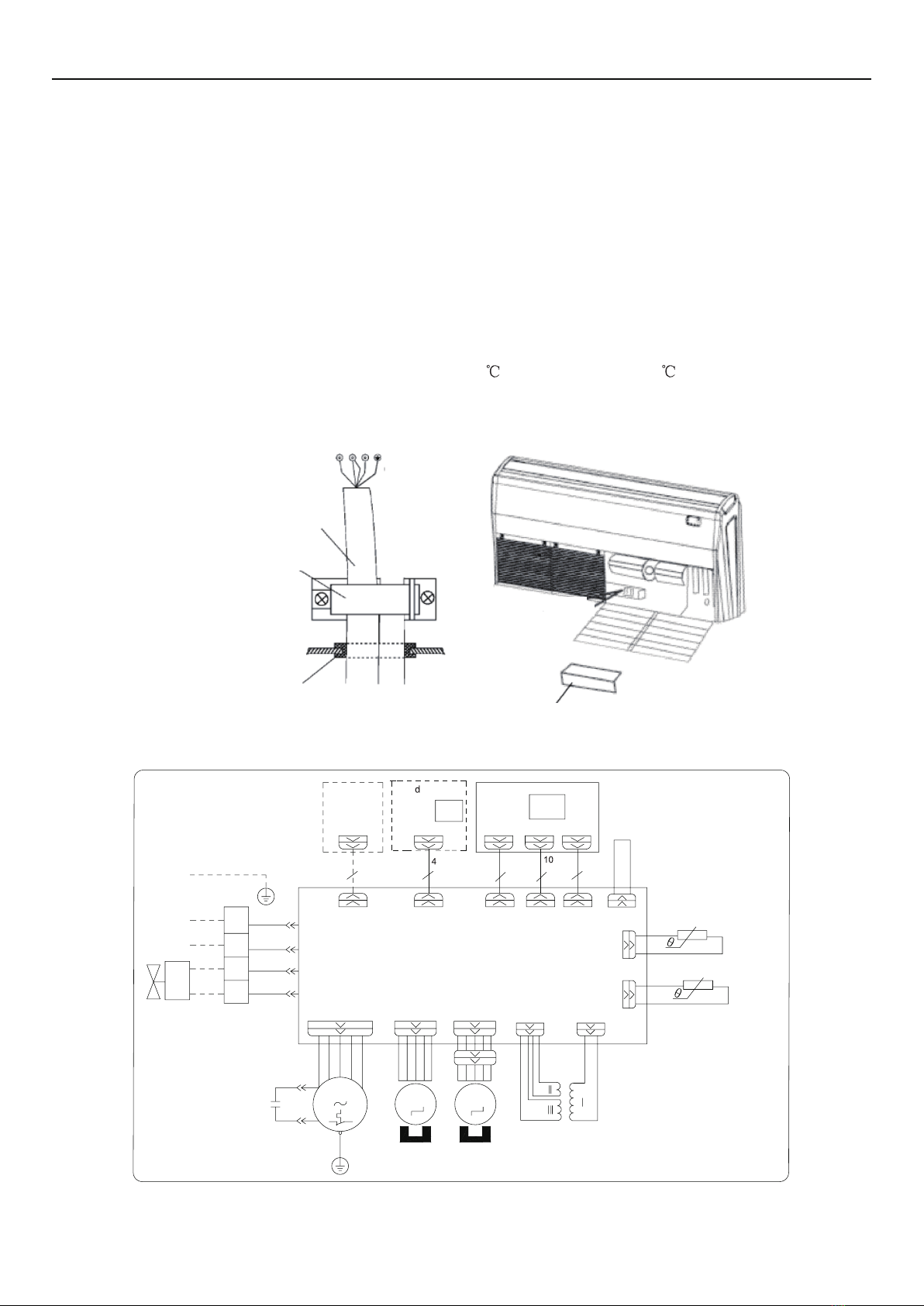

5.4 Electrical wiring

(1) Open the surface panel.

(2) Remove the electrical box cover.

(3) Route the power connection cord from the back of the indoor unit and pull it toward the front

thought the wiring hole for connection.

(4) Connect the wires of the power connection cord and valve connection cord as circuit diagram.

(5) Reassemble the electrical box cover.

(6) Recover the surface panel.

(7) The 3*0.75mm2power cable is recommended for the user. The specifications of the power

cable listed in the table above are applied to the conduit-guarded multi-wire copper cable (like,

YJV XLPE insulated power cable) used at 40 and resistible to 90 (see GB/T 16895.15).

If the working condition changes, they should be modified according to the related national

standard.

Rubber bush

Wiring clamp

Power connection

cord and valve

connection cord

Electrical box cover

Remote

Monitor

Wire

Water

Valve

NOTES:

1.The Remote Monitor system and the

wired controller are the optional acce-

ssories.

2.The maximal capacity of the output

signal x3 of the water valve is 1A.

3.The broken lines is for field connection.

Transformer

ROOM

TEM.SENSOR

CN7

493

LCD LCD

RT1(15K)

RT2(20K)

CN4

CN20

AC-L

CN13 CN18 CN19 CN3 CN2

CN5 CN7 CN15 CN16 CN17 CN8

WH TUBE

TEM.SENSOR

Stepping

Motor(right)

Stepping

Motor(left)

YEGN

M1 M2

AP1

AP2

Fan

Motor

Controller

Fig.10

This manual suits for next models

Table of contents

Other Gree Air Conditioner manuals

Gree

Gree U-match Series User manual

Gree

Gree GVA60AH-M3NNA5A User manual

Gree

Gree Mini-Floor Console A Series User manual

Gree

Gree Split Air Conditioner User manual

Gree

Gree Livo+ LIVS09HP115V1B User manual

Gree

Gree GWH18QD-K6DNA1C Series User manual

Gree

Gree GMV-NX140P/A(X1.2)-K User manual

Gree

Gree GMV-ND22TD/A-T User manual

Gree

Gree GPC08AH-A3NNC3B User manual

Gree

Gree GWH09UB-K3DNXXB User manual

Gree

Gree GWH09RB-K3DNA2C User manual

Gree

Gree GKH24S3GI User manual

Gree

Gree G17-6CWAC User manual

Gree

Gree GWC18KG-K3DNA5A User manual

Gree

Gree GMV-ND07T/C-T User manual

Gree

Gree GMV-ND36ZD/A-T User manual

Gree

Gree GPA05AK User manual

Gree

Gree VIREO+ VIR12HP230V1B User manual

Gree

Gree GWC09AB-D3DNA2D User manual

Gree

Gree GPC08AI-K3NNC6A User manual

Gree

Gree GMV-ND30PLS/C-T User manual

Gree

Gree GMV-224WM/G-X User manual

Gree

Gree GMV-120WL/C-X User manual

Gree

Gree Ultra Heat GMV Multi VRF Series User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual
