GREE ELECTRIC KC-32/C1 User manual
J
1
J
Function and working temperature range.
Introduction
Window type room air conditioners of GREE can regulate the room
temperature,dry the room. It is convenient for your work,study and
life. It can be widely used in residence, shop, hotel, office, library and
laboratory, and so on.
Cooling in summer
In hot summer, Air conditioner can cool down
room air by transferring heat out.
Without reducing room temp, Air conditioner
can dehumidify and make room air dry and
comfortable.
Dehumidifying in rainy or
humid season
Operating auto
KAccording to room temperature change, microcomputer can automatically set COOL or FAN operation mode,
so as for the best effect.
J
2
J
Technical Specifications
If there is any change, we will not give you notice here, the correct parameter is
in the nameplate of your air-conditioner.
Temperature range of working environment:Cooling type:
Model KC-32/C1 KC-32/C1A
Function
Cooling capacity(w)
Power supply
Power input(w)
Refrigerant
(indoor/outdoor)
Climate type
Dimension(cm)
Weight (Kg)
Noise (dB(A))
Mechanic control cool only type Remote control cool only type
57 38 59
45
Maximum cooling
Minimum cooling
Indoor side DB/WBEF
32/23
21/15
Outdoor side DB/WBEF
43/26
21/-
3200
220-230V~ 50Hz
1880
R22
51
57
T1
WHD
J
3
J
Operating Condition
Cool mode operation
Outdoor temperature should be in range of 18
to 43, Otherwise it is possible for air conditioner
to breakdown.
Room temperature should be in range of 18to
32.
Room humidity should be lower than 80%. Oth-
erwise it is possible to dew at air conditioner su-
rface and even drop water.
Please operate air condition in correct conditions as following
DRY mode operation
Outdoor temperature should be in range of 18to 43,
otherwise it is possible for air conditioner to breakdown.
Room temperature should be in range of 18to32K

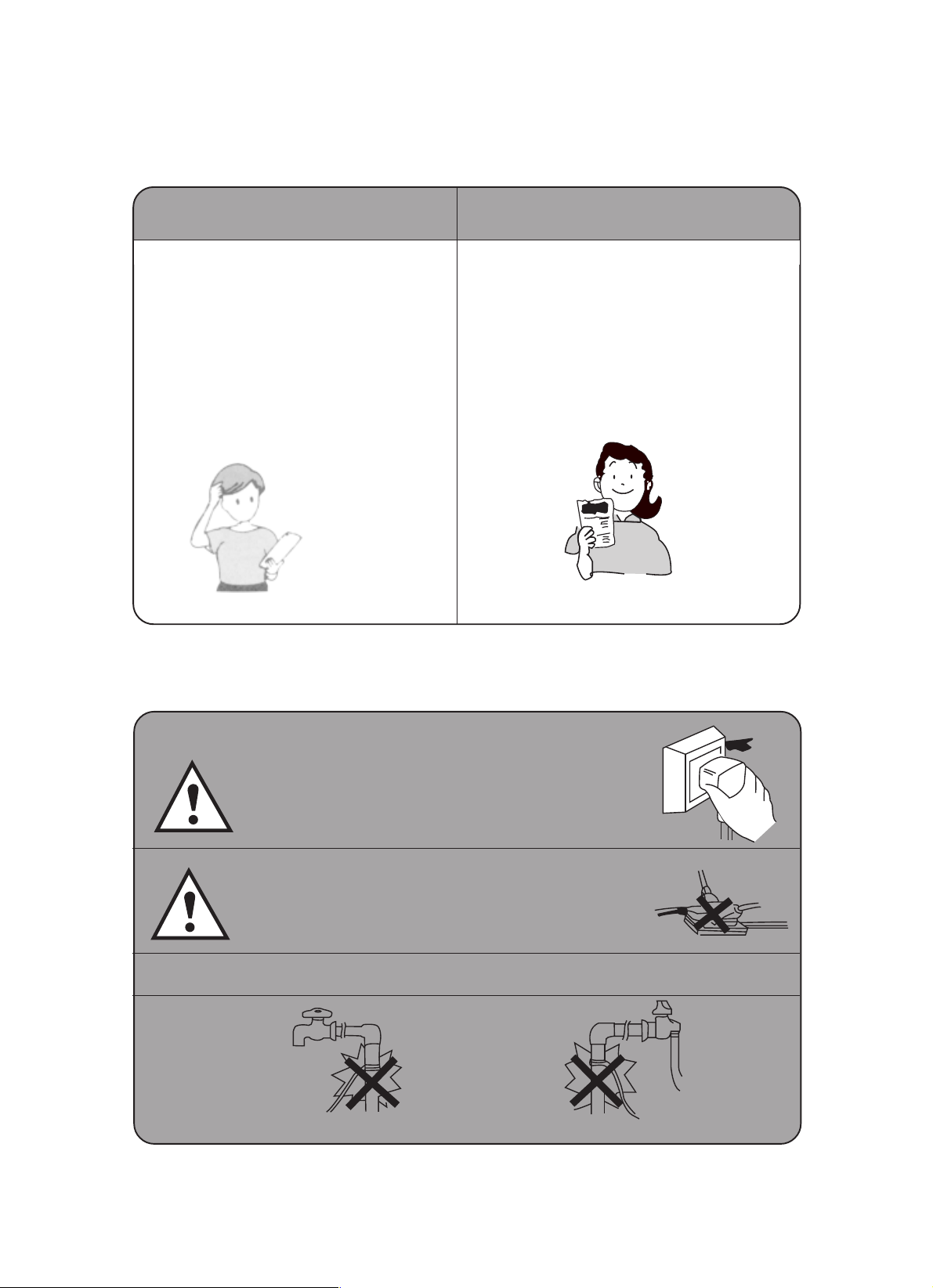

Power requirement
Electric circuit
Must use special socket, do not use longer power lines, do not share
a same socket with other electric appliances to avoid fire etc.
The earthing method must be reliable.
Work within correct voltage range.
Earth wire do not connect earth wire to following places.
Water pipe Gas pipe
OOMJOPMs
Rated voltage range: 220-230V
The compresor would vibrate violently to damage the refrigerantion
system, when voltage is too high.
J
4
J
Installation
Caution for use:
Please associate special technician to install the window type
conditioner.
Install air conditioner unit far away TV set or radio etc.,to avoid disturbing video
or voice.
In salt and coastal area or place where is near thermal springs and polluted by
sulphurous gas, or other special areas, please contact with seller before use.
Avoid place where is possible for flammable gas to leak out.
Avoid other heat sources or direct sun light.
Avoid place where is easy for children to touch.
How to install:
There are no any obstacles surrounding the unit.
Prepare the installation hole slightly bigger than unit size.
FRONT VIEW SIDE VIEW TOP VIEW
Ceiling
Fence or likewise
Over 200cmOutdoor
Over
30cm
Over
30cm
Over
30cm
Over
30cm
Fence or likewise
Indoor
Less than 25cm
Wall Over
200cm
Fence or likewise Indoor
Wall
J
5
J
Installation procedure:
1.Remove sticker from front panel.
2.Put unit into installation hole. When installation,unit
should be slanted down to the back to avoid enlarge
of noise or vibration.(slant between 6-10mm)
Installation place should be strong enough to avoid
enlarge of noise or vibration.
3.Fill up sews in the cabinet by sponge or puffy.
Horizontal line
SNMãã
Drain water:
To get the maximum cooling efficiency,the air
conditioner is designed to splash the condensate
on the condenser coil.
If the splashing sound annoys you, you can pro-
vide an outside drain by using the following
procedure, which may however cause a small loss
of performance.
1.There is a drainage outlet at the back of the unit.
2.Remove cover from the drainage outlet , and
then connect drainage joint to it with screw.
3.Connect the drain hose to the outlet.
Note:
Drain hose or tubing can be purchased locally
to satisfy your particular needs.
Installation assistance:
Use iron support
Installation hole should be strong enough to support the
air conditioner. If it can not, iron support has to be used
in outside. Iron support should be fixed on the building.
Use sunshade board
Air conditioner should avoid anything to be dropped
into it and avoid direct sunshine. If there is no cover on
it, you should contact the sellet for installation of sun-
shade board.
Sunshade board and support can be purchased locally
to satisfy your particular needs.
Sunshade board
Wall
Wooden frame
Rubber plate
Support
SNMãã
Horizontal line
Drainage outlet
Washer
Drainage joint
Install
Cover
Remove
J
6
J
Installation precaution
Remove
When remove air conditioner to other place, it needs special
technician, so contact with seller firstly.
Noise

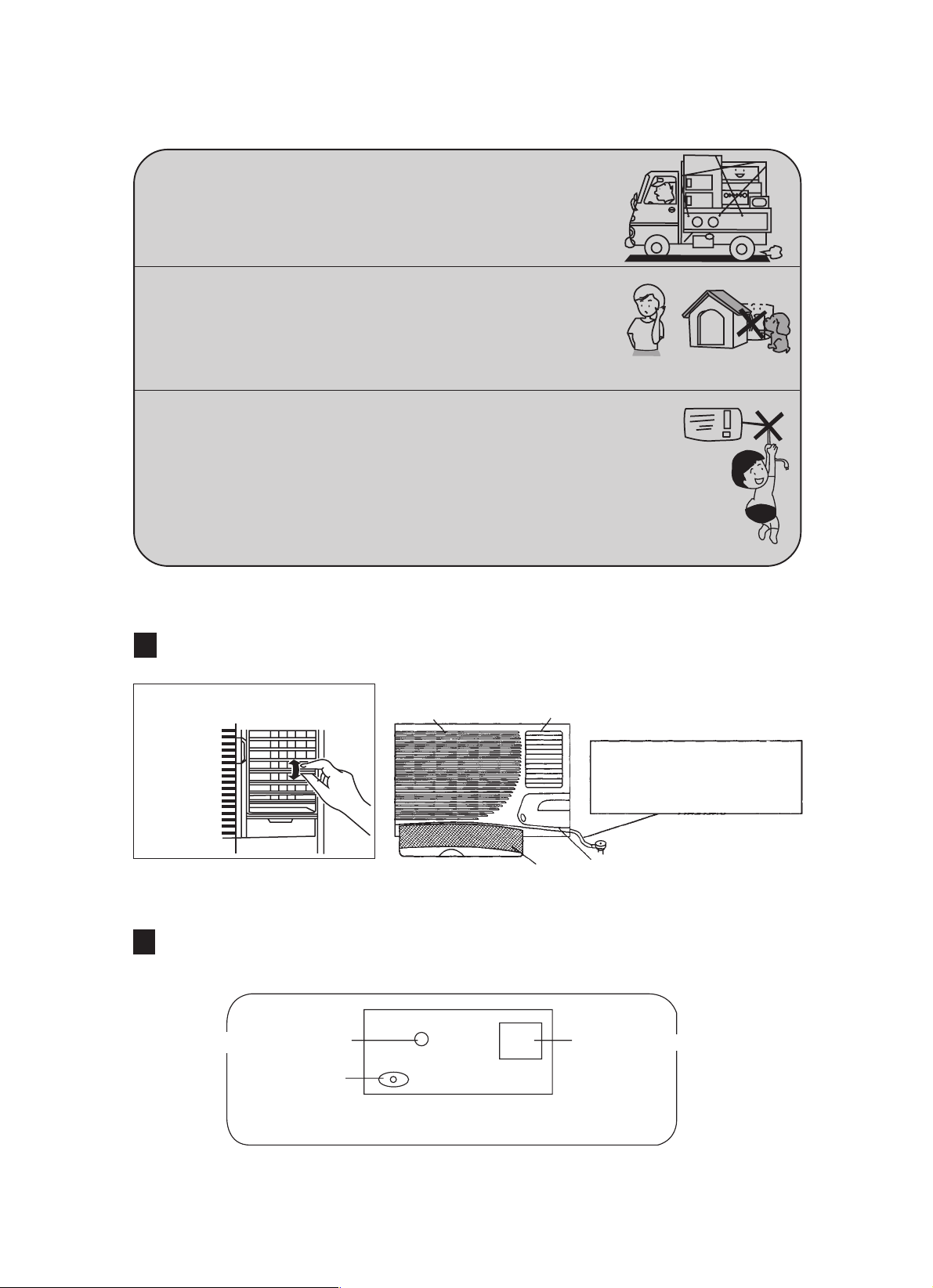

Electric lines location
Product component identification
Product Component Identification of Remote control of Window type air condition.
Remote control panel
* Install on place firmly enough to avoid transmitting or increasing noise and
vibration.
* Do not put objects in front of outdoor unit air outlet, to avoid increasing noise.
* Be sure not to make trouble to neighbors with hot air or noise from outdoor unit.
* Please contact with seller as soon as there is strange noise during operation.
* Must connect with ground reliably.
* Must use rated voltage and electric circuit specific for air conditioner.
* Avoid octopus type of multi-plug which would cause over heat.
* Do not pull power lines strongly.
* To fit an electrical leakage-proof switch, please contact with special electric dealer.
* Choose circuit-breaker having a capacity of 16 Amp to meet with the current specification.
* Power cord should be more than 2.5mm2in area.
Vertical airflow direction vane
The vertical
airflow direction
by positioning the
vane to discharge
the air upward,
downward or
straight out.
(Airflow direction adjustment Up and Down) Air intake grille Air outlet grille
Air filter Control panel
Confirm that the power supply cord is connected to
a proper AC outlet.
Power supply cord
Operation indicator light(red)
Emergency switch
Remote control signal receiver
J
7
J
Product Component Identification of Mechanic control of Window type
air condition
Air intake grill
Control panel
Power supply cord
Air filter
Operating instructions
Wait 3 Minutes Before Restarting Unit
SWING
HIGH LOW
Thermostat
OPERATION
Auto swing Switch
Directs the cool air right and
left automatically.
Main switch
Controls room temperature
automatically
Air outlet grill
Control panel
01
0To select different function.
Thermostat
HIGH LOW
Thermostat
J
8
J
Air-conditioning Principle
Refrigeration principle
Accomplished by continuously circulating of refrigerant in a closed system. Low pres-
sure refrigerant gas from evaporator is pumped, increased its pressure, and discharges to
the condenser by compressor. When axial flow fan working, heat exchanging occurs
between the high pressure gas and outside air,it changes into liquid.Then passing through
the capillary tube,it’s pressure and temperature becomes lower and lower. Heat from
room air is transfer to the refrigerant liquid by centrifugal fan.

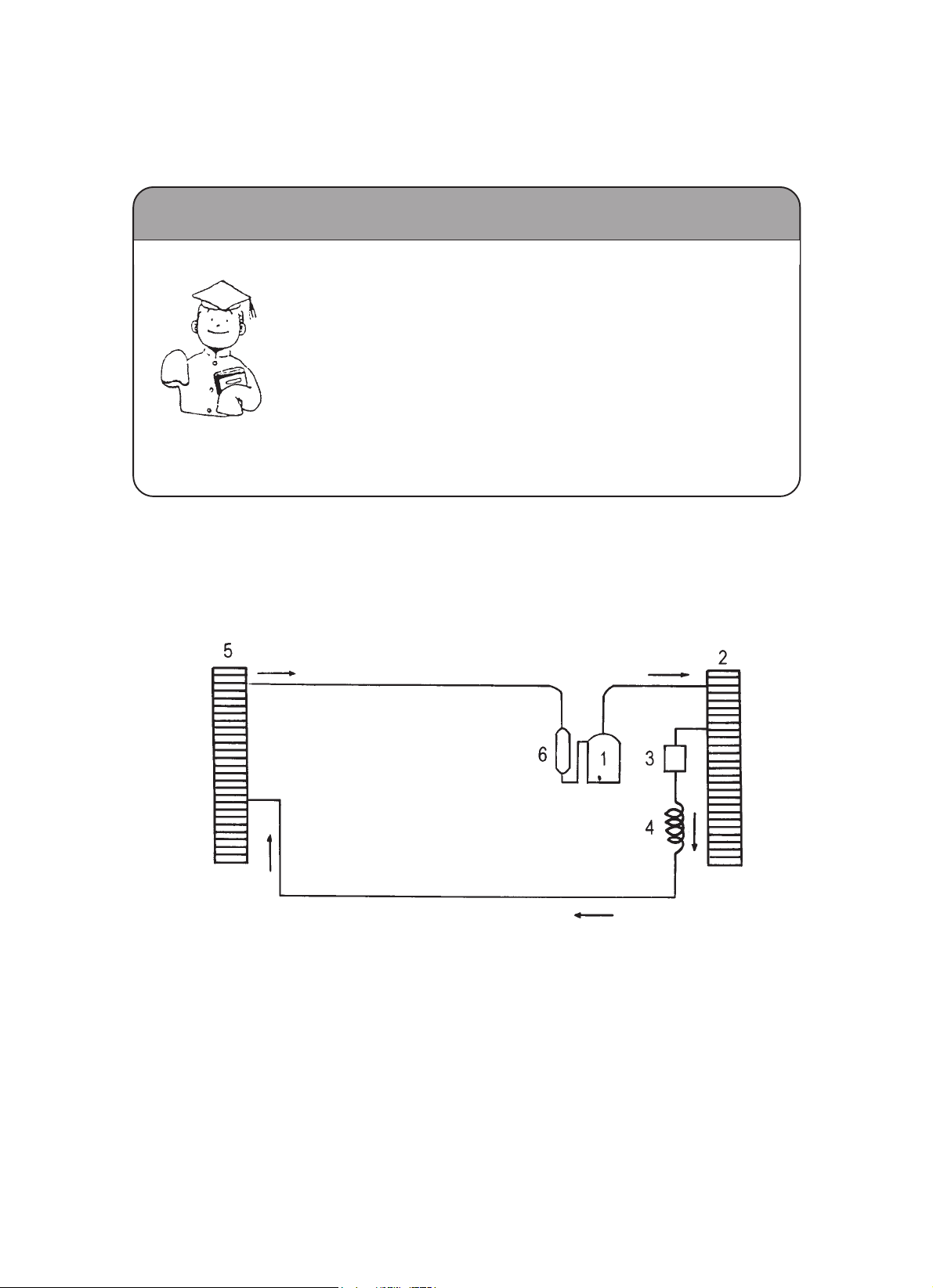

Schematic diagram for cool only type
1. Commpressor 2. Outdoor heat-exchanger 3. Filter 4. Capillary tube
5. Indoor heat-exchanger 6. Accumulator
J
9
J
Mechanic control of Windows type air
conditioner operation procedure

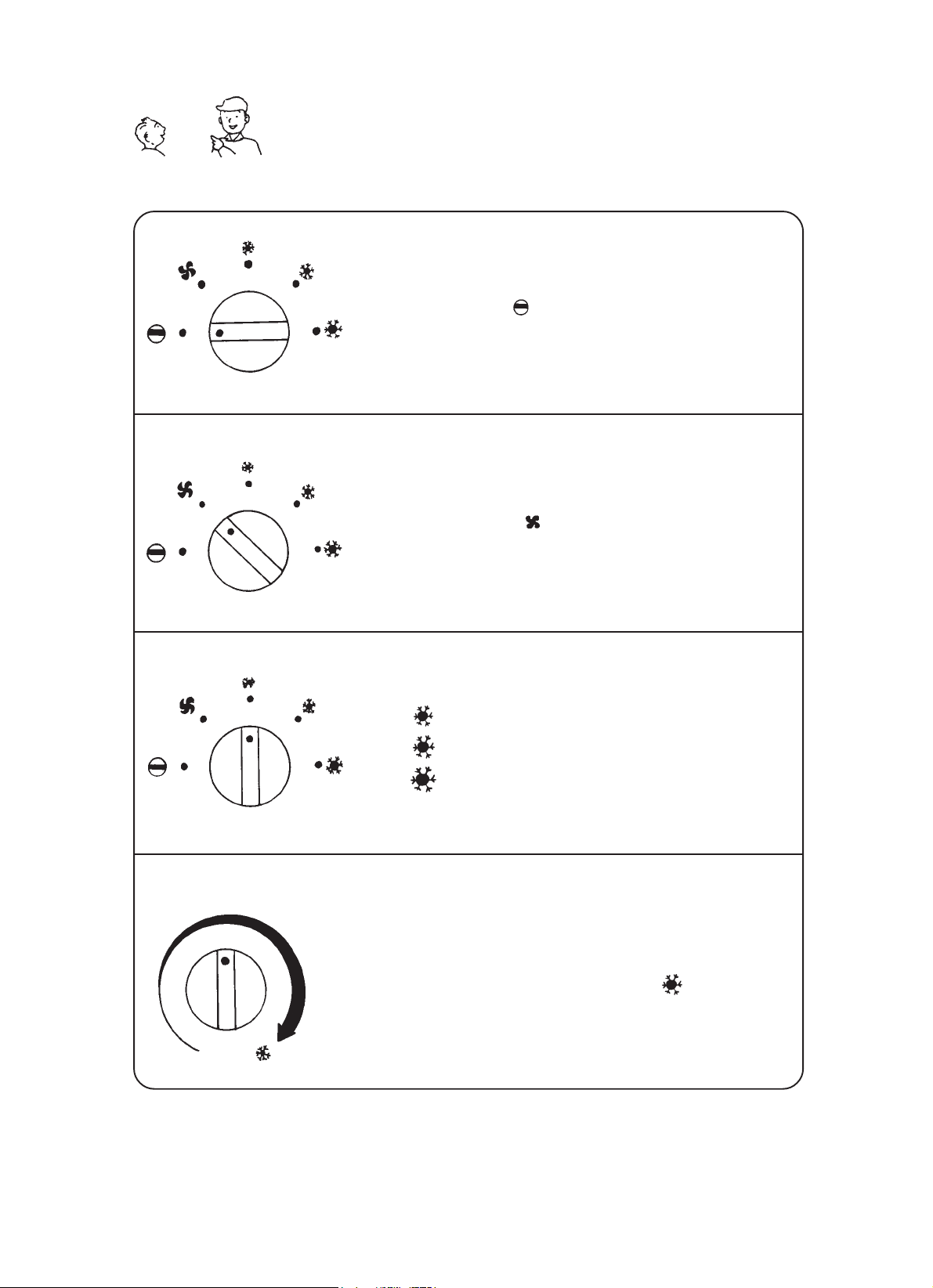

Turn the main switch to position, air-conditioner stop work.
Turn the main switch to position, just operates the fan.
Turn the main switch to the position as follow:
Set the thermostat switch at a desired position.
If you want more cooling turn the knob nearest to .
Thermostat
Cooling with low fan.
Cooling with middle fan.
Cooling with high fan.
HIGH LOW
J
10
J
“ ” AUTO mode
“ ” COOL mode
“ ” DRY mode
“ ” FAN mode
“ ” HEAT mode
1 / 0
T-OFF
C
T-ON
SWING
MODE
FAN
LIGHT
SLEEP
AIR
C
AUTO
C
h
SWING
Remote control operation procedure
MODE button
press this button to change
the operation mode in or-
der of :
Note:
Cooling only type have no
mode.
Name and Function-Remote control
Note:
Be sure that there are no obstrutions between reciever and remote controller.
The remote control signal can be received at the distance of up to about 8m.
Don’t drop or throw the remote control.
Don’t let any liquid in the remote controller and put the remote controller
directly under the sunlight or any place where is very hot.
SWING button
When it is pressed,the lou-
vers start to rotate auto-
matically and stop when
repressed.
TEMP. button
SET TEMP. increases 1by
pressing Hbutton once, and
decreases 1by pressing -but-
ton once.
At mode operation,SET TEMP.
can be selected from 16to30K
At mode operation,SET TEMP.
can be selected from 16to30.
At mode operation,SET TEMP.
can be selected from 16to30.
1/0 button
Press this button to turn on
or turn off the unit.
FAN button
Press this button to
change the fan speed of:
