Graco Dyna-Mite 190 Datasheet

Instructions–Parts List

308302K

ENG

Important Safety Instructions

Read all warnings and instructions in this manual.

Save these instructions.

8.5:1 RATIO STAINLESS STEEL

Dyna-Mitet190 Pump

Used for precision dispense of viscous materials from small

containers. For professional use only.

Not approved for use in European explosive atmosphere locations.

6.0 MPa, 60 bar (850 psi) Maximum Fluid Working Pressure

0.7 MPa, 7 bar (100 psi) Maximum Air Inlet Pressure

Part No. 235870, Series C

Does not include Pump and Ram

Part No. 235871, Series C

Includes Pump and Ram

Wiper Plates (order separately)

Model 224908, Series A

3 kilogram (1 gallon) size

Model 224923, Series B

1 kilogram (1 quart) size

2308302

Table of Contents

Warnings 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Operation 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Troubleshooting 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Service 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Parts 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Dimensions 28. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Technical Data 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Warranty 30. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Graco Information 30. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

WARNING

INSTRUCTIONS

EQUIPMENT MISUSE HAZARD

Equipment misuse can cause the equipment to rupture or malfunction and result in serious injury.

DThis equipment is for professional use only.

DRead all instruction manuals, tags, and labels before operating the equipment.

DUse the equipment only for its intended purpose. If you are uncertain about usage, call your Graco

distributor.

DDo not alter or modify this equipment. Use only genuine Graco parts and accessories.

DCheck equipment daily. Repair or replace worn or damaged parts immediately.

DDo not exceed the maximum working pressure of the lowest rated system component. Refer to the

Technical Data on page 26 for the maximum working pressure of this equipment.

DUse fluids and solvents which are compatible with the equipment wetted parts. Refer to the Tech-

nical Data section of all equipment manuals. Read the fluid and solvent manufacturer’s warnings.

DDo not exceed the maximum working pressure of the lowest rated system component. This equip-

ment has a 6.0 MPa, 60 bar (850 psi) maximum working pressure.

DDo not use hoses to pull equipment.

DRoute hoses away from traffic areas, sharp edges, moving parts, and hot surfaces. Do not expose

Graco hoses to temperatures above 82_C (180_F) or below –40_C (–40_F).

DWear hearing protection when operating this equipment.

DDo not lift pressurized equipment.

DComply with all applicable local, state, and national fire, electrical, and safety regulations.

3308302

WARNING

PRESSURIZED EQUIPMENT HAZARD

Spray from the gun/valve, hose leaks, or ruptured components can splash fluid in the eyes or on the

skin can also cause serious injury.

DDo not point the gun/valve at anyone or at any part of the body.

DDo not stop or deflect leaks with your hand, body, glove or rag.

DFollow the Pressure Relief Procedure on page 10 whenever you: are instructed to relieve pres-

sure; stop dispensing; clean, check, or service the equipment; and install or clean the nozzle.

DTighten all fluid connections before operating the equipment.

DCheck the hoses, tubes, and couplings daily. Replace worn, damaged, or loose parts immediately.

Permanently coupled hoses cannot be repaired; replace the entire hose.

MOVING PARTS HAZARD

Moving parts, such as the priming piston, can pinch or amputate your fingers.

DKeep clear of all moving parts when starting or operating the pump.

DBefore servicing the equipment, follow the Pressure Relief Procedure on page 10 to prevent the

equipment from starting unexpectedly.

DKeep hands and fingers away from the priming piston during operation and whenever the pump is

charged with air.

DKeep your hands away from the wiper plate and the lip of the fluid container while the ram is oper-

ating.

DDo not place your fingers into the air motor coupling cavity while the pump is operating.

DDo not shut off the air supply to the ram while it is being raised. Doing so will cause the pump to fall

uncontrolled to the bottom.

4308302

WARNING

FIRE AND EXPLOSION HAZARD

Improper grounding, poor ventilation, open flames or sparks can cause a hazardous condition and

result in a fire or explosion and serious injury.

DGround the equipment and the object being sprayed. Refer to Grounding on page 5.

DIf there is any static sparking or you feel an electric shock while using this equipment, stop dis-

pensing immediately. Do not use the equipment until you identify and correct the problem.

DProvide fresh air ventilation to avoid the buildup of flammable fumes from solvents or the fluid

being dispensed.

DKeep the spray area free of debris, including solvent, rags, and gasoline.

DElectrically disconnect all equipment in the dispensing area.

DExtinguish all open flames or pilot lights in the dispensing area.

DDo not smoke in the dispensing area.

DDo not turn on or off any light switch in the dispensing area while operating or if fumes are present.

DDo not operate a gasoline engine in the dispensing area.

TOXIC FLUID HAZARD

Hazardous fluid or toxic fumes can cause serious injury or death if splashed in the eyes or on the skin,

inhaled, or swallowed.

DKnow the specific hazards of the fluid you are using.

DStore hazardous fluid in an approved container. Dispose of hazardous fluid according to all local,

state and national guidelines.

DAlways wear protective eyewear, gloves, clothing and respirator as recommended by the fluid and

solvent manufacturer.

5308302

Installation

Grounding

WARNING

FIRE AND EXPLOSION HAZARD

Before operating the pump, ground the

system as explained below. Also read

the section FIRE AND EXPLOSION

HAZARD on page 4.

To reduce the risk of static sparking, ground the pump.

Check your local electrical code for detailed grounding

instructions for your area and type of equipment. Be

sure to ground all of this dispensing equipment.

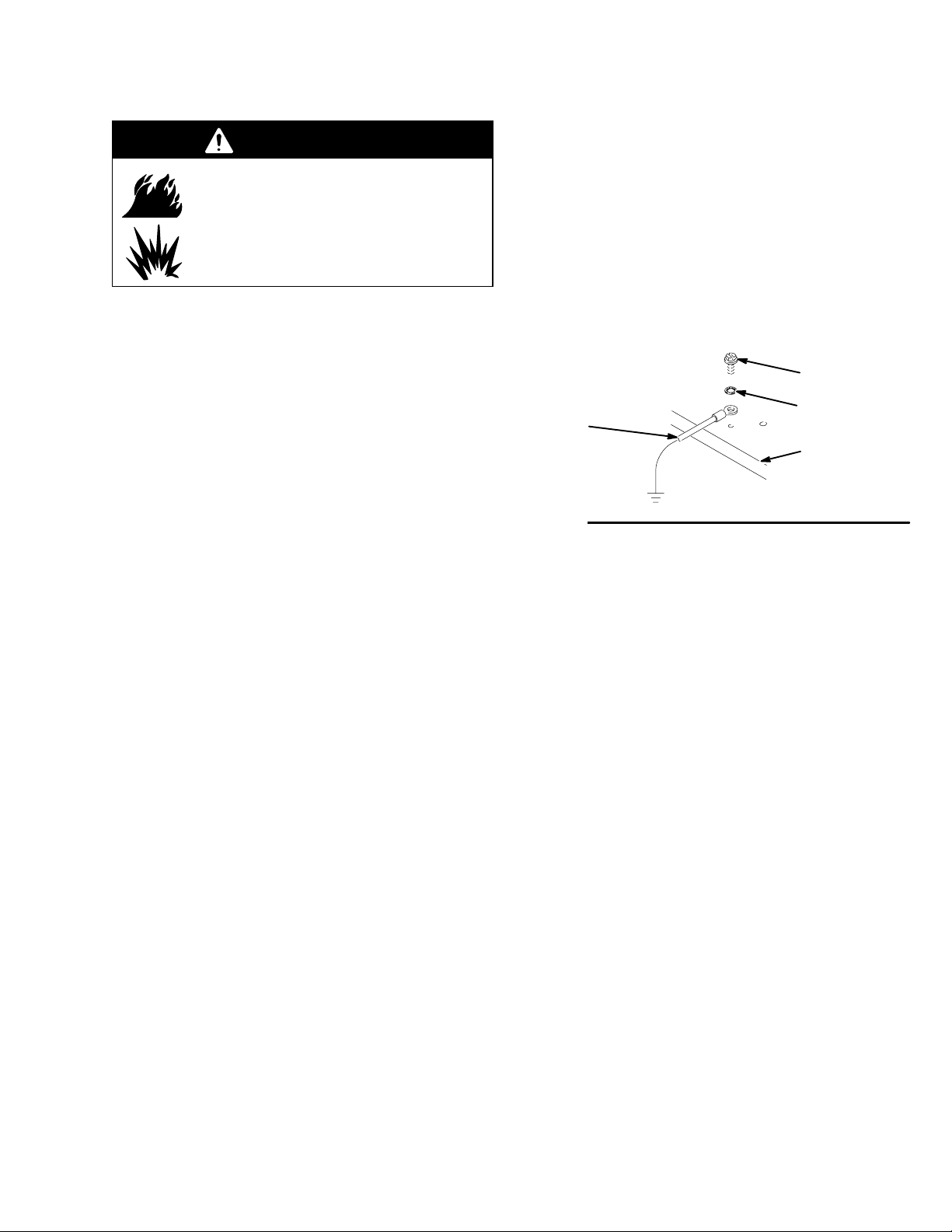

1. Pump: unscrew the green grounding screw (W)

and washer (X), located on the ram base (Z).

Install a 1.5 mm2(12 ga) minimum ground wire (Y)

and secure with the screw and washer. Connect

the other end of the ground wire to a true earth

ground. See Fig. 1.

2. Fluid hoses: use only grounded fluid hoses.

3. Dispensing valve: obtain grounding through con-

nection to a properly grounded fluid hose and

pump.

4. Fluid supply container: obtain grounding by secur-

ing the container to the ram base with the clamps.

5. Air compressor: according to local code.

6. To maintain grounding continuity when flushing or

relieving pressure, always hold a metal part of the

dispense valve firmly to the side of a grounded

metal pail, ten trigger the valve.

Fig. 1

02102

6308302

Installation

NOTE: Reference numbers and letters in parentheses

in the text refer to the callouts in the figures and the

Parts Drawing.

If you supply your own accessories, be sure they are

adequately sized and pressure-rated to meet the

system’s requirements.

Contact your Graco distributor for assistance in de-

signing a system to suit your particular needs.

Pump Location and Set-Up

1. Place the unit on a hard, level surface. Check that

the unit is level in all directions. Refer to Dimen-

sions on page 28 to ensure that there is sufficient

overhead clearance for the pump when the ram is

fully raised. Leave room on both sides so the air

regulators will be easily accessible.

2. Read the section System Components and

Accessories on page 9. Connect an air supply

hose to the 1/4 npt(f) main air inlet fitting (57). See

Fig. 2.

3. Unpack the wiper plate (P). Back out the screws

(302) so they will clear the pump intake housing

(11). Raise the ram by setting the ram director

valve switch (36) to the UP position and increasing

the setting of the ram air regulator (27b).

4. Place the wiper plate (P) on a 2 in. thick x 4 in.

wide block of wood. Center the wiper plate and the

wood block on the base, under the pump intake

housing (11).

5. Set the ram air regulator (27b) to zero. Set the ram

director valve switch (36) to the DOWN position.

As the ram unit slowly falls, guide the pump intake

housing (11) into the wiper plate (P).

6. Set the ram air regulator (27b) to 0.07 MPa, 0.7

bar (10 psi). Push down on the pump to install the

wiper plate (P) onto the intake housing (11). Se-

cure the wiper plate to the pump with the two

screws (302).

7. Connect the 660 mm (26 in.) air line tube (76) from

the connector (37) at the air assist valve (18) to

the connector (310) at the wiper plate (P). Refer to

Connecting and Disconnecting Tubes.

Connecting and Disconnecting Tubes

Connection

1. Grasp the tube, then slowly push it straight into the

fitting until it stops.

2. Be sure that the tube is securely connected, and

will not pull out when air pressure is applied. To

check, pull back gently on the tube to ensure that it

will not pull out.

Disconnection

WARNING

To reduce the risk of serious injury whenever you

are instructed to relieve pressure, always follow the

Pressure Relief Procedure on page 10.

1. Relieve the pressure.

2. Push evenly on the fitting’s red release button.

3. While holding the release button in, pull the tube

out of the fitting.

4. To reuse the tubing, cut off the previously connec-

tion portion at 90_, being careful not to damage

the outer diameter of the tube. Use of a tube cutter

is recommended. The fitting will leak if the tubing is

not cut at 90_.

7308302

Installation

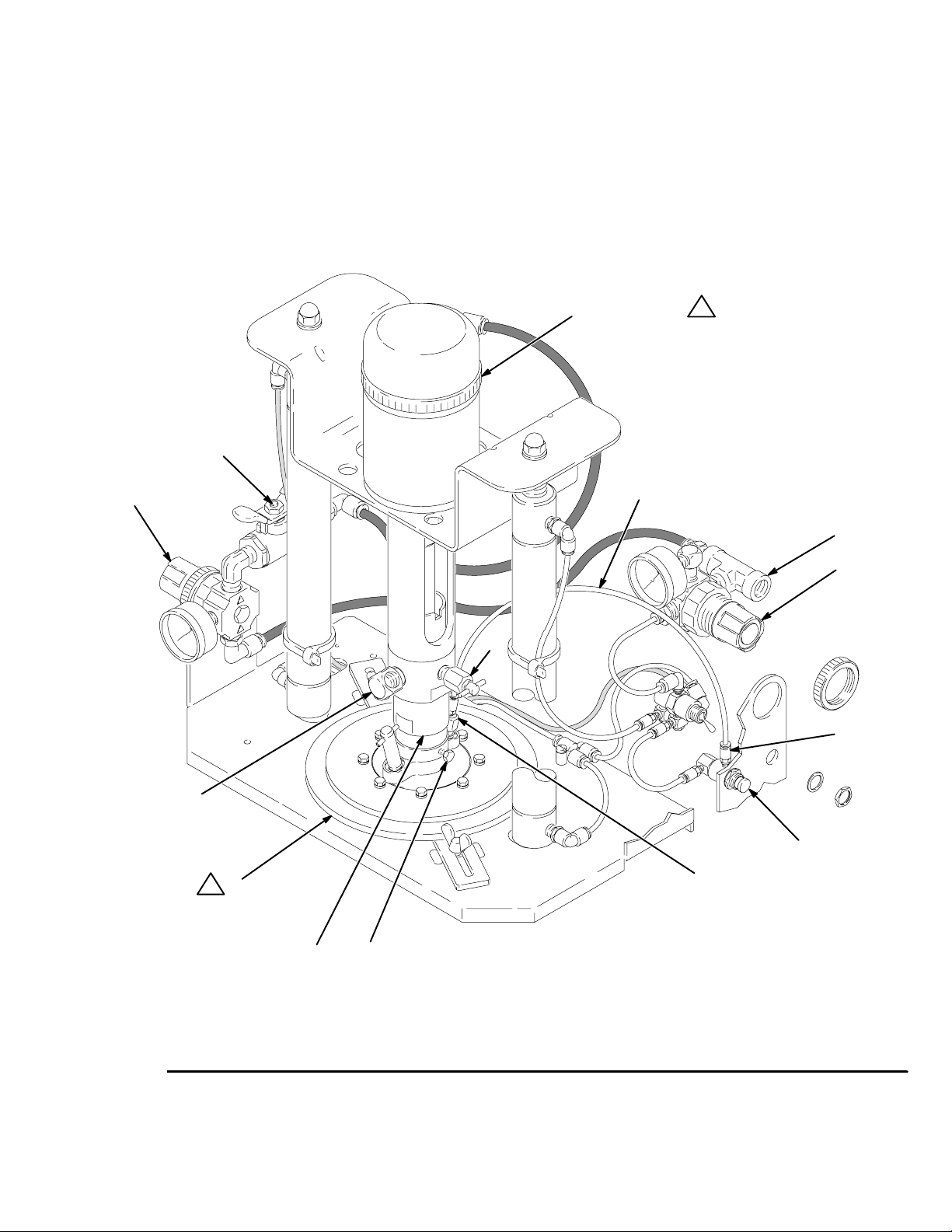

Fig. 2

1Order Wiper Plate (P) separately.

KEY

P Wiper Plate Assembly

1 Pump

8 Bleed-Type Master Air Valve

11 Pump Fluid Intake Housing

18 Air Assist Valve (Push button)

25 Pump Bleeder Valve

27a Pump Air Regulator

27b Ram Air Regulator

28 Fluid Outlet Fitting

37 Air Assist Valve Connector

57 Air Inlet

76 Air Line to Wiper Plate

302 Capscrews

310 Wiper Plate Connector

27b

310

30211

27a

02093B

8308302

Notes

9308302

Installation

System Accessories (See Fig. 2)

WARNING

Two required safety devices are supplied with your

pump: a bleed-type master air valve (8) and a

pump bleeder valve (25). These devices help

reduce the risk of serious injury, including splashing

in the eyes or on the skin, and injury from moving

parts if you are adjusting or repairing the pump.

The bleed-type master air valve relieves air trapped

between this valve and the pump after the air is

shut off. Trapped air can cause the pump to cycle

unexpectedly. The valve is located close to the

pump, downstream from the pump air regulator.

The pump bleeder valve assists in relieving fluid

pressure in the displacement pump, hose, and

dispensing valve. Triggering the dispensing valve to

relieve pressure may not be sufficient.

Supplied Components

The following components are supplied with your

pump.

DThe bleed-type master air valve (8) is supplied

with your system to relieve air trapped between it

and the air motor when the valve is closed (see the

WARNING above).

DThe pump air regulator (27a) controls pump

speed and outlet pressure by adjusting the air

pressure to the pump. The regulator is located

upstream from the bleed-type master air valve.

DThe ram air regulator (27b) controls ram speed by

adjusting the air pressure to the ram, and also

controls the pressure exerted by the wiper plate on

the fluid.

DThe pump bleeder valve (25) is supplied in your

system to relieve fluid pressure in the displacement

pump, hose, and dispensing valve (see the WARN-

ING at left). Be sure the drain hole in the valve is

pointing down. This valve is also used to bleed air

from the pump when priming.

Air Line

Connect an air supply hose to the 1/4 npt(f) main air

inlet fitting (57). Install an air line filter and lubricator in

the main air line. In the main air line, upstream from all

other air line accessories, install a second bleed-type

master air valve to shut off all air to the system and to

isolate the accessories for servicing.

Fluid Line

Connect a fluid hose to the fluid outlet fitting (28).

Connect a suitable dispensing valve to the free end of

the hose.

10 308302

Operation

Pressure Relief Procedure

WARNING

PRESSURIZED EQUIPMENT HAZARD

The system pressure must be manually relieved to

prevent the system from starting or spraying acci-

dentally. To reduce the risk of an injury from acci-

dental spray from the gun, splashing fluid, or

moving parts, follow the Pressure Relief Proce-

dure whenever you:

Dare instructed to relieve the pressure,

Dstop spraying,

Dcheck or service any of the system equipment,

Dor install or clean the spray nozzle.

1. Shut off the dispensing valve.

2. Shut off the bleed-type master air valve (required

in your system), on the main air line.

3. Close the bleed-type master air valve (supplied

with your pump).

4. Trigger the dispensing valve to relieve pressure.

If you suspect that the dispensing valve, nozzle, or

hose is completely clogged, or that pressure has not

been fully relieved after following the steps above, very

slowly open the pump bleeder valve, having a contain-

er ready to catch the drainage. Leave the pump bleed-

er valve open until you are ready to dispense again.

Very slowly loosen the hose end coupling and relieve

pressure gradually, then loosen completely. Now clear

the nozzle or hose.

WARNING

Keep hands and fingers away from the priming

piston and pump intake during operation and

whenever the pump is charged with air. During

operation, the priming piston extends beyond the

intake housing to pull material into the pump, and

can severely injure or amputate a hand or finger

caught between it and the intake housing. Always

follow the Pressure Relief Procedure at left

before clearing, cleaning, flushing, or servicing any

part of the pump.

The air motor piston and fluid piston (located inside

the air motor cylinder and coupling) also move

when air is supplied to the motor. Do not place your

hand or fingers into the air motor coupling cavity

while the pump is operating.

As the ram is raised and lowered, the wiper plate,

ram tubes, and pump mounting bracket move. To

reduce the risk of pinching or amputation of fingers,

keep you hands away from the wiper plate, lip of

the fluid can, pump bracket, and ram tubes while

the pump is operating.

To reduce the risk of serious injury and damage to

equipment, do not shut off the air supply to the ram

when the ram is raised. Doing so will cause the

pump to fall uncontrolled to the bottom.

This manual suits for next models

Table of contents

Other Graco Water Pump manuals

Graco

Graco Power-Star 236754 User manual

Graco

Graco Dyna-Star 200:1 User manual

Graco

Graco Spindl-Gard SG-1 Operation manual

Graco

Graco 225006 Operation manual

Graco

Graco Series A Datasheet

Graco

Graco Dyna-Star 3A6941J User manual

Graco

Graco 248652 User manual

Graco

Graco E-Flo EC1110 Operation manual

Graco

Graco Check-Mate Elite Series User manual

Graco

Graco 24F448 Operation manual

Graco

Graco saniforce 2150 Instruction Manual

Graco

Graco Foam-Cat Series Operation manual

Graco

Graco SaniForce 3A5799E Parts list manual

Graco

Graco Renegade Series Use and care manual

Graco

Graco Fire-Ball D Series Operation manual

Graco

Graco G3 Pro User manual

Graco

Graco E-Flo 4000 Instruction Manual

Graco

Graco 226040 Operation manual

Graco

Graco HYDRA-CAT FIXED RATIO Operation manual

Graco

Graco 246388 Operation manual

Graco

Graco HYDRA-SPRAY President A Series Operation manual

Graco

Graco 248061 User manual

Graco

Graco President Hydra-Clean 6880119 Parts list manual

Graco

Graco 232437 Operation manual

Popular Water Pump manuals by other brands

Neptun

Neptun NPHW 5500 operating instructions

Sensidyne

Sensidyne Gilian BDX-II Operation & service manual

Draper

Draper 47808 instructions

Trolla

Trolla 12820 manual

Sunfab

Sunfab SVH Series installation guide

WilTec

WilTec 50740 Operation manual

Fieldmann

Fieldmann FVC 5015 EK user manual

Everbilt

Everbilt EFSUB5-122HD Use and care guide

esotec

esotec 101018 operating manual

moyno

moyno 2000 CC Service manual

Becker

Becker BASIC VASF 2.80/1-0.AC230 operating instructions

Sykes AmeriPumps

Sykes AmeriPumps GP100M Operation and maintenance instructions

DUROMAX

DUROMAX XP WX Series user manual

BRINKMANN PUMPS

BRINKMANN PUMPS SBF550 operating instructions

Franklin Electric

Franklin Electric IPS Installation & operation manual

Xylem

Xylem e-1532 Series instruction manual

Milton Roy

Milton Roy PRIMEROYAL instruction manual

STA-RITE

STA-RITE ST33APP owner's manual
