Instructions

GRACO INC.ąP.O. BOX 1441ąMINNEAPOLIS, MNą55440-1441

MODEL 510

Airless Spray Gun

7400 psi (50.8 MPa, 510 bar) Maximum Working Pressure

Part No. 236995, Series B

Includes a Heavy-Duty 510 RAC IV Tip Guard and size 619 SwitchTip.

308438F

Read warnings and instructions.

See page 2 for Table of Contents.

03965

II 2 G

3084382

Table of Contents

Symbols 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Warnings 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation/Operation 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

System Requirements 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

How to Use the Gun Trigger Safety 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Pressure Relief Procedure 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

How to Operate the Gun 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

How to Adjust the Spray Pattern 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Care of the Spray Tip and Tip Guard 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

How to Flush the Gun 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

How to Check the Gun Diffuser Operation 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Service 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Parts 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Technical Data 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Dimensions 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Graco Standard Warranty 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Graco Information 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Symbols

Warning Symbol

WARNING

This symbol alerts you to the possibility of serious

injury or death if you do not follow the instructions.

Caution Symbol

CAUTION

This symbol alerts you to the possibility of damage to

or destruction of equipment if you do not follow the

instructions.

308438 3

WARNING

INJECTION HAZARD

Spray from the gun, hose leaks or ruptured components can inject fluid into your body and cause an

extremely serious injury, including the need for amputation. Splashing fluid in the eyes or on the skin

can also cause serious injury.

DFluid injected into the skin might look like just a cut, but it is a serious injury. Get immediate medi-

cal attention.

DDo not point the spray gun at anyone or any part of the body.

DDo not put hand or fingers over the spray tip.

DDo not stop or deflect fluid leaks with your hand, body, glove or rag.

DDo not “blow back” fluid; this is not an air spray system.

DAlways have the tip guard and the trigger guard on the spray gun when spraying.

DCheck the gun diffuser operation weekly.

DBe sure the gun trigger safety operates before spraying.

DLock the gun trigger safety when you stop spraying.

DFollow the Pressure Relief Procedure on page 7 if the spray tip clogs and whenever you: are

instructed to relieve pressure; stop spraying; clean, check, or service the equipment; and install or

clean the spray tip.

DTighten all fluid connections before operating the equipment.

DCheck the hoses, tubes and couplings daily. Replace worn, damaged, or loose parts immediately.

Permanently coupled hoses cannot be repaired; replace the entire hose.

TOXIC FLUID HAZARD

Hazardous fluids or toxic fumes can cause serious injury or death if splashed in the eyes or on the

skin, swallowed, or inhaled.

DKnow the specific hazards of the fluid you are using. Read the fluid manufacturer’s warnings.

DStore hazardous fluid in an approved container. Dispose of hazardous fluid according to all local,

state and national guidelines.

DWear the appropriate clothing, gloves, eyewear and respirator.

3084384

WARNING

FIRE AND EXPLOSION HAZARD

Improper grounding, poor air ventilation, open flames or sparks can cause a hazardous condition and

result in fire or explosion and serious injury.

DGround the equipment and the object being sprayed. See Ground the System on page 6.

DIf there is any static sparking while using the equipment, stop spraying immediately. Identify and

correct the problem.

DProvide fresh air ventilation to avoid the buildup of flammable vapors from solvent or the fluid being

sprayed.

DDo not smoke in the spray area.

DExtinguish all open flames or pilot lights in the spray area.

DDo not turn on or off any light switch in the spray area while operating or if fumes are present.

DElectrically disconnect all equipment in the spray area.

DKeep the spray area free of debris, including solvent, rags, and gasoline.

DDo not operate a gasoline engine in the spray area.

INSTRUCTIONS

EQUIPMENT MISUSE HAZARD

Equipment misuse can cause the equipment to rupture, malfunction or start unexpectedly and result in

serious injury.

DThis equipment is for professional use only.

DRead all instruction manuals, tags, and labels before operating the equipment.

DUse the equipment only for its intended purpose. If you are uncertain about usage, call your Graco

distributor.

DDo not alter or modify this equipment. Use only genuine Graco parts and accessories.

DCheck the equipment daily. Repair or replace worn or damaged parts immediately.

DDo not exceed the maximum working pressure of the lowest rated system component. This equip-

ment has a 7400 psi (50.8 MPa, 510 bar) Maximum Working Pressure.

DUse fluids or solvents which are compatible with equipment wetted parts. See the Technical Data

section of all equipment manuals. Read the fluid and solvent manufacturer’s warnings.

DRoute the hoses away from the traffic areas, sharp edges, moving parts, and hot surfaces. Do not

expose Graco hoses to temperatures above 180_F (82_C) or below –40_F (–40_C).

DUse only Graco approved hoses. Do not remove hose spring guards, which help protect the hose

from rupture caused by kinks or bends near the couplings.

DWear hearing protection when operating this equipment.

DComply with all applicable local, state and national fire, electrical and other safety regulations.

RECOIL HAZARD

Due to the very high fluid pressure, a strong recoil action will occur when you trigger this gun. If you

are unprepared, your hand could be forced back toward your body or you could lose your balance and

fall, resulting in serious injury.

308438 5

Notes

3084386

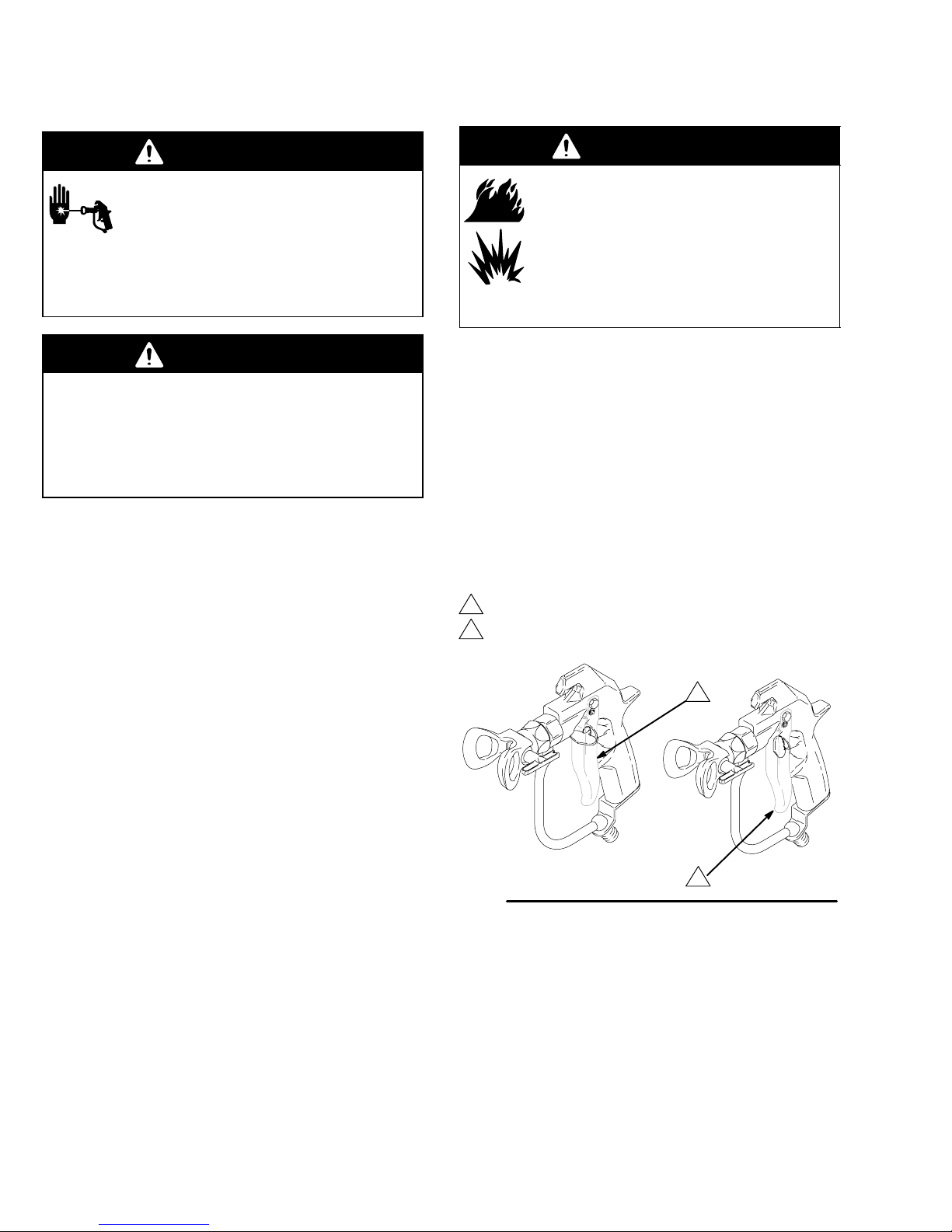

Installation/Operation

System Requirements

WARNING

INJECTION HAZARD

Keep the wallet-sized warning card,

provided with this gun, with the operator

at all times. The card contains important

treatment information should an injection injury

occur. Additional cards are available at no charge

from Graco Inc.

WARNING

The equipment must have a bleed-type master air

valve (pneumatic pumps only) and a fluid drain

valve. These accessories help reduce the risk of

serious injury from injection, splashing in the eyes

or on the skin, or moving parts, when adjusting or

repairing the pump or gun.

1. The bleed-type master air valve relieves air

trapped between this valve and the pneumatic

pump after the air regulator is shut off. Trapped air

can cause the pump to cycle unexpectedly.

2. The fluid drain valve assists in relieving fluid pres-

sure in the displacement pump, hose and gun;

triggering the gun to relieve pressure may not be

sufficient.

Ground the System

WARNING

FIRE AND EXPLOSION HAZARD

Improper grounding could cause static

sparking, which could cause a fire or

explosion. To reduce the risk of property

damage or serious injury, ground the

pump and all other equipment used or

located in the spray area. Also read FIRE OR

EXPLOSION HAZARD on page 4.

Check your local electrical code for detailed grounding

instructions for your area and type of equipment. Also

follow the grounding instructions provided in your

pump or sprayer manual. The gun obtains grounding

through connection to a properly grounded fluid hose

and pump or sprayer.

How to Use the Gun Trigger Safety

1. To lock the gun trigger safety, turn the safety to a

right angle with the gun body. See Fig. 1.

2. To unlock the gun trigger safety, push the safety

out and turn it parallel with the gun body. See

Fig. 1.

Fig. 1

Gun trigger safety shown locked

Gun trigger safety shown unlocked

03966

308438 7

Installation/Operation

Pressure Relief Procedure

WARNING

INJECTION HAZARD

The system pressure must be manually

relieved to prevent the system from

starting or spraying accidentally. Fluid

under high pressure can be injected through the

skin and cause serious injury. To reduce the risk of

an injury from injection, splashing fluid, or moving

parts, follow the Pressure Relief Procedure

whenever you:

Dare instructed to relieve the pressure,

Dstop spraying,

Dcheck or service any of the system equipment,

Dor install or clean the spray tip.

1. Lock the gun trigger safety.

2. Shut off the power to the pump. Open the bleed-

type master air valve (pneumatic pumps only).

3. Unlock the gun trigger safety.

4. Hold a metal part of the gun firmly to a grounded

metal pail. Trigger the gun to relieve pressure.

5. Lock the gun trigger safety.

6. Open the fluid drain valve, having a container

ready to catch the drainage. Leave the drain valve

open until you are ready to spray again.

7. If you suspect that the spray tip or hose is com-

pletely clogged or that pressure has not been fully

relieved, very slowly loosen the tip guard retaining

nut or hose end coupling and relieve pressure

gradually. Clean the tip or hose obstruction.

3084388

Installation/Operation

How to Operate the Gun

WARNING

RECOIL HAZARD

Due to the very high pressure, a strong

recoil action will occur when you trigger

the gun. If you are unprepared, your

hand could be forced back toward your body or you

could lose your balance and fall, resulting in seri-

ous injury.

WARNING

INJECTION HAZARD

To reduce the risk of serious injury,

including injection:

DDo not exceed the maximum working pressure

of the gun or the lowest rated component in the

system.

DFollow the Pressure Relief Procedure on page

7 whenever you are instructed to relieve the

pressure.

Fig. 2

03967

NOTE: Strain the fluid you are spraying if it contains

particles which could clog the spray tip.

1. Connect a grounded fluid hose (A) to the gun inlet.

See Fig. 2.

2. With no tip installed, start the pump. Flush the

pump according to the instructions supplied with it.

Use the lowest pressure possible. Be sure you

have a firm footing and hold the gun securely.

Prime the system with the material.

3. Relieve the pressure.

4. Install the SwitchTip (8) and tip guard (30). Follow

the instructions in the manual, supplied. See

Fig. 2.

5. Start the pump. Trigger the gun onto test paper.

Adjust the fluid pressure until the spray is

completely atomized. Use the lowest pressure

necessary to get the desired results. Higher pres-

sure may not improve the spray pattern and will

cause premature tip and pump wear.

6. If adjusting the pressure does not give a good

spray pattern, relieve pressure and then try

another tip size.

7. Use a full-open, full-close trigger action. Hold the

gun about 14 in. (350 mm) from and at right angles

to the work surface. Don’t swing the gun in an arc.

Practice to find the best length and speed of

stroke.

How to Adjust the Spray Pattern

1. To adjust the spray pattern direction, relieve pres-

sure. Loosen the tip guard retaining nut (B). Turn

the tip guard/tip groove horizontally (C) for a

horizontal pattern and vertically (A) for a vertical

pattern. Tighten the nut. See Fig. 3.

2. The spray tip orifice and spray angle determines

the coverage and size of pattern. When more

coverage is needed, use a larger spray tip rather

than increasing fluid pressure.

CAUTION

Openings in the tip guard reduce paint buildup on the

guard while spraying. Damage to the sharp edges of

the openings causes paint to collect at that area.

Never hang the gun by the tip guard.

Fig. 3

03968

308438 9

Installation/Operation

Care of the Spray Tip and Tip Guard

WARNING

INJECTION HAZARD

To reduce the risk of injection or

splashing in the eyes or on the skin:

DDo not place a hand, body or rag in front of the

spray tip when cleaning or checking a clogged

tip. Point the gun toward the ground or into a

waste container when checking to see if the

spray tip is cleared.

DDo not try to “blow back” paint; this is not an air

spray gun.

DDo not wipe fluid buildup off the gun or spray tip

until pressure is relieved. Follow the Pressure

Relief Procedure on page 7 whenever you

are instructed to relieve the pressure.

Cleaning during the day

1. Relieve the pressure.

2. Clean the front of the tip frequently during the day

to help reduce fluid buildup. Also clean the tip and

tip guard at the end of each work day. Use a

solvent-soaked brush to clean the spray tip.

If the spray tip clogs while spraying

1. Stop spraying immediately.

2. Lock the gun trigger safety. Rotate the RAC IV tip

handle back 180_. See Fig. 4.

3. Unlock the gun trigger safety. Trigger the gun into

a pail or onto the ground to remove the clog.

4. Lock the gun trigger safety. Rotate the tip handle

to the spraying position. See Fig. 4.

5. If the tip is still clogged, engage the gun trigger

safety, shut off the sprayer and disconnect the

power source, and open the fluid drain valve to

relieve pressure. Clean the spray tip as shown in

manual 307991, supplied with the RAC IV.

CAUTION

Do not soak the entire gun in solvent. Prolonged

exposure to solvent can ruin the packings.

Fig. 4

Spraying position shown. Turn

handle 180_and trigger gun to

clear clog.

103965

30843810

Installation/Operation

How to Flush the Gun

WARNING

To reduce the risk of serious injury, including

splashing fluid in the eyes or on the skin, or static

electric discharge when flushing:

DBe sure the entire system, including flushing

pails, are properly grounded.

DRemove the tip guard and spray tip.

DMaintain metal to metal contact between the

gun and the flushing pail.

DUse the lowest possible pressure.

ÄÄÄÄ

WARNING

INJECTION HAZARD

To reduce the risk of an injection injury,

follow the Pressure Relief Procedure

on page 7 whenever you are instructed

to relieve the pressure.

Flush the pump and gun before the fluid can dry in it.

If it is available, the flushing procedure provided in your

pump or sprayer manual should be used instead of this

procedure.

1. Relieve the pressure.

2. Remove the tip guard and spray tip. Soak and

clean the parts.

3. Put the pump intake in a grounded pail of compat-

ible solvent.

4. Start the pump at its lowest pressure.

5. Trigger the gun into the original pail. When solvent

appears, release the trigger.

6. Now trigger the gun into the solvent pail. Circulate

the fluid until the system is thoroughly flushed.

7. Relieve the pressure.

Table of contents

Other Graco Paint Sprayer manuals

Graco

Graco 25R268 Guide

Graco

Graco ST Max 395 Hopper Manual

Graco

Graco President Hydra-Spray 231063 User manual

Graco

Graco 24S004 Manual

Graco

Graco Xtreme 309363E User manual

Graco

Graco 222-340 Operation manual

Graco

Graco e-Xtreme Use and care manual

Graco

Graco RentalPro 230PC User manual

Graco

Graco Ultra Max 1595 Operation manual

Graco

Graco ULTRA MAX 695 User manual

Graco

Graco TX 65 Instruction Manual

Graco

Graco GH 733 HYDRA-SPRAY Operation manual

Graco

Graco 204355 K Series Operation manual

Graco

Graco EcoQuip 2 Vapor Abrasive Blast System Use and care manual

Graco

Graco 238338 User manual

Graco

Graco RTX 1500 Use and care manual

Graco

Graco Standard Series Guide

Graco

Graco M680 User manual

Graco

Graco 207947 Operation manual

Graco

Graco Pail Mount Packages Datasheet

Graco

Graco ProMix 2KE Instruction Manual

Graco

Graco 222300 Operation manual

Graco

Graco 309707N User manual

Graco

Graco EH 333 HYDRA-SPRAY A Series Operation manual

Popular Paint Sprayer manuals by other brands

SNOWJOE

SNOWJOE Sunjoe 24V-GS-LTW-RM Operator's manual

Binks

Binks SV100 Service manual

Fimco

Fimco LG-4-3-1 owner's manual

AG SPRAY

AG SPRAY FS-ATV-25BL owner's manual

Nordson

Nordson MicroMax 2 manual

Bonide

Bonide 051 Operation and service instructions

zogics

zogics Z-DAS instruction manual

KISANKRAFT

KISANKRAFT KK-KBS-165 Operation manual

Matrix

Matrix SG 650 Translation of the original instructions

Anest Iwata

Anest Iwata SGA-3 Installation, use & maintenance instruction manual

paasche

paasche VV Instructions and parts list

Carlisle

Carlisle DeVilbiss JGA-510 Service manual

Gardena

Gardena 11120 Operator's manual

Conrad

Conrad Hobby Airbrush K3 operating instructions

wiwa

wiwa 14025 R/F operating manual

DeVilbiss

DeVilbiss LUNA2i Operation manual

WAGNER

WAGNER W 125 manual

My Clean Buddy

My Clean Buddy PW018 user manual
