Graco 24S004 Manual

Kit Instructions/Parts

24S004 Quick Disconnect Kit and

24U059 Air Whip Hose 407072B

EN

To provide quick disconnect of an Electrostatic Air Hose when used with

a ProMix®PD2K Proportioner. For professional use only.

NOTE: To use a quick disconnect on an existing electro-

static air hose, order Part No. 24S004 Kit. You will also

need to order Part No. 24U059 Electrostatic Air Whip

Hose (6 ft) [1.8 m].

Install the kit as follows.

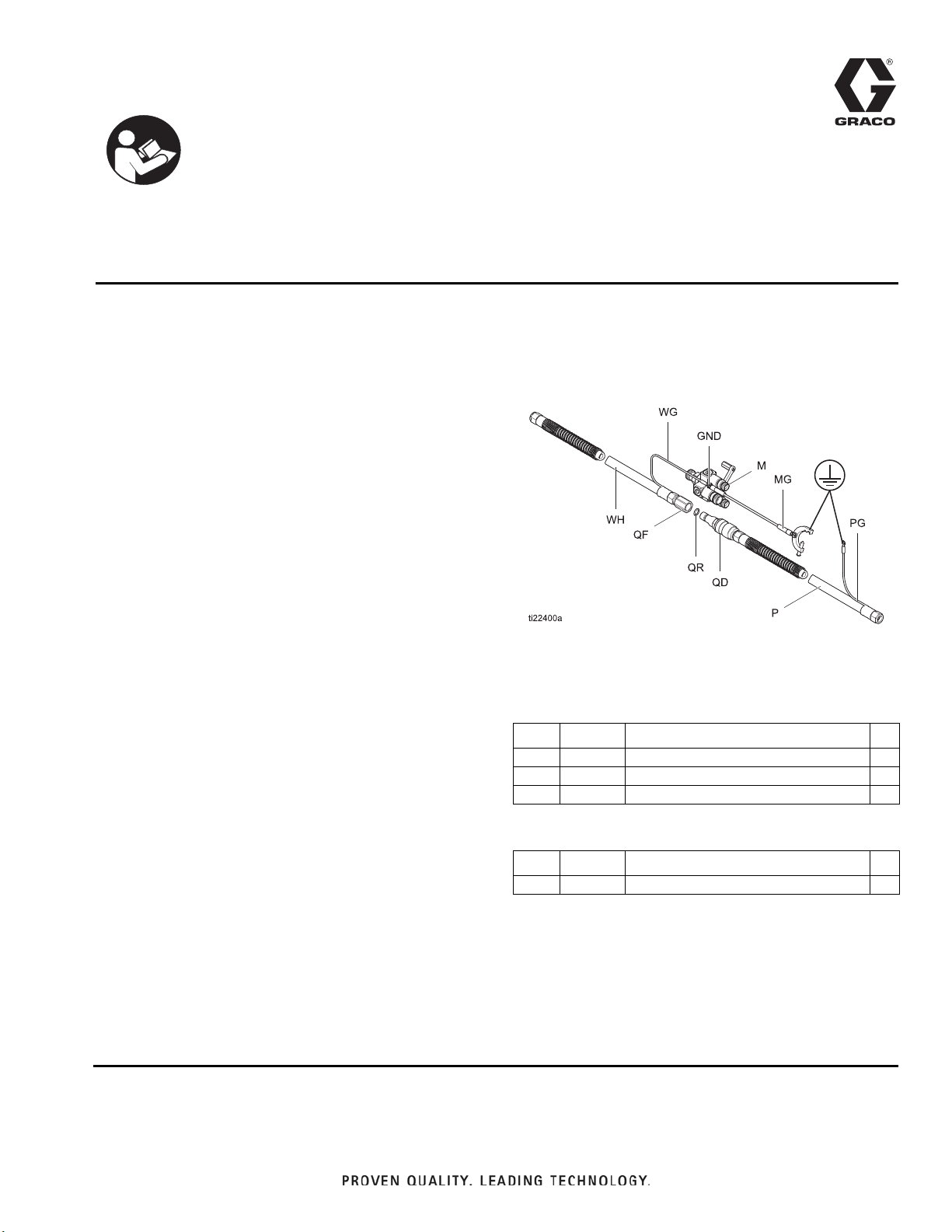

1. Connect the quick disconnect coupling (QD) to the

existing electrostatic air hose (P). The quick discon-

nect is a 1/4 npsm(m) left-hand thread.

2. Install o-ring (QR) to the male part of the quick dis-

connect coupling (QD) at the threaded end.

3. Screw the female end of adapter fitting (QF) onto

the quick disconnect coupling (QD).

4. Screw the 24U059 Electrostatic Air Whip Hose (WH)

onto the male end of the adapter fitting (QF).

NOTE: Make the following ground connections to

ensure air hose grounding continuity in the electro-

static system.

5. Connect the ground wire (PG) of the existing elec-

trostatic air hose (P) to a true earth ground.

6. Connect the whip hose ground wire (WG) to the

green ground lug (GND) of the mix manifold (M).

Connect a ground wire (MG) from the mix manifold

ground lug to a true earth ground.

Parts

Quick Disconnect Kit 24S004

Air Whip Hose

Ref Part No. Description Qty

QF 16W955 ADAPTER, QD 1

QD 112534 COUPLING, QD, air 1

QR 111710 O-RING 1

Ref Part No. Description Qty

WH 24U059 HOSE 1

Important Safety Instructions

Before beginning, read all warnings and instructions in this manual and

in your related equipment manuals. Save all instructions. This manual is

only a guide for kit installation. See your ProMix PD2K Installation Man-

ual for complete warnings and instructions.

All written and visual data contained in this document reflects the latest product information available at the time of publication.

Graco reserves the right to make changes at any time without notice.

Original instructions. This manual contains English. MM 407072

Graco Headquarters: Minneapolis

International Offices: Belgium, China, Japan, Korea

GRACO INC. AND SUBSIDIARIES • P.O. BOX 1441 • MINNEAPOLIS MN 55440-1441 • USA

Copyright 2013, Graco Inc. All Graco manufacturing locations are registered to ISO 9001.

www.graco.com

Revision B, June 2016
