Graco Xtreme XL Series User manual

Instructions-Parts

Xtreme® XL Packages

334645C

High performance, high pressure spray packages for applying protective coatings. For professional use

only.

Important Safety Instructions

Read all warnings and instructions in this manual and in related

manuals. Save these instructions.

See Models on page 6 for maximum

working pressures.

PROVEN QUALITY. LEADING TECHNOLOGY.

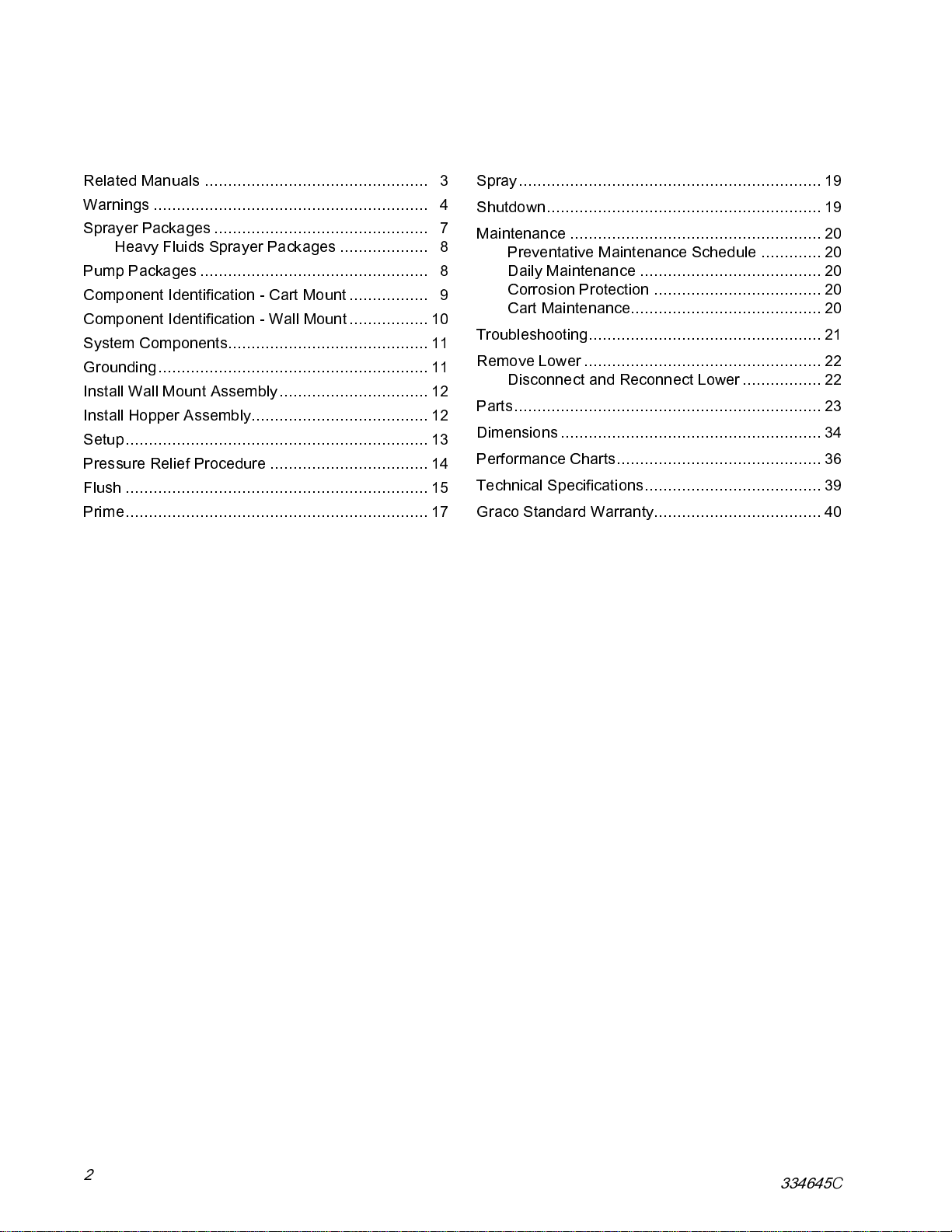

Contents

Related Manuals ................................................ 3

Warnings ........................................................... 4

Sprayer Packages .............................................. 7

Heavy Fluids Sprayer Packages ...................

Pump Packages .................................................

Component Identiﬁcation - Cart Mount................. 9

Component Identiﬁcation - Wall Mount................. 10

System Components........................................... 11

Grounding.......................................................... 11

Install Wall Mount Assembly................................ 12

Install Hopper Assembly...................................... 12

Setup................................................................. 13

Pressure Relief Procedure .................................. 14

Flush ................................................................. 15

Prime................................................................. 17

Spray................................................................. 19

Shutdown........................................................... 19

Maintenance ...................................................... 20

Preventative Maintenance Schedule ............. 20

Daily Maintenance ....................................... 20

Corrosion Protection .................................... 20

Cart Maintenance......................................... 20

Troubleshooting.................................................. 21

Remove Lower................................................... 22

Disconnect and Reconnect Lower................. 22

Parts.................................................................. 23

Dimensions........................................................ 34

Performance Charts............................................ 36

Technical Speciﬁcations...................................... 39

Graco Standard Warranty.................................... 40

2334645

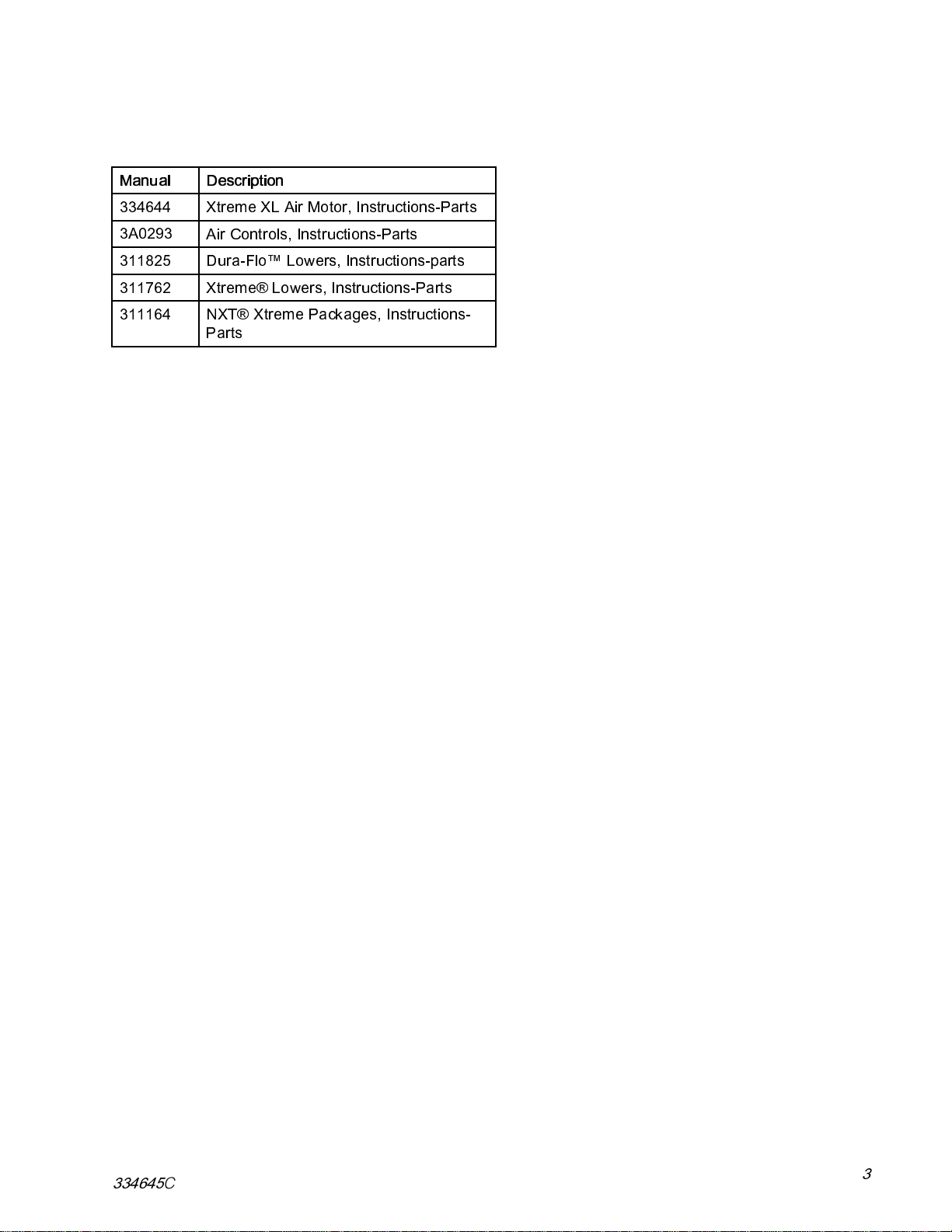

Related Manuals

Manual Description

334644 Xtreme XL Air Motor, Instructions-Parts

3A0293 Air Controls, Instructions-Parts

311 25 Dura-Flo™ Lowers, Instructions-parts

311762 Xtreme® Lowers, Instructions-Parts

311164 NXT® Xtreme Packages, Instructions-

Parts

334645

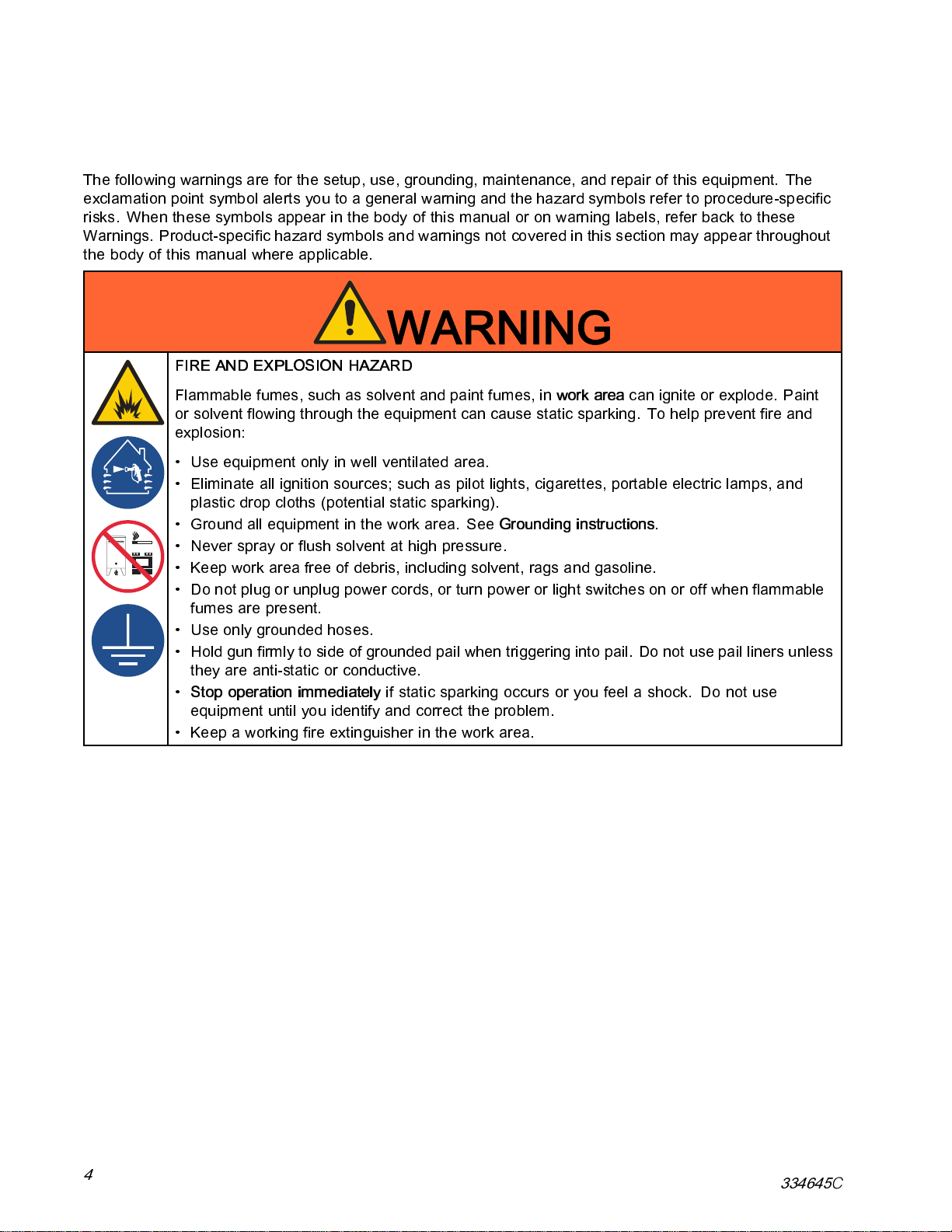

Warnings

The following warnings are for the setup, use, grounding, maintenance, and repair of this equipment. The

exclamation point symbol alerts you to a general warning and the hazard symbols refer to procedure-speciﬁc

risks. When these symbols appear in the body of this manual or on warning labels, refer back to these

Warnings. Product-speciﬁc hazard symbols and warnings not covered in this section may appear throughout

the body of this manual where applicable.

WARNING

FIRE AND EXPLOSION HAZARD

Flammable fumes, such as solvent and paint fumes, in

wor area

canigniteorexplode.Paint

or solvent ﬂowing through the equipment can cause static sparking. To help prevent ﬁre and

explosion:

• Use equipment only in well ventilated area.

• Eliminate all ignition sources; such as pilot lights, cigarettes, portable electric lamps, and

plastic drop cloths (potential static sparking).

• Ground all equipment in the work area. See

Grounding instructions

• Never spray or ﬂush solvent at high pressure.

• Keep work area free of debris, including solvent, rags and gasoline.

• Do not plug or unplug power cords, or turn power or light switches on or off when ﬂammable

fumes are present.

• Use only grounded hoses.

• Hold gun ﬁrmly to side of grounded pail when triggering into pail. Do not use pail liners unless

they are anti-static or conductive.

•

Stop operation immediately

if static sparking occurs or you feel a shock

Do not use

equipment until you identify and correct the problem.

• Keep a working ﬁre extinguisher in the work area.

4334645

Warnings

WARNING

SKIN INJECTION HAZARD

High-pressure ﬂuid from gun, hose leaks, or ruptured components will pierce skin. This may

look like just a cut, but it is a serious injury that can result in amputation.

Get immediate surgical

treatment.

• Do not spray without tip guard and trigger guard installed.

• Engage trigger lock when not spraying.

• Do not point gun at anyone or at any part of the body.

• Do not put your hand over the spray tip.

• Do not stop or deﬂect leaks with your hand, body, glove, or rag.

•Followthe

Pressure Relief Procedure

when you stop spraying and before cleaning, checking,

or servicing equipment.

• Tighten all ﬂuid connections before operating the equipment.

• Check hoses and couplings daily. Replace worn or damaged parts immediately.

EQUIPMENT MISUSE HAZARD

Misuse can cause death or serious injury.

• Do not operate the unit when fatigued or under the inﬂuence of drugs or alcohol.

• Do not exceed the maximum working pressure or temperature rating of the lowest rated

system component. See

Technical Data

in all equipment manuals.

• Use ﬂuids and solvents that are compatible with equipment wetted parts. See

Technical Data

in all equipment manuals. Read ﬂuid and solvent manufacturer’s warnings. For complete

information about your material, request MSDS from distributor or retailer.

• Do not leave the work area while equipment is energized or under pressure.

• Turn off all equipment and follow the

Pressure Relief Procedure

when equipment is not in use.

• Check equipment daily. Repair or replace worn or damaged parts immediately with genuine

manufacturer’s replacement parts only.

• Do not alter or modify equipment. Alterations or modiﬁcations may void agency approvals

and create safety hazards.

• Make sure all equipment is rated and approved for the environment in which you are using it.

• Use equipment only for its intended purpose. Call your distributor for information.

• Route hoses and cables away from trafﬁc areas, sharp edges, moving parts, and hot surfaces.

• Do not kink or over bend hoses or use hoses to pull equipment.

• Keep children and animals away from work area.

• Comply with all applicable safety regulations.

334645

Warnings

WARNING

MOVING PARTS HAZARD

Moving parts can pinch, cut or amputate ﬁngers and other body parts.

• Keep clear of moving parts.

• Do not operate equipment with protective guards or covers removed.

• Pressurized equipment can start without warning. Before checking, moving, or servicing

equipment, follow the

Pressure Relief Procedure

and disconnect all power sources.

TOXIC FLUID OR FUMES HAZARD

Toxic ﬂuids or fumes can cause serious injury or death if splashed in the eyes or on skin,

inhaled, or swallowed.

• Read MSDSs to know the speciﬁc hazards of the ﬂuids you are using.

• Store hazardous ﬂuid in approved containers, and dispose of it according to applicable

guidelines.

PERSONAL PROTECTIVE EQUIPMENT

Wear appropriate protective equipment when in the work area to help prevent serious injury,

including eye injury, hearing loss, inhalation of toxic fumes, and burns. Protective equipment

includes but is not limited to:

• Protective eyewear, and hearing protection.

• Respirators, protective clothing, and gloves as recommended by the ﬂuid and solvent

manufacturer.

6334645

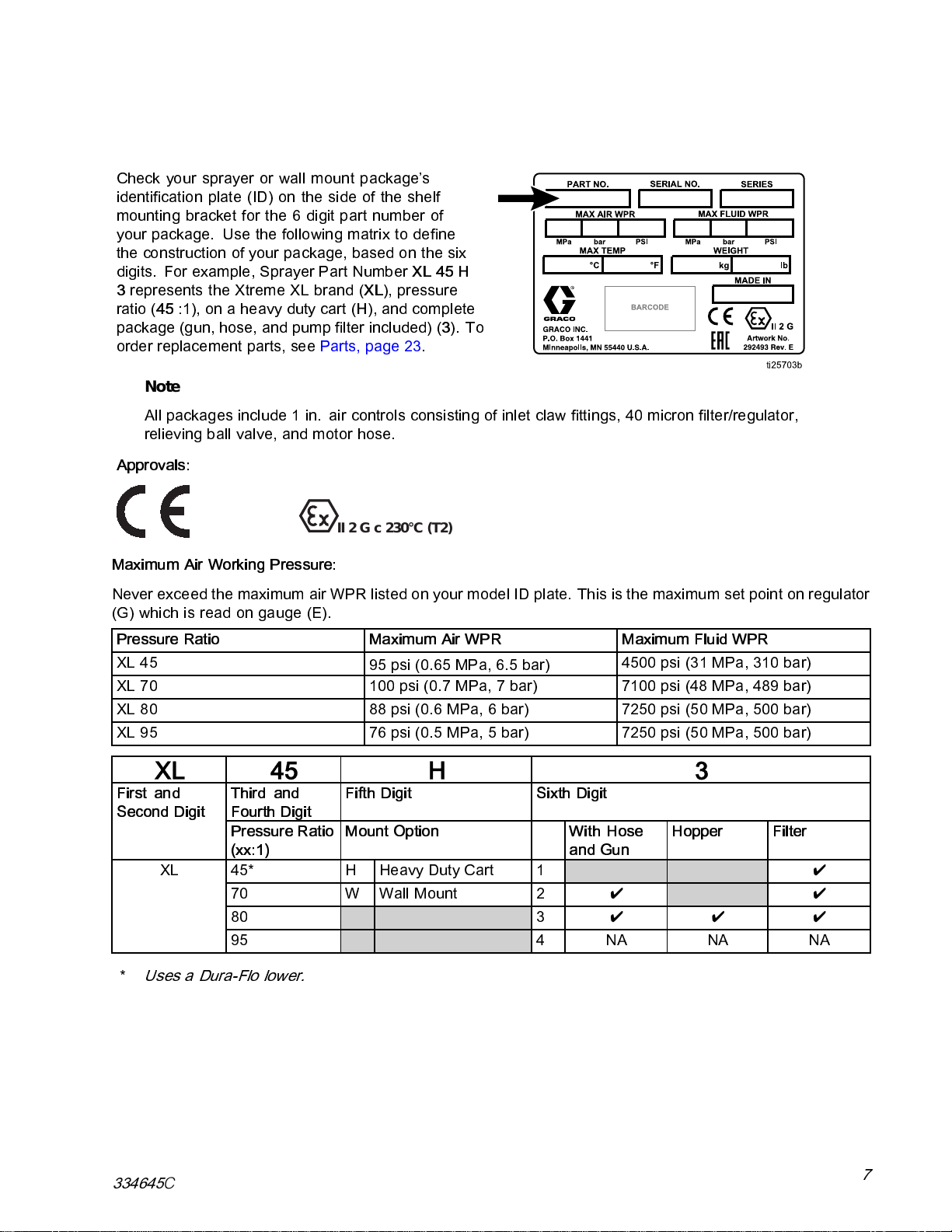

Sprayer Packages

Check your sprayer or wall mount package’s

identiﬁcation plate (ID) on the side of the shelf

mounting bracket for the 6 digit part number of

your package. Use the following matrix to deﬁne

the construction of your package, based on the six

digits. For example, Sprayer Part Number

XL 45 H

represents the Xtreme XL brand (

), pressure

ratio (

:1), on a heavy duty cart (

), and complete

package (gun, hose, and pump ﬁlter included) (

). To

order replacement parts, see Parts, page 23.

Note

All packages include 1 in. air controls consisting of inlet claw ﬁttings, 40 micron ﬁlter/regulator,

relieving ball valve, and motor hose.

Approvals:

II 2 G c 230°C (T2)

Maximum Air Wor ing Pressure:

Never exceed the maximum air WPR listed on your model ID plate. This is the maximum set point on regulator

(G) which is read on gauge (E).

Pressure Ratio Maximum Air WPR Maximum Fluid WPR

XL 45 95 psi (0.65 MPa, 6.5 bar) 4500 psi (31 MPa, 310 bar)

XL 70 100psi(0.7MPa,7bar) 7100psi(4 MPa,4 9bar)

XL 0 psi (0.6 MPa, 6 bar) 7250 psi (50 MPa, 500 bar)

XL 95 76 psi (0.5 MPa, 5 bar) 7250 psi (50 MPa, 500 bar)

XL 45 H 3

Third and

Fourth Digit Fifth Digit Sixth DigitFirst and

Second Digit Pressure Ratio

(xx:1) Mount Option With Hose

and Gun Hopper Filter

45* HHeavy Duty Cart 1

✔

70 W Wall Mount 2

✔✔

✔✔✔

95 4NANANA

Uses a Dura-Flo lower.

334645

Pump Packages

Heavy Fluids Sprayer Packages

Packages include a hopper, no ﬂuid ﬁlter, 3/4 in outlet

check valve, 3/4 in x 50 ft. (15 m) hose, 1/2 in x 25 ft

(7.6 m) whip and XHF spray gun with 429 tip

24X593 - 70:1

24X594 - 80:1

Note

Heavy-ﬂuid materials vary and should be

tested with a qualiﬁed distributor. Material

should be pourable and self-leveling.

Pump Packages

Check your pump package’s identiﬁcation plate (ID),

attached to the black motor shroud, for the 6-digit part

number of your pump package. For example, Pump

Part Number

PL 45 C 2

represents the pump (

pressure ratio (

:1), carbon steel construction (

and no built-in ﬁlter or air controls (

To order replacement parts, see Pump Package Parts.

Pressure Ratio Maximum Air WPR Maximum Fluid WPR

PL 45 95 psi (0.65 MPa, 6.5 bar) 4500 psi (31 MPa, 310 bar)

PL 70 100 psi (0.7 MPa, 7 bar) 7100 psi (4 MPa, 4 9 bar)

PL 0 psi (0.6 MPa, 6 bar) 7250 psi (50 MPa, 500 bar)

PL 95 76 psi (0.5 MPa, 5 bar) 7250 psi (50 MPa, 500 bar)

PL 45 C2

Third and Fourth Digit Fifth Digit Sixth Digit

First and Second Digit

Pressure Ratio

(xx:1) Lower Construction Built-in Filter

45 C Carbon Steel 1

✔

70 2 NA

Approvals:

II 2 G c 230°C (T2)

334645

Component Identiﬁcation - Cart Mount

Component Identiﬁcation

- Cart Mount

Figure 1 Airless Sprayer

Key:

AAir Inlet, 1 in npt(f) on claw ﬁtting

BBleedTypeMasterAirValve(required)

C Air Pressure Relief Valve

DAir Filter / Water Separator

EAir Pressure Gauge

F Packing Nut

GAir Regulator Adjustment

HAirMotor

JFluid Drain/Purge Valve (required)

KFluid Filter (if equipped)

LGrounding Wire (required)

MPump

NSuctionHoseandTube(ifequipped)

PPump Fluid Outlet

ROptional Fluid Outlet, for second spray gun

S Spray Gun

TDe-Ice Control (Bleed Air)

UHopper (if equipped)

WFluidHose

334645

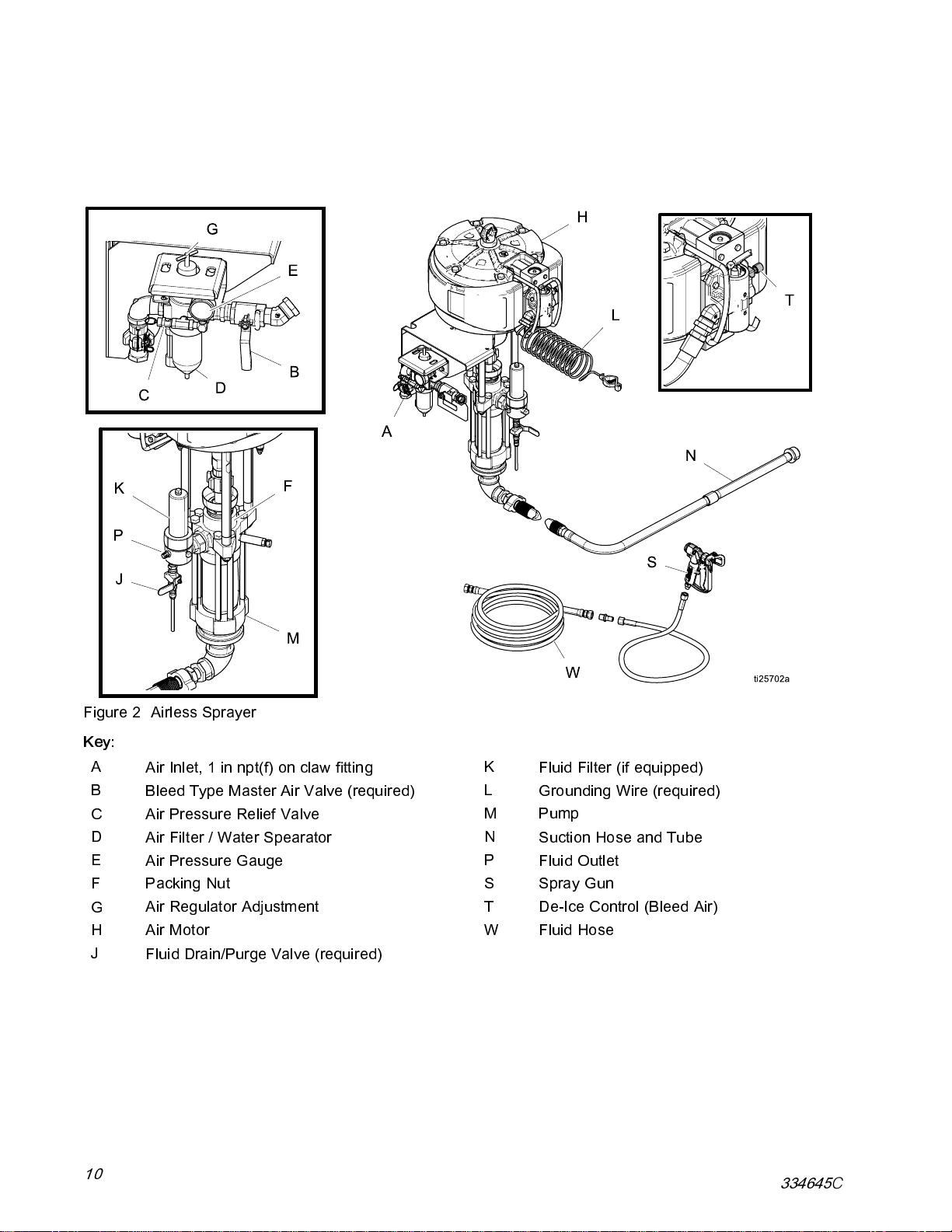

Component Identiﬁcation - Wall Mount

Component Identiﬁcation

- Wall Mount

Figure 2 Airless Sprayer

Key:

AAir Inlet, 1 in npt(f) on claw ﬁtting

BBleed Type Master Air Valve (required)

C Air Pressure Relief Valve

DAir Filter / Water Spearator

EAir Pressure Gauge

F Packing Nut

GAir Regulator Adjustment

HAirMotor

JFluid Drain/Purge Valve (required)

KFluid Filter (if equipped)

LGrounding Wire (required)

MPump

NSuctionHoseandTube

PFluid Outlet

S Spray Gun

TDe-Ice Control (Bleed Air)

WFluidHose

10 334645

This manual suits for next models

Table of contents

Other Graco Paint Sprayer manuals

Graco

Graco True Airless LTS15 User manual

Graco

Graco 16N661 Use and care manual

Graco

Graco XTR A Series User manual

Graco

Graco Reactor E Series User manual

Graco

Graco DURON Performance 390 Operating instructions

Graco

Graco 310802D User manual

Graco

Graco XTR7+ XTR720 User manual

Graco

Graco 311001C Datasheet

Graco

Graco 226-161 SERIES"A" Operation manual

Graco

Graco TexSpray 248091 Guide

Graco

Graco 24L884 Manual

Graco

Graco Magnum Pro Plus Series Guide

Graco

Graco MAGNUM PROJECT PAINTER PLUS User manual

Graco

Graco Ultra Max II 695 Instruction Manual

Graco

Graco FinishPro HVLP 7.0 Use and care manual

Graco

Graco FOAM-CAT 200 Operation manual

Graco

Graco PRO 3Z9296 User manual

Graco

Graco GX21 Cordless Guide

Graco

Graco 288776 Parts list manual

Graco

Graco IronMan 256790 Guide

Graco

Graco SaniSpray HP 20 User manual

Graco

Graco 223-599 User manual

Graco

Graco Xtreme NXT User manual

Graco

Graco EasyMax WP 258849 User manual

Popular Paint Sprayer manuals by other brands

SNOWJOE

SNOWJOE Sunjoe 24V-GS-LTW-RM Operator's manual

Binks

Binks SV100 Service manual

Fimco

Fimco LG-4-3-1 owner's manual

AG SPRAY

AG SPRAY FS-ATV-25BL owner's manual

Nordson

Nordson MicroMax 2 manual

Bonide

Bonide 051 Operation and service instructions

zogics

zogics Z-DAS instruction manual

KISANKRAFT

KISANKRAFT KK-KBS-165 Operation manual

Matrix

Matrix SG 650 Translation of the original instructions

Anest Iwata

Anest Iwata SGA-3 Installation, use & maintenance instruction manual

paasche

paasche VV Instructions and parts list

Carlisle

Carlisle DeVilbiss JGA-510 Service manual

Gardena

Gardena 11120 Operator's manual

Conrad

Conrad Hobby Airbrush K3 operating instructions

wiwa

wiwa 14025 R/F operating manual

DeVilbiss

DeVilbiss LUNA2i Operation manual

WAGNER

WAGNER W 125 manual

My Clean Buddy

My Clean Buddy PW018 user manual
