Gigabyte W291-Z00 User manual

Server Rack Installation Instructions 2019/04/24 1

Server Rack Installation Instructions

Model Name: W291-Z00

Version: 1.0

Date: 2019/4/24

Server Rack Installation Instructions 2019/04/24 2

Screw locks type slide rail installation

▼If you want to use the screw lock type slide rail to mount the server into the rack, do the

following.

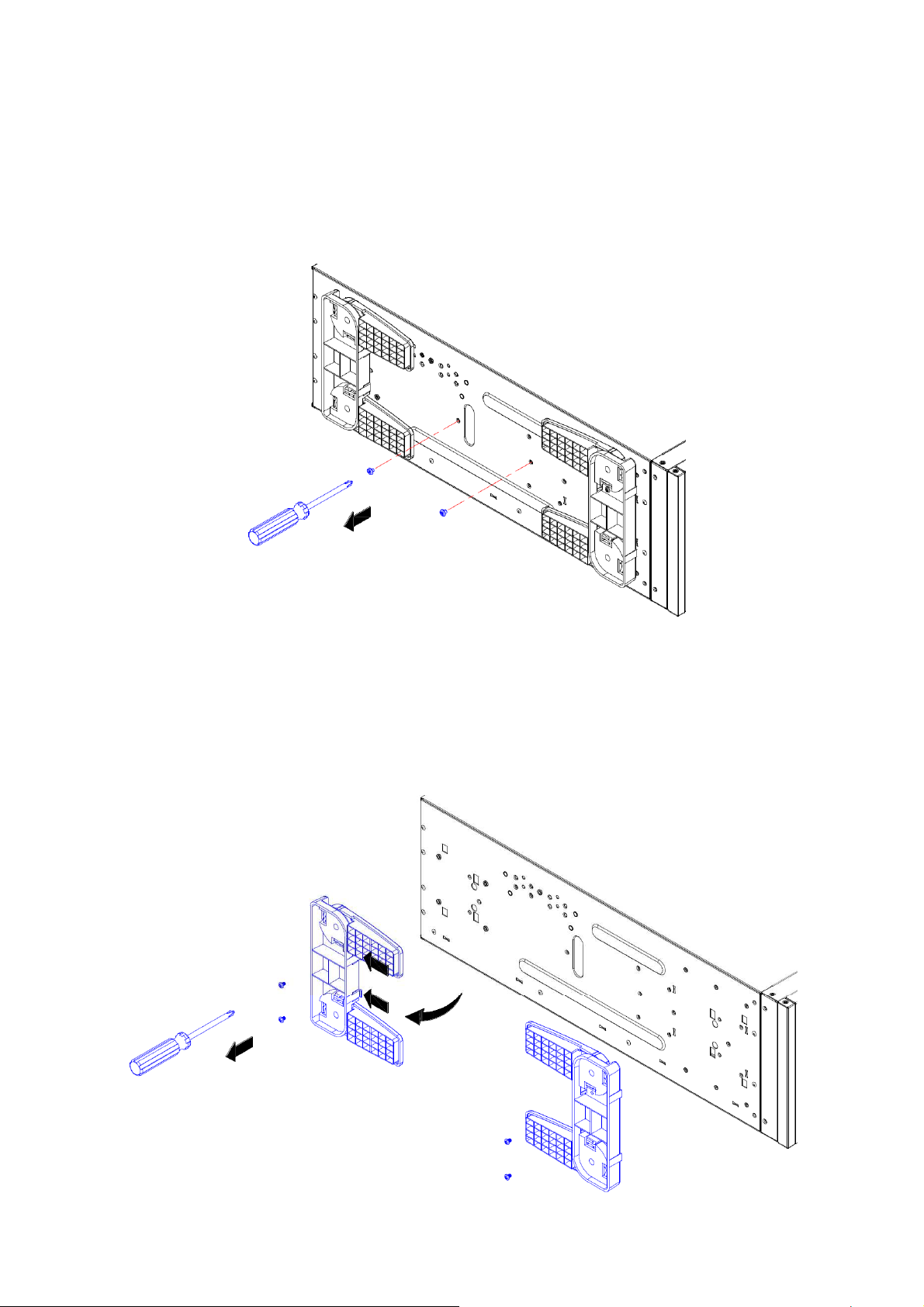

1. Remove the 2 screws at the bottom of the chassis with a Philips screwdriver as shown

below.

2. Perform the following actions to remove the two plastic stands.

As shown in the figure, loosen the 2 screws of the fixed plastic stand with a Philips

screwdriver, and then press the snap-fit with your fingers to disengage the plastic stands

from the chassis.

Server Rack Installation Instructions 2019/04/24 3

3. Perform the following actions to remove the top cover.

Use a Philips screwdriver to loosen the 2 screws securing the top cover and push the top

cover in the direction of the arrow below.

3. Perform the following actions to lock the left and right ear frames to the sides of the

chassis.

As shown in the figure, align the mounting holes of the left and right ear frames with the

screw holes on the left and right sides of the chassis, and then tighten the fixing screws with

a Philips screwdriver.

4. Remove inner from the middle-outer rail.

Server Rack Installation Instructions 2019/04/24 4

5. Install inner rail to both side of chassis.

6. Install middle-outer rail onto rack post.

Server Rack Installation Instructions 2019/04/24 5

7. Insert chassis into middle-outer rail on rack.

7-1. Pull out the middle rail to full-extended.

Ensure the ball bearing retainer is at the most front.

7-2 Installing chassis into middle outer rails, when the chassis is locked, pull the released

tab on the inner rail and proceed to pull the chassis into rack.

Server Rack Installation Instructions 2019/04/24 6

7-3 Use M5 screws to lock the chassis to the rack.
