Genie WAHD2DVAF User manual

User Manual

Please read these instructions carefully before operating the unit

and keep for further reference.

2MP 4-in-1 AHD IR Vandal

Resistant Dome Camera with

2.8–12mm Auto Focus Lens

WAHD2DVAF

Intro Section

Please read this instruction carefully before operating the product and keep it for further

reference. All examples and pictures used here are for reference only.

The contents of this manual are subject to change without notice.

CAUTION:

• If the product does not work properly, please contact your dealer or the nearest service

center. Never attempt to disassemble the camera yourself. We shall not be responsible

for any problems caused by unauthorised repair or maintenance.

• Do not allow water or liquid intrusion into the camera while in use.

• In the use of the product, you must be strict compliance with the electrical safety

regulations of the nation and region.

• When the product is mounted on wall or ceiling, the device shall be ﬁrmly ﬁxed.

• Make sure the power supply voltage is correct before using the camera.

• Do not drop the camera or subject it to any physical shock.

• If cleaning, please use a clean soft cloth with a little neutral detergent to wipe it gently

• Do not aim the camera at the sun or in any area where there is bright lighting.

• The device may be burned out by a laser beam, so when any laser equipment is in use,

make sure that the surface of the device will not be exposed to the laser beam.

• Do not place the camera in extremely hot, cold , dusty or damp locations, and do not

expose it to high electromagnetic radiation.

• To avoid heat accumulation, good ventilation is required for operating environment.

Contents

iii

1.0 Introduction..........................................................................................................4

1.1 Product Features...........................................................................................4

1.2 Product Dimensions.....................................................................................4

1.3 Speciﬁcation.................................................................................................5

1.4 Functions ......................................................................................................6

2.0 Cables ..................................................................................................................7

3.0 Product Installation..............................................................................................8

4.0 Call Up Main Menu ...............................................................................................9

The Genie WAHD2DVAF is a professional, modern dome design CCTV camera that

boasts 4-in-1 technology (AHD, TVI, CVI, CVBS) and utilises a 2.8–12mm auto focus

lens. The camera offers IP67 and IK10 protection and up to 30m viewing when the

IR illumination is switched on.

1.1 Product Features

• 1080p real-time image, high resolution, true colour

• AHD / TVI / CVI /CVBS standard video output

• CMOS progressive scan, perfectly captures the moving object

• High speed, long distance and real time transmission

• Auto Colour to B&W at low illumination

• Supports ICR switch, true day / night

• Up to 1000 TVL resolution

• Supports OSD menu

• Support noise reduction function

• 20 ~ 30m IR night view distance

• IP67 & IK10 ingress protection

• Support COC

• Support 960H CVBS output

• Motorised zoom lens

• NDAA compliant

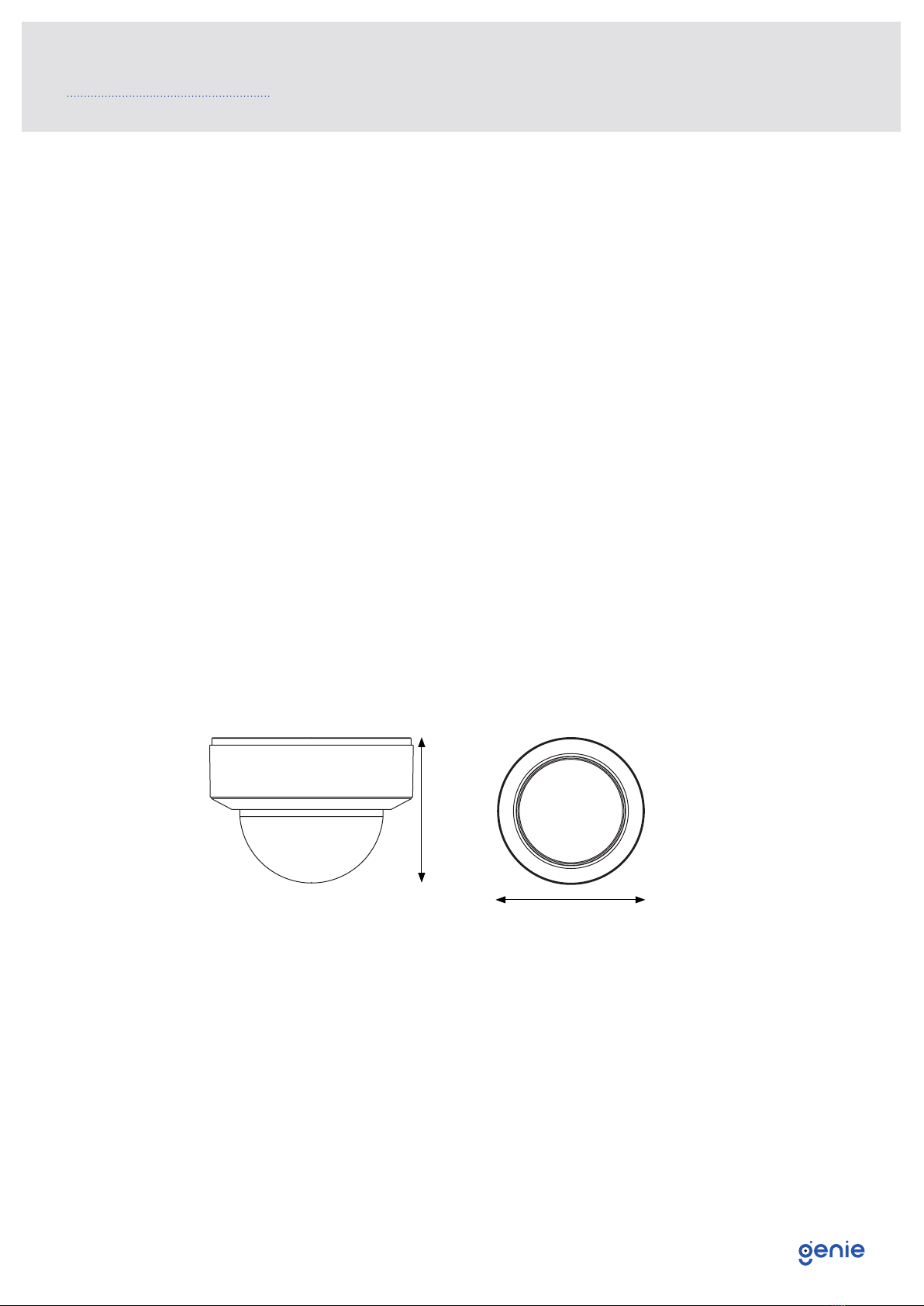

1.2 Product Dimensions

1.0 Introduction

141mm

100.2mm

User Manual 2MP 4-in-1 AHD IR Vandal Resistant Dome Camera with 2.8–12mm Auto Focus Lens

1.3 Speciﬁcation

Camera

Image Sensor 1 / 2.8” CMOS

Image Size 1920×1080

Image System PAL / NTSC

Resolution 2MP

Electronic Shutter Auto: 1/25s~1/50000s (PAL), 1/30s~1/50000s (PAL)

Minimum Illumination Colour : 0.001 Lux @ F1.2, AGC ON: B&W : 0 Lux with IR

Lens 2.8–12 mm, motorised

Lens Mount D14

S / N Ratio ≥52dB (AGC OFF)

Frame Rate 30fps (60Hz), 25fps (50Hz)

Video Output AHD / TVI / CVI / CVBS

Functions

IR Distance 20 ~ 30 m

Function Control OSD (COC Control)

Day & Night ICR

WDR Yes (120dB)

3D NR Yes

Global Exposure No

Central Exposure No

AGC Yes

Auto White Balance Yes

BLC Yes

HLC Yes

Freeze Yes

Mirror Yes

Defog No

Sharpness Yes

Smart IR Yes

Motion Detection Yes

Privacy Mask Yes

Defect Correction Auto

Language 16 languages

Angle Adjustment Pan: 0°~345°, Tilt: 0°~77°, Rotation: 0°~345°

Others

Ingress Protection IP67 and IK10

Power Supply DC12V (± 15%)

Power Consumption IR Off : < 1.5W, IR On : < 5W

Working Environment - 30°C ~ 50°C, 10 % ~ 90 % (Relative Humidity)

Dimensions 141 × 100.2 mm

Weight Approximately 0.82Kg (Net)

User Manual 2MP 4-in-1 AHD IR Vandal Resistant Dome Camera with 2.8–12mm Auto Focus Lens

1.4 Functions

High Resolution

Adopt high performance sensor, providing high deﬁnition and clear image.

High Transmission Performance

Real-time transmission with high speed and long distance.

DNR

Reduce noise from brightness and colour signal.

OSD

It’s easy for the user to call the setup menu and conﬁgure the menu. The camera settings

can be clearly displayed through the main menu.

White Balance

Adjust the colour temperature according to the environment automatically.

ICR Auto Switch

The ﬁlter will ﬁlter infrared light during the daytime and change to normal at night to

ensure a high sensitivity and clear image.

AGC

Adjust the gain of ampliﬁer, enabling the camera to output the standard video signal in

different lighting condition.

Wide Dynamic Range (WDR)

When there are both very bright and very dark areas simultaneously in the ﬁeld of view, this

function will balance the brightness level and provide clear images.

Backlight Compensation (BLC)

When the back of the captured object is too much bright, you can set BLC for the captured

object to make it clearer.

The cables are only for reference. The default video output will be different for different

cameras.

For the camera with video switch cable, there are two kinds of video switches, button

switch and dial switch.

Button Switch: The video outputs will recycle by holding and pressing the button in the

video switch cable for 5 seconds.

Dial Switch: Please set the video output according to the directions described on the tag

of the video switch cable.

Note:

Before switching video outputs, remove the cover of the video switch cable ﬁrst.

* Some models do not have the video switch cable, please go to OSD to change video

outputs.

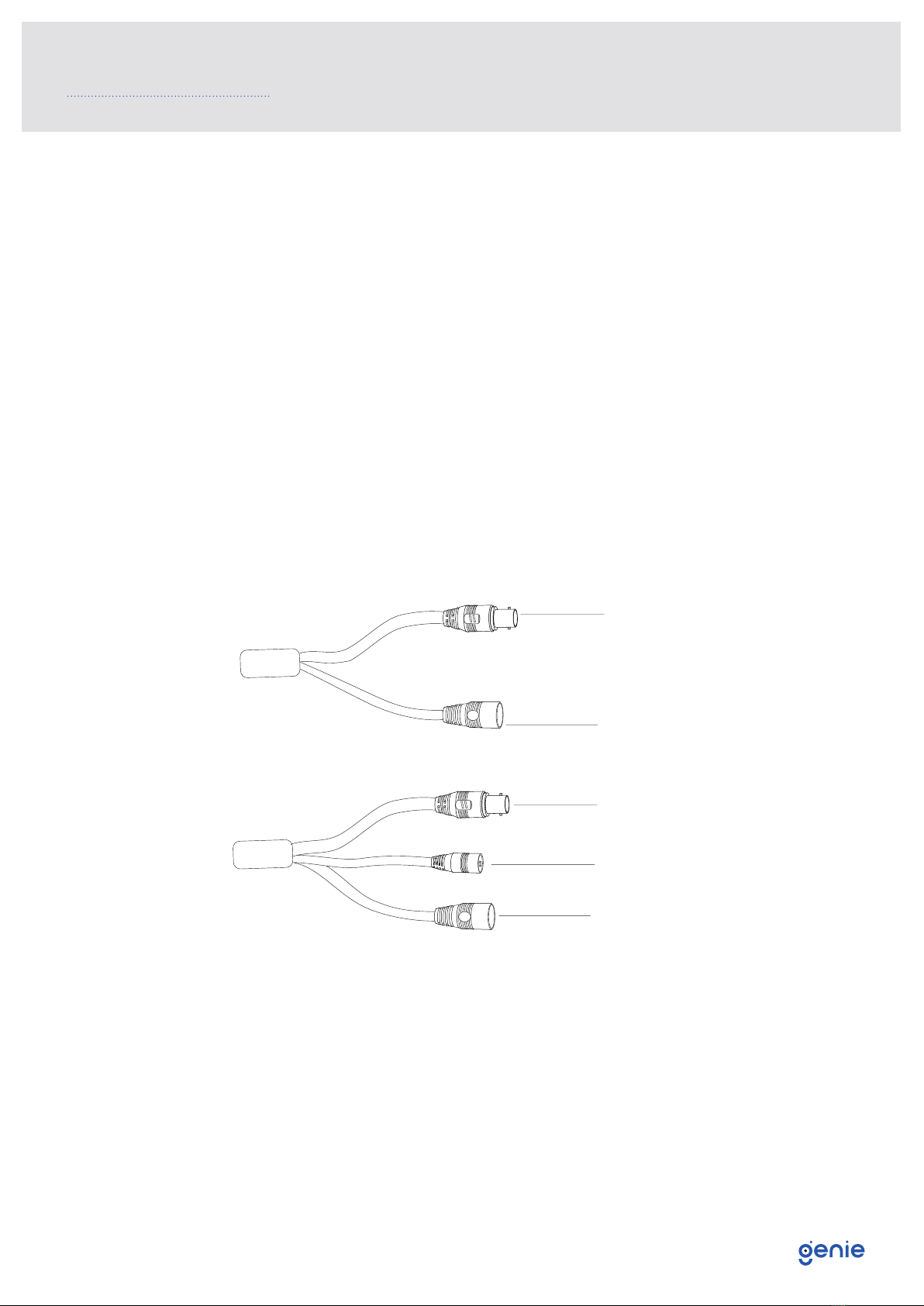

2.0 Cables

Video Output

Power Cable

Video Output

Video Switch Cable

Before you start, please make sure that the wall or ceiling is strong enough to withstand 3x

the weight of the camera. Please install the camera in the dry environment.

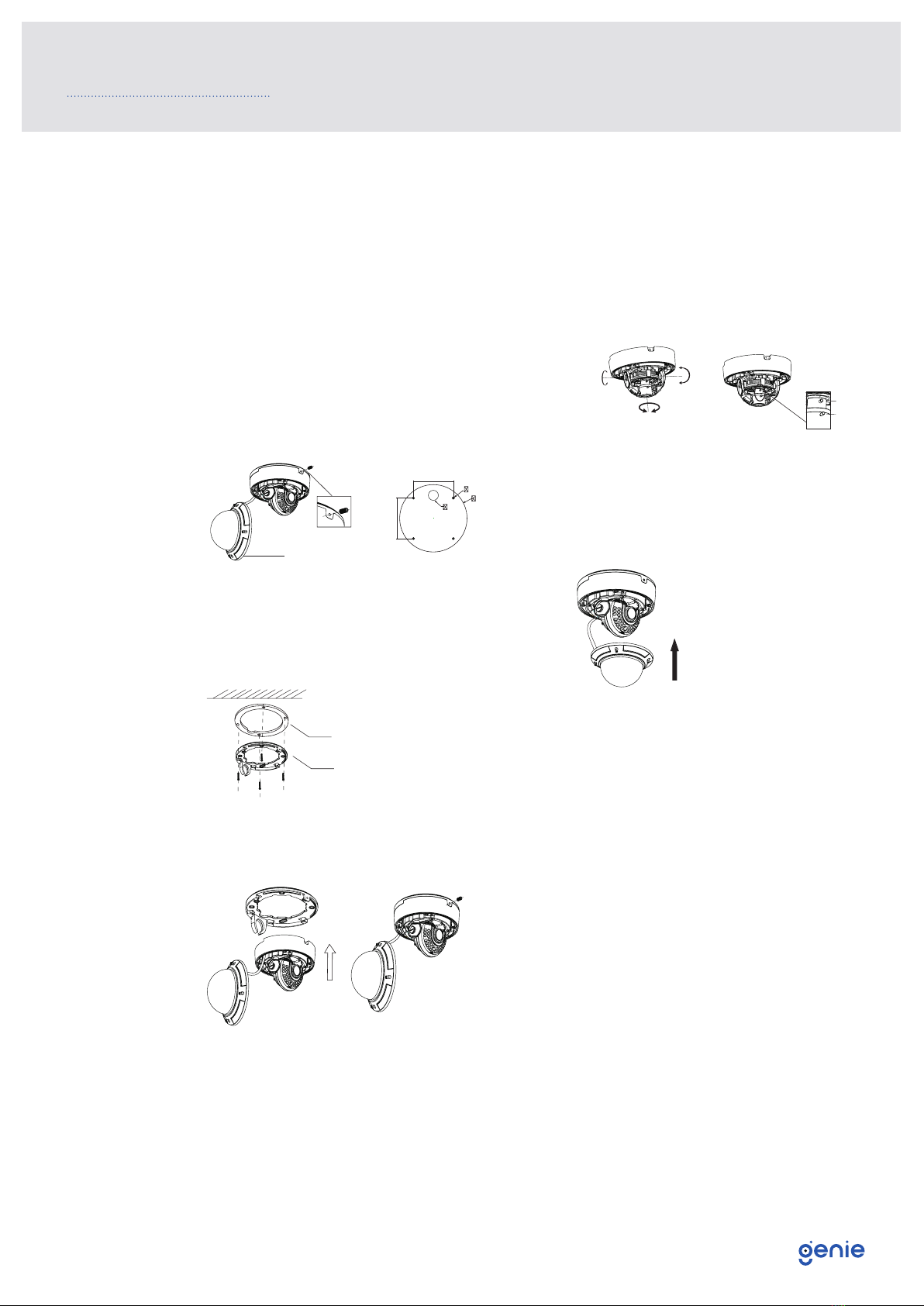

3.0 Product Installation

Lower Dome

Lock Screw

148

88 mm

89mm

Sponge

Mounting Base

Fo cus

Zo om

Rotation

0°~360 °

Pa n 0°~360°

Tilt 0°~75°

1. Loosen the screws to open the lower

dome and then loosen the lock

screw to remove the mounting base.

2. Attach the drill template to the place

where you want to ﬁx the camera

and then drill 4 screw holes and 1

cable hole (if you want to route the

cables through the mounting base)

according to the drill template.

3. Route and connect the cables and

then secure the mounting base to

the ceiling or wall with screws.

4. Fix the camera to the mounting base

with the lock screw.

5. Three-axis adjustment. Before

adjustment, preview the image of

the camera on a monitor and then

adjust the camera according to the

ﬁgure below number 6 to get an

optimum angle.

6. Adjust the Focus and Zoom screw to

get a clear image (if your camera is a

ﬁxed lens or motorised lens, please

skip this step).

7. Install the lower dome back to

the camera with the screws and

remove the protection ﬁlm softly to

complete the installation.

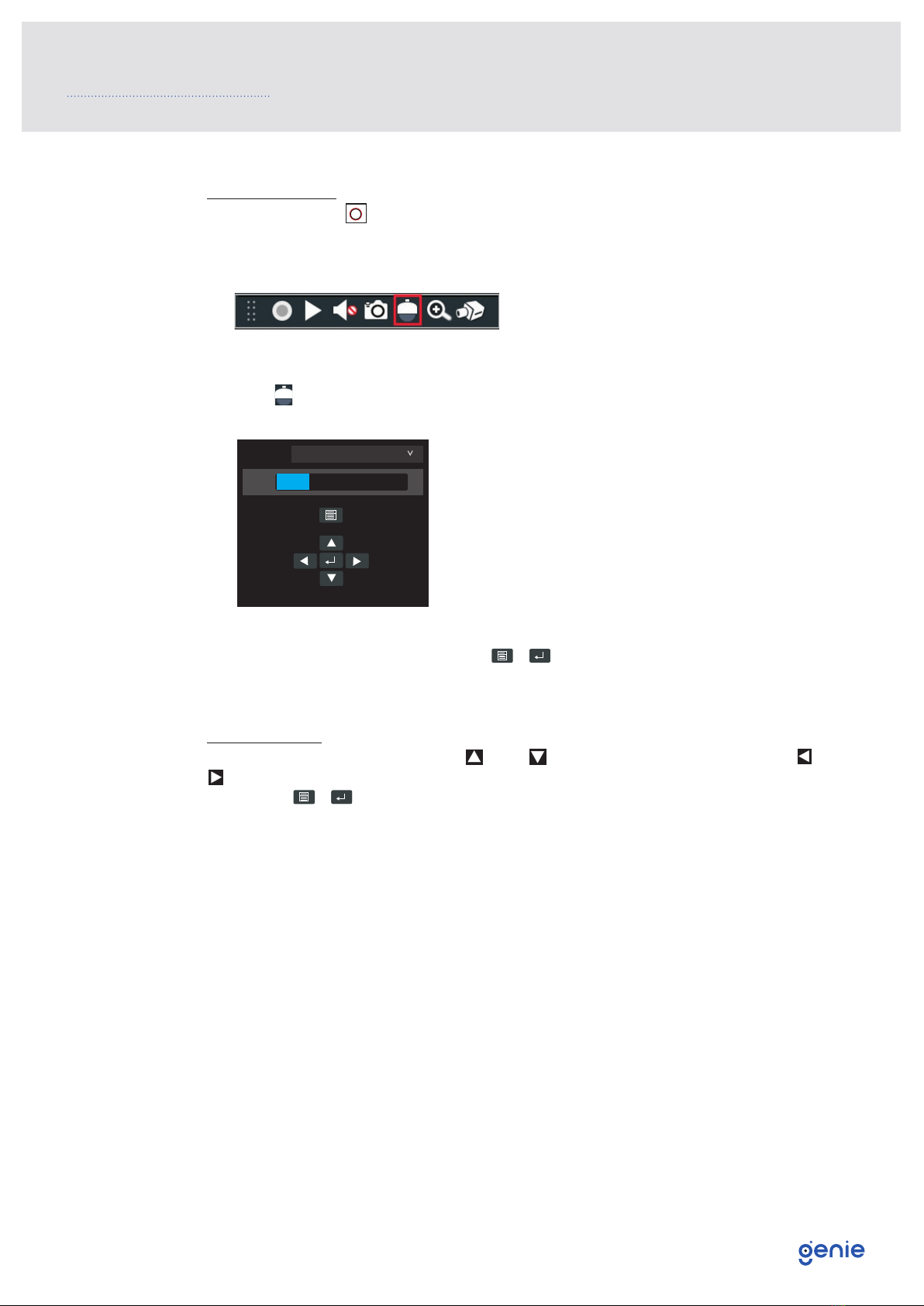

Access Main Menu

1. Press Enter key of the rear panel or cable of the camera to go to the main menu.

2. Select the preview window and right click the mouse to show the following menu list

on the DVR.

3. Click on the toolbar at the bottom of the live preview window (or right click the

mouse to select “PTZ Control”).

4. Select the “OSD” tab and then click / to call up the main menu.

Menu Operation

You can select the menu by clicking (U) or (D) key on the direction area. Click (L) or

(R) key to select the menu on the left. The menu with arrow icon which means it has sub-

menu. Click / to go to the sub-menu or conﬁrm the settings.

If there are direction keys and enter key on the cables of the camera, you can also use

these direction keys to select menu and the enter key to go to the sub-menu or conﬁrm the

settings.

Note: This series of the camera must be connected to the DVR which supports calling up

main menu of camera. Different DVRs manufactured by different DVR manufacturers may

have different modes of menu operation. Please refer to the relevant User Manual of DVR.

* Some models may not support calling up main menu, please take the ﬁnal product as

the standard.

4.0 Call Up Main Menu

Camera Camera1

OSD PresetCruise

Sales +44(0)1707 330541

Enquiries [email protected]o.uk

Website www.genieproducts.co.uk
