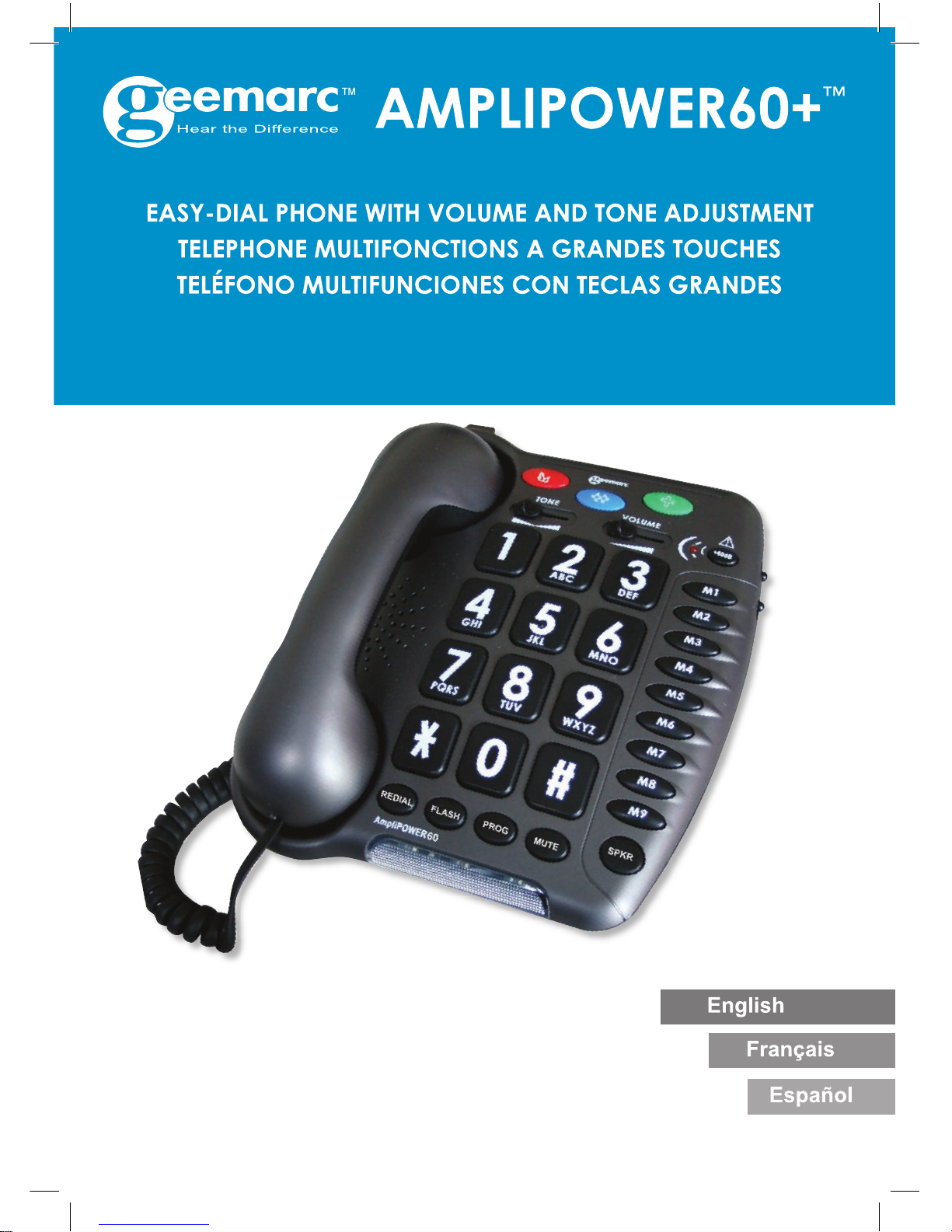

Geemarc AMPLIPOWER60+ User manual

Caution: This telephone product is speciﬁcally designed for people with hearing difﬁculties and is provided

with a handset earpiece volume control for individual requirements. Due care must be taken by all users

that the handset earpiece volume control is set to the lowest level acceptable by each respective user.

Care should therefore be exercised to ensure that any new users are familiar with this requirement.

Attention: Ce telephone peut etre destine aux personnes ayant des problemes d’audition. Il possede un

ecouteur a volume variable. A la premiere utilisation, assurez vous que le bouton de reglage du volume

soit positionne sur la position volume minimum. Les personnes malentendantes pourront par la suite

augmenter le volume pour l’adapter a leur audition.

Precaución: Este producto telefónico ha sido especíﬁcamente diseñado para personas con diﬁcultades

de audición, y lleva un control de volumen a la altura del auricular para adaptarlo a las necesidades

individuales. Habrá que tener un cuidado especial de ajustar el control de volumen al nivel mínimo

aceptable por cada usuario respectivo. Deberá asegurarse de que todos los nuevos usuarios se

familiarizan con este requisito.

INSTRUCTIONS 4

DESCRIPTION 5

SETTING UP

- Connecting the telephone 6

- Alarm and ring options 6

- Ringer settings 6

- Tone/Pulse switch (T/P) 7

- Time break recall switch (600/100) 7

- Hotel message waiting switch 7

- Wall mounting 8

USING THE PHONE

- Answering incoming calls 9

- Volume and tone receiving 9

- Making a call 10

- Last number redial 11

- Recall, * & #buttons 11

- Mute button 11

- Storing telephone numbers 12

- Dialling stored numbers 12

REGULATORY COMPLIANCE 13

GUARANTEE 15

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS

When using your telephone equipment, basic safety precautions should

always be followed to reduce the risk of ﬁre, electric shock and injury to

persons, including the following:

Do not use this product near water, for example, near a bath tub, wash

bowl,kitchen sink or laundry tub, in a wet basement or near a swimming pool.

2. Avoid using a telephone (other than a cordless type) during an electrical

storm. There may be a remote risk of electric shock from lightning.

3. Do not use the telephone to report a gas leak in the vicinity of the leak.

4. Use only the power cord and batteries indicated in this manual. Do not

dispose of batteries in a ﬁre. They may explode. Check with local codes for

possible special disposal instructions.

SAVE THESE INSTRUCTIONS!

Congratulations on purchasing your Geemarc AMPLIPOWER60+™ tele-

phone. This is a multifunction telephone which offers features such as

hands free use, phone book, caller display* and voice announcing.

Its is important that you read the instructions below in order to use your

Geemarc telephone to its full potential. Keep this user guide in a safe place

for future reference.

This guide explains how to use the following telephone:

AMPLIPOWER60+

™

*To use the caller display facility, you must subscribe to your network

provider’s caller display service.

Unpacking the Telephone

When unpacking the telephone, you should ﬁnd the following in the box:

• 1 AMPLIPOWER60+™ unit

• 1 AMPLIPOWER60+™ handset with curly cord

• 1 Mains power adaptor

• 1 Telephone line cord

• 1 User Guide

INSTRUCTIONS

Hotel message switch

Shaker socket (*)

Tone reception

adjustment

Speaker

volume

adjustment

Volume

reception

adjustment

Speaker

Last number

redial

Time break

recall button

Memory

storing key

Flashing incoming

ring indicator

(camera ﬂash)

Key to activate tone

and volume

adjustment function

Tone and volume

adjustment automatically

activated each time you

hang-up the phone

Handsfree /

Headset button

Ringer select

mode

Mute button

Direct memory

buttons

Ringer level

adjustment

3 priority numbers

Line socket

12 V DC adaptor socket

Headset socket (*)

(*) : For these optionals accessories, consult the retailer ( see contact details at the end of this manual)

Caution: Repeated incremental exposure to ampliﬁcation levels greater than 18dB may be

harmful to individuals without hearing disabilities. Therefore, do not remove the warning label

attached to the back of the handset. If it is likely that a visually impaired person will use the

telephone, securely attach the provided warning printed in Braille to the back of the handset.

Note: In standard use, the ampliﬁer turns off whenever you hang up the telephone. This is

a useful feature if many people use the phone. If you want the ampliﬁer to always remain

on, slide the Volume Reset Override switch on the back of the phone to ON.

DESCRIPTION

1 - CONNECTING THE TELEPHONE

- Connect the handset cord

- Open the battery door by unscrewing the retaining screw. Insert 4 x

AAA alkaline batteries. Snap the battery door in place.

In case of power failure, batteries are required for the ring.

- Connect the line cord .

- Connect the PTT plug to the wall socket.

- Connect the 12V DC adaptor cord to the telephone.

- Connect the 12V DC adaptor to your wall socket (**).

(**) Classiﬁed “hazardous voltage” according to EN60950 standard.

2 - ALARM AND RINGER OPTIONS

A 3 position switch located on the right side of the phone allows the settings

below:

: Only the ringer is activated.

: Ringer and shaker are activated.

: Ringer and strobe ﬂash are activated.

3 - RINGER SETTINGS

A switch located on right side allows the ringer to be switched

HI,LOW,OFF:

: Off,

: Low, : Hi

Your phone comes with the ringer switched to «High» and the melody set

to «6».

SETTING UP

Low Middle High

Melody 1 1 2 3

Melody 2 4 5 6 (by default)

Melody 3 7 8 9

If you don’t like the ringer melody,you can choose a new one by changing

the settings as follow:

- Lift the handset.

- Press PROG button.

- Press #button.

- Press any button 1 to 9.

Ringer will be activated on next call.

4 - TONE/PULSE SWITCH (T/P)

The Tone/Pulse switch is factory pre-set to Tone position (T). In the US,all

telephone exchanges now use Tone dialling.If your phone does not dial out,

it is probably being used from an older private switch- board (PBX). In this

case,theTone/Pulse switch must be moved to Pulse.

5 - TIME BREAK RECALL SWITCH (600/100)

For the US, the TBR switch is factory pre-set to 600ms. It can be switched

to 100ms for other locations or PBX’s.

6 - HOTEL MESSAGE WAITING SWITCH

These are used with the new services provided on hotel network.

A switch located behind your phone allows to set ON the hotel message

waiting function.

When the switch is setting ON and when you receive a message, the red

light is lit to inform you that you have a message on phone .

SETTING UP

7 - WALL MOUNTING

To wall-mount your telephone,slide out the clip, turn around and slide back

into the wall mounting position (located in the base unit, just below the ear

piece).This will ensure that the handset stays ﬁrmly in position. Make 2

holes in the wall 80mm apart, insert the wall plugs and the wall mounting

screws. The screws should protrude from the wall by 6-7 mm. Place the

phone onto the screw-heads and slide down to secure.

If you are using this telephone with a hearing aid, set your hearing aid

to the “T” setting.

SETTING UP

1 - ANSWERING INCOMING CALL

Without headset:

- When an incoming call is received, the phone will ring, to answer the call

lift the handset and speak.

- On completion of the call, carefully replace the handset in the cradle to

release the line.

With headset (option):

- When an incoming call is received, and if you wish to answer the call with

the headset, press the SPKR

button and speak.

- On completion of the call, press the SPKR

button again to release the

line.

In handsfree mode:

- When an incoming call is received, the phone will ring, to answer the call

press the SPKR button.

- On completion of the call, press the SPKR button to release the line.

2 - VOLUME AND TONE RECEIVING ADJUSTMENT

You can increase the volume and adjust the receiving tone according to

your own hearing requirements. The button +60dB allows extra-receiving

and tone functions to be activated or not during the conversation. When

the function is activated, the red light of extra receiving and tone function

located near the button +60dB is lit. Adjust the TONE and VOLUME buttons

to remove.

Note:

When the switch located behind the phone is ON, the extra-receiving and tone func-

tions are automatically activated each time you use the phone. When the switch is

switched OFF, you will need to activate the function by pressing the button +60dB.

Tone and volume adjustment 30dB to 60dB is only activated when the button

ON.

USING THE PHONE

When this button is set to OFF only the volume can be adjusted from 0dB

to 20dB.

3 - MAKING A CALL

Without headset:

- Lift the handset.

- Await the dial tone and dial required number.

- On completion of the call,carefully replace the handset in the cradle.

With headset (option):

- Press the SPKR

button.

- Await the dial tone and dial required number.

- On completion of the call, press the SPKR button again to clear the line.

Tone

Bass

+10dB max

Treble

+10dB max

Normal

0dB

20dB

AMPLIPOWER60+™

Volume

* press button +60dB

20dB

60dB

USING THE PHONE
