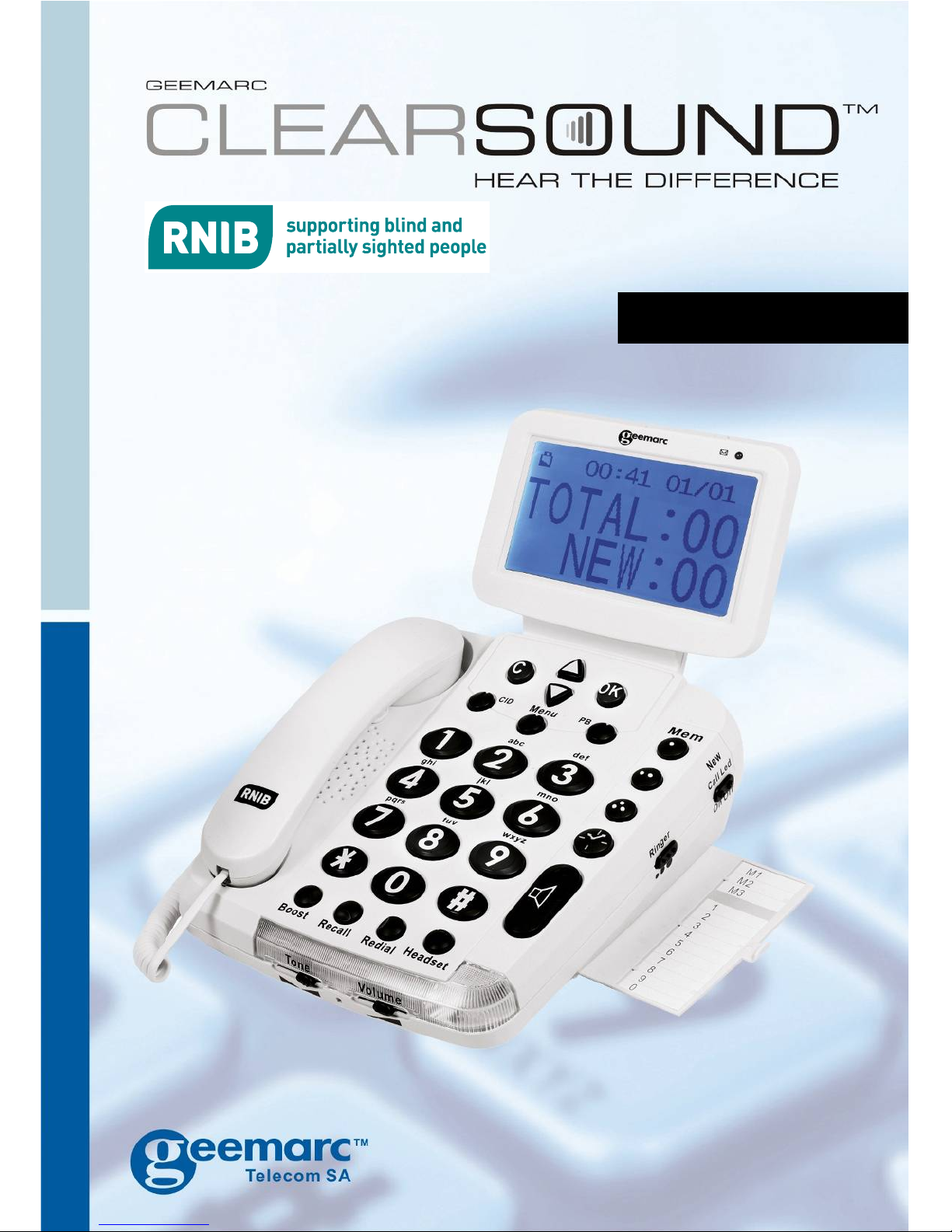

Geemarc BDP400 User manual

BDP400

BDP400 Talking telephone with

lar

e LCD dis

DH275

English

BDP400 Talking telephone with large LCD

display DH275

Please retain these instructions for future reference.

Contents

General Description ...................................................2

Items supplied with the telephone............................3

Accessories ................................................................ 4

Orientation....................................................................4

Getting started............................................................ 12

Setting up .....................................................................12

Wall mounting .............................................................. 14

Operation .................................................................... 15

Menu navigation...........................................................15

Settings ........................................................................16

Using the telephone .....................................................23

Caller display................................................................28

Phone book ..................................................................33

Quick-dial .....................................................................40

Technical specification.............................................. 40

Troubleshooting ......................................................... 43

Safety information...................................................... 45

General ........................................................................45

Cleaning .......................................................................45

Environmental ..............................................................46

Guarantee ...................................................................48

Product Regulations..................................................... 49

Keep up-to-date with new products from RNIB ............49

General Description

This is a multi-function telephone developed in

collaboration with RNIB, the leading charity supporting

blind and partially sighted people. The telephone offers

voice announcements throughout, making it user-friendly,

particularly for someone who is blind or partially sighted.

All buttons have been designed to be easy to identify and

locate.

Features include:

•adjustable extra large LCD display is 7cm x 11.7cm in

size with characters 2.3cm high. choose from light

characters on a dark background or dark characters on

a light background

•self-recordable talking phone book with option of storing

up to 50 contacts. When using the recording feature you

can scroll through the phone book and hear the

names/numbers of friends and families stored in your

phone book. When receiving calls the phone will also

announce, if you subscribe to caller ID, the

name/number of the person calling

•extra loud hands free speakerphone with volume setting

•extra loud ringer with an extra bright visual ring indicator

•hearing aid compatible with internal built in loop and

extra boost button which when pressed activates the

built in amplifier allowing the phone to reach high levels

of volume and tone control. This offers compensation for

low or high frequency loss which is the most common

case when it comes to hearing loss

Items supplied with the telephone

•Telephone

•Handset cord

•Mains adaptor

•Telephone line cord

•Large print instruction guide

•Two screws for wall fixing

Accessories

As an optional extra you can also purchase a headset and

microphone from RNIB (DH275HS). It is ideally suited for

high background noise environments and handsfree use

and is also hearing aid compatible.

Orientation

Front

With the front of the telephone facing towards you, you will

notice that there is a large LCD display towards the top

end of the telephone. This display is almost the same

width as the telephone and can be moved backwards and

forwards from a horizontal position to a vertical stance of

about 90-degrees. The display can be felt as it is slightly

recessed from the outer case. Towards the top right corner

of the display you will feel a small, raised, circular shape.

This is a red LED light that flashes when a new call has

been received (but only if you have subscribed to the

Caller Display service from your network provider).

The specific details of the LCD display and what is shown

is covered in more detail below, under Orientation: Display.

On the left of the telephone is the handset, and

underneath this is the speaker. Just below the top part of

the telephone cradle is a small hook. This can be rotated

either clockwise or anti-clockwise, and should be turned

180-degrees if intending to wall mount the telephone. One

part of the hook is flat to touch and this should be used

(facing towards top of telephone) in regular use. The hook

should be rotated so the rounded edge is facing towards

top of the telephone for wall mounting use. This will ensure

that the handset stays in place when wall mounted.

The remaining space on the front of the telephone is

covered by function buttons. Towards the top edge of the

telephone, just below the LCD display, are a series of

buttons in close proximity. This will be referred to as row

one.

On the left (at the top) is a round button with the letter C on

it (which is also tactile). This is the "Delete" button. To the

right of this are two triangular-shaped buttons, one facing

upwards and the other, below it, facing downwards. These

are the " /" scroll buttons. To the right of these

buttons is another circular button with the letters OK on it

(which is also tactile). This is the "OK/Confirm" button,

which also acts as the "Call back" button.

Below these buttons is another row (row two), with three

circular-shaped buttons, all with a small recessed mark at

the top of the button. The left button has the letters CID

printed next to it, and this is the "Caller ID" button. The

middle button has the word Menu printed above it, and this

is the "Menu" button. The right button has the letters PB

printed next to it, and this is the "Phone book" button.

Below these three buttons is the number keypad in four

rows of three buttons in the following sequence: 1, 2, 3; 4,

5, 6; 7, 8, 9; Asterisk, 0, hash. (The number five is denoted

by a small tactile dot).

Below the keypad, and towards the bottom edge of the

telephone are four, circular-shaped buttons, each with a

semi-circular recess on one side of the button. They are

from left to right as follows: The left button has a recess on

the right side and has the word Boost below it. This is the

"Boost" button to amplify the volume. The next button has

a recess on the bottom edge and has the word Recall

below it. This is the "Recall" button which is used for

accessing network services, such as double calls, three-

party conference calls and call transfer. The next button

has a recess on the left side and has the word Redial

below it. This is the "Redial" button, and when pressed,

this calls the last number dialled (stored in the memory).

The button on the right of this row has a red LED situated

at the top edge of the button and has the word Headset

below it. This is the "Headset" button, which should be

pressed to activate the telephone when making a call

using a headset. The headset should be plugged into the

top edge of the telephone.

The last few buttons on the front of the telephone are

situated on the right towards the edge. Towards the top of

the telephone are three circular-shaped buttons, one

above the other. Above these buttons are the letters Mem,

and these are the three quick-dial memory buttons. The

top button (memory one - M1) has one tactile dot on it, the

middle button (memory two - M2) has two tactile dots on it,

and the bottom of the three buttons (memory three - M3)

has three tactile dots on it. Once a telephone number is

programmed to one of these three buttons it can be dialled

instantly by just pressing the button.

Directly below the third memory button is slightly larger

round button with clock hands and markings at 12, 3, 6

and 9 o'clock positions. This button when pressed will tell

you the time and date.

Below this button is the speaker button, and has a symbol

of a speaker on it " ". It is used when you want to make

hands-free calls. There is a small, red, LED light at the top

of this button.

Back

On the back of the telephone you will feel four round, non-

slip feet in each corner. There are two protruded oval-

shaped parts, one located at the top part on the back of

the telephone, in between the two non-slip feet. The other

part is located about three inches below. Both of these

protruding parts have a round recess. These parts attach

to a screw if affixing the telephone to a wall.

In between the other two non-slip feet on the back of the

telephone is the battery compartment. A small, semi-

circular clip can be felt at the top part of the compartment,

and when this is pulled in towards the compartment, the lid

can be removed away from the telephone to expose the

battery compartment.

On the left side on the back of the telephone is a small

catch, that when pulled away from the telephone, removes

the "Memo card cover" (full details included below under

"right edge orientation").

Left edge

On the left edge of the telephone is a slide-control. This is

the "Volume control" for the .

Also on the left edge, but towards the base of the

telephone is a small, square-shaped recess. This is the

socket for the handset cord.

Right edge

On the right edge towards the top of the telephone is a

two-way slide-switch. This is the "New Call LED On/Off"

switch. When turned off this setting means the small LED

light above the display will not flash, even when a new call

has been received. This is useful if you would like to

extend the life of the telephone's batteries.

Towards the middle on the right edge of the telephone is a

three-way slide-switch. This is the "Ringer volume" switch.

There are three volume settings - the top setting is the

loudest with the bottom setting being the quietest.

Directly below the "Ringer" slide-switch is a small catch.

Pull this catch out to reveal the "Memo card cover"

(detailed above). This cover can be used for writing the

names of the contacts stored in the quick-dial memories

(M1-M3).

Other manuals for BDP400

Table of contents

Other Geemarc Telephone manuals

Geemarc

Geemarc Serenities User manual

Geemarc

Geemarc AMPLIPOWER60+ User manual

Geemarc

Geemarc Ampli DECT150 User manual

Geemarc

Geemarc Marbella User manual

Geemarc

Geemarc PHOTOPHONE 155 User manual

Geemarc

Geemarc Clearsound CL600 User manual

Geemarc

Geemarc Clear Sound CL455 User manual

Geemarc

Geemarc DALLAS 100 VM User manual

Geemarc

Geemarc CL100 User manual

Geemarc

Geemarc TP38 clip User manual

Geemarc

Geemarc AMPLIDECT 280 User manual

Geemarc

Geemarc AMPLIDECT 280 User manual

Geemarc

Geemarc Ampli500 User manual

Geemarc

Geemarc Ampli500 User manual

Geemarc

Geemarc CL330 User manual

Geemarc

Geemarc CL1100 User manual

Geemarc

Geemarc Ampli100VM User manual

Geemarc

Geemarc ClearSound CL64 User manual

Geemarc

Geemarc CL400 User manual

Geemarc

Geemarc AmpliCL100 User manual

Geemarc

Geemarc Clearsound CL600 User manual

Geemarc

Geemarc Dialatron User manual

Geemarc

Geemarc Jupiter 50 User manual

Geemarc

Geemarc VisoTempo 200 User manual

Popular Telephone manuals by other brands

GE 2-9480 user guide

D-Link

D-Link DWR-720/PW user manual

Interquartz

Interquartz Gemini IQ333 operating instructions

SSS Siedle

SSS Siedle HT 840-0 operating instructions

Motorola

Motorola TITANIUM manual

Panasonic

Panasonic ICX Quick reference guide

LG H870DS user guide

Samsung

Samsung GT-I9500 Service manual

AT&T

AT&T Trimline 205 user manual

Selta

Selta zenyth 600 user guide

Doro

Doro AFTI 20 user guide

UNIQCELL

UNIQCELL A1 user guide

Panasonic

Panasonic KX Series User Sheet

Jabra

Jabra SP5050 - Bluetooth hands-free Speakerphone manual

BT Decor 425 user guide

NEC

NEC SV8500 Reference sheet

Teledex

Teledex PEARL user guide

Ericsson

Ericsson Dialog 3213 user guide
