GE GSD4010 User manual

GEAppliances

GSD4010

GSD4020

GSD4030

PartNO.165D4700P138PubNo 49-5792

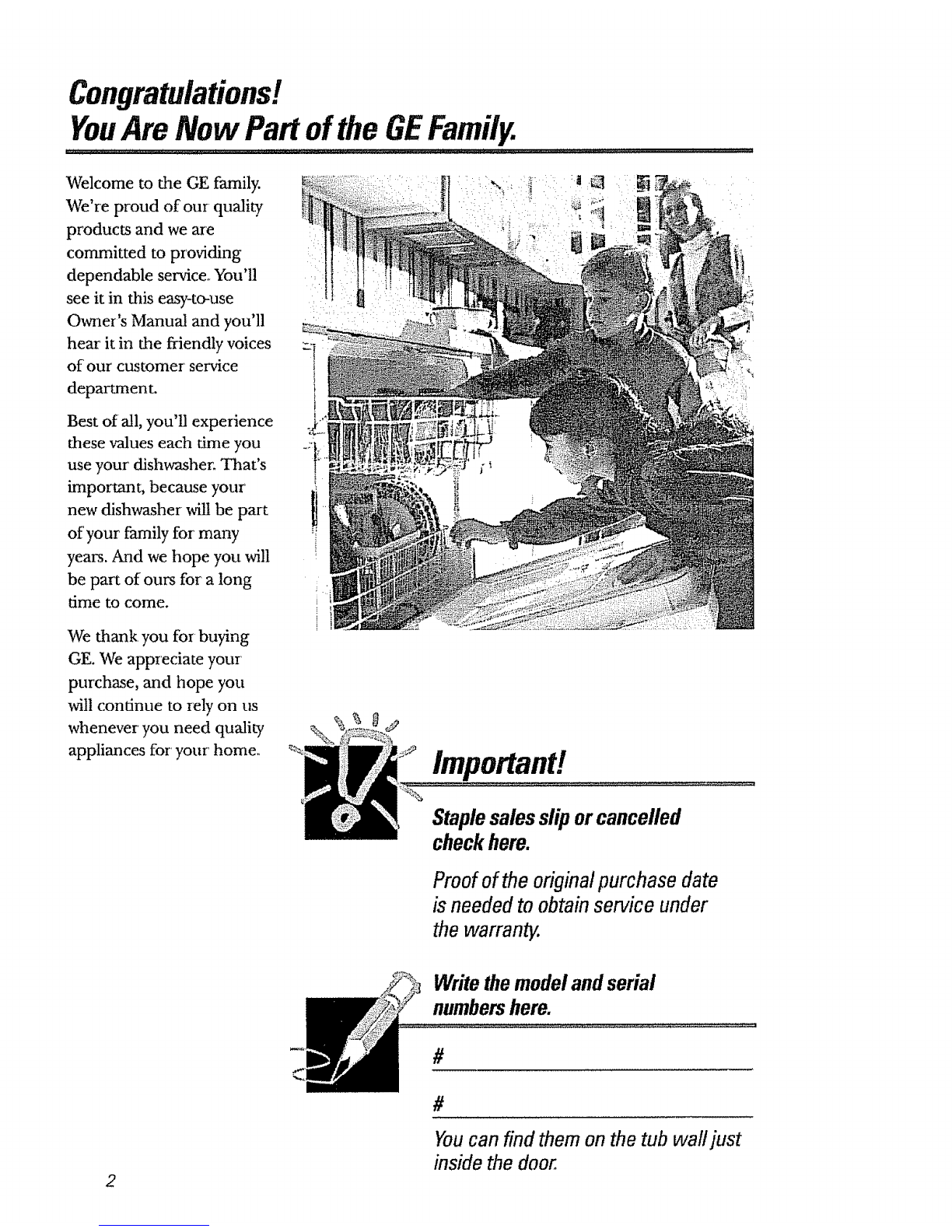

Congratulations!

YouAreNowPartoftheGEFamily.

Welcome to the GE family.

We're proud of our quality

products and we are

corrtmitted to providing

dependable servicer You'll

see it in this eas3,-to-use

Owner's Manual and you'll

hear it in the friendly voices

of our customer service

department.

Best of all, you'll experience

these values each time you

use your dishwasher. That's

important, because your

new dishwasher wi!! be part

of your family for many

years. And we hope you will

be part of ours for a long

time to come.

We thank you for buying

GE. We appreciate your

purchase, and hope you

will continue to rely on us

whenever you need quality

appliances for your' home. Important!

Staplesales sliporcancelled

checkhere.

Proof of the originalpurchase date

is needed to obtain service under

the warranty.

Writethemodelandserial

numbershere.

Youcanfindthemonthe tub watljust

insidethedoor

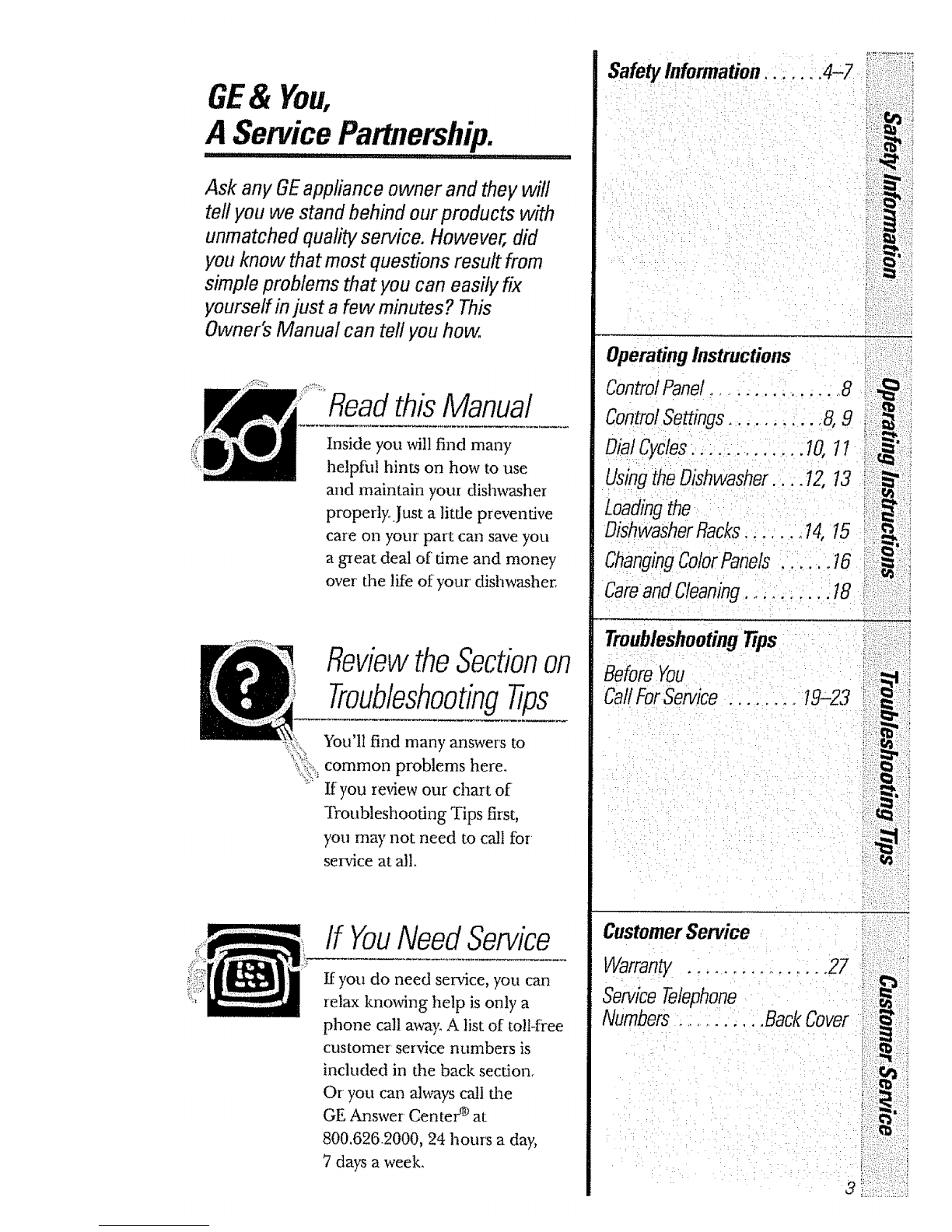

_& You,

A Semice Partnership.

Ask any GEappliance owner and they wilt

tell you we stand behind our products with

unmatched qualityservice. However, did

you know that most questions result from

simple problems that you can easily fix

yourself in just a few minutes? This

Owner'sManual can tell you how,

ReadthisManual

Inside you will find many

helpful hints on how to use

and maintain your dishwasher

proper])_ Just a litde preventive

care on your part can save you

a great deal of time and money

over the life of your' dishwasher.

ReviewtheSectionon

Troubleshootingtips

You'll find many answers to

common problems here.

If you review our chart of

Troubleshooting Tips first,

you may not need to call for

service at all.

If YouNeedService

If you do need service, you can

relax knowdng help is only a

phone call awa F A list of toll-free

customer service numbers is

included in the back section.

Or you can always call the

GE Answer Center ® at

800,626,2000, 24 hours a day,

7 days a week.

SafetyInformation....... 4"7

Operating Instructions

ControlPanel.............. 8

ControlSettings........... 8,9

DialCycles............ :10,11

UsingtheOishwasher.... 12,13

Loadingthe

DishwasherRacks....... 14,t5

ChangingColorPanels....... 16

CareandCleaning......... .18

Troubleshooting77ps

BeforeYou

CallForService........ 19"23 ii_

CustomerService

Warranty ................. 27

ServiceTelephone

Numbers............ BackCover

i 4""

'::t ,

READALLINSTRUCTIOIVS USING.

WARNING!

Foryour safety, the information in this manual must be

followed to minimize the risk of fire, explosion, electric

shock, or toprevent property damage,personal injury,

orloss of life.

WATERHEATERSAFETY

Under certain conditions hydrogen gas maybe produced

in a water heater that has not been used for two weeks

ormore. Hydrogen gas can be explosive under these

circumstances.

If the hot water has not been used for two weeks or more, prevent

the possibility of damage or injury by tunaing on all hot water

faucets and allow them to run for several minutes, Do this before

using any electrical appliance which is connected to the hot water

system,, This simple procedure wil! allow any built-up hydrogen gas

to escape. Since the gas is flammable, do not smoke or use an open

flame or appliance during this process,

Use this appliance only for its intended purpose as

described in this Owner's Manual

PROPERINSTALLATION

ANDMAINTENANCE

Thisdishwasher must be properly installed and located in

accordance with the Installation Instructions before #is used.

ff you did not receive an Installation Instructions sheet with

your dishwasher, you can receive one by calling us toll-free

at the GEAnswer Center,_800.626.2000.

Connect to a grounded :7.)!

metal, permanent wiring

system; or run an equipment-

grounding conductor with

the circuit conductors and

connect to the equipment-

grounding terminal or lead

of the appliance.

Improper connection of

the equipment-grounding

conductor can result in

a risk of'electric shock.

Check with a qualified

electrician or service

representative if you ale in

doubt whether the appliance

is properly grounde&

Dispose of discarded

appliances and shipping or'

packing material properly,

Do not attempt to repair

or replace any part of your

dishwasher unless it is

specifically recommended

in this manual. All other

servicing should be referred

to a qualified technician.

i"!To minimize the possibility

of electric shock,, disconnect

this appliance from the

power' supply before

attempting any maintenance,

NOTE:Turning the

dishwasher off does not

disconnect the appliance

from the power supply.

We recommend having a

qualified technician sen4ce

your appliance_

READALLINSTRUCTIONS USING.

AWARNING!

DONOT...

!51!iDo not tamper with controls.

f!iiDo not abuse, sit on, or' stand

on the door or dish rack of

fire dishwasher:

_:::iDo not allow children to

play inside, on or witl_ this

appliance or any discarded

appliance.

Do not discard a dishwasher'

without first removing the

door or the washing

compartment.

Do not store or use

combustible materials,

gasoline or' odaer flammable

vapors and liquids in fl_e

vicinity o[ this or any other

appliance,

WHENUSINGYOURDISHWASHER

_::,_Use only powder or liquid i!i;:i

detergents or wetting agents

recommended for use in

a dishwasher:

Locate sharp items so that

they are not likely to damage

the door seal

Do not touch the headng

element during or

immediately after use.

_;::::::!Do not operate your

dishwasher unless all

enclosure panels are

properly in place°

,_:._,_:_:iLoad sharp knives with the i;2

handles up to reduce the risk,

of cut-type injuries,

i;! Do not wash plastic items _,5{

unless marked dishwasher

safe or the equiva]ento For

plastic items not so marked,

check the manufacturer's

recommendations.

Close supevdsion is necessary

if dfis appliance is used by or

near children,

Load light plastic items

so they will not become

dislodged and drop to the

bottom of' the dishwasher--

they might come into contact

with the heating element

and be damaged°

REMEMBER...

Yourcontinued health and safety are important to us.

Pleaseread and follow this Safety Information carefully.

We want you to remain ahappy and healthy part of our

GEfamilg ilVSTRUCTIOIVS

i!iii'ili:,ii_'i_

_)ii:i:::,)i

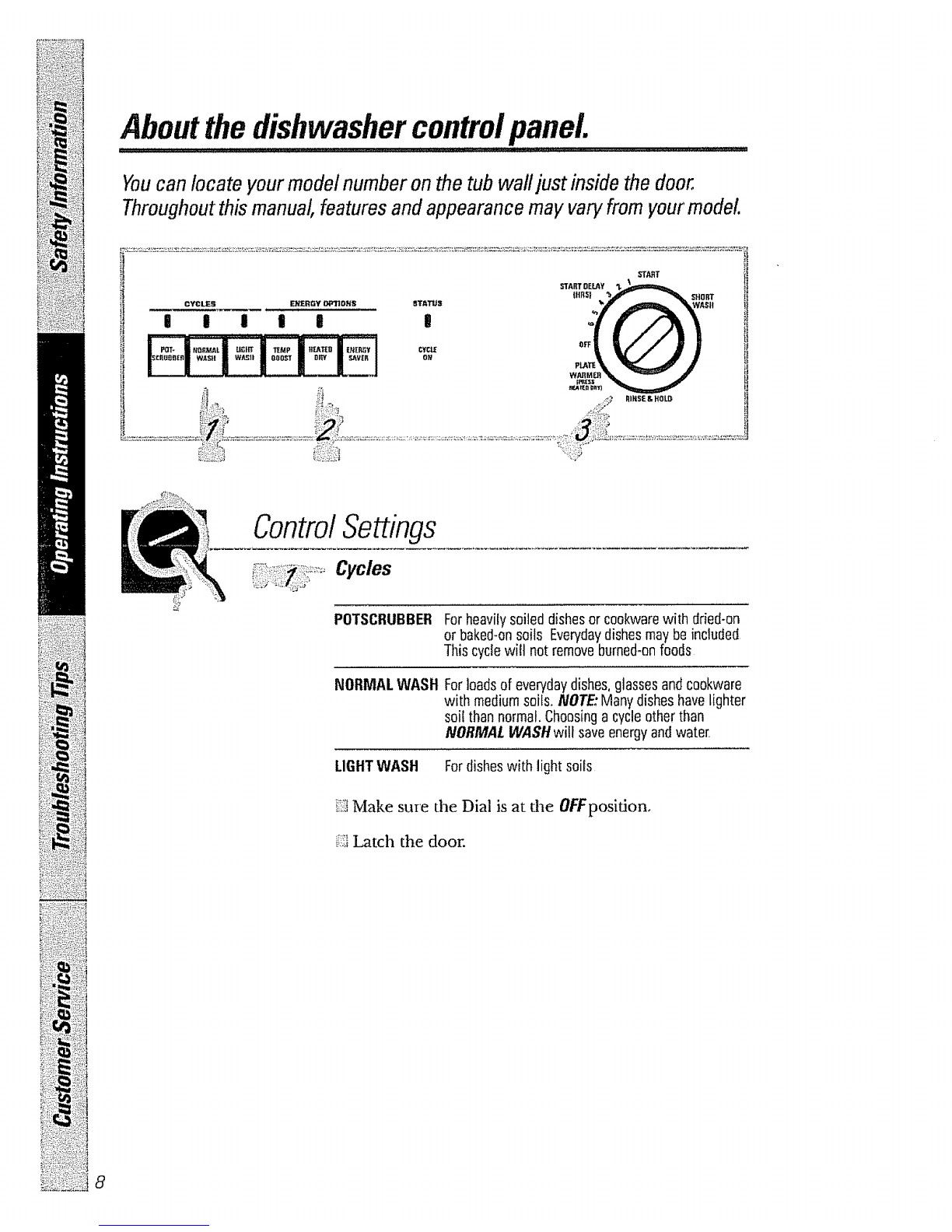

About the dishwasher controlpanel. ....................

Youcan locate your model number on the tub wall just inside the door,

Throughoutthis manual,features and appearance may varyfrom your model

START

!!?i!:_

ii!:_ii!:{

POTSCRUBBEH Forheavilysoileddishesor cookwarewith dried-on

or baked-onsoils Everydaydishesmaybe included

Thiscyciewilt notremoveburned-onfoods

NORMAL WASH Forloadsof everydaydishes,glassesandcookware

with mediumsoifs.NOTE:Many disheshaveLighter

soil thannormal.Choosinga cycleotherthan

NORMALWASHwill saveenergyandwater.

LIGHTWASH Fordisheswith light soils

i_,i;JMake sure the Dial is at dae 0FFposidon,

':_:_,_,Latch the door.

EnergyOptions

TEMP BOOST Providesextra heatforbest performanceIt is used

bestwith heavily-soileddishes

HEATEDDRY Turnsthe dryingheateron for fast drying This

cyclewill extendthetime to yourwash cycle,

ENERGY

SAVER Shutsoff thedryingheatoptions Dishesair dry

naturallyandenergyissaved

Start

Slowly turn the Dial to the STARTposidon. Don't turn it

past tile STaRTposidon,or you could accidentally miss a

rinse° There is a time del W between start-up and "water

fill so you wil! not hear any wash action right away,

_!i!_ii__:i_iil

About thedial cycles.

Shoa Wash

:_:_^_D_ :_ For quickly washing loads of everyday dishes with

.: :I !_s):::!' SRQnT : :

:_:_::_; ' ::: medium soils that have not dried on,

_i Select the NORMALWASHcycle and any options,

iBe sure the door is unlatched_

iiSlowly turn the Dial to SHORTWASH,

_i Latch the door to start the cycle°

Rinse & Hold

For rinsing partial loads that will be washed later, D0 not

use detergent.

i Make sure ENERGYSAVERisselected.

iBe sure the door is unlatched.

_ Slowly turn the Dial to RINSE& HOLD,

_] Latch the door to start the cycle_

'_:u:I

Plate Warmer

For warming clean dishes and serving plates. This cycle

wi!l take approximately 32 minutes°

iiLoad clean dishware to be warmed.

iSelect HEATEDDRY.

iBe sure the door is unlatched_

{Slowty turn the Dial to PLATEWARMER.

_i Latch the door to start the cycle,
