Dimensions and Installation Information (in inches)

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

ge.com or call GE Answer Center®service,

800.626.2000.

As an ENERGY STAR®

partner, GE has determined

that this product meets the

ENERGY STAR guidelines

for energy efficiency.

PDW9800/9880N

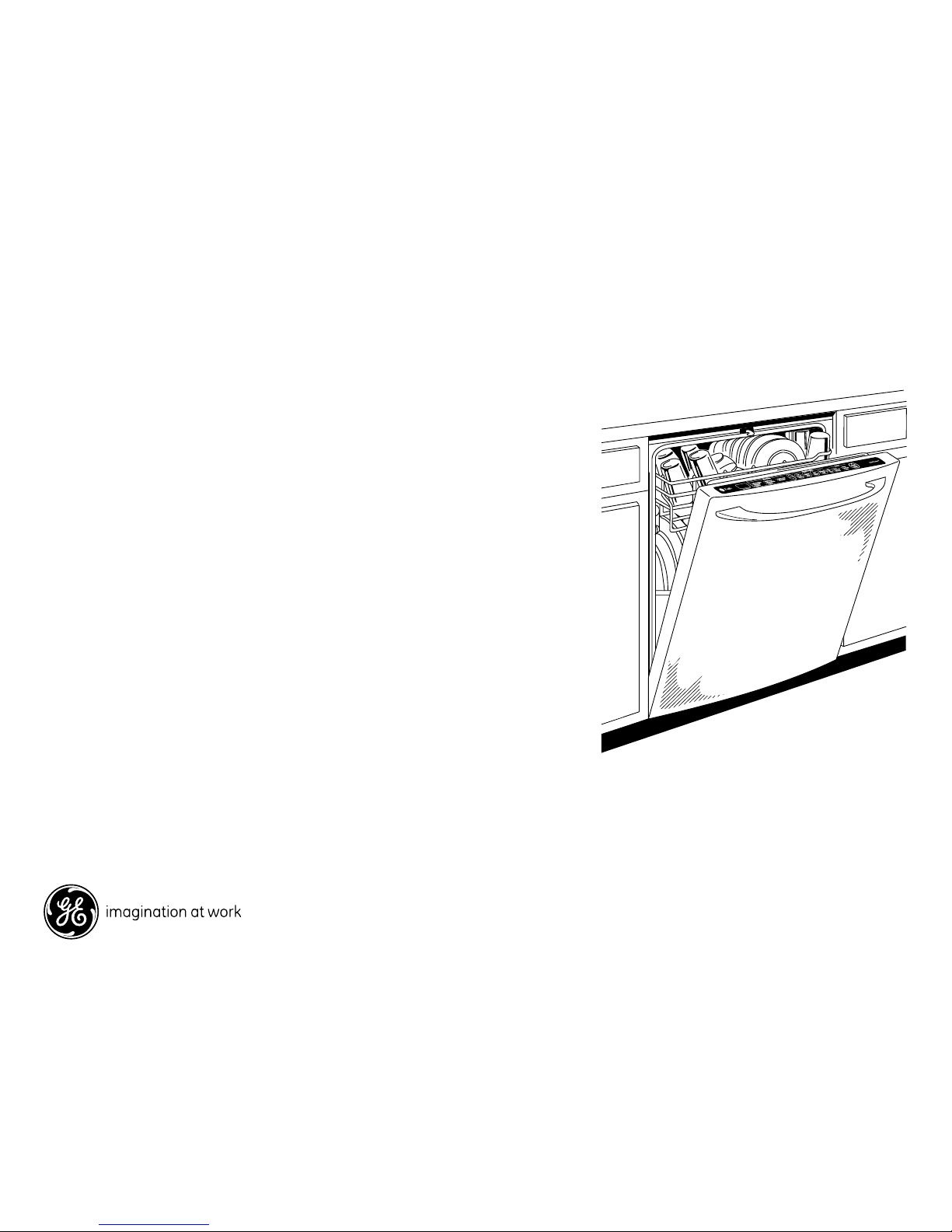

GE Profile™Fully Integrated Built-In Dishwasher with Stainless Interior

Specification Revised 5/08 250213

Listed by

Underwriters

Laboratories

This wall area

must be free of

pipes or wires

Countertop

4

6

Hot

water

line on

left

44

2Plumbing and electrical

service must enter

inside shaded area

24" From wall

24" MIN.

90°

19" MIN. from wall

24"

MIN.

6

34" to 34-3/4"

Underside

of countertop

to floor

5 5

90°

Electrical

wiring on

right

Electrical

wiring is

3" from

cabinet

24

24-3/4††

21-1/4

3-1/2

4" (Adjustable)

33-13/16" MIN.

adj. to 35"

27-1/2

22-1/2

††Add 1/2" for deepest part of contour door.

Allow and additional 2" for the handle on

PDW9900/9200 Series models.

Electrical Rating

Voltage AC.......................................................... 120

Hertz..................................................................... 60

Total connected load amperage............. 9.1

Calrod®heater watts max........................ 875

For use on adequately wired 120-volt,

15-amp circuit having 2-wire service

with a separate ground wire. This appliance

must be grounded for safe operation.

Installation Information: Before installing,

consult installation instructions packed with

product for current dimensional data.

†† Add 1/2" for deepest part of contour door.

Allow an additional 2” for the handle on

PDW9900/9800/9200 Series models.

PDW9800/9880N

GE Profile™Fully Integrated Built-In Dishwasher with Stainless Interior

Specification Revised 5/08 250213

PDW9880LSS

Features and Benefits

• Stainless Contour Door with Stainless Sculptured Handle and Hidden Controls -

Creates an elegant appearance with a sleek stainless steel door and handle while

hiding the controls inside the top edge of the dishwasher door (Model PDW9880NSS)

• Giant Tub with Maximum Capacity Nylon Racking - Holds tall and oversized items;

washes 16 place settings at once

• Countdown Display with 1-24 Hour Delay Start - Signals remaining cycle time and

starts the dishwasher when no one's home or during off peak hours when utilities are

at a reduced rate

• Four-Position Adjustable/Removable Upper Rack - Pulls out completely or moves up,

down and diagonally for maximum loading flexibility

• 3 Nylon-Coated Pearlescent™Metal Utility Shelves with StemSafe™in Upper Rack -

Durable metal shelves create space in the upper rack for cups and utensils and secure

delicate stemware

• 100% Fold-Down Tines and Adaptable Bowl Tines in Lower Rack - Flip up to hold bowls,

or flip down to provide maximum loading flexibility in the lower rack

• Audible End-Of-Cycle Signal - When on, emits an audible signal to indicate the cycle

has ended

• Cutlery Tray - Protects cutlery or flatware and leaves space underneath for more dishes

• Model PDW9880NSS - Stainless steel (shown)

• Model PDW9800NWW - White on white

• Model PDW9800NBB - Black on black
