AZ85W12DAC

GE®Vertical Packaged Terminal Air Conditioner

Specification Created 1/10 390638

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

geappliances.com or call GE Answer Center®

service, 800.626.2000.

Minimum Clearances:

Front

• Allow 4 inches in front of unit. When determining closet depth, note that plenum

may protrude into closet up to 4 inches, depending on exterior wall depth.

Sides

• Allow 3 inches on each side of unit.

• For side access closets only: Allow 5 inches clearance to front of unit.

Platform

• An 8”-12” high, field-supplied platform is recommended for drain access.

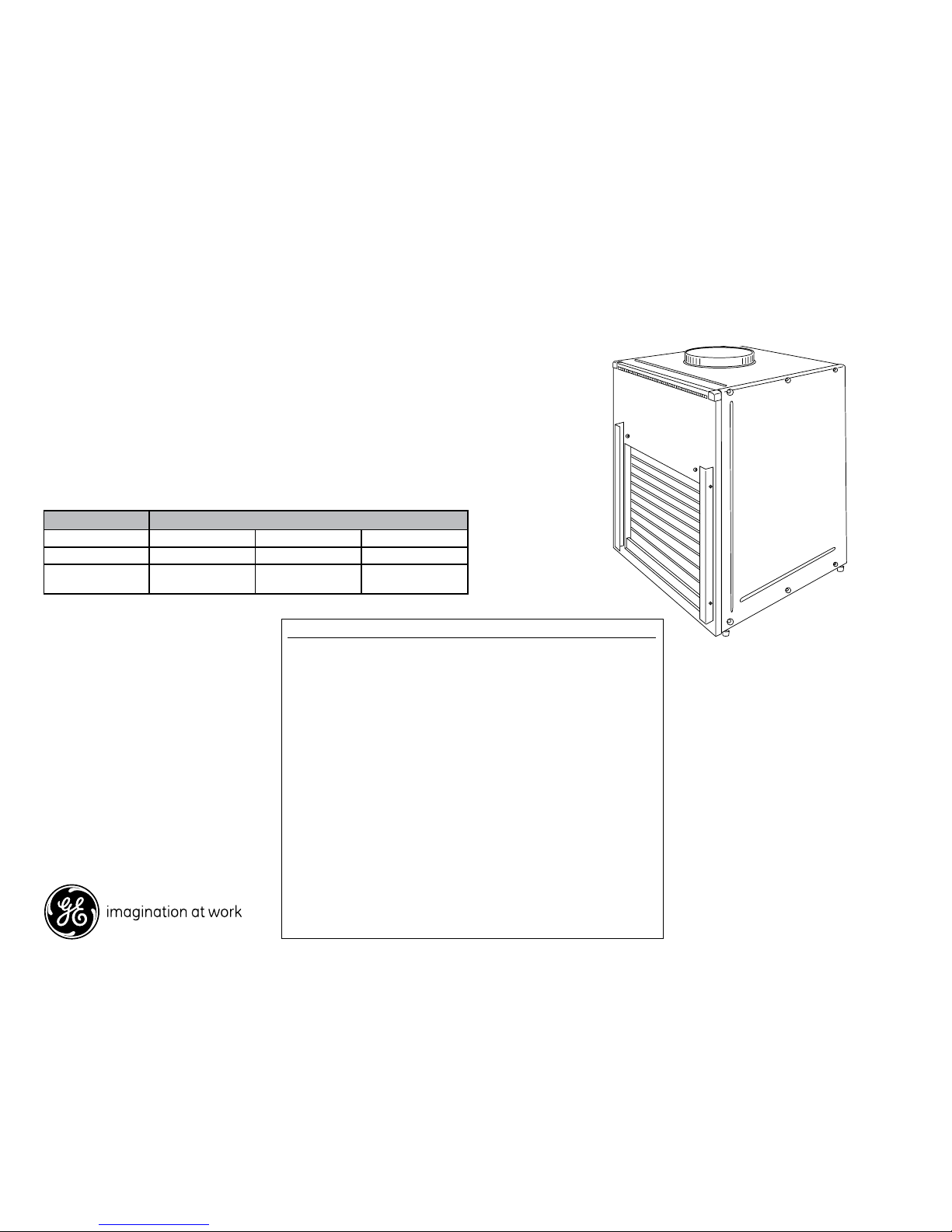

Dimensions and Installation Information (in inches)

23 1/8” W

32 1/4” H

23 1/8” D

ZONELINE® WARRANTY*

WHAT IS COVERED

FULL ONE-YEAR WARRANTY

For one year from date of original

purchase, we will provide, free of

charge, parts and service labor on

site to repair or replace any part

of the Zoneline that fails because

of a manufacturing defect.

ADDITIONAL FOUR-YEAR

WARRANTY

For an additional four years from

the date of original purchase,

we will provide, free of charge,

parts and on-site service labor to

repair or replace any part of the

sealed refrigerating system (the

compressor, condenser, evaporator

and all connecting tubing) that

fails because of a manufacturing

defect.

*SEE WRITTEN WARRANTY FOR DETAILS

LIMITED 2ND THROUGH

5TH YEAR PARTS WARRANTY

For the second through the

fifth year from date of original

purchase, General Electric

will provide, free of charge,

parts that fail as a result of a

manufacturing defect. Parts

covered are fan motors, switches,

heater, heater protectors,

compressor overload, solenoids,

circuit boards, auxiliary controls,

thermistors, frost controls,

capacitors and varistors. This is a

limited parts-only warranty, and does

not include labor or transportation

to and from the service shop.

All warranty service will be

provided by our Factory Service

Centers or by our authorized

Customer Care®servicers

during normal working hours.

230/208 Volt Line Cord Connected Units

Power Connection Kit RAK3152 RAK3202 RAK3302

Min. Circuit Amps 15 20 30

Recommended

Protective Device

15 Amp Time Delay

Fuse or Breaker

20 Amp Time Delay

Fuse or Breaker

30 Amp Time Delay

Fuse or Breaker

AZ85W12DAC

GE®Vertical Packaged Terminal Air Conditioner

Specification Created 1/10 390638

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

geappliances.com or call GE Answer Center®

service, 800.626.2000.

Features and Benefits

• 11,700/11,500 BTUH Cooling Capacity

• 10.7/10.7 E.E.R. (BTUH/Watt)

• R-410A Refrigerant

• Vertical Design Optimizes Floor Space—Unique Sleeve Design

Makes It Easier to Install

• Freeze Sentinel™ Protects Unoccupied Rooms Against Freeze-Up

• Three-Way, Slide-Out Chassis with Specially Designed Case Makes

Maintenance and Service Quick and Easy

• Full Corrosion Treatment on Outside Coils and Other Components

is Standard

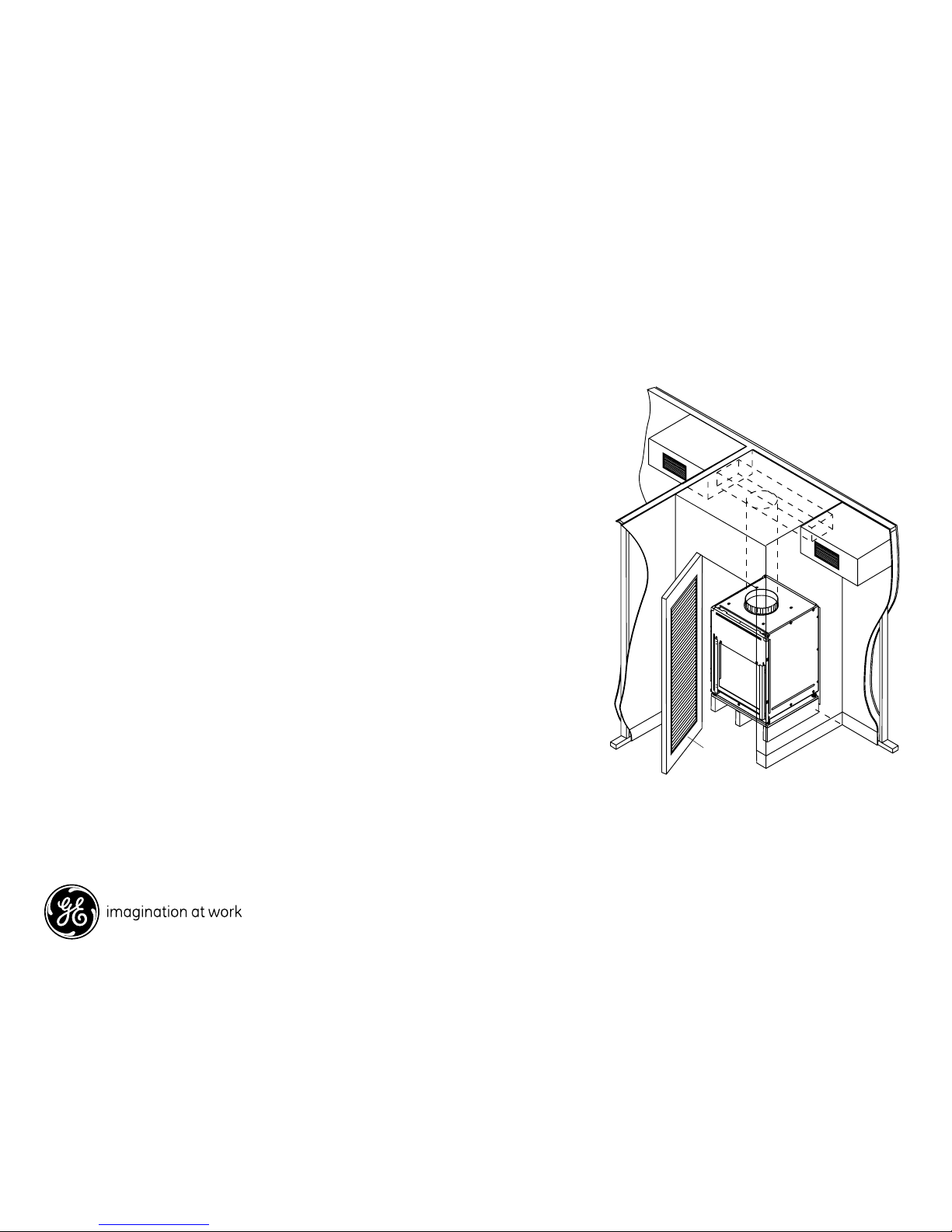

Closet Door
