AZ41E09EAC

GE Zoneline®Deluxe Series Cooling and Electric Heat Unit

Specification Created 11/09 390592

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

ge.com or call GE Answer Center®service,

800.626.2000.

Electrical Wiring

All wiring, including installation of receptacle, must

be made in accordance with local electrical codes

and regulations.

Note: Aluminum wiring may pose special problems –

consult a qualified electrician.

Grille Options

Stamped Aluminum Grille – RAG60

Exterior Architectural Louvers Durable Polycarbonate:

RAG61 (Beige) RAG63 (Bittersweet)

RAG62 (Maple) RAG67 (Extruded Aluminum)

Retrofit Kits:

RAK901L – Wall Case Insulation for use with heat pumps.

RAK40 – Deflector Kit to adapt chassis for use with

existing exterior architectural louvered grilles.

Ducted Applications

4100 and 6100 series can be used with ductwork to heat or cool more than one room. RAK6052

Duct Adaptor is applied to top of case over air discharge/RAK601 Duct Extension is applied

to right or left of adaptor. Locally fabricated ductwork may be added to extend to maximum

recommended distance of 15 feet.

Electrical Connection

230/208 volt units may be plugged into a receptacle. 265 volt units are provided with a junction box

and require direct connection. (NEC Requires 265V Direct Connection) See Architects and Engineers

Design Data Manual for electrical connection information including use of sub-base for direct

connected units. Installation must comply with local electrical codes and regulations.

Power Connection kits required on all Zoneline chassis.

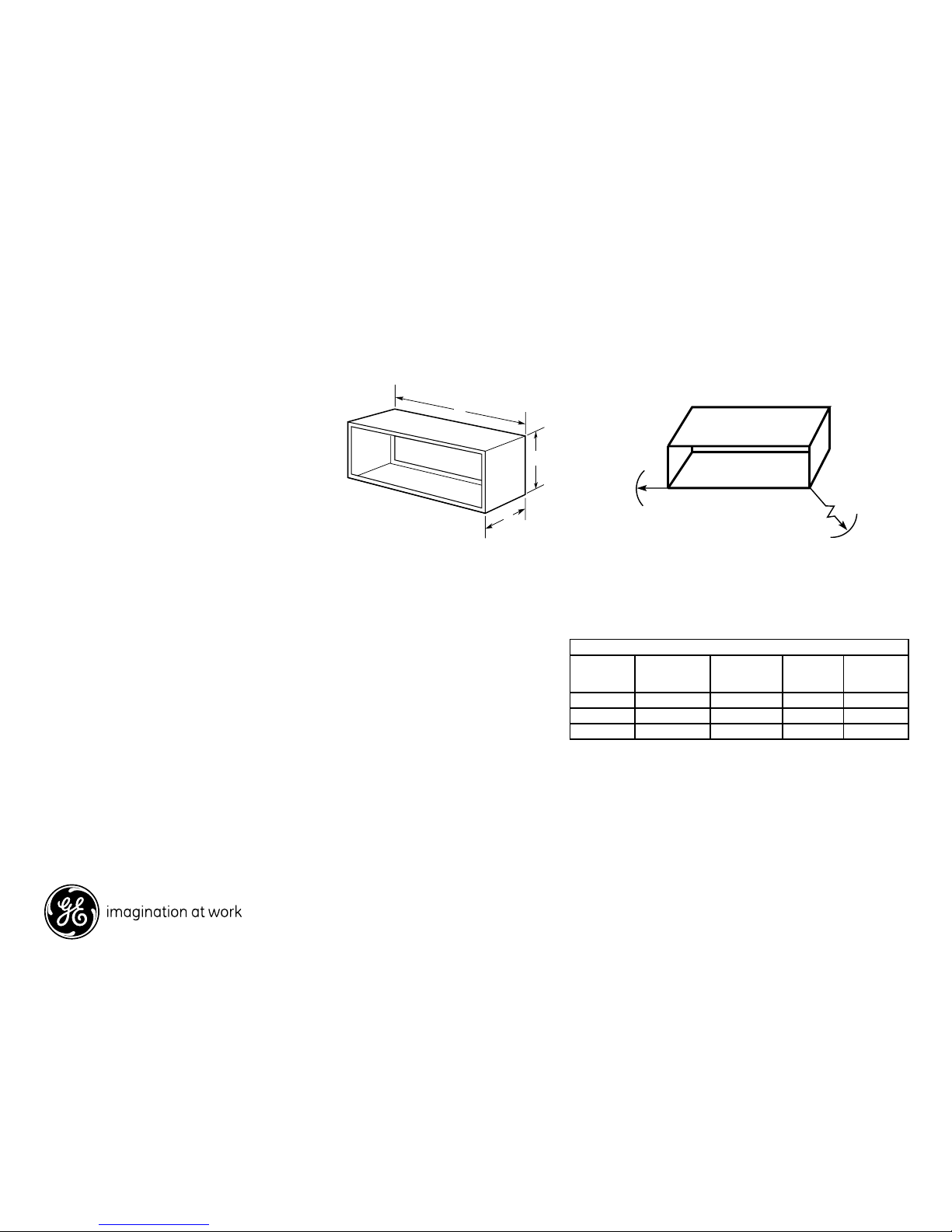

Wall Case Dimensions

RAB71 Wall Sleeve

Heavy-gauge galvanized steel, with insulation.

A – 42", B – 13-3/4", C – 16"

RAB77 Wall Sleeve

Molded SMC fiberglass-reinforced polyester

compound.

A – 42-1/8", B– 13-7/8", C – 16-1/4

Wall Opening Dimensions

Add 1/4" to A and C dimensions for all cut-out size.

RAB71 16-1/4" Min. H x 42-1/4" Min. W

RAB71 available in 16", 24", 28" and 31" depths

RAB77 16-1/2" Min. H x 42-3/8" Min. W

Maximum Cord Extension (in inches)

SIDE

VIEW

Inside

Room

Cabinet

Outside

58

21

Grille

7-1/8

RAB71A = 16

RAB77A = 16-1/4

RAB71A = 20-7/8

RAB77A = 21

Room Air/Installation QSart

Dimensions and Installation Information (in inches)

265 Volt Sub-Base Connected Units

Sub-Base

Power

Connection Kit

Electric

Heater Watts

Electric

Heat Amps

Min. Circuit

Protection

(Amps)

RAK204E15 RAK5172 2,550 10.3 15

RAK204E20 RAK5202 3,450 13.7 20

RAK204E30 RAK5302 5,000 19.6 30

A

C

B

Zoneline RAC Wall Installation

AZ41E09EAC

GE Zoneline®Deluxe Series Cooling and Electric Heat Unit

Specification Created 11/09 390592

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

ge.com or call GE Answer Center®service,

800.626.2000.

Features and Benefits

• R-410A Refrigerant

• 9,450 BTUH Cooling Capacity

• 12.3 E.E.R.

• Electronic Touch Controls with LED Display

• 2.7 Dehumidification (pts/hr)

• 340/229 CFM Indoor Fan (High/Low)

• 70/35 Vent CFM

• Electronic 7-Step Temperature Limiting To Prevent

Overcooling or Overheating of Room

• Heat Sentinel

• 29 Sound Transmission Class (STC)

• Corrosion Treated

• Warm Grey Beige
