AZ75E18DAC – GE Vertical Packaged Terminal Air Conditioner

Specification Created 8/02

GE Appliances

Minimum Clearances:

Front

• Allow 4 inches in front of unit. When determining closet depth, note that plenum

may protrude into closet up to 4 inches, depending on wall depth.

Sides

•Allow 3 inches on each side of unit.

•For side access closets only: Allow 5 inches on the side where access is required.

Platform

•An 8"-12" high, field-supplied platform is recommended for drain access.

Overall Unit Dimensions

For answers to your Monogram,

®GE Profile™or

GE appliance questions, visit our website at

GEAppliances.com or call

GE Answer Center®service, 800.626.2000.

23 1/8” W

32 1/4” H

23 1/8” D

ZONELINE®WARRANTY*

WHAT IS COVERED

FULL ONE-YEAR WARRANTY

For one year from date of original purchase,

we will provide, free of charge, parts and

service labor on site to repair or replace

any part of the Zoneline that fails

because of a manufacturing defect.

ADDITIONAL FOUR-YEAR WARRANTY

For an additional four years from the

date of original purchase, we will provide,

free of charge, parts and on-site service

labor to repair or replace any part of

the sealed refrigerating system (the

compressor, condenser, evaporator and

all connecting tubing) that fails because

of a manufacturing defect.

*SEE WRITTEN WARRANTY FOR DETAILS

LIMITED 2ND THROUGH

5TH YEAR PARTS WARRANTY

For the second through the fifth year

from date of original purchase, General

Electric will provide, free of charge, parts

that fail as a result of a manufacturing

defect. Parts covered are fan motors,

switches, heater, heater protectors,

compressor overload, solenoids, circuit

boards, auxiliary controls, thermistors,

frost controls, capacitors and varistors.

This is a limited parts-only warranty, and

does not include labor or transportation

to and from the service shop.

All warranty service will be provided by

our Factory Service Centers or by our

authorized Customer Care®servicers

during normal working hours.

Power Connection Kit RAK3152 RAK3202 RAK3302

Heater KW 2.55/2.09 3.45/2.82 5.00/4.09

Min. Circuit Amps 15 20 30

Recommended 15 Amp 20 Amp 30 Amp

Protective Time Delay Time Delay Time Delay

Device Fuse or Breaker Fuse or Breaker Fuse or Breaker

230/208 Volt Line Cord Connected Units

AZ75E18DAC –GE Vertical Packaged Terminal Air Conditioner

Specification Created 8/02

GE Appliances

Features and Benefits

•17,500/17,200 BTUH Cooling Capacity

•10.0/10.0 E.E.R. (BTUH/Watt)

•Vertical Design Optimizes Floor Space –Unique Sleeve Design Makes Easier to Install

•Freeze Sentinel™Protects Unoccupied Rooms Against Freeze-Up

•Three-Way, Slide-Out Chassis with Specially Designed Case Makes Maintenance

and Service Quick and Easy

•Full Corrosion Treatment on Outside Coils and Other Components is Standard

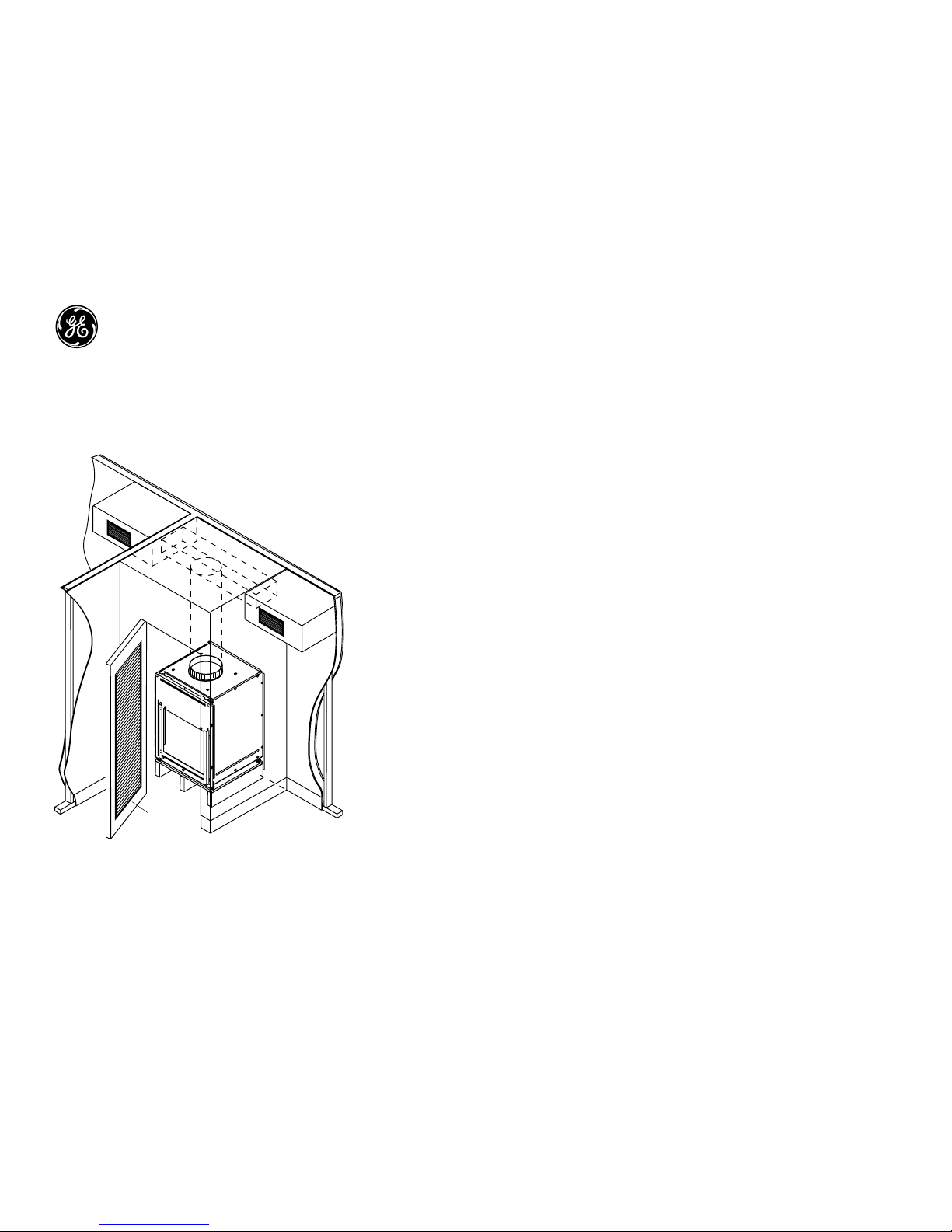

Closet Door
