Gamber Johnson TAB ACTIVE PRO4 User manual
B. IMPORTANT INFORMATION
•Compatible with the Samsung Tab Active Pro4 only
•Temperature Range:
•Operating -20°C to 50°C
•Storage -40°C to 85°C
•IP54, FCC, CE, RoHS, REACH, C-Tick compliant
•This product is NOT designed to be vehicle mounted.

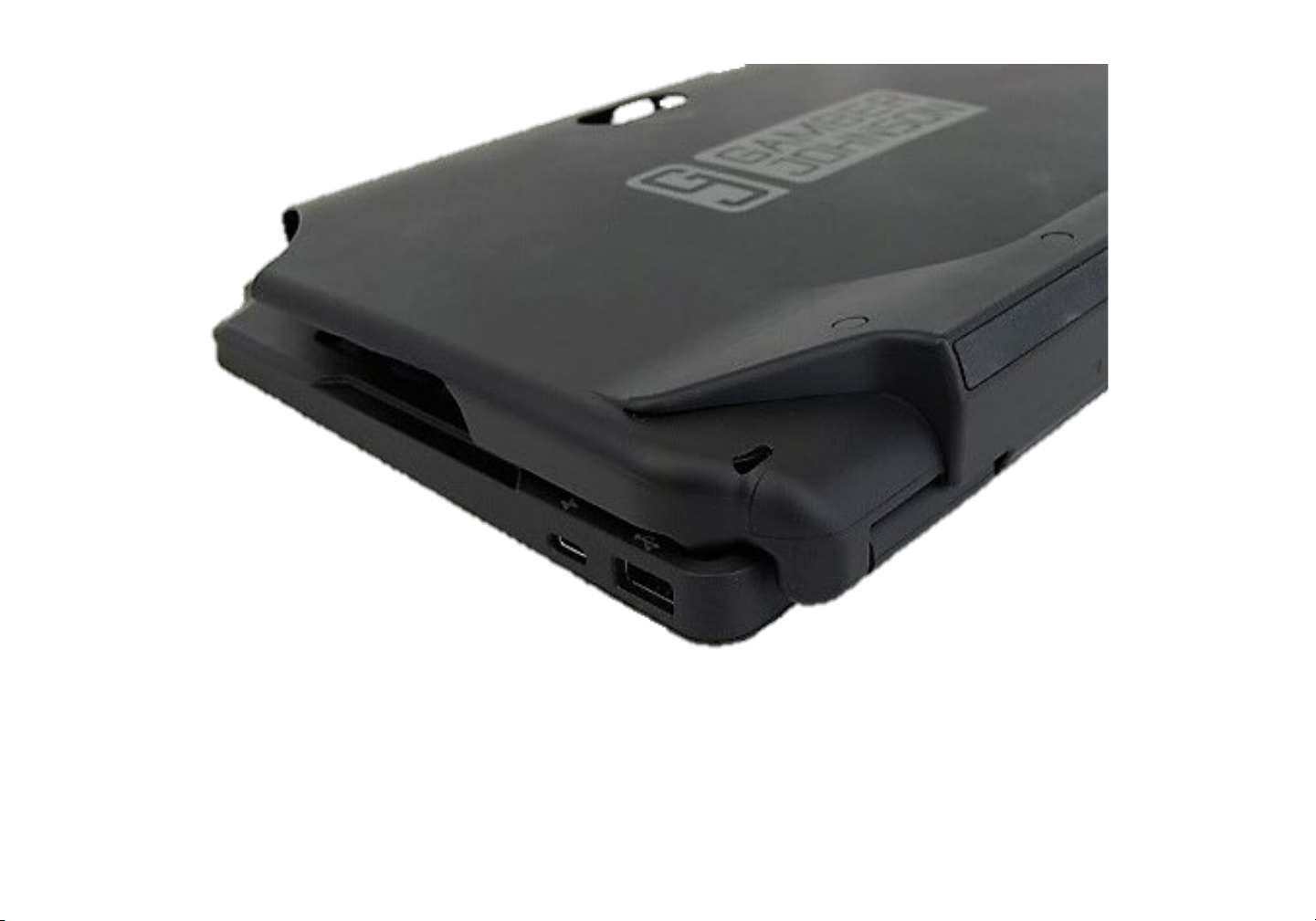

•Connect power cable to USB-C Power Port (Feature 9)
•Connect a flash drive or other digital data device to the
USB 2.0 port on the side of the keyboard (Feature 10)
•Reference the Part Number Label for product information
regarding any service needs (Feature 11)
Thank you for choosing Gamber-Johnson for your keyboard needs. To learn more visit gamberjohnson.com and search part number 7160-1869.
1

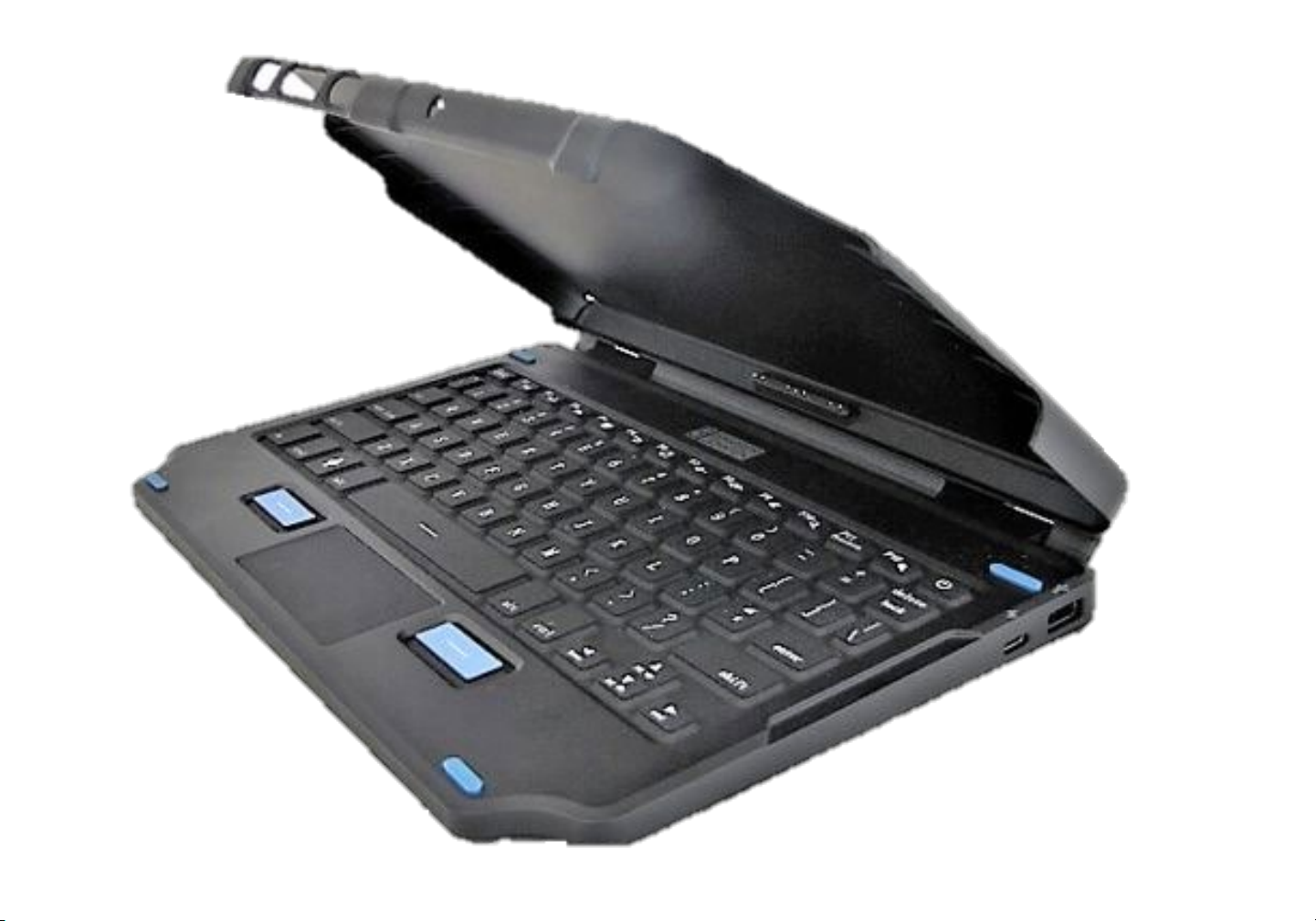

1. Top Latch Ridge
2. Cover
3. Hinge
4. Pogo Pins
5. Rubber Keys
6. Touchpad
7. Mouse Buttons
8. Built-in Kickstand
9. USB-C Power Port
10. USB 2.0 Input Port
11. Part Number Label
Lift the Cover. Insert Tablet into tray with Pogo Pins.
Snap Top Latch Ridge
over top of Tablet.
On both sides, push up on Top Latch Ridge & pull forward on back
corner of Tablet.
2
4
5
6
7
8
9
10
11
3
QUICK GUIDE
2-IN-1 ATTACHABLE KEYBOARD, TAB ACTIVE PRO4
INST-1125-00 | Rev. A
A. FEATURES

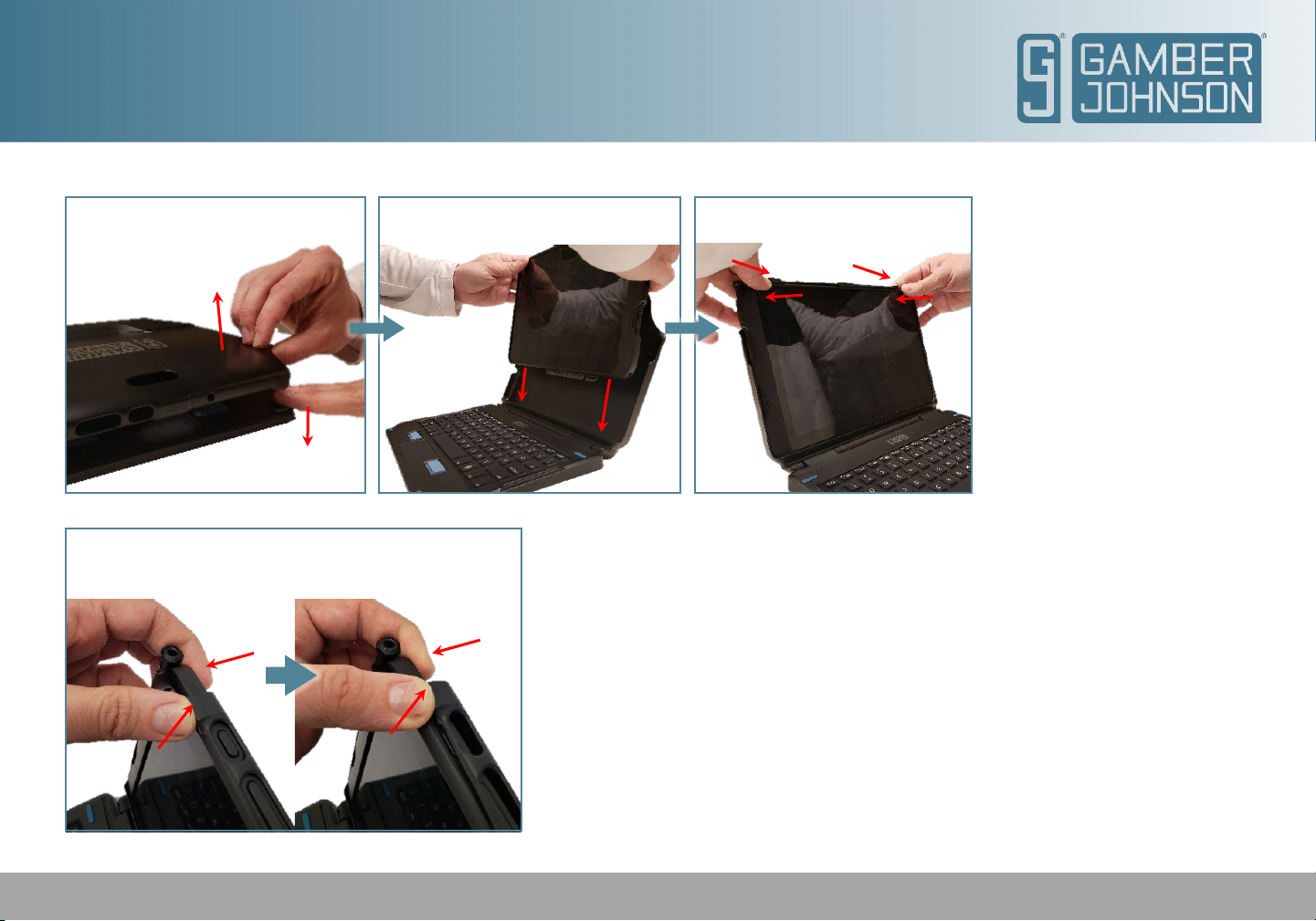

C. HOW TO DOCK & UNDOCK THE TABLET
Thank you for choosing Gamber-Johnson for your keyboard needs. To learn more visit gamberjohnson.com and search part number 7160-1869.
Lift the Cover. Insert Tablet into tray
with Pogo Pins.
Snap Top Latch Ridge
over top of Tablet.
On both sides, push up on Top Latch Ridge & pull
forward on back corner of Tablet.
QUICK GUIDE
2-IN-1 ATTACHABLE KEYBOARD, TAB ACTIVE PRO4
INST-1125-00 | Rev. A
C.a. HOW TO DOCK
C.b. UNDOCKING THE TABLET
-Open the Cover. Locate the bottom of the tablet in the
Bottom Tablet Tray, connecting the Pogo Pin Connector.
Rotate the tablet back into the Cover, snapping it over the
top of the tablet.
-Place thumbs on Release Latch, while placing fingers on the
back corners of the tablet. Push up on the Release latch
while pulling the tablet forward. Once the tablet top is free,
remove the tablet completely.
