Fujitsu FI-5900C Use and care manual
-5900C Consumable ReplaCement and Cleaning instRuCtions
-5900C Consumable ReplaCement
and Cleaning instRuCtions
CG00002-006201
-5900C Consumable ReplaCement and Cleaning instRuCtions

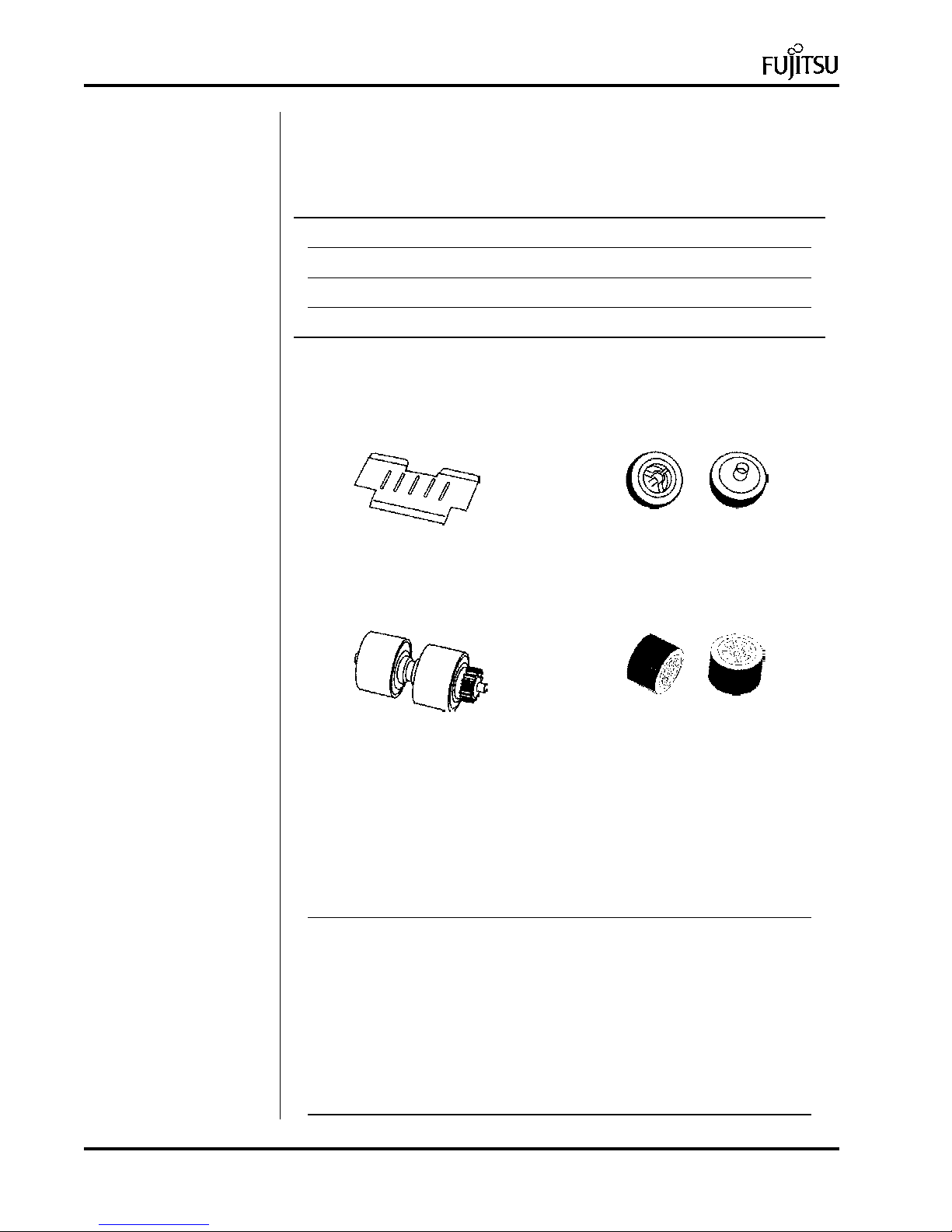

Consumables list
Description Qty Life Fujitsu P/N
Pad 1 600,000 PA03450-K014
Pick Rollers 1 Set 600,000 PA03450-K011
Brake Roller 1 600,000 PA03450-K013
Separation Rollers 1 Set 600,000 PA03450-K012
Note:
To insure the longest possible consumable life, it is strongly
recommended that all the consumables listed above be replaced at
the same time. Not replacing all the consumables at the same time
will decrease the life of the consumables.
NCR or Carbonless paper has chemical composition which damages
the consumables listed above. Cleaning of these items will be
needed more frequently to avoid feed problems. Also their life will be
reduced if this paper is scanned.
Pad Pick Rollers
Brake Roller Separation Roll-
-5900C Consumable ReplaCement and Cleaning instRuCtions

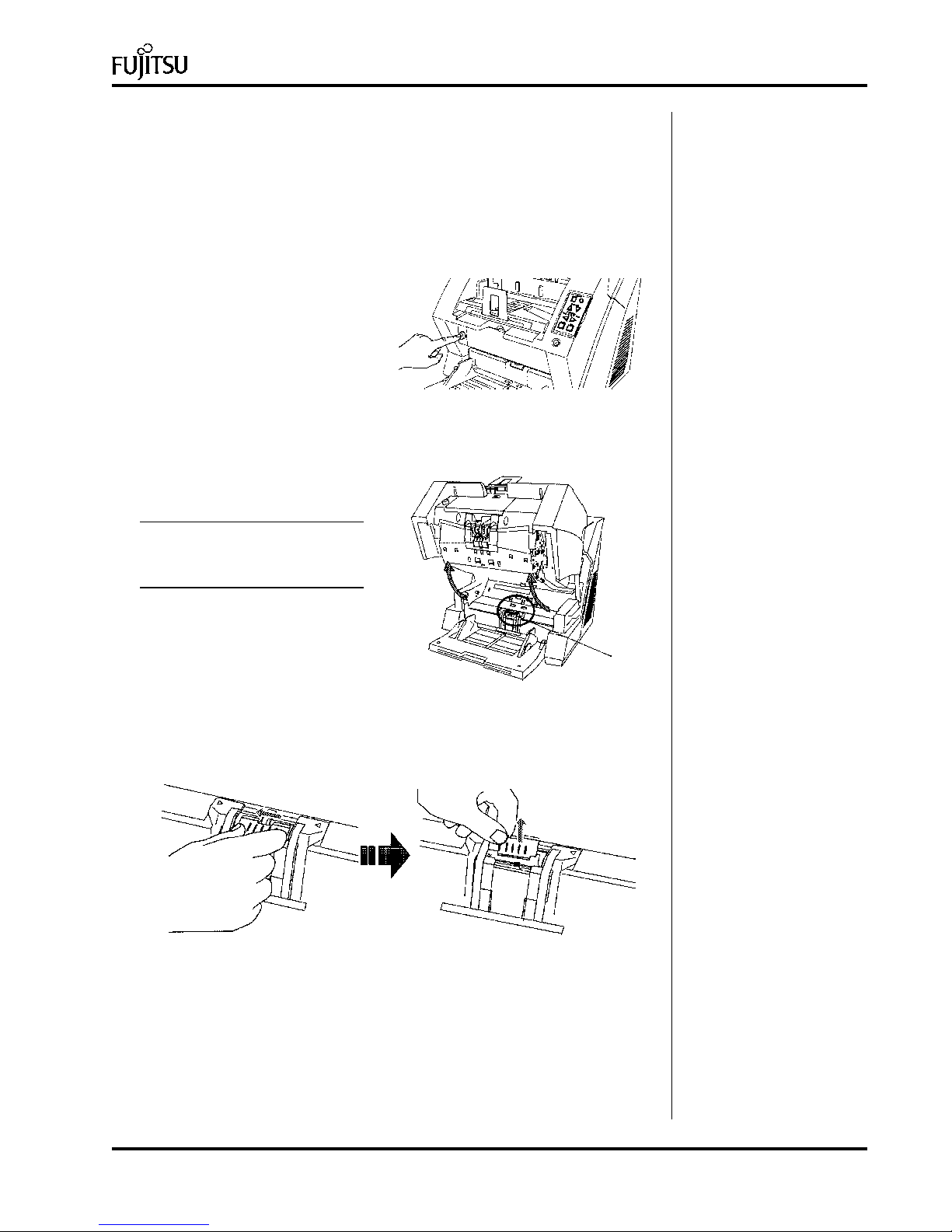

ReplaCing the pad

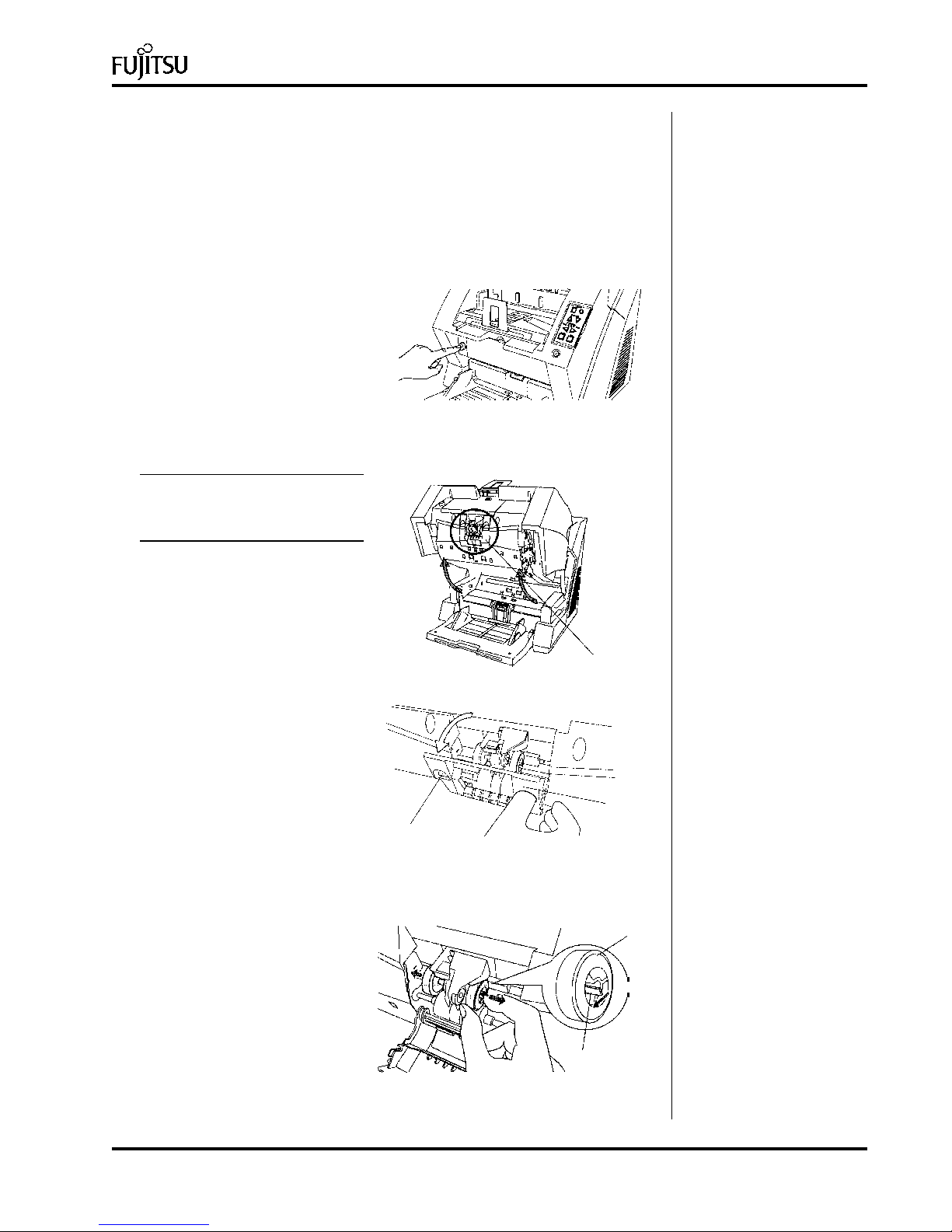

• Make sure there is no paper
in the stacker.
• Press the ADF Cover Open
Button.
Note:
The cover opens slowly on it’s
own.
Multiple feeds and misfeeds can be caused by a worn or improperly in-
stalled Pad. The life span of the Pad Assembly is approximately 600,000
pages. If NCR or carbonless paper is used the life span of the Pad may
be decreased by half.
• Move the Pad to the left, than pull it up in order to remove it from the
scanner.
Pad
-5900C Consumable ReplaCement and Cleaning instRuCtions

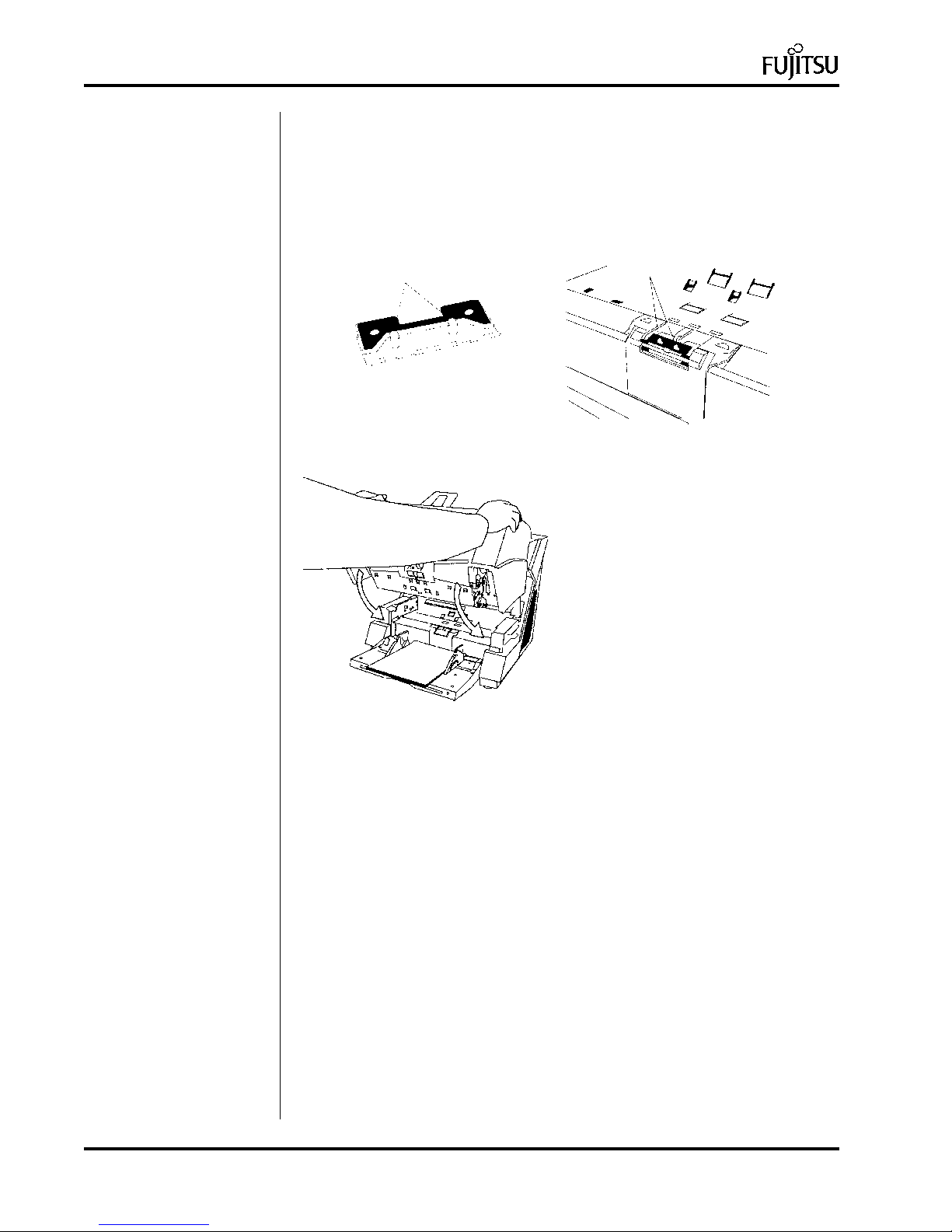

ReplaCing the pad (Cont.)
• To install the new Pad, align the pins on the back of the Pad with the
large side of the mounting holes and move the Pad to the right.
Mounting
Holes
Pins
• Close the ADF Cover.
• Reset the Pad Counter in the
Software Operation Panel.
-5900C Consumable ReplaCement and Cleaning instRuCtions
• Make sure there is no paper
in the stacker.
• Press the ADF Cover Open
Button.
Note:
The cover opens slowly on it’s
own.
• Open the Roller Cover by
placing your ngers in either
of the openings of the cover
and pulling out.
• Pull out on the tab that locks
the Pick Roller in place in the
direction of the arrow and
slide the Pick Roller off the
shaft.
• Repeat the procedure above
to remove the second Pick
Roller.
ReplaCing the piCk RolleRs
Worn, defective, or improperly installed Pick Rollers will cause misfeeds
and paper jams. The Pick Rollers have an approximate life of 600,000
pages. If NCR or carbonless paper is used the life span of the Pick Roll-
ers may be decreased by half.
Roller Cover
Roller
Cover
Opening
Pick Roller
Tab
-5900C Consumable ReplaCement and Cleaning instRuCtions

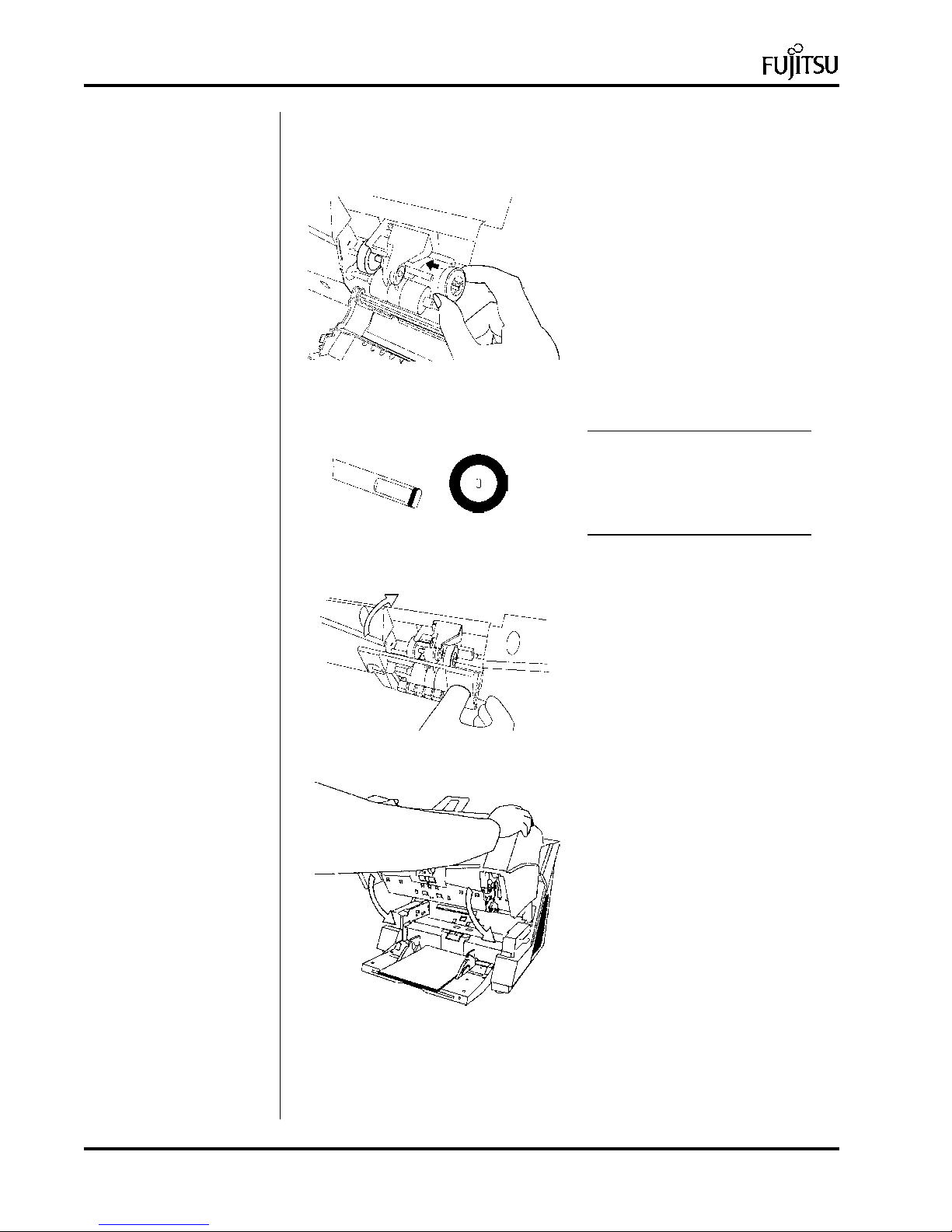

ReplaCing the piCk RolleRs (Cont.)
• Install the new Pick Rollers
by aligning the hole in the
rollers with the roller shaft.
Note:
The roller shaft and the hole
in the Pick Rollers are keyed
and will only slide on in one
orientation.
• Close the Roller Cover.
• Close the ADF Cover.
• Reset the Pick Roller
Counter in the Software
Operation Panel.
-5900C Consumable ReplaCement and Cleaning instRuCtions

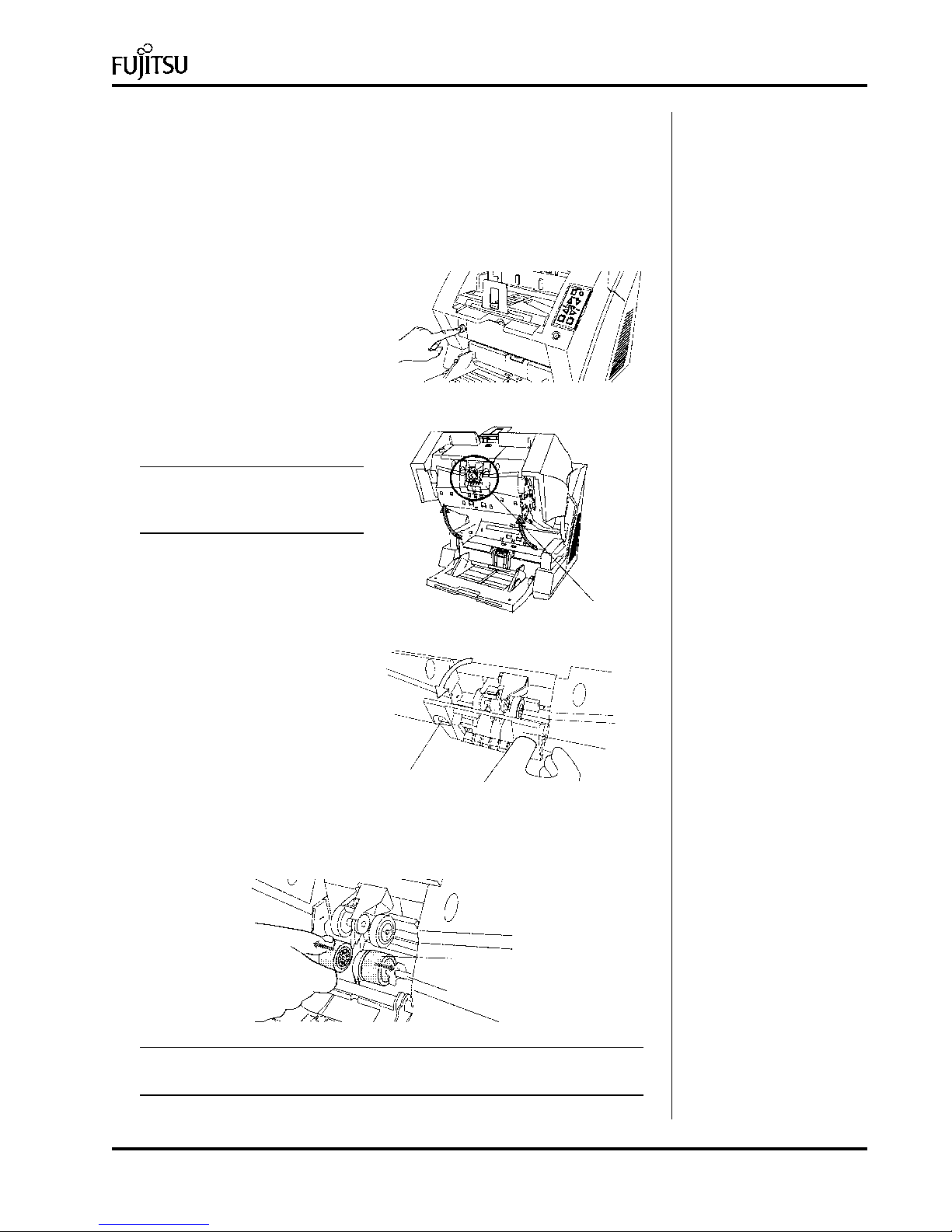

ReplaCing the sepaRation RolleRs
Worn or improperly installed Separation Rollers will cause multiple feeds
and paper jams. The Separation Rollers have an approximate life of
600,000 pages. If NCR or carbonless paper is used the life span of the
these rollers may be decreased by half.
• Make sure there is no paper
in the stacker.
• Press the ADF Cover Open
Button.
Note:
The cover opens slowly on it’s
own.
• Open the Roller Cover by
placing your ngers in either
of the openings of the cover
and pulling out.
• Slide the two Separation Rollers outwards in the direction of the
arrows.
Note:
The shafts will automatically lock in place when moved outward.
Roller Cover
Roller
Cover
Opening
Separation Roller
Shaft
-5900C Consumable ReplaCement and Cleaning instRuCtions

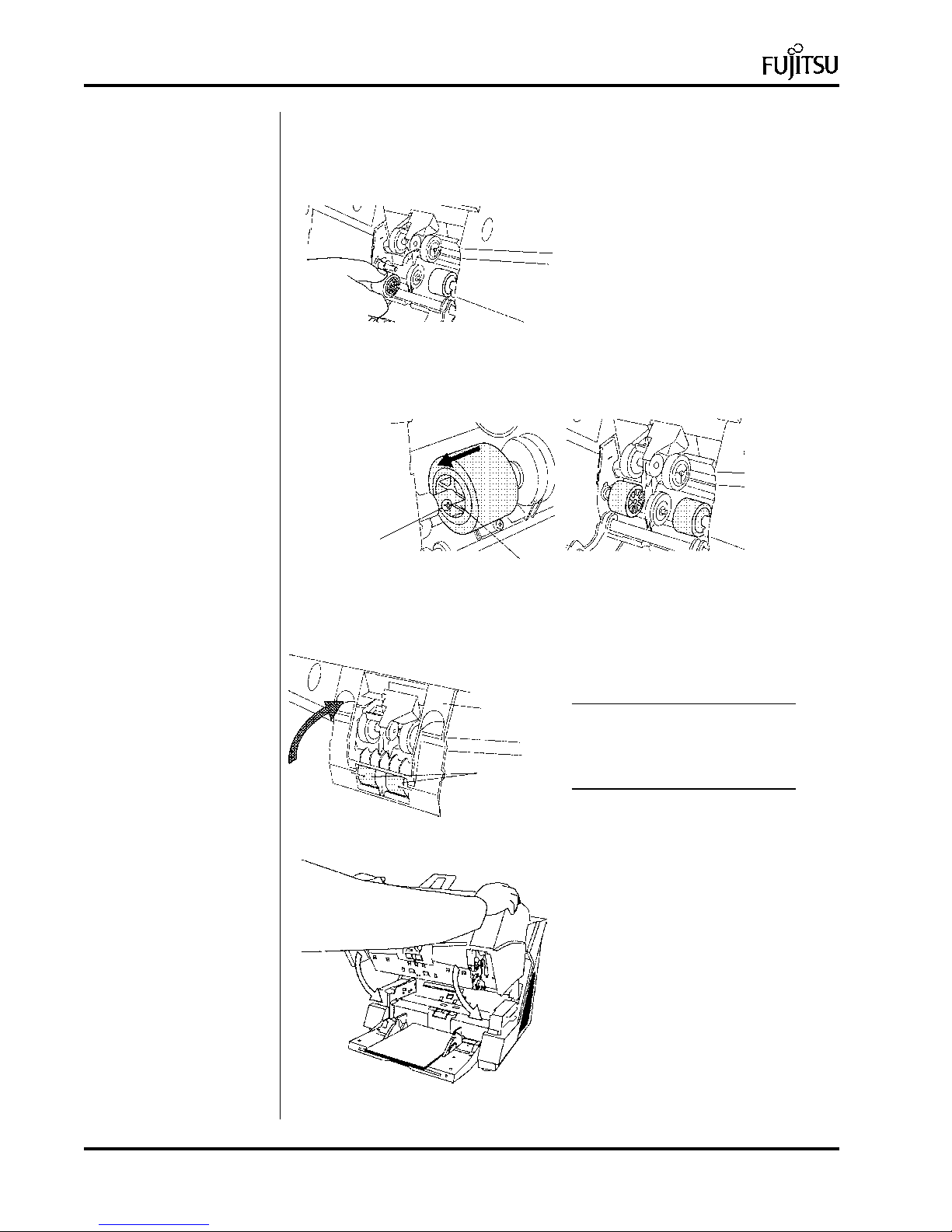

ReplaCing the sepaRation RolleRs (Cont.)
• Remove the two Separation
Rollers by sliding them
inwards and off the shafts (in
the direction of the arrow).
• Close the Roller Cover.
Note:
The Separation Rollers will
automatically spring to their
proper position.
• Close the ADF Cover.
• Reset the Separator Roller
Counter in the Software
Operation Panel.
• Install the Separation Rollers by sliding them on to each shaft,
aligning the groove on the roller with the screw on the shaft.
Screw
Groove
Separation
Rollers
Roller
Cover
-5900C Consumable ReplaCement and Cleaning instRuCtions

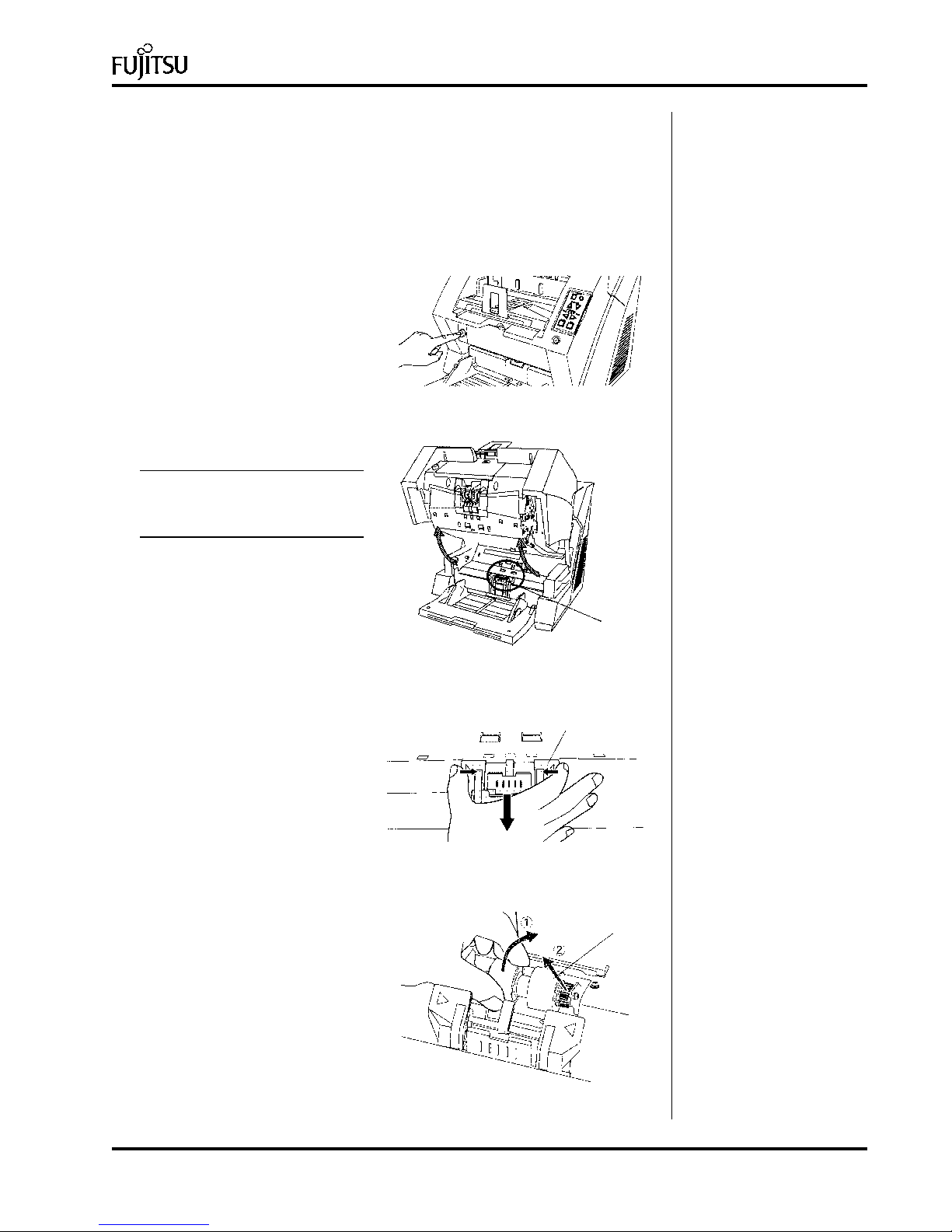

ReplaCing the bRake RolleR
A worn or improperly installed Brake Roller will cause multiple feeds and
paper jams. The Brake Roller has an approximate life of 600,000 pages.
If NCR or carbonless paper is used the life span of the Brake Roller may
be decreased by half.
• Make sure there is no paper
in the stacker.
• Press the ADF Cover Open
Button.
Note:
The cover opens slowly on it’s
own.
• Open the Pad Cover by
grabbing both sides of the
cover, pressing in and then
pulling out as shown in the
drawing to the right.
• Remove the Brake Roller by
lifting up on the left side rst
and then removing the right
side of the shaft from it’s
mounting hole.
Pad
Cover
Brake Roller
Pad Cover
-5900C Consumable ReplaCement and Cleaning instRuCtions
ReplaCing the bRake RolleR (Cont.)
• Install the new Brake Roller
by inserting the right end of
the shaft into the mounting
hole, then place the left end
into the mounting bracket.
• Close the Pad Cover.
• Close the ADF Cover.
• Reset the Brake Roller
Counter in the Software
Operation Panel.
