Fujitsu FI-5900C Configuration guide

Parts Part Number

Consumables

Pad PA03450-K014

Pick Roller PA03450-K011

Separator Roller PA03450-K012

Brake Roller PA03450-K013

Cleaning Kit SC-CLE-KIT2

Note: Please ensure Cleaner F2 is NOT

used on Rubber Rollers.

Cleaning Instructions for

fi-5900C Scanner

Cleaning the Rollers - Recommended Cleaning Cycle Every 10,000 Sheets

1. Open the ADF Cover

2. Wipe the Pad (the parts of rubber) with cleaning

paper, moistened with F1 cleaner, in the direction

indicated by the arrows.

Pad

Cleaning the Pad - Recommended Cleaning Cycle Every 10,000 Sheets

ADF

Cover

Roller

Cover

Pad

Cover

Roller

Cover

Pick

Roller

Separator

Roller

Cover

1. Open the ADF Cover. Open the Roller cover - grab

the depression on the left and right side with your

fingers and pull towards you to open the cover.

2. Clean the Pick Roller and the rubber surface of the

Separator Rollers using cleaning paper moistened

with F1 cleaner. Close the Roller Cover after the

cleaning is finished.

BEFORE CLEANING

Remove documents from the stacker and open

the ADF

P.T.O.

Cleaning the Rollers - Recommended Cleaning Cycle Every 10,000 Sheets

6. Clean the Pinch Rollers (rubber rollers, each set

consists of 2 rollers, 9 locations) on the upper side

of the UPPER transport path, using cleaning paper

moistened with F1 cleaner

Brake

Roller

Feed

Rollers

Pinch

Rollers

Pad Cover

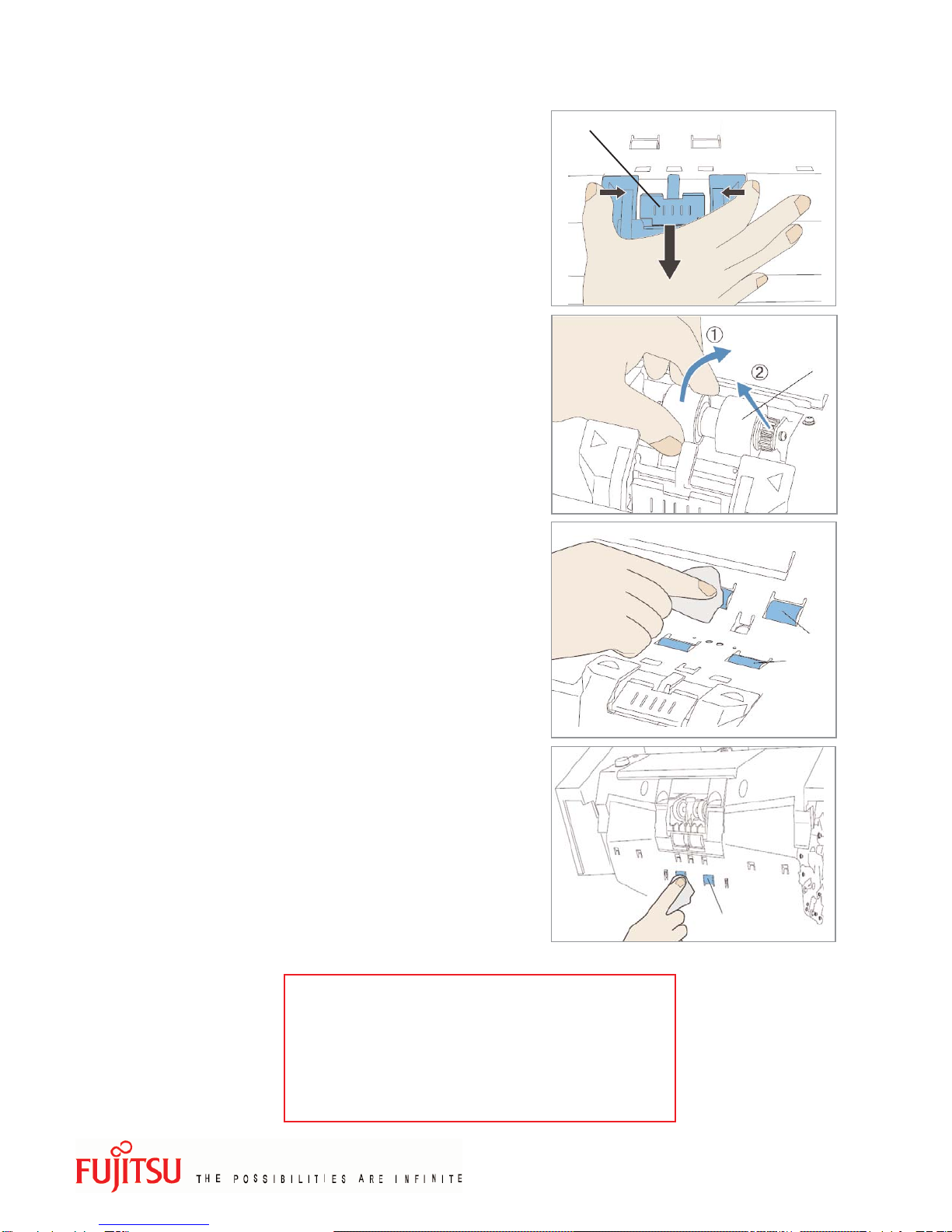

3. Open the Pad Cover - grab both sides of the cover,

press to the inside and pull down (towards you).

4. Remove the Brake Roller. Move the roller slightly to

the right, then pull it upwards to remove. Clean the

rubber surface using cleaning paper moistened with

F1 cleaner. Re-install and close the Pad Cover.

5. Clean the Feed Rollers (metal rollers, each set

consists of 2 rollers, 9 locations) on the upper side

of the LOWER transport path using cleaning paper

moistened with F2 cleaner.

For further cleaning instructions please

refer to the

fi-5900C Image Scanner Operators Guide

which can be found on our Website:

www.fel.fujitsu.com/scanner

Cleaning Instructions for fi-5900Fujitsu Europe LImited

January 2007
