Fujitsu FTP-632MCL301 User manual

NOT FOR NEW

DESIGN

FTP-632MCL301/302

■OVERVIEW

FTP-632MCL/FTP-622DCL/DSL Series is an ultra high speed

line thermal printer driven by 24 VDC, printing on 3-inch wide

paper (80 mm/85 mm).

This printer is compact and light weight, and the design allows

easy head maintenance, head cleaning and head replacement.

This printer is suitable for a variety of applications, such as POS

terminals, ticket machines, coupon machines, label printers,

medical instruments, etc. A printer with a specially designed

cutter is also available.

■HIGHLIGHTS

• Ultra high speed printing

It can print at 80 mm/s (640 dotlines/s) maximum by using

Fujitsu Components' unique head drive control.

• Compact and lightweight

This printer has a low profile of only 20 mm, and a light

weight of approximately 94 g.

• Low power consumption

The peak current for head driving is approximately 2.9 A (at

80 mm/s printing speed, 50% printing ratio).

• Easy head access

It is designed for easy head cleaning and head replacement.

• Paper auto loading function

Thermal paper can be loaded without head-up lever

operation.

• ESC/POSTM*1 Commands

The commands conform to ESC/POSTM.

• Auto Cutter

Printer with auto cutter (full cut/partial cut) is also available.

• UL Recognized

File No.E171434

*1 ESC/POSTM is a registered trademark of SEIKO EPSON Corp.

24V DRIVE, ULTRA HIGH SPEED LINE THERMAL PRINTER

3” MECHANISM, WITH CUTTER

FTP-632MCL301

FTP-622DCL011

FTP-622CU101

FTP-632MCL301/302

NOT FOR NEW

DESIGN

Part number FTP-632MCL301/302

Printing method Thermal-sensitive line dot method

Dot structure 576 dots/line

Dot pitch (Horizontal) 0.125 mm (8 dots/mm)—Dot density

Dot pitch (Vertical) 0.125 mm (8 dots/mm)—Line feed pitch

Effective printing area 72 mm

MCL301 80 mm

Paper width MCL302 85 mm

Paper thickness 60~100 µm*1

Cutting type full or partial

Number of columns 48 columns/line (24×12 dot font)

Maximum printing speed 640 dotlines/s (80 mm/s)

Alphanumeric KANA: 159 International characters: 195

Character types JIS KANJI (FTP-622DCL101/111): approximately 6800

24 ×12 dots, (3.0 ×1.5 mm), 48 columns

24 ×24 dots, (3.0 ×3.0 mm), 24 columns

16 ×8 dots, (2.0 ×1.0 mm), 72 columns

16 ×16 dots, (2.0 ×2.0 mm), 36 columns

■DESIGNATION

Part number

With Auto cutter FTP-632MCL301/302*1

FTP-622DCL011/111*2

FTP-622DSL011/012*3

FTP-622CU101*4

Item

Printer mechanism

Interface board

■GENERAL SPECIFICATIONS

SpecificationsItem

Character composition, dimensions (H×W),

Number of characters

(Continued)

Centronics Standard with Auto cutter

Serial (RS-232C)

LSI(MCU)

*1: Constructed with mechanism+cutter+attachment. 301 is for front paper insertion (curl path) and 302 is for rear

paper insertion (straight path).

*2: 011 supports ANK and 101 supports ANK + Kanji.

*3: 012 supports ANK and 111 supports ANK + Kanji, + FLASH memory.

*4: CU101 supports Kanji and cutter control.

FTP-632MCL301/302

NOT FOR NEW

DESIGN

Power supply

Dimensions

Part number FTP-632MCL301/302

Interface Centronics (ESC/POSTM), RS232C

24 VDC ±5%, Voltage

Current : average*2( ): Peak

For head 1.11 (1.45) A (at 80 mm/s printing speed, 25% printing ratio)

0.81 (1.45) A (at 50 mm/s printing speed, 25% printing ratio)

0.75 (0.87) A (at 30 mm/s printing speed, 25% printing ratio)

For motor 24 VDC ±5%, 1.0 A maximum

For cutter 24VDC ±5%, 1.0 A maximum

For logic 5 VDC ±5%, 0.5 A maximum

Mechanism (cutter)

123 (W) ×70 (D) ×42 (H) mm (w/cutter)

Interface board 131 (W) ×89 (D) ×24 (H) mm

Weight (Mechanism+Cutter) approximately 380 g (w/cutter)

Mechanism Pulse durability : 1 ×108pulse/dot (using Fujitsu's standard

driving method)

Expected life Wear resistance : 50 km (at 25% printing ratio)

Cutter 3 ×105cuts

Operating temperature 0 to +50°C*3

Operating humidity 20 to 85% RH (no condensation)

Storage temperature –20 to +60°C (excluding paper)

Storage humidity 5 to 95% RH (no condensation)

Head temperature By thermistor (applied energy control, abnormal temperature detection)

Detection Paper out/Mark detect By photointerrupter

Head-up By microswitch

For front insertion use (80 mm width) : FTP-030PU001, FTP-030P0701

For rear insertion use (85 mm width) : FTP-030P0020, FTP-030P0702

*Recommended papers

· Oji Paper : PD150R, PD160R, PD170R

· NIPPON Paper : TF50KS-E,TF60KS-E,TF60KJ-R

· MITSUBISHI Paper Mills : P220VBB-1, AFP-235

SpecificationsItem

(Continued)

Environmental

conditions

Recommended thermal sensitive paper

*1: There may be exceptions.

*2: 24 VDC, minimum head resistance.

*3: Guarantee: +5°C ~+40°C.

FTP-632MCL301/302

NOT FOR NEW

DESIGN

Unit: mm

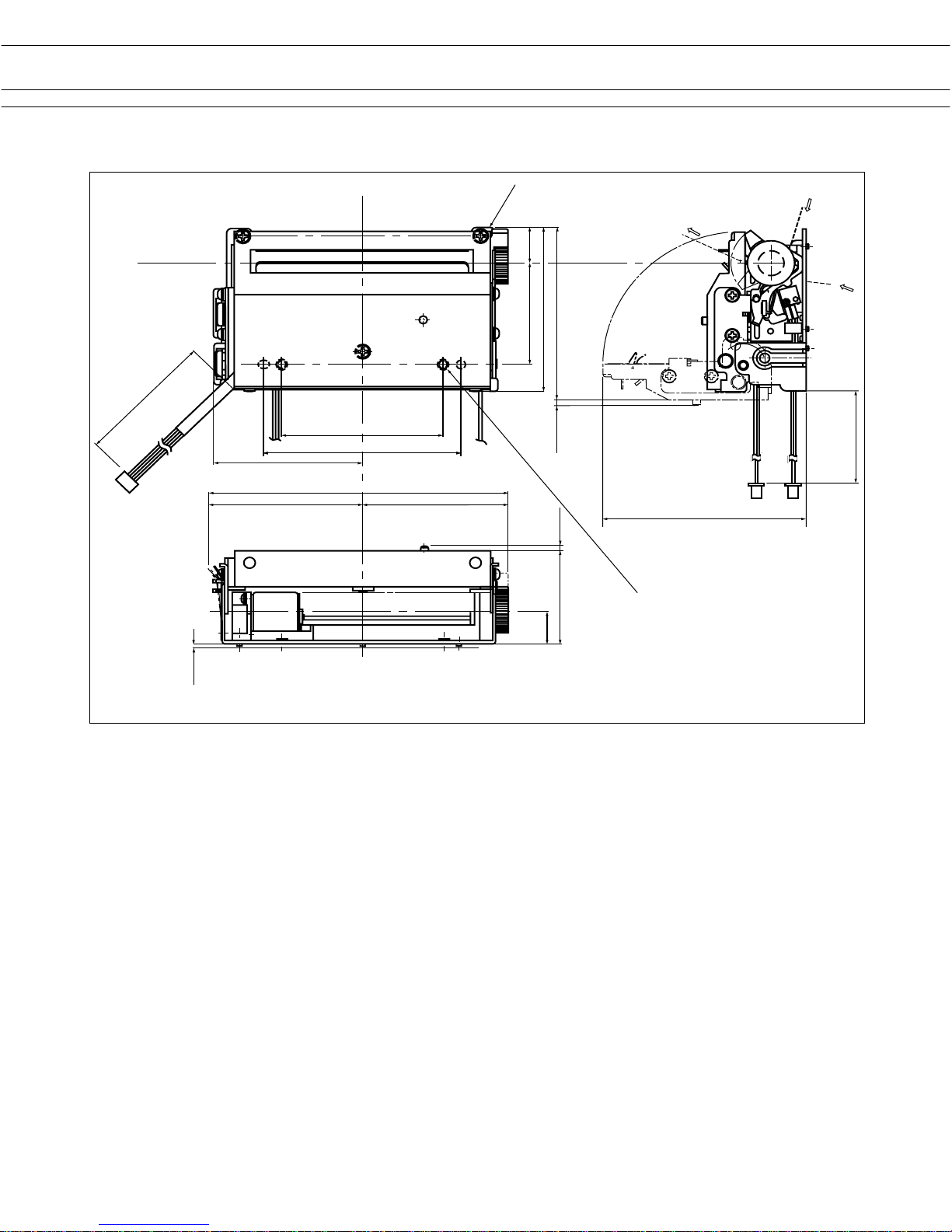

Mechanism with cutter

300

±15

2—M 3 burring (FIXING HOLE FROM BOTTOM SIDE)

67.7

±1

(70.8)

14.2

3—M 3(FIXING HOLE FROM UPPER SIDE)

(60.5)

38.5

13.3

3–2.0 or less

±1

235

±15

(78.6)

MCL301

MCL302

63.4

76.8(POSITIONING H0LE)

117.5

Note: all dimensions are nominal value.

58.2

(2 or less)

2 or less

FTP-632MCL301/302

NOT FOR NEW

DESIGN

■INTERFACE, COMMAND, OPTIONS

Interface board

Unit: mm

■FUNCTION

ITEM ITEM

1. Test printing 8. Cutter trouble detection

2. Paper-out detection 9. Motor power save

3. Paper near end detection 10. Mark detection

4. Head-up detection 11. MCU trouble detection

5. Abnormal temperature detection of thermal head 12. Power on/off sequence protection

6. Blown fuse detection 13. Motor protection

7. Abnormal voltage detection of head 14. Hardware timer

Please refer to the FTP-622DCL DATA SHEET and the FTP-622DSL DATA SHEET for Interface, Command, and

Options.

88.9

78.7

39.4

5.1

5.1 5.1

5.1

120.7

105.4

120.7

116.8

87.6

130.8

43.2 86.4

CN10

CN5CN2** CN3

CN1

CN8

CN13

CN11*

19.1

*CN11 on FTP-622DCL011/111 & 622DSL011/012/112 only

**CN2 on FTP- 622DSL only

4—ø3.6

FTP-632MCL301/302

NOT FOR NEW

DESIGN
