Fujitsu FTP-632MCL001 User manual

FTP-632MCL001/002/303/304

■OVERVIEW

FTP-632MCL/FTP-622DCL Series is an ultra high speed line

thermal printer driven by 24 VDC, printing on 3-inch wide paper

(80 mm/85 mm).

This printer is compact and light weight, and the design allows

easy head maintenance, head cleaning and head replacement.

This printer is suitable for a variety of applications, such as POS

terminals, ticket machines, coupon machines, label printers,

medical instruments, etc. A printer with a specially designed

cutter is also available.

■HIGHLIGHTS

• Ultra high speed printing

It can print at 80 mm/s (640 dotlines/s) maximum by using

Fujitsu Components' unique head drive control.

• Compact and lightweight

This printer has a low profile of only 20 mm, and a light

weight of approximately 94 g.

• Low power consumption

The peak current for head driving is approximately 2.9 A (at

80 mm/s printing speed, 50% printing ratio).

• Easy head access

It is designed for easy head cleaning and head replacement.

• Paper auto loading function

Thermal paper can be loaded without head-up lever

operation.

• ESC/POSTM*1 Commands

The commands conform to ESC/POSTM.

• Auto Cutter

Printer with auto cutter (full cut/partial cut) is also available.

• UL Recognized

File No.E171434

*1 ESC/POSTM is a registered trademark of SEIKO EPSON Corp.

24V DRIVE, HIGH SPEED LINE

THERMAL PRINTER

3” MECHANISM, WITH OR WITHOUT CUTTER

FTP-632MCL001

FTP-622DCL001

FTP-632MCL303/304

FTP-632MCL001/002/303/304

■DESIGNATION

Part number

Standard FTP-632MCL001/002*1

FTP-632MCL303/304*1

FTP-622DCL001/011*2

FTP-622DSL001/011/012*3

FTP-622CU101*4

FTP-622Y001

FTP-622Y201

FTP-622Y301

FTP-622Y401

Item

Printer mechanism

Interface board

(Continued)

Parallel (Centronics Standard)

Serial (RS232C)

Thermal head cable

Parallel interface cable

Serial interface cable

Power cable

*1: 001/303 is for front paper insertion (curl path) and 002/304 is for rear paper insertion (straight path).

*2: 001/011 supports ANK and 101 supports ANK + Kanji.

*3: 001/011/012 supports ANK and 111 supports ANK + Kanji.

*4: CU101 supports Kanji and cutter control.

■GENERAL SPECIFICATIONS

Cables

LSI(MCU)

Printer mechanism with cutter

Part number FTP-632MCL001/002 FTP-632MCL303/304

Printing method Thermal-sensitive line dot method

Dot structure 576 dots/line

Dot pitch (Horizontal) 0.125 mm (8 dots/mm)—Dot density

Dot pitch (Vertical) 0.125 mm (8 dots/mm)—Line feed pitch

Effective printing area 72 mm

MCL001/303 80 mm

Paper width MCL002/304 85 mm

Paper thickness 60~100 µm*160~100 µm*1

Cutter type --- full or partial

Number of columns 48 columns/line (24×12 dot font)

Maximum printing speed 640 dotlines/s (80 mm/s)

Alphanumeric KANA: 159 International characters: 195

Character types JIS KANJI (FTP-622DCL101/111): approximately 6800

24 ×12 dots, (3.0 ×1.5 mm), 48 columns

24 ×24 dots, (3.0 ×3.0 mm), 24 columns

16 ×8 dots, (2.0 ×1.0 mm), 72 columns

16 ×16 dots, (2.0 ×2.0 mm), 36 columns

SpecificationsItem

Character composition, dimensions (H×W),

Number of characters

FTP-632MCL001/002/303/304

Part number FTP-632MCL001/002 FTP-632MCL303/304

Interface Centronics (ESC/POSTM), RS232C

24 VDC ±5%, Voltage

Current : average*2( ): Peak

For head 1.11 (1.45) A (at 80 mm/s printing speed, 25% printing ratio)

0.81 (1.45) A (at 50 mm/s printing speed, 25% printing ratio)

0.75 (0.87) A (at 30 mm/s printing speed, 25% printing ratio)

For motor 24 VDC ±5%, 1.0 A maximum

For cutter --- 24 VDC ±5%, 1.0 A maximum

For logic 5 VDC ±5%, 0.5 A maximum

Mechanism

108 (W) ×48 (D) ×20 (H) mm (Excluding lever)

117 (W) ×57 (D) ×38 (H) mm

Interface board 131 (W) ×89 (D) ×24 (H) mm

Weight approximately 94 g approximately 330 g

Expected life Mechanism Pulse durability : 1 ×108pulse/dot (using Fujitsu's standard driving

method)

Wear resistance : 50 km (at 25% printing ratio)

Cutter --- 500,000 cuts

Operating temperature 0 to +50°C*3

Operating humidity 20 to 85% RH (no condensation)

Storage temperature –20 to +60°C (excluding paper)

Storage humidity 5 to 95% RH (no condensation)

Head temperature By thermistor (applied energy control, abnormal temperature detection)

Detection Paper out/Mark detect By photointerrupter

Head-up By microswitch

For front insertion use (80 mm width) : FTP-030PU001, FTP-030P0701

For rear insertion use (85 mm width) : FTP-030P0020, FTP-030P0702

*Recommended papers

· Oji Paper : PD150R, PD160R, PD170R

· NIPPON Paper : TF50KS-E,TF60KS-E,TF60KJ-R

· MITSUBISHI Paper Mills : P220VBB-1, AFP-235

Power supply

Dimensions

SpecificationsItem

(Continued)

Environmental

conditions

Recommended thermal sensitive paper

*1: There may be exceptions.

*2: 24 VDC, minimum head resistance.

*3: Guarantee: +5°C ~+40°C.

FTP-632MCL001/002/303/304

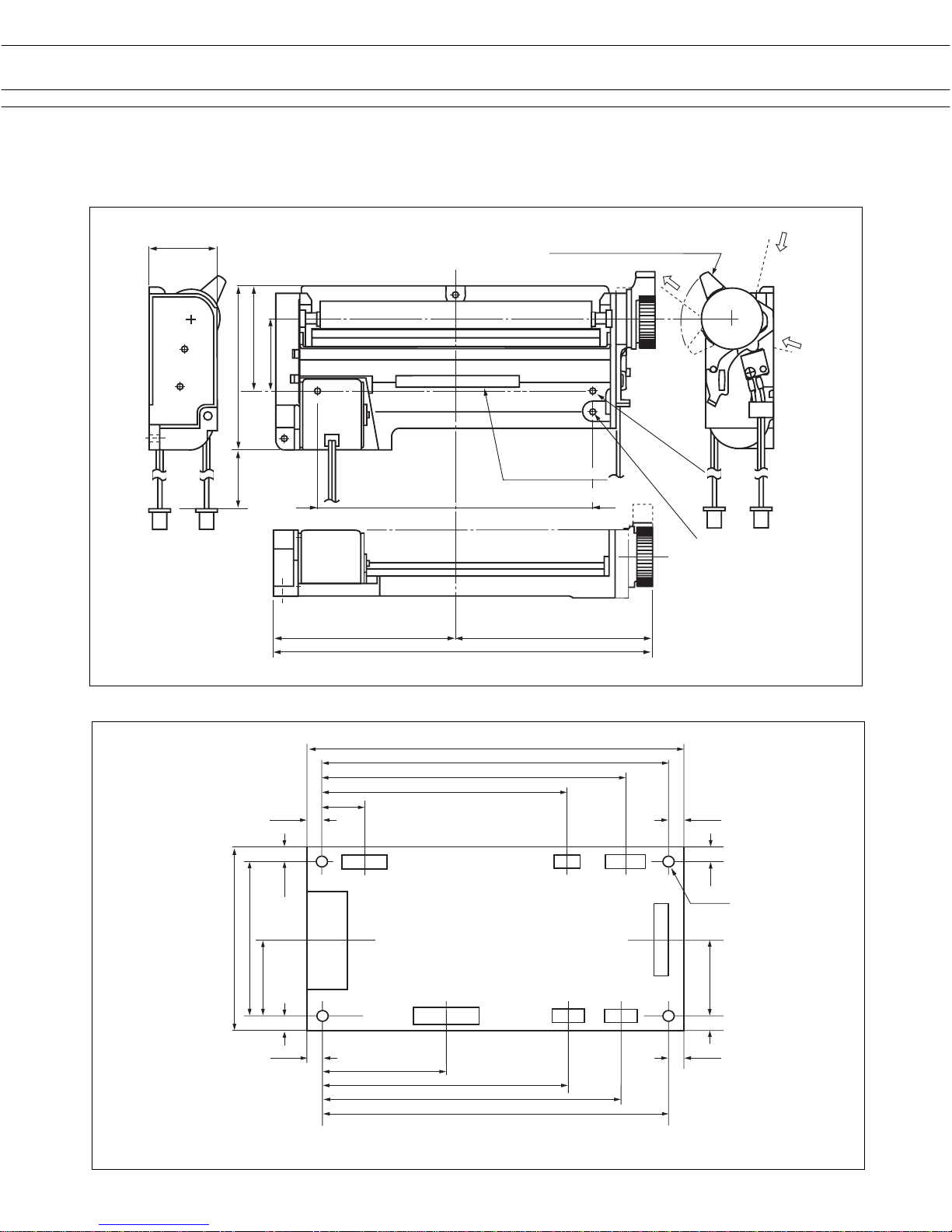

■DIMENSIONS

Mechanism

Unit: mm

20.1

(250)47.530.5

21.0

50.957.0

(107.9)

HEAD CONNECTOR

3-MOUNTINGHOLE(M2)

2-POSITIONINGHOLE

CENTER OFPAPER

HEAD UPLEVER(AT HEAD DOWN)

–

PAPER INSERTION(MCL001)

PAPER

INSERTION

(MCL002)

76.8(POSITIONINGHOLEPITCH)

Interface board

Unit: mm

88.9

78.7

39.4

5.1

5.15.1

5.1

120.7

105.4

120.7

116.8

87.6

130.8

43.295.4

CN10

CN5CN2** CN3

CN1

CN8

CN13

CN11*

19.1

*CN11 on FTP-622DCL011/111 & 622DSL011/112only

**CN2on FTP- 622DSL only

4—ø3.6

FTP-632MCL001/002

FTP-632MCL001/002/303/304

Unit: mm

(sensor cable)

(motor cable)

(cutter cable)

3-2.0 or less

Unit: mm

Interface board

88.9

78.7

39.4

5.1

5.1 5.1

5.1

120.7

105.4

86.4

120.7

116.8

87.6

130.8

43.2

CN10

CN5 CN3

CN2*

CN1

CN8

CN13CN11

19.1

4-Ø3.6

*CN2 on FTP-622DSL only

■DIMENSIONS

Mechanism

FTP-632MCL303/304

FTP-632MCL001/002/303/304

■CONNECTOR PIN ASSIGNMENT FOR PRINTER MECHANISM

1. Thermal Head

Head side : B16B-PH-K-S-2.2 (J.S.T.) or equivalent

Board side : PHR-16 (J.S.T.) or equivalent

2. Motor connectors

Motor side : PHR-4 (J.S.T.) or equivalent

Board side : B4B-PH-K-S (J.S.T.) or equivalent

*1: Symbol: " " means a negative logic signal

1, 2, 3, ......................................15, 16

Motor Thermal head heat sink Head up level

Connector Pin No.

3. Sensor connectors

Sensor : PHR-5 (J.S.T.) or equivalent

Board side : B5B-PH-K-S (J.S.T.) or equivalent

FTP-632MCL001/002/303/304

■INTERFACE, COMMAND, OPTIONS

■FUNCTION

ITEM ITEM

1. Test printing 8. Cutter trouble detection

2. Paper-out detection 9. Motor power save

3. Paper near end detection 10. Mark detection

4. Head-up detection 11. MCU trouble detection

5. Abnormal temperature detection of thermal head 12. Power on/off sequence protection

6. Blown fuse detection 13. Motor protection

7. Abnormal voltage detection of head 14. Hardware timer

Please refer to the FTP-622DCL DATA SHEET and the FTP-622DSL DATA SHEET for Interface, Command, and

Options.

4. Cutter

Mech side : EHR-4 (J.S.T.) or equivalent

Board side : B4B-EH (J.S.T.) or equivalent

trademarks of their respective owners. Rev. 06/2002
