FTP-628MCL053/054

nOVERVIEW

The FTP-628 MCL Series are battery driven high-speed

ultracompact printers with a 2-inch paper width equivalent.

Paper can be easily set using our unique platen release

mechanism.

The FTP-628 MCL Series can be used for a variety of

applications, such as portable terminals, POS, ticket issuing

terminals, label printers, banking terminals, and measurement

and medical equipment.

nHIGHLIGHTS

• Ultra compact

Height 15.5 mm, width 69.6 mm, depth 34.3 mm

• High speed printing

It can print at 80 mm/s (640 dotlines/s) maximum by using

Fujitsu's unique head drive control.

• High resolution printing / Kanji supported

8 dots/mm of resolution printing is possible.

• Auto paper loading

Our unique platen release mechanism allows a

wide paper route even if the printer is ultra-compact, so

paper can be easily inserted. Conventional auto loading is

also available.

• Two types of paper routes

Front or bottom feed, depending on the paper route.

• Easy mounting

Wiring for the head, motor, sensor are housed within one

 exiblecable(053,054)orintwocables(051,052).The

mechanism can be secured by one hook and two screws

at two locations, making mounting easy.

• RoHS compliant

BATTERY DRIVEN, FTP-608 Series

2” HIGH SPEED THERMAL PRINTER

FTP-628MCL053/054

nPART NUMBERS

nSPECIFICATIONS

Part number FTP-628MCL053/054

Printing method Thermal-line dot method

Dot structure 384 dots/line

Dot pitch (Horizontal) 0.125 mm (8 dots/mm)—Dot density

Dot pitch (Vertical) 0.125 mm (8 dots/mm)—Line feed pitch

Effective printing area 48 mm

Number of columns ANK 32 columns/line (maximum 12 x 24 dot font)

Paper width 58 mm+0

Paper thickness 60 to 100 µ m (some paper in this range may not be used because of

paper characteristics)

Printing Speed Maximum 80mm/sec. (640 dot line/sec.) at 8.5V

Alphanumeric, katakana: 159 types

International and special characters: 195 types

JIS Kanji level 1, level 2, non-Kanji

(supported only by FTP-628DSL228, DCL208): about 6800 types

12 ×24 dots, (1.54 ×3.0 mm), 32 columns: alphanumeric, katakana

24 ×24 dots, (3.0 ×3.0 mm), 16 columns: alphanumeric, katakana, Kanji

8 ×16 dots, (1.0 ×2.0 mm), 48 columns: alphanumeric, katakana

16 ×16 dots, (1.0 ×2.0 mm), 24 columns: alphanumeric, katakana, Kanji

SpecicationsItem

Character types

Character, dimensions (W×H), number of

columns

-1

(RS232C)S

rebmuNtraP

msinahcemretnirP )bonkdnahctiwsnoitcetednepodaehhtiwnoitresnirepaptnorf(350LCM826-PTF

)hctiwsnoitcetednepodaehhtiwnoitresnirepapmottob(450LCM826-PTF

gnivirdrofISL 1R (ANK only)03UC826-PTF

ecafretnI

draoB

lellaraP )scinortneC(003LCD826-PTF

laire 503LSD826-PTF

ecafretnI

selbac

lellaraP 202Y826-PTF

laireS 203Y826-PTF

rewoP

elbac

,daeH

rotom 204Y826-PTF

FTP-628CU601R

FTP-628DSL602R (V 2.0)

USB

FTP-628MCL053/054

nSPECIFICATIONS

*+5˚Cto+40˚Cprintingdensityassurancerance(-25to70˚Ccapability)

Item Specications

Interface Conforms to RS232C / centronics

Power supply For print head 4.2to8.5VDCaveragecurrent,0.87(0.93)Apeakvalue

(printratio:12.5%,printspeed:50mm/sec.at7.2V)

For motor 4.2 to 8.5VDC, 1A maximum

Note: 5.8 to 8.5V is recommended for automatic paper loading

For logic 3.0 to 5.25VDC, 0.1A maximum

Dimension

W x D x H

Printer

mechanism

MCL053 83.5x35.7x15.5mm

MCL054 72.3x34.3x15.5mm

Interface board 69.3 x 34.3 x 15.5mm

Weight Printer

mechanism

MCL053 Approximately 49g (with knob)

MCL054 Approximately47g

Interface board (std) Approximately 20g

Head Life Pulse resistance: 100 million pulse/dot

(using Fujitsu's standard driving method)

Abrasion resistance: paper traveling distance 50km (at 12.5%

print ratio or less)

Environmental

conditions

Operating temperature -10ºC to +50ºC

Operating humidity 20 to 85% RH (no condensation)

Storage temperature -20ºC to +60ºC

Storage humidity 5 to 90% RH (no condensation)

Detection Head temperature Detected by thermistor

Paper out/mark detect Detected by photointerruptor

Head up detection Detected by micro-switch

Recommended

thermal

sensitive paper

High sensitive paper TF50KS-E4 (Nippon paper)

Standard paper TF60KS-E2 (Nippon paper)

FTP-020PU001 (58mm)

PD150R (Oji paper)

FTP-020P0701(58mm)

Medium life paper TF60KS-F1 (Nippon paper)

FTP-020P0102 (58mm)

PD170R(Ojipaper)

P220VBB-1 (Mitsubishi paper)

Long life paper PD160R-N (Oji paper)

FTP-628MCL053/054

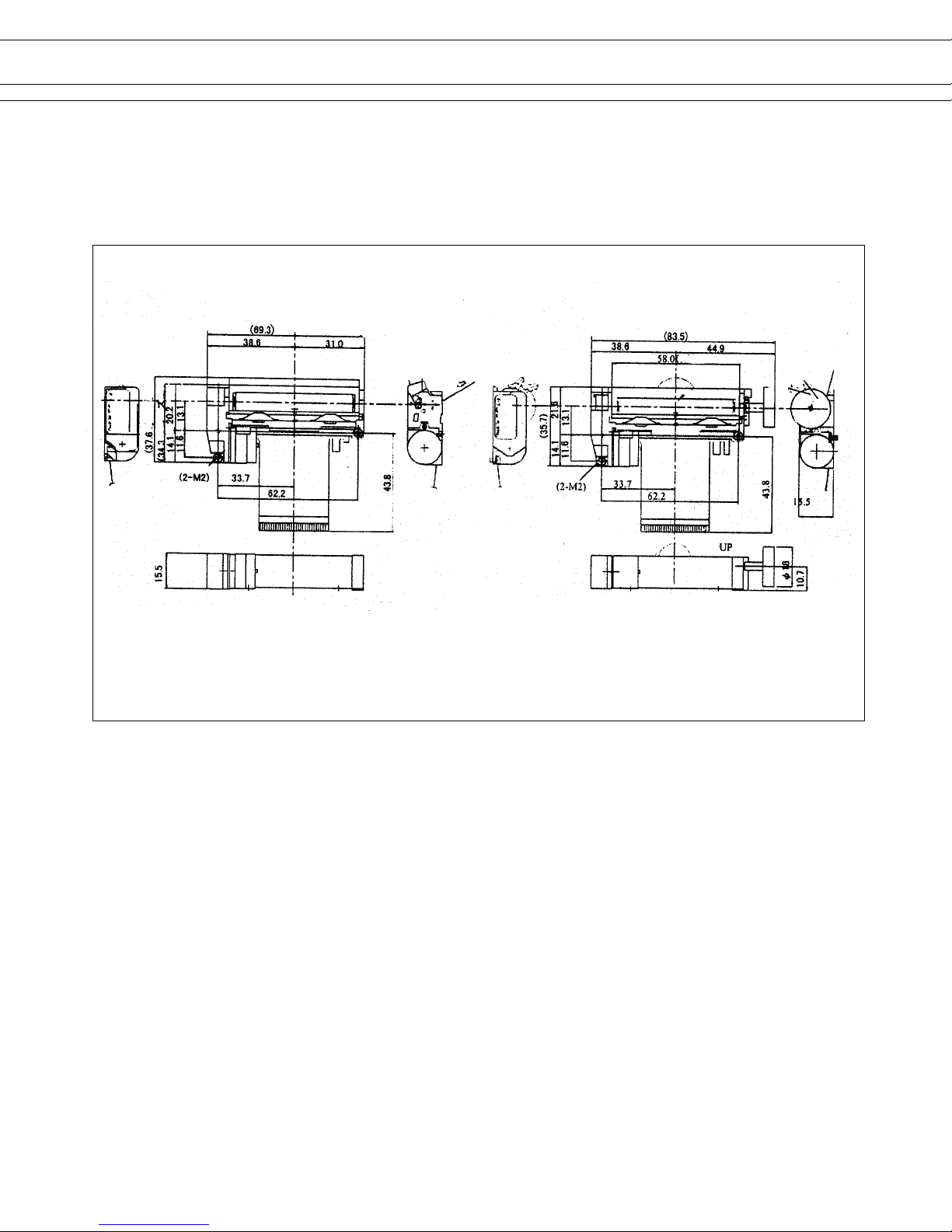

nDIMENSIONS

1. Printer mechanism

Unit: mm

Note: 1.Dimensionsarenominalvalue(tolerance±5unlessotherwisespecied).

   2.Platenunit(lever,platen,etc)movesbyapproximately0.7mmtowardpaperinsertiondirectionwhenplatenis

open.

FTP-628MCL054 FTP-628MCL053

FTP-628MCL053/054

Connector (FPC) specication

(1) Connector

Mechanical unit side: FPC connector

 Remoteside(housingsite): 52030-3071(madebyMolex)

(2) Pin assignment on the mechanical side

M I

oN langiS O/I stnetnoC

1 KHP — rotpurretniotohprofedohtaC

2 NESV I rewoprosnesrepap

3 EHP O rotpurretniotohprofrottimE

4 1WS O hctiwsesaelernetalP

5 2WS I hctiwsesaelernetalP

6 HV I

rewopevirddaeH

7 HV I

8 ID I niataD

9 KLC I noitacinummocrofkcolcsuonorhcnyS

01 DNG —

daehlamrehtrofylppusrewopdnuorG

11 DNG —

21 6BTS I

langislortnocgnizigrenedaehlamrehT31 5BTS I

41 4BTS I

51 DDV I rewopcigoL

61 MT O 1lainmrettupnirotsiserevitisnesyllamrehT

71 MT O 2lainmrettupnirotsiserevitisnesyllamrehT

81 3BTS I

langislortnocgnizigrenedaehlamrehT91 2BTS I

02 1BTS I

12 DNG —

daehlamrehtrofylppusrewopdnuorG

22 DNG —

32 TAL I hctalataD

42 OD O tuoataD

52 HV I

daehlamrehtrofylppusrewoP

62 HV I

72 AT

langisnoitaticxerotomgnippetS

82 AT

92 BT

03 BT

FTP-628MCL053/054

nFUNCTION OF INTERFACE BOARD

metI metI

.1 noitcnuftnirptseT .8 noitcnufgnivasrewoprotoM

.2 noitcetedtuorepaP .9 noitcnufnoitcetedkraM

.3 noitceteddneraenrepaP .01 noitcetedytilamronbanoitarepoUCM

.4 noitcetedneponetalP .11 noitcetorpecneuqesFFO/NOrewoP

.5 noitcetedytilamronbaerutarepmetdaehlamrehT .21 noitcetorptnerruc-revorotoM

.6 noitcetedesuftuo-wolB .31 remiterawdraH

.7 noitcetedytilamronbaegatlovdaeH

Platen unit

Thermal head

Motor

Sensor (Photo-

interruptor)

30,29, .....................2,1

Connector No

(FPC pin numbers)

FPC

Connect terminal:

surface side

Japan

Fujitsu Component Limited

Gotanda-Chuo Building

3-5, Higashigotanda 2-chome, Shinagawa-ku

Tokyo 141 8630, Japan

Tel:(81-3)5449-7010

Fax: (81-3) 5449-2626

Email: [email protected]

Web: www.fcl.fujitsu.com

North and South America

Fujitsu Components America, Inc.

250 E. Caribbean Drive

Sunnyvale, CA 94089 U.S.A.

Tel:(1-408)745-4900

Fax:(1-408)745-4970

Email: [email protected]

Web: http://us.fujitsu.com/components/

Europe

Fujitsu Components Europe B.V.

Diamantlaan 25

2132 WV Hoofddorp

Netherlands

Tel: (31-23) 5560910

Fax: (31-23) 5560950

Email: [email protected]

Web: emea.fujitsu.com/components/

Asia Pacic

Fujitsu Components Asia Ltd.

102E Pasir Panjang Road

#01-01 Citilink Warehouse Complex

Singapore 118529

Tel:(65)6375-8560

Fax:(65)6273-3021

Email: [email protected]

Web: http://www.fujitsu.com/sg/services/micro/components/

Fujitsu Components International Headquarter Ofces

owners.

FujitsuComponentsAmericaoritsafliatesdonotwarrantthatthecontentofdatasheetiserrorfree.Inacontinuingefforttoimproveour

productsFujitsuComponentsAmerica,Inc.oritsafliatesreservetherighttochangespecications/datasheetswithoutpriornotice.

Rev. February 26, 2009.
