Fujitsu KLWA Series User manual

SPLIT-TYPE ROOM AIR CONDITIONER

CS78421-548-754

IMPORTANT NOTE:

Read this manual carefully before installing

or operating your new air conditioning

unit. Make sure to save this manual for

future reference.

Owner’s Manual

ON/OFF

TEM P

TIMER

OFF

MOD E

FAN

SLE EP SW ING

DIRECT

TUR BO CLEAN LED

FOL LOW

SILENCE

Safety Precautions.......................................................04

Unit Speciﬁcations and Features

..............................0

Table of Contents

Owner’s Manual

SAFETY

FIRST

Manual Operation

(Without Remote)................

ON/OFF

TE MP

TIMER

OF F

MO DE

FAN

SL EE P S WI NG

DIRECT

TU RB O CLEAN LED

FO LL O W

SILENCE

Care and Maintenance.....................................................

Troubleshooting...................................................................

European Disposal Guidelines....................................

WARNING: Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance

and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the

person competent in the use of flammable refrigerants. For more details ,please refer to the Information on

servicing on INSTALLATION MANUAL .(This is only required for the unit adopts R32/R290 Refrigerant)

Caution: Risk of fire/

flammable mater ials

,, ,,

(For R32/R290 units only)

Page 4 

Safety Precautions

Read Safety Precautions Before Installation

The seriousness of potential damage or injuries is classiﬁed as either a WARNING or CAUTION.

WARNING

This symbol indicates that ignoring instructions may cause death or serious

Incorrect installation due to ignoring instructions can cause serious damage or injury.

injury.

This symbol indicates that ignoring instructions may cause moderate injury

to your person, or damage to your appliance or other property.

CAUTION

WARNING

This appliance can be used by children aged from 8 years and above and persons with reduced

physical, sensory or mental capabilities or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe way and understand the hazards

involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be

made by children without supervision.

INSTALLATION WARNINGS

•

Ask an authorized dealer to install this air conditioner. Inappropriate installation may cause water

leakage, electric shock, or fire.

•

All repairs, maintenance and relocation of this unit must be performed by an authorized service

technician. Inappropriate repairs can lead to serious injury or product failure.

WARNINGS FOR PRODUCT USE

•

If an abnormal situation arises (like a burning smell), immediately turn off the unit and pull the

power plug. Call your dealer for instructions to avoid electric shock, fire or injury.

•

Do not

insert ﬁngers, rods or other objects into the air inlet or outlet. This may cause injury, since

the fan may be rotating at high speeds.

•

Do not

use ﬂammable sprays such as hair spray, lacquer or paint near the unit. This may cause

ﬁre or combustion.

•

Do not

operate the air conditioner in places near or around combustible gases. Emitted gas may

collect around the unit and cause explosion.

•

Do not

operate the air conditioner in a wet room (e.g., bathroom or laundry room). This can

cause electrical shock and cause the product to deteriorate.

•

Do not

expose your body directly to cool air for a prolonged period of time.

Safety

Precautions

Safety

Precautions

Page 5 

ELECTRICAL WARNINGS

•

Only use the speciﬁed power cord. If the power cord is damaged, it must be replaced by the

manufacturer or certiﬁed service agent.

•

Keep power plug clean. Remove any dust or grime that accumulates on or around the plug. Dirty

plugs can cause fire or electric shock.

• Do not

pull power cord to unplug unit. Hold the plug ﬁrmly and pull it from the outlet. Pulling

directly on the cord can damage it, which can lead to ﬁre or electric shock.

• Do not

use an extension cord, manually extend the power cord, or connect other appliances to

the same outlet as the air conditioner. Poor electrical connections, poor insulation, and insufﬁcient

voltage can cause fire.

CLEANING AND MAINTENANCE WARNINGS

•

Turn off the device and pull the plug before cleaning. Failure to do so can cause electrical shock.

• Do not

clean the air conditioner with excessive amounts of water.

• Do not

clean the air conditioner with combustible cleaning agents. Combustible cleaning agents

can cause fire or deformation.

CAUTION

•

If the air conditioner is used together with burners or other heating devices, thoroughly ventilate

the room to avoid oxygen deﬁciency.

•

Turn off the air conditioner and unplug the unit if you are not going to use it for a long time.

•

Turn off and unplug the unit during storms.

•

Make sure that water condensation can drain unhindered from the unit.

• Do not

operate the air conditioner with wet hands. This may cause electric shock.

• Do not

use device for any other purpose than its intended use.

• Do not

climb onto or place objects on top of the outdoor unit.

• Do not

allow the air conditioner to operate for long periods of time with doors or windows open,

or if the humidity is very high.

CAUTION

WARNING

This symbol shows that this appliance used a flammable refrigerant. If the

refrigerant is leaked and exposed to an external ignition source, there is

a risk of fire.

This symbol shows that the operation manual should be read carefully.

This symbol shows that information is available such as the operating

manual or installation manual.

This symbol shows that a service personnel should be handling this

equipment with reference to the installation manual.

Explanation of symbols displayed on the indoor unit or outdoor unit

(For the unit adopts R32/R290 Refrigerant only):

Unit Speciﬁcations and Features 1

Unit

Speciﬁcations

and Features

NOTE:

A guide on using the infrared remote is not included

in this literature package.

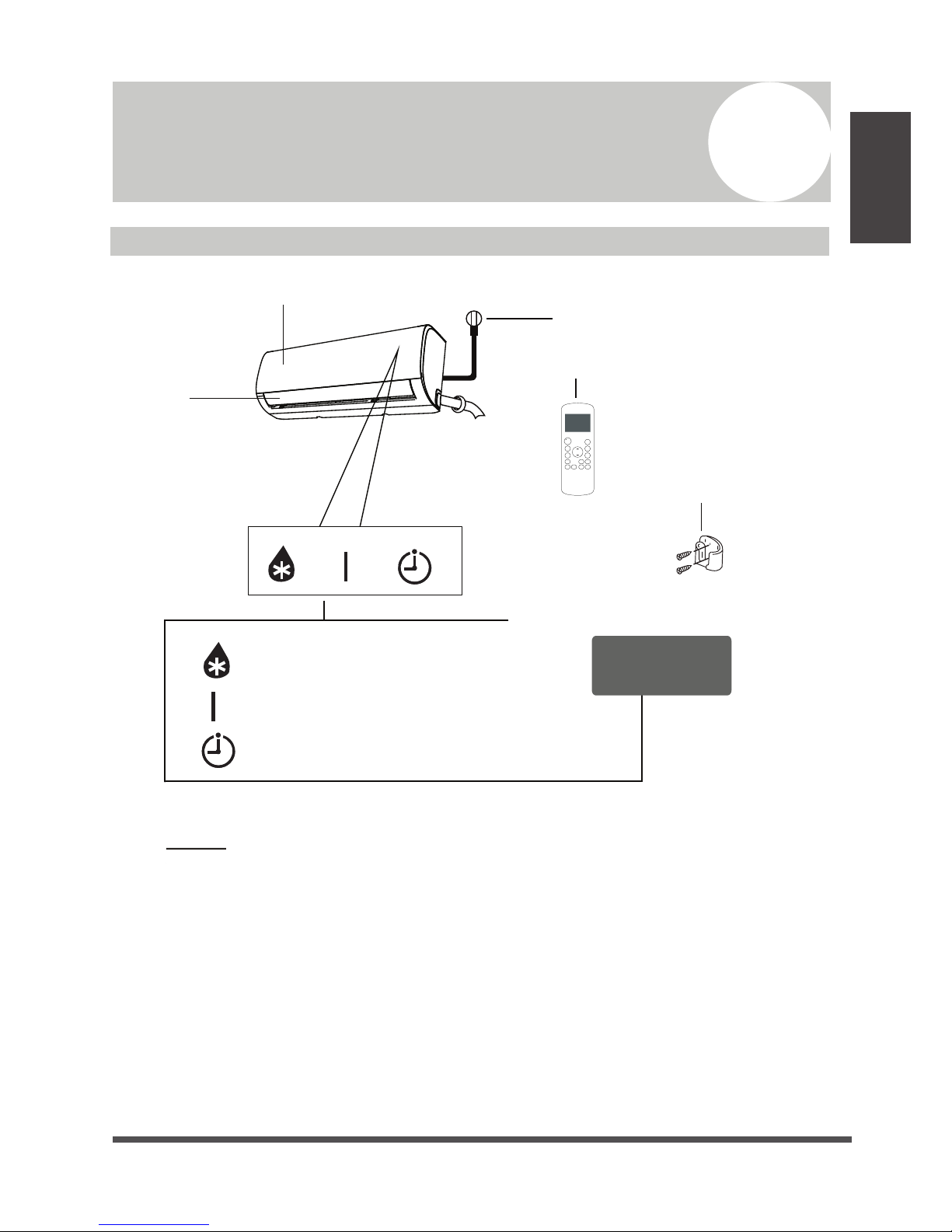

Unit Parts

Power Cable (Some Units)

Remote Control

Holder(Some Units)

Louver

Front Panel

Display window

“ ” when defrost feature is activated.

“ ” when the unit is on.

“ ” when TIMER is set.

Display Code

Meanings

ON/OFF

TEMP

TIMER

OFF

MODE

FAN

SLEEP S WING

DIRECT

TURBO CLEAN LED

FOLLO W

SILENCE

Page 6 

Unit

Speciﬁcations

and Features

For a detailed explanation of each function,

refer to the Remote Control Manual.

Other Features

• Auto-Restart

If the unit loses power, it will automatically

restart with the prior settings once power has

been restored.

• Anti-mildew (some units)

When turning off the unit from COOL, AUTO

(COOL), or DRY modes, the air conditioner will

continue operate at very low power to dry up

condensed water and prevent mildew growth.

• Wireless Control (some units)

Wireless control allows you to control

your air conditioner using your mobile

phone and a Wireless connection.

• Louver Angle Memory(some units)

When turning on your unit, the louver

will automatically resume its former

angle.

• Refrigerant Leakage Detection

(some units)

The indoor unit will automatically

display “EC” when the unit detects

refrigerant leakage.

NOTE ON ILLUSTRATIONS

Illustrations in this manual are for explanatory purposes. The actual shape of your indoor

unit may be slightly different. The actual shape shall prevail.

For a detailed explanation of your unit’s

advanced functionality (such as TURBO

mode and its self-cleaning functions),

refer to the Remote Control Manual.

For the USB device access, replacement,

maintenance operations must be carried

out by professional staff.

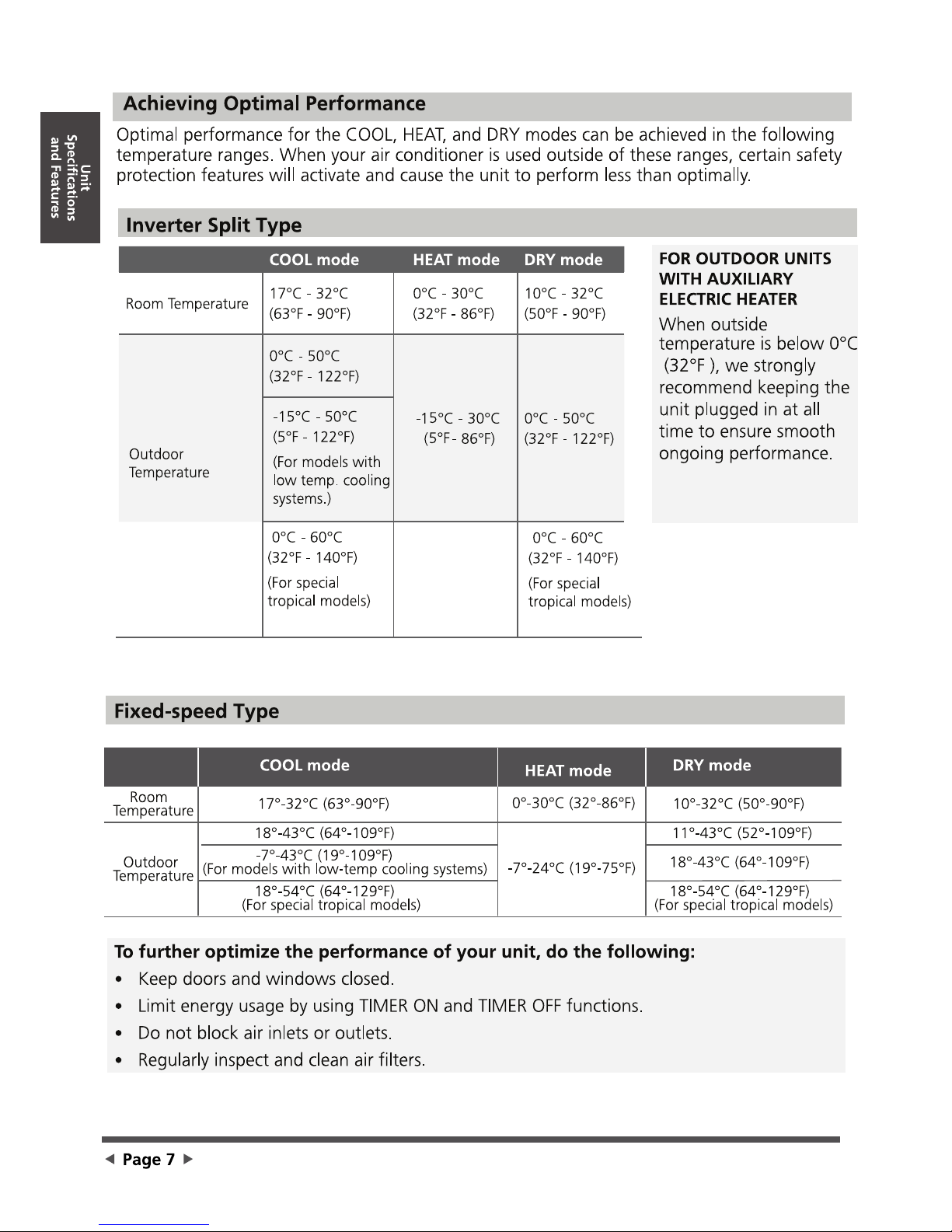

Page 

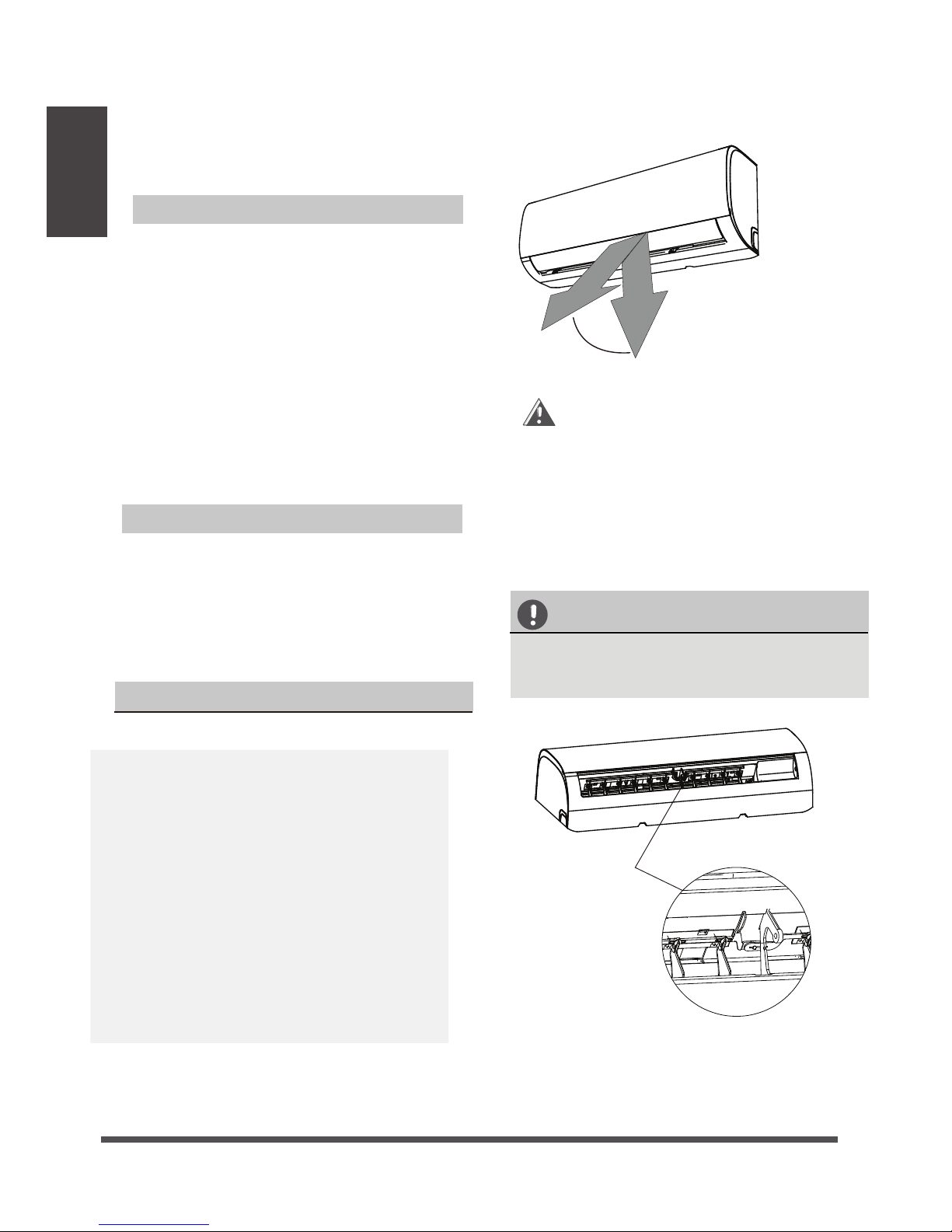

Setting vertical angle of air ﬂow

While the unit is on, use the SWING/DIRECT

button to set the direction (vertical angle) of

airﬂow.

Press the SWING/DIRECT button once to

activate the louver

. Each time you press

the button, it will adjust the louver by 6°.

Press the button until the direction you

prefer is reached.

o make the louver swing up and down

continuously

, press and hold the SWING/

DIRECT button for 3 seconds. Press it

again to stop the automatic function.

The horizontal angle of the airflow must be set

manually. Grip the deflector rod (See Fig.B)

and manually adjust it to your preferred direction.

For some units, the horizontal angle of the airflow

can be set by remote control. please refer to the

Remote Control Manual.

NOTE ON LOUVER ANGLES

When using COOL or DRY mode, do not set

louver at too vertical an angle for long periods

of time. This can cause water to condense on

the louver blade, which will drop on your ﬂoor

or furnishings. (See Fig.A)

When using COOL or HEAT mode, setting the

louver at too vertical an angle can reduce the

performance of the unit due to restricted air

ﬂow.

Do not move louver by hand. This will cause the

louver to become out of sync. If this occurs, turn

off the unit and unplug it for a few seconds,

then restart the unit. This will reset the louver

Fig. A

CAUTION

Do not put your fingers in or near the blower

and suction side of the unit. The high-speed

fan inside the unit may cause injury

Fig. B

Setting Angle of Air Flow

Setting horizontal angle of air ﬂow

•

Unit

Speciﬁcations

and Features

Caution: Do not keep louver at too

vertical an angle for long periods of

time. This can cause water condensation

to drip on your furnishings.

Page 

Range

Deflector rod

Set

temperature

Saving energy during sleep

1hr 1hr

7 hours

timer o

+/- 1 C/2 F

SLEEP Operation

+/- 1 C/2 F

•

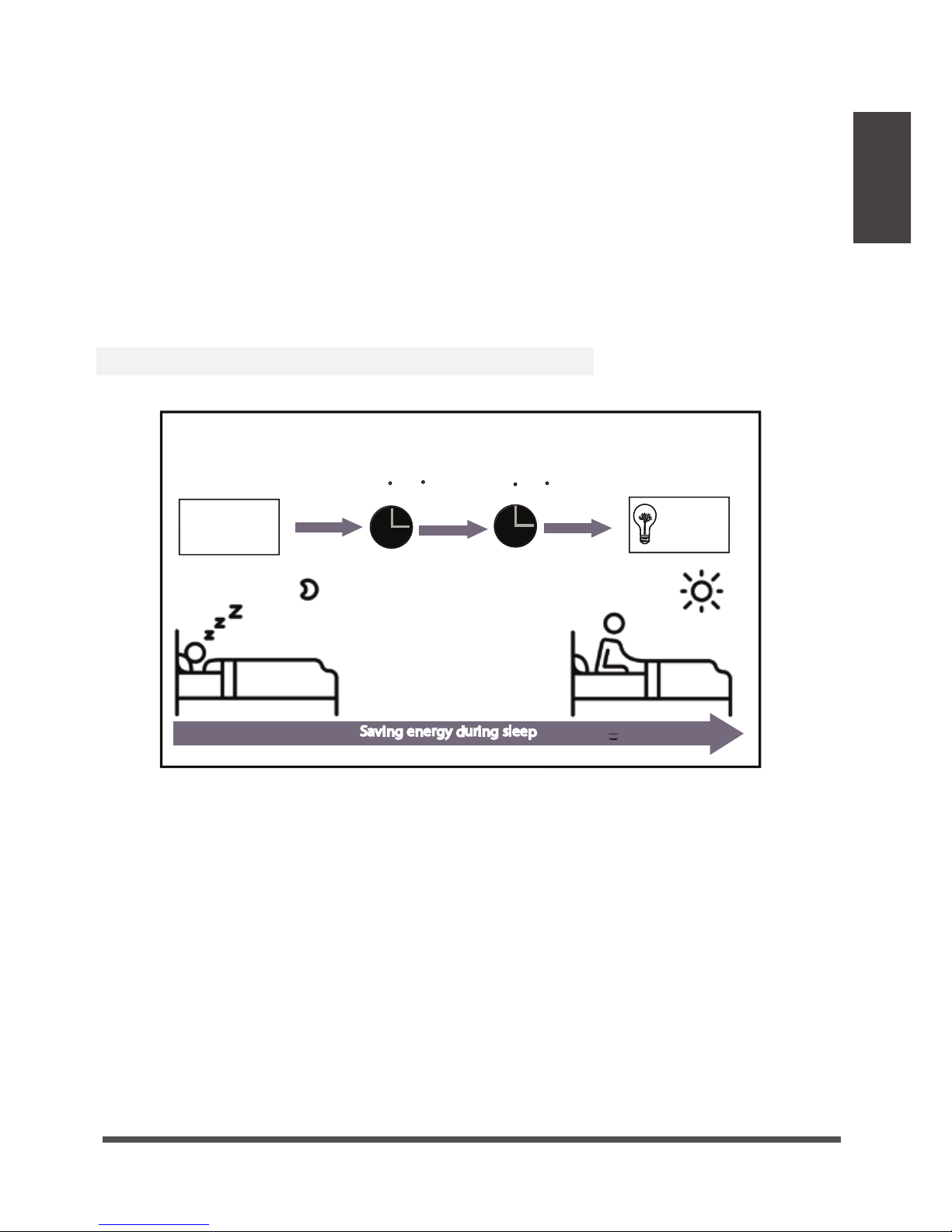

Sleep Operation

The SLEEP function is used to decrease energy use while you sleep (and don’t need the same

temperature settings to stay comfortable). This function can only be activated via remote

control. Press the

SLEEP button when you are ready to go to sleep.

When in COOL mode, the unit will increase the temperature by 1°C (2°F) after 1 hour, and will

increase an additional 1°C (2°F) after another hour.

When in HEAT mode, the unit will decrease the temperature by 1°C (2°F) after 1 hour, and will

decrease an additional 1°C (2°F) after another hour. It will hold the new temperature for 5

hours, then the unit will turn off automatically.

Note:The SLEEP function is not available in FAN or DRY mode.

Unit

Speciﬁcations

and Features

Page 

Table of contents

Other Fujitsu Air Conditioner manuals

Fujitsu

Fujitsu ASU15RLQ User manual

Fujitsu

Fujitsu aoyg30lat4 User manual

Fujitsu

Fujitsu ASY14FSBCW User manual

Fujitsu

Fujitsu AOYG60LATT User manual

Fujitsu

Fujitsu ASUH18LMAS User manual

Fujitsu

Fujitsu ASU18RLF Service manual

Fujitsu

Fujitsu ASTG24LVCA User manual

Fujitsu

Fujitsu AIRSTAGE AJY072LNTCH User manual

Fujitsu

Fujitsu Airstage VR-II ARUV12TLAV User manual

Fujitsu

Fujitsu ASYG14LECA User manual

Fujitsu

Fujitsu AOYG24LALA User manual

Fujitsu

Fujitsu ARU24RGLX Service manual

Fujitsu

Fujitsu AW?Z24LBC Original operating manual

Fujitsu

Fujitsu Inverter Halcyon AOU30CLX User manual

Fujitsu

Fujitsu AWYZ14LBC User manual

Fujitsu

Fujitsu AirStage ARXD007GLEH User manual

Fujitsu

Fujitsu AUYF18LBL User manual

Fujitsu

Fujitsu ARXG12-54KHTAP User manual

Fujitsu

Fujitsu AU*24LUAR Original operating manual

Fujitsu

Fujitsu ARTG30LHTA Original operating manual

Fujitsu

Fujitsu ASU9RL2 User manual

Fujitsu

Fujitsu Halcyon 18RLXFW1 User manual

Fujitsu

Fujitsu AIRSTAGE ASTH18KMTD User manual

Fujitsu

Fujitsu AG G12LVCA Series Original operating manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual

Webasto

Webasto Frigo Top 25 DS Instructions for use
