Fujitsu AUY36FUAS User manual

CONTENTS

SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

DIMENSIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

REFRIGERANT SYSTEM DIAGRAM . . . . . . . . . . . . . 5

CIRCUIT DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

ERROR CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . .

8INDOOR PCB CIRCUIT DIAGRAM . . . . . . . . . . . . . .

. . . . . . . . . . . 10OUTDOOR PCB CIRCUIT DIAGRAM

DISASSEMBLY ILLUSTRATION . . . . . . . . . . . . . . . . . 12

PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

STANDARD ACCESSORIES . . . . . . . . . . . . . . . . . . . 24

Models

Indoor unit Outdoor unit

AUY36FUAS AOY36FNAXT

AUY36UUAS AOY36UNAXT

SPLIT TYPE

AIR CONDITIONER

CASSETTE

type (50Hz)

2005.08.01 1

SPECIFICATIONS

TYPE COOLING COOLING & HEATING

INDOOR UNIT

AUY36FUAS AUY36UUAS

OUTDOOR UNIT AOY36FNAXT AOY36UNAXT

COOLING CAPACITY (kW) 10.5 10.5

HEATING CAPACITY (kW) ------- 11.80

POWER SOURCE

FREQUENCY 50Hz

COOLING 6.20 5.90

RUNNING CURRENT (A) HEATING ------- 6.20

INPUT WATTS

(kW) COOLING 3.74 3.48

HEATING ------- 3.65

E.E.R. (kW/kW) COOLING 2.81 3.02

HEATING ------- 3.23

STARTING CURRENT (A) 37

MOISTURE REMOVAL 4.0

3N 400V

TYPE

Hermetic type, 2 poles, 3 phase,

Induction motor, Twin Rotary

DISCRIMINATION 5JD420PAA02

REFRIGERANT R410A (g) 2,000 3,200

ELECTRICAL DATA

COMPRESSOR

(/hr)

ADDITIONAL REFRIGERANT CHARGE (R410A)

PIPE LENGTH

20 m 2,000 g 3,200 g

FULL CHARGE AMOUNT

30 m 2,300 g 3,500 g

40 m 2,600 g 3,800 g

50 m 2,900 g 4,100 g

ADDITIONAL CHARGE 30 g / m

HIGH 560

INDOOR

MED 490

FAN SPEED LOW 420

(r.p.m.)

S-LOW 300

OUTDOOR 780

AIR FLOW INDOOR 1,500 (HIGH)

(m3/h)

OUTDOOR 7,000 6,100

DIMENSIONS

INDOOR 296 x 830 x 830

GRILLE 35 x 940 x 940

H x W x D (mm)

OUTDOOR 1,165 x 900 x 330

WEIGHT

INDOOR 37 / 52

[NET/GROSS] (kg)

OUTDOOR 80 / 87 94 / 101

MAX PIPE LENGTH / HEIGHT (m) 50 / 30

REMOTE CONTROLLER TYPE WIRED

HIGH CEILING MODE SELECTION (at 415V)

NUMBER of FAN REVOLUTION

(r.p.m) STANDARD HIGH CEILING2 HIGH CEILING2 LOW CEILING

580 ± 30 HIGH HIGH HIGH

550 ± 30 MED MED

510 ± 30 MED LOW HIGH

480 ± 30 LOW MED

440 ± 30 LOW LOW

300 ± 40 S-LOW S-LOW S-LOW S-LOW

TYPE COOLING COOLING & HEATING

INDOOR UNIT

AUY36FUAS AUY36UUAS

OUTDOOR UNIT AOY36FNAXT AOY36UNAXT

DIP - SW4 POSITION

SW NO. 4-2 4-3

SATNDARD OFF OFF

HIGH CEILING 1 ON OFF

HIGH CEILING 2 OFF ON

LOW CEILING ON ON

NOISE LEVEL

HI-SPEED 48

INDOOR UNIT MED-SPEED (dB)

(dB)

LO-SPEED 41

OUTDOOR UNIT (dB) 54 COOL 54 / HEAT 55

2005.08.01 2

DIMENSIONS

(Unit : mm)

Models :

AUY36FUAS

AUY36UUAS

296

750

940

(Drain pipe)

120

285 (Small pipe)

150

(Large pipe)

(Small pipe)

(Large pipe)

940

830

298.5

305.5 248.5

(Drain pipe)

120

250

150

298.5

305.5 248.5

Drain Inside Dia. 32

Outside Dia. 37

750

2005.08.01 3

3177900 330 12

1,165

400

650

370

Air Flow

151

170

196

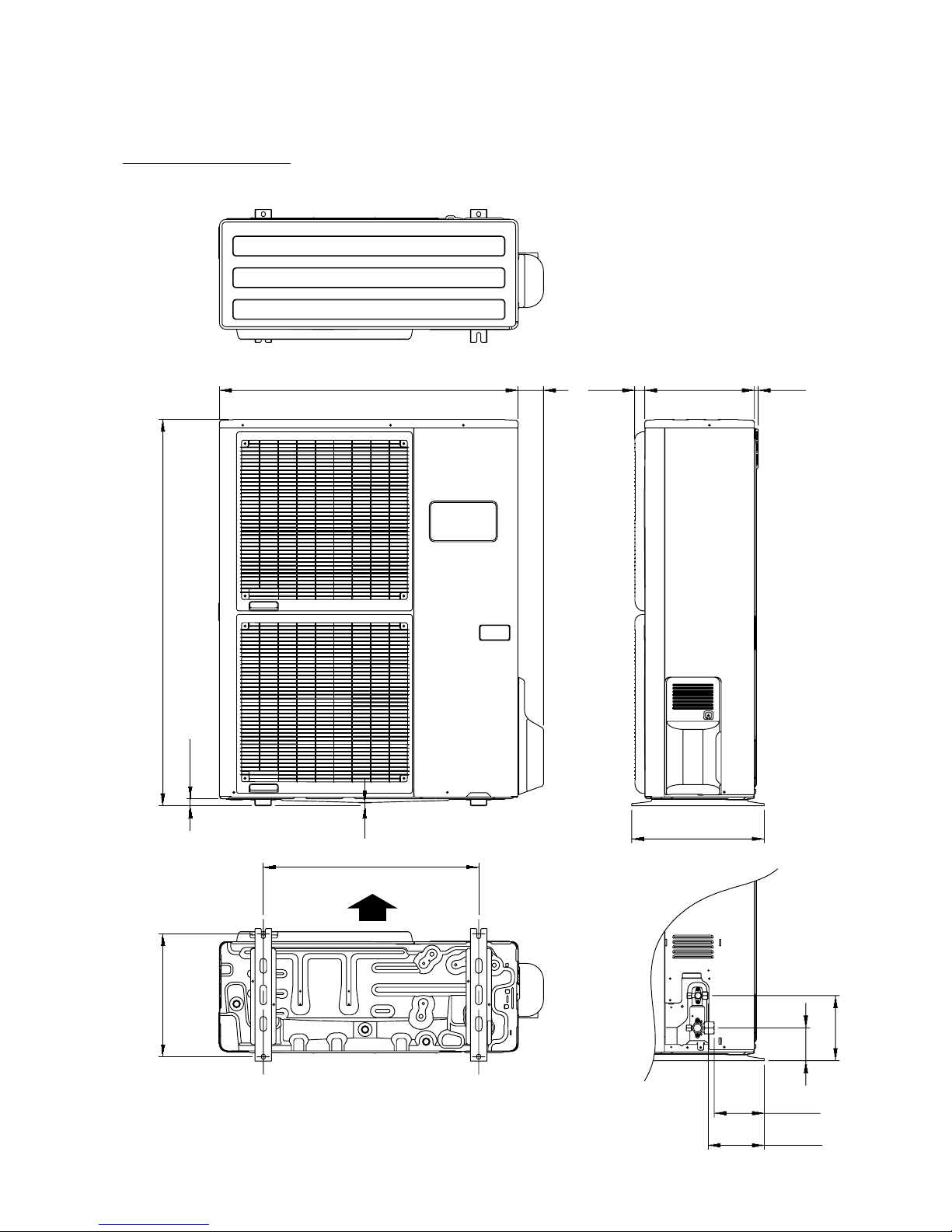

Models :

AOY36FNAXT

AOY36UNAXT

(Unit : mm)

2005.08.01 4

REFRIGERANT SYSTEM DIAGRAM

OUTDOOR UNIT

Pressure

Check Valve

High

Pressure

Switch

Condenser

Accumulator

Compressor

Strainer

Capillary

Tube

Charging

Valve

15.88mm (5/8")

INDOOR UNIT

Evaporator

Refrigerant Pipe

9.52mm (3/8")

Charging Valve

OUTDOOR UNIT

Pressure

Check Valve

Condenser

4-way

Valve

Muffler

High

Pressure

Switch

Accumulator

Compressor

Muffler

Expansion

Valve Refrigerant Pipe

9.52mm (3/8")

Charging Valve

Evaporator

Charging

Valve

Refrigerant Pipe

15.88mm (5/8")

INDOOR UNIT

Strainer

: COOL

: HEAT

Models : AUY36FUAS / AOY36FNAXT

Models : AUY36UUAS / AOY36UNAXT

Refrigerant Pipe

2005.08.01 5

CIRCUIT DIAGRAM

Model : AUY36FUAS

Model : AOY36FNAXT

2005.08.01 6

Model : AUY36UUAS

Model : AOY36UNAXT

2005.08.01 7

R55

10K

<1/10W>

C49

0.01

<F>

C44

0.1

<F>

CSTS0500MG03-T

70 69

X1 X2

P10

P11

P70

P71

P72

P131

P46

P24

P23

P47

P57

P56

P50

P27

P26

P25

P22

P21

P20

P130

P00

P121

P36

P33

P01

P55

P34

P37

P35

P120

P03

P12

P13

P14

P66

P52

P53

P54

P45

P44

P43

XT1

P51

RESET

P65

P32

P31

P30

P67

P60

P61

P62

P63

P64

P42

P41

P40

P02

P127

P126

P125

P124

XT2

I C

VSS1

VSS0

AVS S

AVR F1

AVR F0

VDD1

VDD0

P04

P05

P123

P122

P17

P16

P15

C19 - C21

0.01 <F> x 3

R15 - R17

10K <1/10W> x 3

R20 1.0K <1/10W>

R19 1.0K <1/10W>

R18 1.0K <1/10W>

12V14V

I C2

7812

10K <1/10W> x 4

R59 R97 R98 R99

C47

0.1

<F>

C15

0.1

<F>

C14

100/

6.3V

C13

0.1

<F>

I C3

7805

JM10

5V R29 - R32

10K <1/10W> x 4

R33 - R36

1.0K <1/10W> x 4 NC

C26 - C29

0.01 <F> x 4

CR6

0.01

<F>

R10 10K

<1/10W> R9 390

<1/10W>

R12 1.0K

<1/10W>

SW2

DRS4016-5

C17

0.01

<F>

C18

0.01

<F> Q3

DTC124EKA

R13 10K

<1/10W>

I C9

TLP621

(D4) - GB

D1F60

R11 56K

<1W>

SW1

DSS803

10K <1/10W> x 3

R39 R38 R37

AUTO RESTART

ROOM TEMPERATURE CORRECTION

( HEATING OPERATION )

ROOM TEMPERATURE CORRECTION

( HEATING OPERATION )

R42 1.0K <1/10W>

R40 1.0K <1/10W>

R41 1.0K <1/10W>

14V

R93 - R96

10K <1/10W> x 4

C10

0.01 <F> x 3

C12 C30

K 4

R21 - R24

10K <1/10W> x 4

R25 - R28

1.0K <1/10W> x 4

I C5 (5/7)

uPA2003GR

I C5 (1/7)

uPA2003GR

C22 - C25

0.01 <F> x 4

I C11-1

BA10358

TEST

CN9

B5P-SHF-1AA

10 7

CN9-1

CN9-2

CN9-4

CN9-3

CN9-5

CN19-1

CR8

TA120033

G5N-1A

CN19

B2P3-VH-B-R

RED

UL1015 AWG18 GRAY

SSR1

G3MC-202PL-VD

VA2 470V

<TNR>

JM8JM5

No.1

No.3

No.2

CN5 B3P5-VH-B WHITE

FAN MOTOR

C11

10/

25V

C54

0.01 <F>

SECONDARY

PRIMARY

C101

0.22

C105

0.022

<YE>

C106

0.022

<YE>

C103

0.01

<KH>

C104

0.01

<KH>

C102

0.22

SA101

RA-362M

VA101 470V

<TNR>

VA102 470V

<TNR>

TM102

TM101

E101 W103 W104

LF101

ELF20N018A

FH101 FH102

F101 3.15A <BET>

YELLOW

UL1015 AWG22 x 2

BLACK

DRAIN PUMP M

CN6 B2P3-VH-B-E BLUE

K4 G5NB-1A

CN6-2

CN6-1

C3 0.22 <RE>

R88 120 <1/2W>

330

<1/4W>

100/

6.3V

D3SB60

100/

450V

+R2 1.5

2SC1815

R3 100

<1/10W>

2SC4236

R1 3.3

R4 330K

C6 4700P

<ECQM>

R5 62K

1SR139-600

D10

1SR139-600

R6 100

<1/2W>

C7 0.047

<ECQB>

D1FL20U

MTZJ5.1B

D2FL20U

SWITCHING TRANSFORMER

ZFT29B01

1000

/25V

R8 10K

<1/10W>

JM1

JM2

JM3

JUMPER

SETTING

CUSTOM CODE SWITCHING

POWER SOURCE

230V

50Hz

OUTDOOR UNIT

TERMINAL BOARD

UL1015 AWG18 BLACK

UL1015 AWG18 WHITE GRAY

GRAY

CN3-1

CN3-2

THERMAL FUSE

CN3

53406-9910

UL1015

AWG16

GREEN

UL1015

AWG18

BLACK

UL1015 AWG18 WHITE

UL1015 AWG22 x 3

BLACK

WHITE

RED CN5-3

CN5-2

CN5-1

CN4-1

CN4-2

FAN CAPACITOR

8.0 uF

400V

CN4

B2P3-VH-B-Y YELLOW

UL1015 AWG20 x 2

WHITE

F M

CN1 B2P3-VH-B-C BLACK

CN1-1

CN1-2

C45

0.1

<F>

I C8

PST600C 2

CN15-1

CN15-3

CN15-2

UL1430 AWG22

CN15 B3B-XARK-1-A RED

BLACK

FLOAT SWITCH

0.01 <F> x 3

C31 C16 C43

RJ1 1.0K

<1/10W>

RJ2

10K

<1/10W>

NC SW4

DSS803

C1 0.1

<F>

K 8

R81 1.0K <1/10W>

R71 1.0K <1/10W>

R72 1.0K <1/10W>

CR7

0.01

<F>

10K <1/10W>

x 3

R70 R69 R80

CR1 - CR4

10K <1/10W>

x 4

14V

I C6 (4/7)

uPA2003GR

R67 1.0K

<1/10W>

R68 10K

<1/10W>

R52

10K

<1/10W>

R51 1.0K

<1/10W>

C40

0.01 <F>

CR5

1000P

<R>

BZ1

PKM13EPY-4000

B Z

C42

0.01

<F>

C41

10/

25V

R54 47

<1/10W>

R53 10K

<1/10W>

I C6 (2/7)

uPA2003GR

R56

R57 1.0K

<1/10W>

14V I C6 (1/7)

uPA2003GR

12V

5V 5V

I C4 (7/7)

uPA2003GR

R60

10K

<1/10W>

R61

10K

<1/10W>

2SC2712 Q6

2SC2712

R63 15.4K

<1/10W>

(1%)

R62 4.7K

<1/10W>

(1%)

I C11-2

BA10358

R65 390 <1/10W>

DA226U

+7 5

710

BROWN

RED

ORANGE

YELLOW

WHITE

BROWN

RED

ORANGE

YELLOW

WHITE

UL1430 AWG28 x 5

CN10-1

CN10-5

CN10-4

CN10-3

CN10-2

14V

12V

R64 28K

<1/10W>

(1%)

CN10

B5B-XASK-1-A

TERMINAL BOARD

REMOTE CONTROL UNIT

321

UL1430 AWG22 WHITE

UL1430 AWG22 BLACK

UL1430 AWG22 RED

CN17-1

CN17-3

CN17-2

CN17 B3B-XAKK-1-A

L2 0.022

L4 0.022

L3 0.022

R66 10K

<1/10W>

LOUVER

( UP / DOWN )

C38

0.01

<F>

R48

10K

<1/10W>

R49 1.0K

<1/10W>

DTC124EKA

R47 390

<1/10W>

C37

0.1

<F>

CN14

B4B-XH-AM

JEM-A

R45 49.9K

<1/10W>

(1%)

C34

0.1

<F>

R43 10K

<1/10W>

(1%)

C39

0.1

<F>

I C7

BR93L46RF

R58 10K <1/10W>

R75 10K <1/10W>

R76 10K <1/10W>

R100 10K <1/10W>

10K <1/10W> x 3

R77 R78 R79

R50 10K <1/10W>

D I

CS GND

VCC

C32

1000P

<R>

C35

1000P

<R>

R44 1.0K

<1/10W>

R46 1.0K

<1/10W>

5V CN8 B2B-XASK-1-A

CN7 B2B-XAKK-1-A BLACK

CN8-1 BLACK

CN8-2 BLACK

CN7-2 GRAY

CN7-1 GRAY

CN14-1

CN14-4

CN14-3

CN14-2

PIPE TEMPERATURE THERMISTOR

ROOM TEMPERATURE THERMISTOR

I C5 (1/7) uPA2003GR

14V

116

215

314

No.3

No.1

No.2

FAN DELAY CHANGE

( HEATING OPERATION )

REMOTE TYPE CHANGE

No.3

No.1

No.2 FAN TYPE CHANGE

215

I C 1

161

15 2

uPD780058BGC

-108-8BT

POWER SUPPLY PCB

K01AL-040HWSE-P0

JP3 JP2 JP1

Remote control unit custom code switching

"with thermistor" type

EZ-098YHSE-R series

EZ-09503HSE-R series

weekly type

on on on

A (00)

B (01)

C (10)

D (11)

B (01)

C (10)

D (11)

A (00)

offoffoff

off off

off

SW1-3 SW1-2 Correction

Room temp. heating correction

onoff

off

1 ( -2 deg. )

3 ( +4 deg. )

2 ( o deg. )

0 ( +2 deg. )

SW1 & SW4

on offSW Function

SW4-3

Remote control unit type change *1SW4-1

SW1-1

SW4-2

delay

reversal

no delay

normal

off

Fan delay change (heating operation)

Fan type change

Auto restart

In the normal mode,

it works as EEPROM model information "wired / wireless switching" shows.

In the reversal mode, it reverses that information.

CUSTOM CODE SWITCHING

Wireless

remote

control unit

Wired

remote

control unit

Jumper 1,2,3 setting

INDOOR PCB CIRCUIT DIAGRAM

Model : AUY36FUAS

2005.08.01 8

14V

C39

0.1

<F>

R48

10K

<1/10W>

R49 1.0K

<1/10W>

C38

0.01

<F>

DTC124EKA

R47 390

<1/10W>

C34

0.1

<F>

C37

0.1

<F>

CN14

B4B-XH-AM

JEM-A

R43 10K

<1/10W>

(1%)

R45 49.9K

<1/10W>

(1%)

R44 1.0K

<1/10W>

R46 1.0K

<1/10W>

C32

1000P

<R>

C32

1000P

<R>

R50 10K <1/10W>

I C7

BR93L46RF

R58 10K <1/10W>

R100 10K <1/10W>

R76 10K <1/10W>

R75 10K <1/10W>

R77 - R79

10K <1/10W> x 3

CN10

B5B-XASK-1-A

I C4 (7/7)

uPA2003GR

I C5 (1/7) uPA2003GR

14V

NC 5V 5V

ROOM TEMPERATURE THERMISTOR

PIPE TEMPERATURE THERMISTOR

CN8 B2B-XASK-1-A

CN7 B2B-XAKK-1-A BLACK

CN7-1 GRAY

CN7-2 GRAY

CN8-2 BLACK

CN8-1 BLACK

CN14-1

CN14-4

CN14-3

CN14-2

UL1430

AWG28

CN10-1

CN10-5

CN10-4

CN10-3

CN10-2

BROWN

RED

ORANGE

YELLOW

WHITE WHITE

YELLOW

ORANGE

RED

BROWN

MLOUVER

( UP / DOWN )

CN17

B3B-XAKK-1-A

UL1430 AWG22 WHITE

UL1430 AWG22 BLACK

UL1430 AWG22 RED

TERMINAL BOARD 321

REMOTE CONTROL UNIT

CN17-1

CN17-3

CN17-2

512

710

116

314

152

413

512

611

14V

R56

710

116

12V

12V 12V

L2 0.022

L4 0.022

L3 0.022

I C11-2

BA10358

R66 10K

<1/10W>

DA226U

R52

10K

<1/10W>

R51 1.0K

<1/10W>

I C6 (4/7)

uPA2003GR

C40

0.01

<F>

CR2 - CR4

10K <1/10W>

x 3

CR7

0.01

<F>

DSS803

SW4

C44

0.1

<F> I C8

PST600C

C45

0.1

<F>

C49

0.01

<F>

R55

10K

<1/10W>

CSTS0500MG03-T

FLOAT SWITCH

BLACK

CN15-1

CN15-3

CN15-2

CN15 B3B-XARK-1-A

RED

UL1430 AWG22

C22 - C25

0.01 <F> x 4

I C11-1

BA10358 -

10 7

14V

12V

JM10

I C3

7805

C47

0.1

<F>

C15

0.1

<F>

C14

100/

6.3V

C13

0.1

<F>

R29 - R32

10K <1/10W> x 4

R33 - R36

1.0K <1/10W> x 4

C26 - C29

0.01 <F> x 4

I C5 (1/7)

uPA2003GR

CR1

0.01

<F>

R14 10K

<1/10W>

CR6

0.01

<F>

C17

0.01

<F> Q3

DTC124EKA

14V

R10

10K

<1/10W>

R9 390

<1/10W>

R93 - R96

10K <1/10W> x 4

I C 10 H I 2002

K 4

I C5 (5/7)

uPA2003GR

VA2 470V

<TNR>

SSR1

G3MC-202PL-VD

5V R21 - R24

10K <1/10W> x 4

R25 - R28

1.0K <1/10W> x 4

OUTDOOR UNIT

TERMINAL BOARD

FAN MOTOR

F. M.

UL1015 AWG18 BLACK

UL1015 AWG18 WHITE

UL1015 AWG18 RED

JM5 JM8

CN5 B3P5-VH-B

DRAIN PUMP

YELLOW

TEST

CN9

B5P-SHF-1AA

CN6

B2P3-VH-B-E

BLUE

C3 0.22 <RE>

R88 120 <1/2W>

G5NB-1A

SW1

DSS803

10K <1/10W> x 3

R39 R38 R37

R40 1.0K <1/10W>

R42 1.0K <1/10W>

R41 1.0K <1/10W>

0.01 <F> x 3C10 C12 C30

70 69

X1 X2

RESET 60

P51

XT1

22P43

P44 23

P45 24

P54 31

P53 30

29P52

P14

P13

P12

P03

P34

49P35

51P37

P120

32P55

62P01

P33

P36

53P121

P00

P130

P20

P21

P22

P25

P26

P27

P50

P56

P57

P47

P23

P24

P46

P131 6

10P72

P71

P70 8

P11

P10

P15

P16

P17

P122

P123

P05

P04

VDD0

VDD1

AVR F0

AVR F1

AVS S

VSS0

VSS1

I C

XT2

P124

P125

P126

P127

41 P65

P66

63 P02

40 P64

39 P63

P62

P61

P60

P67

P30

P31

P32

P40

P41

P42

CN9-1

CN9-3

CN9-4

CN9-5

CN9-2

CN6-1

CN6-2

ROOM TEMPERATURE CORRECTION

( HEATING OPERATION )

ROOM TEMPERATURE CORRECTION

( HEATING OPERATION )

ZONE CONTROL

No.1

No.3

No.2

UL1015 AWG22

BLACK

UL1015 AWG22

BLACK

CN5-3

CN5-2

CN5-1

CN4-2

CN4-1

CN1-3

CN1-2

CN1-1

CN1

B3P5-VH-B-C

BLACK

CN4

B2P3-VH-B-Y

YELLOW

SW2

DRS4016-5

R64 28K

<1/10W>

(1%)

R63 15.4K

<1/10W>

(1%)

R65 390

<1/10W>

R62 4.7K

<1/10W>

R61

10K

<1/10W>

R60

10K

<1/10W>

2SC2712

R67 1.0K

<1/10W>

R68 10K

<1/10W>

0.1

<F>

10K <1/10W>

x 3

R70 R69 R80

1.0K <1/10W> x 3

R81

R72

R71

RJ2

10K

<1/10W>

RJ1 1.0K

<1/10W>

C31 C16 0.01 <F> x 3

C43

No.1

No.3

No.2

CR5

1000P

<R>

R54 47

<1/10W>

R53 10K

<1/10W>

C42

0.01

<F>

C41

10/

25V

I C6 (2/7)

uPA2003GR

I C6 (1/7)

uPA2003GR

BZ1

PKM13EPY-4000

R57 1.0K

<1/10W>

B. Z.

D I

VCC

GND

I C2

7812

C11

10/

25V

10K <1/10W> x 4

R59 R97 R98 R99

C54

0.01

<F>

PRIMARY SECONDARY

VA1 470V

<TNR>

100/

6.3V

330

<1/4W>

+R2 1.5

2SC4236

D1FL20U

MTZJ5.1B

R3 100

<1/10W>

2SC1815

R6 100

<1/2W>

C7 0.047

<ECQB>

1SR139-600

D10

1SR139-600

R4 330K

C6 4700P

<ECQM>

R5 62K

D3SB60

R1 3.3

100/

450V

CN3

53406-9910

CN3-2

CN3-1

GRAY

THERMAL FUSE

W103 W104

UL1015 AWG18

BLACK

UL1015 AWG18 WHITE

UL1015 AWG18 RED

E101

UL1015 AWG16

GREEN

UL1015 AWG20 WHITE

UL1015 AWG20 RED

UL1015 AWG20 BLACK

FAN CAPACITOR

8.0uF

400V

POWER SOURCE

230V

50Hz

TM102

TM101 FH101 FH102

F101

3.15A

<BET>

SA101

RA-362M

C102

0.22

VA102 470V

<TNR>

VA101 470V

<TNR>

LF101

ELF20N018A

C101

0.22

C105

0.022

<YE>

C106

0.022

<YE>

C103

0.01

<KH>

C104

0.01

<KH>

JM1

JM3

JM2

D2FL20U

R8 10K

<1/10W>

1000

/25V

SWITCHING TRANSFORMER

ZFT29B01

C19 - C21

0.01 <F> x 3

R15 - R17

10K <1/10W> x 3

R18 - R20

1.0K <1/10W> x 3

CUSTOM CODE SWITCHING

I C 1

POWER SUPPLY PCB

K01AL-040GHSE-P0

No.1 ROOM TEMP. CORRECTION

( COOLING OPERATION )

No.3 FAN CHANGING

No.2 FAN CHANGING

In the normal mode,

it works as EEPROM model information "wired / wireless switching" shows.

In the reversal mode, it reverses that information.

CUSTOM CODE SWITCHING

uPD780058BGC

-0108-8BT-A

CONTROLLER PCB ASSEMBLY ( MAIN PCB )

K01AL-040MHSE-C1

Model : AUY36UUAS

JP3 JP2 JP1

Remote control unit custom code switching

"with thermistor" type

EZ-098YHSE-R series

EZ-09503HSE-R series

weekly type

on on on

A (00)

B (01)

C (10)

D (11)

B (01)

C (10)

D (11)

A (00)

offoffoff

off off

off

SW1-3 SW1-2 Correction

Room temp. heating correction

onoff

off

1 ( -2 deg. )

3 ( +4 deg. )

2 ( o deg. )

0 ( +2 deg. )

SW1 & SW4

on offSW Function

SW4-3

Remote control unit type change *1SW4-1

SW1-1

SW4-2

delay

reversal

no delay

normal

off

Fan delay change (heating operation)

Fan type change

Auto restart

Wireless

remote

control unit

Wired

remote

control unit

Jumper 1,2,3 setting

2005.08.01 9

This manual suits for next models

Table of contents

Other Fujitsu Air Conditioner manuals

Fujitsu

Fujitsu Halcyon User manual

Fujitsu

Fujitsu AB*A30LBT Original operating manual

Fujitsu

Fujitsu Halcyon 9R2 Installation guide

Fujitsu

Fujitsu AUXG36KRLB User manual

Fujitsu

Fujitsu ARTA24LATU User manual

Fujitsu

Fujitsu ASY14FSBCW User manual

Fujitsu

Fujitsu Airstage VR-II ARUV12TLAV User manual

Fujitsu

Fujitsu AR G12LHTBP Series Original operating manual

Fujitsu

Fujitsu HEAT & COOL Manual

Fujitsu

Fujitsu AS 18TF Series User manual

Fujitsu

Fujitsu AIRSTAGE ASUA30TLAV2 User manual

Fujitsu

Fujitsu AST9LSACW User manual

Fujitsu

Fujitsu ARYG36LMLA User manual

Fujitsu

Fujitsu AIRSTAGE AJ 072LELDH Series User manual

Fujitsu

Fujitsu ABBG 45 LRTA User manual

Fujitsu

Fujitsu WATERSTAGE 112 Technical manual

Fujitsu

Fujitsu UTY-LRHYA2 User manual

Fujitsu

Fujitsu ASYG24LFCA User manual

Fujitsu

Fujitsu AWTZ14LBC User manual

Fujitsu

Fujitsu Inverter Halcyon ASU9R2 User manual

Fujitsu

Fujitsu GENERAL ARHG72LHTA Service manual

Fujitsu

Fujitsu AW?Z14LBC User manual

Fujitsu

Fujitsu ARTG30LHTDP User manual

Fujitsu

Fujitsu AOYG90LRLA User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual

Webasto

Webasto Frigo Top 25 DS Instructions for use
