Fujitsu AU*G12LVLB Original operating manual

SPLIT TYPE

ROOM AIR CONDITIONER

Models Indoor unit Outdoor unit

AO* G12LALL

AO* G14LALL

AO* G18LALL

SERVICE

INSTRUCTION

R410A

AU* G12LVLB

AU* G14LVLB

AU* G18LVLB

AR* G12LLTB

AR* G14LLTB

AR* G18LLTB

AB* G18LVTB

Floor Ceilingtype

Slim Duct type

Cassette type

INVERTER

AMP Air Conditioning

www.ampair.co.uk | [email protected]

CONTENTS

1. DESCRIPTION OF EACH CONTROL OPERATION

1. COOLING OPERATION.............................................................................................

3. DRY OPERATION......................................................................................................

2. HEATING OPERATION..............................................................................................

5. INDOOR FAN CONTROL...........................................................................................

4. AUTO CHANGEOVER OPERATION.........................................................................

7. LOUVER CONTROL...................................................................................................

6. OUTDOOR FAN CONTROL.......................................................................................

9. TIMER OPERATION CONTROL................................................................................

8. COMPRESSOR CONTROL........................................................................................

11. TEST OPERATION CONTROL..................................................................................

10. ELECTRONIC EXPANSION VALVE CONTROL.......................................................

13. 4-WAY VALVE EXTENSION SELECT.......................................................................

12. PREVENT TO RESTART FOR 3 MINUTES (3 MINUTES ST)..................................

18. ECONOMY OPERATION...........................................................................................

14. AUTO RESTART........................................................................................................

21. DRAIN PUMP OPERATION.......................................................................................

19. FRESH AIR CONTROL..............................................................................................

22. DEFROST OPERATION CONTROL..........................................................................

01-01

01-02

01-03

01-05

01-09

01-10

01-13

01-14

01-18

01-19

01-20

01-21

20. EXTERNAL ELECTRICAL HEATER CONTROL........................................................ 01-20

01-22

23. OFF DEFROST OPERATION CONTROL.................................................................. 01-24

24. VARIOUS PROTECTIONS......................................................................................... 01-25

25. FORCED COOLING OPERATION............................................................................. 01-26

26. COMPRESSOR STOP CONTROL............................................................................. 01-26

01-18

15. MANUAL AUTO OPERATION.................................................................................... 01-19

16. COMPRESSOR PREHEATING.................................................................................. 01-19

17. 10°C HEAT OPERATION........................................................................................... 01-20

AMP Air Conditioning

www.ampair.co.uk | [email protected]

2-1-2 WIRED REMOTE CONTROLLER DISPLAY......................................................

2-1-1 INDOOR UNIT & WIRED REMOTE CONTROLLER DISPLAY..........................

2-1 ERROR DISPLAY......................................................................................................

2. TROUBLE SHOOTING

2-2 TROUBLE SHOOTING WITH ERROR CODE..........................................................

2-3 TROUBLE SHOOTING WITH NO ERROR CODE....................................................

2-4 SERVICE PARTS INFORMATION............................................................................

02-01

02-02

2-1-3 OUTDOOR UNIT DISPLAY................................................................................. 02-02

02-25

02-03

02-30

3-1-2 Procedures to change the Function Setting........................................................

3-1-1 INDOOR UNIT....................................................................................................

3-1 FUNCTION SETTING................................................................................................

3. APPENDING DATA

03-01

03-04

3-2-2 OUTDOOR UNIT................................................................................................

3-2-1 INDOOR UNIT....................................................................................................

3-2 Thermistor Resistance Values................................................................................ 03-07

03-07

AMP Air Conditioning

www.ampair.co.uk | [email protected]

AMP Air Conditioning

www.ampair.co.uk | [email protected]

R410A

FLOOR CEILING /

SLIM DUCT / CASSETTE type

INVERTER

1 . DESCRIPTION OF EACH

CONTROL OPERATION

AMP Air Conditioning

www.ampair.co.uk | [email protected]

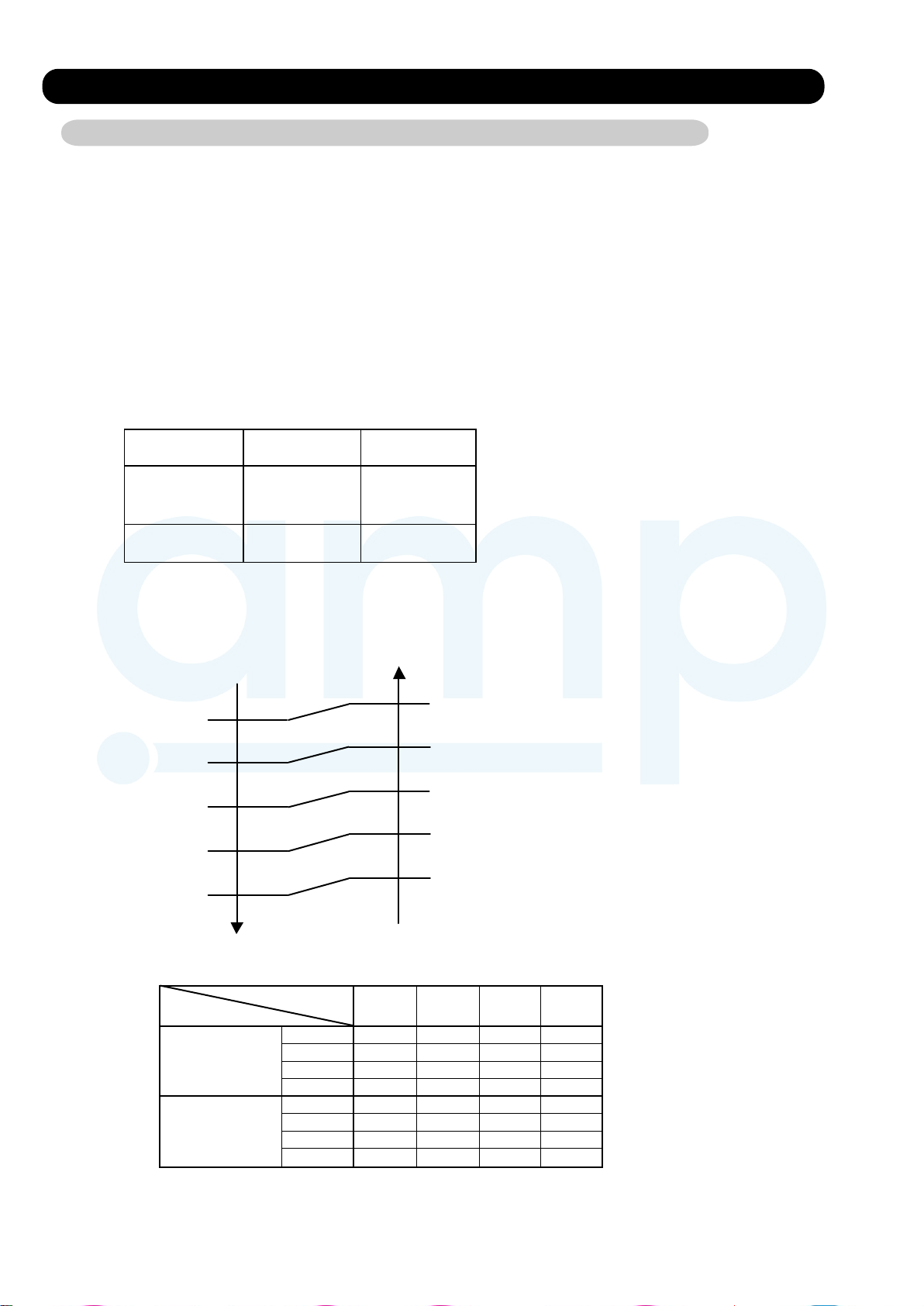

1-1. COOLING OPERATION

1-1-1 COOLING CAPACITY CONTROL

A sensor (room temperature thermistor) built in the indoor unit will usually perceive

difference or variation between a set temperature and present room temperature, and

controls the operation frequency of the compressor.

The maximum frequency is limited in the range shown in Figure 1 based on the fan speed mode

and the outdoor temperature.

* If the room temperature is 2 degC higher than a set temperature,

the compressor operation frequency will attain to maximum frequency.

* If the room temperature is 2.5 degC lower than a set temperature, the compressor will be stopped.

* When the room temperature is between +2 degC to -2.5 degC of the setting temperature,

the compressor frequency is controlled within the range shown in Table1.

minimum

frequency maximum

frequency

18rps 113rps

18rps 80rps

Outdoor air

temperature A zone

B zone

C zone

D zone

E zone

F zone

Hi Me Lo Quiet

A zone 113rps

113rps

80rps

54rps

66rps

54rps

45rps

54rps

45rps

38rps

34rps

24rps

80rps

49rps

38rps

42rps

30rps

34rps

22rps

B zone

C zone

D-F zone

A zone

B zone

C zone

D-F zone

( Table 1 : Compressor Frequency Range )

( Fig. 1 : Limit of Maximum Frequency based on Outdoor Temperature )

01-01

Fan speed mode

When the room

temperature rises

When the room

temperature drops

36°C

32°C

21°C

12°C

2°C

34°C

30°C

19°C

10°C

0°C

AB*G18LVTB

AR*G14/18LLTB

AU*G14/18LVLB

AR*G12LLTB

AU*G12LVLB

AB*G18LVTB

AR*G14/18LLTB

AU*G14/18LVLB

AR*G12LLTB

AU*G12LVLB

AMP Air Conditioning

www.ampair.co.uk | [email protected]

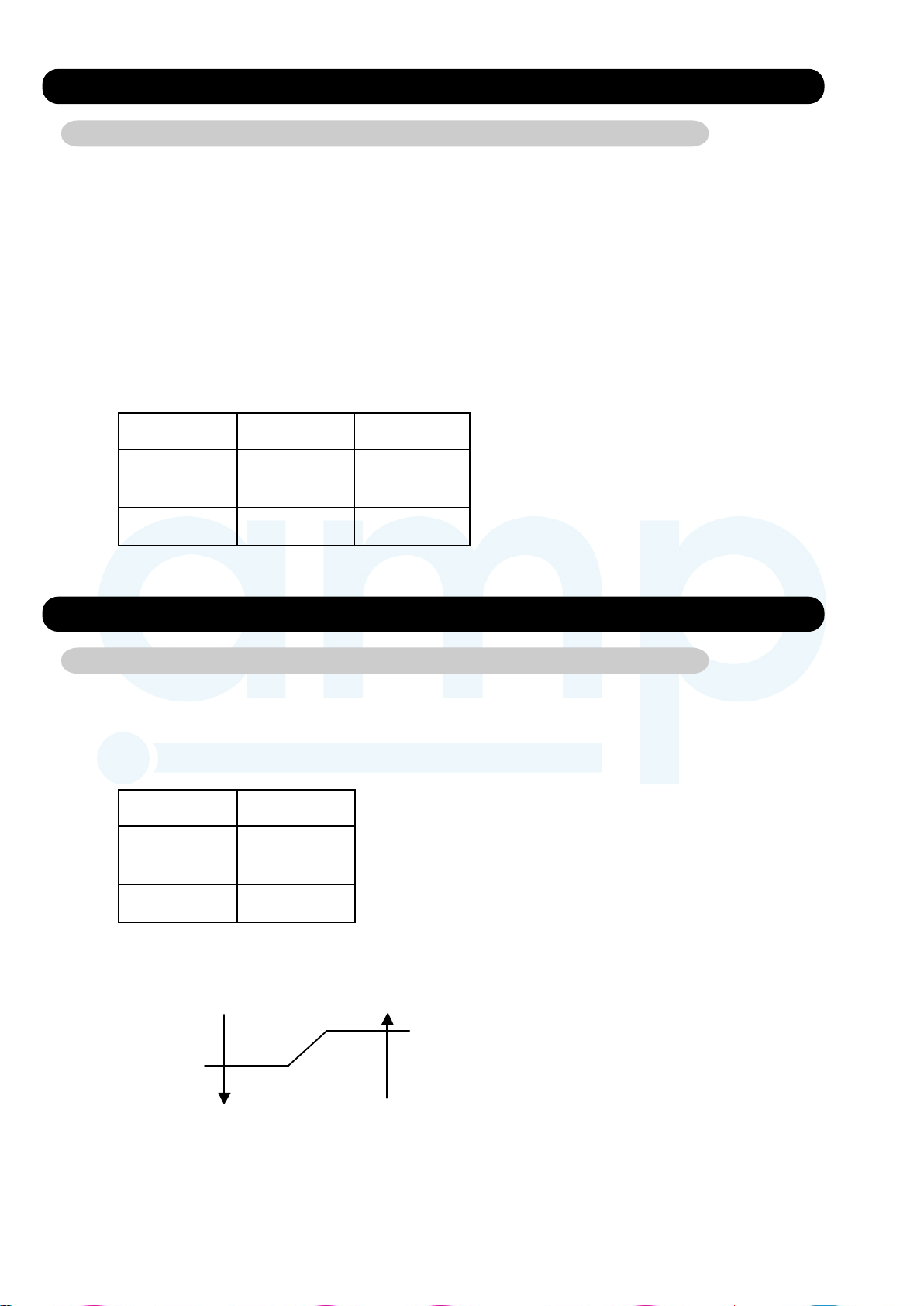

1-2. HEATING OPERATION

1-2-1 HEATING CAPACITY CONTROL

A sensor (room temperature thermistor) built in the indoor unit will usually perceive

difference or variation between a set temperature and present room temperature, and

controls the operation frequency of the compressor.

* If the room temperature is lower 3 degC than a set temperature,

the compressor operation frequency will attain to maximum frequency.

* If the room temperature is higher 2.5 degC than a set temperature, the compressor

will be stopped.

* When the room temperature is between +2.5 degC to -3 degC of the setting temperature,

the compressor frequency is controlled within the range shown in Table2.

( Table 2 : Compressor Frequency Range )

01-02

minimum

frequency maximum

frequency

18rps 120rps

AB*G18LVTB

AR*G14/18LLTB

AU*G14/18LVLB

AR*G12LLTB

AU*G12LVLB

Operating

frequency

34rps

AB*G18LVTB

AR*G14/18LLTB

AU*G14/18LVLB

AR*G12LLTB

AU*G12LVLB

1-3. DRY OPERATION

1-3-1 INDOOR UNIT CONTROL

The compressor rotation frequency shall change according to set temperature and room

temperature variation which the room temperature sensor of the indoor unit has detected

as shown in the Fig 2.

Room

temperature Room

temperature

Compressor ON Ts-0.5 degC

Ts-1.5 degC Compressor OFF

( Table 3 : Compressor frequency )

( Fig.2 : Compressor Control based on Room Temperature )

Ts : Setting temperature

AMP Air Conditioning

www.ampair.co.uk | [email protected]

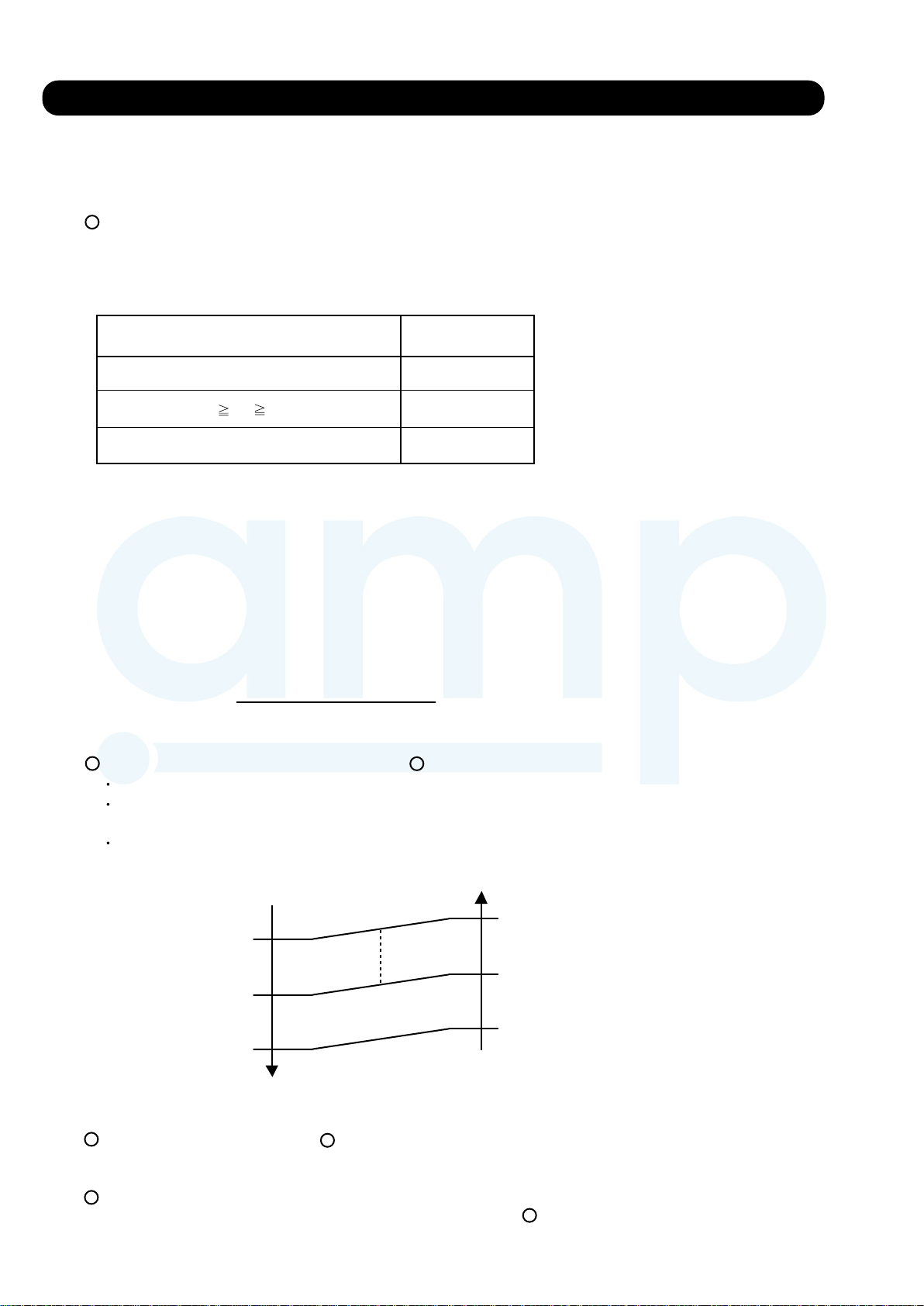

1-4. AUTO CHANGEOVER OPERATION

01-03

When the air conditioner is set to the Auto mode by remote controller, operation starts in the optimum

mode from among the Heating, Cooling, Dry and Monitoring mode. During operation, the

optimum mode is automatically switched in accordance with temperature changes. The temperature

can be set between 18°C and 30°C in 1°C steps.

When operation starts, indoor fan and outdoor fan are operated for

around 2 minutes (AB type, AR type), or 3 minutes (AU type).

Room temperature and outdoor temperature are sensed,

and the operation mode is selected in accordance with the table below. <Monitoring mode>

Cooling mode

25°C Heating mode

( Table 4 : Operation mode selection table )

Room temperature (TR)

TR> Ts + 2°C

Ts + 2°C TR Ts - 2°C *Middle zone

TR < Ts - 2°C Heating

When Cooling or Dry mode was selected at and air flow mode is Auto, the air conditioner operates as follow.

The same operation as COOLING OPERATION AND DRY OPERATION.

When the room temperature has remained at set temperature -1.5°C,

operation is automatically switched to Dry mode.

If the room temperature reaches set temperature +2°C during Dry mode, operation returns to Cooling.

( Fig. 3 : Outdoor temperature zone selection )

Cooling

(Autmatic dry)

Operation mode

*If it's Middle zone, operation mode of indoor unit is selected as below.

(1). Same operation mode is selected as outdoor unit.

If outdoor unit is operating in Cooling, Dry, and Heating mode,

indoor unit will be operated by the same operation mode.

(2). Selected by the outdoor temperature.

If outdoor unit is operating in other than Cooling, Dry, and Heating mode,

indoor unit will be operated according to the outdoor temperature as below.

Cooling

Cooling Dry

Dry

Compressor stop

When the room

temperature drops

When the room

temperature rises

Ts + 2°C

Ts - 0.5°C

Ts - 1.5°C

Ts + 1°C

Ts - 1.5°C

Ts - 2.5°C

( Fig.4 : Auto changeover : Cooling - Dry ) TR : Room temperature

Ts : Setting temperature

TR : Room temperature

Ts : Setting temperature

( Air flow mode : Auto )

When Heating was selected at , the same operation as HEATING OPERATION of page

01-02 is performed.

When the compressor was stopped for 6 consecutive minutes by the temperature control function

after the Cooling(Auto:Dry) or Heating mode was selected at above, operation is switched

to Monitoring and the operation mode is selected again.

AMP Air Conditioning

www.ampair.co.uk | [email protected]

01-04

START

Room temp.

Ts + 2°C?

COOLING (AUTO:DRY)

OPERATION

HEATING OPERATION

YES

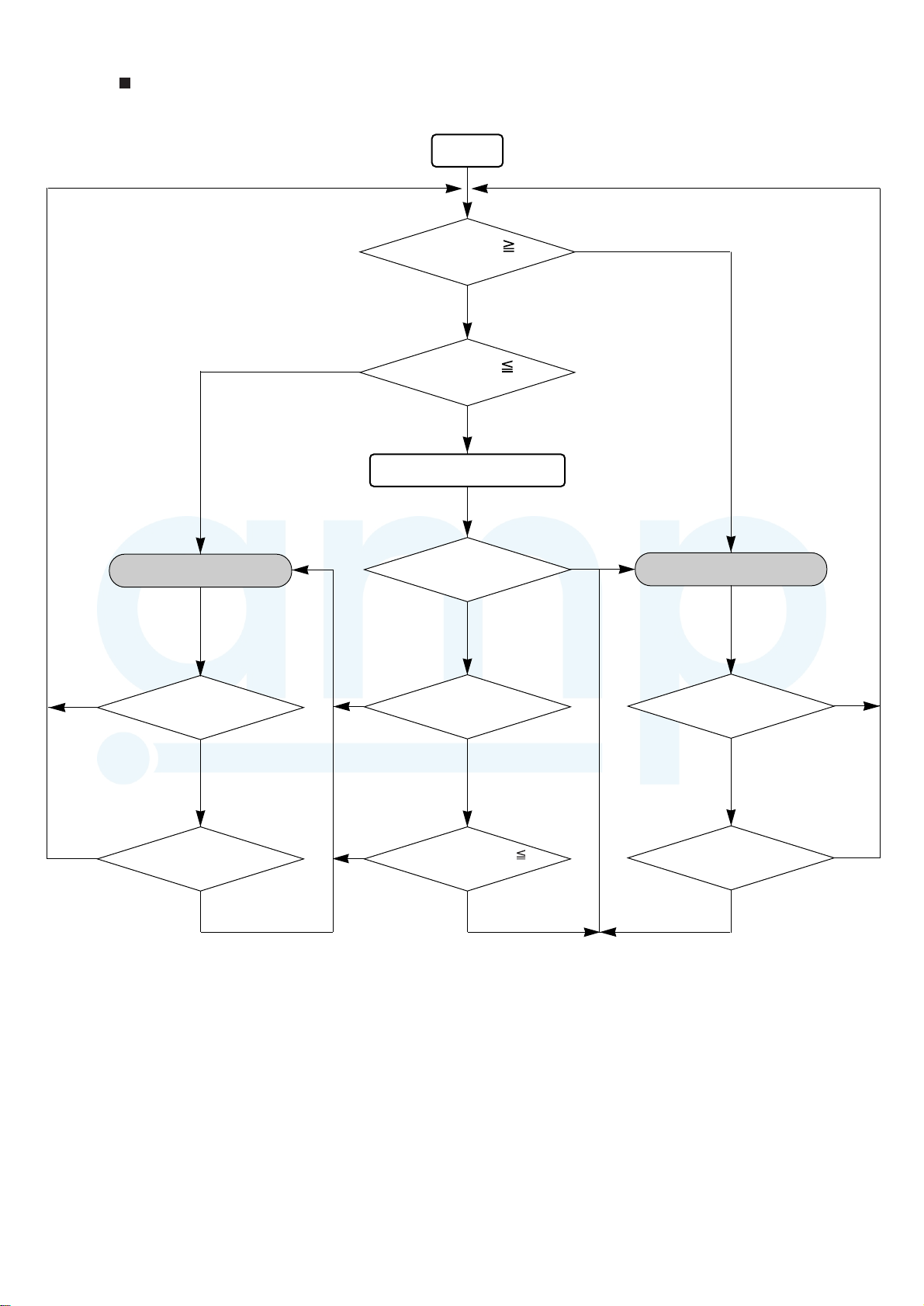

AUTO CHANGEOVER operation flow chart

TS: Setting temperature

Room temp.

Ts - 2°C?

Thermostat remains

in OFF state for 6 minutes or

longer?

System stops

or operation command other than

auto changeover operation?

Thermostat remains

in OFF state for 6 minutes or

longer?

System stops

or operation command other than

auto changeover operation?

Middle zone

Operation mode

of outdoor unit : Cooling or Dry?

YES

Operation mode

of outdoor unit : Heating?

YES

Outdoor temperature

25°C?

YES

YESYES

AMP Air Conditioning

www.ampair.co.uk | [email protected]

1-5. INDOOR FAN CONTROL

1. Fan speed

( Table 5 : Indoor Fan Speed )

01-05

Operation mode Air flow mode Speed (rpm)

1040

1000

950

800

740

500

300

1040

950

800

740

500

740

300

Dry

Monitoring

Cooling

Fan

Heating

AB*G18LVTB

*Note, during Economy operation and operation mode is Fan, air flow is 1 step downs.

(Hi > Me, Me > Lo, Lo > Quiet, Quiet > Soft Quiet)

Me+

Quiet

Cool air prevention

S-Lo

Quiet

*Soft Quiet

Auto

S-Lo

Operation mode Air flow mode Speed (rpm)

1340

1240

1140

1030

500

1340

1240

1140

1030

500

1030

500

Dry

Monitoring

Cooling

Fan

Heating

AR*G12LLTB

Quiet

S-Lo

Quiet

*Soft Quiet

Auto

S-Lo

Operation mode Air flow mode Speed (rpm)

1560

1400

1240

1030

500

1560

1400

1240

1030

500

1030

500

Dry

Monitoring

Cooling

Fan

Heating

AR*G14LLTB

Quiet

S-Lo

Quiet

*Soft Quiet

Auto

S-Lo

Operation mode Air flow mode Speed (rpm)

1380

1300

1220

1140

600

1380

1300

1220

1140

600

1140

600

Dry

Monitoring

Cooling

Fan

Heating

AR*G18LLTB

Quiet

S-Lo

Quiet

*Soft Quiet

Auto

S-Lo

AMP Air Conditioning

www.ampair.co.uk | [email protected]

Other manuals for AU*G12LVLB

This manual suits for next models

Table of contents

Other Fujitsu Air Conditioner manuals

Fujitsu

Fujitsu Inverter Halcyon 9374379392-04 User manual

Fujitsu

Fujitsu AS*A09LKC Service manual

Fujitsu

Fujitsu Slim Duct Type User manual

Fujitsu

Fujitsu ARY25FUAA User manual

Fujitsu

Fujitsu AS*A18LEC User manual

Fujitsu

Fujitsu Inverter User manual

Fujitsu

Fujitsu autg30krla User manual

Fujitsu

Fujitsu ASYA004GTAH User manual

Fujitsu

Fujitsu ACY40UI-MI User manual

Fujitsu

Fujitsu AUXG07-22KVLA Service manual

Fujitsu

Fujitsu ASYG09LTCB User manual

Fujitsu

Fujitsu AOU9RLFF Service manual

Fujitsu

Fujitsu ARXC36L User manual

Fujitsu

Fujitsu ADUH09LUAS1 Service manual

Fujitsu

Fujitsu ASTG18CMCB User manual

Fujitsu

Fujitsu ASYA07LACM User manual

Fujitsu

Fujitsu AIRSTAGE ARXB09GALH User manual

Fujitsu

Fujitsu Inverter Halcyon ASU9RMLQ User manual

Fujitsu

Fujitsu AFY16F User manual

Fujitsu

Fujitsu AIRSTAGE AJ 090LELBH Series User manual

Fujitsu

Fujitsu ASY7LMACW User manual

Fujitsu

Fujitsu AUXG36KRLB User manual

Fujitsu

Fujitsu ARXG45KMLA User manual

Fujitsu

Fujitsu ASTG30KMTA Service manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual

Webasto

Webasto Frigo Top 25 DS Instructions for use
