Fujitsu ASYG09LLTA User manual

SPLIT TYPE

ROOM AIR CONDITIONER

WALL MOUNTED TYPE

CONTENTS

SPECIFICATIONS. . . . . . . . . . . . . . . . . . .

DIMENSIONS . . . . . . . . . . . . . . . . . . . . . . 2

REFRIGERANT SYSTEM DIAGRAM. . . .3

CIRCUIT DIAGRAM . . . . . . . . . . . . . . . . . 4

ERROR DETECTION . . . . . . . . . . . . . . .

INDOOR PCB CIRCUIT DIAGRAM . . . . .

OUTDOOR PCB CIRCUIT DIAGRAM . . .

PARTS (INDOOR UNIT) . . . . . . . . . . . . .14

PARTS (OUTDOOR UNIT) . . . . . . . . . . .19

ACCESSORIES . . . . . . . . . . . . . . . . . . .

Indoor unit Outdoor unit

ASYG09LLTA

ASYG12LLTA

AOYG09LLT

AOYG12LLT

SPECIFICATIONS

TYPE Cool & heat inverter

INDOOR UNIT ASYG12LLTA

OUTDOOR UNIT AOYG12LLT

COOLING CAPACITY 3.40 kW

HEATING CAPACITY 4.00 kW

POWER SOURCE 230 V

FREQUENCY 50 Hz

RUNNING

CURRENT

MAXIMUM

CURRENT

4.7 A

5.1 A

INPUT

WATTS

1.015 kW

1.080 kW

E.E.R. Cooling 3.35 kW/kW

COP Heating

Cooling

Heating

Cooling

Heating

Cooling

Heating

Cooling

Heating

3.70 kW/kW

MOISTURE REMOVAL 1.8 L/h

AIR CIRCULATION

HIGH

720 m3/h

740 m3/h

ASYG09LLTA

AOYG09LLT

2.50 kW

3.20 kW

230 V

50 Hz

4.0 A

4.7 A

7.0 A

9.5 A

6.0 A

0.745 kW

0.865 kW

3.36 kW/kW

3.70 kW/kW

1.3 L/h

720 m3/h

740 m3/h

FAN MOTOR

POWER SOURCE 230 V 230 V

High

INDOOR

UNIT

Cooling

Medium

Low

Quiet

High

INDOOR

UNIT

Heating

Medium

Low

Quiet

High

Medium

Low

Quiet

1,320 r.p.m.

1,120 r.p.m.

840 r.p.m.

700 r.p.m.

1,360 r.p.m.

1,120 r.p.m.

900 r.p.m.

700 r.p.m.

OUTDOOR UNIT Heating

730 r.p.m.

OUTDOOR UNIT Cooling

740 r.p.m.

1,320 r.p.m.

1,120 r.p.m.

860 r.p.m.

700 r.p.m.

1,360 r.p.m.

1,120 r.p.m.

900 r.p.m.

700 r.p.m.

810 r.p.m.

820 r.p.m.

ELECTRICAL DATA

INDOOR UNIT

OUTDOOR UNIT Heating

NOISE LEVEL

43 dB

38 dB

33 dB

22 dB

48 dB 52 dB

OUTDOOR UNIT Cooling 47 dB 51 dB

2013.02.27 1

COMPRESSOR TYPE

Hermetic type,

4 pole, 3 phase,

DC inverter motor, Rotary

DISCRIMINATION ASM89D10UFZ

PRECHARGED REFRIGERANT

REFRIGERANT TYPE R410AR410A

750 g

650 g

WEIGHT (with oil) 8.9 kg

COMPRESSOR AND REFRIGERANT

Pipe length 10 m

FULL CHARGE 15 m 850 g750 g

MAXIMUM PIPING HEIGHT 10 m

ADDITIONAL CHARGE 20 g/m

WEIGHT

INDOOR UNIT Net / Shipping

Net / Shipping

7.0 kg / 9.0 kg

OUTDOOR UNIT

27 kg / 29 kg25 kg / 28 kg

INDOOR UNIT H x W x D

H x W x D

262 x 820 x 206 mm

OUTDOOR UNIT 540 x 660 x 290 mm

DIMENSIONS

unit : mm

262

15.8 to 16.7

206820

2013.02.27 2

INDOOR UNIT

Drain hose

OUTDOOR UNIT

Diameter

Outside

Inside : 13.8 mm

660

600

29060

454

540

REFRIGERANT

SYSTEM DIAGRAM

2-way valve

Strainer

3-way valve

Muffler

4-way valve

Capillary

Heat

capillary

Refrigerant direction

Heat exchanger

(indoor unit)

Heat exchanger

(outdoor unit)

Compressor

Cooling

Heating

Refrigerant pipe diameter

Liquid : 1/4" (6.35 mm)

Gas : 3/8" (9.52 mm)

2-way valve

Strainer

Cool & heat

capillary

3-way valve

Muffler

4-way valve Check valve

Heat exchanger

(indoor unit)

Heat exchanger

(outdoor unit)

Compressor

2012.02.14 3

RED

ORANHE

YELLOW

PINK

BLUE

BLACK

EARTH

TERMINAL

BLACK

WHITE

RED

BLUE

YELLOW

WHITE

BLACK

RED

WHITE

GREEN

1 2 3 4 5

CN3

CN7

CN1

CN6

CN4

CN5

CN201

LOUVER

( UP / DOWN )

THERMISTOR

( PIPE TEMP. )

THERMISTOR

( ROOM TEMP. )

TEST

123

TERMINAL

FAN MOTOR

INDICATOR PCB

MAIN PCB

BLACK

ORANGE

WHITE

BLACK

WHITE

RED

GREEN

BLACK

BROWN

GRAY

GREEN

BLACK

WHITE

RED

BLACK

WHITE

W101

W102 W4 W1 W2

W10

W11

CN71

CN70

CN90

CN30

REACTOR

THERMISTOR

( PIPE TEMP. )

THERMISTOR

( DISCHARGE TEMP. )

THERMISTOR

( OUTDOOR TEMP. )

1 2 3L N

POWER SOURCE

TERMINAL

4-WAY VALVE

FAN MOTOR

COMPRESSOR

4WV

MAIN PCB

INDOOR UNIT OUTDOOR UNIT

CIRCUIT DIAGRAM

2013.01.15 4

BLACK

RED

ORANGE

YELLOW

PINK

BLUE

WHITE

RED

BLACK

WHITE

YELLOW

BLUE

CN201

S7B-PH-K-S

LOUVER ( UP / DOWN )

THERMISTOR

( PIPE TEMP. )

THERMISTOR

( ROOM TEMP. )

TEST

CN6

B5B-PH-K-R

RED

CN3

B7B-PH-K-S

RED

CN5

B5B-PH-K-S

RED

CN4

B4B-PH-K-S

WHITE

CN7

B5 ( 6-5 ) B-XARK-1-A

RED

FAN MOTOR

F M

INDICATOR PCB

K11CO-1200HSE-D0

MAIN PCB

ASYG09LLTA : K11CN-1206HSE-C1

ASYG12LLTA : K11CN-1207HSE-C1

CN1

SC25-05WSA

WHITE

12 3 4 5

TERMINAL

1BLACK

WHITE

RED

GREEN

EARTH

OUTDOOR

UNIT

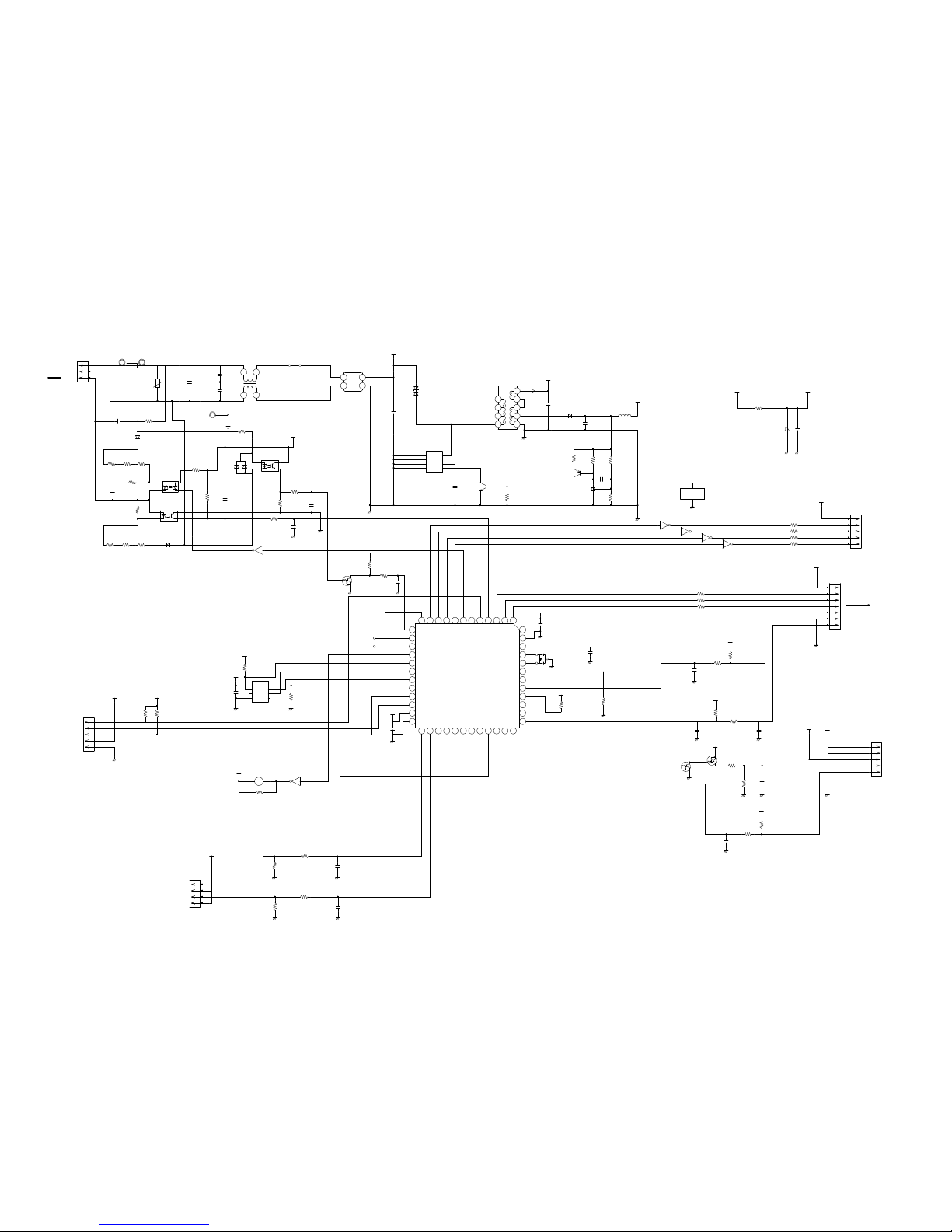

INDOOR PCB CIRCUIT DIAGRAM

2013.01.15 5

CONTROL UNIT

ASYG09LLTA : EZ-0120WHSE

ASYG12LLTA : EZ-0120YHSE

I C8

TNY274PN

C12

0.1

<F> R8

1.0k

<1/10W>

2SC4081

<R>

BP_M

EN_UV

S1NBC60

340V

SS21V-R060330 JP1

R63

220k

<2W>

I C16

PC357N4

D12

DAN202U

R61

1.0k

<1/10W>

R62

12k

<1/10W>

C53

0.047

<R>

R15

1.0k

<1/10W>

C21

0.01

<B>

R65

200

<1/8W>

R64

12k

<1/10W>

C54

0.022

<R>

16 1

VA1

470V

<TNR>

FH1 FH2

3.15A

250V

C29

1000p

<E>

R12

1.0k

<1/2W>

D10

D1F60

R590 - R592

13k 1% x 3

R69

100

<1/10W>

C55

1000p

<X7R>

R67

560

<1/10W>

R593 - R595

13k 1% x 3

D11

D1F60

I C15

PC357N4

I C17

TLP165J

I C13-1

uLN2003A

DTC124EUA

C20

0.01

<B>

R14

1.0k

<1/10W>

R13

10k

<1/10W>

R44

10k

<1/10W>

R55

10k

<1/10W>

C36

0.1

<F>

I C12

S-93C66BD0 I

D I

VCC

TEST

GND

5V 5V

R49, R51

10k <1/10W> x 2

15V

C17

0.1

<F>

R48

<1/10W>

8.00MHz

<CSTLS>

C24

0.1

<F>

68/

420V

D20

ST03D-200-4060

MY082N 15V

D1FL20U

C10

220/

25V

D1FL20U

330/

25V

150

<1/10W>

1.0k

<1/10W>

2SA1576A

<R>

REF

I C6

TL431

C11

0.1

<F>

R10

10k

<1/10W>

10k

<1/10W>

15V

I C13

uLN2003A

I C13-2 - I C13-5

uLN2003A x 4

R31 - R34

33 <1/10W> 1% x 4

15V

R29, R28, R27

220 <1/10W> x 3

A A

R36

10k

<1/10W>

C25

1000p

<R>

R37

<1/10W>

C50

1000p

<R>

15V-2 R25

1.8k

<1/10W>

R26

2.2k

<1/10W>

DTA124EUA

DTC124EUA

15V

47/

35V

340V

R20

1.0k

<1/10W>

C23

1000p

<R>

R21

10k

<1/10W>

215

3 14

413

5 12

15V-2

15V R57

470

<1/8W>

C26

0.1

<F>

UDZS12B

BLm18

<BD102>

C19

0.1

<F>

R43

10k

<1/10W>

BZ1

PS1240P02BT

I C13-7

uLN2003A

10 7

R38

1.0k

<1/10W>

R40

1.0k

<1/10W>

R39

10k

<1/10W>

R41

49.9k

<1/10W>

C28

0.1

<F>

C31

0.1

<F>

C41

0.1

<F>

R46

1.0k

<1/10W>

R45

10k

<1/10W>

I C 1

u P D 7 8 F 0 5 1 5

12 11 10 98765 4 3 2 1

25 26 27 28 29 30 31 32 33 34 35 36

P31

P30

P17

P16

P15

P14

P13

P12

P11

P10

AVDD

AVSS

VDD

VSS

MD0

P123

P124

*RST

P40

P41

P120

P27 P26 P25 P24 P23 P22 P21 P20 P130 P01 P00 P140

P32 P70 P71 P72 P73 P74 P75 P33 P63 P62 P61 P60

W - I N

W - OUT

CN1

SC25-05WSA

WHITE

BLACK

WHITE

RED

TO TERMINAL

0.1

<LE>

0.01

<KH>

0.01

<KH>

FC51FL x 2

CN5

B5B-PH-K-S

WHITE

LOUVER ( UP / DOWN )

CN3

B7B-PH-K-S

WHITE

TO INDICATOR PCB

DC FAN MOTOR

CN7

B5 ( 6-5 ) B-XARK-1-A

RED

CN4

B4B-PH-K-S

WHITE

THERMISTOR ( ROOM TEMP. )

THERMISTOR ( PIPE TEMP. )

TEST

CN6

B5B-PH-K-R

RED

<1/10W>

INDOOR UNIT

ASYG09LLTA

MAIN PCB

K11CN-1206HSE-C1

2013.01.11 6

I C8

TNY274PN

C12

0.1

<F> R8

1.0k

<1/10W>

2SC4081

<R>

BP_M

EN_UV

S1NBC60

340V

SS21V-R060330

R63

220k

<2W>

I C16

PC357N4

D12

DAN202U

R61

1.0k

<1/10W>

R62

12k

<1/10W>

C53

0.047

<R>

R15

1.0k

<1/10W>

C21

0.01

<B>

R65

200

<1/8W>

R64

12k

<1/10W>

C54

0.022

<R>

16 1

VA1

470V

<TNR>

FH1 FH2

3.15A

250V

C29

1000p

<E>

R12

1.0k

<1/2W>

D10

D1F60

R590 - R592

13k 1% x 3

R69

100

<1/10W>

C55

1000p

<X7R>

R67

560

<1/10W>

R593 - R595

13k 1% x 3

D11

D1F60

I C15

PC357N4

I C17

TLP165J

I C13-1

uLN2003A

DTC124EUA

C20

0.01

<B>

R14

1.0k

<1/10W>

R13

10k

<1/10W>

R44

10k

<1/10W>

R55

10k

<1/10W>

C36

0.1

<F>

I C12

S-93C66BD0 I

D I

VCC

TEST

GND

5V 5V

R49, R51

10k <1/10W> x 2

15V

C17

0.1

<F>

R48

<1/10W>

8.00MHz

<CSTLS>

C24

0.1

<F>

68/

420V

D20

ST03D-200-4060

MY082N 15V

D1FL20U

C10

220/

25V

D1FL20U

330/

25V

150

<1/10W>

1.0k

<1/10W>

2SA1576A

<R>

REF

I C6

TL431

C11

0.1

<F>

R10

10k

<1/10W>

10k

<1/10W>

15V

I C13

uLN2003A

I C13-2 - I C13-5

uLN2003A x 4

R31 - R34

33 <1/10W> 1% x 4

15V

R29, R28, R27

220 <1/10W> x 3

A A

R36

10k

<1/10W>

C25

1000p

<R>

R37

<1/10W>

C50

1000p

<R>

15V-2 R25

1.8k

<1/10W>

R26

2.2k

<1/10W>

DTA124EUA

DTC124EUA

15V

47/

35V

340V

R20

1.0k

<1/10W>

C23

1000p

<R>

R21

10k

<1/10W>

215

3 14

413

5 12

15V-2

15V R57

470

<1/8W>

C26

0.1

<F>

UDZS12B

BLm18

<BD102>

C19

0.1

<F>

R43

10k

<1/10W>

BZ1

PS1240P02BT

I C13-7

uLN2003A

10 7

R38

1.0k

<1/10W>

R40

1.0k

<1/10W>

R39

10k

<1/10W>

R41

49.9k

<1/10W>

C28

0.1

<F>

C31

0.1

<F>

C41

0.1

<F>

R46

1.0k

<1/10W>

R45

10k

<1/10W>

I C 1

u P D 7 8 F 0 5 1 5

12 11 10 98765 4 3 2 1

25 26 27 28 29 30 31 32 33 34 35 36

P31

P30

P17

P16

P15

P14

P13

P12

P11

P10

AVDD

AVSS

VDD

VSS

MD0

P123

P124

*RST

P40

P41

P120

P27 P26 P25 P24 P23 P22 P21 P20 P130 P01 P00 P140

P32 P70 P71 P72 P73 P74 P75 P33 P63 P62 P61 P60

W - I N

W - OUT

CN1

SC25-05WSA

WHITE

BLACK

WHITE

RED

TO TERMINAL

0.1

<LE>

0.01

<KH>

0.01

<KH>

FC51FL x 2

CN5

B5B-PH-K-S

WHITE

LOUVER ( UP / DOWN )

CN3

B7B-PH-K-S

WHITE

TO INDICATOR PCB

DC FAN MOTOR

CN7

B5 ( 6-5 ) B-XARK-1-A

RED

CN4

B4B-PH-K-S

WHITE

THERMISTOR ( ROOM TEMP. )

THERMISTOR ( PIPE TEMP. )

TEST

CN6

B5B-PH-K-R

RED

<1/10W>

INDOOR UNIT

ASYG12LLTA

MAIN PCB

K11CN-1207HSE-C1

2013.01.11 7

0.6A - 10mH

VCC

OUT

GND

I C201

GP1UM261R

R202

<1/4W>

C203

0.1

<F>

+C202

47/

10V

SW201

KSHC611BT-PBT

D201 SLR-343MC GREEN

D203 SLR-343MC GREEN

D202 SLR-343DC ORANGE

CN201

S7B-PH-K-S ( LF ) ( SF )

WHITE

INDOOR UNIT

INDICATOR PCB

K11CO-1200HSE-D0

2013.01.11 8

REACTOR

22mH 5A

W10

W11

W101

W102

CN30

B2P3-VH-B-C

BLACK

CN90

B3P5-VH-B

WHITE

CN70

B3B-PH-K-S ( LF ) ( SN )

WHITE

CN71

B4B-PH-K-S ( LF ) ( SN )

WHITE

C M

COMPRESSOR

4-WAY VALVE

F M AC FAN MOTOR

TERMINAL

SERIAL

INDOOR UNIT

POWER SOURCE

AC230V

50Hz

POWER EARTH

FRAME

wire w/TERMINAL

( CORE )

1015#22

GREEN

UL1015 AWG18

GREEN

UL1015 AWG18

WHITE

UL1015 AWG18

BLACK

UL1015 AWG22

RED

UL1015 AWG22

WHITE

UL1015 AWG22

BLACK

ORANGE

WHITE

UL3271 AWG18

BLACK

UL3271 AWG18

WHITE

UL3271 AWG18

RED

UL3271

AWG18

GRAY

UL3271

AWG18

BROWN

THERMISTOR

( PIPE TEMP. )

THERMISTOR

( DISCHARGE TEMP. )

THERMISTOR

( OUTDOOR TEMP. )

MAIN PCB

K11CM-1201HUE-C1

AOYG09LLT

INVERTER ASSEMBLY

EZ-012THUE

OUTDOOR PCB CIRCUIT DIAGRAM

2013.01.15 9

This manual suits for next models

Table of contents

Other Fujitsu Air Conditioner manuals

Fujitsu

Fujitsu ASF30K-KM User manual

Fujitsu

Fujitsu ABY24AGB-W User manual

Fujitsu

Fujitsu Halcyon AWU18CXQ User manual

Fujitsu

Fujitsu ARTA24LATU User manual

Fujitsu

Fujitsu AIRSTAGE ASYA18GACH User manual

Fujitsu

Fujitsu AOYG12KATA Service manual

Fujitsu

Fujitsu ASWX18FAT User manual

Fujitsu

Fujitsu AIRSTAGE ASYA18GATH User manual

Fujitsu

Fujitsu Halcyon AUU18RGLX Service manual

Fujitsu

Fujitsu AOYG07LUCA User manual

Fujitsu

Fujitsu Airstage AJ 040LCLBH Series User manual

Fujitsu

Fujitsu Airstage ASUA4TLAV2 User manual

Fujitsu

Fujitsu ASY9LSBCW User manual

Fujitsu

Fujitsu ASTG07CMCB User manual

Fujitsu

Fujitsu ASH9USCCW User manual

Fujitsu

Fujitsu AS*A07LGC Series User manual

Fujitsu

Fujitsu Airstage ASYA012GCAH User manual

Fujitsu

Fujitsu ASG9MI-KG User manual

Fujitsu

Fujitsu AirStage AR14 User manual

Fujitsu

Fujitsu AG G12LVCA Series Original operating manual

Fujitsu

Fujitsu AWYZ24LBC User manual

Fujitsu

Fujitsu GENERAL ASHG18KLCA User manual

Fujitsu

Fujitsu AS G09LLCC Series Original operating manual

Fujitsu

Fujitsu Airstage UTP-RX01AH User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual

Webasto

Webasto Frigo Top 25 DS Instructions for use
