Fujitsu ASYA07LGC User manual

SPLIT TYPE

ROOM AIR CONDITIONER

WALL MOUNTED TYPE

CONTENTS

SPECIFICATIONS

. . . . . . . . . . . . . . . . . . . . .

DIMENSIONS

. . . . . . . . . . . . . . . . . . . . . . . .

REFRIGERANT SYSTEM DIAGRAM

. . . .

CIRCUIT DIAGRAM

. . . . . . . . . . . . . . . . . . .

ERROR CONTENTS

. . . . . . . . . . . . . . . . .

6INDOOR PCB CIRCUIT DIAGRAM

. . . . . .

9OUTDOOR PCB CIRCUIT DIAGRAM

. . .

PARTS (Indoor unit)

. . . . . . . . . . . . . . . . . .

PARTS (Outdoor unit)

. . . . . . . . . . . . . . . . .

20ACCESSORIES

. . . . . . . . . . . . . . . . . . . . .

Indoor unit Outdoor unit

ASYA07LGC

ASYA09LGC

ASYA12LGC

AOYR07LGC

AOYR09LGC

AOYR12LGC

SPECIFICATIONS

TYPE Cool & heat inverter

INDOOR UNIT ASYA12LGC

OUTDOOR UNIT AOYR12LGC

COOLING CAPACITY 3.40 kW

HEATING CAPACITY 4.00 kW

POWER SOURCE 230 V

FREQUENCY 50 Hz

RUNNING

CURRENT

MAXIMUM

CURRENT

4.3 A

4.6 A

INPUT WATTS 0.895 kW

0.970 kW

E.E.R. Cooling 3.80 kW/kW

COP Heating

Cooling

Heating

Cooling

Heating

Cooling

Heating

Cooling

Heating

4.12 kW/kW

MOISTURE REMOVAL 1.8 L/h

AIR CIRCULATION

HIGH

750 m3/h

ASYA09LGC

AOYR09LGC

ASYA07LGC

AOYR07LGC

2.50 kW2.10 kW

3.00 kW 3.20 kW

230 V

50 Hz

230 V

50 Hz

3.2 A2.4 A

3.2 A 3.7 A

6.5 A

9.0 A

6.0 A6.0 A

7.5 A7.5 A

0.630 kW0.470 kW

0.660 kW 0.750 kW

3.97 kW/kW4.47 kW/kW

4.55 kW/kW 4.27 kW/kW

1.3 L/h1.0 L/h

750 m3/h

FAN MOTOR

POWER SOURCE 230 V230 V 230 V

High speed

INDOOR UNIT

Cooling

Middle speed

Low speed

Quiet

High speed

INDOOR UNIT

Heating

Middle speed

Low speed

Quiet

High speed

Middle speed

Low speed

Quiet

1,440 r.p.m.

1,200 r.p.m.

920 r.p.m.

680 r.p.m.

1,440 r.p.m.

1,200 r.p.m.

980 r.p.m.

700 r.p.m.

OUTDOOR UNIT Heating 650 r.p.m.

OUTDOOR UNIT Cooling 730 r.p.m.

1,440 r.p.m.

1,200 r.p.m.

920 r.p.m.

680 r.p.m.

1,440 r.p.m.

1,200 r.p.m.

980 r.p.m.

700 r.p.m.

760 r.p.m.

860 r.p.m.

ELECTRICAL DATA

INDOOR UNIT

Cooling

High speed

Middle speed

Low speed

Quiet

INDOOR UNIT

Heating

OUTDOOR UNIT Heating

NOISE LEVEL

43 dB

38 dB

33 dB

21 dB

43 dB

38 dB

33 dB

21 dB

43 dB

38 dB

33 dB

21 dB

43 dB

38 dB

33 dB

21 dB

45 dB 48 dB

OUTDOOR UNIT Cooling 45 dB

750 m3/h

1,440 r.p.m.

1,200 r.p.m.

920 r.p.m.

680 r.p.m.

1,440 r.p.m.

1,200 r.p.m.

980 r.p.m.

700 r.p.m.

650 r.p.m.

730 r.p.m.

43 dB

38 dB

33 dB

21 dB

43 dB

38 dB

33 dB

21 dB

45 dB

45 dB 48 dB

2008.04.16 1

COMPRESSOR TYPE

Hermetic type,

4 pole, 3 phase,

DC inverter motor, Rotary

DISCRIMINATION DA89X1C-20FZ

5SS072XAA

STANDARD REFRIGERANT

REFRIGERANT TYPE R410AR410A

800 g

650 g

WEIGHT (with oil) 9.9 kg5.9 kg

COMPRESSOR AND REFRIGERANT

Pipe Length 15 m

FULL CHARGE 20 m 900 g

750 g

MAXIMUM PIPING HEIGHT 15m

ADDITIONAL REFRIGERANT 20 g/m

WEIGHT

INDOOR UNIT Gross / Net

Gross / Net

10 kg / 7.5 kg

OUTDOOR UNIT 35 kg / 32 kg28 kg / 25 kg

INDOOR UNIT H x W x D

H x W x D

260 x 790 x 198 mm

OUTDOOR UNIT 540 x 660 x 290 mm

DIMENSIONS

2008.05.09 2

INDOOR UNIT ASYA09LGC ASYA12LGC

OUTDOOR UNIT AOYR12LGCAOYR09LGC

ASYA07LGC

AOYR07LGC

DIMENSIONS

unit : mm

260

198

790

2008.05.14 3

INDOOR UNIT

OUTDOOR UNIT

540

660290

REFRIGERANT SYSTEM DIAGRAM

2-Way valve

Strainer

3-Way valve

Muffler

4-Way valve

Expansion valve

Refrigerant direction

Heat exchanger

(indoor unit)

Heat exchanger

(outdoor unit)

Compressor

Cooling

Heating

Refrigerant pipe diameter

Liquid : 1/4" (6.35 mm)

Gas : 3/8" (9.52 mm)

2008.04.16 4

RED

BLACK

RED

BROWN

BLUE

ORANGE

YELLOW

WHITE

YELLOW

BROWN

BLACK

RED

WHITE

BLACK

CN62

CN61

W10

W11

CN800

CN40

CN501

BLACK

RED

WHITE

BLACK BLACK

BLACK

GREEN

WHITE

RED

WHITE

RED

4-WAY VALVE

EXPANSION VALVE

FAN MOTOR

AOYR12LGC Type

COMPRESSOR

PMV

4WV

R(R)U

C(T)W

S(S)V

LN3

TERMINAL

FUSE

250V - 20A

REACTOR REACTOR

THERMISTOR

( PIPE TEMP. )

THERMISTOR

( DISCHARGE PIPE TEMP. )

THERMISTOR

( OUTDOOR TEMP. )

CONTROLLER

PCB ASSEMBLY

BLACK

ORANGE

RED

YELLOW

PINK

BLUE

BROWN

BLUE

RED

WHITE

BLUE

YELLOW

WHITE

BLACK

RED

GRAY

BLACK

WHITE

RED

GREEN

GREEN / YELLOW

CN201

CN1

1 2 345

12345

CN2

CN7

CN3

CN5

CN4

CN6

TERMINAL

EARTH

TERMINAL

POWER

RELAY

LN3

POWER

SOURCE

TEST

FAN MOTOR

THERMISTOR

( ROOM TEMP. )

THERMISTOR

( PIPE TEMP. )

STEP MOTOR

( LOUVER )

CONTROLLER

PCB ASSEMBLY

( MAIN PCB )

INDICATOR PCB ASSEMBLY

THERMAL

FUSE 102

AOYR07, 09LGC Type

COMPRESSOR

2008.04.09 5

INDOOR UNIT

OUTDOOR UNIT

CIRCUIT DIAGRAM

PCB Circuit

Diagrams

not available at time of publication

ERROR CONTENTS

Error Operation

LED

Coil dry

LED

Timer LED

Serial signal error Off

2 flash off

off

3 flash

4 flash

5 flash

Serial signal (reverse) error, at operation start up

Serial signal (reverse) error, during oeration

Serial signal (forward) error, at operation start up

Serial signal (forward) error, during operation

8 flash Wired remote control error

Indoor unit

thermistor error 2 flash

2 flash

Outdoor unit

thermistor error 3 flash

3 flash

2 flash

3 flash

4 flash

Indoor unit control error 4 flash 3 flash

Indoor unit LED Wired

remote

control Error

Outdoor unit

control error 5 flash

2 flash

3 flash

5 flash

Indoor fan motor error 6 flash

CT abnormal

Outdoor unit fan drive system abnormal

2 flash

Refrigerant cycle error 7 flash 3 flash

Optional function error

Model information error

8 flash

0.1 sec on/off 0.1 sec on/off 0.1 sec on/off

6 flash

2 flash

3 flash

Abnormal lock (upper fan motor)

Abnormal rotation (upper fan motor)

Current trip error

Outdoor air thermistor error

Indoor air thermistor error

Heat exchanger thermistor error

Heat exchanger middle thermistor error

Discharge pipe thermistor error

Main relay welded

off

4 flash 2A Not distinguishing 50Hz or 60Hz

2 flash 20 Manual auto button welded

Compressor location detection error

Model information error

Discharge temperature abnormal

Cooling high pressure abnormal rise

4 flash 2C ? DC 4-way valve and expansion valve abnormal

4 flash 25 PFC circuit error

2008.05.09 11

PARTS

INDOOR UNIT

Front panel assy

2008.04.16 12

4 Air Filter 9316562004

1 Front Panel 9316558014

5 Receiver Window 9316588004

Clamper (Grille) 9316906006

2 Intake Grille 9316560017

Panel Cover 9316561007

-- Wire Cover 9316559004

-- Air Clean Filter Assy 9317250009

-- Wire Shield 9316584006

7 Remote Control 9316397026

8 Remote Control Holder 9305642045

Ref. Description Part number

2008.04.16 13

Evaporator Assy (07, 09)

9316922013

12 Joint Pipe Assy (07, 09) 9316923010

11 Evaporator Assy (12) 9317268011

12 Joint Pipe Assy (12) 9317190015

13 Filter Guide 9316578005

Evaporator Holder R 9316565005

16 Evaporator Holder L 9316564008

Rear Bracket 9316566002

Ref. Description Part number

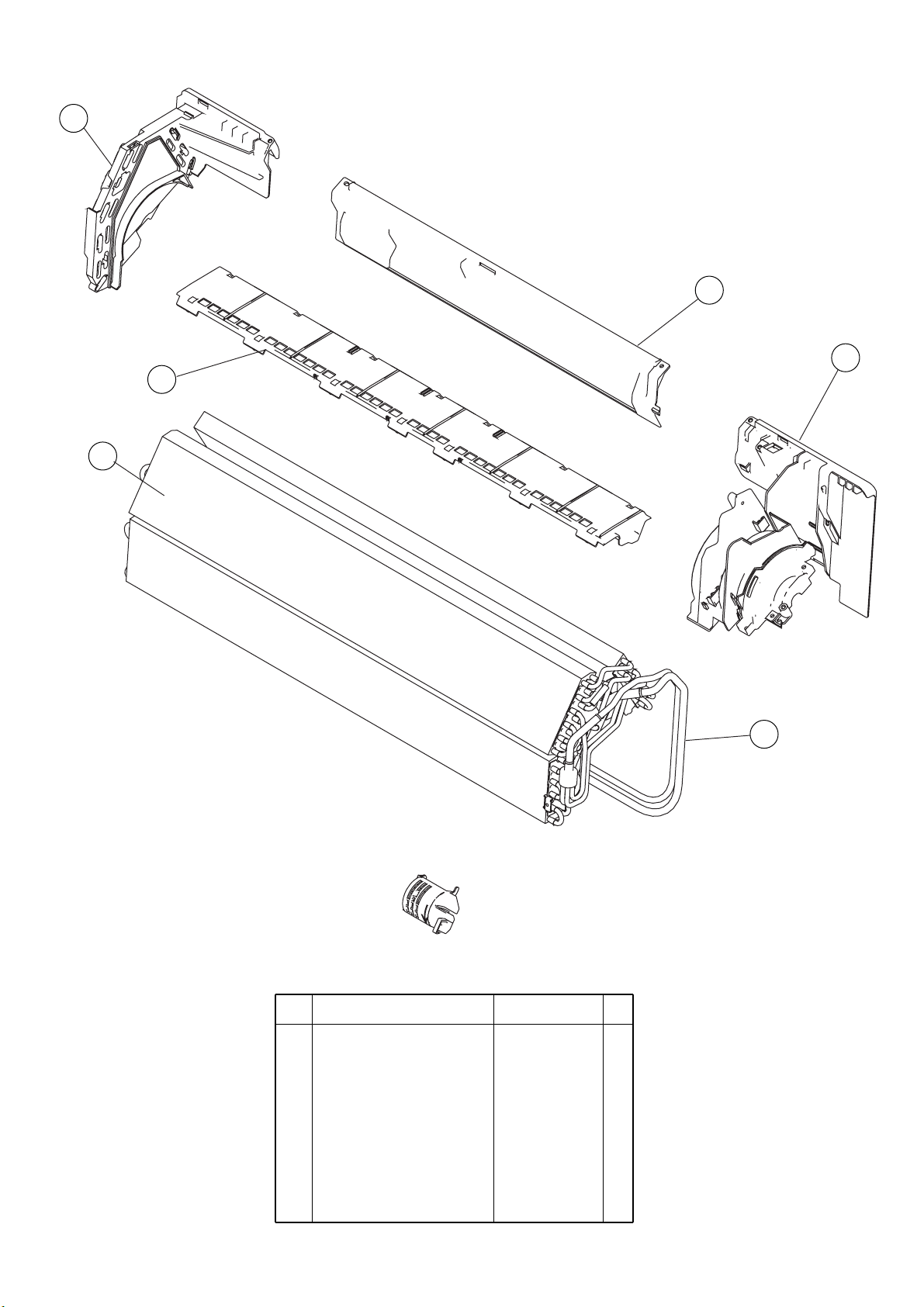

INDOOR UNIT

Evaporator
