Fujitsu AOU18RLXFW User manual

AOU18RLXFW Submittal

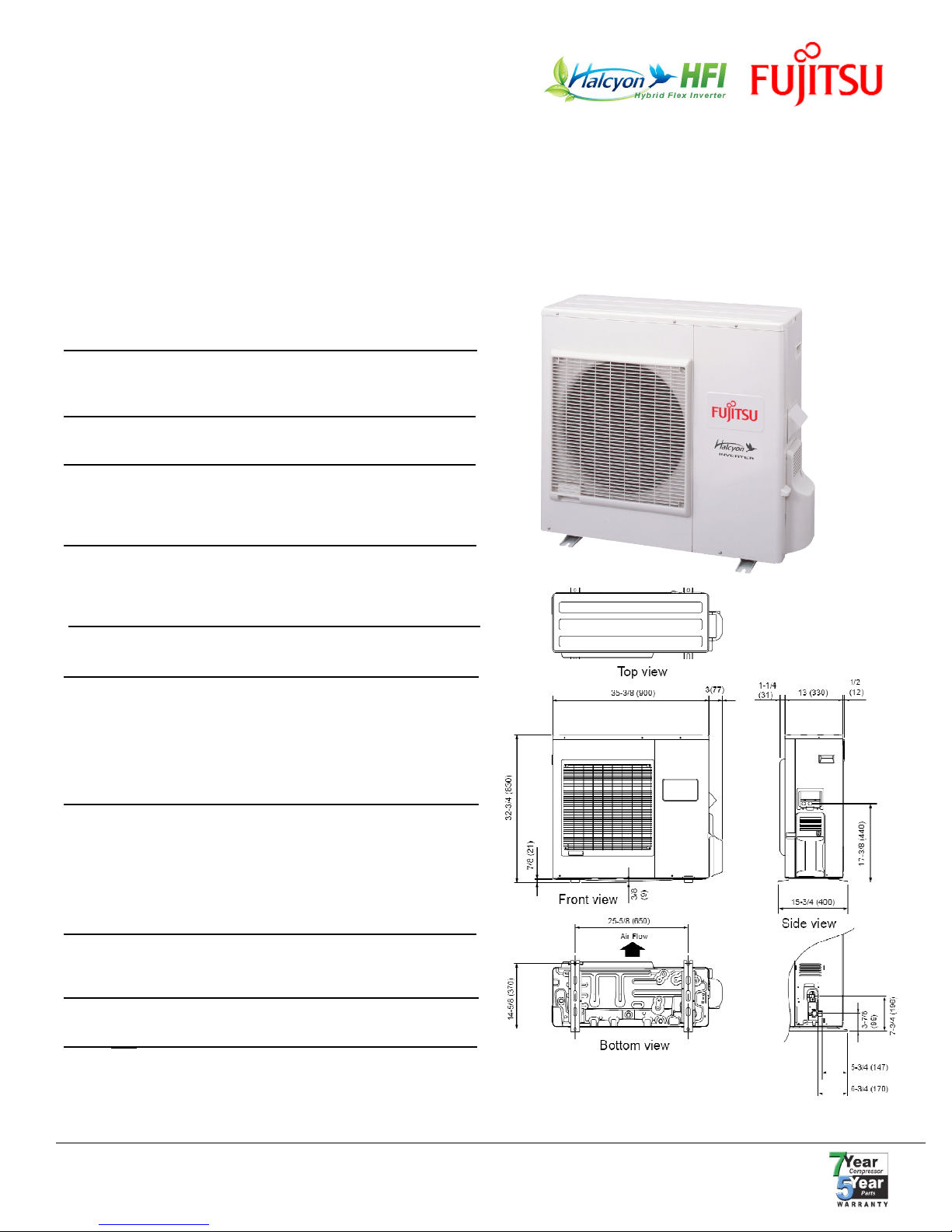

Inverter Driven Heat Pump

Job Name:_______________________________

Location: ________________________________

Engineer:________________________________

Submitted to:_____________________________

Submitted by:_____________________________

Reference:_______________________________

Outdoor Unit Power 208-230/VAC-1Ph-60Hz

Available Voltage Range 187-253VAC

Fuse Size, Max. 30A

MCA 14.5A

Compressor Inverter Driven Variable Speed DC Rotary

No. used 1

Output 2,100W

Lubrican Oil POE (RB68)

Fan type Propeller

Motor Output 100W

Airflow rate Cooling/Heating (High) 1489 / 2530CFM

Refrigerant R410A

Outdoor unit 4lbs 10.1oz

Contrlol Electronic Expansion Valve

O.D. Discharge (in) 3/8”(Flare)

O.D Suction (in) 5/8”(Flare)

Dimensions H x W x D

Uncrated (in) 32-3/4 x 35-3/8 x 13

(mm) (830 x 900 x 330)

Crated (in) 38-1/4 x 41-1/2 x 17-1/2

(mm) (970 x 1050 x 445)

Weight Outdoor

Net 135lbs (61kg)

Gross Shipping 150lbs (68kg)

Cooling

Rated Capacity 18,000BTU/h

Min-Max Capacity 7,000~23,000BTU/h

Rated Power Input 1.35kW

Max. Power Input 3.01kW

SEER 19.2

EER 13.3

Outdoor Sound Rating 47dB

Heating

Rated Capacity 21,600BTU/h

Min-Max Capacity 7,500~36,200BTU/h

Rated Power Input 1.80kW

Max. Power Input 3.01kW

HSPF 10.0

EER 12.0

Outdoor Sound Rating 50dB

Piping Lengths

Max. Piping Length (Total) 164ft

Max. Pipe Height Difference 98ft

Connection method (Flared)

Operating Range . .

Cooling 14°F~115°F DB

Heating 5°F~75°F DB

Approval:________________________________

Date:___________________________________

Construction: ____________________________

Unit #:__________________________________

Drawing #:_______________________________

Fujitsu General America, Inc.

Fairfield, NJ 07004

Toll Free: 1-888-888-3424

Fax: (973) 836-0447

www.fujitsugeneral.com

Fujitsu products are subject to continu-

ous improvements. Fujitsu reserves

the right to modify product design,

specifications and information in this

data sheet without notice and without

incuring any obligations.

Note: Specifications are based on the following conditions.

Power source of specifications : 230V

Cooling: Indoor temperature of 80°F(26.67°C)DB / 67°F(19.44°C)WB, and outdoor temperature of 95°F(35°C)DB/75°F(23.89°C)WB.

Heating: Indoor temperature of 70°F(21.11°C)DB / 60°F(15.56°C)WB, and outdoor temperature of 47°F(8.33°C)DB/43°F(6.11°C)WB.

Pipe length : 24ft. 7in.(7.5m),Height difference : 0 ft.(0m) [Outdoor unit - Indoor unit]

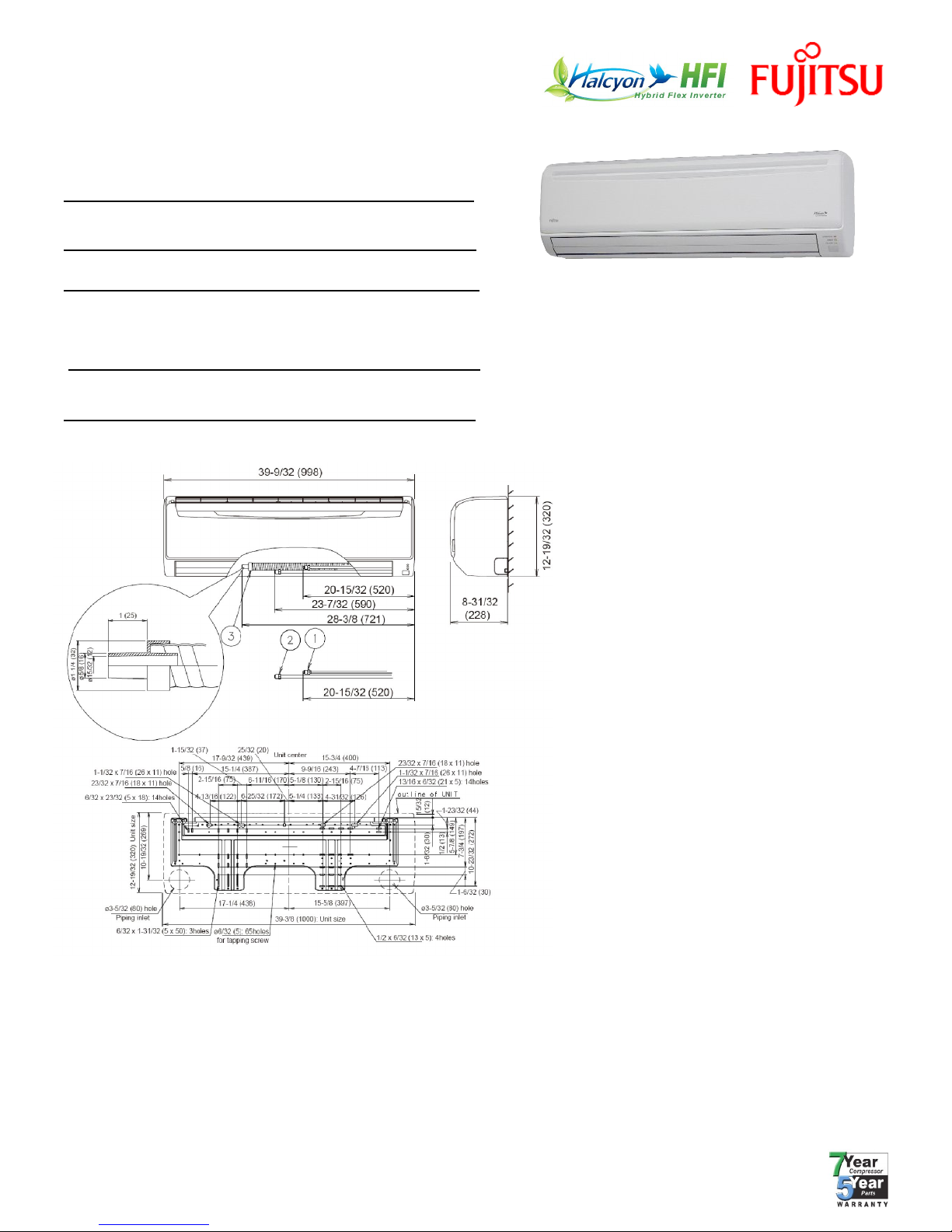

ASU18RLF

Indor Unit

Model ASU18RLF

Power 208-230/VAC-1Ph-60Hz

Available Voltage Range 187-253VAC

Fan

Type Cross flow

Motor Output 64W

MCA 0.3A

Sound pressure level

Cooling Lo-Hi 28-43dB

Heating Lo-Hi 28-44dB

Airlow rate

Cooling Lo-Hi 306-541 CFM

Heating Lo-Hi 318-541CFM

Dimensions H x W x D

Uncrated (in) 12-5/8 x 39-1/4 x 9

(mm) (320 x 998 x 228)

Crated (in) 12-3/5 x 42-15/16 x 16-7/8

(mm) (319 x 1090 x 429)

Weight Indoor

Net 31lbs (8kg)

Gross Shipping 40lbs (10.5kg)

Fujitsu General America, Inc.

Fairfield, NJ 07004

Toll Free: 1-888-888-3424

Fax: (973) 836-0447

www.fujitsugeneral.com

Fujitsu products are subject to continuous improvements. Fujitsu reserves the right to modify product design, specifications

and information in this data sheet without notice and without incuring any obligations.
