FujiFilm 16558126 User manual

BOC703-100

使用説明書/困ったときには/安全にご使用いただくために

User’s Guide/Trouble shooting/Safety precautions

Parts Name........................................... 30

Before Use............................................. 31

Inserting/Charging the Battery..... 31

Inserting the Battery.....................................31

Charging the Battery ....................................32

Charging Indicator ........................................32

Loading the instax SQUARE Film Pack .... 33

Turning on/off the Printer............... 34

Checking Remaining Battery Life.............34

Connecting and Printing................. 35

When establishing connection for the

first time:...........................................................35

When connection is already established: .....

Reprinting............................................. 38

Deleting an Image............................. 39

Unloading a Used instax SQUARE

Film Pack ............................................... 39

About the LED Indication................ 40

SPECIFICATIONS ................................. 41

TROUBLE SHOOTING ........................ 42

IMPORTANT SAFETY NOTICE ......... 46

Handling the Battery ........................ 53

Contents

ENGLISH

• Read“IMPORTANTSAFETYNOTICE”(Page

46)and“HandlingtheBattery”(Page53)for

safetyuse.

• AfterreadingthisUser’sGuide,keepitina

safe,easytofindplacewhereyoucanreferto

itifneeded.

1Battery remaining LED 5USB connector cover 9Battery cover

2Film remaining LED 6USB connector 10 Back cover

3Print exit 7Back cover lock

4POWER button 8REPRINT button

Parts Name

Before Use

• Before using the printer, install the instax SHARE application on your device.

• When you are using an Android OS device, search for“instax SHARE”in the Google Play, then install the application.

* System requirements of an Android OS device: Android Ver 4.0.3 or later and Google Play are installed.

• When you are using an iOS device, search for“instax SHARE” in the App Store, then install the application.

* System requirements of an iOS device: iOS Ver 8.0 or later is installed.

You may not be able to print from some devices even if you have installed the instax SHARE application and your

device meets the requirements listed here.

• The battery is not charged fully at shipment. Be sure to charge it before using the printer.

Access instax SHARE website for the latest information on system requirements.

Inserting/Charging the Battery

InsertingtheBattery

Push the battery cover lock down

to open the battery cover.

Insert the battery according to the arrow on

it. Make sure the yellow line on the battery

aligns with the mark on the printer.

Align the tabs on the battery cover

and push the battery cover lock

until it clicks into place.

~ Ÿ !

Inserting/Charging the Battery (Continued)

ChargingtheBattery ChargingIndicator

Indication Batterystatus/Action

Lights red (ON)

Flashes red (OFF) Charging is in progress.

Lights orange (ON)

Flashes orange (OFF) Charging is half completed.

Lights green (ON)

Flashes green (OFF) Charging is almost completed.

Flashes green, then

goes off (OFF) Charging is completed.

Flashes green and

red alternately, or

flashes red, then

goes off

An error is being occurred. Stop

charging.

ChargingfromaPC:

• Connect the printer and PC directly. Do not connect

them via a keyboard or USB hub.

• If the PC enters the sleep mode while charging is in

progress, charging will stop. If you continue charging,

resume the PC and reconnect the USB cable.

• You may not charge the printer from a PC depending

on your PC specifications, settings, or status.

Connect the printer and an AC power adapter supplied

with your smartphone using the supplied USB cable, then

connect the AC power adapter to an indoor power outlet.

The battery remaining LED indicates the battery charge

status. For details, see the table on the right column.

• Use an AC adapter to meet the rated output below:

DC 5.0 V/1000 mA

• You can print an image while charging is in progress.

• Charging time is approximately three hours.

Be careful of the orientation. Connect the USB cable

with the mark ( ) on the terminal facing up.

Loading the instax SQUARE Film Pack

~Ÿ

Caution

Do not open the back cover until you have used up the film; otherwise, the rest of the film will

become exposed and turn white. The film can no longer be used.

• When you load the film pack, never press the two rectangular holes on the back of the film pack.

• Never use a film pack beyond its shelf life; otherwise, it may damage the printer.

Use FUJIFILM Instant Film “instax SQUARE”only. The instax mini film or instax WIDE film cannot be used.

Notes on the film pack

• Each FUJIFILM Instant Film“instax SQUARE” pack contains 1 black film protective cover and 10 film sheets.

• Do not remove the film pack from its inner bag before loading it into the printer.

• The film cover is ejected automatically when the back cover is closed.

For details, refer to the instructions and warnings on FUJIFILM Instant Film "instax SQUARE".

Continued on the next page

Press the back cover lock down to open the back

cover.

Hold both sides of the film pack, align the bottom of the

film pack on the groove of the film chamber (1), then insert

it straight (2).

Loading the instax SQUARE Film Pack

(Contunued)

⁄

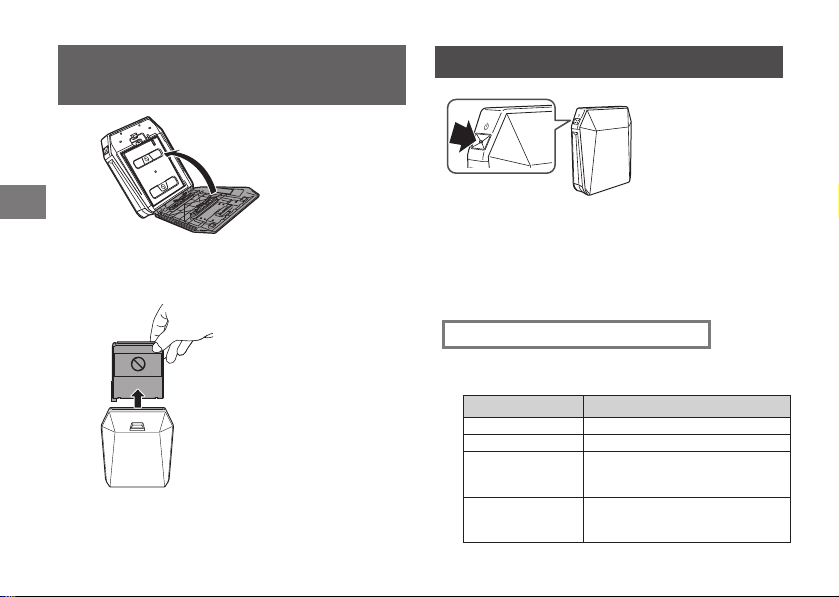

Close the back cover. Make sure the back cover

lock clicks into place.

The film cover (black) is ejected

automatically when the back

cover is closed. Remove the film

cover from the print exit.

Turning on/off the Printer

Press and hold the POWER button for approx. 1 second

to turn the printer on or off.

Turning the printer on lights up the battery remaining

LED.

If no operation occurs for a certain period of time, the

printer turns off automatically.

CheckingRemainingBatteryLife

Use the battery remaining LED to check when turning

the printer on or while printing is in progress.

Indication Remainingbatterylife

Green Sufficient

Orange At half capacity

Red Low. Charging the battery is

recommended. (See page 32.)

Printer turns off

after flashing red.

No battery capacity remains.

Charge the battery. (See page 32.)

Connecting and Printing

Continued on the next page

WirelessLANSetupforiOSDevices

When you are using an iOS device, follow the procedure

below to perform wireless LAN setup.

1. Select “ON” for “Wi-Fi”in the“Settings”menu of your device.

2. Tap the network name (printer name) under“Choose a Network”

Whenestablishingconnectionfor

thefirsttime:

Press and hold the POWER button for approx.

1 second to turn the printer on.

The battery remaining LED lights up.

Start the downloaded application “instax SHARE”.

Select the picture to print or take a picture.

NotesonPrinting

1. Place the printer vertically.

2. When printing, put the printer on a steady surface

such as a desk.

⁄

Connecting and Printing (Continued)

Tap “Connect and print”.

When a printer is detected,

tap “Connect”. If multiple

printers are detected, select

the printer to connect from

the list.

Printer's identifier (SSID) is

located on the bottom of the

printer.

Enter the factory default

password (1111) or the one you

specified, then tap “OK”.

The printer starts printing.

Toresetthepasswordtothefactorydefault

(1111),turntheprinteronwhileholdingthe

REPRINTbutton.

When the film has been ejected (the

printer stops making a sound), grasp

the edge of the film, then take it out.

1 film remaining LED turns off every

time you print an image.

Before tapping “Connect

and print”, tapping on

the lower right displays the

edit menu. You can add

a template or adjust an

image on this menu.

Tap “Done” to exit from the

menu.

When printing, put the

printer on a steady surface

such as a desk.

INSTAX-1111

1111

Whenconnectionisalreadyestablished:

Connecting and Printing

Start the downloaded application “instax SHARE”.

Continued on the next page

Select the picture to print or

take a picture.

Tap “Print”.

The printer starts printing.

⁄

• When printing, put

the printer on a steady

surface such as a desk.

• Before tapping “Print”,

tapping on the lower

right displays the edit

menu. You can add a

template or adjust an

image on this menu.

Tap “Done” to exit from

the menu.

Press and hold the POWER button for approx.

1 second to turn the printer on.

The battery remaining LED lights up.
