Front Runner LALD005 User manual

front runner

LALD005

ENG

Thank you for purchasing a Front Runner Land Rover Defender 90 / 110 Ladder.

Before you start, take a moment to familiarize yourself with the Fitting Instructions and the components received.

Refer to Page 2 for a list of all the components, quantities and tools required.

READ ME !

IMPORTANT WARNING!

IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD

RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT

RUNNER PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND

DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO

INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY

FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.

NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.

Please call us if you have any questions about the installation of this product.

LAND ROVER DEFENDER 90 / 110

LADDER

TOOLS NEEDED

FIGURE 1.1

GET ORGANIZED

2794

4685

1.0m

0.5m

5cm

Scale: 1:25 All measurements in millimeters.

IN THE BOX

1 1 X Land Rover Defender Ladder

2 2 X M6 Flat Washer

3 2 X M6 Spring Washer

4 2 X M6 x 60 Cap Srew

5 2 X M8 Nyloc Nut

6 2 X M8 Flat Washer

7 4 X M8 PVC Flat Washer

8 2 X M8 Flat Washer

9 2 X M8 x 35 Hex Bolt

10 2 X M8 Nut Cap

11 2 X M10 Nyloc Nut

12 3 X M10 x 30 x 3 SS Flat Washer

13 1 X Spacer

14 1 X M10 Flat Washer

15 1 X Bottom Step

16 1 X M10 x 80 Hex Bolt

17 1 X M10 x 100 Hex Bolt

1 2

13mm

17mm 6mm

8.5mm

13mm

17mm

4mm

MARKER

2794

4685

1.0m

0.5m

5cm

Scale: 1:25 All measurements in millimeters.

2021

1790

1992

FIT AND SECURE2

2.1

2.2

2.3

Remove the M6 Flat Washers, M6 Spring

Washers and M6 x 60 Cap Screws

(Item 2,3 & 4) from the Ladder (Item 1).

Swing open the Ladder's Top Clamp for

ﬁtment and place in vehicle's gutter.

Inside the vehicle, remove the rear left

window cover and speaker box.

Place the Ladder onto the vehicle's gutter

and line up as shown in 2.2.

Check door clearance and make sure the

ladder is aligned straight with the door.

Mark the bottom two holes of the Ladder on

the vehicle's body and remove the Ladder.

Using a drill machine and a 6mm drill bit,

drill two pilot holes on your markings.

Change to a 8.5mm drill bit and drill the

holes to 8.5mm.

Place the ladder back onto the vehicle and

line up the holes in the bottom of the Ladder

with the holes drilled in 2.2.

Insert two M8 x 35 Hex Bolts and two M8

Flat washers (Item 9 & 8) through the

holes in the Ladder. Place two M8 PVC Flat

Washers (Item 7) over each bolt between the

vehicle and the Ladder. Secure on the inside

of the vehicle using two M8 Flat Washers

and two M8 Nyloc Nuts (Item 6 & 5).

Insert ﬁxings removed earlier in 2.1 and fully

fasten.

Reﬁt rear left window cover and speaker

box.

2794

4685

1.0m

0.5m

5cm

Scale: 1:25 All measurements in millimeters.

4mm

6mm

8.5mm

13mm

1790

1992

2021

1790

1992

FIT AND SECURE3

3.1

3.2

3.3

Remove the two orginal bolts from

the bumper and place the Bottom step

(Item 15) against the body, and align with

the two holes in the bumper as shown.

Refer to 3.1 & 3.2 and insert the M10 x 100

Hex Bolt with a M10 x 30 x 3 Flat Washer

(Item 17 & 12) into the right hole marked

"A". Behind the bumper insert the Spacer

(Item 13) between the bumper and the "Tab"

attached to the body/bumper. Guide the Hex

Bolt through the Spacer and loosely fasten

using a M10 x 30 x 3 Flat Washer and M10

Nyloc Nut (Item 12 &11).

For the left side marked "B", insert the

M10 x 80 Hex Bolt and M10 x 30 x 3 Flat

Washer (Item 16 & 12) and loosely fasten

using a M10 Flat Washer and M10 Nyloc Nut

(Item 14 & 11)

Align the Bottom step and Fully tighten all

bolts. To complete the job ﬁt two M8 Nut

Caps (Item 10).

17mm

INSTALL OTHER VEHICLE AND RACK ACCESSORIES

Now's the time to visit your favorite Front Runner Dealer in person or online.

Be sure to tag us. We love to see our gear in action! #FrontRunnerOutfitters #BornToRoam

Share your adventures on:

FINISH

Congratulations! You did it. Take a step back and admire your work!

Table of contents

Other Front Runner Automobile Accessories manuals

Front Runner

Front Runner LAMS001 User manual

Front Runner

Front Runner SLIMLINE II User manual

Front Runner

Front Runner LAMS004 User manual

Front Runner

Front Runner FAJK003 User manual

Front Runner

Front Runner TRCA004 User manual

Front Runner

Front Runner SSDR011 User manual

Front Runner

Front Runner KSTF003T User manual

Front Runner

Front Runner KSVT001 User manual

Front Runner

Front Runner BRONCO TBRA040 User manual

Front Runner

Front Runner SLIMLINE II User manual

Front Runner

Front Runner SLIMLINE II TRAY User manual

Front Runner

Front Runner LAMG003 User manual

Front Runner

Front Runner TBRA039 User manual

Front Runner

Front Runner SSDR012 User manual

Front Runner

Front Runner SSDS111 User manual

Front Runner

Front Runner TRCA009 User manual

Front Runner

Front Runner SSDR012 User manual

Front Runner

Front Runner LASS026 User manual

Front Runner

Front Runner Pro Bike Carrier User manual

Front Runner

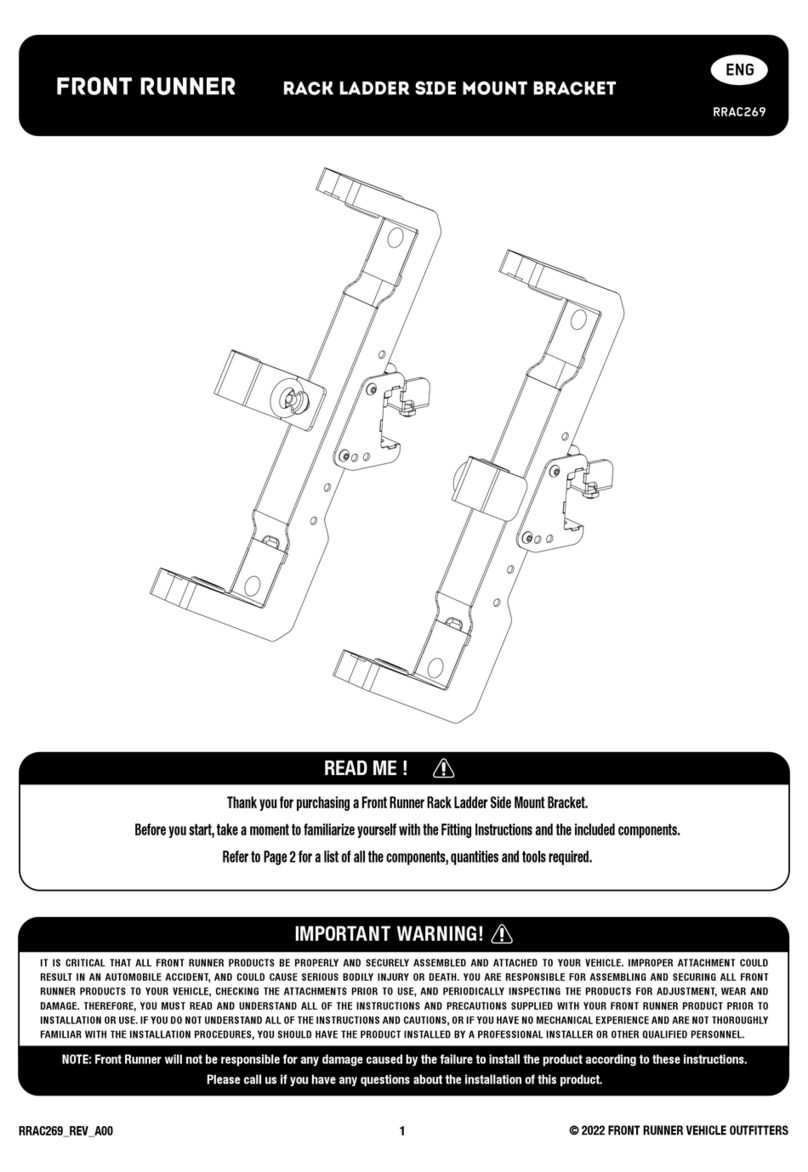

Front Runner RRAC269 User manual
