Frigidaire GLEB30T9D User manual

GLEB30T9D.tif CFEB30T5DSA.eps BUPLEB30T9DCA.eps BLPLEB30T9DCA.eps

DFEB30S5DSA.eps 318046116.eps

Product No. GLEB30T9DBA GLEB30T9DQA GLEB30T9DSA

37056391H4061 37056391H4041 37056391H4011

Series 30" double 30" double 30" double

Color black bisque white

Market North America North America North America

Wiring Diagram 318046116 318046116 318046116

Owner's Guide 318200924 318200924 318200924

Installation Instructions 318201514 318201514 318201514

Service Data Sheet 318047305 318047305 318047305

Timer Guide 318200133 318200133 318200133

ELECTROLUX HOME PRODUCTS, INC.

P.O. Box 212378, Augusta, GA 30917

Publication No.

5995421103

04/11/04

(EN/SERVICE/ECL)

377

DOUBLE ELECTRIC

WALL OVEN

Model No.

GLEB30T9D

Publication No: 5995421103 GLEB30T9D

11/04 2

CONTROL PANEL

GLEB30T9D Publication No: 5995421103

# Functional Parts 3 11/04

* Non-Illustrated Parts

CONTROL PANEL

Model Index: AGLEB30T9D (GLEB30T9DSA)

BGLEB30T9D (GLEB30T9DBA)

CGLEB30T9D (GLEB30T9DQA)

POS. NO PART NO. DESCRIPTION

2A 318257300 A B C Shield, oven top

2B 318260100 A B C Cover, box

19 318274620 A - - Control Panel Assembly, glass, white, w/ touch pad

19 318274622 - B - Control Panel Assembly, glass, black, w/ touch pad

19 318274621 - - C Control Panel Assembly, glass, bisque, w/ touch pad

20 # 316429710 A B C Control, electronic, 5800W3, dual oven

* 316021107 A B C Screw, hex head, 8-32, silver

23 318262900 A B C Bracket, control mtg., (2)

97 316429800 A B C Board, relay, dual oven

* 318231704 A B C Harness, wiring, control-relay

* 5303211311 A B C Screw, 8 x 0.500

Publication No: 5995421103 GLEB30T9D

11/04 4

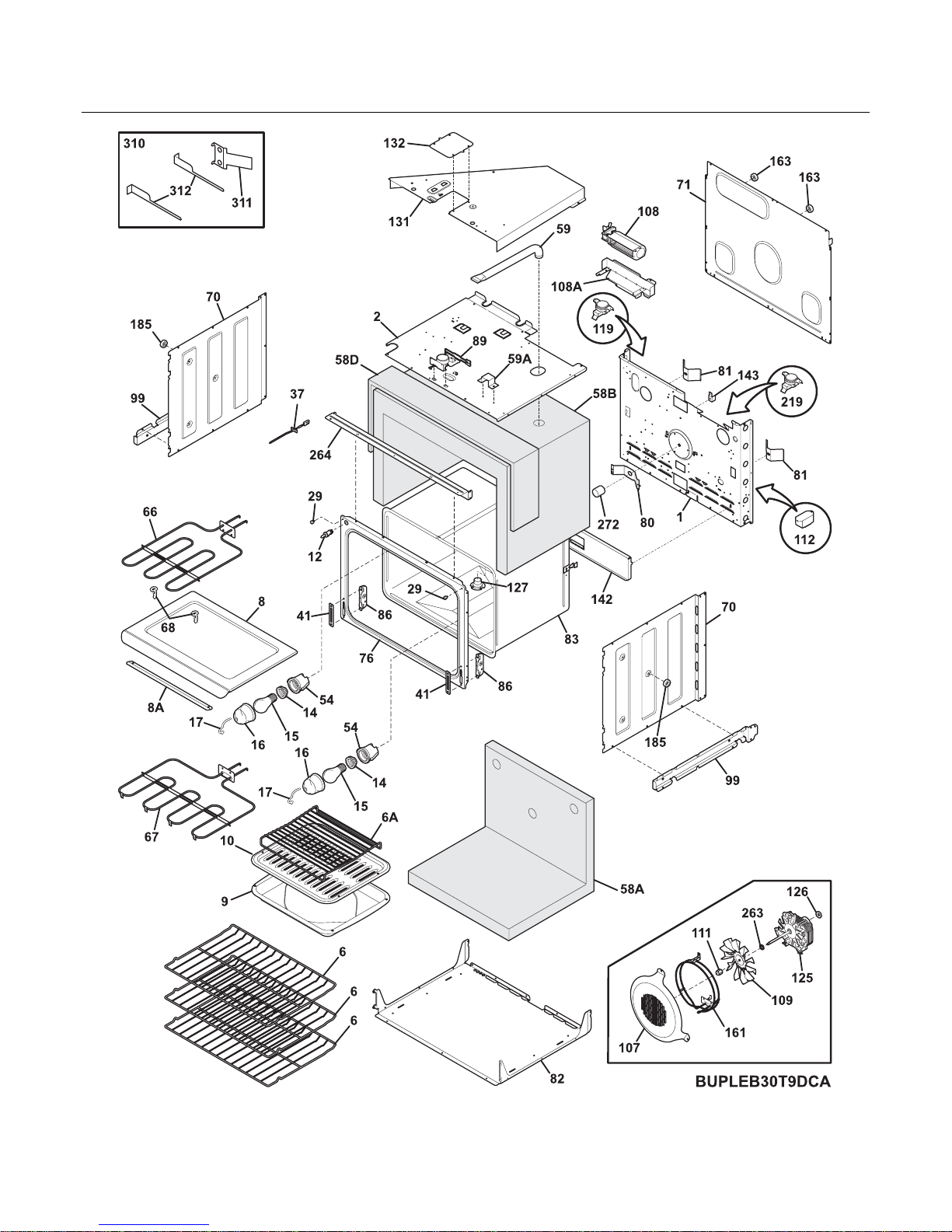

UPPER OVEN

GLEB30T9D Publication No: 5995421103

# Functional Parts 5 11/04

* Non-Illustrated Parts

UPPER OVEN

Model Index: AGLEB30T9D (GLEB30T9DSA)

BGLEB30T9D (GLEB30T9DBA)

CGLEB30T9D (GLEB30T9DQA)

POS. NO PART NO. DESCRIPTION

1 318259200 A B C Back, main

2 318258900 A B C Shield, insulation, upper

6 318262503 A B C Rack, oven

6A 318219500 A B C Rack, broiler pan

8 318262001 A B C Cover, element

8A 318285300 A B C Bracket, element cover

9 5303317977 A B C Pan, broiler

10 5303317976 A B C Insert, broiler pan

12 # 318089917 A B C Switch, light

* 3015722 A B C Clip, wire retainer

14 318224000 A B C Receptacle, oven light

14* 318268099 A B C Insulation, oven light

15 5303013071 A B C Bulb/Lamp, oven light

16 3201911 A B C Cover, oven light, glass

17 5304400195 A B C Retainer, light cover

29 318147411 A B C Bumper, door, (2)

37 # 316217002 A B C Probe, oven temp

41 5303310526 A B C Cover, hinge cutout

54 318222400 A B C Housing, oven light

58A 318133791 A B C Insulation, oven wrapper, back/bottom

58B 318133790 A B C Insulation, oven wrapper, top/sides

58D 318133793 A B C Insulation, 1/2" thick, 43 x 9.5

59 318072560 A B C Duct, oven vent

59A 318261600 A B C Bracket, vent tube

66 # 318255600 A B C Element, broil, 2750W

67 318254901 A B C Element, bake, 3400W, 8 pass

68 5304403015 A B C Support, element hanger

70 318259100 A B C Shield, insulation, sides, (2)

71 318260004 A B C Panel, rear box

76 318056217 A B C Front, oven

80 5303320846 A B C Plate, oven mtg

81 318192400 A B C Spring, oven

82 318258700 A B C Shield, insulation, lower

83 318261400 A B C Liner, oven assy

86 5303310524 A B C Receptacle, hinge

89# 318261200 A B C Motor, latch assy

* 318231705 A B C Harness, latch

99 318252800 A B C Support, side

* 5303300265 A B C Screw, 8-18 x 0.500, chrome, (3)

107 318219401 A B C Cover, fan

108# 318073018 A B C Motor, blower

* 08016432 A B C Screw, truss head, 8-18 x 0.375

108A 318251300 A B C Bracket, fan support

109 316136400 A B C Blade, fan

111 316136600 A B C Nut, fan retainer

112# 318112701 A B C Relay

119# 318004900 A B C Switch, thermal

125# 316415800 A B C Motor, fan

Publication No: 5995421103 GLEB30T9D

11/04 6

UPPER OVEN

GLEB30T9D Publication No: 5995421103

# Functional Parts 7 11/04

* Non-Illustrated Parts

UPPER OVEN

Model Index: AGLEB30T9D (GLEB30T9DSA)

BGLEB30T9D (GLEB30T9DBA)

CGLEB30T9D (GLEB30T9DQA)

POS. NO PART NO. DESCRIPTION

126 318142100 A B C Washer, motor, RH, convection

127 5303310542 A B C Adapter, vent tube, with converter

131 318272900 A B C Box, vent

132 318003000 A B C Plate, shield

142 318123910 A B C Deflector

143 318172904 A B C Support, wire/glass

161# 318255503 A B C Element, convection, 350 W

163 318014111 A B C Spacer

185 318014700 A B C Spacer, oven shield, (4)

219# 318003606 A B C Thermostat, safety

263 316136500 A B C Washer, fan motor

264 318257701 A B C Trim, oven, black, front

272 318249401 A B C Tube, protector

310 5304440067 A B C Cabinet Mounting Kit

311 318246010 A B C Bracket, cabinet mtg, (2)

311* 5304438005 A B C Screw, 6 x 1, black

312 318246702 A B C Tool, cabinet bracket, RH

312 318246703 A B C Tool, cabinet bracket, LH

* 3201861 A B C Screw, 6 x 0.375, (4)

* 5303211311 A B C Screw, 8 x 0.500

* 5303323277 A B C Screw, 8-18 X 13/32

* 5304436875 A B C Screw, 8-18 X 1/2, black

Publication No: 5995421103 GLEB30T9D

11/04 8

LOWER OVEN

GLEB30T9D Publication No: 5995421103

# Functional Parts 9 11/04

* Non-Illustrated Parts

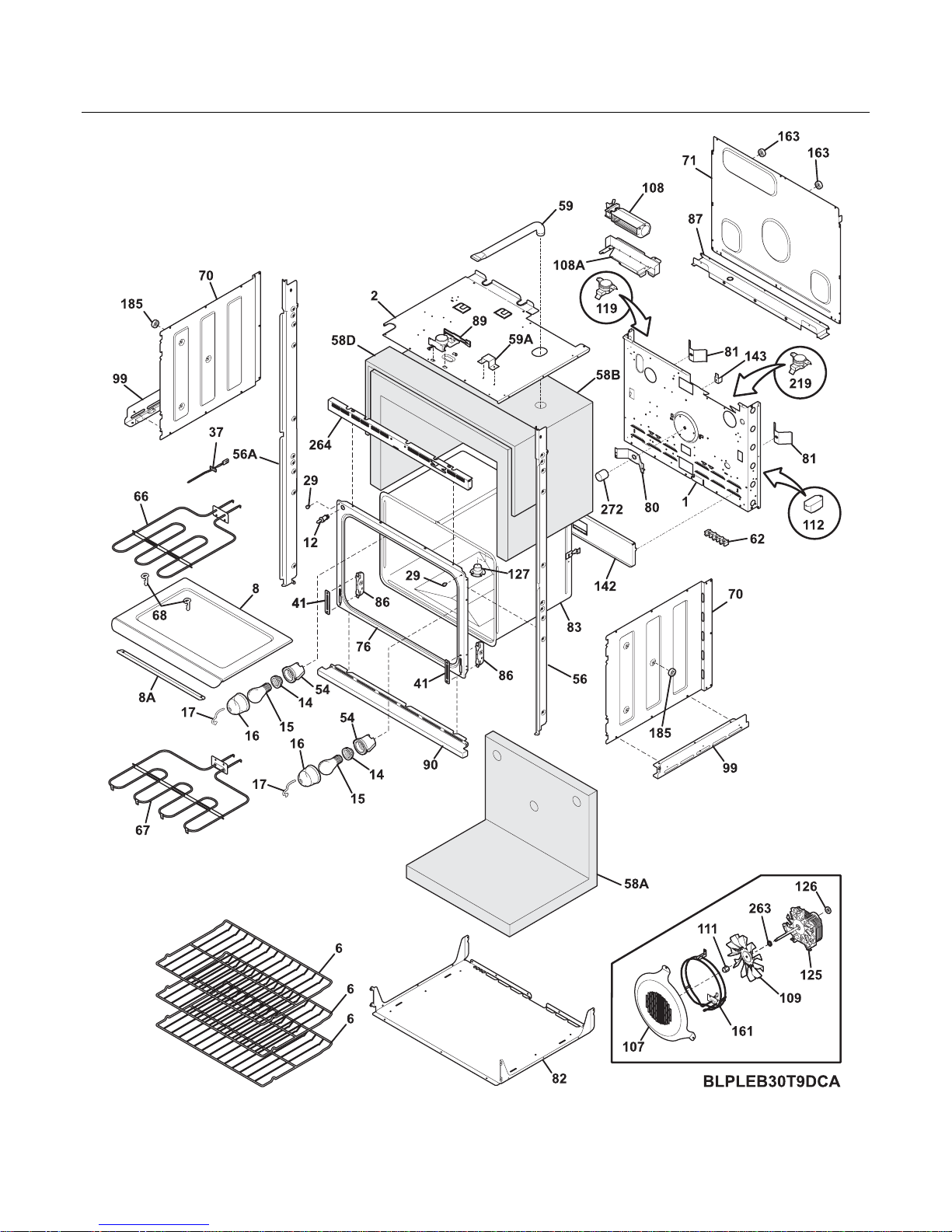

LOWER OVEN

Model Index: AGLEB30T9D (GLEB30T9DSA)

BGLEB30T9D (GLEB30T9DBA)

CGLEB30T9D (GLEB30T9DQA)

POS. NO PART NO. DESCRIPTION

1 318259200 A B C Back, main

2 318258900 A B C Shield, insulation, upper

6 318262503 A B C Rack, oven

8 318262001 A B C Cover, element

8A 318285300 A B C Bracket, element cover

12 # 318089917 A B C Switch, light

* 3015722 A B C Clip, wire retainer

14 318224000 A B C Receptacle, oven light

14* 318268099 A B C Insulation, oven light

15 5303013071 A B C Bulb/Lamp, oven light

16 3201911 A B C Cover, oven light, glass

17 5304400195 A B C Retainer, light cover

29 318147411 A B C Bumper, door, (2)

37 # 316217002 A B C Probe, oven temp

41 5303310526 A B C Cover, hinge cutout

54 318222400 A B C Housing, oven light

56 318259912 A - - Trim, side filler, white, RH

56 318259914 - B - Trim, side filler, black, RH

56 318259916 - - C Trim, side filler, bisque, RH

56A 318259913 A - - Trim, side filler, white, LH

56A 318259915 - B - Trim, side filler, black, LH

56A 318259917 - - C Trim, side filler, bisque, LH

58A 318133791 A B C Insulation, oven wrapper, back/bottom

58B 318133790 A B C Insulation, oven wrapper, top/sides

58D 318133793 A B C Insulation, 1/2" thick, 43 x 9.5

59 318072560 A B C Duct, oven vent

59A 318261600 A B C Bracket, vent tube

62 316056000 A B C Terminal Block

62* 5303323139 A B C Screw, 10-24 x 0.906

62* 5303323144 A B C Nut, 10-32

66 # 318255600 A B C Element, broil, 2750W

67 318254901 A B C Element, bake, 3400W, 8 pass

68 5304403015 A B C Support, element hanger

70 318259100 A B C Shield, insulation, sides, (2)

71 318260004 A B C Panel, rear box

76 318056217 A B C Front, oven

80 5303320846 A B C Plate, oven mtg

81 318192400 A B C Spring, oven

82 318258700 A B C Shield, insulation, lower

83 318261400 A B C Liner, oven assy

86 5303310524 A B C Receptacle, hinge

87 318260602 A B C Bracket, cable mtg.

89# 318261201 A B C Motor, latch assy

* 318231705 A B C Harness, latch

90 318259700 A - - Trim, oven front, white, bottom

90 318259701 - B - Trim, oven front, black, bottom

90 318259702 - - C Trim, oven front, bisque, bottom

99 318256200 A B C Bracket, side, bottom, (2)

Publication No: 5995421103 GLEB30T9D

11/04 10

LOWER OVEN
